KBR multisys 3D2-BSBS Operating instructions

multisys 3D2-BSBS
Operating instructions
Technical Parameter
Interfaces
for 2x KBR Modulbus

KBR GmbH
Am Kiefernschlag 7
D-91126 Schwabach
T [phone]
F [phone]
E info@kbr,de
www.kbr.de

Page I von IV
3510-1 GB
Dear Customer
We would like to thank you for choosing a KBR GmbH quality product.
In order to familiarize yourself with the operation and programming of the device and always be able to use the
whole functionality of this high-quality product, we recommend that you read this manual thoroughly.
The individual chapters serve to explain the technical details of the device and show how to avoid damage by
means of proper installation and commissioning.
The manual is included in the scope of delivery of the device and must be accessible for the user at all times
(e.g. in the switchgear cabinet). Even when the device is resold to third parties, the manual remains part of the
device.
Although we used the utmost care in assembling this manual, we would like to thank you in advance for notify-
ing us about any errors or ambiguous descriptions that might be in it. You will find a form for corrections in the
appendix.
Sincerely,
KBR GmbH Schwabach
Preface

Page II von IV
3510-1 GB
Safety Precautions
This manual contains notes that must be observed for your personal safety and to avoid damage to equipment.
Notes are identified by a warning sign or an info symbol according to the degree of hazard they represent.
Disclaimer
The contents of this manual has been checked with the described hardware and software components. Cer-
tain deviations, however, cannot be excluded, so the manufacturer is not liable for complete conformity. The
specifications made in this manual are checked on a regular basis, necessary corrections are included in the
next revision.
We appreciate your corrections and comments.
© KBR-GmbH
Subject to change
aDanger
means that death, major injuries or damage will occur in case the
appropriate safety measures are not performed.
aWarning
means that death, major injuries or damage may occur in case the
appropriate safety measures are not performed.
aCaution
means that minor injuries or damage may occur in case the appropriate
safety measures are not performed.
bNote
is an important information on the product, product handling or the
respective part of the user manual to which special reference is made.
Safety Precautions

Page III von IV
3510-1 GB
General Safety Precautions
In order to prevent operating errors, handling of the device is kept as simple as possible. This way, you will be
able to use the device very soon.
In your own interest, however, you should read the following safety precautions carefully.
aWarning
During installation, the applicable DIN / VDE regulations must be obser-
ved!
Mains connection, setup and operation of the device must only be per-
formed by qualified personnel. Qualified personnel as understood in the
safety precautions of this manual are persons authorized to setup,
ground and mark equipment, systems and wiring systems in
accordance with applicable standards.
To avoid the hazard of fire and electrical shock, the device must not be
subjected to rain or other humidity!
Before the device is connected to the mains, you will have to check
whether the local mains conditions comply with the specifications on the
manufacturer's label. A wrong connection may destroy the device!
When connecting the device, the connection chart must be observed
(see chapter "Connection chart") and the connection lines must be pow-
erless. Only use proper line material and watch the correct polarity
when wiring!
In order to ensure proper and safe operation of the product, it must be
transported, stored, installed and mounted in accordance with the speci-
fications and operated and maintained carefully.
A device showing visible damage must by all means be considered as
unfit for operation and must be disconnected from the mains!
Error detection, repairs and maintenance work may only be carried out
in our facilities or after contacting our service team. Every warranty obli-
gation of the manufacturer expires if the device is opened without writ-
ten consent from our service team. Proper operation can no longer be
guaranteed!
Opening the device may expose parts under voltage. Capacitors in the
device may still be loaded even if the device was disconnected from all
voltage sources. It is generally not allowed to operate the open device!
In facilities subject to hazard of lightning, lightning protection must be
provided for all input and output lines (recommendations see chapter
"Protective measures")!
Safety Precautions

Page IV von IV
3510-1 GB
Product Liability
With these product, you have acquired a quality product.
In its manufacture, only components of the highest reliability and quality were used. Each device is subject to
long-term testing before it is delivered.
For information on product liability, please refer to our General Terms and Conditions for electronic devices.
The warranted properties of the device apply only if it is operated in accordance with its intended use!
Disposal
Please dispose of defective, outdated or no longer used devices properly.
At your request, we will be pleased to dispose of the devices for you.
Product Liability / Disposal

Operating instructions multisys 3D2-BSBS
Version 1.00 Page 1 of 4
EDEBDA0183 / 3011-1 GB
Table of Contents
1 multisys 3D2-BSBS ...............................................................................2
1.1 Interfaces KBR module bus multisys 3D2-BSBS ..............................................2
1.1.1 Module bus connection RJ-12/RS-485 .......................................................................3
1.2 Connection diagram .............................................................................................3
2 Technical data ........................................................................................4
2.1 Power supply ........................................................................................................4
2.2 Electrical connection ............................................................................................4
2.3 Mechanical data ....................................................................................................4
2.4 Standards and miscellaneous .............................................................................4

Operating instructions multisys 3D2-BSBS
Page 2 of 4 Version 1.00
EDEBDA0183 / 3011-1 GB
1multisys 3D2-BSBS
The multisys 3D2-BSBS connects the KBR multisys modules with each other. It is used when more than
5 modules are connected on the module bus side of a KBR multisys basis device (securing the required
supply voltage).
The voltage supply for the KBR multisys modules at the output side is via multisys 3D2-BSBS. The
multisys 3D2-BSBS can supply the operating voltage for a maximum of 5 modules.
The multisys 3D2-BSBS is equipped with a power LED for supply voltage monitoring, a power supply (85
to 265V AC/DC; 2VA) and is suitable for wall mounting on a 7.5 mm deep DIN rail, in accordance with DIN
EN50022 (for distribution board mounting).
1.1 Interfaces KBR module bus multisys 3D2-BSBS
The two interfaces RJ-12 / RS-485 are galvanically separated from each other. The RJ-12 /RS-485 interfaces
are set to the parameters 38400 baud, 8 data bits, parity even, 1 stop bit. They can be terminated using two 4-
fold DIL switches (terminating resistors are integrated into the multisys).
bNote
If two gateways are used (multisys 3D2-BSES and multisys 3D6-ESBS),
the module bus distance can be extended to 1,000m maximum (RS-485 standard).
Output
Module bus connection RJ-12/RS-485, output side
Output side DIP-2
S1, S2 Off = no failsafe termination
On = failsafe termination activated
S3 Off = no termination
On = normal line termination (120Ohm)
S4 Off = no operating voltage at module bus
On = 24V activated at module bus
Input side DIP-1
S1, S2 Off = no failsafe termination
On = failsafe termination activated
S3 Off = no termination
On = normal line termination (120Ohm)
S4 not connected
LED for monitoring power supply
Input
Supply voltage 85 - 265V AC/DC; 2VA (2 pole multi-pin connector, 5 mm)
bNote The failsafe termination can only be actived once per bus segment!
ON
1234
EDE
ON
1234
EDE
Main
RS-485
RS-485

Operating instructions multisys 3D2-BSBS
Version 1.00 Page 3 of 4
EDEBDA0183 / 3011-1 GB
When used as a voltage supply / module bus expansion, the terminating resistors at the input and output side
have to be activated.
1.1.1 Module bus connection RJ-12/RS-485
Terminal assignment:

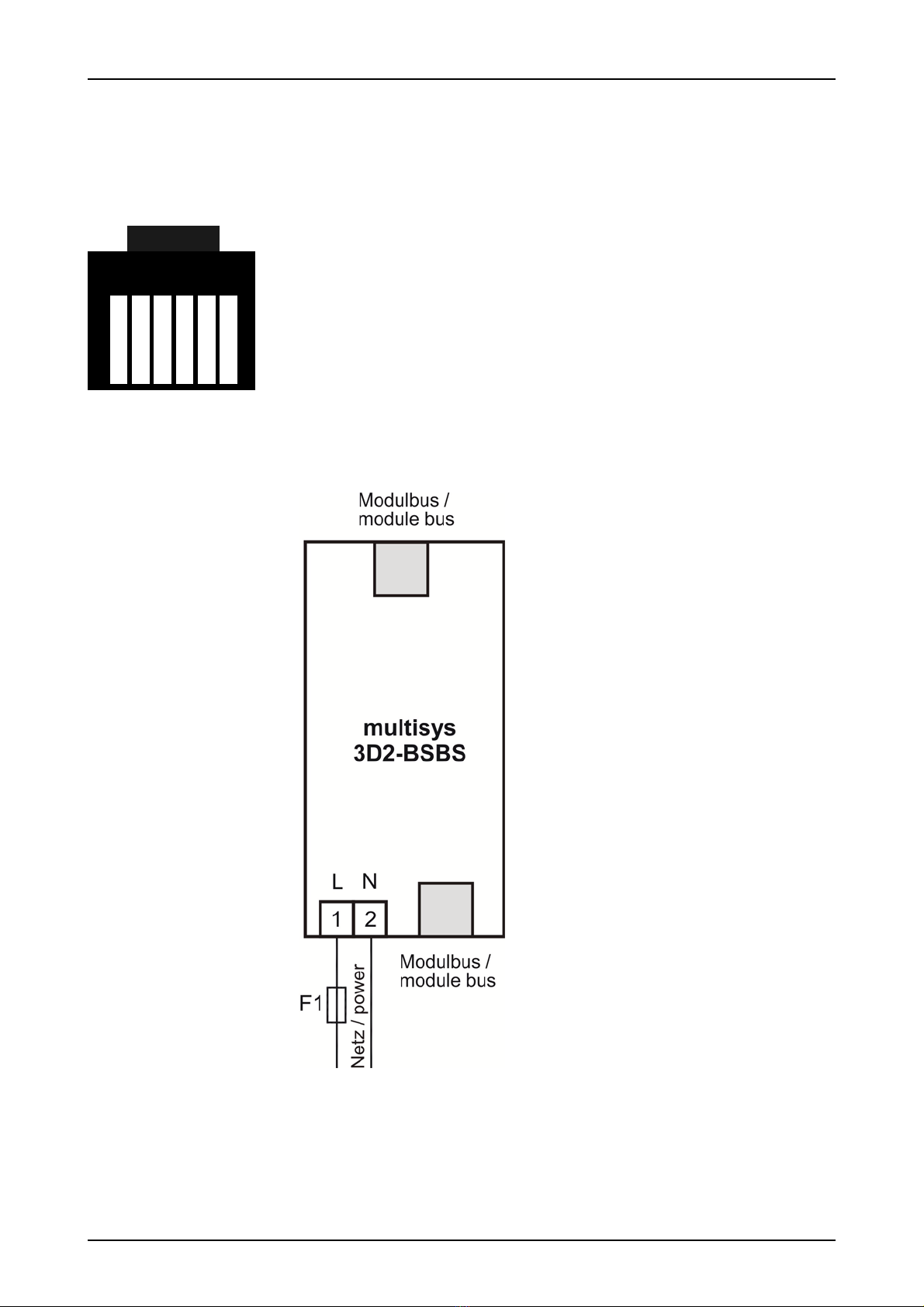

1.2 Connection diagram
* For voltage supply, see nameplate.
Pin 1: ground
Pin 2: ground
Pin 3: RT+ (A (Bus RS-485))
Pin 4: RT- (B (Bus RS-485))
Pin 5: + 24 V
Pin 6: + 24 V
1... ...6

Operating instructions multisys 3D2-BSBS
Page 4 of 4 Version 1.00
EDEBDA0183 / 3011-1 GB
2 Technical data
2.1 Power supply
2.2 Electrical connection
2.3 Mechanical data
2.4 Standards and miscellaneous
Power supply 85 - 265V AC/DC ; 2VA
Connection elements Plug-in terminals
Permissible cross section of the connection lines Power supply 2.5 mm2 , bus connection 1.5 mm2
Input
Control voltage Fuse protection max. 6 A
Module bus connection Modular connector RJ-12: 6P6C
Module bus connection Connection material Modular 6 pole cable
Top hat rail device Housing measures 90 x 36 x 61 mm (H x W x D),
Mounting type Wall mounting on DIN rail 7.5 mm deep, in accordance with DIN EN 50022
Suitable for distribution board mounting
Weight approx. 120g
Environmental
conditions Standards DIN EN 60721-3-3/A2: 1997-07; 3K5+3Z11; (IEC721-3-3; 3K5+3Z11)
Operating temperature - 5°C ….+60°C
Humidity 5% …....95%
Storage temperature -25°C ….+70°C
Electrical safety Standards DIN EN 61010-1/A2: 1996-05; (IEC1010-1/A2)
Protection class I, in accordance with DIN EN 61010-/A2: 1996-05
Overvoltage category CAT III: UPH-PH up to 400V
Mode of protection IP20 in accordance with DIN EN 40050 Part 9: 1993-05
Electromagnetic compatibility DIN EN 61000-6-3: 2005-06; (IEC 61000-6-3)
DIN EN 61000-6-2: 2006-03; (IEC 61000-6-2)

ERKLÄRUNG DER KONFORMITÄT
DECLARATION OF CONFORMITY
DÉCLARATION DE CONFORMITÉ
Wir
We/Nous (Name des Anbieters / supplier´s name / norm du fournisseur)
KBR GmbH Schwabach
(Anschrift / address / addresse)
Am Kiefernschlag 7
D-91126 Schwabach
erklären in alleiniger Verantwortung, dass das (die) Produkt(e) /
declare under our sole responsibility that the product(s) / Déclarons sous notre seule responsabilité, ques le(s) produit(s)
(Bezeichnung, Typ oder Modell oder Seriennummer / name, type or model or serial number / nom, type ou modèle, N° de lot ou de série)
multisys 3D2-BSBS
mit folgenden Europäischen Richtlinien übereinstimmt (übereinstimmen)
is (are) in conformity with the following directives / Répondet(ent) aux directives suivantes
Dies wird nachgewiesen durch die Einhaltung folgender Norm(en)
This is documented by the accordance with the following standard(s) / Justifié par le respect de la (des) norme(s) suivante(s)
DIN EN 61010-1-2001; DIN EN 61010-1/B1:2002
DIN EN 61010-1/B2:2004
DIN EN 61000-6-1:2007
DIN EN 61000-6-2:2005
DIN EN 61000-6-3:2007
DIN EN 61000-6-4:2007
(Titel und/oder Nr. sowie Ausgabedatum der Norm(en)
Title and/or number and date of issue of the standard(s)
Titre et/ou numéro et date d´édition de la (des) norme(s)
Schwabach, 18.07.2011
(Ort und Datum der Ausstellung
Place and date of issue
Lieu et date de l´édition)
Geschäftsführer
General manager
Niederspannungsrichtline Nr.
Low Voltage Directive No.
Directive Basse Tension N°
EMV-Richtlinie Nr.
EMV Directive No.
EMV Directive N°
2006/95/EG
2006/95/EC
2006/95/CE
2004/108/EG
2004/108/EC
2004/108/CE
KBR GmbH Am Kiefernschlag 7 D-91126 Schwabach T [phone] F [phone] E [e-mail] www.kbr.de

1309-1 DE / GB
An To
KBR GmbH KBR GmbH
Abteilung Entwicklung Development
Am Kiefernschlag 7 Am Kiefernschlag 7
D-91126 Schwabach D-91126 Schwabach / Germany
Vorschläge:
Korrekturen:
Betrifft Gerät:
Suggestions:
Corrections:
Device concerned
Sollten Sie beim Lesen dieser Bedienungsanleitung oder
Druckschrift auf Druckfehler gestoßen sein, bitten wir
Sie, uns diese mitzuteilen. Ebenso freuen wir uns natür-
lich über Anregungen, Hinweise oder Verbesserungsvor-
schläge.
Bitte geben Sie die betreffende Anleitung oder Druck-
schrift mit Versionsnummer und/oder Ausgabestand an.
If you come across misprints in this user manual or prin-
ted material, please take the time to notify us. We will
also be glad to hear your ideas, notes and suggestions for
improvement.
Please identify the user manual or printed material in
question with version number and/or revision number.
Absender / Sender:
Name:
Firma/Dienststelle, / Copany/Department:
Anschrift / Address:
Telefon / Phone:
Telefax / Fax:
email:
Korrekturvorschläge zur Bedienungsanleitung / Druck-
schrift
Corrections/Suggestions for user manual / Printed mate-
rial
Version
