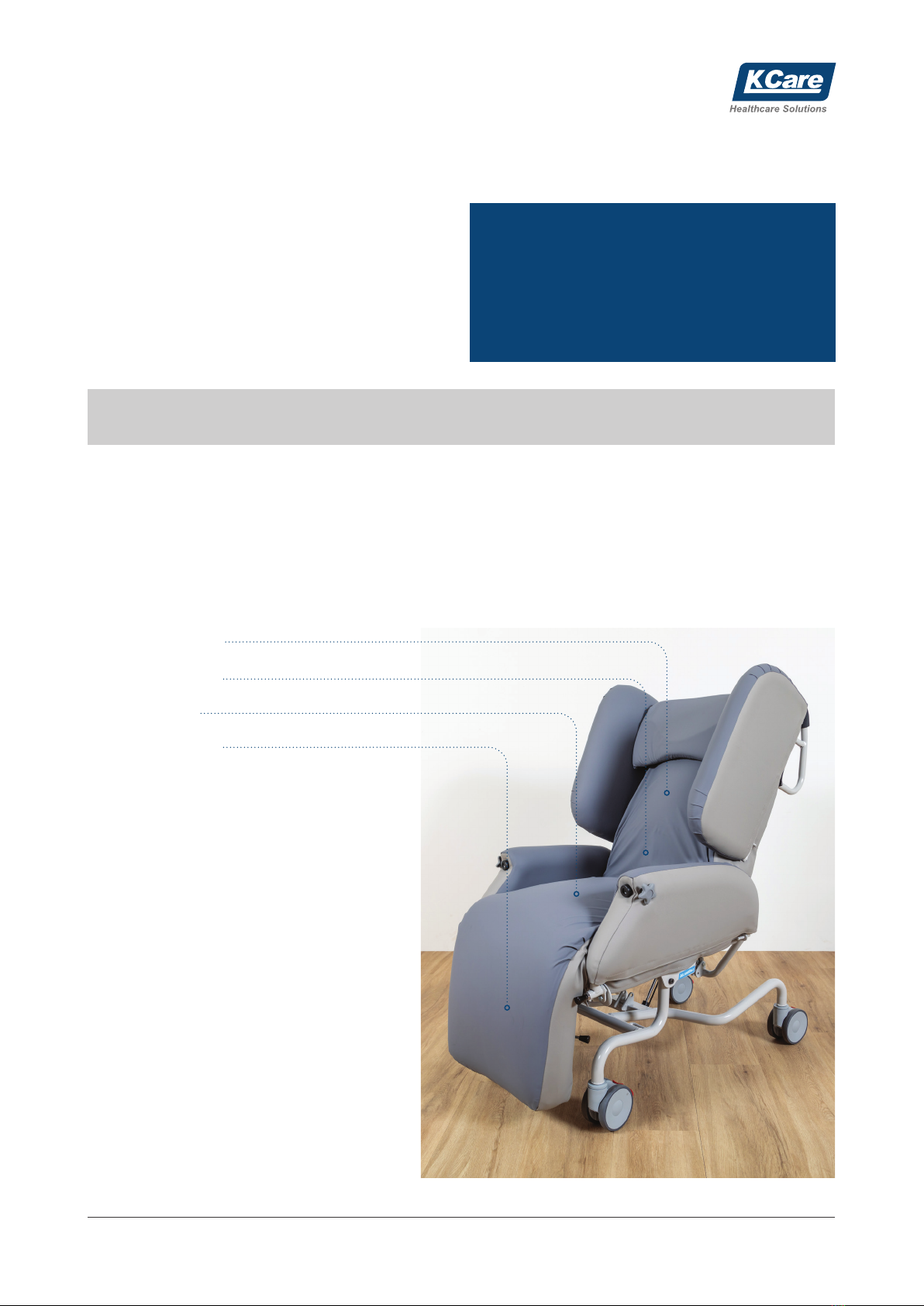

KCare AirComfort Deluxe User Manual 1
1
DELUXE V2
User Manual
VERSION 1.0 09/2020

KCare AirComfort Deluxe User Manual 2
INDEX
01 SAFETY PRECAUTIONS 02
02 SPECIFICATIONS 02
03 OPERATION 03
04 MAINTENANCE 09
05 SERVICING 13
06 SPARE PARTS 14
07 WARRANTY 15
KCare AirComfort Deluxe User Manual 01

KCare AirComfort Deluxe User Manual 3
01 SAFETY PRECAUTIONS
• The Deluxe V2 has been designed and manufactured with safety
and function in mind for both the occupant and operator.
• The MAXIMUM user weight is 180kg. (Small, Medium and Standard)
• The MAXIMUM user weight is 300kg. (Deluxe V2 Maxi)
• This Deluxe V2 has been designed for indoor use only (not including
wet areas).
• Always lock ALL the castors when the Deluxe V2 is stationary.
• Users MUST read and follow the user manual to ensure all
instructions are followed and not compromised.
• Follow the maintenance and cleaning instructions to extend the life
of the Deluxe V2.
• Ensure the occupant is secure in the seat before operating the seat
tilt or backrest recline functions.
• Ensure that the occupant is fully supported at all times when
operating the optional forward seat tilt functions.
• If using a patient sling, the patient should remain supported by the
sling until the chair is adjusted from forward seat tilt to flat or reclined.
02 SPECIFICATIONS
PRODUCT CODE
MAXIMUM STATIC
USER WEIGHT
CAPACITY
OVERALL DIMENSIONS
(Sitting Position) CASTORS DELUXE V2 WEIGHT
AC59115
Deluxe V2 Maxi 300kg 1360mm L X 950mm W X 1385mm H
3 x 150mm Quality
total lock grey
rubber castors
1 x 150mm Quality
directional lock grey
rubber castor
100kg
AC59114
Deluxe V2 Small
180kg
Overall
1000mm L X 670mm W X 1130mm H
Seat Width 430mm 3 x 125mm Quality
Twin total lock
PU castors
1 x 125mm Quality
Twin directional lock
PU castor
40kg
AC59116
Deluxe V2 Medium
Overall
1100mm L X 670mm W X 1130mm H
Seat Width 430mm
45kg
AC59111
Deluxe V2 Standard
Overall
1130mm L X 680mm W X 1260mm H
Seat Width 470mm
MATERIALS Mild steel construction, Epoxy powdercoat finish, High and low density Foam, Carrflex extreme PU and CarrPVC fabrics, TPU air bladders,
(Other material specifications available upon request)
Please refer to AirComfort website for options available (www.kcare.com.au)

KCare AirComfort Deluxe User Manual 4
03 OPERATION

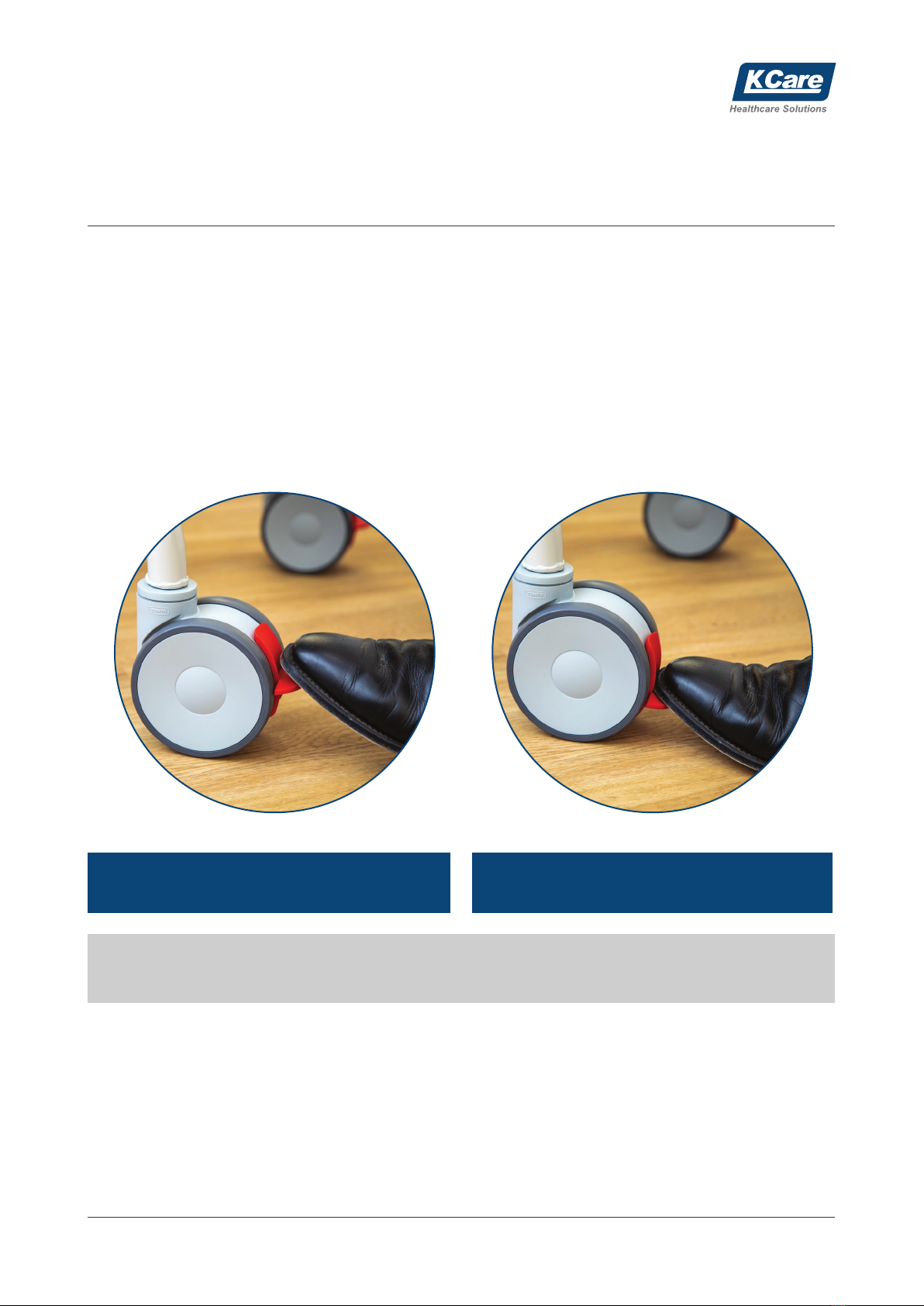

CASTORS
All three of the total lock castors on the DELUXE V2 MUST be braked when the chair is stationary. The total lock castors
have a RED brake lever at the trailing end of the castor whilst the directional lock castor has a GREEN locking lever at the
trailing end of the castor. The directional lock castor can be unbraked to allow the DELUXE V2 to be moved sideways and
re-braked to improve straightline tracking of the chair when being pushed. NOTE: Before engaging the directional castor,
push the chair forward and then brake the directional locking castor, setting the castor to it’s correct alignment.
To BRAKE CASTOR
using your foot, push lever down.
To UNBRAKE CASTOR
using your foot, push top of lever down.
Note: Castors should be inspected daily, ensuring that all foreign matter (hair, lint etc) is removed
from the castors as soon as possible, allowing free movement of all castors.

KCare AirComfort Deluxe User Manual 5

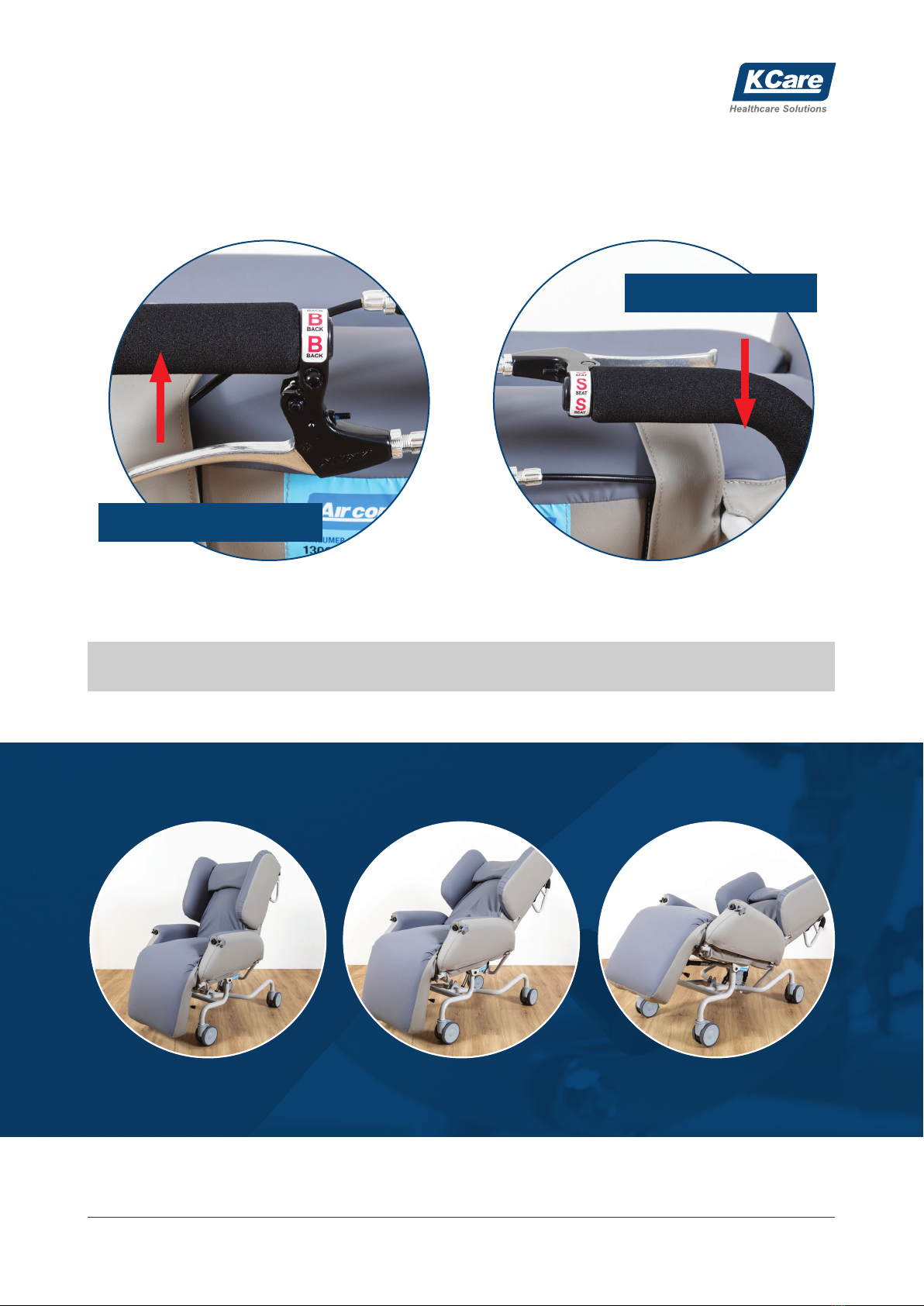

CHAIR ADJUSTMENT
Note: Ensure wings are up when adjusting the seat or backrest of the DELUXE V2
Pull in the required lever and adjust the
seat and/or backrest as required.
Release the lever to set the chair in position.
Seat Adjustment Lever
Backrest Adjustment Lever
03 OPERATION

KCare AirComfort Deluxe User Manual 6

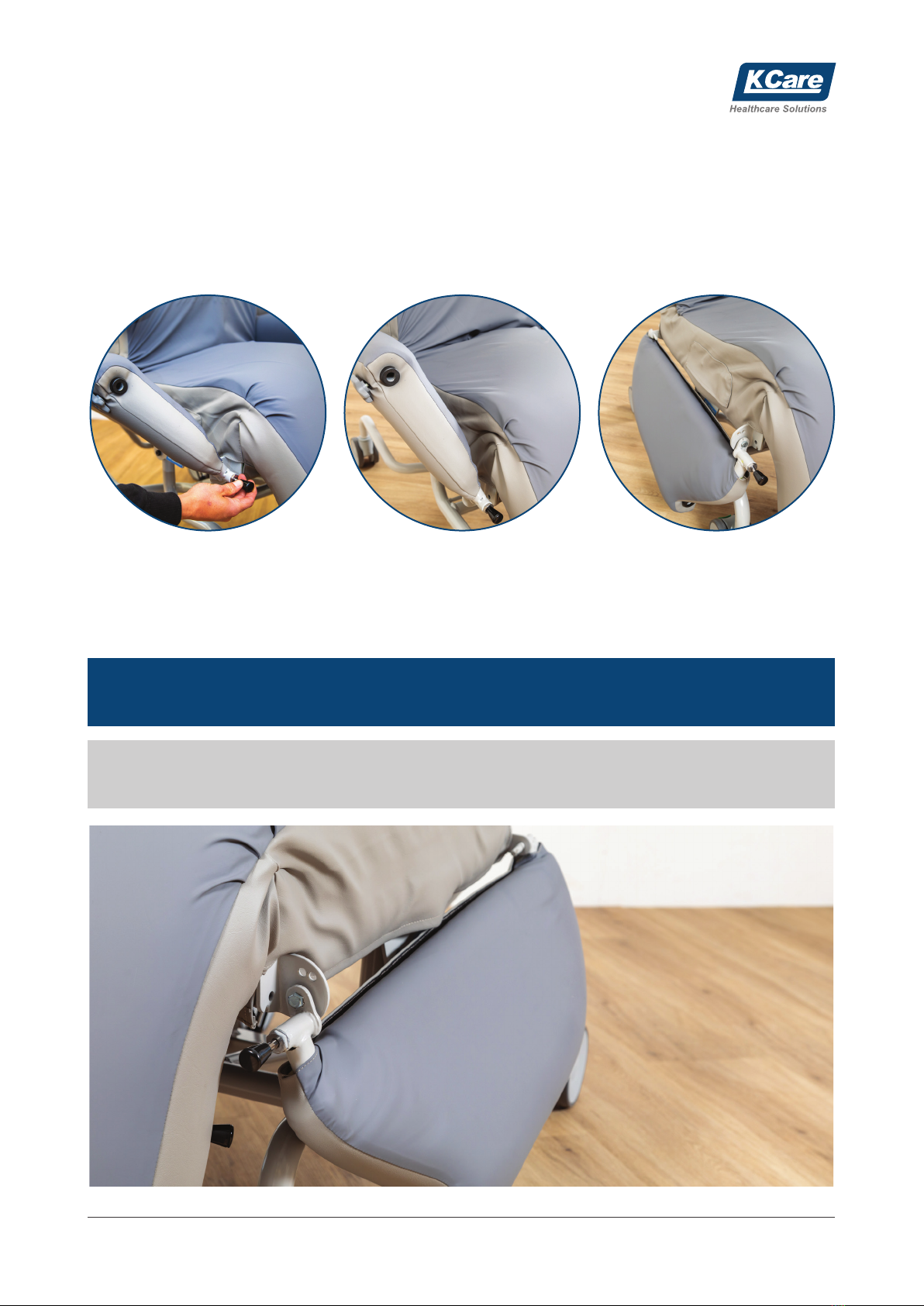

SEAT ARM ADJUSTMENT
The seat arms on the DELUXE V2 can be rotated into three set positions.
NOTE: Always use one hand to pull the release pin and the other hand to guide the arm to the required
position. Allowing the arm to drop down without guidance may cause damage to the arm.
Ensure arms are in the UP position before leaving the occupant or moving the DELUXE V2.
To rotate the arm to the required position,
pull the black release pin head out and
begin to rotate the arm as shown below.
Let go of the release pin and rotate the arm until you hear a
‘CLICK’ which indicates the arm is fixed into position.
03 OPERATION

KCare AirComfort Deluxe User Manual 7

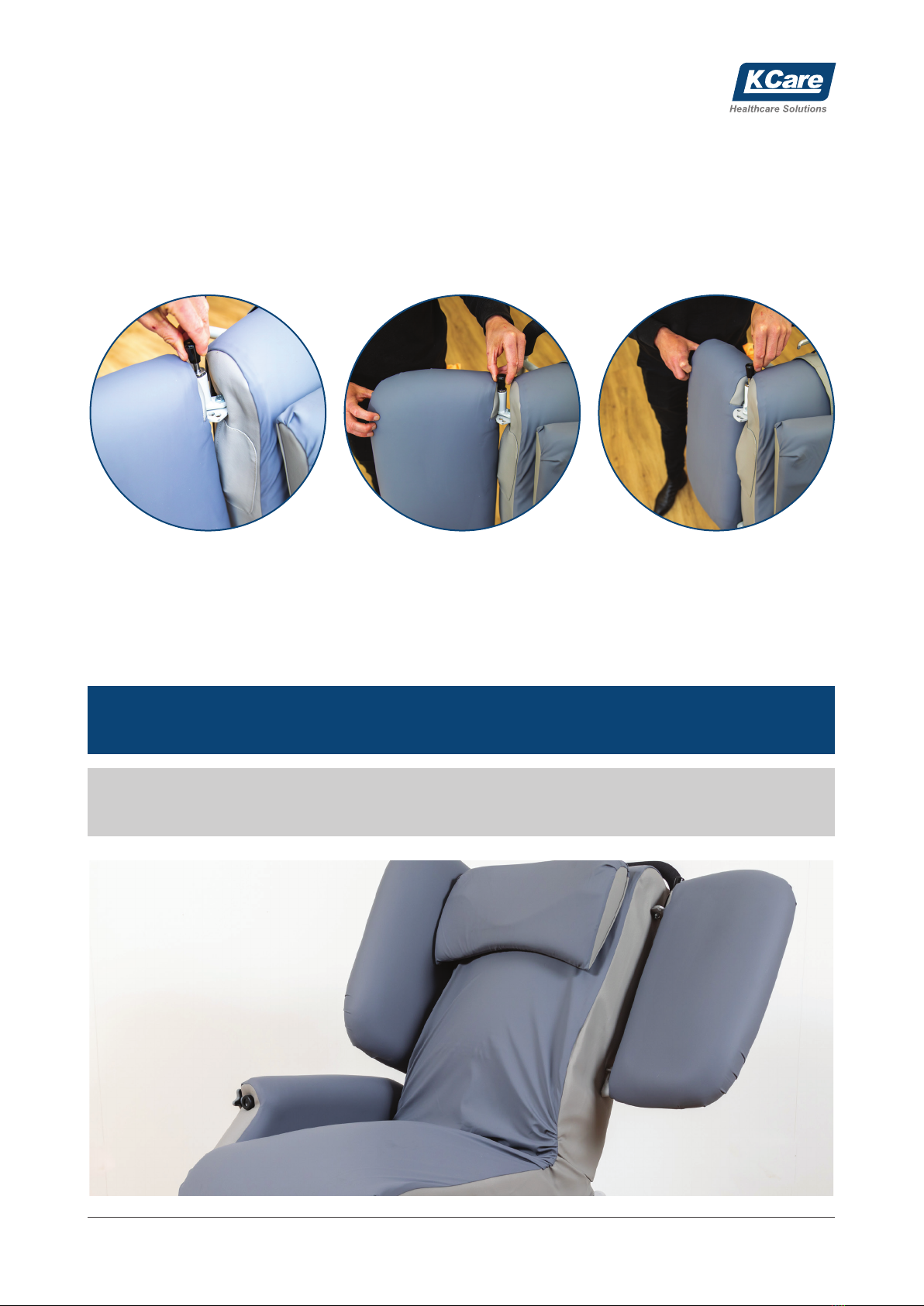

BACKREST WING ADJUSTMENT
The backrest wings on the DELUXE V2 can be rotated into four set positions.
NOTE: Always use one hand to pull the release pin and the other hand to guide the wing to the required
position. Allowing the wing to drop down without guidance may cause damage to the wing.
Ensure wings are in the UP position before leaving the occupant or moving the DELUXE V2.
To rotate the wing to the required
position, pull the black release pin head
out and begin to rotate the wing as
shown below.
Let go of the release pin and rotate the wing until you hear a
‘CLICK’ which indicates the wing is fixed into position.
03 OPERATION

KCare AirComfort Deluxe User Manual 8
LEG REST ADJUSTMENT
The leg rest on the DELUXE V2 can be rotated through 85° and set at any position throughout that range.
Before adjusting the leg rest, ensure that all three total lock castors are braked.
To adjust the leg rest to the required position, pull the
release lever located at the rear of the leg rest on the
right hand side and rotate the leg rest as required.
Let go of the release lever to set leg rest in position.
03 OPERATION

KCare AirComfort Deluxe User Manual 9
HANDLEBARS
The handlebars on the DELUXE V2 have been ergonomically designed to allow operators of various heights to have a
multitude of hand positions, ensuring comfort and maximum leverage when manoeuvring the chair and occupant.
03 OPERATION

KCare AirComfort Deluxe User Manual 10
04 MAINTENANCE
INSPECTIONS
The DELUXE V2 should be inspected on a daily basis for damage.
Areas to be checked include: Upholstery, levers, gas struts,
push handle, exposed framework and castors.
All moving parts of the DELUXE V2 should operate freely
and be void of any foreign matter. (especially the castors)
Any exposed bolts (including castor bolts) should be
checked every 6 months and tightened if required.
Castors should be checked and kept free from foreign
matter such as hair.
If any part of the DELUXE V2 is damaged, it should
be removed from service immediately until repaired or
replaced. Please refer to page 15 for details on
servicing requirements.
Levers
Push handle
Castors
Upholstery
Gas struts
Exposed framework

KCare AirComfort Deluxe User Manual 11
SEATING SYSTEM
This product is fitted with the unique AirComfort Seating System that is designed to redistribute seating pressure and
improve overall comfort. The AirComfort Seating System is comprised of four separate air cushions:
• Backrest air cushion
• Lumber air cushion
• Seat air cushion
• Leg rest air cushion
Each air cushion is inflated to a pre-determined
volume that is based on extensive testing.
This inflation will be suitable for most users
provided that the correct size chair has been
selected or prescribed. It is unlikely that the
level of inflation in the air cushions will require
adjustment to suit an individual user, however,
should adjustment be desired, please follow the
detailed instructions outlined below.
Please note that these instructions explain how
to reset each air cushion to the original level of
standard inflation.
To do so, it is first necessary to fully deflate each
air cushion. If for any reason additional inflation
beyond standard is desired, it is not necessary
to first deflate the air cushions.
CLEANING
The DELUXE V2 should be washed regularly with mild soapy
solution or approved cleaner on heavily stained areas. Treat
stains promptly to prevent permanent staining on upholstery.
The castors should be wiped with a mild soapy solution and
then dried after heavy use.
Note: A full list of approved cleaners is available on the KCare website
WARNING:
• Do not use harsh chemicals or abrasive
cleaning products
• Do not high pressure clean the DELUXE V2.
• Do not autoclave.
04 MAINTENANCE

KCare AirComfort Deluxe User Manual 12
SEATING SYSTEM
This product is fitted with the unique AirComfort Seating System that is designed to redistribute seating pressure and
improve overall comfort. The AirComfort Seating System is comprised of four separate air cushions:
Backrest air cushion Lumber air cushion Seat air cushion Leg rest air cushion
1111
04 MAINTENANCE
Air Cushions
• Backrest x 1
• Lumbar x 1
• Seat x 1
• Leg rest x 1

KCare AirComfort Deluxe User Manual 13
• Backrest valve
• Lumbar valve
• Seat valve
• Leg rest valve
04 MAINTENANCE
Resetting Air Cushions
Step 1 – Deflation
Each of the four air cushions is fitted with an extended tube and brass Schrader valve that can be accessed externally on
the chair. When facing the chair, each valve is located on the left hand side of the upholstery.
NOTE: To reset inflation level to standard setting, ensure the air cushion is first fully deflated.
The backrest wings and seat arms
should be rotated into the down
position to best gain access to the
valves. First remove the valve cap.
To gradually release air, FLIP THE CAP
OVER and use the tip to compress
the valve core. Simultaneously apply
pressure to the cushion by hand or by
sitting in the chair until the cushion is
fully deflated.
To quickly deflate the cushion, use
the hand tool supplied to remove the
valve core. Then apply pressure to the
cushion by hand or by sitting in the
chair until the cushion is fully deflated.
Schrader valve

KCare AirComfort Deluxe User Manual 14
Resetting Air Cushions
Step 2 – Inflation
04 MAINTENANCE
If the valve core has been removed to quickly deflate the cushion, first refit the valve core to prevent air escaping
following reinflation. Each AirComfort chair is supplied with a hand inflation pump. Correct inflation is based on air
volume and measured by the number of full compressions of the supplied hand pump. It is possible to purchase a
larger pump (FOOTPUMP) for improved efficiency.
Caution: There is a low level of inflation as
standard in each of the air cushions. This
level of inflation is set to ensure that the user
benefits from maximum immersion into the
cushion, while still being supported by air.
Correct immersion into the cushion increases
overall surface contact, redistributes pressure
and improves comfort. Conversely, adding too
much inflation beyond standard can increase
seating pressure and reduce comfort.
To use the hand pump, first remove the
hose from the handle and screw the
hose into the end of the pump cylinder.
Remove the cap from the valve if
necessary, then screw the hose end
to the brass valve. Ensure the hose is
fitted firmly to compress the core and
allow air to flow.
Once the air cushion has been reset,
screw the cap back onto the valve,
then tuck the tube and valve securely
back into the upholstery pocket to
prevent damage.

KCare AirComfort Deluxe User Manual 15

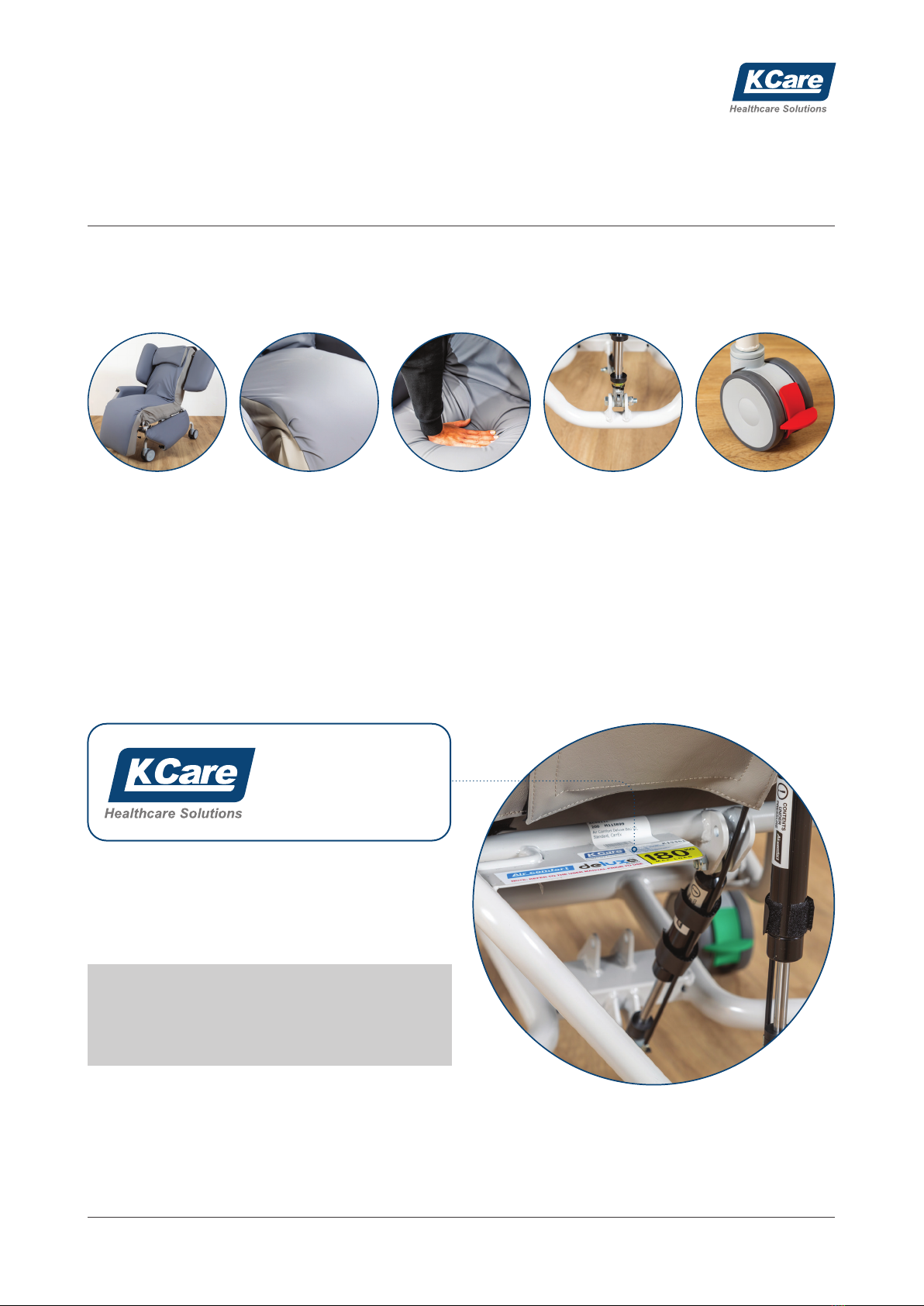

05 SERVICING
IMPORTANT NOTE: Only trained technicians
should service the DELUXE V2.
We recommend a 6 month preventative maintenance service on the DELUXE V2. Please contact our service department or
your local dealer to arrange a service programme. Preventative maintenance service includes:
Ensure the DELUXE V2 is inspected and repaired if necessary. (see next page for spare parts information)
Please advise the serial number of the product when
contacting KCare or your local dealer. The serial number can
found at the rear of the DELUXE V2, on the left hand side
below the backrest as shown below.
Examine DELUXE
V2 for structural
problems
Check and reset
air cushions
Check and clean
upholstery
Check levers and
gas struts
Check and
clean castors
836A Fifteenth Street, Mildura Vic 3500
ABN 47159431099
Ph: 1300 783 783
Fax: [phone]
Email: [email protected]
Web: www.kcare.com.au
ACXXXXXX

KCare AirComfort Deluxe User Manual 16
06 SPARE PARTS
PARTS IDENTIFICATION
Please refer to this diagram for reference when contacting KCare or your local dealer for spare parts, stating part description.
(see over page for code)
Air Cushions
• Back Rest
- DV2BACK (Std & Med V2)
- DV2BACKS (Sml V2)
• Lumber
- DV2BACK (Std & Med V2)
• Seat
- DV2SEAT (Std & Med V2)
- DV2SEATS (Sml V2)
• Leg rest
- DV2LEG (Std & Med V2)
- DV2LEGS (Sml V2)
• Brass Valves
- DV2VALVE (1 Per Air Cushion)
Complete Upholstery Cover
• AS59111 (Std V2)
• AS59116 (Med V2)
• AS59114 (Sml V2)
Plastic Meal Tray Nut
• NUTBLKS
Release Knob
• KNW8B
Brake Lever
• 590BL
Hand Grip
• DV2GRIP
Plastic Foot
Rest Nut
• NUTBLK Tri Wheel
• 1/4MTI
5 Star Wheel
• 5/16STAR
Gas Struts
• Back Recline
- GS100
• Seat Tilt
- GS100
• Leg Rest
- GS150
Gas Struts Cables
• Back Recline
- CABLE1230 (Std & Med V2)
- CABLE1000 (Sml V2)
• Seat Tilt
- CABLE1400 (Std, Med & Sml V2)
• Leg Rest
- CABLE800 (Std, Med & Sml V2)
125mm Twin
Quality Castors
Total Lock
• AS59111
• AS59114
• AS59116
- 125TTCB
- 125TTCDL
150mm Twin
Quality Castors
• AS59115
- 150TTDL
- 150TTTL

KCare AirComfort Deluxe User Manual 17
1. KCare Healthcare Solutions provides consumers with the following warranty in relation
to this Product, in addition to complying with the requirements of any relevant legislation,
including the Competition and Consumer Act 2010 (Cth) in Australia and the Consumer
Guarantees Act 1993 in New Zealand (the Acts), except where a New Zealand consumer
acquires the Product for the purposes of a business. The benefits to the consumer given
by this warranty are in addition to other rights and remedies of the consumer under the
applicable Act.
2. In this warranty, we have used the following definitions:
(a) Form means a Warranty Claim Form issued by KCare Healthcare Solutions in respect
of Products.
(b) KCare Healthcare Solutions or our means KCare Healthcare Solutions Pty Ltd, ABN 47
159 431 099 of 836A Fifteenth Street, Mildura, Victoria, 3500.
(c) Products means the goods manufactured by KCare Healthcare Solutions (including
products manufactured by its contract manufacturers) set out in the table on the front
page;
(d) Material means a material or component used by KCare Healthcare Solutions in the
manufacture of the Products;
(e) Retailer means the authorised dealer of the Products from whom the Product was
purchased;
(f) Warranty Period means the period within which a defect must appear as set out in
the table on the front page, commencing from the date of purchase of the relevant
Product. If the Product or part (as the case may be) is repaired or replaced, there will be
no extension to the original warranty period; and
(g) Workmanship means the handling, assembly and manufacturing processes performed
by or on behalf of KCare Healthcare Solutions in order to manufacture the Products.
3. KCare Healthcare Solutions warrants that for the duration of the Warranty Period, all
Products will be free of faults arising from defects in Workmanship or Materials, on the
terms and conditions set out in this warranty.
4. KCare Healthcare Solutions undertakes that if during the Warranty Period any Product,
or any part of a Product, has failed to operate correctly due to faulty Workmanship or
defective Material, it will repair or replace the Product or part (as the case may be) free of
charge (excluding freight fees if applicable) provided that the following procedure is met:
(a) The consumer must contact the Retailer or KCare Healthcare Solutions upon
becoming aware of any defect to a Product. The consumer will then be provided with
a Form, which must be completed be the consumer and returned to KCare Healthcare
Solutions at the address, facsimile number or email address stated on the back page
together with satisfactory proof of purchase.
(b) KCare Healthcare Solutions will review the completed Form to determine whether there
is a defect, and if so KCare Healthcare Solutions agrees to (at its option) repair, replace
or supply equivalent goods, or pay the cost of any of those remedies to the consumer.
(c) If KCare Healthcare Solutions requests the return of the applicable Product or part,
the consumer will be responsible for the collection and freight costs of returning that
Product or part to KCare Healthcare Solutions.
(d) The consumer acknowledges that it is also responsible for the freight costs to deliver
any new Product or replacement part to it.
5. To the extent that the supply of Products is a supply to a consumer within the meaning of
the applicable Act, the consumer is entitled to consumer guarantees under the applicable
Act which KCare Healthcare Solutions does not exclude, restrict or modify. In all other
respects, and to the extent permitted by law, KCare Healthcare Solutions:
(a) Limits its liability for any non-excludable condition or warranty to rectifying any defect at
its option, as set out in paragraph 4(b); and
(b) Excludes liability (whether express or implied) of any nature whatsoever for any
consequential loss, damage or injury arising as a result of any fault in the Products.
6. This warranty does not extend to damage to Products which occurs during transit
or transportation, or which is caused by an abuse, accident or improper installation,
connection, use, adjustment or repair or use of goods otherwise than in accordance with
instructions issued by KCare Healthcare Solutions.
7. The warranty on Products is waived if any addition or attachment to the Products do not
have KCare Healthcare Solutions approval or are not sold as KCare Healthcare Solutions
products. The Products are designed to perform specific tasks under established test
loads and unauthorised attachments may produce stresses for which the design is not
appropriate.
8. The following applies to consumers who purchased a relevant Product in Australia:
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Product Warranty Period
KCare | TUBALCO | R & R
All Products (Inc. all electrics) 12 Months
Upholstery 12 months
Shower Chairs, Stools & Toilet Seat Raisers (Zinc Treated products) 36 months structural
5 Years anti-corrosion (external tube only)
Shower Chairs, Stools and Toilet Seat Raisers (Aluminium products) 36 months structural
5 Years anti-corrosion (external tube only)
Shower Chairs, Stools and Toilet Seat Raisers (Stainless steel products) 36 months structural
5 years anti-corrosion
KERRY | OXFORD EME | EASYVET
General Equipment 36 months
KERRY
Manual Handling Equipment 24 months
Slings 12 months
AIRCOMFORT
Frame Compact Lift Chair 36 months
Frame Day Beds 36 months
Foam 36 months
Air Bags and Gas Struts 12 months
Castors 12 months
Fabric 12 months
MY COMFORT
MC100 & MC310 Frames 10 years
MC100 & MC310 Electrics 2 years
07 WARRANTY
WARRANTY AGAINST DEFECTS IN GOODS

KCare AirComfort Deluxe User Manual 18
KCare Healthcare Solutions
836A Fifteenth Street, Mildura Vic 3500
ABN 47159431099
Ph: 1300 783 783
Fax: [phone]
Email: [email protected]
Web: www.kcare.com.au
