KDK GZG90H User manual

Includes Warranty
・Please read the operating instruction and Warranty terms carefully in order to use
the dehumidifier correctly.
In particular, be sure to read the "Safety precautions" section (page 6-9) before use
to ensure a safe operation.
Keep the operating instruction in a safe place along with the warranty
documentation for future reference.
・Correct information shall be written on warranty card including date of purchase and
name of distributor.
Warranty card shall be provided upon purchase.
Thank you very much for purchasing dehumidifier.
Operating instructions
GZG90H
ModelNo.
Dehumidifier

Efficient
dehumidification
in humid seasons.
Efficient
dehumidification
in humid seasons.
Powerful
dehumidification
during cold seasons.
Powerful
dehumidification
during cold seasons.
Dry clothes
during pollen-rich
season!
Dry out the bathroom
after a bath!
Dehumidify and
dry clothes easily!

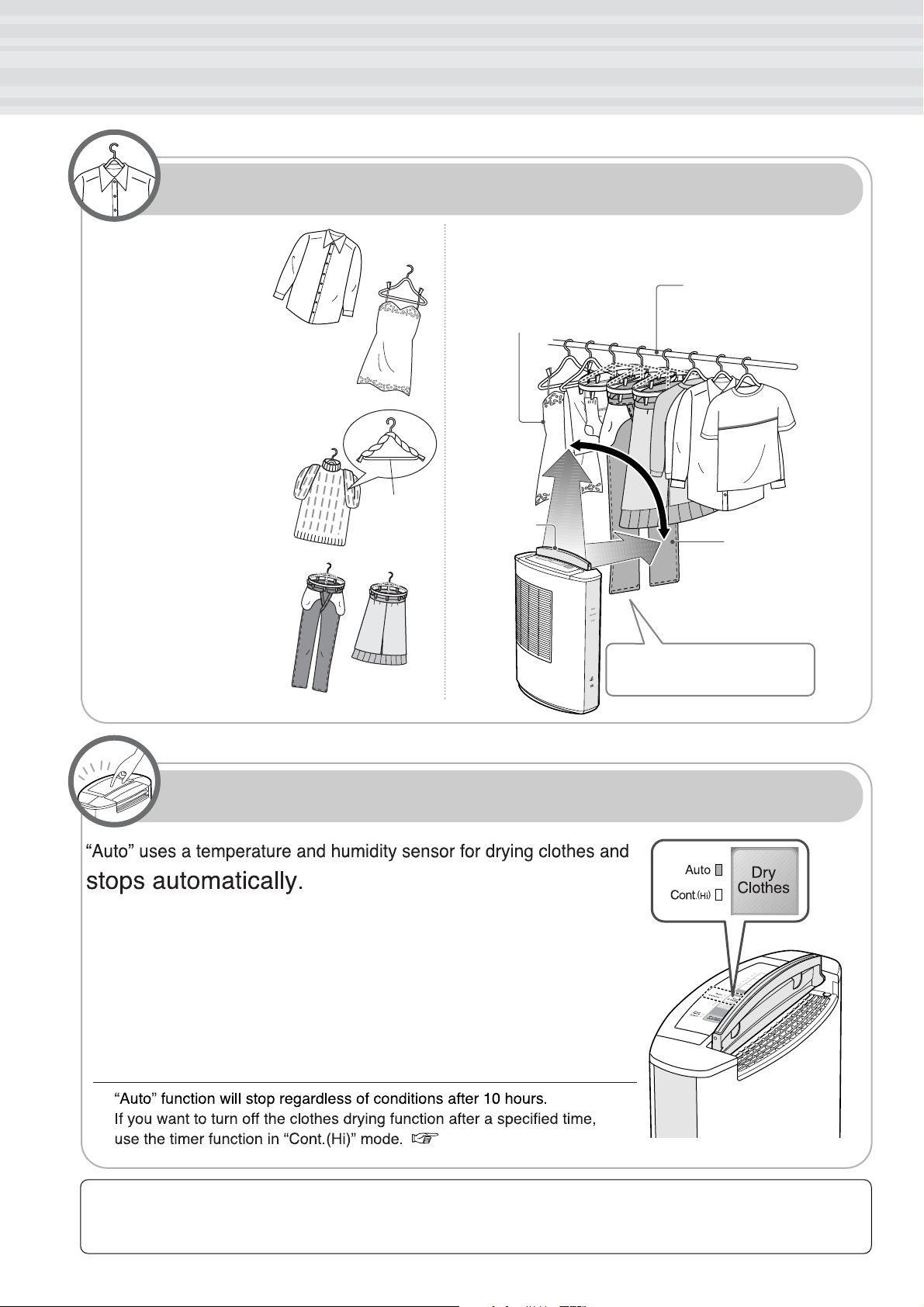

Tips for drying clothes
●For drying…
●Operating modes…
●Taking the clothes down…
●More about the dehumidifier…
●To maintain a pleasant humidity…
●To dehumidify quickly…
●To dehumidify quietly…
Dry clothes
●To dry clothes automatically

●To dry clothes quickly…
Page
13
I want to know more!
Page
13
Page
14
,
15
Room humidity control
2

●Part names ………………………………4
●Safety precautions ………………………6
●Before use ………………………………10
●
Effectiveness of desiccant technology …………10
●
Effectiveness of the filter …………………………10
●
Effectiveness of the mega-active-ion ……………10
●
Positioning the dehumidifier ………………………11
●
When operating ……………………………………11
Before use
How to use
Contents Page
●Operating the dehumidifier……………12
●
Room humidity control ……………………………13
●
Dry clothes…………………………………………13
●Tips for drying clothes…………………14
●Adjusting the air swing and louver
directions ………………………………16
●Useful functions ………………………18
●
Timer ………………………………………………19
●
Louver directions ……………………………………… 19
●
Louver flap …………………………………………19
●
Turning the Humidity indicator On and Off………19
●What to do if... …………………………20
●Empty the tank …………………………21
●
When the tank is full ………………………………21
●
Removing and installing the tank…………………21
●Maintenance ……………………………22
……………………………26
●
Filter/ Main unit ……………………………………22
●
Tank ………………………………………………23
●
When not using the unit for long period of time…23
●Troubleshooting…………………………24
●
Identify the problem ………………………………24
●
Under normal operation …………………………25
●
When the Alert indicator lights up ………………25
●Specifications
Efficient
dehumidification
in humid seasons.
Powerful
dehumidification
during cold seasons.
Dry clothes
during pollen-rich
season!
Dry clothes
during pollen-rich
season!
Dry out the bathroom
after a bath!
Dry out the bathroom
after a bath!
Utilize in cold temperatures with
desiccant technology!
(Effectiveness of desiccant technology
page 10)
( page 16)
The multi-directional
swing mechanism
allows you to
blow air in a range of
directions to dry any
shaped room.
Stops automatically
when your clothes are dried.
(Operating modes page 14)
3
GZG90H

Part names
Handle
Power Cord
Air Inlet
Air Outlet
Mega active ion


Filter
( page 10）
( page 10)
( page 16)
( page 19)
Operation Panel
( page 5）
Flap
Louver
●Adjustable (3 steps)
●Swing and louver directions
●Super alleru-buster.
Anti-bacteria,
Green tea catechin.
(page 5,19）

Humidity indicator
Main unit
●Remove to allow drainage.
●Indicates when the tank
is full or is not installed
securely.
( page 21）
( page 23）
●Remove to allow
access to tank.
Tank
Power Plug
4

Humidity indicator
On / Off button
( page 12）
Dry Clothes button
Dehumidifying button
Louver Direction button
Air Swing button
Timer button
Timer indicator
( page 13）
( page 13）
( page 19）
Air Swing indicator
( page 16）
Louver Direction indicator
( page 16）
( page 13）
( page 21）
( page 16,17,19）
( page 19）
( page 16,17）
Operation indicator
Full Tank indicator
( page 25）
Alert indicator
Before Use
Operation panel
●Under normal
humidity condition,
the green Humidity
indicator lights up.
●Humidity varies under different temperature
even though same amount of moisture
exists in the air.
Humidity can also vary according to
airflow. So, air temperature and airflow
can make a difference of humidity
condition between a room hygrometer
and the Humidity indicator on the
dehumidifier.
●To turn off the Humidity indicator ( page 19)
(Red)
40%−
(Green)
40−60%
(Red)
60%+
High Humidity
Normal Humidity
Low Humidity
5
GZG90H

Safety precautions
■

■

■

■

■

Be sure to observe the following safety precautions in order to avoid possible injuries or property
damages of yours or others.
Failure to follow directions marked with this symbol may result in serious
personal injury or death.
This symbol indicates that caution is advised.
This symbol indicates an action that must NOT be performed.
This symbol indicates an action that must be performed.
Failure to follow directions marked with this symbol may result in personal
injury or property damage.
Using a damaged cord may cause electrical shock,
short circuit or even fire.
・

To re pair the cord or plug, please contact the
dealer where the dehumidifier was purchased.
Failure to insert the plug fully
can lead to electrical shock and
overheating or may cause fire.
・

Do not use a damaged plug
or a loose power outlet.
Exceeding the rating by using a multi-connector or
other such devices can build up heat or may
cause fire.
■ ■
No! No!
Do not use the dehumidifier
while the power cord is
pulled tight.
It may cause a short-circuit or
damage the wires inside the
cord, and fire or electric shocks
may occur.
It may cause a short-circuit or
damage the wires inside the
cord, and fire or electric shocks
may occur.
Do not pull on the power cord
when carrying or storing away
the dehumidifier.
6

■

Doing so can cause electrical
shock or injury due to contact
with internal parts.
■

Doing so can cause electrical
shock or injury by the fan
rotating inside the unit.
■

■

Doing so may result in
electrical shock.
Overheating can result in
electrical shock or fire.
・
Consult the store or repair
center of the distributor where
the unit was purchased.
■

Plastic parts may melt and
cause fire.
■

■

Accumulated moisture on the
plug may lose the effect from
the insulating layer of the
plug or cause fire.
・

Pull out the plug and wipe it
with a dry cloth.
Pull out the plug whenever
the unit is not in use.
This can lead to overheating
that may result in electrical
shock or fire.



■

Failure to do so may result in
electrical shock or injury,
as the unit will start in sudden.
■

Doing so can result in electrical
shock or fire.
・
Consult the store where the
unit was purchased for repairs.
7
GZG90H

Safety precautions
■

■

■

■

■

■

■

■

nDrinking this water ca cause
illness.
Doing so can short the circuit
or result in electrical shock.
Water may spill onto the unit
and result in insulation failure,
electrical shock or fire.
Doing so may result in
deterioration of the paintings
or documents.
Doing so can cause incomplete
combustion in the appliance and
result in carbon monoxide poison.
Doing so may result in
electrical shock or fire.
Leaking gas may accumulate
near the unit and a spark can
cause a fire.
Lack of ventilation can cause
overheating or fire.
■

■

If the cord is pulled directly,
it may cause short-circuit or
damage the wires inside the cord.
Fire or electric shock may occur.
If the unit falls over, water may
spill out and damage belongings
or cause electrical shock or fire.
・
If the unit falls over, immediately
return it to an upright position.
( Page 20)
8


■

■

■

■

The unit may
fall and result in injury.
・

Be sure to use the handle
when lifting the unit.
■

■

Poor ventilation can lead to
overheating and fire.
Water may spill onto household
items and result in electrical
shock or fire.
Air with those evaporated chemicals
and any that kind of substances
may degrade the unit and result
in the leakage of collected water
onto household items.
You ma y fall or knock over the
unit and result in injury.
The heat generated by this unit
can increase room temperature.
Facing directly the exposure
airflow from the unit for extended
periods of time can result in
discomfort or dehydration.
This may have a negative
effect to the plant or animal.
■

If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
■

Doing so may cause the unit
to heat up or result in electrical
shock or fire.
9
GZG90H

Room Temperature
and Level of Dehumidification
(Humidity 80%,50Hz)
Before use
Effectiveness of desiccant technology
Dried air Dried air
Heater
Heat Exchanger
Tank
Zeolite
Moisture


passesout
Moisture


isabsorbed
Humid
room air
Humid
room
air
Desiccant is a dehumidification method that does
not use coolants. Thus, it helps protect our global
environment. Furthermore, its dehumidifying
capacity does not drop even the room temperature
is low ( see figure below), so it can still achieve
its dehumidifying capacity even on cold winter days.
Explanation
● Desiccant (a material with strong water absorption
ability) absorbs the moisture and then expels dried air.
That moisture is turned into drops of water in the heat
exchanger and is collected in the tank.
Effectiveness of the mega-active-ion
Effectiveness of the filter
・ To i n hibit allergen.
Restrain the activity of allergens caught by filter.
・Testing Facility: Osaka Municipal Technical Research Institute
・Testing Method: Apply with enzyme immunoassay method
providing the reduction on refined allergens.
※Dust mites (dead bodies, droppings), Pyroglyphidaers
(dead bodies, droppings), cedar pollen, ragweed pollen,
orchard grass pollen, dog dandruff, cat dandruff, mold,
fine wheat powder and cypress (12 types).
・ To r e move bacteria and mold
To r e strain the reproduction of the bacteria caught by filter.
・Testing Facility: Japan Food Research Laboratories

・Testing Method: Confirmation by applying an outdoor
planting method in a standard outdoor culture center.
Super
alleru-buster
Anti-bacteria
Super alleru-buster, Anti-bacteria, Green tea catechin
Important
●
Please do not use the unit
while the filter is removed.
・
The performance of the filter cannot
be judged.
・
If dust is collected within the
appliance, break-down may result.
Please Note
●
The filter may have some light brown
color dots on it. But please use it as
normal and it does not affect the filter
performance.
●
om the filters, but it does
・Testing Facility: Japan Food Research Laboratories

・Testing Method: Measured a change in virus numbers
within an examination box using CPE.
Viruses
Suspended Bacteria and Mold Spores
・Testing Facility: Japan Food Research Laboratories
・Testing Method: Measured by capturing suspended
bacteria and mold in an air sampler.
Inhibits allergens in the air.
How it works
Mega active ion
Electrodes
●The mega active ions are released whenever the unit is turned on.
●Green tea catechin is also added to the filter.
The composite filter has an unique
fragrance from catechin that does no
harm to human body.
10
10 20 27
5
0
Room Temperature (℃)
Compressor
Desiccant
Level of
Dehumidification
(litres per day)
Calculated based on our simulation test.
10

Before Use
Air Outlet
More than 20cm
More than 60cm
More than 20cm More than 20cm
Air Inlet
More than 5cm
(when louver is
open)
When louver is closed
( see box at the right)
●When using the unit near a TV or radio,
please keep at least 1m gap. (Otherwise,
image disturbance or white noise may
happen.)
Positioning the dehumidifier
When operating
When using the unit near walls or other furniture,
please keep the distance in between as below.
(With bad ventilation, the temperature may rise and
may result in breakdown of the unit.)
Use with louver Closed
Please make sure there is at least 40cm
between the unit and any walls or furniture.
If the appliance is located too close to a wall or
furniture, there will be too little space for the air to
escape and the unit may overheat and result in the
Humidity indicator working incorrectly.
●Room temperature will rise while the
dehumidifier is in operation, but this is normal.
●It is recommended to keep doors and
windows closed while the unit is in operation.
Opening doors and windows can af fect room
temperature and humidity level, it may then take
longer time to dehumidify or dry clothes.
●The indoor odor caused by wall or furniture
in the room will be reproduced in the air outlet.
( see page 24 for information on any smell from
the appliance.)
Heat is emitted while in operation. Varies depending
upon the room size and air flow, this rise can be
from 3 to 8 degrees Celsius. If room temperature
gets too high, set the appliance to Auto mode.
(In this mode, the temp. rise can be reduced.)
( page 13)
●Operation is possible at room
temperatures from 1 to 40 degrees Celsius,
and at a humidity above 20%.
●The dehumidifying capacity is reduced as
the room temperature and humidity fall.
If same room is dehumidified continuously, the
humidity in the room will become low and the
dehumidifying capacity is also reduced.
●Condensation and mold may appear.
Despite the dehumidifier operates, it is possible that
condensation and mold could still appear on a
window facing outside or in areas with poor
ventilation (such as behind furniture).
At a room temperature outside the range of 1 to 40
degrees Celsius, the dehumidifying operation will
stop and only air circulation will occur. Additionally,
when below 20% humidity, the unit will stop all
operation as a protective measure.
( see page 25 for information about when the
Alert indicator lights up.)
Separate
40cm or more
When louver
is closed
Louver
Wall
or
furniture
No!
No!
Do not use the dehumidifier
while the power cord is
pulled tight.
It may cause a short-circuit or damage
the wires inside the cord, and fire or
electric shocks may occur.
It may cause a short-circuit or
damage the wires inside the
cord, and fire or electric shocks
may occur.
Do not pull on the power
cord when carrying or
storing away the dehumidifier.
11
GZG90H

Operating the dehumidifier
Note ●"Auto" mode will automatically switch the heater on and off in order to maintain a humidity of
55%. (If humidity is less than 55%, operation will stop.)
●When you press a button to turn the power on or off or switch the operating
mode, the unit will make a clicking sound. However, this is not a malfunction.
●When Auto Dry Clothes mode is activated, Timer cannot be functioned.
●When the unit starts in "Lo"speed mode, the fan will blow at a medium level for the first two
seconds.
●
Be sure to wait for 2 minutes before unplugging the power cord. (The fan will operate for
about 2 more minutes after the unit is turned off for cooling down the heater.)
Important
Humidity indicator
Dehumidify
button
( page 5,19)
( page 19)
Operation indicator
Dry Clothes
button
Air Outlet
Mega active ion
Air Outlet
( page 10)
Power Plug
Timer button
Air Swing button
Louver Direction button
( page 16)
Power Off/On button
●When this button is pressed, the louver
will completely open and the unit starts
operate. (The Operation indicator and
Humidity indicator will light up. 
page 5)

●
If press again, the unit will turn off.
(All indicators will turn off.)
Louver
12

How to use
1
When dehumidifying or drying clothes, first make sure the louver is opened.
2
Press
Dry clothes
Press the and select operation mode.
To dry clothes automatically ……………………………………

The unit stops operate when it detects the clothes are dr ied.
To dry clothes quickly…………………………………

●
When pressed, the mode and the indicator will change. (Indicator lights up.)
(indicator on)
(Strong fast air-flow. It runs continuously.)
(Tips for drying clothes page 14)
1
2
Press
Room
humidity
control
●The louver fully open and the
unit starts to operate in "Normal"
mode. (Indicator lights up.)
Insert the power plug into wall socket.
Insert the power plug into wall socket.
To maintain a pleasant humidity………

( see Note on page 12)
To remove humid air………………

(dehumidifies regardless of room humidity)
To dehumidify quietly………………

(dehumidifies regardless of room humidity)
(indicator on)
To dehumidify quickly………………



(strongest airflow)
Press
Press
Please read
"Tips for drying
clothes"
carefully
（ page 14）
3
3
Choose your mode of operation.
Choose air swing pattern and louver directions.
(page 16)
Choose air swing pattern and louver directions.
(page 16)
●The louver fully open and the
unit starts to operate in "Normal"
mode. (Indicator lights up.)
13
GZG90H

Basing on the standard of Japan Electrical Manufacturers' Association (JEMA-HD090), the approximate drying time is 59
minutes. Testing Conditions: Mode: "Dry Clothes", Room Size: "9.72m2", Temperature: 20 degrees Celsius, Humidity: 70%,
Weight of clothes: 2kg (3 t-shirts, 2 shirts, 1 pair of pajamas, 7 underwears, 2 pairs of socks and 3 towels). Actual drying time
will differ depending on environment and usage conditions.
Tips for drying clothes
Shirts, etc.
Firmly fasten
the buttons.
Light underwear, etc.
Fasten securely
to a hanger.
Sweaters
Wrap a towel around
the hanger to increase
its thickness, allowing
more dry air to pass
through.
Attach the sleeves to
the shoulders to prevent
them from elongating.
Jeans / Skirts
Turn them inside out
and dry in a well
ventilated area.
Firmly stretch out creases on the clothes and ventilate
them well. Dry them in the shape you want them to be in.
For drying
Operating modes
To allow good airflow,
line the clothes up and
leave space between
each garment.
T-shirts and underwear
are easy to dry, so put
these at the ends.
Allow a 40cm gap between
the air outlet and any clothing.
Air Outlet
Hang thick
clothing directly in
front of the air
outlet.
● 

●
( page 19)
●The sensor detects the temperature and humidity of the room,
estimates the condition of the clothes and stops automatically.
●For 2kg of clothing, the drying time would be around 4 to 6 hours*,
and 6 to 8 hours* for 4kg.
●The role of the sensors is for Auto-stop function only.

*Temp 20 degrees, Humidity 50%, Room Size 13m2.
According to our own usage tests. Actual drying time will differ
depending on environment and usage conditions.
( )
(indicator on)
Hanger
14

When hanging clothes in dry indoors, the evaporated
humidity becomes
condensation that will be absorbed by carpet or cushion.
When it takes a long time for clothes to dry, the bacteria may be
retained and results in odors. In addition, when drying indoor, the damp
clothes absorbs the odors inside the room. Using dehumidifier can
prevent from these happening, as it dry your clothes quickly.
When hanging clothes to dry naturally indoor, it takes a
long time to dry and results in odors due to the
accumulated bacteria on the clothes.
Before drying your shoes with a dehumidifier, firstly blow them with
"cold air" setting of a hair dryer until no water is dripping. Then, place
them on a hanger and hang them above the dehumidifier. Adjust the
blowing angle so that the dry air is directed onto the shoes.
If your shoes get wet in the rain, use a dehumidifier to
dry them quickly for the next day.
Do not use a dehumidifier on leather
shoes. Doing so may deform and affect
the quality of the leather.
Leather shoes
When the clothes are dried,
quickly take the clothes down.
Take them down without crumpling,
carefully fold them and
put them into closets.
In rainy days, even after drying,
clothes can re-absorb moisture.
Taking the clothes down
More about the dehumidifier
Drying
Dehumifying Handling Making
good use
Approximate 100 to 300ml of moisture are released from 1kg of
clothes every hour.This is the same as sprinkling about one cup of water
around your room.When hanging clothes in dry indoors, it is important
to use a dehumidifier to quickly remove humidity inside the room.
15
GZG90H

Adjusting the air swing and louver directions
Useful for drying a small
amount of clothes quickly
Useful for drying clothes
Oscillates between
Spot and Wide.
concentrating on a small area.
hung across a wide area.
Useful for drying clothes
hung diversely.
Spot
Wide
Wave
●When pressed,
“Air Swing” will cycle
through Wave,
Wide and Spot.
●
If you do not select a
mode, the air outlet will
expel air along its full
width (Indicator is off).
While in operation
press
Adjusting
the air
swing range
●When pressed,
“Louver Dir.” will cycle
through Down,
Up and Auto.
●
If you do not select a
mode, the louver
direction will not
change (Indicator is off).
To dry clothes at
downward direction.
To dry clothes at
upward direction.
To dry large amount of
clothes hung in large area.
Down
Up
Auto
While in operation
press
Adjusting
the louver
directions
Louver
Horizontal
airflow
Air Outlet
Vertical
airflow
Louver
●
Important
Do not move the louver
manually while it is swinging.
→To return the previous
setting of the louver,
press the Louver
Direction button again
and adjust the appropriate
position.
16

How to use
Open the doors and point the air outlet inside.
Open the doors and point air outlet inside.
●Do not dry leather shoes. ( page 15)
●Do not put the unit inside
the cupboard or closet. ( page 8)
●Drying items in an elevated position.
●Drying items in an elevated position.
●Drying two levels hanged clothes, top and bottom.
Clothes
drying
Dehumidifying
usage examples
usage examples
17
GZG90H

Useful functions
Humidity
indicator
( page 5,19)
Power Off/On
button
Louver Dir. Button /
indicator
Timer button / indicator
Louver
Flap
18

and Press and hold for 3 seconds.
●Turns the Humidity indicator On and Off.
During operation
Tur ning the
Humidity
indicator On
and Off
Timer
During operation,
Press
(indicator on)
cancel
(indicator off)
How to use
●
Each press changes the timer setting.
●
The indicator changes as time passes, indicating how much time remained.
●
In "Dry Clothes / Auto" mode, Timer cannot be used.
●
If the Full Tank indicator flashes while the timer is set, the unit will stop operate.
The timer will still continue to count down.
Louver
directions
During operation,
When the louver is in the desired
position,
Press "Auto" louver
direction
Press
the "Louver Dir." button
to cancel oscillation.
Louver Full range
Desired
angle
Louver
●
The louver oscillation stops and the
indicator turns off.
●
Does not oscillate
1
2
Louver flap
Flap un-widened.
(level 1)
Flap widened.
(level 2)
Flap fully widened.
(level 3)
Flap Flap Flap
●
To widen the louver range vertically.
( see page 16 to widen the air outlet's fan range horizontally)
●
The flap can be adjusted by hand (3 steps).
19
GZG90H

What to do if...
●Is cold, moist air getting into the room?
→Avoid opening and closing the doors/windows very often.
●Is it an item which is difficult to dry and need to be squeezed
dry by hands?
●Are you using a heater near the unit?
→If the temperature near the sensor is high, it will not be able to
accurately judge the drying time.
●Does the air flows through all of the clothes?
Also, are the clothes packed close together or piled up?
→For clothes that are difficult to get dry, try running the dryer in "Auto"or
"Cont.(Hi)"again.
●Depending on the amount and type of clothes, they could be difficult to
get dry.
A
Hole
Hole
Louver
Pin
Pin
Flap
Louver
Pin on the unit
Hole
Dry
clothes
function
Takes long time to
dry clothes in
"Auto"mode
Does not dry
clothes completely
even after "Auto" mode
is finished.
()
●Try using "Normal" mode under "Dehumid."
( page 13)
→Drying time is longer than " Dry Clothes".
Operate with loud
noise
The unit has been
knocked over
The louver / louver
flap is detached
Immediately place the unit in upright position.
(Do this quickly to prevent as much water leakage as possible)
→The unit will automatically stop running.
→The Full Tank indicator will flash.
●Install the louver by
attaching the pin into the
slot as shown in ○
A.
●Install the flap by
attaching 2 pins to the
equivalent holes on the
louver.
20
