Kelant Orbeat D100 User manual

D100 3D PRINTER
PRODUCT MANUAL
D100-3D printer Instructions
Shenzhen Kelandi science and Technology Co., Ltd.
Thanks for choosing Kelant Orbeat D100 printer ！

Please read the user manual carefully.
Please visit www.kelandi.cn for firmware and
slicing software updates .
Email us：[e-mail] for any
supports or suggestions .
Copyrighted by “shenzhen Kelandi Technology co.,Ltd”All rights reserved .

Contents
一、Packing List 1
二、Precautions 2
三、Technical Specifications 3
四、Product overview 4
五、Menu Directory 5
六、Assembling and leveling instructions 7
七、Software installation 11
八、First print Instructions 16
九、 FAQ and Machine maintenance 17

1
1.Packing List
Orbeat D100 printer 1PCS
Build Plate 1PCS
Resin VAT 1PCS
USB disk 1PCS
250ml resin 1PCS
(for some country )
Gloves 1Pair
FEP Film 1PCS
Tool kit 1PCS
Pliers 1PCS
Scraper 1PCS
Power adapter /power
cord 1PCS
D100-3D pinter
Instructions 1PCS

2
2.Precautions
Please contact our Customer service first if you have any questions
after you received the printer
Keep the Kelant Orbeat D100 and its accessories away from
Children 。
Use printer at room temperature ,Avoid direct sunlight and
dusting environment
Kelant Orbeat D100 must NOT be exposed to water and rain.
Wear gloves when handling the resin and avoid direct resin
contact
Be cautious when using the scarper .Never direct the scraper
towards your hand
Few accessories in Kelant Orbeat D100 printer are consumables
and the warranty coverage may vary
Do not disassemble Kelant Orbeat D100 printer,Please
contact technical support if you have any questions .
In case of emergency ,Please immediately cut off the power of
Kelant Orbeat D100 printer and contact technical support .

3
3. Technical Specification
Printing parameters
System Kelant
Operation 3.5-inch touch screen
Slicing software Chitu
Connectivity USB Disk
Specifications
Technique LCD Shadow Masking
Light Source UV-LED
（
Wavelength 405nm
）
XY Resolution 0.047mm
（
1440*2560
）
Z axis accuracy 0.00125mm
Suggested layer thickness 0.01~0.2mm
Print speed 20mm/h
Rated power 72W
Physical Dimensions
Dimension 225mm
（
L
）
*225mm
（
W
）
*415mm
（
H
）
Build Volume 115mm
（
L
）
*65mm
（
W
）
*155mm
（
H
）
Material 405nm UV-resin
Weight ~6.7kg

4
4.Product Overview
Cover
Operating screen
Wire rod
Fixed knob
Fixed screw
Printing platform
nut
Rrsin
VAT

5
USB Interface
Power interface
Power switch

6

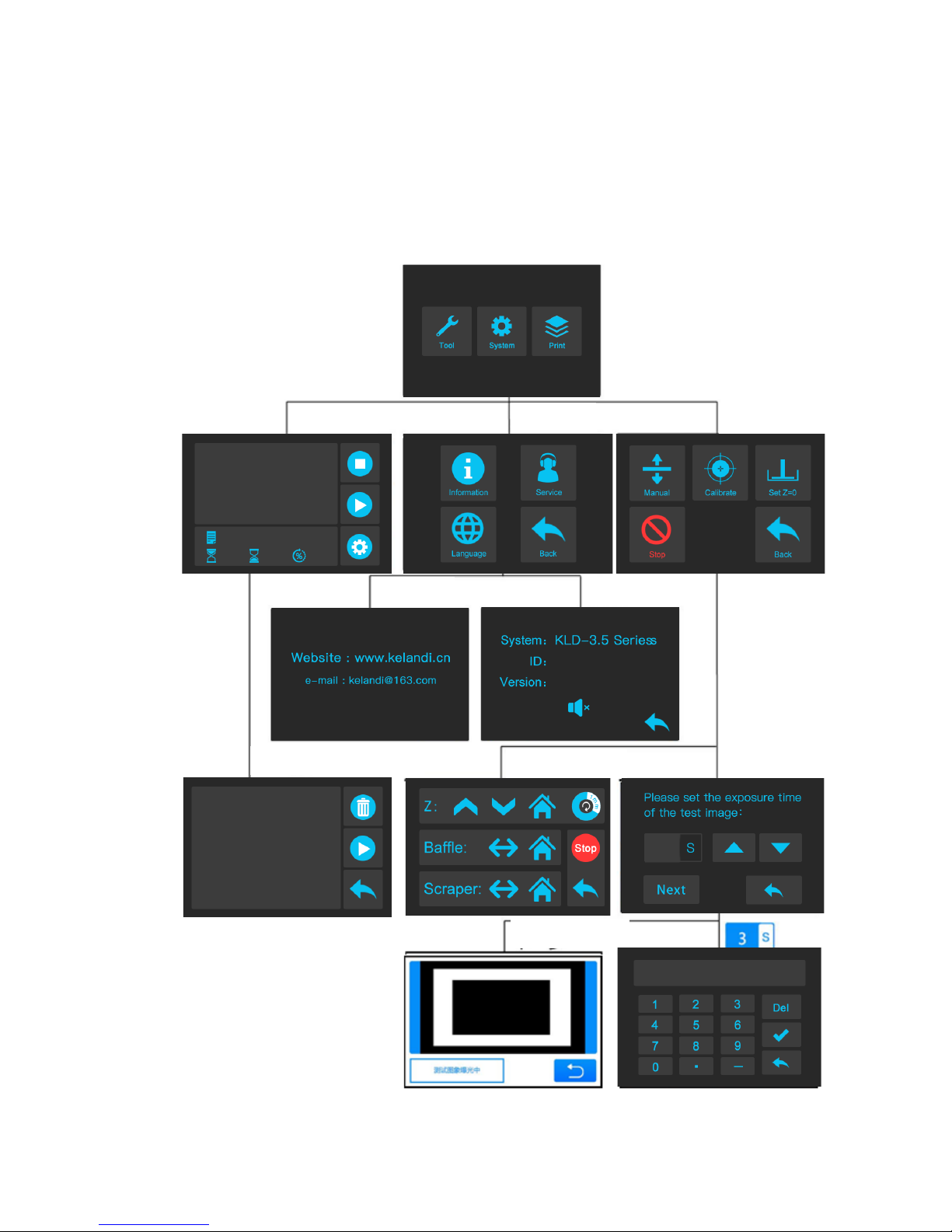

5. Menu Directory
Next step
Testing
tool
system
Printing
Testing
Moving Z axis
service
information
Clicking model
Main menu

7
4. Menu directory
Service   
ReturntoSystemMenu 
Detection
Clicktosetthetesttime
Increasethetesttime 
Reducethetesttime
Clickonthetestforpre-settime
ReturntotoolsMenu
System
MoveZ-axismanually
Screentest
Re-setthezeropoint 
TurnofZ-aixsmotor
ReturntoHomeMenu
System
ChangeLanguage(Chinese/English)
Official website and after sale
contact
Productinformation
ReturntoHomeMenu
Move Z-axis
MoveupZ-axis
MovedownZ-axis
ReturntoZero
Z-axismoves0.1mm
StopmovingZ-axis
ReturntoHomeMenu
Information
Turnon/offSound 
Returntosystem
menu
MENU
DeleteCurrentfile
Clickstartprinting
ReturntoprintMenu
PRINT
DeleteCurrentfile
Clickstartprinting
ReturntoprintMenu

8
6.Assembling and leveling instructions
1) Unpack the machine and then tear off the protection film outside.
2)Take off the cover .
3)Check and ensure the LCD screen and plateform are clean and free
of dust . , Do not install the resin VAT now
4)Plug in power and turn in power switch
6.Assembling and leveling Instructions

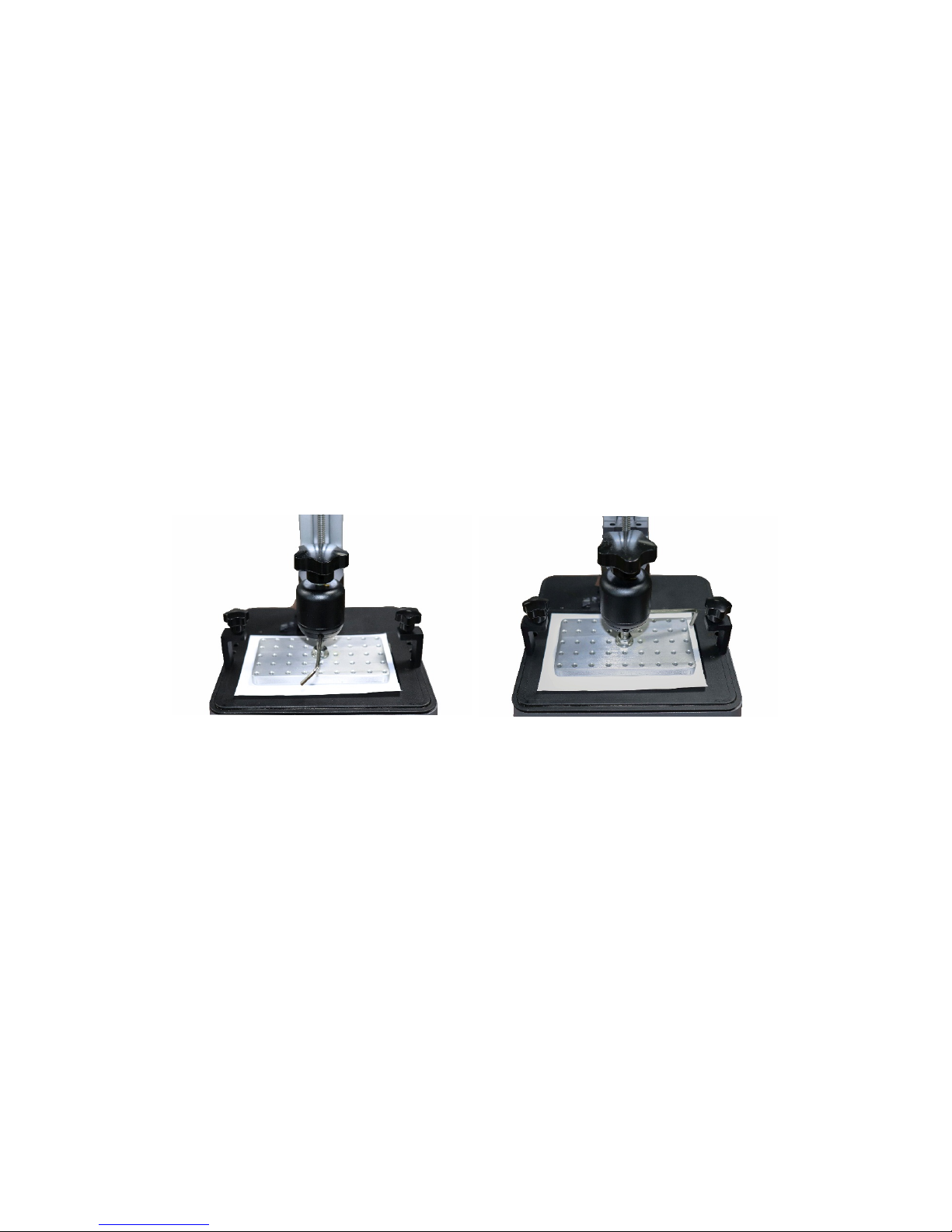

5)Please loosen the screws on the front and right side of the ball joint
build plate. as show in fig.(1) .
fig.(1)
6)
As shown fig.(2) ,put a A4 paper on LCD screen and install the
plateform onto the plateform bracket (if can not be installed due to
limited distance ,then please click and rise the z axis by “0.1mm”or

9
“1mm”on the touch screen until the plateform can be
installed ).lastly tighten black plateform fixed knob on the top
fig.(2)
7)
As shown fig.(3)
，
Click“TOOLS”→ “MANUAL”→“HOME”on the
touch screen , wait for the Z axis descent and then it will stop
automatically . (Click Emergency stop if need to stop Z axis
immediately )
fig.(3)
8. After the plateform is settled ,if it is far from the 2k LCD
screen ,then click and lower the Z axis by “0.1mm”or “1mm” on the
touch screen until feel the drag resistance when pulling the A4 paper

10
back and forth ,As shown fig.(4)
Ensure click only once every time ,do not press continuously to avoid
The impact risk on the LCD screen
9. Now ,Gently press on the top of the plateform , and let it fit evenly
on the LCD screen, use tool to tighten the screw on the front firstly
and then tighten the screw on the side (please try your best to keep
those edges parallel )
Note : the plateform should not be titled at any direction.
otherwise, it will affect the prints
fig.(4)
10.
Double check : Click on the touch and let the Z-axis up and down
until feel the resistance when pulling the paper at a particular Z-axis
height .The purpose is to adjust the distance between LCD screen and
plateform to a piece of paper thin .
9、
Function test of LCD screen : Gradually rise the plateform about
120mm,then click “TOOLS”→ “DETECTION” → “NEXT ”.The LCD
screen should display a complete rectangular as shown in

11
fig.(5),Otherwise ,The UV light is malfunction and please contact tech
support
fig.(5)
10
、
Make sure the resin VAT is nice and clean ,then install the resin
VAT till it aligns with the twp limit-screws on the panel , as shown in
fig.(6) Finally ,tighten the adjustable nut on both sides to secure the
resin VAT .
fig.(5)
Push into
thumb screw

12
7. Software installation
1) Slicing Software installation
Slicing software is located in USB-Disk , Double
click the file and follow the installation guide as show
below

13

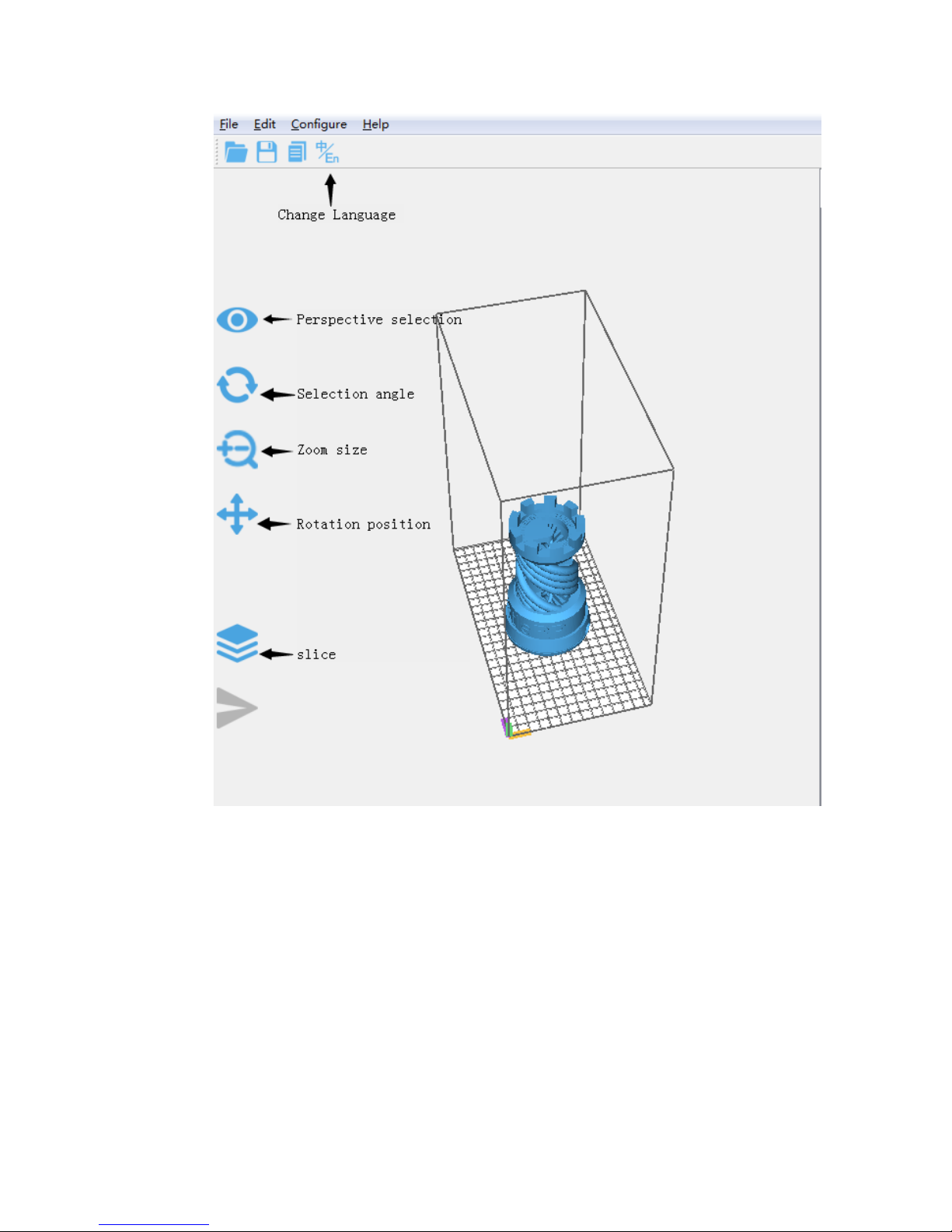

2)Manipulate 3d model in Chitu slicer
When the software is installed, it will run automatically , on
the manu bar, Click “file” → “open file” to import you own 3d
format model ,ie : STL file , or you may input the test file in
USB-Disk . Using the mouse ,left click on the model ,then the
model could be manipulated by “View” “Rotate” “Scale” and
“Move”

14
Other operations
：
（
1
）
Position Change : Left click and hold on the model ,then you may
change the model position ,by dragging it around
（
2
）
Zoom in / out : Scroll the mouse wheel
（
3
）
Change viewing angle : right click the plateform .hold on and
move on the mouse .

15
3)Chitu Slicer setting
At the top right corner, there are “parameters”
、
“support”
、
“print
size”settings
，
Please refer to below instructions
For those settings
1
、
Parameters
Layer thickness
：
It is suggested to set it to 0.05mm (range:
0.01~0.2mm
。
The thicker of layer thickness is , the longer layer
exposure is .
Normal exposure time
：
Setting range 3~6s
，
it was set by thickness
of each layer and details complexity of the model .
Off time
：
0 s
。
Bottom exposure time
：
Setting range 15~30s
，
The longer bottom
exposure time is , the easier for the model stick the build plate is .
Bottom layer
：
Setting range : 3~6 layers
2
、
support
The type of support can
be divided into light ,medium,heavy,
Each choice has a corresponding
Parameter setting.
Light : Contact area between the

16
Support and model is small .easy to
Remove the support .
Heavy : Support contact with the
Model is large --solid .
It is recommended to use the
“medium” first ,and use the default
Setting .
Raft
：
Add the raft will make the
Bottom stick better to the build
Plate (but using more material),The
Parameter could be changed according
To your own needs.
3
、
Print size
There parameter do not need modification,but if
the printed model has big size errors along a
particular axis (X.Y.Z) you can modify the
corresponding value for that axis proportionally .
4) Slicing and save file

17

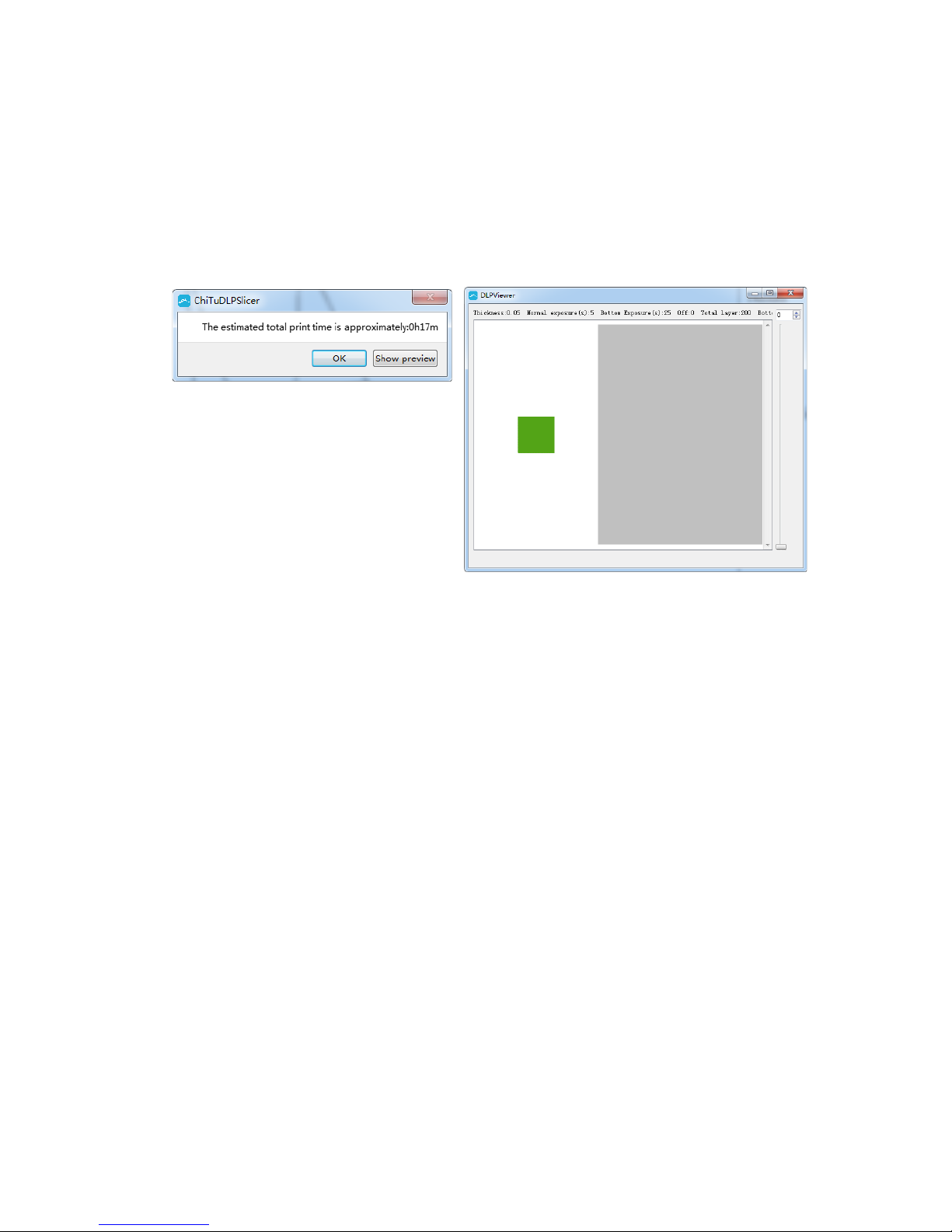

When the setting are correct
，
Click“slice”icon at the top left
，
save it
at USB-Disk and start slicing ,click“OK”to complete the slice
；
or
click “show preview”to to check the printing layers and other
parameters as well .
