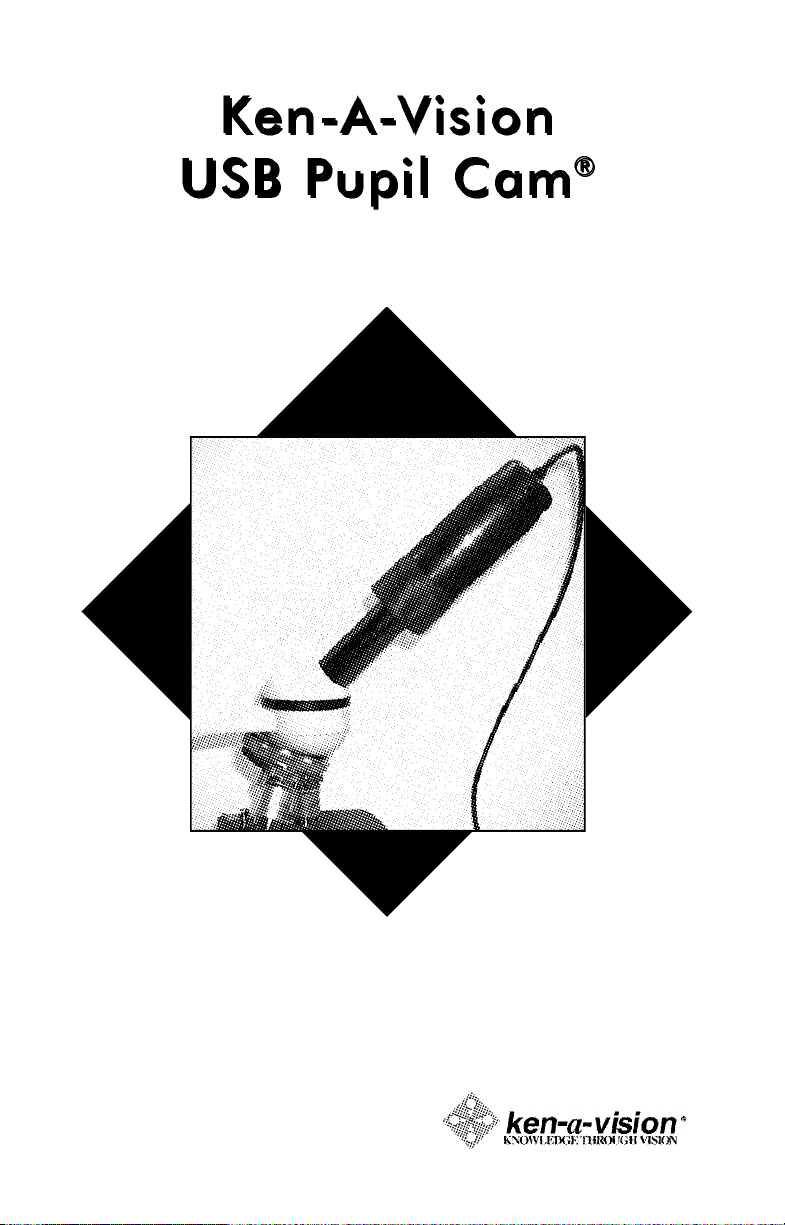

Ken A Vision T-1401 User manual

5615 Raytown Road, Kansas City, MO 64133 U.S.A Tel. [phone] Fax. [phone]
Email: [email protected] www.ken-a-vision.com
Information To The User:
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 o the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in accordiance with instructions,
may cause harmful interference to radio communication. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio reception which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures: Reorient
or relocate the receiving antenna and/or increase the separation distance
between the equipment and the receiver, and/or connect equipment into an
outlet on a circuit different from that which the receiver is connected; and/or
consult your dealer or experienced radio/tv technician for help.
Instruction Manual
kav.instrcman.puplcam.pc.v1
Ken-A-Vision reserves the right to make design improvement and other changes in accordance with the
latest advances in technology. There is no obligation to make changes in products already manufactured.
T-1401
T-1405
T-1410
cat#: INS-PC

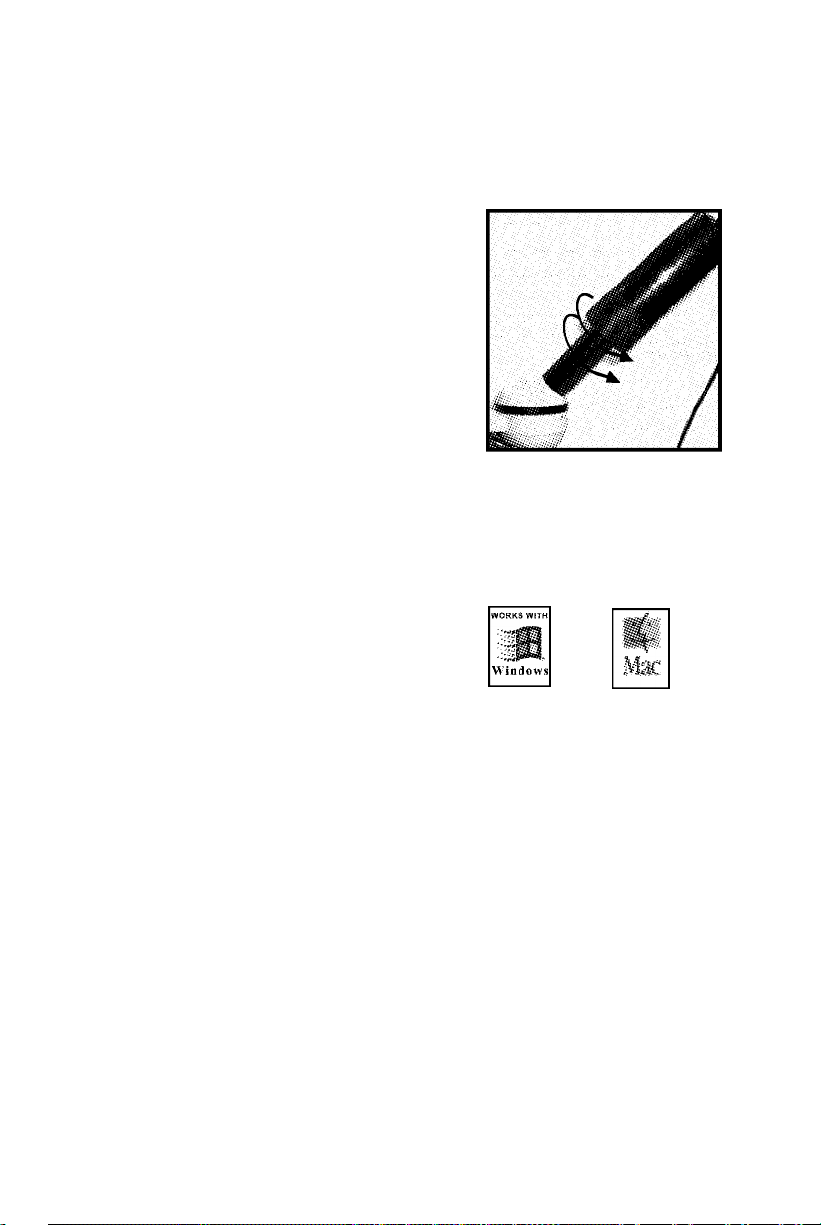

Connecting to a Microscope
The Pupil Cam®is designed exclusively to work with a microscope (compound
or stereoscope). A variable eyepiece adapter is built-in to the camera.
• Gently twist the Pupil Cam® as you push it
down the onto the microscope.
• Connect the USB cable to your computer.
• Open kenavision camera®software.
• Put a slide on your microscope and focus.
SYSTEM REQUIREMENTS
4mb Video Card (16bit color), 60mb of free hard disk space 64mb of RAM,
233mhz Pentium, Windows 98 or higher, Microsoft Internet Explorer 4.0
WARRANTY
To activate the one (1) year limited warranty on your new Pupil Cam, simply fill
out the enclosed warranty page, and return it to Ken-A-Vision Inc. Failure to
return your warranty card will limit your Pupil Cam warranty to
90 days. Returns and repairs may be handled through your local dealer or
directly with Ken-A-Vision. The warranty will not apply or if the product has been
tampered with, disassembled or damaged by misuse, accident, modification
or unauthorized repair.
To contact Ken-A-Vision please call 1-816-353-4787.
To learn more about other Ken-A-Vision products
and services please visit our website at
www.ken-a-vision.com
Pupil Cam®
Thank you for your purchase of a Ken-A-Vision Pupil Cam! It’s ready to go,
no assembly required!
Connecting The USB Cable
Prior to connecting the USB cable, you must first install the supplied software
(see software instruction manual for more details).
Preattached cabling makes it easy to connect the USB cable to you computer.
Simply insert the rectangular end of USB cable to the USB port of your
computer. Note: The USB port will supply ample power to the the Pupil
Cam®. No power supply is required.
kav.instrcman.puplcam.pc.v1
Pupil Cam Specifications
Ken-A-Vision is not responsible for any malfunctions that may occur with the use
of this product with other products from your computer.
Camera Sensor
Effective Image Size
Pixel Resolution
Pixel Size
Exposure Control
LUX
S/N Ratio
Supply Voltage
Supply Current (approximate)
Operating Temperature
USB Compatibility
Weight
Dimensions LXW
FPS (frames per second)
Focal Distance
Eyepiece adaptor (built in)
Digital CMOS USB connection
640 x 480 (VGA)
352 x288 (CIF)
640 x 480 (VGA)
352 x 288 (CIF)
7.5 mm x 7.5 mm
+81Db
=1.0
57 dB minimum
3.3V-6.0 V DC + 5%
42 mA (max, VGA @ 15 fps)
0oC -4oC
Ver 1.1
o.13 kg (0.0128 lbs)
97 mm x 38 mm
CIF: 30 fps VGA: 15 fps
Preset for Microscopic eyepiece
27.5.0 mm -30.0 mm
---

Connecting to a Microscope
The Pupil Cam®is designed exclusively to work with a microscope (compound
or stereoscope). A variable eyepiece adapter is built-in to the camera.
• Gently twist the Pupil Cam® as you push it
down the onto the microscope.
• Connect the USB cable to your computer.
• Open kenavision camera®software.
• Put a slide on your microscope and focus.
SYSTEM REQUIREMENTS
4mb Video Card (16bit color), 60mb of free hard disk space 64mb of RAM,
233mhz Pentium, Windows 98 or higher, Microsoft Internet Explorer 4.0
WARRANTY
To activate the one (1) year limited warranty on your new Pupil Cam, simply fill
out the enclosed warranty page, and return it to Ken-A-Vision Inc. Failure to
return your warranty card will limit your Pupil Cam warranty to
90 days. Returns and repairs may be handled through your local dealer or
directly with Ken-A-Vision. The warranty will not apply or if the product has been
tampered with, disassembled or damaged by misuse, accident, modification
or unauthorized repair.
To contact Ken-A-Vision please call 1-816-353-4787.
To learn more about other Ken-A-Vision products
and services please visit our website at
www.ken-a-vision.com
Pupil Cam®
Thank you for your purchase of a Ken-A-Vision Pupil Cam! It’s ready to go,
no assembly required!
Connecting The USB Cable
Prior to connecting the USB cable, you must first install the supplied software
(see software instruction manual for more details).
Preattached cabling makes it easy to connect the USB cable to you computer.
Simply insert the rectangular end of USB cable to the USB port of your
computer. Note: The USB port will supply ample power to the the Pupil
Cam®. No power supply is required.
kav.instrcman.puplcam.pc.v1
Pupil Cam Specifications
Ken-A-Vision is not responsible for any malfunctions that may occur with the use
of this product with other products from your computer.
Camera Sensor
Effective Image Size
Pixel Resolution
Pixel Size
Exposure Control
LUX
S/N Ratio
Supply Voltage
Supply Current (approximate)
Operating Temperature
USB Compatibility
Weight
Dimensions LXW
FPS (frames per second)
Focal Distance
Eyepiece adaptor (built in)
Digital CMOS USB connection
640 x 480 (VGA)
352 x288 (CIF)
640 x 480 (VGA)
352 x 288 (CIF)
7.5 mm x 7.5 mm
+81Db
=1.0
57 dB minimum
3.3V-6.0 V DC + 5%
42 mA (max, VGA @ 15 fps)
0oC -4oC
Ver 1.1
o.13 kg (0.0128 lbs)
97 mm x 38 mm
CIF: 30 fps VGA: 15 fps
Preset for Microscopic eyepiece
27.5.0 mm -30.0 mm
---

5615 Raytown Road, Kansas City, MO 64133 U.S.A Tel. [phone] Fax. [phone]
Email: [email protected] www.ken-a-vision.com
Information To The User:
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 o the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in accordiance with instructions,
may cause harmful interference to radio communication. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio reception which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures: Reorient
or relocate the receiving antenna and/or increase the separation distance
between the equipment and the receiver, and/or connect equipment into an
outlet on a circuit different from that which the receiver is connected; and/or
consult your dealer or experienced radio/tv technician for help.
Instruction Manual
kav.instrcman.puplcam.pc.v1
Ken-A-Vision reserves the right to make design improvement and other changes in accordance with the
latest advances in technology. There is no obligation to make changes in products already manufactured.
T-1401
T-1405
T-1410
cat#: INS-PC
