Kendal Lighting AC-20070 User manual

READ AND SAVE THESE INSTRUCTIONS
INSTALLATION INSTRUCTIONS
C.E.T.L. LISTED MODEL: CF570ER-BRD
Weight of Fan: 12.30Kgs
KENDAL LIGHTING
Kendal Lighting (BC) Inc.
#110, 6780 Dennett Place
Delta, BC V4G 1N4
Canada
Tel: [phone]
Fax: [phone]
Model: AC-20070

1

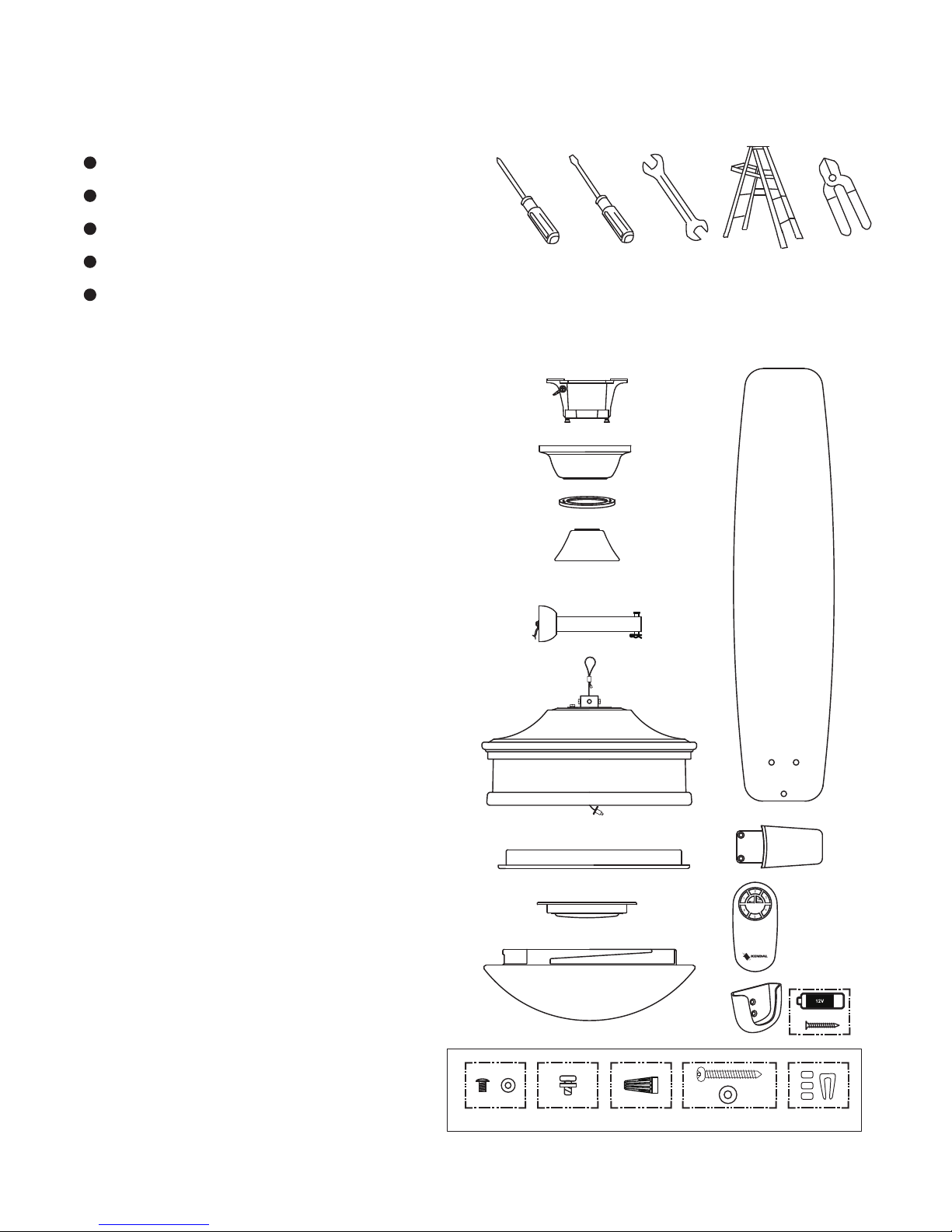

2. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items;
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
a
b
c
d
e
f
g
h
j
k
l
n
m
i
1. TOOLS AND MATERIALS
REQUIRED
a. Hanger bracket
b. Canopy
c. Canopy cover
d. Coupling cover
e. Downrod assembly
f. Fan motor assembly
g. Mounting plate
h. 17W LED assembly
i. Glass shade
j. Blade set(5)
k. Blade holder(5)
l. Transmitter
m. Transmitter holder
Transmitter holder mounting screw(2)
12V Battery
n. Package hardware
1) Blade attachment hardware:
screw(16), fiber washer(16)
2) Blade holder hardware:
screw(11)
3) Wire nuts(3)
4) Mounting hardware:
wood screw(2),washer(2)
5) Balancing kit (1)

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
4. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
5. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
6. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
7. Avoid placing objects in the path of the
blades.
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX
MARKED "ACCEPTABLE FOR FAN
SUPPORT".
8. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
9. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
10. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment - grounding conductor on
one side of the outlet box.
11. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.

3
4. MOUNTING OPTIONS
If there isn't an existing CUL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.

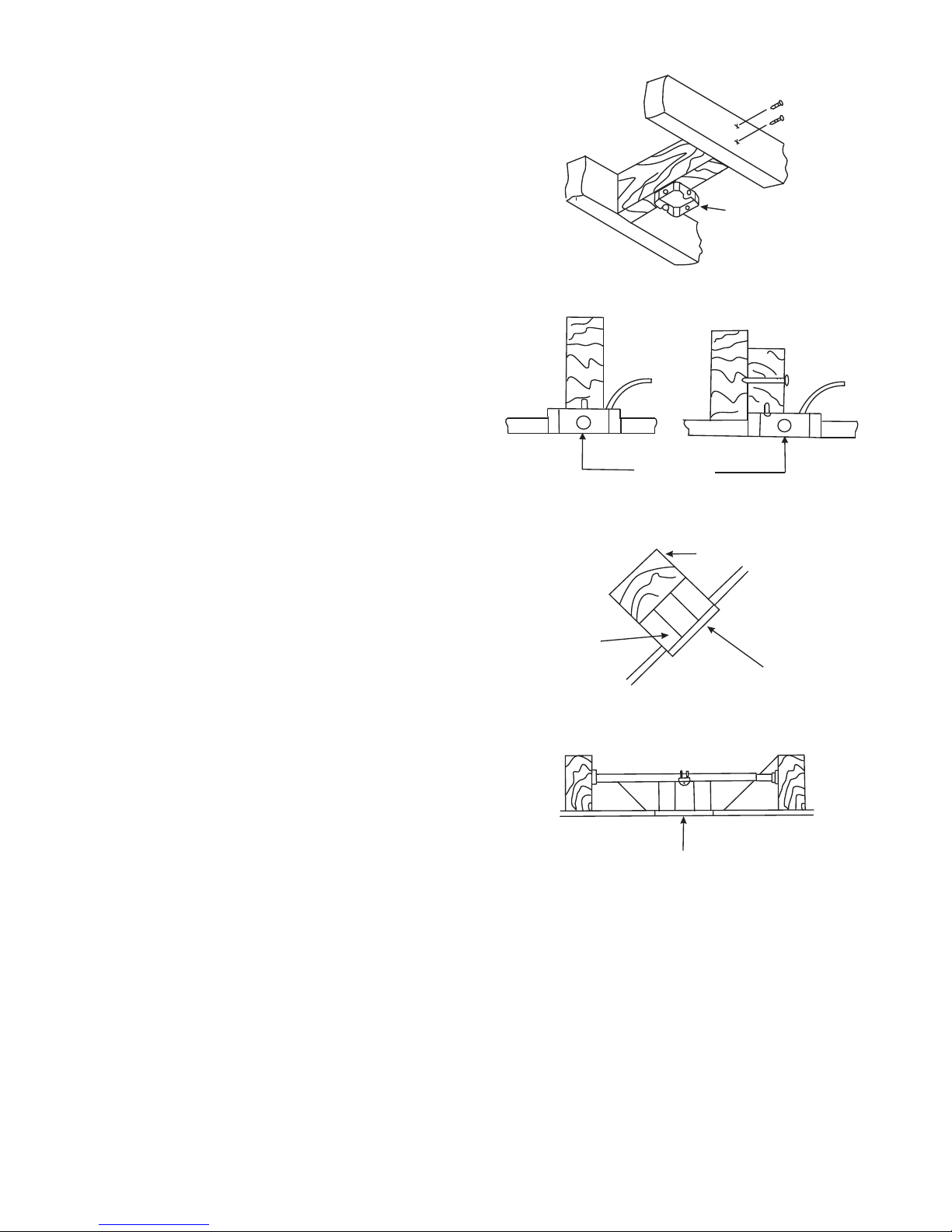

Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box
Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
Angled ceiling
maximum
20 angle

Figure 7
Groove
Tab
4
5. HANGING THE FAN
Figure 6
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Pass the 120-volt supply wires through
the center hole in the ceiling hanger bracket as
shown in Fig. 5.
Step 2. Secure the hanger bracket to the
ceiling outlet box with the screws and washers
provided with your outlet box.
Step 3. Remove the hanger pin, locking pin
from downrod and remove the set screws from
the top of the motor assembly.
Step 4. Route wires exiting from the top of the
fan motor through the couping cover, canopy
cover and canopy, then through the ball/
downrod. (Fig. 6)
Step 5. Align the holes at the bottom of the
downrod with the holes in the collar on top of
the motor housing (Fig.6). Carefully insert the
hanger pin through the holes in the collar and
downrod. Be careful not to jam the pin against
the wiring inside the downrod. Insert the
locking pin through the hole near the end of
the hanger pin until it snaps into its locked
position, as noted in the circle inset of Fig. 6.
Step 6. Tighten two set screws on top of the
fan motor firmly. (Fig. 6)
Downrod
Canopy
Set screws
Locking
pin
Hanger pin
Coupling cover
Canopy cover
Figure 5
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
plate
CUL Listed
electrial
box
120V Wires
Washers
Step 7. Place the downrod ball into the hanger
bracket socket. And rotate until groove in
hanger ball lines up with tab in hanger bracket.
(You will feel hanger ball drop into place as
you rotate.) (Fig. 7)

5
6. MAKE THE ELECTRIC
CONNECTIONS
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at the
main fuse box before wiring.
Figure 8
Figure 9
Note: Fan must be installed at a maximum
distance of 20 feet from the transmitting unit
for proper signal transmission between the
transmitting unit and the fan's receiving unit.
Hanger bracket Safety cable
Step 1. (Figure 8) Motor to House Supply Wires
Electrical Connections: Connect the black wire
from the fan to the black (hot) wire from the
ceiling. Connect the White wire from the fan to
white (neutral) wire from the ceiling. Secure wire
connections with the plastic wire nuts provided.
Step 2. (Figure 8) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise, connect the hanging
bracket ground wire to the hanger ball ground
wire. Secure the wire connection with a plastic
nut provided. After connecting the wires, spread
them apart so that the green and white wires are
on one side of the outlet box and black wires are
on the other side. Carefully tuck the wire connec-
tions up into the outlet box.
7. INSTALLATION OF
SAFETY CABLE
White (neutral)
White (neutral)
Green or bare
copper (ground)
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black (motor)
An additional safety cable is provided to prevent
the fan from falling. Secure the safety cable to
the ceiling joist with screw and washer, as
illustrated in Figure 9.

6
Figure 11
Figure 12
9. ATTACHING THE FAN
BLADES
CAUTION: Make sure all screws are
tightened securely.
Step 1. Attach the fan blades to the blade holders
by using three screws and fiber washers as
shown in Figure 11. Start a screw into the blade
holder, do not tighten. Repeat for the 2 remaining
screws and washers.
Step 2. Tighten each screw securely starting with
the center screw. Make sure the blade is straight.
Step 3. Attach the blade assembly to the fan
motor assembly by tightening the two screws
previously the package hardware. (Figure 12)
8. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to hanger bracket
and place the key hole on the canopy over the
screw on the hanger bracket, turn canopy until
it locks in place at the narrow section of the
key holes. (Fig.10)
Step 3. Align the circular hole on canopy with
the remaining hole on the hanger bracket,
secure by tightening the two set screws. Note:
Adjust the canopy screws as necessary until
the canopy and canopy cover are snug.
WARNING: Make sure tab at bottom of
hanger bracket is properly seated in groove of
hanger ball before attaching canopy to
bracket. Failure to properly seat tab in groove
could cause damage to electrical wiring.
Figure 10
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
Screws
Fiber washers
Blade
Blade holder
Screws
Fan motor assemby
Blade assembly

7
10. INSTALLATING THE
MOUNTING PLATE
Step 1. Remove 1 of 4 screws from the
mounting ring and loosen the other 3 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 3 screws previously loosened
from the mounting ring, turn mounting plate
until it locks in place at the narrow section of
the key holes. Secure by tightening the 3
screws previously loosened and the one
screw previously removed. (Fig. 13)
Figure 13
Mounting
plate
Mounting
ring
Screws
11. ATTACHING THE
17W LED ASSEMBLY
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power
off using the fan switch is not sufficient to
prevent electric shock.
Figure 14
Screw
Mounting
plate
17W LED assembly
White wire
connectors
Step 1. Remove 1 of 3 screws from the
mounting plate and loosen the other 2
screws(Do not remove). (Fig 14)
Connect white wire from motor to white wire
from the 17W LED assembly. Connect black
wire from motor to black wire from the 17W
LED assembly.
Step 2. Place key holes on the 17W LED
assembly over the 2 screws previously
loosened from the mounting plate, turn the
17W LED assembly until it locks in place at the
narrow setion of the key holes. Secure by
tightening 2 screws previously loosened and
the one previously removed. (Fig 14)
Black wire
connectors

8
Figure 15
Figure 16
12. ATTACHING THE
GLASS SHADE
Install the glass shade by carefully
turning it clockwise until snug. DO NOT
OVERTIGHTEN. (Fig. 15)
Glass shade
13. INSTALLING THE
TRANSMITTER
HOLDER
Attach the remote control holder with the two
remote control holder mounting screws.
(Fig.16)

Figure 17
Figure 18
9
14. Operation of your
Ceiling Fan:
Step 1: Make sure power is restored to the fan
unit as during installation it was most likely
turned off at the wall switch or breaker box.
Note: The fan is controlled by the remote
system only. No other wall control devices such
as dimmers, fan controls, etc. are compatible
with this system. If there is a switch that controls
the power to this unit make sure it is only an
on/off toggle or rocker switch.

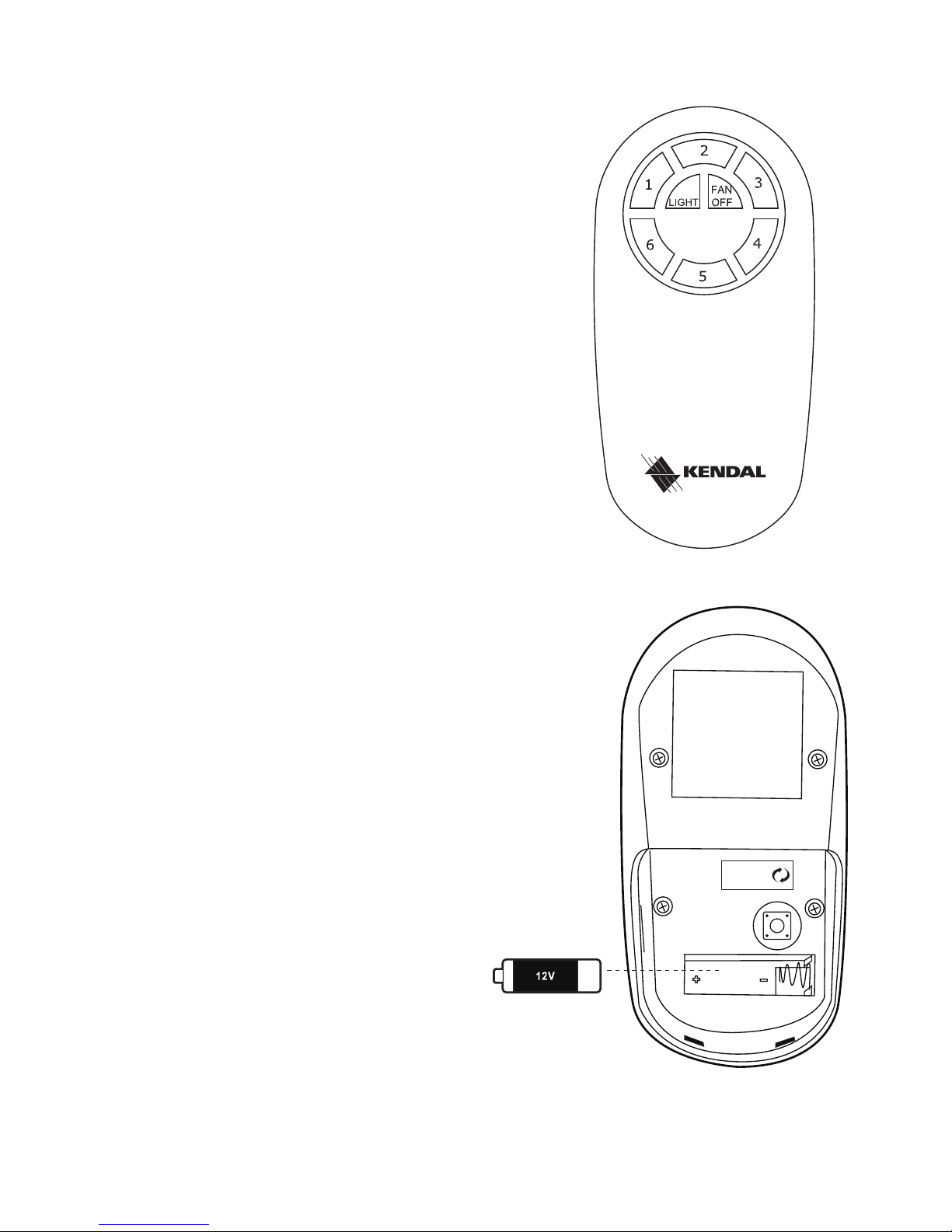

Step 2: Install the 12volt battery into the hand
held transmitter (Figure 17) as shown in (Figure
18). Make sure the battery is secure with the
matching +/- terminals. The remote hand set
will have illumination lights that will come on
once a function is pressed. This light indicates
the remote has a good battery. If you do not see
this illumination please change out the battery.
Step 3: Begin testing the fan functions with the
remote control (Figure 17). See operation
details below.
• Fan Buttons 1-6: The higher the number the
faster the fan should turn. Press one time on
each button to the desired speed. #1 is the
lowest speed and #6 is the highest speed.
• Fan Off Button: Press once to turn fan off.
• Light Button: Press once to turn light on/off.
• Reverse Button: Is in the back of the hand
held by the battery compartment (Figure 18).
Press once to reverse the fan. Reverse Button
Bouton à Inverser

10
Figure 19
Figure 20
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: To operate the reverse function on this
fan, press the reverse button while the fan is
on.

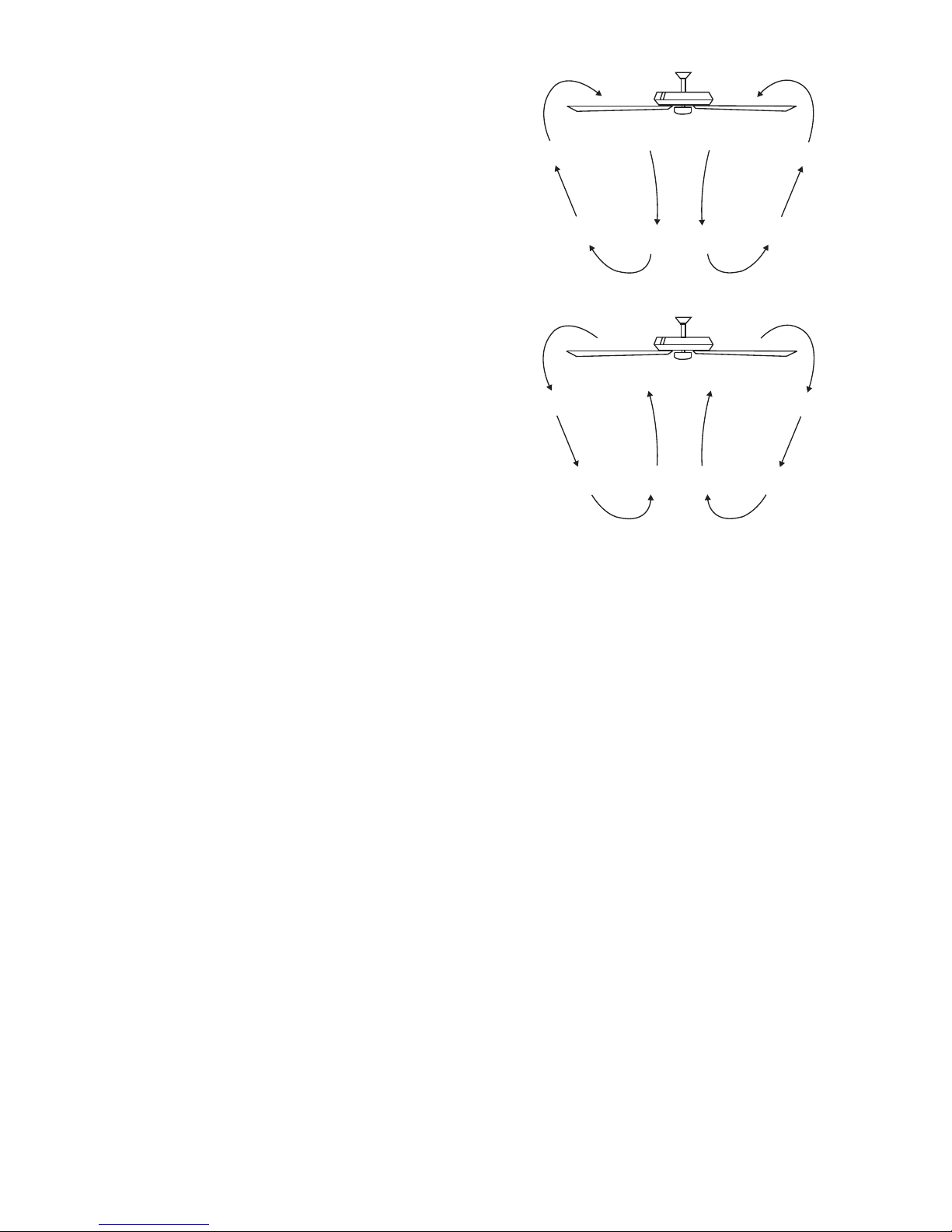

Warm weather - (Forward) A downward airflow
creates a cooling effect as shown in Fig. 19.
This allows you to set your air conditioner on a
warmer setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 20. This allows you to set your heating
unit on a cooler setting without affecting your
comfort.
Special Notes:
The fan comes with a fully functional remote
control system. The system is preprogrammed
at the factory for operation. However, if you
experience any functional issues it may be
necessary to reprogram the remote to the fan
unit (see instructions below for reprogramming
steps).
Reprogramming Your Ceiling Fan:
Step 1: Turn the power off at the wall switch or
breaker box. Leave power off to the unit for
15-20 seconds, then turn back on.
Step 2: Within 60 seconds after turning the fan's
AC power on, press and hold the “Fan Off”
button down until you see the lights on the fan
blink. Once you see the blinks release the
button. Retest the unit.

11
15. CARE OF YOUR FAN
Here are some suggestions to help you maintain your fan.
1. Because of the fan's natural movement, some connections may become loose. Check the
support connections, brackets, and blade attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a
soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing. Do not use water when cleaning. This could damage
the motor, or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional protection and
enhanced beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated sealed ball bearings.

12
16. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction.
Fan wobble.
Solution
1. Check main and branch circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing.
3. Turn power off at the wall for 20 seconds and then turn power back on to
reset system.
4. Battery replacement (See page 9).
5. Reprogram the Unit (See page 10).
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub are
tight.
3. Make sure wire nut connections are not rattling against each other or the
interior wall of the switch housing.
4. Allow a 24-hour "breaking-in" period. Most noises associated with a new fan
disappear during this time.
5. If using ceiling fan light kit, make sure the screws securing the glassware
are tight. Check that the light bulb is also secure.
6. Make sure there is a short distance from the ceiling to the canopy. It should
not touch the ceiling.
7. Make sure your ceiling box is secure and rubber isolator pads are used
between mounting bracket and outlet box.
2. Battery replacement (See page 9).
3. Reprogram the Unit (See page 10).
1. Do not connect the fan with a wall mounted variable speed control(s).
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT
BEND THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES,
OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
