Kendal Lighting AC-12452 User manual

Ceiling Fan
Installation Instructions
Model #: AC-12452
Please Read and Save

1
2. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items;
a. Blade set (5)
b. Hanger bracket
c. Canopy
d. Downrod
e. Coupling cover
f. Fan motor assembly
g. Set of blades bracket (5)
h. Mounting plate
i. Light plate
j. Glass shade
k. 100W Halogen bulb J-type
l. Receiver+6 wire nuts
m. Transmitter+wall plate (2)
+ 4 mounting screws+ 3 wire nuts
n. Package hardware
1) Mounting hardware :
wood screws(2), screws(2), lock washers(4),
washers(2), wire nuts(3), rubber gasket(2)
2) Blade attachment hardware:
screws(16), fiber washers(16)
3) Close-to-ceiling attachment hardware:
screws with lock washers (3)
4) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
a
b
c
d
e
f
g
h
i
j
k
l
n
m
1. TOOLS AND MATERIALS
REQUIRED
REV
REV

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and lock
washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes
commonly used for the support of lighting
fixtures are not acceptable for fan support and
may need to be replaced, consult a qualified
electrician if in doubt.
5. The outlet box and support structure must be
securely mounted and capable of reliably
supporting a minimum of 50 pounds. Use only
CUL Listed outlet boxes marked "FOR FAN
SUPPORT".
6. The fan must be mounted with a minimum of 7
feet clearance from the trailing edge of the
blades to the floor.
7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan
and other items, be cautious when working
around or cleaning the fan.
10. Do not use water or detergents when cleaning
the fan or fan blades. A dry dust cloth or lightly
dampened cloth will be suitable for most
cleaning.
11. After marking electrical connections, spliced
conductors should be turned upward and
pushed carefully up into outlet box. The wires
should be spread apart with the grounded
conductor and the equipment-grounding
conductor on one side of the outlet box.
12. Electrical diagrams are reference only. Light kit
that are not packed with the fan must be CUL
Listed and marked suitable for use with the
model fan you are installing. Switches must be
CUL General Use Switches. Refer to the
Instructions packaged with the light kits and
switches for proper assembly.
2
3. SAFETY RULES
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
ATTENTION
Under the Energy Policy Act of 2005, federal
regulations require all ceiling fans with light kits
manufactured or imported after January 1, 2009,
to limit the total wattage consumed by the light
kit to 190 watts. Therefore, this product is
equipped with a 190W limiting device. If lamping
exceeds 190 watts, the light kit will shut off
automatically until the proper wattage of bulbs
are installed. Reset the light kit by turning it off,
replacing the bulbs with the correct wattage, and
then turning the light kit back on.

3
4. MOUNTING OPTIONS
If there isn't an existing CUL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.

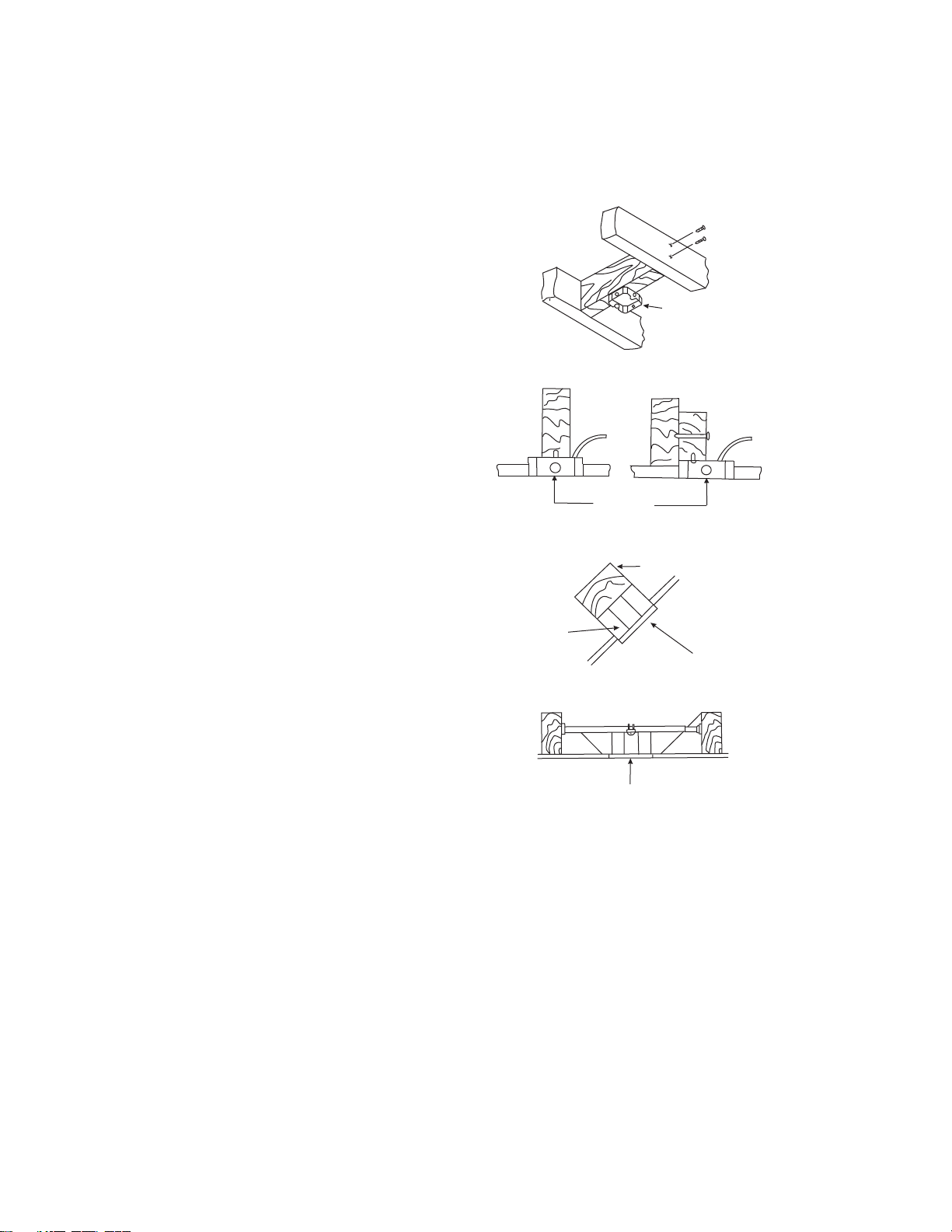

Figures 1,2 and 3 are examples of different ways to
mount the outlet box.
Note: You may need a longer downrod to maintain
proper blade clearance when installing on a steep,
sloped ceiling. (Fig. 3)
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2

4
5. Hanging the Fan
REMEMBER to turn off the power. Follow the steps
below to hang your fan properly:
NOTE: This ceiling fan is supplied with two types of
hanging assemblies; the standard ceiling
installation using the downrod with ball and socket
mounting and the "close-to-ceiling" installation.
The "close-to-ceiling" installation is recommended
in rooms with less than 8-feet ceilings or in areas
where additional space is desired from the floor to
the fan blades.
STANDARD CEILING INSTALLATION
Step 1. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as shown
in Fig. 5.
Step 2. Secure the hanger bracket to the ceiling
outlet box with the screws and washers provided
with your outlet box.
Step 3. Remove the hanger pin, lock pin and set
screws from the top of the motor assembly.
Step 4. Route wires exiting from the top of the fan
motor through the couping cover, canopy and then
through the ball / downrod. (Fig. 6)
Step 5. Align the holes at the bottom of the
downrod with the holes in the collar on top of the
motor housing. Carefully insert the hanger pin
through the holes in the collar and downrod. Be
careful not to jam the pin against the wiring inside
the downrod. Insert the locking pin through the hole
near the end of the hanger pin until it snaps into its
locked position, as noted in the circle inset of Fig. 6.
Step 6. Tighten two set screws on top of the fan
motor firmly. (Fig. 6)
Step 7. Place the downrod ball into the hanger
bracket socket. (Fig. 7)
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
plate
CUL Listed
electrial
box
Figure 5
Figure 6
Figure 7
120V Wires
Washers
Registration slot
Downrod
Canopy
Set screws
Hitch pin
Lock pin

5
Figure 8
Figure 9
Figure 10
CLOSE-TO-CEILING INSTALLATION
1. Remove the decorative canopy bottom cover
from the canopy by depressing the three studs
(Fig. 8)
2. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as
shown in Fig. 5.
3. Secure the hanger bracket to the ceiling outlet
box with the screws and washers provided with
your outlet box.
4. Place the ceiling canopy over the collar at the
top of the motor. Align the mounting holes with
the holes in the motor and fasten using the
screws and lock washers provided (Fig. 9).
5. Tighten the mounting screws securely. (Fig. 9)
WARNING: Failure to completely tighten the three
screws in step 5 could result in fan loosening and
possibly falling.
6. Hang the fan on the hook of the hanger bracket.
Be certain that the canopy is fully locked into
hook as shown in Fig. 10. This will allow you to
make the electrical connections.
Canopy bottom cover
Hook
Screw and lock washer
Canopy
Canopy
Collar

5
6. INSTALLATION OF
SAFETY SUPPORT
An additional safety support is provided to prevent
the fan from falling. Secure the safety cable to the
ceiling joist with screw and washer, as illustrated in
Figure 11.
7. MAKE THE ELECTRIC
CONNECTIONS
WARNING: To avoid possible electrical shock, be
sure electricity is turned off at the main fuse box
before wiring.
NOTE: This remote control unit is equipped with 16
code combinations to prevent possible interference
from or to other remote units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to make
sure the switches on transmitter and receiver are
set to the same position, any combination of
settings will operate the fan as long as the
transmitter and receiver are set to the same
position.(Fig. 12)
Step 1. (Fig. 13) Insert the receiver into the
mounting bracket with the flat side of the receiver
facing the ceiling.
Step 2. (Fig. 14 and 15) Motor to Receiver
Electrical Connections: Connect the black wire
from the fan to black wire marked "TO MOTOR L".
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" from the
receiver. Connect the blue wire from the fan to the
blue wire marked "For Light" from the receiver.
Secure the wire connections with the plastic wire
nuts provided.
Hanger bracket Safety cable
Figure 11
Figure 12
Figure 13
Code switch
ON
ON
Receiver
Hanger
bracket

7
Step 3. (Fig. 14 and 15) Receiver to house supply
wires electrical connections: Connect the black (hot)
wire from the ceiling to the black wire marked "AC
in L" from the receiver. Connect the white(neutral)
wire from the ceiling to the white wire marked "AC
in N" from the Receiver. Secure the wire
connections with the plastic wire nuts provided.
Step 4. (Fig. 14 and 15) If your outlet box has a
ground wire (green or bare copper) connect it to the
fan ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires, spread them
apart so that the green and white wires are on one
side of the outlet box and black and blue wires are
on the other side. Carefully tuck the wire
connections up into the outlet box.
After connecting the wires spread them apart so
that the green and white wires are on one side of
the outlet box and black and blue wires are on the
other side. Carefully tuck the wire connections up
into the outlet box.
Note: Fan must be installed at a maximum distance
of 20 feet from the transmitting unit for proper signal
transmission between the transmitting unit and the
fan's receiving unit.

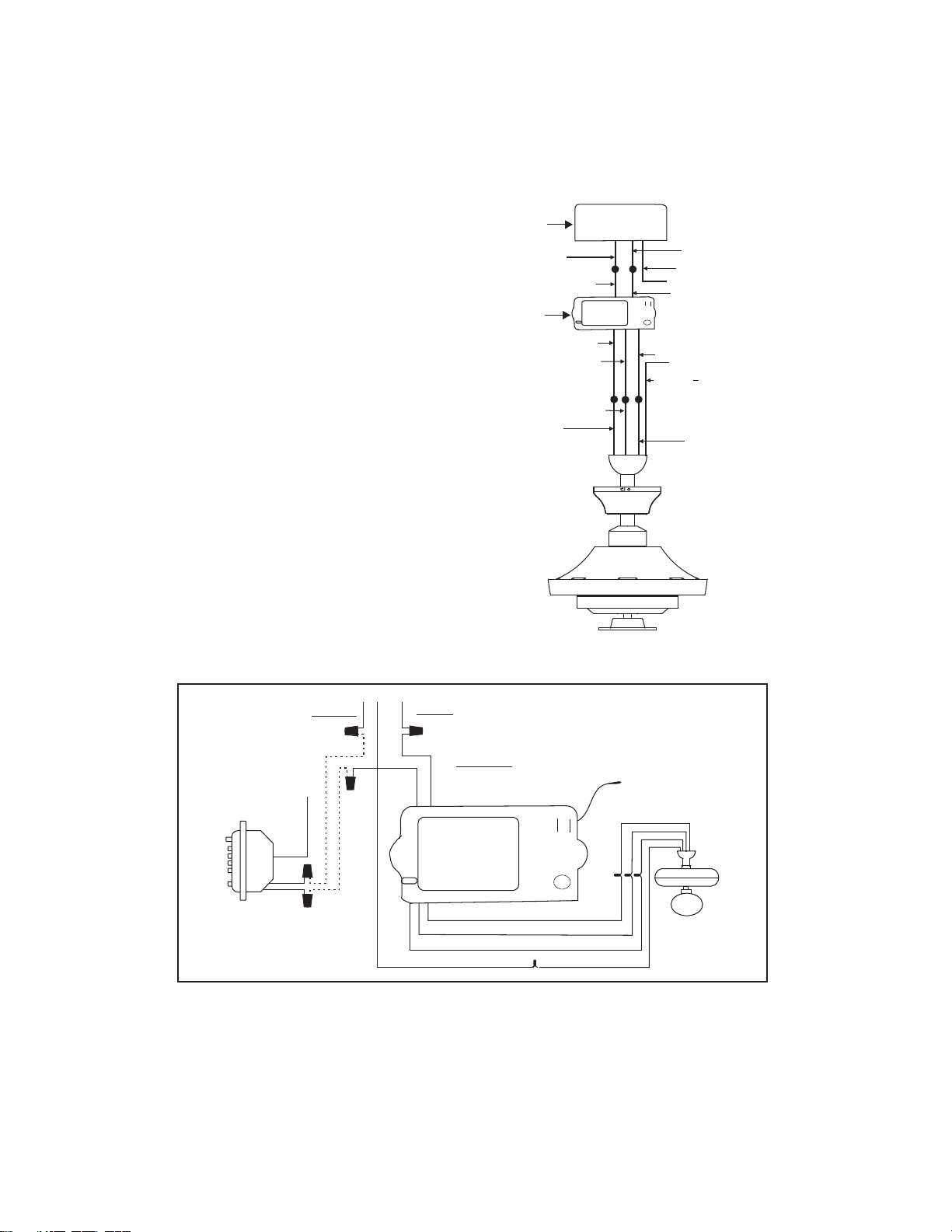

Figure 14
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)
Figure 15
INPUT
AC120V
AC SUPPLY
White
White
White
Blue
Black
Black
Black
Black
Black
Black
Black
Wall
transmitter
Ground
Ground
Green
Green
White
Blue
Black

8
Figure 18
Figure 17
Figure 16
9. FINISHING THE
INSTALLATION
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in Figure
17. Make sure you place the wires safely into the
outlet box. Secure the canopy to the hanger
bracket with the four screws with your fan.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the hook on the hanger
bracket. Secure the canopy to the hanger bracket
as shown in Figure 18 with four screws included
with your fan.
8. INSTALLING THE WALL
TRANSMITTER
WARNING! HOOK UP "IN SERIES" ONLY. DO
NOT CONNECT NEUTRAL SUPPLY WIRE OF
ELECTRIC CIRCUIT TO THE TRANSMITTER
WALL SWITCH, DAMAGE TO THE
TRANSMITTER WALL SWITCH AND POSSIBLE
FIRE COULD OCCUR.
Step 1. Remove the existing wall plate and switch
from the wall outlet box.
Step 2. Make the electrical connections as shown
in Fig.15. If your outlet box has a ground wire
(Green or Bare Copper) connect the transmitter's
ground wire directly to one of the screws from the
outlet box . Secure all wire connections with the
plastic wire nuts provided.
Step 3. Carefully tuck the wire connections inside
the outlet box. Use the screws provided to secure
the wall transmitter and wall plate to the outlet box.
(Fig. 16)
Outlet box
Hanger
bracket
Canopy
Screws
Outlet box
Hanger
bracket
Canopy
Screws

9
Figure 19
Figure 20
10. ATTACHING THE FAN
BLADES
Step 1 Attach the blade to the blade bracket using
the screws and fiber washers as shown in Figure
19. Start screw into bracket. Repeat for the two
remaining screws.
Step 2 Tighten each screw. Make sure the blade is
straight.
Step 3 Fasten blade assembly to motor using the
screws supplied. (Fig. 19)
11. INSTALLATING THE
MOUNTING PLATE
1. Remove the 1 of 3 screws from the mounting
ring and loosen the other 2 screws. (Do not
remove)
2. Place the key holes on the mounting plate over
the 2 screws previously loosened from the
mounting ring, turn mounting plate until it locks
in place at the narrow section of the key holes.
Secure by tightening the 2 screws previously
loosened and the one previously removed. (Fig.
20)
Screws
Mounting
plate
Mounting ring
Screws
Blade
Blades bracket
Screws
Fiber
washers

10
Figure 21
Figure 22
12. ATTACHING THE
LIGHT PLATE
NOTE: Before starting installation, disconnect the
power by turning off the circuit breaker or removing
the fuse at fuse box. Turning power off using the
fan switch is not sufficient to prevent electric shock.
Step 1. Raise and hold the light kit close to the
mounting plate and proceed to do the wire
connections, follow the same procedure with the
black wire connectors. Attach the light kit to the
mounting plate by using the four (4) screws
provided that are preinstalled on the mounting
plate. (Fig. 21)
13. ATTACHING THE
LIGHT BULB AND
GLASS SHADE
WARNING: Shut off the power supply before
removing or replacing lamp. In handling of halogen
bulb, care should be taken not to touch it with your
bare hands. Oil residue will shorten the life of the
halogen bulb. If you accidentally come into contact,
wipe thoroughly with a clean, lint-free, cotton cloth.
Allow the bulb to cool off for 10 minutes before
changing the bulb. Use light bulb in accordance
with the fan's specification. TO REDUCE THE RISK
OF FIRE DO NOT EXCEED MAXIMUM WATTAGE
RATING.
Step 1. Install 100W halogen bulb J-type (included).
(Fig. 22)
Step 2. Raise glass shade up against bottom of fan
housing and secure it to fan by twisting glass
clockwise until snug. DO NOT OVERTIGHTEN.
(Fig. 22)
Mounting
plate
Connection plugs
Light plate
Screws
Glass shade
Bulb
Light plate

11
Figure 23
Figure 24
Figure 25

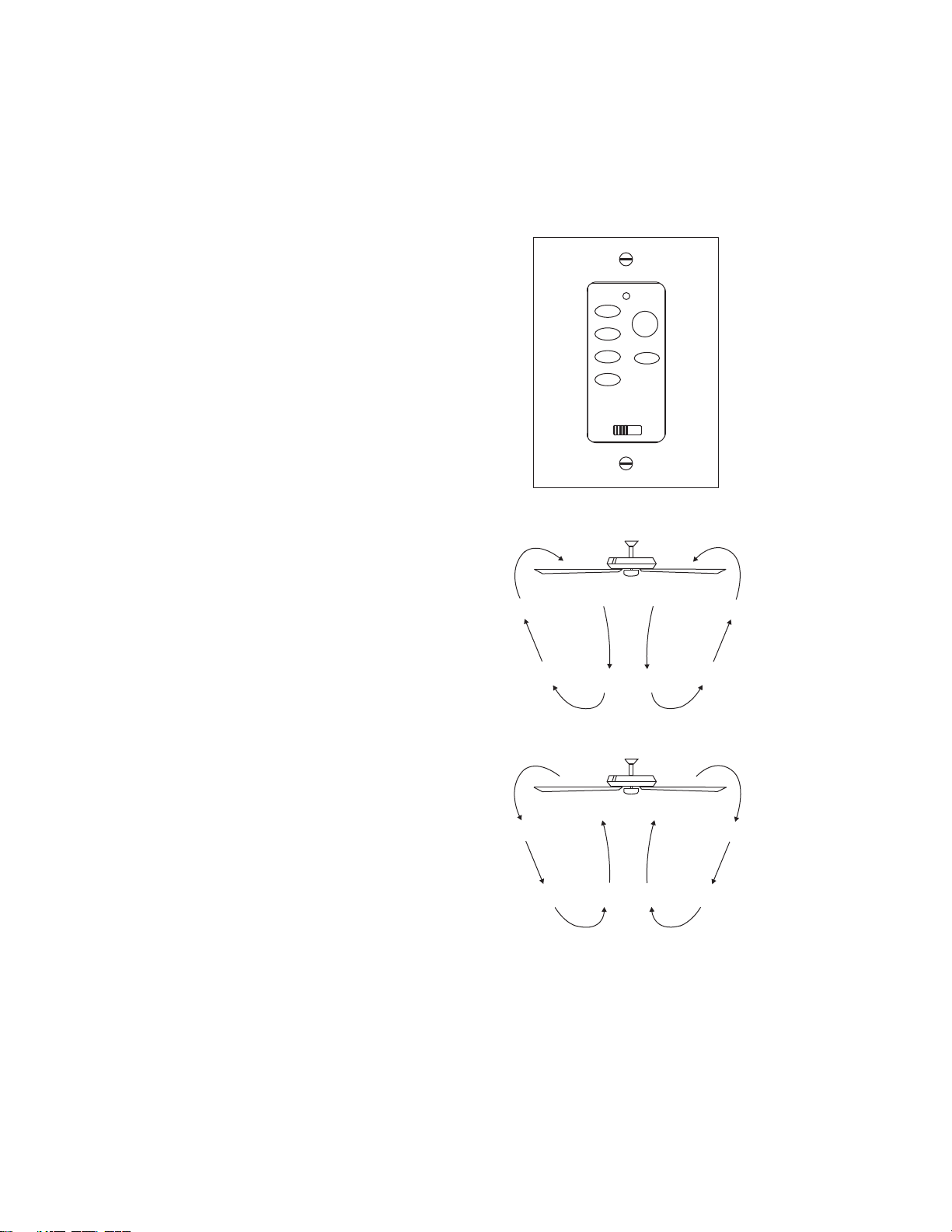

14. OPERATING
INSTRUCTIONS
Restore power to ceiling fan and test for proper
operation.
A. HI, MED, and LOW buttons:
These three buttons are used to set the fan
speed as follows:
HI= high speed
Med= medium speed
Low= low speed
B. FAN OFF button:
This button turns the fan off.
C. LIGHT button:
This button controls the light. Press and
release the button to turn the light ON or
OFF. Press and hold the button to set the
desired brightness. The light key has an
auto-resume, it will stay at the same
brightness as the last time it was turned
off.
D. The "REV" button is used to set the fan
forward or reverse, press the button
forward (for warm weather) or reverse (for
cool weather).
E. OFF-ON Button
This button turns the power Off and On to the
fan and light(s).
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: to change the direction of the rotation of the
blades the fan must be in operation mode.
Warm weather - (Forward) A downward
airflow creates a cooling effect as shown in
Fig. 24. This allows you to set your air
conditioner on a warmer setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 25. This allows you to set your heating
unit on a cooler setting without affecting
your comfort.
HIHI
REVREV
MEDMED
LIGHTLIGHT
FAN OFFFAN OFF
LOWLOW
ONONOFFOFF

12
15. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Remote control malfunction.
Lights shut off and will not
come back on.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are
set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new
fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control (s)
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control (s)
2. Make sure the dip switches are set correctly.
1. This unit is equipped with a wattage limiting device. Lamping in excess of
190 watts will disable your ceiling fan's light kit. To reset your light kit you
must turn the power off and re lamp, keeping the wattage under 190 watts.
Restore power to your ceiling fan and continue normal operation.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT
BEND THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES,
OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
