Kenmore 580.513 User manual

Owner's Manual
Manual del Propietario
®
DEHUMIDIFIER
DESHUMIDIFICADOR
Model, Modelo 580.51300
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com

TABLE OF CONTENTS ................................ 2
WARRANTY .................................................. 2
SAFETY ........................................................ 3
Important Safety Instructions ...................... 3
ELECTRICAL REQUIREMENTS .................. 4
OPERATION ................................................. 5
Features ................................................... 5
Control Panel ........................................... 6
INSTALLING YOUR DEHUMIDIFIER .............. 7
Defrost control .......................................... 7
CHOOSING THE PROPER LOCATION ....... 7
ADJUSTABLE WATER LEVEL AND
AUTOMATIC SHUTOFF ............................... 8
REMOVING AND EMPTYING
THE WATER BUCKET .................................. 8
MAINTENANCE ............................................ 9
Grille and case ......................................... 9
Air filter ..................................................... 9
Cleaning inside the unit ............................ 9
General cleaning ...................................... 9
Water bucket cleaning .............................. 9
TROUBLESHOOTING ................................ 10

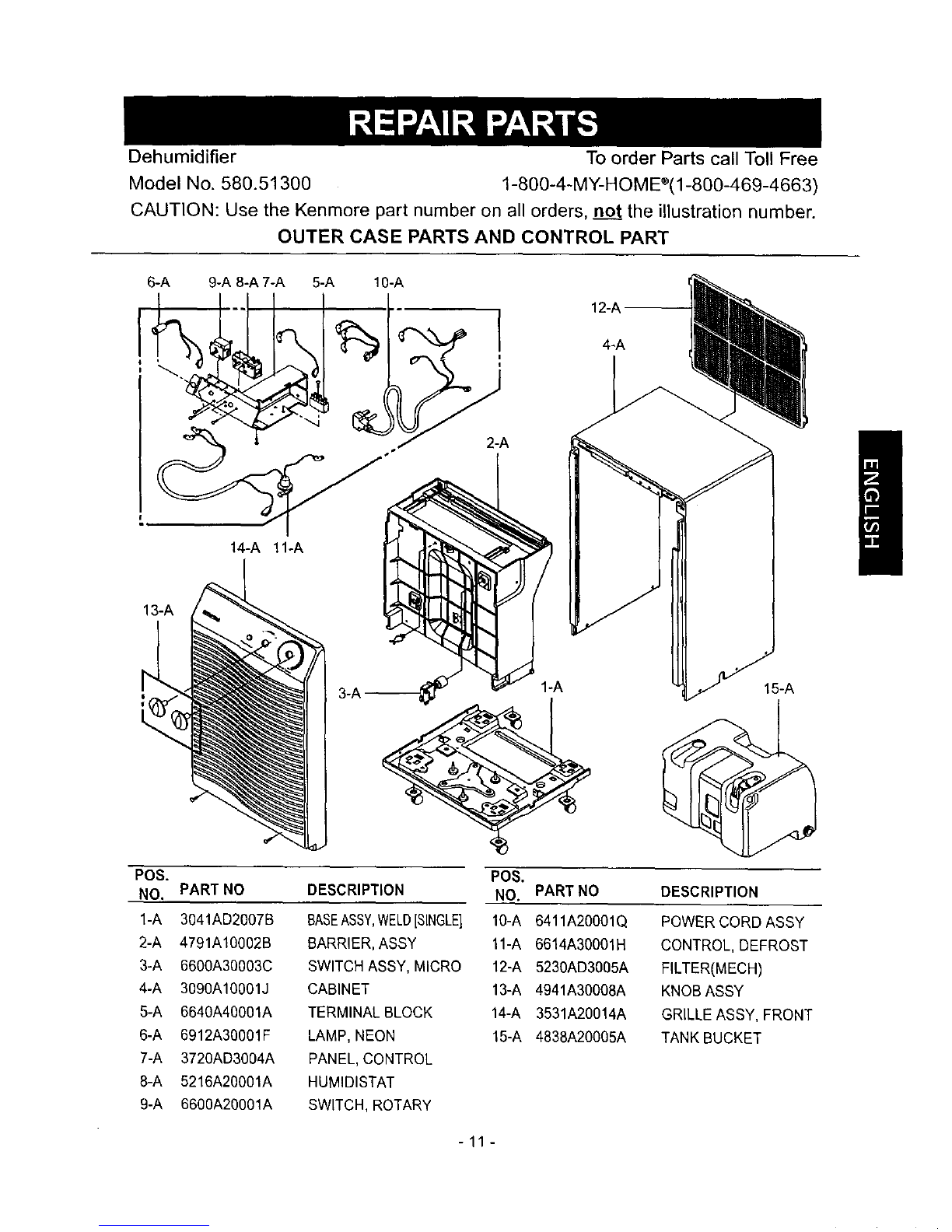

REPAIR PARTS .......................................... 11
ESPANOL ................................................... 14
SERVICE NUMBERS ................... Back Cover
FULL ONE YEAR WARRANTY ON DEHUMIDIFIER
For one year from the date of purchase, if the Dehumidifier is operated and maintained
according to the owner's instructions furnished with the product, Sears will repair the
Dehumidifier free of charge, if defective in materials or workmanship.
FULL FIVE YEAR WARRANTY ON SEALED
REFRIGERATION SYSTEM
For five years from the date of purchase, when this Dehumidifier is operated and maintained according
to owner's instructions furnished with the product, Sears will repair the sealed refrigeration system
(consisting of refrigerant, connecting tubing, and compressor motor) free of charge, if defective in
material or workmanship.
WARRANTY SERVICE IS AVAILABLE BY RETURNING UNIT TO THE NEAREST SEARS
SERVICE CENTER IN THE UNITED STATES.
This warranty applies only while this Dehumidifier is used in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL 60179 U.S.A.
-2_

IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your dehumidifier to avoid harm to yourself
or damage to your dehumidifier.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance. Read product
labels for flammability and other warnings.
PREVENT ACCIDENTS
To reduce the risk of fire, electrical shock, or
injury to persons when using your
dehumidifier, follow basic precautions,
including the following:
•Be sure the electrical service is adequate for
the model you have chosen.
_ Avoid fire hazard or electric shock.
Do not use an extension cord or an adapter plug.
Do not remove any prong from the power cord.
Grounding type
wall receptacle Do not under any
circumstances cut,
remove, or bypass
the grounding prong
from this plug.
Power supply cord !It
with 3-prong
grounding plug
ELECTRICAL INFORMATION
The complete electrical rating of your new
dehumidifier is stated on the serial plate. Refer
to the rating when checking the electrical
requirements.
• Be sure the dehumidifier is properly
grounded. To minimize shock and fire
hazards, proper grounding is important. The
power cord is equipped with a three-prong
grounding plug for protection against shock
hazards.
•Your dehumidifier must be used in a properly
grounded wall receptacle. If the walt
receptacle you intend to use is not
adequately grounded or protected by a time
delay fuse or circuit breaker, have a qualified
electrician install the proper receptacle.
• Do not use an extension cord or an
adapter plug. /
-3-

OBSERVE ALL LOCAL CODES AND
ORDINANCES.
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVETHEPOWERSUPPLYCORD
GROUND PRONG.
ELECTRICAL GROUNDIS REQUIRED ON
THIS APPLIANCE.
A 115-volt 60 Hz, AC only, 15A fused and
properly grounded electrical supply ,s requ=red
A time delay fuse or t,me delay circuit breaker
,s recommended• Use a dedicated ctrcu_t,
serving only th,s apphance
DO NOT USE AN EXTENSION CORD.
RECOMMENDED GROUNDING METHOD
For your personal safety, this apphance must
be grounded. This apphance has a power
supply cord with a 3-prong grounding plug To
minimize possTble shock hazard, the cord must
be plugged into a mating grounding type wall
receptacle and grounded in accordance w,th
the National Electncal Code (ANSI/NFPA 70)
latest edition and all local codes and
ordinances If a mating wall receptacle is not
available, _tis the personal responsibility and
obhgation of the customer to have a properly
grounded 3-prong wall receptacle installed by a
qualified electnc_an
' ,.WARNING ....
Electrical Shock Hazard
Plug =ntoa grounded 3 prong outlet
Do not remove ground prong.
Do not use an adapter•
Do not use an extension cord.
Fatlure to follow these instructions can resull
in death, fire, or electrical shock.
_3-prong
^ nf'-.._ ,i, grounding
;rPru°_lgn_ II%=.a' llltrYePe_allle
p,ug p0c
Ground
Power -_ prong
supply
cord
-4-

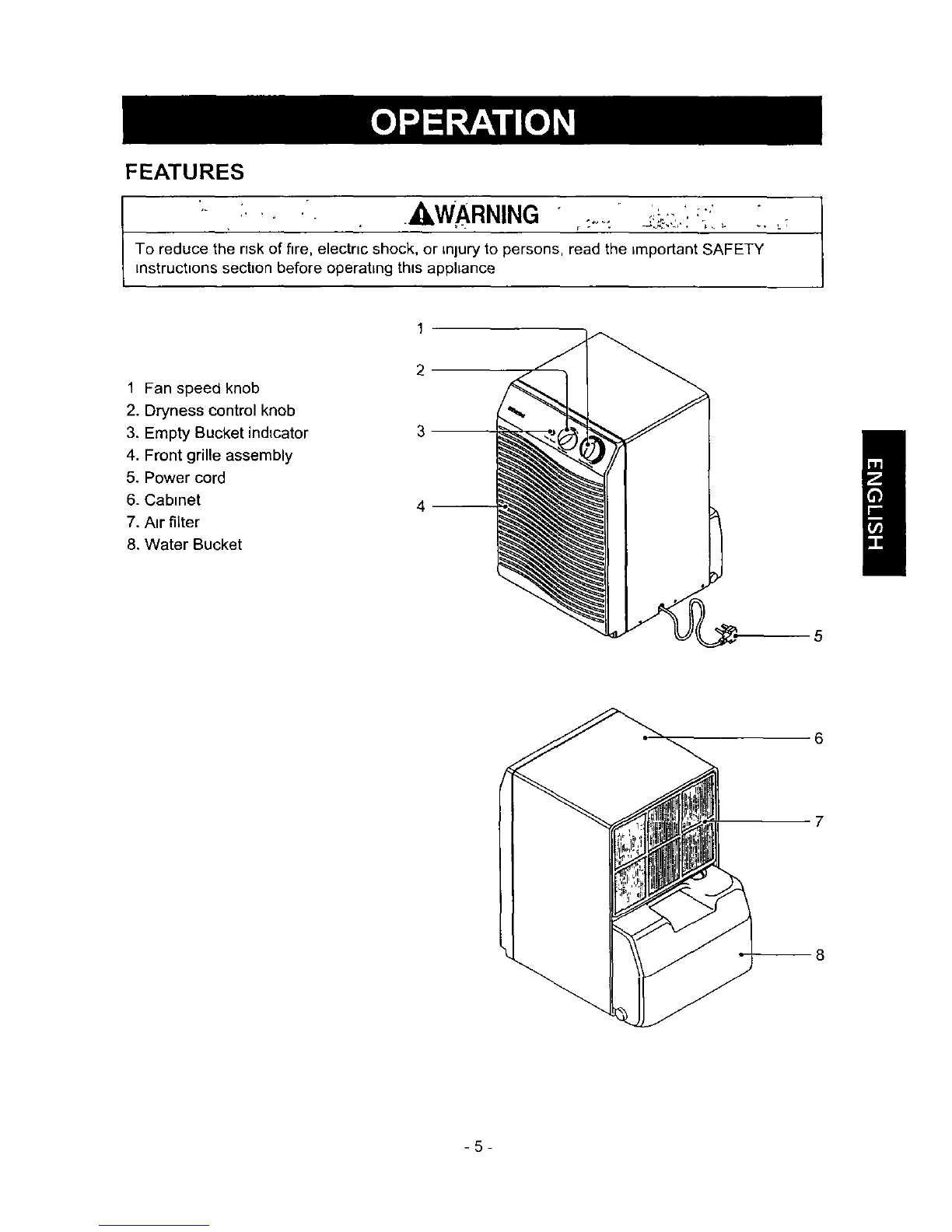

FEATURES
•_WARNING
= r - •
To reduce the risk of fire, electnc shock, or mlurg to persons, read the Lmportant SAFETY
_nstruct_ons sect=on before operating th_s apphance
1 Fan speed knob
2. Dryness control knob
3. Empty Bucket indicator
4. Front grille assembly
5. Power cord
6. Cabinet
7. Air filter
8. Water Bucket
2
3
4i
8
-5-

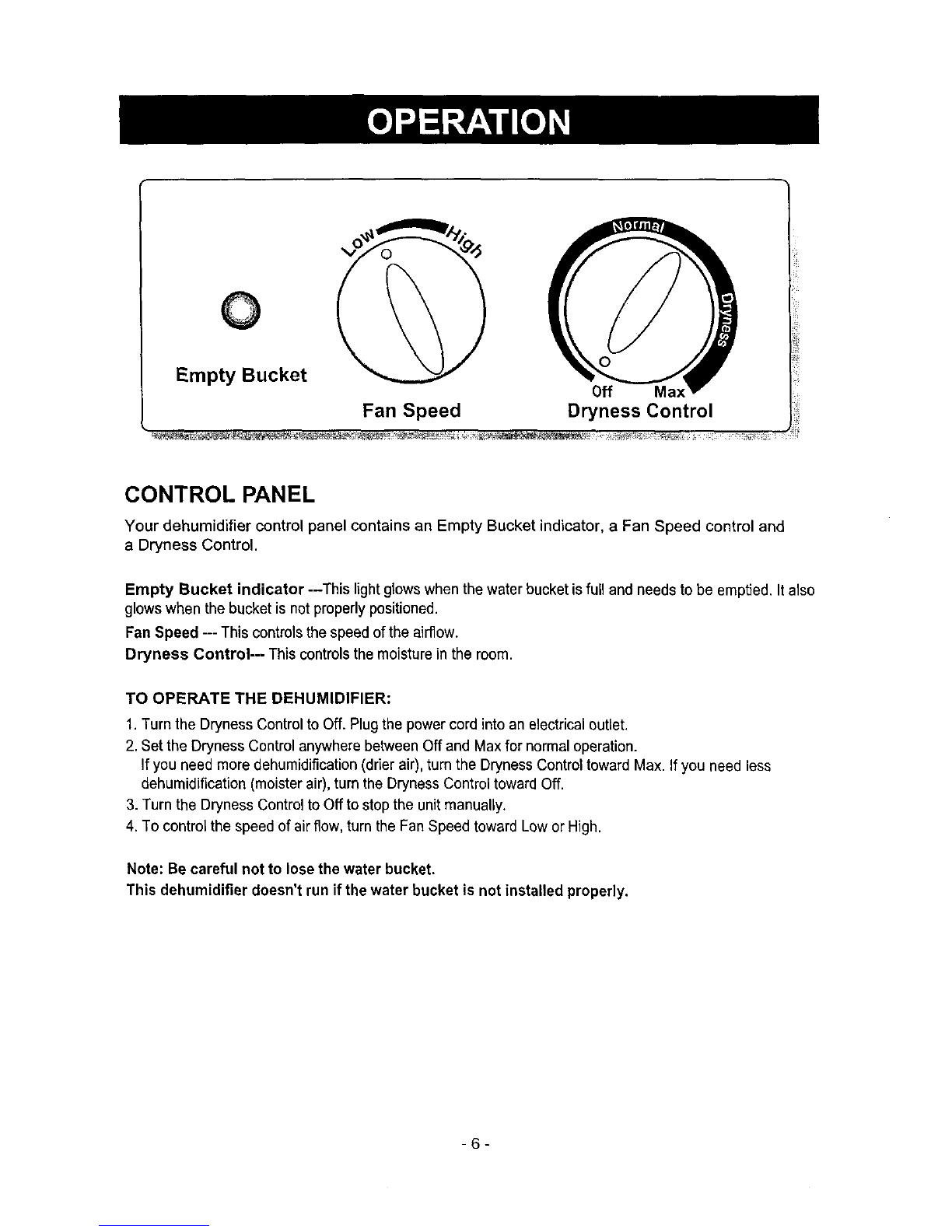

Empty Bucket
Fan Speed
O
Off Max
Dryness Control
CONTROL PANEL
Your dehumidifier control panel contains an Empty Bucket indicator, a Fan Speed control and
a Dryness Control.
Empty Bucket indicator --This light glows whenthe water bucket isfull and needs tobe emptied. It also
glows when the bucket is not properly positioned.
Fan Speed --- This controls the speed of the airflow.
Dryness Control-- This controls the moisture in the room.
TO OPERATE THE DEHUMIDIFIER:
1.Turn the Dryness Control to Off. Plug the power cord into an electrical outlet.
2. Set the Dryness Control anywhere between Off and Max for normal operation.
If you need more dehumidification (drier air), turn the Dryness Control toward Max. Ifyou need less
dehumidification (moister air), turn the Dryness Control toward Off.
3. Turn the Dryness Control to Off to stopthe unit manually.
4. To control the speed of air flow, turn the Fan Speed toward Low or High.
Note: Be careful not to lose the water bucket.
This dehumidifier doesn't run ifthe water bucket is not installed properly.
-6-

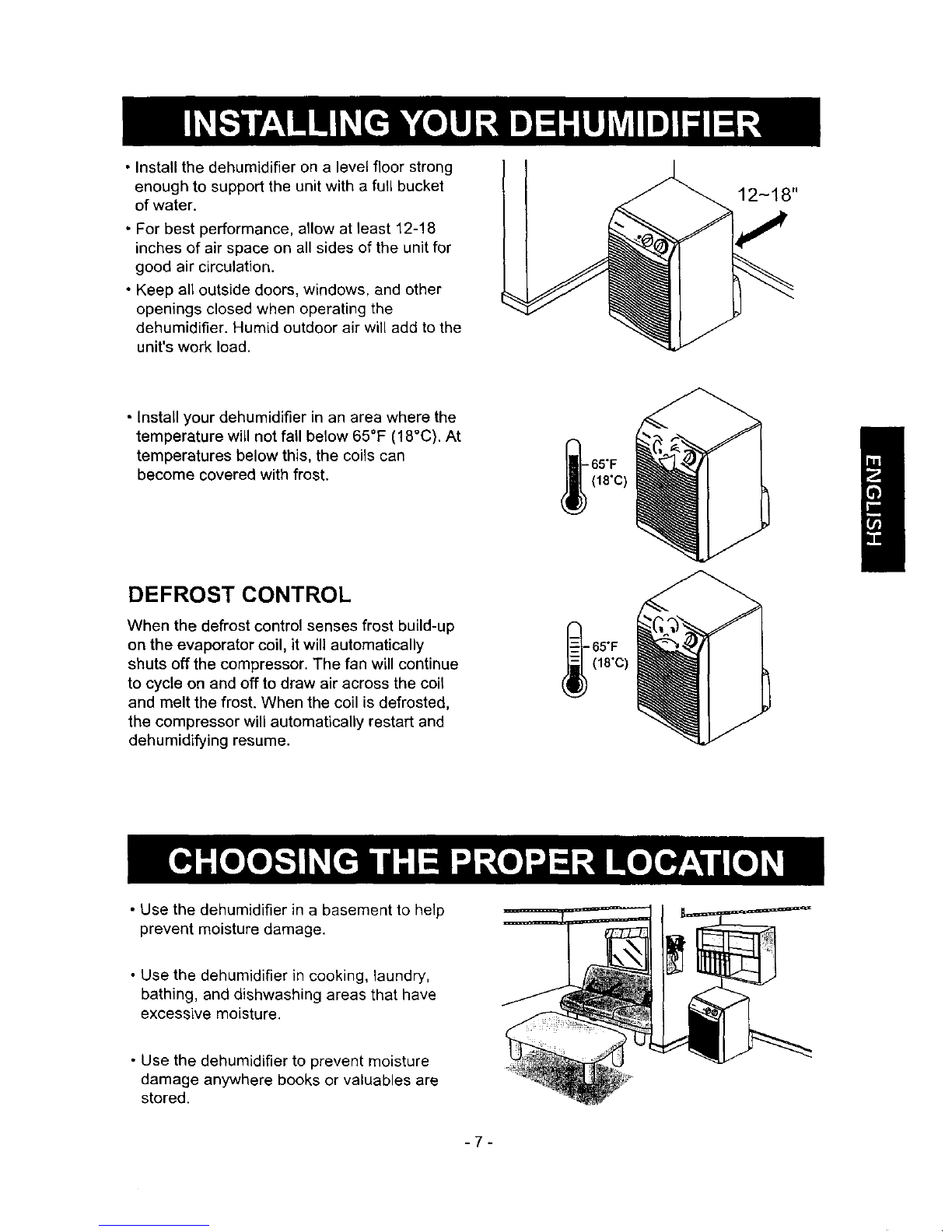

• Installthedehumidifieronalevelfloorstrong
enoughto supporttheunitwithafullbucket
ofwater.
• Forbestperformance,allowatleast12-18
inchesofairspaceonallsidesoftheunitfor
goodaircirculation.
• Keepalloutsidedoors,windows,andother
openingsclosedwhenoperatingthe
dehumidifier.Humidoutdoorairwilladdtothe
unit'sworkload.
• Install your dehumidifier in an area where the
temperature will not fall below 65°F (18°C). At
temperatures below this, the coils can
become covered with frost,
DEFROST CONTROL
When the defrost control senses frost build-up
on the evaporator coil, it will automatically
shuts off the compressor. The fan will continue
to cycle on and off to draw air across the coil
and melt the frost. When the coil is defrosted,
the compressor will automatically restart and
dehumidifying resume.
-65"F
(18"c) /
• Use the dehumidifier in a basement to help
prevent moisture damage.
• Use the dehumidifier in cooking, laundry,
bathing, and dishwashing areas that have
excessive moisture.
• Use the dehumidifier to prevent moisture
damage anywhere books or valuables are
stored.
-7-

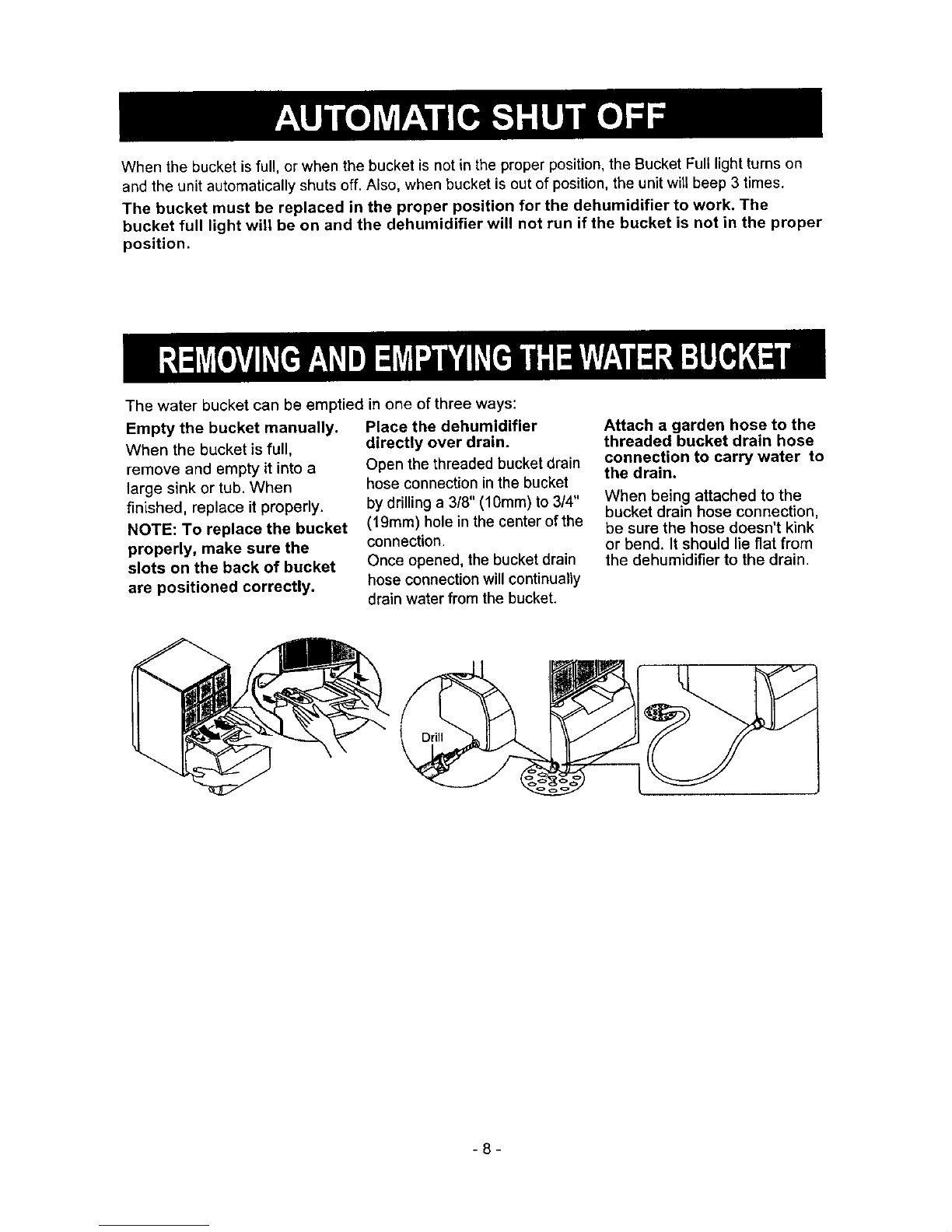

Whenthebucketisfull,orwhenthebucketisnotintheproperposition,theBucketFulllightturnson
andtheunitautomaticallyshutsoff.Also,whenbucketisoutofposition,theunitwillbeep3times.
Thebucketmustbereplacedin theproperpositionfor thedehumidifiertowork.The
bucketfull lightwill beon andthe dehumidifierwill notrunif thebucketis notinthe proper
position.
Thewaterbucketcanbeemptiedinoneofthreeways:
Empty the bucket manually,
When the bucket is full,
remove and empty it into a
large sink or tub. When
finished, replace it properly.
NOTE: To replace the bucket
properly, make sure the
slots on the back of bucket
are positioned correctly.
Place the dehumidifier
directly over drain.
Open the threaded bucket drain
hose connection inthe bucket
bydrilling a 3/8" (lOmm) to 3/4"
(19ram) hole in the center of the
connection.
Once opened, the bucket drain
hose connection will continually
drain water from the bucket.
Attach a garden hose to the
threaded bucket drain hose
connection to carry water to
the drain.
When being attached to the
bucket drain hose connection,
be sure the hose doesn't kink
or bend. It should lie fiat from
the dehumidifier to the drain.
-8-

GRILLE AND CASE
To clean the case: Use water and a mild
detergent. Do not use bleach or an abrasive
cleaner.
To clean the grille: Use a vacuum with an
attachment or brush.
AIR FILTER
The air filter is on the back of the dehumidifier.
It should be checked and cleaned at least
every 30 days or more often if necessary.
TO REMOVE:
Flex the filter at the lower right corner and slide
the upper right side to the left. Release all of
the tabs and remove the filter. Wash it in warm
soapy water. Rinse and let the filter dry before
replacing it.
CLEANING INSIDE THE UNIT
After removing the air filter, clean the coil on
the inside with a soft brush to remove any soft
and wet soil.
NOTE: Do not allow water to enter the
electrical/machine compartment through the
circular opening behind the coil.
13o not spray the coil with a hose.
GENERAL CLEANING
•Dust the front grille and the side panels with a
soft brush or use the dusting attachment of
your vacuum.
•If cabinet paint chips, you can touch up the
paint with a good grade enamel to prevent rust.
WATER BUCKET CLEANING
• Every few weeks, rinse the inside of the water
bucket with a mild detergent to prevent
growth of mold, mildew, and bacteria.
-9-

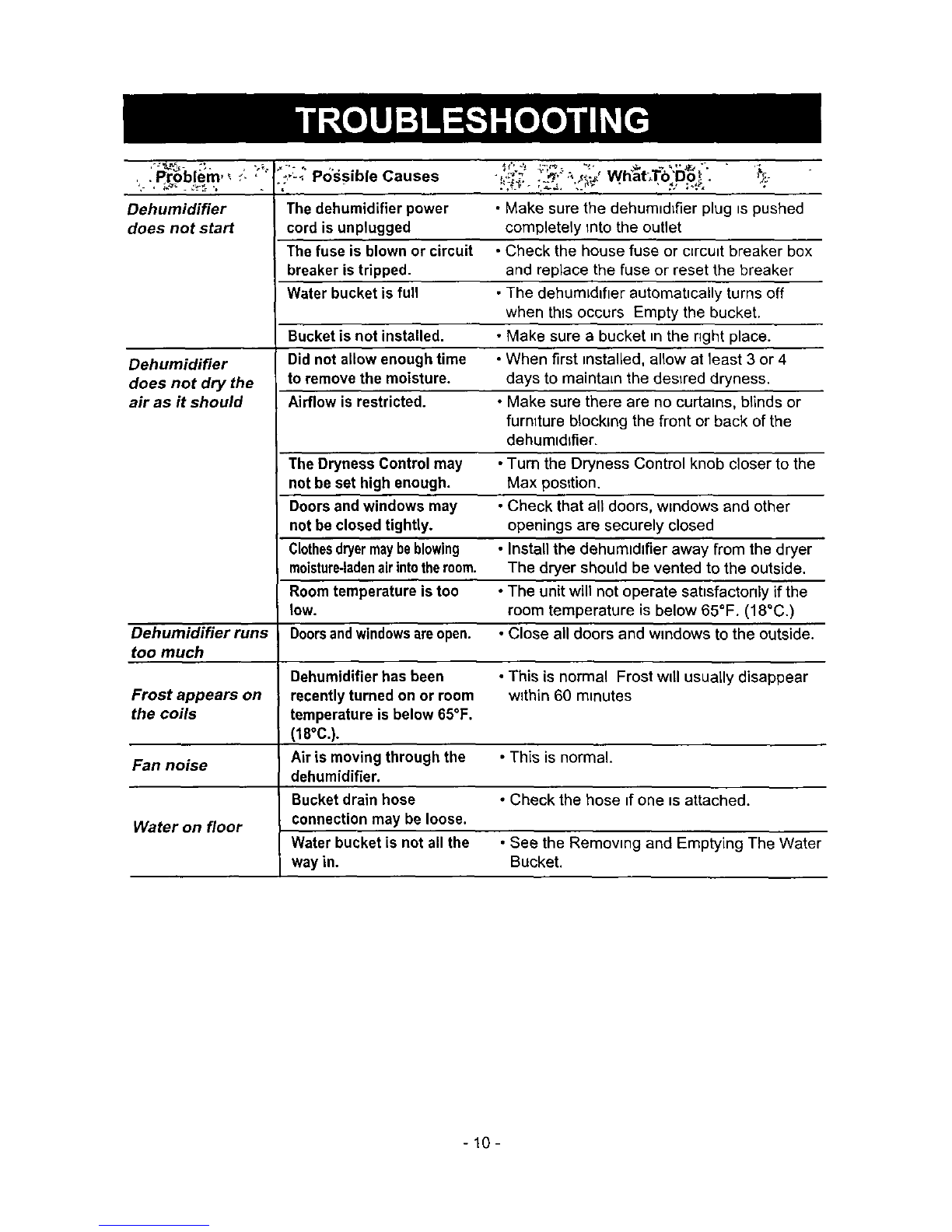

, , p_oblbm, _ .... '=- Po>ssible Causes -_,_ _"_,":,s_:_'What-_To Do<_+
Dehumidifier The dehumidifier power • Make sure the dehumidifier plug _spushed
does not start cord is unplugged completely into the outlet
The fuse is blown or circuit • Check the house fuse or circuit breaker box
breaker is tripped, and replace the fuse or reset the breaker
Water bucket is full •The dehumidifier automat=cally turns off
when this occurs Empty the bucket.
Bucket is not installed. • Make sure a bucket m the right place.
Dehumidifier Did not allow enough time •When first =nstaNed,allow at least 3 or 4
does not dry the to remove the moisture, days to maintain the desired dryness.
air as it should Airflow is restricted. •Make sure there are no curtains, blinds or
furniture blocking the front or back of the
dehumidifier.
The Dryness Control may • Turn the Dryness Control knob closer to the
not be set high enough. Max position.
Doors and windows may •Check that all doors, windows and other
not be closed tightly, openings are securely closed
Clothesdryermaybeblowing ° Install the dehumidifier away from the dryer
moisture-ladenairintotheroom. The dryer should be vented to the outside.
Room temperature is too • The unit will not operate satisfactorily if the
low. room temperature is below 65°F. (18°C.)
Dehumidifier runs Doorsand windowsareopen. • Close all doors and windows to the outside.
too much
Dehumidifier has been •This is normal Frost will usually disappear
Frost appears on recently turned on or room within 60 minutes
the coils temperature is below 65°F.
(18°C.).
Fan noise Air is moving through the • This is normal.
dehumidifier.
Bucket drain hose • Check the hose ff one is attached.
Water on floor connection may be loose.
Water bucket is not all the • See the Removing and Emptying The Water
way in. Bucket.
-10-

Dehumidifier To order Parts call Toll Free
Model No. 580.51300 1-800-4-MY-HOME®(1-800-469-4663)
CAUTION: Use the Kenmore part number on all orders, no.__ttthe illustration number.
OUTER CASE PARTS AND CONTROL PART
6-A 9-A8-AT-A 5-A 10-A
12-A
4-A
13-A
POS.
NO.
1-A
2-A
3-A
4-A
5-A
6-A
7-A
8-A
9-A
I-A 15-A
PART NO DESCRIPTION
3041AD2007B
4791A10O02B
6600A30003C
3090A10001J
6640A40001A
6912A30001F
3720AD3004A
5216A20001A
BASEASSY,WELD[SINGLE]
BARRIER, ASSY
SWITCH ASSY, MICRO
CABINET
TERMINAL BLOCK
LAMP, NEON
PANEL, CONTROL
HUMIDISTAT
POS.
NO.
10-A
11-A
12-A
13-A
14-A
15-A
PART NO DESCRIPTION
6411A20001Q
6614A30001H
5230AD3005A
4941A30008A
3531A20014A
4838A20005A
POWER CORD ASSY
CONTROL, DEFROST
FILTER(MECH)
KNOB ASSY
GRILLE ASSY, FRONT
TANKBUCKET
6600A20001A SWITCH, ROTARY
-11 -

580.51300
CAUTION:Whenorderingparts, usethe Kenmorepart numbernot the locationnumber.
CYCLE PARTS
6-B
POS, NO. PART NO DESCRIPTION
1-B 5900A20007A FAN
2-B 4999A10001A SHROUD ASSY
3-B 4681A20040A MOTOR ASSY, SINGLE
4-B 4960A20009A MOUNT, MOTOR
5-B 5403A10008B CONDENSER ASSY
6-B 5421A10009B EVAPORATOR ASSY
-12-

580.51300
CAUTION: When ordering parts, use the Kenmore part number not the location number.
COMPRESSOR PARTS
8-C
POS. NO. PART NO DESCRIPTION
1-C 3550C-0013A
2-C 6748C-0003A
3-C 6750C-0002S
4-C 2521C-A8605
5-C 1NHA0801206
6-C 4H00972G
7-C 5040AR4195A
8-C 5425AP3074C
9-C 5211A30373B
10-C 5211A30367A
TERMINAL COVER
R.T.C
O.L.P.
RE-COMPRESSOR, SET
NUT, HEXAGON (1)
WASHER
ISOLATOR, COMP.
TUBE ASSY, CAPILLARY
TUBE ASSY, SUCTION
TUBE ASSY, DISCHARGE
-13-
