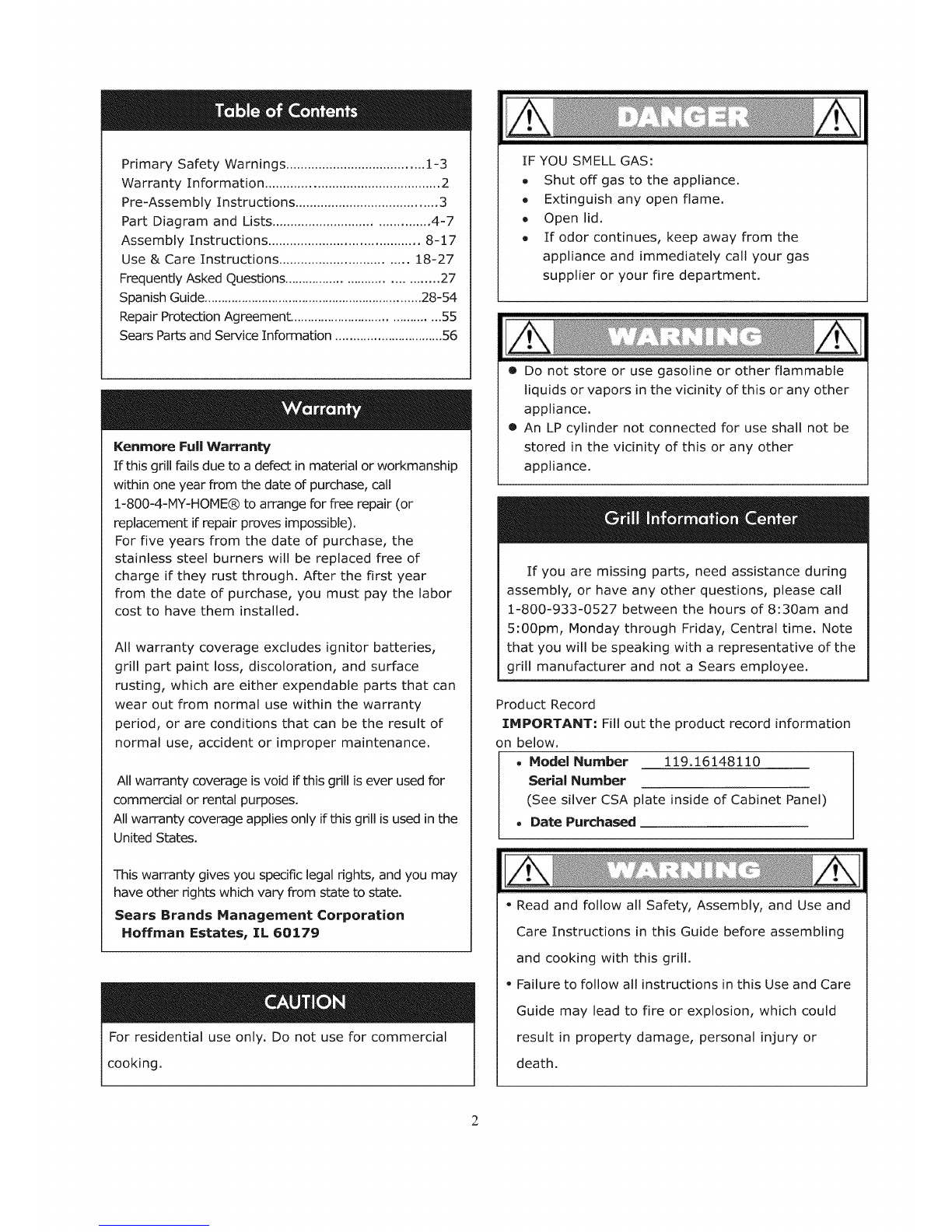

Primary Safety Warnings ...................................... 1-3
Warranty Information ................................................ 2
Pre-Assembly Instructions ....................................... 3
Part Diagram and Lists .......................................... 4-7
Assembly Instructions ......................................... 8-17
Use & Care Instructions .................................. 18-27
Frequently Asked Questions ........................................ 27
Spanish Guide ................................................................ 28-54
Repair Protection Agreement .......................................... 55
Sears Parts and Service Information ............................... 56
Kenmore Full Warranty
If this grill fails due to a defect in material or workmanship
within one year from the date of purchase, call
1-800-4=MY-HOME® to arrange for free repair (or
replacement if repair proves impossible).
For five years from the date of purchase, the
stainless steel burners will be replaced free of
charge if they rust through. After the first year
from the date of purchase, you must pay the labor
cost to have them installed.
All warranty coverage excludes ignitor batteries,
grill part paint loss, discoloration, and surface
rusting, which are either expendable parts that can
wear out from normal use within the warranty
period, or are conditions that can be the result of
normal use, accident or improper maintenance.
All warranty coverage is void if this grill is ever used for
commercial or rental purposes.
All warranty coverage applies only if this grill is used in the
United States.
This warranty gives you specific legal rights, and you may
have other rights which vary from state to state.
Sears Brands Management Corporation
Noffman Estates, XL 60179
For residential use only. Do not use for commercial
cooking.
IF YOU SMELL GAS:
• Shut off gas to the appliance.
• Extinguish any open flame.
o Open lid.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
• Do not store or use gasoline or other flammable
liquids or vapors in the vicinity of this or any other
appliance.
• An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other
appliance.
If you are missing parts, need assistance during
assembly, or have any other questions, please call
1-800-933-0527 between the hours of 8:30am and
5:00pm, Monday through Friday, Central time. Note
that you will be speaking with a representative of the
grill manufacturer and not a Sears employee.
Product Record
IMPORTANT: Fill out the product record information
on below.
• Model Number 119.16148110
Serial Number
(See silver CSA plate inside of Cabinet Panel)
• Date Purchased

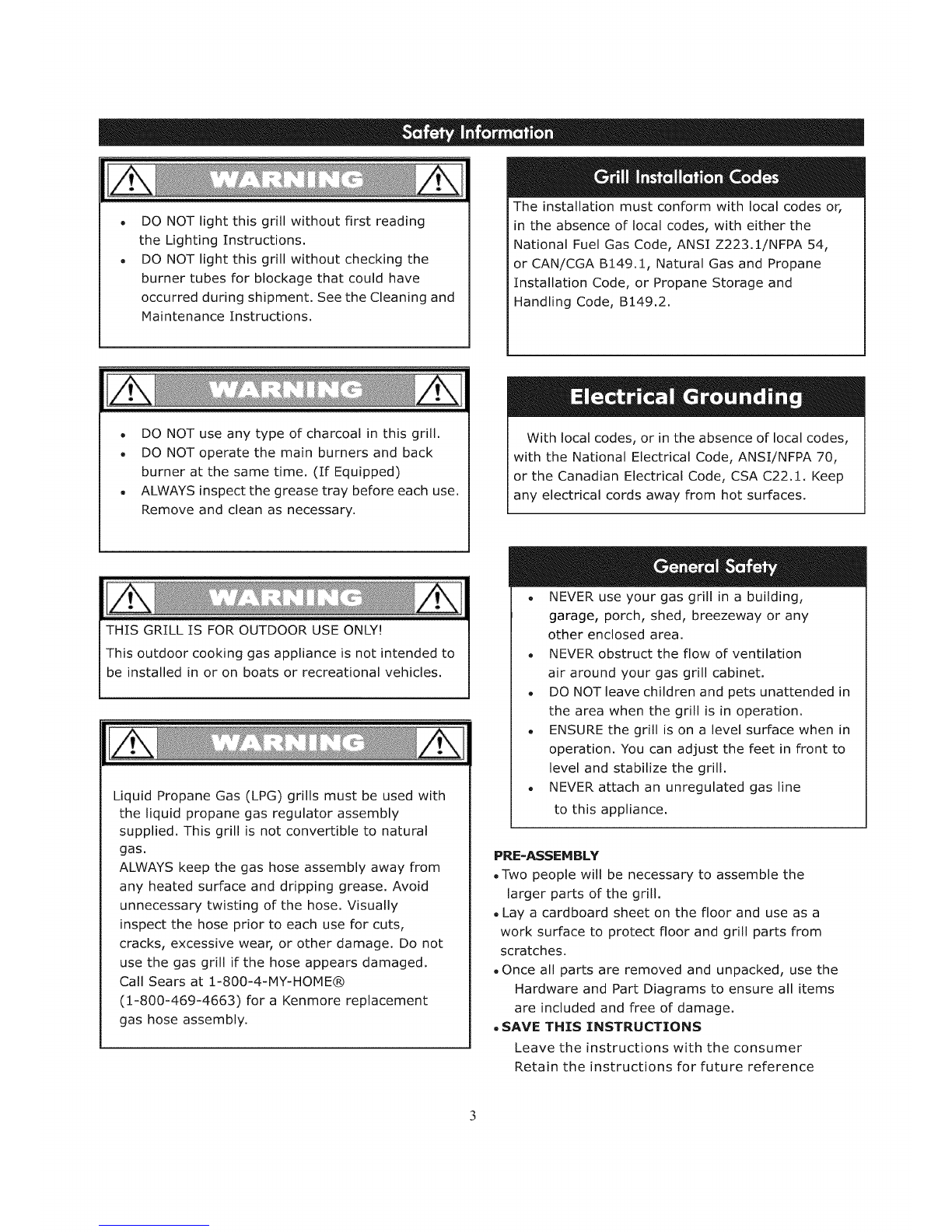

•Read and follow all Safety, Assembly, and Use and
Care Instructions in this Guide before assembling
and cooking with this grill.
, Failure to follow all instructions in this Use and Care
Guide may lead to fire or explosion, which could
result in property damage, personal injury or
death.

DONOTlightthisgrillwithoutfirstreading
theLightingInstructions.
DONOTlightthisgrillwithoutcheckingthe
burnertubesforblockagethatcouldhave
occurredduringshipment.SeetheCleaningand
MaintenanceInstructions.
Theinstallationmustconformwithlocalcodesor,
intheabsenceoflocalcodes,witheitherthe
NationalFuelGasCode,ANSIZ223.1/NFPA54,
orCAN/CGAB149.1,NaturalGasandPropane
InstallationCode,orPropaneStorageand
HandlingCode,B149.2.
o DONOTuseanytypeofcharcoalinthisgrill.
o DONOToperatethemainburnersandback
burneratthesametime.(If Equipped)
• ALWAYSinspectthegreasetraybeforeeachuse.
Removeandcleanasnecessary.
THIS GRILL IS FOR OUTDOOR USE ONLY!
This outdoor cooking gas appliance is not intended to
be installed in or on boats or recreational vehicles.
Liquid Propane Gas (LPG) grills must be used with
the liquid propane gas regulator assembly
supplied. This grill is not convertible to natural
gas.
ALWAYS keep the gas hose assembly away from
any heated surface and dripping grease. Avoid
unnecessary twisting of the hose. Visually
inspect the hose prior to each use for cuts,
cracks, excessive wear, or other damage. Do not
use the gas grill if the hose appears damaged.
Call Sears at 1-800-4-MY-HOME®
(1-800-469-4663) for a Kenmore replacement
gas hose assembly.
With local codes, or in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70,
or the Canadian Electrical Code, CSA C22.1. Keep
any electrical cords away from hot surfaces.
NEVER use your gas grill in a building,
garage, porch, shed, breezeway or any
other enclosed area.
• NEVER obstruct the flow of ventilation
air around your gas grill cabinet.
• DO NOT leave children and pets unattended in
the area when the grill is in operation.
ENSURE the grill is on a level surface when in
operation. You can adjust the feet in front to
level and stabilize the grill.
• NEVER attach an unregulated gas line
to this appliance.
PRE-ASSEMBLY
•Two people will be necessary to assemble the
larger parts of the grill.
•Lay a cardboard sheet on the floor and use as a
work surface to protect floor and grill parts from
scratches.
•Once all parts are removed and unpacked, use the
Hardware and Part Diagrams to ensure all items
are included and free of damage.
•SAVE THIS INSTRUCTIONS
Leave the instructionswith the consumer
Retain the instructions for future reference

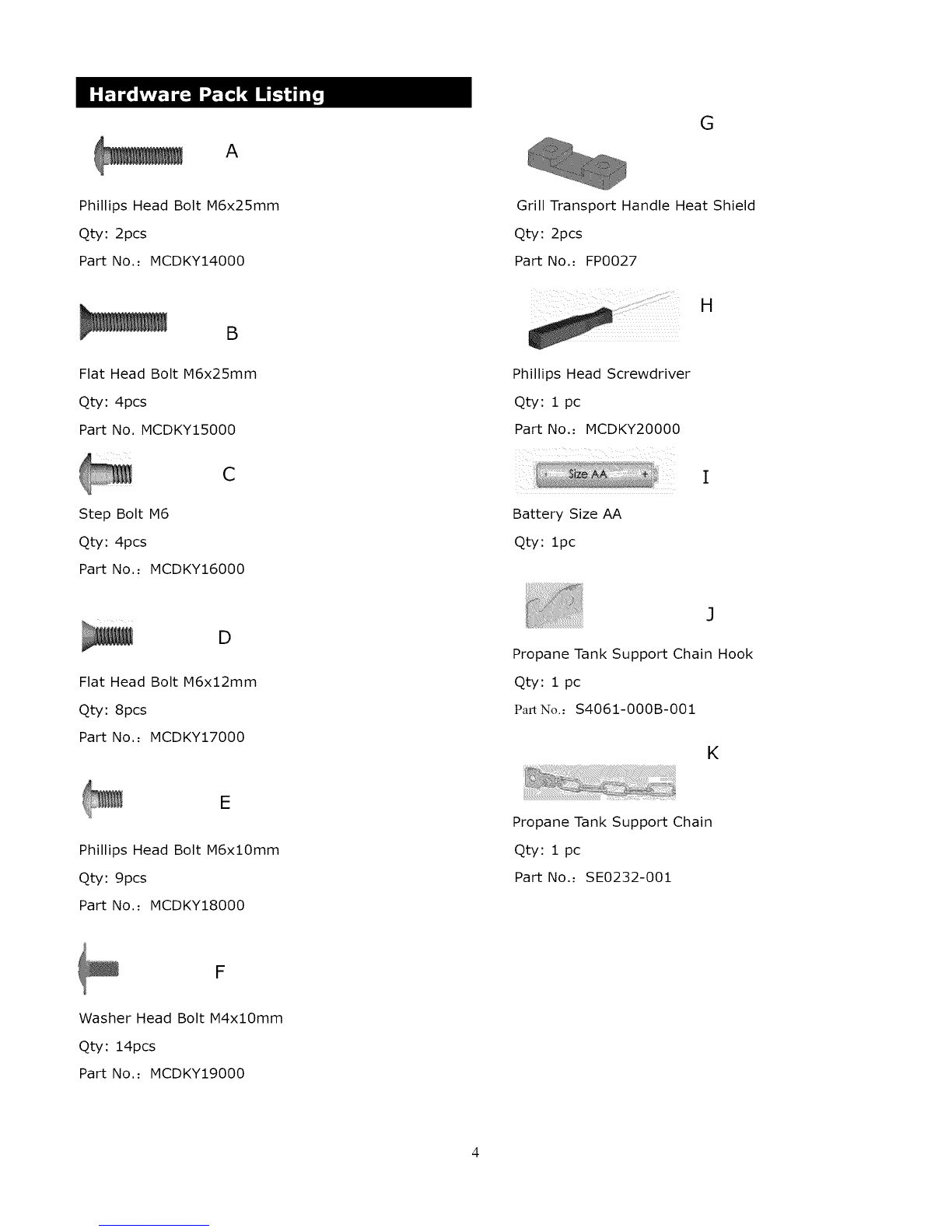

A
Phillips Head Bolt M6x25mm
Qty: 2pcs
Part No... MCDKY14000
B
Flat Head Bolt M6x25mm
Qty: 4pcs
Part No. MCDKY15000
C
Step Bolt M6
Qty: 4pcs
Part No.: MCDKY16000
D
Flat Head Bolt M6x12mm
Qty: 8pcs
Part No.: MCDKY17000
E
Phillips Head Bolt M6xl0mm
Qty: 9pcs
Part No.: MCDKY18000
F
Washer Head Bolt M4xl0mm
Qty: 14pcs
Part No.: MCDKY19000
4
G
Grill Transport Handle Heat Shield
Qty: 2pcs
Part No.: FP0027
H
Phillips Head Screwdriver
Qty: 1 pc
Part No.: MCDKY20000
Battery Size AA
Qty: 1pc
J
Propane Tank Support Chain Hook
Qty: 1 pc
Part No.: $4061-000B-001
K
Propane Tank Support Chain
Qty: 1 pc
Part No.: SE0232-001

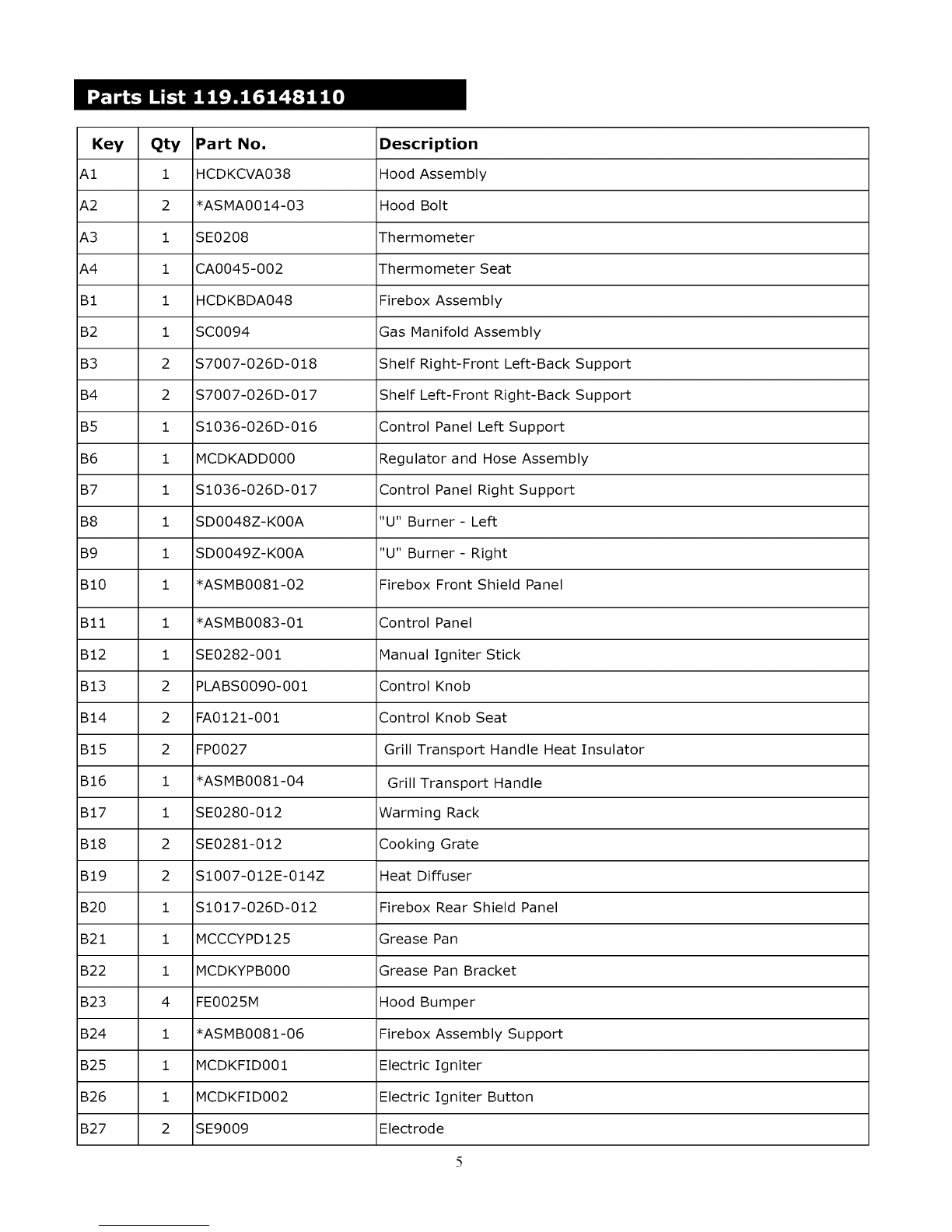

Key Qty Part No. Description
A1 1 HCDKCVA038 Hood Assembly
A2 2 *ASMA0014-03 Hood Bolt
A3 1 SE0208 Thermometer
A4 1 CA0045-002 Thermometer Seat
B1 1 HCDKBDA048 Firebox Assembly
B2 1 SC0094 Gas Manifold Assembly
B3 2 $7007-026D-018 Shelf Right-Front Left-Back Support
B4 2 $7007-026D-017 Shelf Left-Front Right-Back Support
B5 1 $1036-026D-016 Control Panel Left Support
B6 1 MCDKADD000 Regulator and Hose Assembly
B7 1 $1036-026D-017 Control Panel Right Support
B8 1 SD0048Z-K00A "U" Burner- Left
B9 1 SD0049Z-K00A "U" Burner- Right
B10 1 *ASMB0081-02 Firebox Front Shield Panel
Bll 1 *ASMB0083-01 Control Panel
B12 1 SE0282-001 Manual Igniter Stick
B13 2 PLABS0090-001 Control Knob
B14 2 FA0121-001 Control Knob Seat
B15 2 FP0027 Grill Transport Handle Heat Insulator
B16 1 *ASMB0081-04 Grill Transport Handle
B17 1 SE0280-012 Warming Rack
B18 2 SE0281-012 Cooking Grate
B19 2 S1007-012E-014Z Heat Diffuser
B20 1 $1017-026D-012 Firebox Rear Shield Panel
B21 1 MCCCYPD125 Grease Pan
B22 1 MCDKYPB000 Grease Pan Bracket
B23 4 FE0025M Hood Bumper
B24 1 *ASMB0081-06 Firebox Assembly Support
B25 1 MCDKFID001 Electric Igniter
B26 1 MCDKFID002 Electric Igniter Button
B27 2 SE9009 Electrode

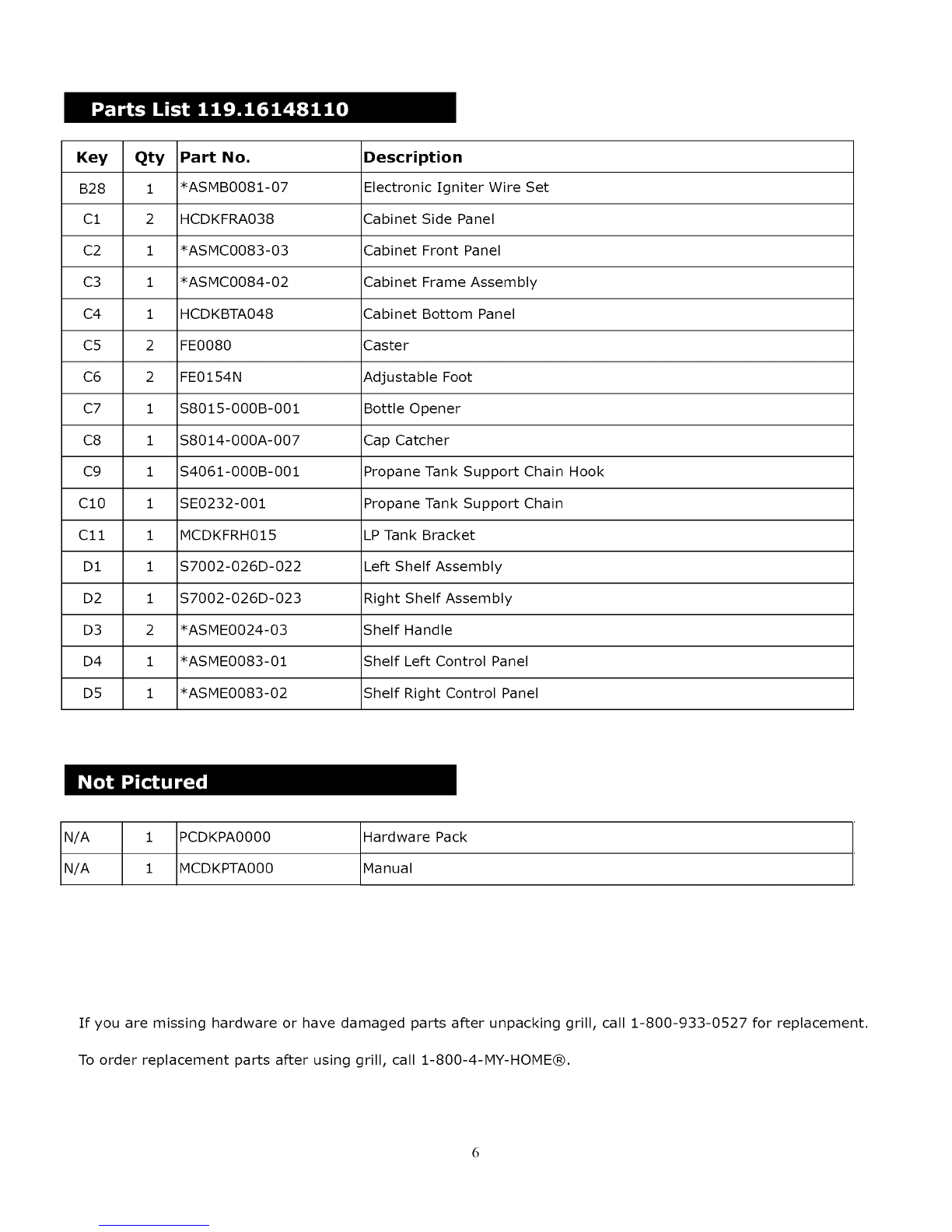

Key Qty Part No. Description
B28 1 _ASMB0081-07 Electronic Igniter Wire Set
Cl 2 HCDKFRA038 Cabinet Side Panel
C2 1 _ASMC0083-03 Cabinet Front Panel
C3 1 _ASMC0084-02 Cabinet Frame Assembly
C4 1 HCDKBTA048 Cabinet Bottom Panel
C5 2 FE0080 Caster
C6 2 FE0154N Adjustable Foot
C7 1 $8015-000B-001 Bottle Opener
C8 1 $8014-000A-007 Cap Catcher
C9 1 $4061-000B-001 Propane Tank Support Chain Hook
C10 1 SE0232-001 Propane Tank Support Chain
Cll 1 MCDKFRH015 LP Tank Bracket
D1 1 $7002-026D-022 Left Shelf Assembly
D2 1 $7002-026D-023 Right Shelf Assembly
D3 2 _ASME0024-03 Shelf Handle
D4 1 _ASME0083-01 Shelf Left Control Panel
D5 1 _ASME0083-02 Shelf Right Control Panel
N/A 1 PCDKPA0000 Hardware Pack
N/A 1 MCDKPTA000 Manual
If you are missing hardware or have damaged parts after unpacking grill, call 1-800-933-0527 for replacement.
To order replacement parts after using grill, call 1-800-4-MY-HOME®.

..... ___i_,i_iii_ii__,

Install Cabinet Left Side Panel and Right Side Panel
[] Attach Cabinet Left Side Panel to the Cabinet Base using 2 Phillips Head Bolts (M6xl0mm).
[] Attach Cabinet Right Side Panel to the Cabinet Base using 2 Phillips Head Bolts (M6xl0mm),
Do not fully tighten any bolts at this time,
Phillips Head Bolt M6xl0mm
Qty: 4
Install Cabinet Front Panel and LP Tank Bracket
[] Attach Cabinet Front Panel to the Cabinet Base using 1 Phillips Head Bolt (M6xl0mm).
[] Attach Cabinet Front Panel to the Cabinet Left and Right Side Panels using 4 Washer Head Bolts
using the top and lower holes(M4xl0mm), Do not fully tighten any bolts at this time,
[] Attach LP Tank Bracket to center holes of Cabinet Front Panel using 2 Washer Head Bolts as Shown
Phillips Head Bolt M6xl0mm
Qty: 1
Washer Head Bolt M4xl0mm
Qty: 6
LP Tank Bracket
Qty: 1

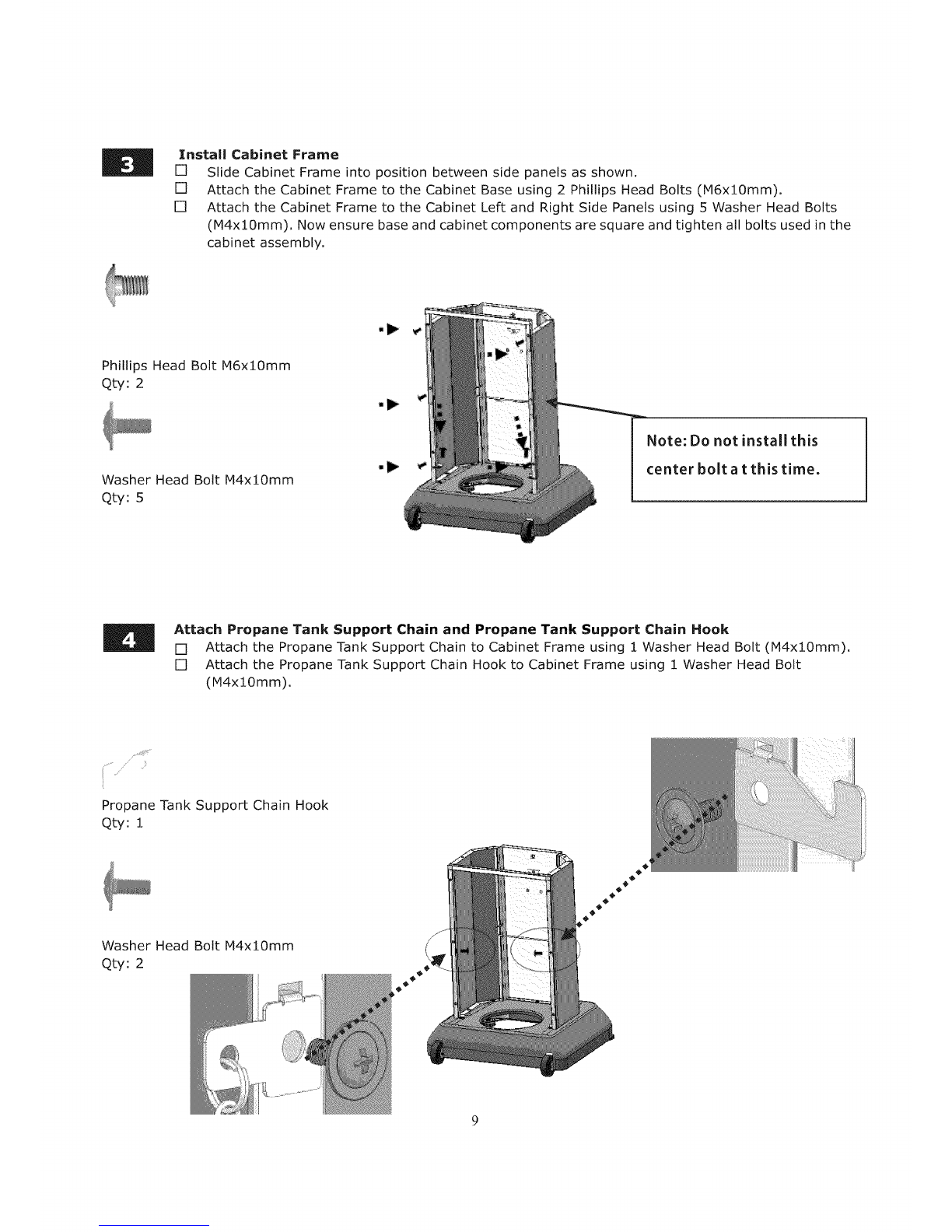

Instal| Cabinet Frame
[] Slide Cabinet Frame into position between side panels as shown.
[] Attach the Cabinet Frame to the Cabinet Base using 2 Phillips Head Bolts (M6xlOmm).
[] Attach the Cabinet Frame to the Cabinet Left and Right Side Panels using 5 Washer Head Bolts
(l_14x::[Omm). Now ensure base and cabinet components are square and tighten all bolts used in the
cabinet assembly,
Phillips Head Bolt lq6xlOmm
Qty: 2
Washer Head Bolt lq4xlOmm
Qty: 5
Note: Do not install this
center boltatthistime.
Attach Propane Tank Support Chain and Propane Tank Support Chain Hook
[] Attach the Propane Tank Support Chain to Cabinet Frame using 1 Washer Head Bolt (M4xlOmm),
[] Attach the Propane Tank Support Chain Hook to Cabinet Frame using 1 Washer Head Bolt
(M4xlOmm).
Propane Tank Support Chain Hook
Qty: 1
Washer Head Bolt M4xlOmm
Qty: 2

Hang Bottle Cap Catcher
[] Hang Bottle Cap Catcher on the Cabinet Front Panel.

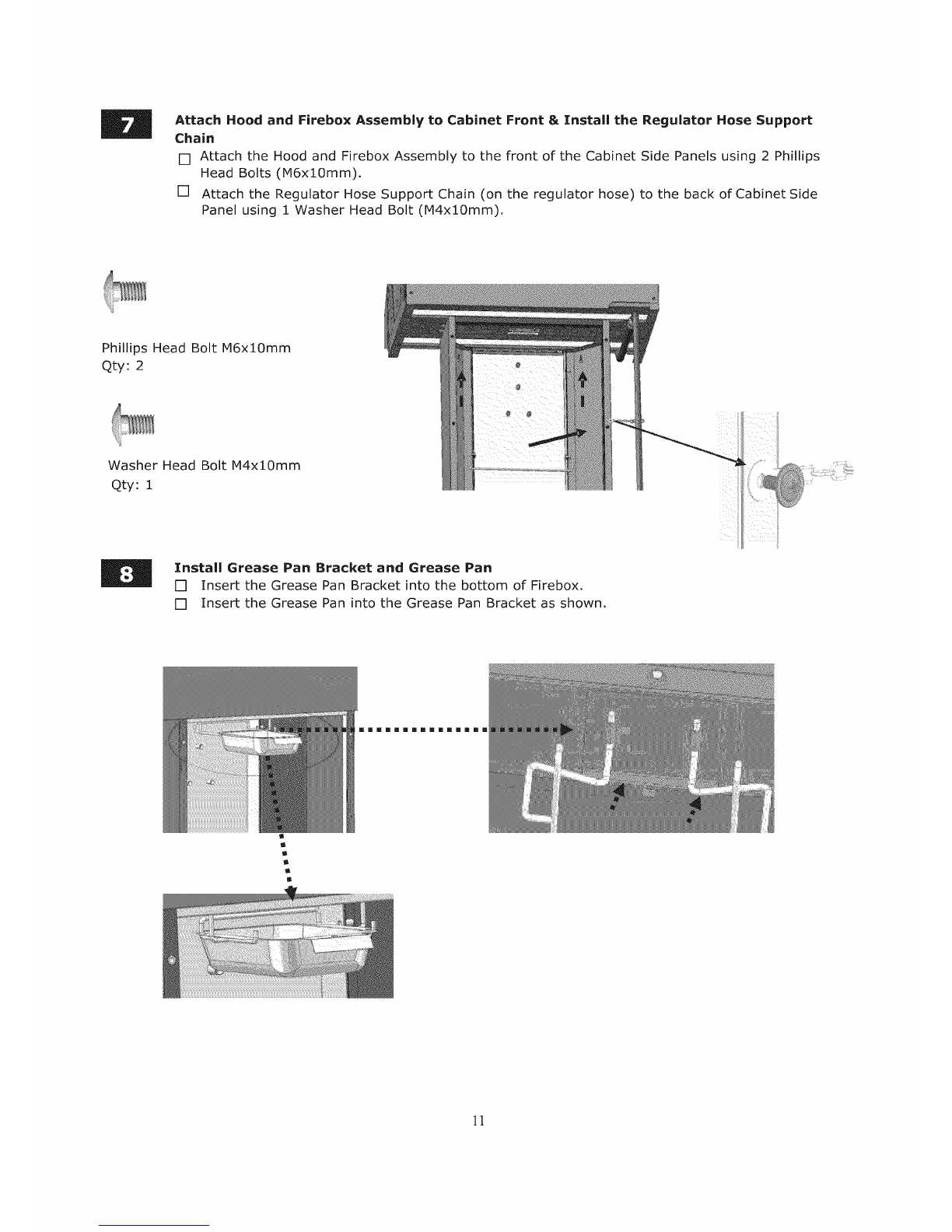

Install Hood and Firebox Assembly
[] Remove regulator and hose from underside of Hood and Firebox Assembly. Remove packing
from regulator.
[] With the aid of an assistant, place Hood and Firebox Assembly onto the Cabinet, and attach to
the Cabinet Frame using 2 Phillips Head Bolts (M6x25mm).
Phillips Head Bolt M6x25mm
Qty: 2
10

Attach Hood and Firebox Assembly to Cabinet Front & Install the Regulator Hose Support
Chain
[] Attach the Hood and Firebox Assembly to the front of the Cabinet Side Panels using 2 Phillips
Head Bolts (M6xl0mm),
[] Attach the Regulator Hose Support Chain (on the regulator hose) to the back of Cabinet Side
Panel using 1 Washer Head Bolt (IVl4xl0mm),
Phillips Head Bolt M6xl0mm
Qty: 2
Washer Head Bolt iVl4xl0mm
Qty: 1
|Install Grease Pan Bracket and Grease Pan
[] Insert the Grease Pan Bracket into the bottom of Firebox.
[] Insert the Grease Pan into the Grease Pan Bracket as shown,
ti
II
I
11

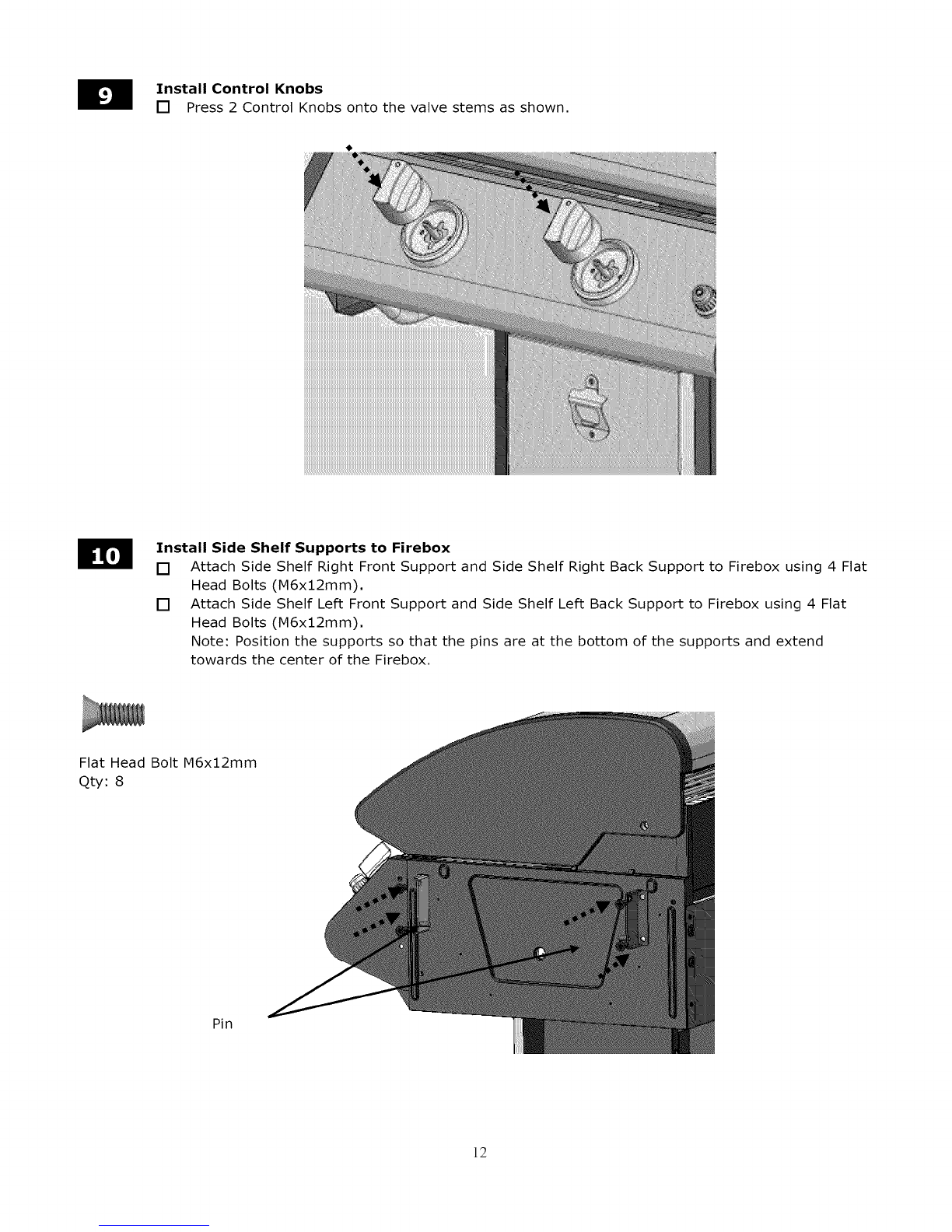

Install Control Knobs
[] Press 2Control Knobs onto the valve stems as shown.
Install Side Shelf Supports to Firebox
[] Attach Side Shelf Right Front Support and Side Shelf Right Back Support to Firebox using 4 Flat
Head Bolts (M6x12mm),
[] Attach Side Shelf Left Front Support and Side Shelf Left Back Support to Firebox using 4 Flat
Head Bolts (M6x12mm),
Note: Position the supports so that the pins are at the bottom of the supports and extend
towards the center of the Firebox.
FlatHead BoltM6x12mm
Qty: 8
Pin
12

Attach Side Shelves
[] Position Shelf Brackets to the inside of the Shelf Supports.
[] Attach Left and Right Shelves to Shelf supports with two Step Bolts(M6) each. Securely tighten bolts.
Step Bolt M6
Qty: 4
Side Shelf Operation
[] Pull up on the Left Side Shelf and slide down over the support pins to secure in the upright
position. Repeat the same procedure on the Right Shelf. To lower, slide shelves up and fold down
into storage position.
mmmm_ mmmmm
Pin
13

I_ Install the Heat Diffusers, Cooking Grates, Warming Rack
[] Insert the Heat Diffusers into the firebox by placing them into the indentations along the front
and back of the firebox, See Figure 1,
[] Place the Cooking Grates into the firebox, See Figure 2,
[] Insert the Warming Rack into the slots of firebox side panels as shown, See Figure 3,
Figure i
Figure 2
Figure 3

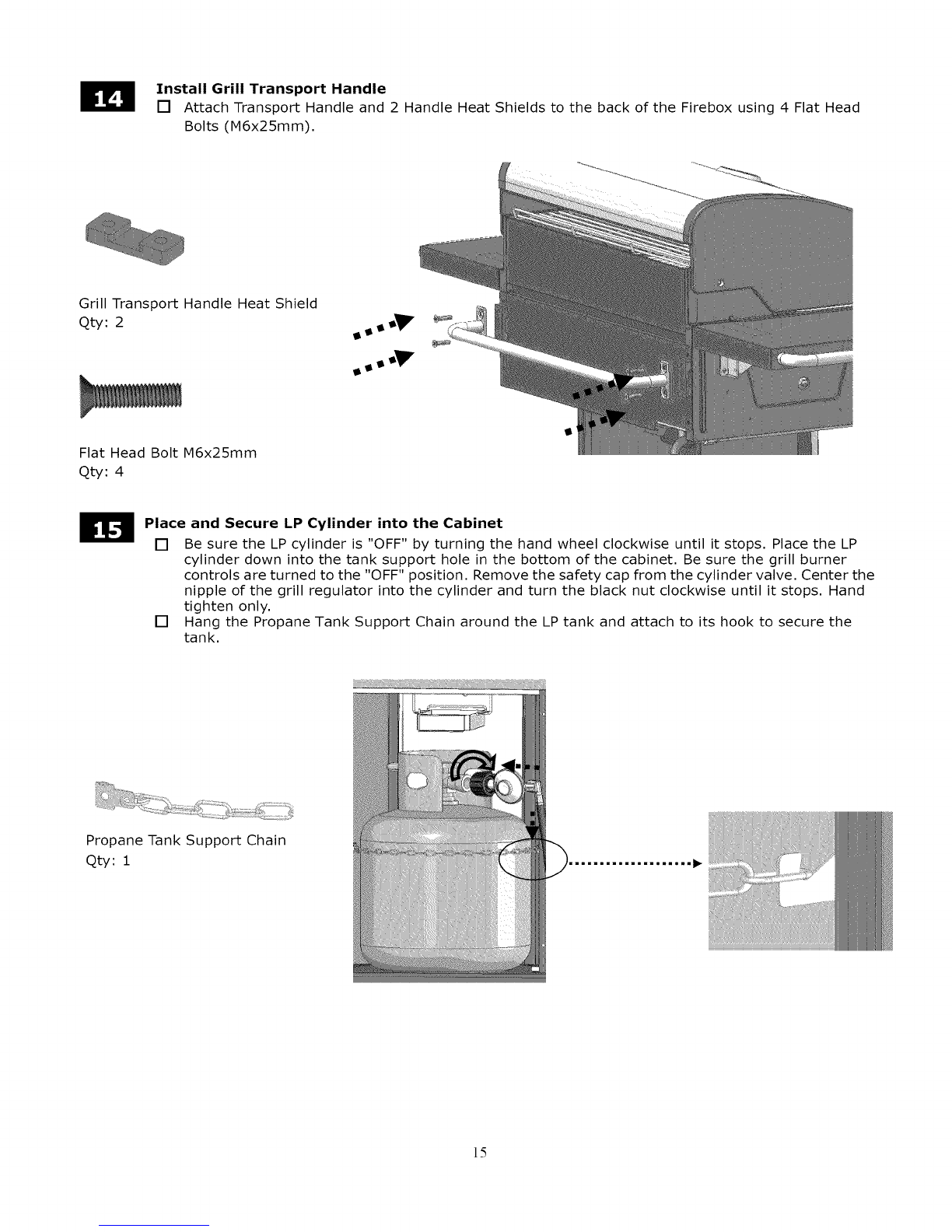

14

Install Grill Transport Handle
[] Attach Transport Handle and 2 Handle Heat Shields to the back of the Firebox using 4 Flat Head
Bolts (M6x25mm).
Grill Transport Handle Heat Shield
Qty: 2
Flat Head Bolt M6x25mm
Qty: 4
Place and Secure LP Cylinder into the Cabinet
[] Be sure the LP cylinder is "OFF" by turning the hand wheel clockwise until it stops. Place the LP
cylinder down into the tank support hole in the bottom of the cabinet. Be sure the grill burner
controls are turned to the "OFF" position. Remove the safety cap from the cylinder valve. Center the
nipple of the grill regulator into the cylinder and turn the black nut clockwise until it stops. Hand
tighten only.
[] Hang the Propane Tank Support Chain around the LP tank and attach to its hook to secure the
tank.
Propane Tank Support Chain
Qty: 1
15

Install Battery
[] Unscrew the electronic igniter button. Place the AA Battery into the igniter with the positive (+) end
up. Screw the electronic igniter button back into place.
Battery (Size AA)
Qty: 1 Do not dispose batteries into
fire as they may leak or
explode,
Congratulations - Assembly is now complete!
[] Remove any additional labels or packing material from the grill except the CSA label. Be sure to
clean all foam packing material out of all areas.
[] Level your grill by adjusting the 2 front feet.
[] Please proceed to and read the remaining sections of the Use & Care Guide prior to operating your
grill.
ld

I_ rill Transport
[] Grasp Grill Transport Handle with one hand and Grill Hood Handle with the other. Place foot
against back of grill base for leverage. Tilt grill back onto wheels to transport.
CAUTION: Grill must be completely cooled down before transporting.
/
17

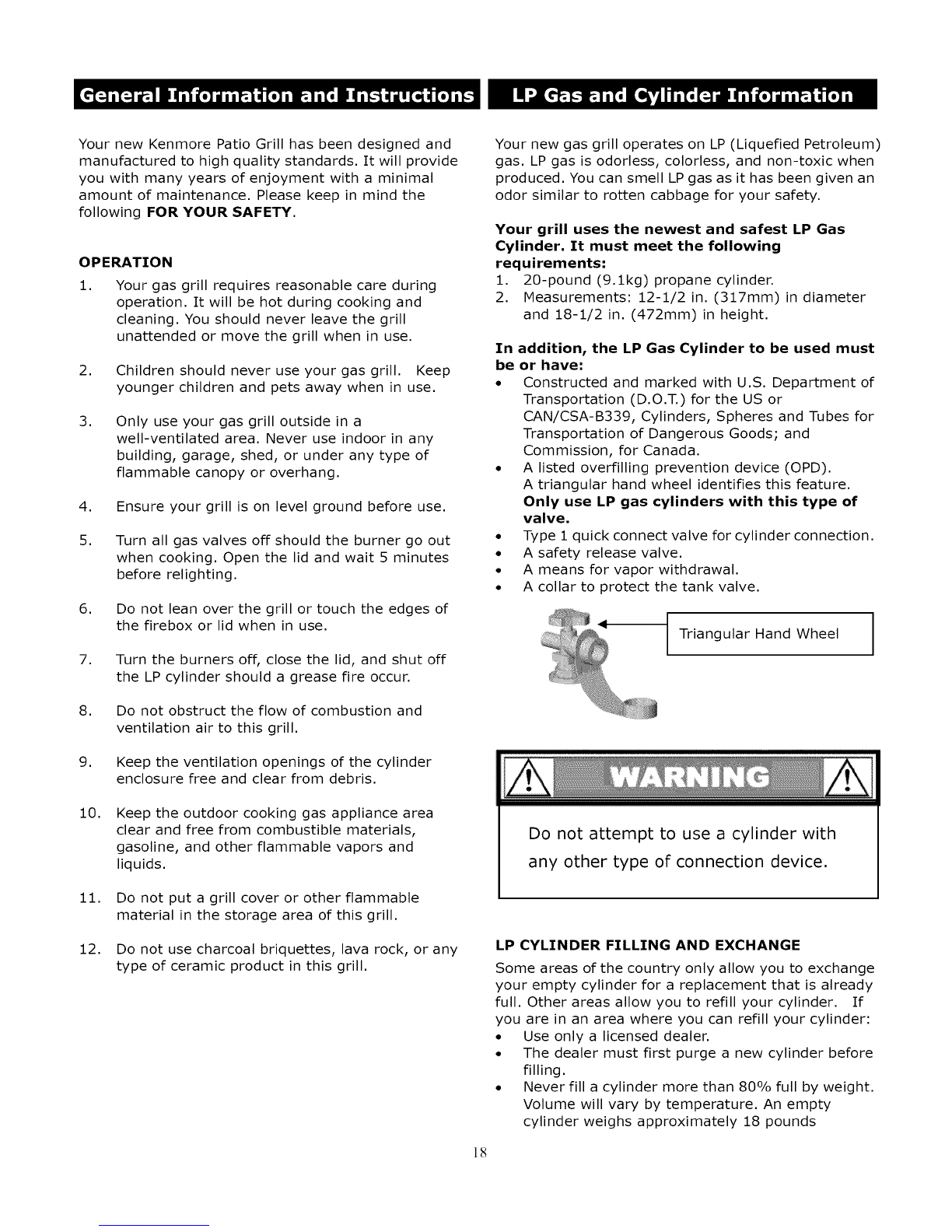

YournewKenmorePatioGrillhasbeendesignedand
manufacturedtohighqualitystandards.It willprovide
youwithmanyyearsofenjoymentwithaminimal
amountofmaintenance.Pleasekeepinmindthe
followingFOR YOUR SAFETY.
OPERATION
1, Your gas grill requires reasonable care during
operation. It will be hot during cooking and
cleaning. You should never leave the grill
unattended or move the grill when in use.
2, Children should never use your gas grill. Keep
younger children and pets away when in use.
3, Only use your gas grill outside in a
well-ventilated area. Never use indoor in any
building, garage, shed, or under any type of
flammable canopy or overhang.
4. Ensure your grill is on level ground before use.
5. Turn all gas valves off should the burner go out
when cooking. Open the lid and wait 5 minutes
before relighting.
6, Do not lean over the grill or touch the edges of
the firebox or lid when in use.
7. Turn the burners off, close the lid, and shut off
the LP cylinder should a grease fire occur.
8, Do not obstruct the flow of combustion and
ventilation air to this grill.
Your new gas grill operates on LP (Liquefied Petroleum)
gas. LP gas is odorless, colorless, and non-toxic when
produced. You can smell LP gas as it has been given an
odor similar to rotten cabbage for your safety.
Your grill uses the newest and safest LP Gas
Cylinder. It must meet the following
requirements:
1. 20-pound (9.1kg) propane cylinder.
2. Measurements: 12-1/2 in. (317mm) in diameter
and 18-1/2 in. (472mm) in height.
In addition, the LP Gas Cylinder to be used must
be or have:
•Constructed and marked with U.S. Department of
Transportation (D.O.T.) for the US or
CAN/CSA-B339, Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods; and
Commission, for Canada.
• A listed overfilling prevention device (OPD).
A triangular hand wheel identifies this feature.
Only use LP gas cylinders with this type of
valve,
• Type 1 quick connect valve for cylinder connection.
• A safety release valve.
• A means for vapor withdrawal.
• A collar to protect the tank valve.
Triangular Hand Wheel I
9,
10.
Keep the ventilation openings of the cylinder
enclosure free and clear from debris.
Keep the outdoor cooking gas appliance area
clear and free from combustible materials,
gasoline, and other flammable vapors and
liquids.
Do not attempt to use a cylinder with
any other type of connection device.
11.
12.
Do not put a grill cover or other flammable
material in the storage area of this grill.
Do not use charcoal briquettes, lava rock, or any
type of ceramic product in this grill.

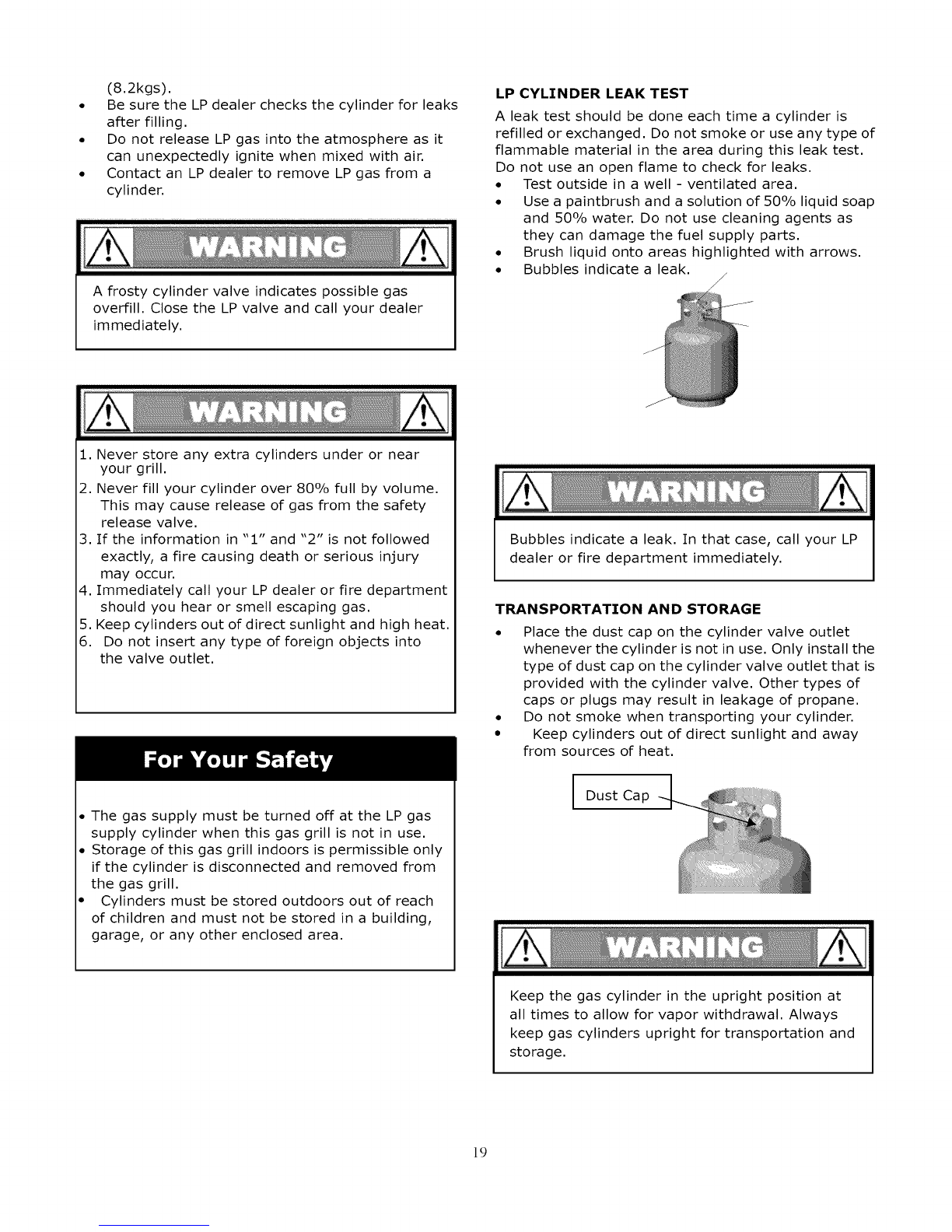

LP CYLINDER FILLING AND EXCHANGE
Some areas of the country only allow you to exchange
your empty cylinder for a replacement that is already
full. Other areas allow you to refill your cylinder. If
you are in an area where you can refill your cylinder:
• Use only a licensed dealer.
• The dealer must first purge a new cylinder before
filling.
• Never fill a cylinder more than 80% full by weight.
Volume will vary by temperature. An empty
cylinder weighs approximately 18 pounds
18

(8.2kgs).
• Be sure the LP dealer checks the cylinder for leaks
after filling.
• Do not release LP gas into the atmosphere as it
can unexpectedly ignite when mixed with air.
• Contact an LP dealer to remove LP gas from a
cylinder.
A frosty cylinder valve indicates possible gas
overfill. Close the LP valve and call your dealer
immediately.
LP CYLINDER LEAK TEST
A leak test should be done each time a cylinder is
refilled or exchanged. Do not smoke or use any type of
flammable material in the area during this leak test.
Do not use an open flame to check for leaks.
• Test outside in a well - ventilated area.
• Use a paintbrush and a solution of 50% liquid soap
and 50% water. Do not use cleaning agents as
they can damage the fuel supply parts.
• Brush liquid onto areas highlighted with arrows.
• Bubbles indicate a leak. /
/
1. Never store any extra cylinders under or near
your grill.
2. Never fill your cylinder over 80% full by volume.
This may cause release of gas from the safety
release valve.
3. If the information in "1" and "2" is not followed
exactly, a fire causing death or serious injury
may occur.
4. Immediately call your LP dealer or fire department
should you hear or smell escaping gas.
5. Keep cylinders out of direct sunlight and high heat.
6. Do not insert any type of foreign objects into
the valve outlet.
• The gas supply must be turned off at the LP gas
supply cylinder when this gas grill is not in use.
• Storage of this gas grill indoors is permissible only
if the cylinder is disconnected and removed from
the gas grill.
Cylinders must be stored outdoors out of reach
of children and must not be stored in a building,
garage, or any other enclosed area.
Bubbles indicate a leak. In that case, call your LP
dealer or fire department immediately.
TRANSPORTATION AND STORAGE
• Place the dust cap on the cylinder valve outlet
whenever the cylinder is not in use. Only install the
type of dust cap on the cylinder valve outlet that is
provided with the cylinder valve. Other types of
caps or plugs may result in leakage of propane.
• Do not smoke when transporting your cylinder.
• Keep cylinders out of direct sunlight and away
from sources of heat.
Dust Cap
Keep the gas cylinder in the upright position at
all times to allow for vapor withdrawal. Always
keep gas cylinders upright for transportation and
storage.
]9

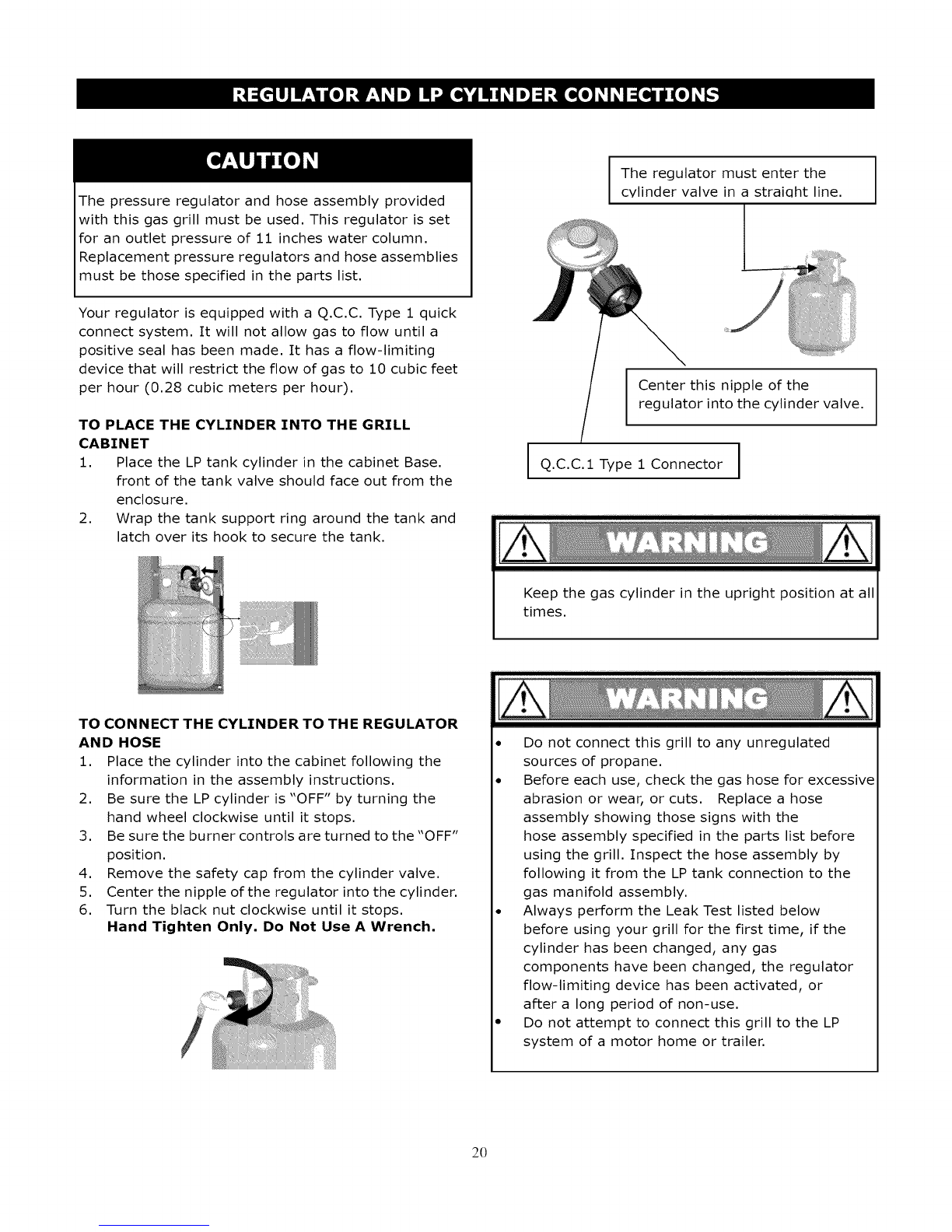

Thepressureregulatorandhoseassemblyprovided
withthisgasgrillmustbeused.This regulator is set
for an outlet pressure of 11 inches water column.
Replacement pressure regulators and hose assemblies
must be those specified in the parts list.
Your regulator is equipped with a Q.C.C. Type 1 quick
connect system. It will not allow gas to flow until a
positive seal has been made. It has a flow-limiting
device that will restrict the flow of gas to 10 cubic feet
per hour (0.28 cubic meters per hour).
TO PLACE THE CYLINDER INTO THE GRILL
CABINET
1. Place the LP tank cylinder in the cabinet Base.
front of the tank valve should face out from the
enclosure.
2. Wrap the tank support ring around the tank and
latch over its hook to secure the tank.
I he regulator must enter the I
cylinder valve in a straiaht line.
Center this nipple of the
regulator into the cylinder valve.
I Q.C.C.1 Type 1 Connector II
Keep the gas cylinder in the upright position at all
times.
TO CONNECT THE CYLINDER TO THE REGULATOR
AND HOSE
1. Place the cylinder into the cabinet following the
information in the assembly instructions.
2. Be sure the LP cylinder is "OFF" by turning the
hand wheel clockwise until it stops.
3. Be sure the burner controls are turned to the "OFF"
position.
4. Remove the safety cap from the cylinder valve.
5. Center the nipple of the regulator into the cylinder.
6. Turn the black nut clockwise until it stops.
Hand Tighten Only. Do Not Use A Wrench.
• Do not connect this grill to any unregulated
sources of propane.
• Before each use, check the gas hose for excessive
abrasion or wear, or cuts. Replace a hose
assembly showing those signs with the
hose assembly specified in the parts list before
using the grill. Inspect the hose assembly by
following it from the LP tank connection to the
gas manifold assembly.
• Always perform the Leak Test listed below
before using your grill for the first time, if the
cylinder has been changed, any gas
components have been changed, the regulator
flow-limiting device has been activated, or
after a long period of non-use.
• Do not attempt to connect this grill to the LP
system of a motor home or trailer.
2O
