Kenmore 790.4019 Series User manual

®
!
Use & Care Guide
Manual del Usuario
Models, Modelos 790.4019;',.', 4052;',."
.,. = Color number, numero de color
Sears Roebuck and Co., Hoffman Estates, mL(}0179 U.S.A.
www°sears°com P/N 318200933 RevoB (0410)

TabRe of Contents
Wall Oven Warranty ....................................................... 2
Product Record .............................................................. 2
Serial Plate Location ...................................................... 2
iMPORTANT SAFETY iNSTRUCTiONS ....................... 3-4
Protection Agreements .................................................. 5
Wall Oven Features ........................................................ 6
Oven Vent and Racks ..................................................... 7
Air Circulation in the Oven ............................................ 7
Control Pad Features ..................................................... 8
For a Silent Control Panel ............................................. 8
Temperature Conversion ............................................... 8
Setting the Clock ............................................................ 9
Setting the Oven Controls ...................................... 10-15
To set or change the temperature for baking ............... 10
To set control for continuous bake
or 12 hour energy saving ............................................ 10
To set control for oven lockout (some models) ............ 10
To set the timed bake and delay start features ............ 11
Oven baking ................................................................ 12
Broil ............................................................................. 13
To operate the oven light(s) ......................................... 13
Broiling information ..................................................... 14
Setting the Warm & HoldTM feature .............................. 15
To Set the Sabbath Feature ........................................ 16
Self-Cleaning (some modets) ................................. 17-18
General Care & Cteaning ........................................ 19-23
Cleaning various parts of your oven ............................ 19
Cleaning porcelain enamel oven (some models) ........ 20
Care and cleaning of stainless steel (some models),,, 20
Removing and replacing the oven door ...................... 21
Special Door Care instructions ................................... 21
Changing the oven light .............................................. 21
Adjusting the Oven Temperature ................................ 22
Before You Call ........................................................ 23-24
Notes ............................................................................. 25
Sears Service ................................................................ 26
Espa_ol ......................................................................... 27
Wall oven Warranty
FULL ONEYEAR WARRANTY ON ALL PARTS
If, within one year from the date of installation, any part fails to function properly due to a defect in material or workmanship,
Sears will repair or replace it, at our option, free of charge.
If the product is subjected to other than private residential use, the above warranty is effective for only 90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING SEARS AT 1-800-4-MY-HOME®.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state,
Sears Roebuck and Co,, Dept, 817WA Hoffman Estates, IL 60179
Product Record
In this space below, record the date of purchase, model
and serial number of your product, You will find the model
and serial number printed on the serial plate,
Seria P ate Location
You will find the model and serial number printed on the
serial plate, The serial plate is located along the interior
side trim and visible when the oven door is opened,
Model No, 790. Remember to record the serial number for future
reference,
Serial No,
Date of purchase
Save these instructions and your sales receipt for future
reference,

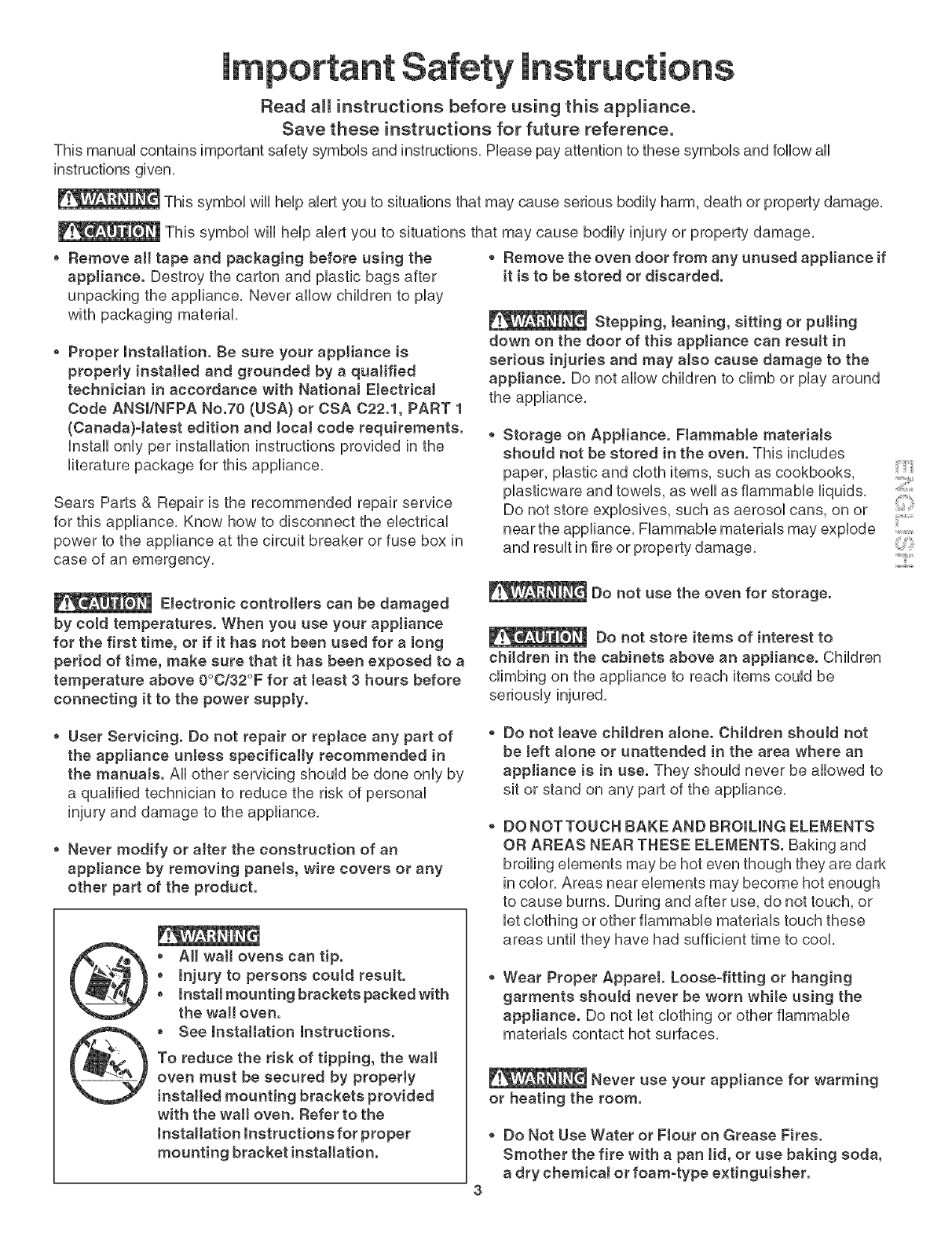

Pmease carefully read and save these
instructions
This Use & Care Manual contains general operating
instructions for your appliance and feature information for
several models, Your product may not have all the
described features, The graphics shown are
representative, The graphics on your appliance may not
look exactly like those shown, Common sense and caution
must be practiced when installing, operating and
maintaining any appliance, Serial Plate Location

instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manuaUcontains important safety symbob and instructions. Phase pay attention to these symbob and follow aH
instructions given.
This symboUwHUheUpabrt you to situations that may cause serious bodily harm, death or property damage,
This symboUwHUheUpabrt you to situations that may cause bodily injury or property damage,
o Remove all tape and packaging before using the o Remove the oven door from any unused appliance if
appliance. Destroy the carton and plastic bags after it is to be stored or discarded.
unpacking the appliance, Never allow children to play
with packaging material,
o Proper Installation. Be sure your appliance is
property installed and grounded by a qualified
technician in accordance with National Electrical
Code ANSI/NFPA No.70 (USA} or CSA 022.1, PART 1
(Canada)-tatest edition and tocal code requirements.
Install only per installation instructions provided in the
literature package for this appliance,
Stepping, Jeaning, sitting or pulling
down on the door of this appliance can resuJt in
serious injuries and may aJso cause damage to the
appliance. Do not allow children to climb or play around
the appliance,
Sears Parts & Repair is the recommended repair service
for this appliance, Know how to disconnect the electrical
power to the appliance at the circuit breaker or fuse box in
case of an emergency,
o Storage on Appliance. FtammaMe materiaJs
shouJd not be stored in the oven. This includes
paper, plastic and cloth items, such as cookbooks,
plasticware and towels, as well as flammable liquids,
Do not store explosives, such as aerosol cans, on or
near the appliance, Flammable materials may explode
and result in fire or property damage,
Electronic controllers can be damaged
by coM temperatures. When you use your appJiance
for the first time, or if it has not been used for a long
period of time, make sure that it has been exposed to a
temperature above 0°0/32°F for at least 3 hours before
connecting it to the power supply.
Do not use the oven for storage.
Do not store items of interest to
children in the cabinets above an appliance. Children
climbing on the appliance to reach items could be
seriously injure&
o User Servicing. Do not repair or repJace any part of
the appliance untess specifically recommended in
the manuaJs. All other servicing should be done only by
a qualified technician to reduce the risk of personal
injury and damage to the appliance,
Never modify or alter the construction of an
appliance by removing panels, wire covers or any
other part of the product.
AH wall ovens can tip.
oInjury to persons coutd result.
o Install mounting brackets packed with
the wall oven.
, See Installation Instructions.
To reduce the risk of tipping, the wall
oven must be secured by properJy
installed mounting brackets provided
with the wall oven. Refer to the
Installation Instructions for proper
mounting bracket installation.
Do not teave chitdren aJone. Children shouM not
be teft aJone or unattended in the area where an
appliance is in use. They should never be allowed to
sit or stand on any part of the appliance,
DO NOT TOUCH BAKE AND BROILING ELEMENTS
OR AREAS NEAR THESE ELEMENTS. Baking and
broiling elements may be hot even though they are dark
in color, Areas near elements may become hot enough
to cause burns, During and after use, do not touch, or
let clothing or other flammable materials touch these
areas until they have had sufficient time to cool,
Wear Proper Apparel. Loose-fitting or hanging
garments should never be worn white using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces,
Never use your appliance for warming
or heating the room.
o Do Not Use Water or Flour on Grease Fires.
Smother the fire with a pan Hal,or use baking soda,
a dry chemicaJ or foam-type extinguisher.

oWhenheatingfatorgrease,watchitcioseJy.Fator
greasemaycatchfireifallowedtobecometoohot,
oUseOnJyDryPothoJders.Moistordamppotholders
onhotsurfacesmayresultinburnsfromsteam.Do
not[etthepothoUderstouchhotheatingsurfaceunits,
Donotuseatowe[orotherbulkyclothinsteadofa
potholder,
oDoNotHeatUnopenedFoodContainers.Buildupof
pressuremaycausethecontainerto buretand
resultin injury.
mMPORTANT--Donotattempttooperatetheappliance
duringapowerfailure.Ifpowerfails,alwaysturnoffthe
appliance,Iftheapplianceisnotturnedoffandthepower
resumes,itwillbegintooperateagain,Oncethepower
resumes,resettheclockandovenfunction,
mMPORTANT mNSTRUCTmONS FOR USmNG
YOUR OVEN
o Use Care When Opening an Oven Door--Stand to the
side of the appliance when opening the door of a hot
oven, Let hot air or steam escape before you remove or
replace food in the oven,
o Keep Oven Vent Ducts Unobstructed. The wall oven is
vented at the upper control panel or at the center trim
depending of the model, Touching the surfaces in this
area when the wall oven is operating may cause severe
burns, Also, do not place plastic or heat-sensitive items
near the oven vent, These items could melt or ignite,
Placement of Oven Racks. Always place oven racks in
desired location while oven is cool, Remove all utensils
from the rack before removing rack, If rack must be
moved while oven is hot, use extreme caution, Use pot
holders and grasp the rack with both hands to reposition,
Do not let pot holders contact the hot oven element or
interior of the oven,
o Do not use the broiIer pan without its insert. The
broiler pan and grid allow dripping fat to drain and be
kept away from the high heat of the broiler,
Do not touch a hot oven tight buJb with a damp ctoth.
Doing so could cause the bulb to break, Disconnect the
appliance or shut off the power to the appliance before
removing and replacing the bulb,
Protective liners--Do not use aluminum foil to Hnethe
oven bottom. Only use aluminum foil as recommended in
this manual. Improper installation of these liners may
result in risk of electric shock, or fire.
IMPORTANT INSTRUCTIONS FOR CLEANmNG
YOUR OVEN
. Clean the appliance regularly to keep a[[ parts free of
grease that could catch fire. Exhaust fan ventilation
hoods and grease filters should be kept clean, Do not
allow grease to accumulate, Greasy deposits in the fan
could catch fire, Refer to the hood manufacturer's
SELF-CLEANmNG OVEN MODELS
o Clean in the serf-cleaning cycle only the parts of the
appJiance tisted in this Owner's Guide. Before using the
self-cleaning cycle of the appliance, remove the broiler pan
and any utensils stored in the appliance,
o Do not clean the oven door gasket. The door gasket is
essential for a good seal, Care should be taken not to rub,
damage or move the gasket,
o Do not use oven cJeaners. No oven cleaner or oven liner
protective coating of any kind should be used in or around
any part of the appliance
The health of some birds is extremely
sensitive to the fumes given off during the seifociean cycle
of any wail oven, Move birds to another weil ventilated
room,
Do not cover the broiler grid or oven bottom with
aluminum foil Exposed fat and grease could ignite,
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause
cancer, birth defects or other productive harm, and
requires businesses to warn customers of potential
exposure to such substances,
4

PROTECTmON AGREEMENTS
mnthe U.S.A.
Master Protection Agreements
CongratuUations on making a smart purchase, Your new
Kenmore e*product is designed and manufactured for
years of dependabb operation, But Hke aHproducts, it
may require preventive maintenance or repair from time
to time, That's when having a Master Protection
Agreement can save you money and aggravation,
mr1Canada
Maintenance Agreements
Your purchase has added vaUuebecause you can
depend on Sears HomeCentraPfor service, With over
2400 Service Technicians and more than a mHHonparts
and accessories, we have the tooUs,parts, knowbdge
and sMHsto ensure our pbdge: We Service What We
Sell,
Purchase a Master Protection Agreement now and pro-
tect yourself from unexpected hass/e and expense.
The Master Protection Agreement also helps extend the
life of your new product, Here's what's included in the
Agreement:
[_ Expert service by our 12,000 professional repair
specialists
[_ Unlimited service and no charge for parts and
labor on all covered repairs
[_ "Noqemon" guarantee- replacement
of your covered product if four or more product
failures occur within twelve months
[_ Product replacement if your covered product can't
be fixed
5_ Annuat Preventive Maintenance Check at your
request- no extra charge
[_ Fast help by phone - phone support from a Sears
technician on products requiring irchome repair, plus
convenient repair scheduling
[_ Power surge protection against electrical damage
due to power fluctuations
[_ RentaJ reimbursement if repair of your covered
product takes longer than promised
Your Kenmore®product is designed, manufactured
and tested to provide years of dependable operation, But
like all products, it may require service from time to time,
The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced,
The Sears Maintenance Agreement:
Is your way to buy tomorrow's service at today's price
Eliminates repair bills resulting from normal wear and
tear i{
Provides phone support from a Sears technician on ......
[
products requiring irchome repair
Even if you don't need repairs, provides an annual ..........
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running condition,
Some limitations appJy. For more information about
Sears Canada Maintenance Agreements,
caH 1=800=381=8885
Once you purchase the Agreement, a simple phone call
is all that it takes for you to schedule service, You can
call anytime day or night, or schedule a service
appointment online,
Sears has over 12,000 professional repair specialists,
who have access to over 4,5 million quality parts and
accessories, That's the kind of professionalism you can
count on to help prolong the life of your new purchase
for years to come, Purchase your Master Protection
Agreement today!
Some limitations and excJusions apply.
For prices and additionaJ information call
1=800=827=8855,
Sears mnstaHation Service
For Sears professional installation of home
appliances, garage door openers, water heaters,
and other major home items, in the U,S,A, call
1-SOO-4-MY-HOME® REV. 030509

Your
E_ectric
Wall Oven
Features
At aG_ance
Wa l Oven Features
Note: The features of your walt oven wilt vary according to model.
Ebctronb Oven Controb with Clock
and Kitchen Timer (Features will vary
according to model
Manual or Self-Cban Oven
depending on your model
Broil Ebment interior
Oven Light
Broil Pan insert
Broil Pan Large 1 Piece Door Handle
Glass Front Oven Door with
Large Window Opening
Adjustabb
Oven Racks

Oven Vent and Racks
Oven Vent
Some mode{e are equipped with a blower which rune in baking
and eeff-c{eaning mode to keep aH interna} components at a cool temperature.
The blower may keep running even if the oven has been turned off, until the
components have cooled down.
Oven Vent Location
The oven is vented at the center trim, When the oven is on, warm air is released
through the vent, This venting is necessary for proper air circulation in the oven and
good baking results,
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO
OPERATING THE OVEN). Always use oven mitts when using the oven,
To remove an oven rack, pull the rack forward until it stops. Lift up front of rack and
slide out.
To repIace an oven rack, fit the rack onto the guides on the oven walls. Tilt the front
of the rack upward and slide the rack back into place.
J
Air Circulation in the Oven
If using 1 rack, place in center of oven. If using multiple racks, stagger
cookware as shown.
For best air circulation and baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and cookware do not
touch each other, the oven door, sides or back of the oven cavity. The hot air
must circulate around the pans and cookware in the oven for even heat to
reach around the food.
1 Oven Rack
Multiple Oven Racks

Contro Pad Features
Note: The appearance of your oven controU may differ sHghtUyfrom the one HUustratedbebw, However, aHfunctions
are the same, Also, push buttons or pads may be shaped differently than those appearing in this Use and
Care Guide,
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various functions of the oven as described bebw,
OVEN
mNTERIOR
LIGHT PAD set the time
Used to turn of day.
oven interior light _\
ON
Used to set or cancel
the minute timer. The
minute timer does not"'_
start or stop cooking.
Also, TIMER SET/OFF
Pad is used to set the
Continuous Bake
Feature.
SELECT CLEAN
PAD Used to select
the Self-Cleaning
cycle. A 2, 3 or 4
hour Self-Clean time
may be selected
(some models).
CLOCK SET COOKTIME
PAD Used to PAD Used to
enter the length UP and DOWN ARROWS PADS Used along with the function
of the baking pads to select oven temperature, cook time, start time (when
time. \ programming an automatic start time), time of day, clean time
X and minute timer.
H
@ .@ @
/@Preheat
, PREHEAT & DOOR LOCK UGRTS* The "Oven" might
will glow each time the oven unit turns on to maintain the set
oven temperature. The "Preheat" light will glow when the oven
is first set to operate, or if the desired temperature is reset
higher than the actual oven temperature. The "Door Locked"
light will flash until the door locks when the self-clean cycle is in
use. It glows constantly after the door locks (some models).
DELAY START PAD Used to set the
desired start time for baking. May be
used with COOK TIME to program a
delayed bake cycle or a delayed clean
cycle.
BAKE PAD--
Used to select
the bake
function. FEATURE
INDICATOR
UGRTS--
These light to
__ show wMch
@'/_ feature is in use.
BROIL PAD--
Used to select
the variable broil
O function.
_-_-_ WARM & HOLD
PAD-- Used to
set the Warm &
Hold feature.
STOP CLEAR PAD-- Used to clear
any function previously entered
except the time of day and minute
timer. Press STOP CLEAR to stop
cooking. Also the STOP CLEAR
pad is used to activate oven lockout
setting. (some models).
*Note: The OVEN indicator light on the electronic display wiii turn ON and OFF when using the Bake feature and
during preheat, This is normal and indicates that the oven is cycling to maintain the selected baking temperature,
When preheat indicator light turns OFF, your oven is ready,
For a silent contro_ pane_:
When choosing a function, a beep will be heard each time a pad is pressed, If desired, the control can be programmed
for silent operation,
1, To tell if your oven is set for normal or silent operation press and hold _s_,_._for 7 seconds, "- - "or "SP" (speaker)
appears in the display,
2, Within 5 seconds, press the A or v pad to switch between normal sound operation and silent operation mode,
The display will show either "- - " or "SP",
3, Wait 5 seconds to return to normal operating mode,
If "SP" appears, the control will operate with normal sounds and beeps, If "- - "appears, the control is in the silent
operation mode,
Temperature Conversion (Fahrenheit /Celsius)
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory, The oven can be
programmed for any temperature from 170°F to 550°F (77°C to 288°C),
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Ctean mode):
1, Press and hold ,for 7 seconds until °F or °C appears in the display,
2, Press the A or v pad to change °F to °C or °C to °F,
8, Wait 5 seconds to accept the changes or press i to reject the changes,

Setting the C ock
Note: The time of day must first be set in order to operate the oven.
To Set the C_ock
When the range is first pUugged in, or when the power suppUyto the appliance has been interrupted, the dispUaywHU
flash "12:00".
1. Press _ once (do not hoUdpad down).
2. Within 5 seconds, press and hoUdthe A or v until the correct time of day appears in the dispUay.
3. Press _(_") once to accept the new time of day. Uf_'q_ is not pressed, the timer wHUreturn automaticafly to the new
time of day after 7 seconds.
Note: The dock cannot be changed during any timed bake, deUayed time bake, seUf-cUeancycUeor deUayed seUf-
dean cycle.
Changing Between 12 or 24 Hour Time of Day Display
Press and hoUd_(_") for 7 seconds. After 7 seconds, "12Hr" or "24H¢' will appear in the display and the control will
1.
beep once.
2. Press A or v to switch between the 12 and 24 hour time of day display. The display wifl show either"12H¢' or"24H¢'.
3. Wait 5 seconds or press to return to the time of day display. t
4. Reset the correct time as described in To set the Ctock above. Please note that if the 24 hour time of day mode was
chosen, the clock will now display time from 0:00 through 23:59 hours.
To Set the Minute Timer
1. Press @.
2. Press the A to increase or v to decrease the time in one minute increments. The timer can be set for any
amount of time from 1 minute to 11 hours and 59 minutes.
3. The display shows the timer countdown in minutes if more than 1 hour remains. When less than 1 hour remains,
the display will count down in seconds.
4. When the set time has run out, the timer will beep 3 times. It will continue to beep 3 times every 8 seconds until
is pressed.
Note: The indicator light located above the _,'_ pad will glow while the minute timer is active.
Note: The minute timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when
the set time has run out. The minute timer can be used alone or during any of the other oven functions. When the
minute timer is in use with any other functions, the minute timer will be shown in the display. To view other functions,
press the pad for that function.
To Cancel the Minute Timer before the set time has run out: Press _.

Setting Oven Controls
Note: The time of day must first be set
in order to operate the oven,
o
@ • o
@@ °0vo,
@Preheat
@Door Locked
o o
@
To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 288°C),
To Set the Controls for NormaJ Baking:
Press _,' .... appears in the
1, dispUay,
2, Within 5 seconds, press the A or v, The dispUaywHUshow "350°F (177°C)," By pressing and hoUdingA or v,
the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius),
3, 10 seconds after the _ or v pad is released, the oven will begin heating to the selected temperature, When the
displayed temperature reaches the desired baking temperature, the preheat indicator light will turn OFF,
4, To cancel the baking function, press i _,
y
To Change the Oven Temperature after Baking has Started:
Press the _ or v pad to increase or decrease the set temperature,
To Set Contro_ for Continuous Bake or 12 Hour Energy Saving:
The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more
than 11 hours and 59 minutes, The oven can be programmed to override this feature for continuous baking,
To set control for continuous baking:
Press and hold _) down for 7 seconds until tone is heard,
1,
2, Within 5 seconds, press the _ or v pad to switch between Continuous Bake and 12 Hour Energy Saving mode,
The display will show either "- - hr" or "12hr",
If "- - hr" appears, the oven will be set to continuous baking, If "12hr" appears, the oven is set to 12 hour energy
saving mode,
3, Wait 5 seconds or press I to return to normal operating mode,
To Set Controm for Oven Lockout (some models):
The control can be programmed to lock the oven door (some models) and/or lock the oven control pads (all models),
To Set Control for Oven Lockout feature:
1, Press _ and hold for 3 seconds, The "Door Locked" indicator light will glow and the motor driven door lock will
begin to close automatically, DO NOT open oven door while the indicator light is flashing, Allow about 15 seconds
for the oven door to lock, Once the oven door is locked, "Loc" will appear in display,
2, To cancel the Oven Lockout feature, press _'_ and hold for 3 seconds, The control will unlock the oven door and
resume normal operation,
10

Setting Oven Controls
To Set the Timed Bake and De_ay Start Features
The _,o_ COOK TIME and _e_ DELAY START pads operate the features that wHUturn the oven ON and OFF at the
vV
times you seUectin advance, The oven can be programmed to start immediateUy and shut off automatically (Timed
Bake) or to begin baking at a Uatertime with a deUayed start time (DeUayStart),
Note: During Timed Bake the preheat indicator Hght wHUgUowduring the preheat operation,
To Program the Oven to Begin Baking immediately and To Shut Off Automatically (Timed Bake):
1, Be sure that the dock shows the correct time of day,
2, PUacethe food in the oven,
3, Press ..... appears in the dispUay,
4, Within 5 seconds, press the A or v, The display will show "350°F (177°C), '' By holding the A or v, the
temperature can then be adjusted in 5°F increments (1° if the control is set to display Celsius),
5, Wait 8 seconds to accept the temperature,
Press _,_, "0:00" will flash in the display (MIN:SEC) and (HR:MIN) if programmed for more than 60 minutes,
6,
7, Press the A or v pad until the desired baking time appears in the display,
8, The oven will turn ON and begin heating,
Note: When the control is set for this function the oven temperature will be displayed, To see the cook time remaining
press (_o_ and to see the time of day press (C)_)
To Program Oven for a Delayed Start Time and to Shut-Off Automatically (Detayed Start Bake):
1, Be sure that the clock shows the correct time of day,
2, Place the food in the oven,
3, Press ..... appears in the display,
4, Within 5 seconds, press the _,.. or v, The display will show "350°F (177°C), '' By holding the A or v, the
temperature can then be adjusted in 5°F increments (1° if the control is set to display Celsius),
5, Wait 8 seconds to accept the temperature,
Press _,_, "0:00" will flash in the display (MIN:SEC) and (HR:MIN) if programmed for more than 60 minutes,
6,
7, Press the A or v until the desired baking time appears,
8, Wait 5 seconds for control to accept the time,
9, Press _,e_, The earliest possible start time will appear in the display,
10, Press the _. or v until the desired start time appears in the display and wait 7 seconds to accept,
11, Once the controls are set, the control calculates the time when baking will start and stop,
12, The oven will turn ON at the delayed start time and begin heating,
Note: When the control is set for a delayed time bake the time of day is displayed until the delayed time bake is
reached, When the oven will turn on, the oven temperature will be displayed, To see the cook time remaining
press _ and to see the time of day press ((_")
When the Set Bake Time Rune Out:
1, "END" will appear in the display window and the oven will shut off automatically,
2, The control will beep 3 times every 25 seconds until (_ is pressed,
To Change the Oven Temperature or Bake Time after Baking has Started:
1, Press the function pad you want to change,
2, Press the A or v to adjust the setting,
Use caution with the Timed Bake and Delayed Start features, Foods that can easily spoil such as milk,
eggs, fish, meat or poultry, should be chilled in the refrigerator first, Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed,
11

Setting Oven Controls
Oven Baking
For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc,,, There is no need to
preheat the oven for roasting meat or baking casserobs,
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance,
Baking Problems and Solutions Chart
Baking Causes Corrections
Problems
Cookies and bis- o
cuits burn on the
bottom.
Cakes too dark on ,
top or bottom. €
€
Cakes not done in ,
the center.
€
€
Cakes not tevet.
Foods not done o
when cooking
time is up.
Cookies and biscuits put into
the oven before the preheating
time is completed,
Oven rack overcrowded,
Dark pan absorbs heat too
fast,
Cakes put into the oven before
preheating time is completed,
Rack position too high or low,
Oven too hot,
Oven too hot,
incorrect pan size,
Pan not centered in oven,
Range not level,
Pan too close to oven wall or
rack overcrowded,
Pan warped,
Oven too cool.
Oven overcrowded,
Oven door opened too fre-
quently,
Allow oven to preheat to the selected temperature be-
fore placing food in oven,
Choose pan sizes that wili permit 5,1 cm to 10,2 cm
(2" to 4") of air space on all sides when placed in the
oven,
o Use a medium-weight aluminum baking sheet,
Allow oven to preheat to the selected temperature be-
fore placing food in the oven,
o Use proper rack position for baking needs,
o Set oven temperature 25°F/12°C lower than recom-
mended,
Set oven temperature 25°F/12°C lower than recom-
mended,
Use pan size suggested in recipe,
o Use proper rack position and place pan so there is
5,1 cm to 10,2 cm (2" to 4") of space on all sides of
pan,
Place a marked glass measuring cup filled with water
on the center of the oven rack, if the water level is
uneven, refer to the installation instructions for leveling
the range,
Be sure to allow 5,1 cm to 10,2 cm (2" to 4") of clear-
ance on all sides of each pan in the oven,
Do not use pans that are dented or warped,
o Set oven temperature 25°F/12°C higher than sug-
gested and bake for the recommended time,
Be sure to remove all pans from the oven except the
ones to be used for baking,
Open oven door only after shortest recommended
12

Setting Oven Controls
Broil
Broiling is a method of cooking tender cuts of meat by direct heat under the
broil ebment of the oven. Be sure you center the broiler pan directUy under
the broil ebment for best resuUts.
Arrange oven rack while oven is stHUcool Position the rack as needed.
The broiler pan and its insert allow dripping grease to drain and be kept
away from the high heat of the broiler. DO NOT use the pan without its
insert. DO NOT cover the insert with foit. The exposed grease couUd
ignite.
ShouUdan oven fire occur, close the oven door and turn off
the oven. If the fire continues, throw baking soda on the fire or use a fire
extinguisher. DO NOT put water or flour on the fire. Flour may be explosive
and water can cause a grease fire to spread and cause personal injury.
To set for broiling:
1. Arrange oven rack while oven is still cool.
2. Press "- -" will appear in the display.
3. Press the A or v pad until the desired broil setting level appears in the
display. Press the A pad for HI broil or the v pad for LO broil. Most
foods may be broiled at the HI broil setting. Select the LO broil setting to
avoid excess browning or drying of foods that should be cooked to the
welPdone stage.
4. Place the insert on the broiler pan, then place the food on the insert. DO
NOT use the pan without the insert or cover the insert with aJuminum
foil. The exposed grease could ignite.
5. Place the pan on the oven rack. Open the oven door to the broit stop
position when broiling.
6. Broil on one side until food is browned. Turn and broil food on 2nd side.
Note: Always pull the rack out to the stop position before turning or
removing food.
broiling is finished, press (_).
7. When
To Operate the Oven Light(s)
The interior oven light(s) wiii automatically turn ON when the oven door is
opened.
Press (0} to turn the interior light(s) ON and OFF whenever the door is
closed.
The interior oven light(s) is (are) located at the upper left (and right, some
models) rear wall of the oven interior and is covered with a glass shield held
by a wire holder. The glass shield must be in place whenever the oven is in
use. To change the interior oven light(s), see changing the Oven Light in the
GeneraJ Care & Cleaning section.
Grid
Broiler Pan
13

Setting Oven Controls
Broiling information
Broiling is a method of cooking tender cuts of meat by direct heat under the broil
eUement of the oven,
Preheating
Preheating the oven is suggested when searing rare steaks, (Remove the broiler pan
before preheating, Foods wHUstick if pUacedon hot metaL) To preheat, set the controU(s)to
BROUL as instructed in the Owner's Guide, Wait for the eUement to become red-hot,
usually about 2 minutes, Preheating is not necessary when broiling meats well-done.
To Broil
Broil on side until the food is browned; turn and cook on the second side, Season and
serve, AUways pull rack out to the "stop" position before turning or removing food,
Determine Broiling Times
Broiling times vary, so watch the food closely, Time not only depends on the
distance from element, but on the thickness and aging of meat, fat content and
doneness preferred, The first side usually requires a few minutes longer than
second, Frozen meats also require additional time,
Broiling Tips
The broiler pan and its grid allow dripping grease to drain and be kept away
from the high heat of the broiler,
DO NOT use the pan without its grid. DO NOT cover the grid with foit.The
exposed grease coutd ignite.
Should an oven fire occur, close the oven door and turn off the
oven. if the fire continues, throw baking soda on the fire or use fire
extinguisher. DO NOT put water or flour on the fire. Flour may be explosive. Broiler Pan
Broiler Clean-Up Tips:
To make cleaning easier, line the bottom of the broiler pan with aluminum foil, DO NOT cover the broiler grid with foil,
To prevent grease from baking on, remove the broiler pan from the oven as soon as cooking is completed, Use hot pads
because the broiler pan is extremely hot. Pour off grease, Soak the pan in HOT, soapy water,
Clean the broiler pan as soon as possible after each use. If necessary, use soap-filled steel wool pads, Heavy scouring
may scratch the grid,
14

Setting Oven Controls
Setting the Warm & Ho_dTM Feature
The pad turns ON the Warm & HoHdfeature and wHHmaintain an oven temperature of 170° F (77°C). The Warm &
NoJd feature wHHkeep oven baked foods warm for serving up to 3 hours after cooking has finished, After 3 hours the Warm
& HoHdfeature wHHshut the oven OFF automat[caHHy.The Warm & HoHdfeature may be used without any other cooking
operations or can be used after cooking has finished using TIMED SAKE or DELAY TIMED SAKE.
To set Warm & Hold:
1. Arrange interior oven racks and pHacebaked food in oven, Hfthe food is aHready in the oven go to step 2.
2. Press "- -" wHHappear in the d[spHayand the Warm & HoHdindicator Hightabove the pad wHHturn ON.
Note: Hfno further pads are touched within 6 seconds the request to turn ON Warm & HoHdwiHHbe cHeared.
3. Press j_or V to start,
4. To turn Warm & HoHdOFF at any time press _). The Warm & HoHdindicator Hightabove the pad wiHHturn OFF.
To set Warm & Hold to turn ON automatically:
1. Arrange interior oven racks and pHacefood in oven, Set the oven properHy for Timed Sake or DeIay Timed Sake,
2. Press "- -" wiHHappear in the dispHayand the Warm & HoHdindicator Hightabove the pad wiHHturn ON.
3. Press A or V to start, Warm & HoHdis set to turn ON automaticaHHyafter Timed Bake or DeHayedStart Bake has
finished,
4. To turn Warm & HoHdOFF at any time press . The Warm & HoHdindicator Hightabove the pad wiHHturn OFF.
15

Setting Oven Controls
To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays)
The _°,2_}COOK TIME and (_!_ DELAY START pads are used to set the Sabbath feature. The Sabbath feature may
onUybe used with the pad. The oven temperature may be set higher or Uowerafter setting the Sabbath feature (the
oven temperature adjustment feature shouUd be used onUyduring Jewish Holidays), however the dispUaywHUnot visibUy
show or provide any audibUetones indicating whether the change occurred correctUy. Once the oven is properUy set
using Bake with the Sabbath feature active, the oven will remain continuously ON until cancelled. This will override the
factory preset 12-Hour Energy Saving feature.
If the oven light will be needed during the Sabbath, press _0_ before activating the Sabbath feature. Once the oven
light is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is turned
OFF. If the oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature.
IMPORTANT NOTES: It is not advised to attempt to activate any other program feature other than BAKE while the
Sabbath feature is active. ONLY the following key pads will function after setting the Sabbath feature; .,#_, V,
_. ALL OTHER KEYPADS will function the Sabbath feature is activated.
not once properly
&
To Program the Oven to Begin Baking Immediately & activate the Sabbath feature:
1. Be sure that the clock is set with the correct time of day.
2. Place the food in the oven.
3.
4.
6.
7.
Press t. '.... appears in the display.
Within 5 seconds, press the j_. or V. The display will show "350°F (177°C)." By holding the A or V, the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
If you desire to set the oven control for a Timed Bake or DeJayed Start Bake do so at this time. If not, skip this step
and continue to step 6. Refer to the Timed Bake (complete steps 6-7) /Delayed Start Bake (complete steps 6-10)
section for complete instructions. Remember the oven will shut down after using Timed Bake or Delay Start Bake
and therefore may only be used once during the Sabbath/Jewish Holidays. The maximum Delayed Start Bake time
is 11 hours & 59 minutes.
The oven will turn ON and begin heating.
Press and hold both the _I_ and _e_ pads for at least 3 seconds. SAb will appear in the display. Once SAb
appears in the display the oven control will no longer beep or display any further changes and the oven is properly
set for the Sabbath feature.
Note: You may change the oven temperature once baking has started by pressing the A or V (for Jewish
Holidays only). The oven temperature will be adjusted in 5°F increments with each press of these pads (1°C if the
control is set to display Celsius). Remember that the oven control wilt no tonger beep or disptay any further
changes once the oven is set for the Sabbath feature.
8. The oven may be turned OFF at any time by first pressing _pad (this will turn the oven OFF only). To turn OFF
the Sabbath feature press and hold both the (_i-_;_)and _s_.'_)pads for at least 3 seconds. SAb will disappear from the
display.
Should you experience a power failure or interruption, the oven will shut off. When power is returned the oven will not
turn back on automatically. The oven will remember that it is set for the Sabbath and the food may be safely removed
from the oven while still in the Sabbath feature, however the oven cannot be turned back on until after the Sabbath. After
the Sabbath observance turn OFF the Sabbath feature. Press and hold both the _ and _ pads for at least 3
seconds. SAb will disappear from the display and the oven may be used with all normal functions. For further
assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at
http:\\www.sta r-k.org.
16

Se f-C eaning (somemode s)
During the self-cleaning
cycle, the outside of the oven can
become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
The heaUthof some birds is
extremeUy sensitive to the fumes given off
during the seUfocUeancycle of any wall oven,
Move birds to another well ventilated room,
DO NOT fine the oven walls,
racks, bottom or any other part of the
appliance with aluminum foil, Doing so will
destroy heat distribution, produce poor
baking results and cause permanent
damage to the interior (aluminum foil wH]
melt to the interior surface of the oven),
DO NOT force the oven door
open, This can damage the automatic door
locking system, Use caution when opening
the door after the Se]foC]eaning cycle is
completed, The oven may still be VERY
HOT,
DO Hand
Clean Frame
DO Hand
Clean Door DO NOT Hand Clean
Oven Door Gasket
Note: See additional cleaning information
for the oven door in the GeneraJ Care &
Cleaning section,
The oven bake and broil
elements may appear to have cooled after
they have been turned OFF, The elements
may stilt be hot and burns may occur if
these elements are touched before they
have cooled sufficiently,
0
@
@@ •
@ Preheat
@Beer Locked
Self-Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (well above
cooking temperatures) which eliminate soils completely or reduces
them to a fine powdered ash you can wipe away with a damp cloth,
Adhere to the following cteaning precautions:
o Allow the oven to cool before cleaning,
o Wear rubber gloves when cleaning any exterior parts of the oven
not to rub, damage or remove the gasket,
o DO NOT use any cleaning materials on the oven door gasket,
Doing so could cause damage,
o Remove the broiter pan and insert, aH utensils and any
aJuminum foil. These items cannot withstand high cteaning
temperatures.
o This oven comes with lubricated porcelain oven racks, which can
remain in the oven during the self-clean cycle, Do not clean this
vegetable oil lubrication off the racks, It is important that the sides
of the oven racks always have a light coating of vegetable oil, To
maintain optimal rack performance, re-apply a thin layer of
vegetable oil to the sides of the rack after every self-clean cycle or
when the rack becomes difficult to slide,
o Remove any excessive spiHovers in the oven cavity before
starting the Self-Cleaning cycle, To clean, use hot, soapy water
and a cloth, Large spfllovers can cause heavy smoke or fire when
subjected to high temperatures, DO NOT allow food spills with a
high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit
juices or pie filling) to remain on the surface as they may leave a
dull spot even after cleaning,
o Clean any soil from the oven frame, the door liner outside the oven
door gasket and the small area at the front center of the oven
bottom, These areas heat sufficiently to burn soil on, Clean with
soap and water,
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the
oven bottom should be removed,
DO NOT clean the oven door gasket, The woven material of the
oven door gasket is essential for a good seal, Care should be taken !ii'_iii!
ii
/
Some models have an exposed Bake element in the lower oven cavity,
On these models the bake element is designed to be tilted up using
your hand from the front of the bake element, This will allow easier
access to the oven bottom for cleaning, Be careful not to raise the
element more than 4 or 5 inches from the resting position,
17

Seff-C eaning (eomemodeJe)
What to Expect during C_eaning:
While the oven is in operation, the oven heats to temperatures much higher than
those used in normaUcooking, Sounds of metaUexpansion and contraction are
normal Odor is aUsonormaUas the food soil is being removed, Smoke may appear
through the oven vent,
ff heavy spHbvers are not wiped up before cbaning, they may flame and cause
more smoke and odor than usual This is normaUand safe and shouUd not cause
aUarm,ff avaHabb, use an exhaust fan during the seffodeaning cycle,
Se_f-C_ean Cycme time mength
For satisfactory resuUts,use a 2 hour SeffoCban cycle for tight soits and a 3 hour
cycle for average or a 4 hour cycle for heavy soils. NOTE: The kitchen area
should be well ventilated using an open window, ventilation fan or exhaust hood
during the Self-Cban cycle, This will help eliminate the normal odors associated
with the Self-Cban cycle,
To Set the Controls for a Se_foC_ean Cycle or a De_ayed Start
Se_foC_ean Cycle:
(Note: If you do not want to start a DeJayed Self-Clean Cycle, skips steps 2 & 3,)
1, Be sure the clock shows the correct time of day,
2, Press @,
3, Press and hold theApad to scroll to the time to start the delayed SelfoCban
cycle, Release the pad when the desired time is displayed,
Press _, "oo"appears in the
4, display,
5, Press theAor V once, "3:00" appears in the display for a 3 hour cycle,
To change to a 2 hour cycle press v, "2:00" appears in the display or to
select a 4 hour cycle press _, "4:00" appears in the display,
As soon as the controls are set, the motor driven lock will begin to close
automatically and the "Door Locked" indicator light will flash, DO NOT open
the oven door while the light is flashing (it takes about 15 seconds for the
oven door to lock),
6, "CLn" will appear in the display during the Self-Clean cycle and the "Door
Locked" light will glow until the Self-Cleaning cycle is complete or cancelled
and the oven temperature has cooled,
When the Serf-Clean Cycle is Completed:
1, The time of day or "End" will appear in the display window and the "Clean"
and "Door Lock" light will continue to glow,
2, Once the oven has cooled down for about 1 HOUR and the "Door Lock" light
has gone out, the oven door can be opened,
3, If "End" is in the display and the Select Clean indicator light remains ON,
_, The time of day will appear in thepress display,
NOTE: When the oven is cool, wipe away any residue or powdered ash with a
damp cloth or paper towel,
Stopping or Interrupting a Se_f-C_eaning Cycme
If it becomes necessary to stop or interrupt a Self-Cbaning cycle:
1, Press _,
2, Once the oven has cooled down for about 1 HOUR and the "Door Lock" light
has gone out, the oven door can be opened,
3, Restart the Self-Cban cycle once all conditions have been corrected,
NOTE: A smoke eliminator in the
oven vent converts most of the
soil into a colorless vapor,
To avoid possible
burns use care when opening the
oven door after the SelfoCleaning
cycle, Stand to the side of the oven
when opening the door to allow hot
air or steam to escape,
DO NOT force the
oven door open, This can damage
the automatic doorlocking system,
Use caution and avoid possible
burns when opening the door after
the SelfoCleaning cycle has
completed, The oven may still be
VERY HOT,
18

Genera Care & C ean[ng
Cleaning Various Parts of Your Oven
Before cUeaningany part of the oven, be sure aHcontroUsare turned OFF and the oven is COOL, REMOVE SPULLOVERS
AND HEAVY SOUUNG AS SOON AS POSSUBLE, REGULAR CLEANUNGS NOW WULL REDUCE THE EXTENT AND
DUFFUCULTYOF MAJOR CLEANUNG LATER,
Surfaces How to C_ean
Aluminum (Trim Pieces) Use hot, soapy water and a cloth, Dry with a clean cloth, Do not scour or use all=
& Vinyl purpose cleaners, ammonia, powdered cleaners or commercial oven cleaner, They
can scratch and discolor aluminum,
Painted and Plastic
ControJ Panet, Body Parts,
and Decorative Trim
StainJess Steel, Chrome
Control Panel, Decorative
Trim
PorceJain Enamel Broiler
Pan and insert, Door Liner,
Body Parts
Forgeneral cleaning, use hot, soapy water and a cloth, For more difficu/tsoils and
built-up grease, apply a liquid detergent directly onto the soil, Leave on soil for 30 to
60 minutes, Rinse with a damp cloth and dry, DO NOT use abrasive cleaners on
any of these materials; they can scratch,
To remove control knobs, turn to the OFF position; grasp firmly and pull straight off
the shaft, To replace knobs after cleaning, line up the flat sides of both the knob
and the shaft; then push the knob into place,
Oven Racks
Before cleaning the control panel turn all controls to OFF and remove the control
knobs, To remove, pull each knob straight off the shaft, Clean using hot, soapy
water and a dishcloth, Rinse with a clean water using a dishcloth, Be sure to
squeeze excess water from the cloth before wiping the panel; especially when
wiping around the controls, Excess water in or around the controls may cause
damage to the appfiance,To replace knobs after cleaning, line up the flat sides of
both the knob and the shaft; then push the knob into place,
Clean stainless steet with hot, soapy water and a dishcloth, Rinse with clean water
and a cloth, Do not use cteaners with high concentrations of chlorides or
cModnes. Do not use harsh scrubbing cleaners, Only use kitchen cleaners that are
especially made for cleaning stainless steel, Always be sure to rinse the cleaners
from the surface as bluish stains may occur during heating that cannot be removed,
Oven Door
Gentle scouring with a soapy scouring pad will remove most spots, Rinse with a 1:1
solution of clear water and ammonia, /f necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes, Rinse with clean water and a
damp cloth, and then scrub with a soap-filled scouring pad, Rinse and wipe dry with
a clean cloth, Remove all cleaners or the porcelain may become damaged during
future heating, DO NOT use spray oven cleaners on the coektop,
This oven comes with lubricated porcelain oven racks, which can remain in the
oven during the self-clean cycle, Do not clean this vegetable oil lubrication off the
racks, It is important that the sides of the oven racks always have a light coating of
vegetable oil, To maintain optimal rack performance, re-apply a thin layer of
vegetable oil to the sides of the rack after every self-clean cycle or when the rack
becomes difficult to slide,
For some models with chrome oven racks, clean by using a mild, abrasive cleaner
following manufacturer's instructions, Rinse with clean water and dry,
Use soap & water to thoroughly clean the top, sides and front of the oven door,
Rinse well, You may use a glass cleaner on the outside glass of the oven door, DO
NOT immerse the door in water, DO NOT spray or allow water or the gtass
cteaner to enter the door vents, DO NOT use oven cleaners, cleaning powders or
any harsh abrasive cleaning materials on the outside of the oven door,
DO NOT clean the oven door gasket, The oven door gasket is made of a woven
material, on Self-Cleaning models, which is essential for a good seal, Care should
be taken not to rub, damage or remove this gasket,
Gasket
19

Genera Care & C eaning
Cleaning the Porcelain Enamel Oven (Manua!CbanOvenOnJy)
Porcelain has a smooth finish and is a type of glass fused to metal, Oven cleaners can be used on all interior oven
surfaces,
REMOVE SPILLOVERS AND HEAVY SOIMNG AS SOON AS POSSIBLE,
REGULAR CLEANINGS NOW WILL REDUCE THE EXTENT AND DIFFICULTY OF MAJOR CLEANINGS LATER.
Adhere to the fol!owing cteaning precautions:
o Allow the oven to cool before cleaning,
o Wear rubber gloves when cleaning the appliance manually,
General Cteaning
Remove soils using hot, soapy water, Do not allow food spills with a high sugar or acid content (such as milk, tomatoes,
saukerkraut, fruit juices or pie filling) to remain on the surface as they may cause a dull spot even after cleaning,
To Remove Heavy Soil
1, Allow a dish of ammonia to sit in the oven overnight or for several hours with the oven door closed, Clean softened
spots using hot, soapy water, Rinse well with water and a clean cloth,
2, if soil remains, use a soap°filled scouring pad or a nonabrasive cleaner, if necessary, use an oven cleaner following
manufacturer's instructions,
DO NOT mix ammonia with other cleaners,
Adhere to the following precautions when using oven cJeanere:
1, DO NOT spray on the electrical controls or switches because it could cause a short circuit and result in sparking or
fire,
2, DO NOT allow a film from the cleaner to build up on the temperature sensing bulb; it could cause the oven to heat
improperly, (The bulb is located in the rear of the oven,) Carefully wipe the bulb clean after each oven cleaning,
being careful not to move the bulb. A change in its position could affect how the oven bakes. Avoid bending the bulb
and capillary tube,
3, DO NOT spray any cleaner on the oven door trim or gasket, handles or any exterior surfaces of the appliance, wood
or painted surfaces, The cleaner can damage these surfaces,
To Ctean the Oven Bottom
Clean using hot, soapy water, a mild abrasive cleanser, a soap-filbd abrasive pad or oven cleaner following
manufacturer's instructions,
Ammonia must be rinsed from all surfaces before operating the oven, Provide adequate ventilation,
DO NOT line the oven walls, bottom, racks or any other part of the appliance with aluminum foil, Doing so
will destroy heat distribution, produce poor baking results and cause permanent damage to the oven
foil will melt to the interior surface of the oven),
Care and CWeaning of Stainless Steel (eomemodele)
Some models are equipped with stainless steel exterior parts, Special care and cleaning are required for maintaining the
appearance of stainless steel parts, Please refer to the table provided at beginning of the Care & Cteaning section in this
Use & Care Manual,
2O
