Kent Euroclean Razor SV 17 User manual

Razor SV 17
PARTS LIST
KENT MODEL: 908 7112 020
909 6310 000(1)2005-12

2005-12
1
909 6310 000(1)2005-12
Razor SV 17
WHEN ORDERING PARTS
* Use the 8, 9 or 10 digit numbers from the “Ref. No.” columns in this parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model ___________________ Serial No. ___________________
* = Optional
# = Modified item No. or New item No.
[] = Not shown
xxxxxx= Contained in a Kit
DESCRIPTION
PLAN
SOLUTION TANK 2-3
VACUUM SYSTEM 4-5
RECOVERY TANK 6-7
HANDLE ASSEMBLY 8-9
CONTROL PANEL ASSEMBLY 10-11
SOLUTION SYSTEM 12-13
SQUEEGEE ASSEMBLY 14-15
BRUSH SYSTEM 16-17
WIRING SYSTEM 18-19
ACCESSORIES 20-23
RECOMMENDED SPARE PARTS 24
WIRING DIAGRAM 25
TABLE OF CONTENTS

2005-12
2
909 6310 000(1)2005-12
Razor SV 17
SOLUTION TANK
10
15
8
36
14
17
337
33
12
6
5
34
7
31
19 11
24
9
13 32
21
38 16
29
30
2
26
25
28
27
23
4
22
1
18
20
39
41
40
3
42
43
35
name
plate

2005-12
3
909 6310 000(1)2005-12
Razor SV 17
SOLUTION TANK
Item No. Ref. No. Qty Description
1 xxxxxxxx 2 Washer flat 6X18 (Solution tank hardware kit)
2 xxxxxxxx 1 Clamp (Solution tank hardware kit)
3 xxxxxxxx 6 Screw M5X10 (Solution tank hardware kit)
4 08603258 1 Washer flat 11X16
5 xxxxxxxx 1 Nut hex. low self lock M6 SS (Kit squeegee lift cable)
6 xxxxxxxx 2 Washer flat 6X18 SS (Kit squeegee lift cable)
7 08603845 1 Cable clamp
8 xxxxxxxx 1 Knob (Kit squeegee lift cable)
9 08812392 2 Spacer
10 xxx xxxx xxx 1 Ball joint (Kit squeegee lift cable)
11 xxxxxxxx 1 Hose clamp (Solution tank hardware kit)
12 xxx xxxx xxx 1 Screw hex hd M6X20 SS (Kit squeegee lift cable)
13 xxx xxxx xxx 2 Screw M8X20 (Solution tank hardware kit)
14 xxx xxxx xxx 1 Washer flat 8X17 (Kit squeegee lift cable - Solution tank hardware kit)
15 xxx xxxx xxx 2 Washer flat 6X12,5 (Kit squeegee lift cable - Solution tank hardware kit)
16 xxx xxxx xxx 2 Retaining ring (Solution tank hardware kit)
17 xxx xxxx xxx 1 Nut hex. self lock M8 (Kit squeegee lift cable - Solution tank hardware kit)
18 xxx xxxx xxx 2 Washer split (Solution tank hardware kit)
19 xxx xxxx xxx 1 Screw M5X12 (Solution tank hardware kit)
20 xxx xxxx xxx 2 Screw hex hd M6X16 (Solution tank hardware kit)
21 xxx xxxx xxx 6 Washer flat 16X30 (Solution tank hardware kit)
22 xxx xxxx xxx 1 Nut hex. self lock M10 (Solution tank hardware kit)
23 909 5560 000 1 Wheel
24 909 5606 000 2 Clamp
25 909 5641 000 1 Indexing plunger
26 909 5649 000 1 Support
27 909 5658 000 1 Supporting rod
28 909 5696 000 1 Valve
29 909 5748 000 1 Wheels shaft
30 909 5895 000 1 Elbow 90° ø10
31 909 6294 000 1 Solution tank
32 146 1899 000 2 Wheel
33 xxx xxxx xxx 1 Squeegee lifting cable (Kit squeegee lift cable)
34 xxx xxxx xxx 2 Decal KENT Razor SV17 (Kit decals)
35 xxx xxxx xxx 1 Decal ECO SOLUTION (kit decals)
36 xxx xxxx xxx 1 Squeegee lifting lever (Kit squeegee lift cable)
37 909 6304 000 1 Bracket brush support
38 xxx xxxx xxx 2 Spacer (Solution tank hardware kit)
39 909 6441 000 1 Pin 3X20
40 909 6236 000 1 Black cap
41 909 5286 000 2 Gasket
42 909 6437 000 1 Kit squeegee lift cable (5,6,8,10,12,14,15,17,33,36)
43 xxx xxxx xxx 1 Decal warning (kit decals)
[44] 909 6438 000 1 Solution tank hardware kit (1,2,3,11,13,14,15,16,17,18,19,20,21,22,38)

2005-12
4
909 6310 000(1)2005-12
Razor SV 17
VACUUM SYSTEM
8
9
2
1
4
7
6
5
3

2005-12
5
909 6310 000(1)2005-12
Razor SV 17
VACUUM SYSTEM
Item No. Ref. No. Qty Description
1 xxxxxxxx 15 Washer falt 6x18 (Vacuum systems hardware kit)
2 xxxxxxxx 3 Screw cyl hd M6x12 (Vacuum systems hardware kit)
3 909 5371 000 2 Carbon brush
4 909 5198 000 3 Vibration damping M6
5 909 5564 000 1 Pipe acoustic insulation
6 909 5565 000 1 Pipe acoustic insulation
7 909 5713 000 1 Kit vacuum motor with connector
8 909 6290 000 1 Vacuum motor hose
9 146 0104 000 1 Hose clamp
[10] 909 5987 000 1 Vacuum systems hardware kit (1,2)

2005-12
6
909 6310 000(1)2005-12
Razor SV 17
RECOVERY TANK
10
6
1
4
7
2
3
11
5
14
8
13
9
12
17
21
15
16
18
19
20

2005-12
7
909 6310 000(1)2005-12
Razor SV 17
RECOVERY TANK
Item No. Ref. No. Qty Description
1 xxxxxxxx 6 Washer flat 6X18 SS (Recovery tank hardware kit)
2 56324497 2 Float cage
3 56391690 1 Floating ball
4 08812968 1 Gasket
5 xxx xxxx xxx 1 Hose clamp 14/32-52 (Recovery tank hardware kit)
6 xxx xxxx xxx 2 Nut cap M6 SS (Recovery tank hardware kit)
7 xxx xxxx xxx 2 Nut hex M6 SS (Recovery tank hardware kit)
8 xxx xxxx xxx 2 Screw hex hd M6X40 SS (Recovery tank hardware kit)
9 909 6199 000 1 Holder, float cage
10 909 6268 000 1 Gasket 1370 mm
11 909 6272 000 1 Recovery tank
12 909 6273 000 1 Tank cover
13 909 6301 000 1 Vacuum hose
14 08812869 1 Drain hose
15 909 6276 000 1 Lever for fixing cover
16 08603935 1 Black cap
17 xxx xxxx xxx 1 Decal water faucet (kit decals)
18 145 1756 000 3 Screw 2,9X9,5 SS
19 909 6473 000 1 Lever fixing plate
20 909 6575 000 1 Lever fixing clamp
21 xxx xxxx xxx 1 Decal batteries (kit decals)
[22] 909 5988 000 1 Recovery tank hardware kit (1,5,6,7,8)

2005-12
8
909 6310 000(1)2005-12
Razor SV 17
HANDLE ASSEMBLY
5
2
3
1
4
6
7

2005-12
9
909 6310 000(1)2005-12
Razor SV 17
HANDLE ASSEMBLY
Item No. Ref. No. Qty Description
1 xxxxxxxx 4 Ratchet handle adjuster (Handle adjuster kit)
2 xxx xxxx xxx 1 Washer flat 8X17 (Handle adjusting kit)
3 xxx xxxx xxx 1 Knob (Handle adjusting kit)
4 xxx xxxx xxx 1 Pivot, handle bar (Handle adjusting kit)
5 909 6274 000 1 Handle bar
6 909 5099 000 1 Handle adjuster kit (1)
7 909 5701 000 1 Handle adjusting kit (2,3,4,6)

2005-12
10
909 6310 000(1)2005-12
Razor SV 17
CONTROL PANEL ASSEMBLY
2
3
5 1
6
4

2005-12
11
909 6310 000(1)2005-12
Razor SV 17

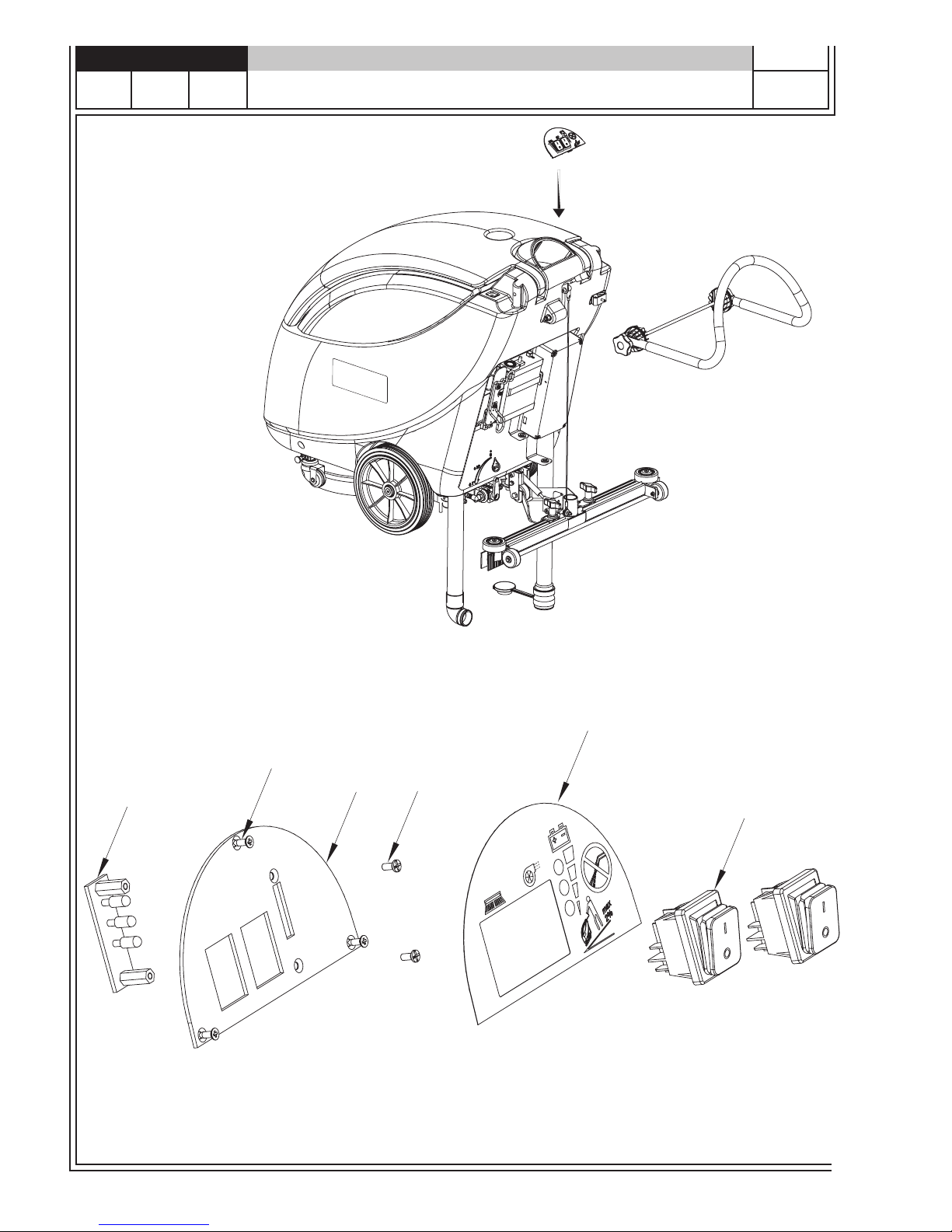

CONTROL PANEL ASSEMBLY
Item No. Ref. No. Qty Description
1 08603919 2 Screw M3X8
2 08812909 1 Electronic card
3 145 1756 000 3 Screw M2,9X9,5 SS
4 909 5584 000 2 Switch
5 909 6275 000 1 Control panel
6 909 6282 000 1 Decal control panel

2005-12
12
909 6310 000(1)2005-12
Razor SV 17
SOLUTION SYSTEM
12
5
4
21
18
9
10
6
3
11
15
8
13
7
20
17
23
2
19
1
22
25
14
26
240 mm
90 mm
100 mm
27
28
30
16
24
29

2005-12
13
909 6310 000(1)2005-12
Razor SV 17
SOLUTION SYSTEM
Item No. Ref. No. Qty Description
1 xxxxxxxx 3 Rubber holder (Solenoid valve kit)
2 08603665 1 Wheel
3 xxxxxxxx 2 Screw hex hd M3x12 SS (Solution systems hardware kit)
4 xxxxxxxx 2 Washer flat 3x9 SS (Solution systems hardware kit)
5 08812960 1 Solenoid valve 24V (Solenoid valve kit)
6 xxxxxxxx 2 Washer split 3 SS (Solution systems hardware kit)
7 xxx xxxx xxx 3 Split pin (Solution systems hardware kit)
8 xxx xxxx xxx 1 Screw hex hd M6x16 SS (Solution systems hardware kit)
9 xxx xxxx xxx 4 Nut hex M6 SS (Solution systems hardware kit)
10 xxx xxxx xxx 4 Washer flat 6x12,5 SS (Solution systems hardware kit)
11 xxx xxxx xxx 3 Washer flat 8x17 SS (Solution systems hardware kit)
12 146 0549 000 2 Bushing
13 xxx xxxx xxx 1 Screw hex hd M8x55 SS (Solution systems hardware kit)
14 909 5151 000 1 Kit water filter complete (Solenoid valve kit)
15 xxx xxxx xxx 4 Screw M8x12 (Solution systems hardware kit)
16 909 5566 000 1 Bracket
17 909 5567 000 1 Support
18 909 5571 000 1 Plate
19 xxx xxxx xxx 2 Clamp (Solution systems hardware kit)
20 xxx xxxx xxx 1 Screw M12x60 SS (Solution systems hardware kit)
21 xxx xxxx xxx 2 Screw M8x55 SS (Solution systems hardware kit)
22 xxx xxxx xxx 1 Valve (Solenoid valve kit)
23 909 5637 000 1 Spring
24 xxx xxxx xxx 1 Rubber holder (Solenoid valve kit)
25 xxx xxxx xxx 1 Nut hex low self lock M8 SS (Solution systems hardware kit)
26 08603893 1 Kit filter net with gasket
27 xxx xxxx xxx 1 Hose ø10 240 mm (Solenoid valve kit)
28 xxx xxxx xxx 1 Hose ø10 100 mm (Solenoid valve kit)
29 xxx xxxx xxx 3 Clamp 8/ 9-16 (Solenoid valve kit)
30 xxx xxxx xxx 1 Hose ø10 90 mm (Solenoid valve kit)
[31] 08603885 1 Connector for solenoid valve
[32] 909 5977 000 1 Solenoid valve kit (1,5,14,22,24,27,28,29,30)
[33] 909 5990 000 1 Solution systems hardware kit (3,4,6,7,8,9,10,11,13,15,19,20,21,25)

2005-12
14
909 6310 000(1)2005-12
Razor SV 17

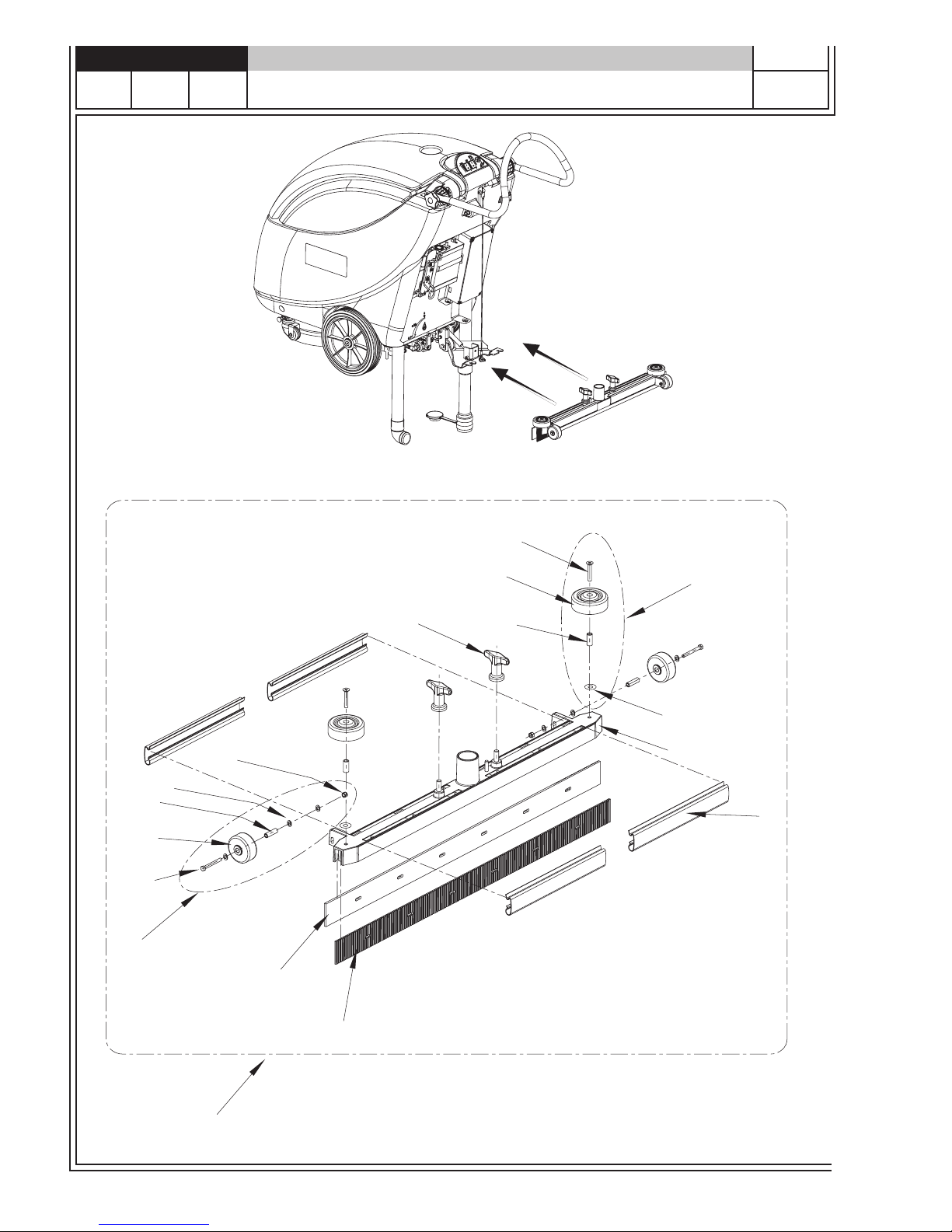

SQUEEGEE ASSEMBLY
9
7
2
1
4
6
3
12
5
10
11
8
13
14
15
17
16

2005-12
15
909 6310 000(1)2005-12
Razor SV 17
SQUEEGEE ASSEMBLY
Item No. Ref. No. Qty Description
1 xxxxxxxx 2 Spacer (Kit squeegee bumper roller - Kit squeegee complete - Squeegee
assembly hardware kit)
2 xxxxxxxx 2 Bumper roller (Kit squeegee bumper roller - Kit squeegee complete -
Squeegee assembly hardware kit)
3 xxxxxxxx 2 Squeegee wheel (Kit squeegee wheel - Kit squeegee complete)
4 xxxxxxxx 2 Nut thumb (Kit squeegee complete - Squeegee assembly hardware kit)
5 xxxxxxxx 2 Nut hex low selflock M5 SS (Kit squeegee wheel - Kit squeegee complete
- Squeegee assembly hardware kit)
6 xxxxxxxx 2 Screw hex hd M5x45 SS (Kit squeegee wheel - Kit squeegee complete -
Squeegee assembly hardware kit)
7 xxxxxxxx 2 Screw M6x35 (Kit squeegee bumper roller - Kit squeegee complete -
Squeegee assembly hardware kit)
8 909 5554 000 1 Squeegee weldment (Kit squeegee complete)
9 909 5555 000 4 Spring (Kit squeegee complete)
10 909 5568 000 1 Blade rear (Kit squeegee complete)
11 909 5569 000 1 Blade front (Kit squeegee complete)
12 xxx xxxx xxx 2 Spacer (Kit squeegee wheel - Kit squeegee complete - Squeegee assembly
hardware kit)
13 xxxxxxxx 2 Washer flat 6x18 SS (Kit squeegee complete - Squeegee assembly hardware
kit)
14 08603880 1 Kit squeegee bumper roller (1,2,7)
15 909 5703 000 1 Kit squeegee wheel (3,5,6,12,16)
16 xxx xxxx xxx 6 Washer flat 5x15 SS (Kit squeegee wheel - Kit squeegee complete -
Squeegee assembly hardware kit)
17 909 5702 000 1 Kit squeegee complete (1,2,3,4,5,6,7,8,9,10,11,12,13, 16)
[18] 909 5991 000 1 Squeegee assembly hardware kit (1,2,4,5,6,7,12,13,16)

2005-12
16
909 6310 000(1)2005-12
Razor SV 17
BRUSH SYSTEM
6
3
25
11
20
1 19 21
10
2
18
9
14
7
27
8
17
24
15
16
23
22
12
5
4
13
26
28
29
30
31
32

2005-12
17
909 6310 000(1)2005-12
Razor SV 17
BRUSH SYSTEM
Item No. Ref. No. Qty Description
1 xxxxxxxx 1 Nut (Brush system hardware kit)
2 56325602 1 Vibration damping
3 08603849 1 Reduction gear
4 56363855 1 Bumper roller
5 08602461 1 Spacer
6 909 5508 000 1 Electric motor
7 xxx xxxx xxx 1 Tab (Brush system hardware kit)
8 08812891 1 Brush ø430 Prolene PPL
8* 909 5691 000 1 Brush ø430 Midlite Grit180
8* 909 5692 000 1 Brush ø430 Midrit 240
8* 909 5693 000 1 Brush ø430 Prolite
8* 909 5694 000 1 Brush ø430 Union mix
9 xxx xxxx xxx 1 Screw hex hd M8x12 (Brush system hardware kit)
10 xxx xxxx xxx 2 Screw M12x55 (Brush system hardware kit)
11 909 5720 000 1 Carbon brush set (4 pcs)
12 xxxxxxxx 2 Washer flat 6x18 (Brush system hardware kit)
13 xxx xxxx xxx 1 Screw M6x40 (Brush system hardware kit)
14 xxx xxxx xxx 4 Screw hex hd M6x16 SS (Brush system hardware kit)
15 xxx xxxx xxx 2 Nut hex M6 SS (Brush system hardware kit)
16 xxx xxxx xxx 2 Screw M3x6 (Brush system hardware kit)
17 909 5550 000 1 Brush protection
18 909 5556 000 1 Plate brush support
19 909 5557 000 1 Bracket
20 909 5558 000 2 Spring
21 909 5559 000 2 Bushing
22 909 5585 000 1 Brush deck adjuster block
23 909 5586 000 1 Plate
24 909 6217 000 1 Hose copper
25 909 5638 000 1 Reductiongearmotor 520W
26 xxx xxxx xxx 1 Screw M6x30 (Brush system hardware kit)
27 08812589 1 Polyg.holder w.flange kit
28 909 5622 000 1 Hose ø10 640 mm
29 xxx xxxx xxx 1 Decal brush adjusting (Kit decals)
30 08361400 1 Nut hex M6 selflock. low
31 146 0632 000 2 Screw hex hd M4x8
32 145 9237 000 2 Washer flat 4x12
[33] 909 5992 000 1 Brush system hardware kit (1,7,9,10,12,13,14,15,16,26)

2005-12
18
909 6310 000(1)2005-12
Razor SV 17
WIRING SYSTEM
14
32
4
3
24
10
11
16
31
26 2
19
30
18
29
8
12
23
21 7
33
115
34
9
28
27
22
17
25
20
5
13
6
35
36
37
38
