Kenwood DA-7000A User manual

DA-7000A
CDENCODER
INSTRUCTION MANUAL
KENWOOD CORPORATION

CONTENTS
1. OUTLINE 1
2. FEATURES 1
3. SPECIFICATIONS • 2
4. EXPLANATION OF PANELS 4
5. SYSTEMASSEMBLY 8
6.GP-IB OPERATION1 0
7. GP-IB OPERATION PROGRAMMING2 5

1. OUTLINE
The CD Encoder DA-7000Ais designed for converting CD-ROM data or musicrecorded
on DIGITAL AUDIO Tapes (DAT)for professional use or U-matic VCR into EFM
signals based on the COMPACT DISC (CD) standards.
Bycombining with the CD-WO Writer DD-7200A a CD-WO system can be constructed.
2. FEATURES
(1) The unit conforms to the RED BOOK, YELLOW BOOKandORANGEBOOK PARTII
(November 1990), and allowsconstruct ion ofa CD-WO systemthrough
combination with a CD-WO Writer DD-7200A.
(2) The controlfunctionsnecessary forthe encoder, includinggeneration ofthe
subcode, are all controlled through the GP-IB. System-incorporation is
facilitated by possiblecontrol of the VCR and DAT through the GP-IB.
(3) Through applicat ion of LSI in the CD Encoder, circuitry has been
simplified and reliability increased.
(4) ConnectingU-matic VCR, professional DAT equipment,etc., is easyowing
to the 3 datainput interface systems: SDIF, AES/EBU Digital Audio Interface
and parallei input.
1

3. SPECIFICATIONS
2
(1) Encode Method Conforms totheCDRED/YELLOW/ORANGE BOOK PART II
(November 1990).
(2) Master Clock 8. 6436 MHz Internal/External switchable
(3) EFM Output Symmetry adjusted EFM/ Asymmesty EFM;1 systemeach
Level : 50ohmsTTL level output
Connector: BNC-R
(4) DataInput As AES/EBU Digital Audio Interface Format
Input method : Balanced
Connector : Canon connector
External synchronization clock: 44.1 kHz (50 ohmsTTL level output, BNC-R
use)
(5) SDIFDataInput
WORD SYNC75ohmsTTL level output, BNC-Ruse
DEC CHI75ohmsTTL level input, BNC-Ruse
DEC CH275ohmsTTL level input, BNC-Ruse
(6)Parallel DataInput
Dataformat : 8 bit units,positivelogic, 2's complements
Input level :TTL level PULL-UP 330-ohm
PULL-DOWN 390-ohm
Connector : 50-pin miniature delta ribbon receptacle
(7) Symmetry AdjustmentFunction
Steps : 7 steps (including no delay)
Delaytime : Approximately 60 ns/step
Pole reversal : Yes

3
(8) RS-422 Communication Terminal
Connector : 9-pin D-Sub Connector
(9) GP-IB Control
Governingstandard : IEEE-488-1978
Interface functions : SHI,AH1, 16,L3, SRI, DC0?DTO,CO
(10) Dimensions : EIA133 133(H)x 428(W)x 415 (D) mm
(11) Weight : Approximately 10kg (basic CD Encoder unit alone)
(12) Power Supply
Voltage : AC85- 250V (50- 440Hz)
Fuse : 2. 5 A
Power consumption : Approximately 10W (basic CD Encoder unit alone)
(13) Supplied Accessories
AC cord x 1
Instruction manual x 1
Replacement fuses x 2

4. EXPLANATIONOFPANELS

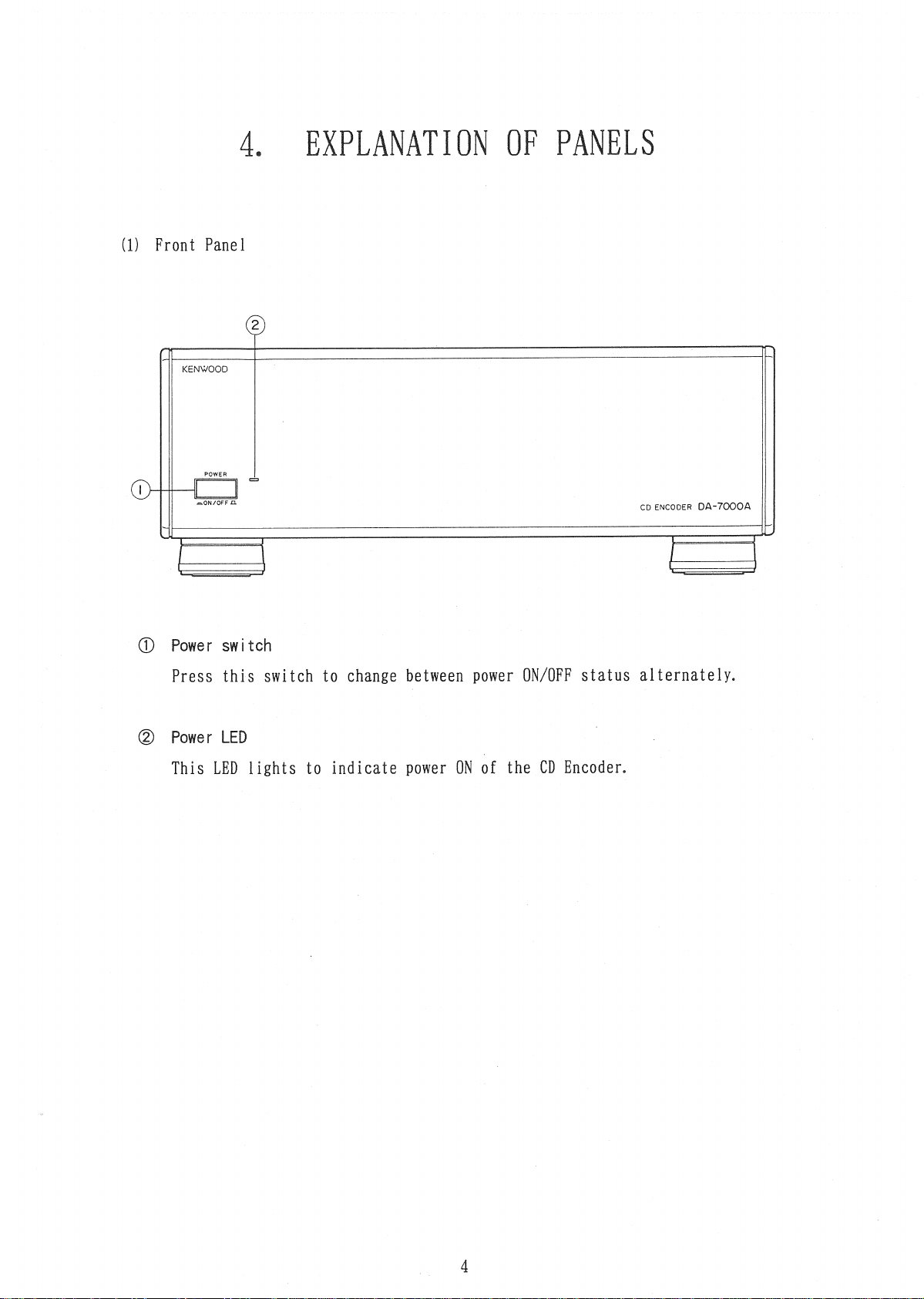

(1) Front Panel
© Power switch
Press this switch to changebetween power ON/OFF statusalternately.
© PowerLED
This LED lights to indicate powerONoftheCD Encoder.
4

(2) RearPanel
© DIGITAL AUDIOIN connector
Data input connectorfor AES/EBU Digital Audio Interface Format.
(D FSOUT terminal
44. 1 KHz clock outputfor externalsynchronizat ion of Digital Audio
Interface Format data outputequipment.
<D WORD SYNC OUT terminal
44.1 KHz clock output to PCM processor for externalsynchronization.
© (DCH1-DEC-CH2 terminal
Inputterminals forSDIF data.
© N.EFM OUT terminal
EFMoutput that does not passthrough the symmetry adjustment circuitry.
In the case ofa CD-WO system,connect this terminalwith the CD
Writer's N.EFM IN terminal.
® EFMOUT terminal
Output terminal for the EFM signal. Inthe case of a CD-WO system,connect
this terminalwith the CD Writer's EFM IN terminal.
5

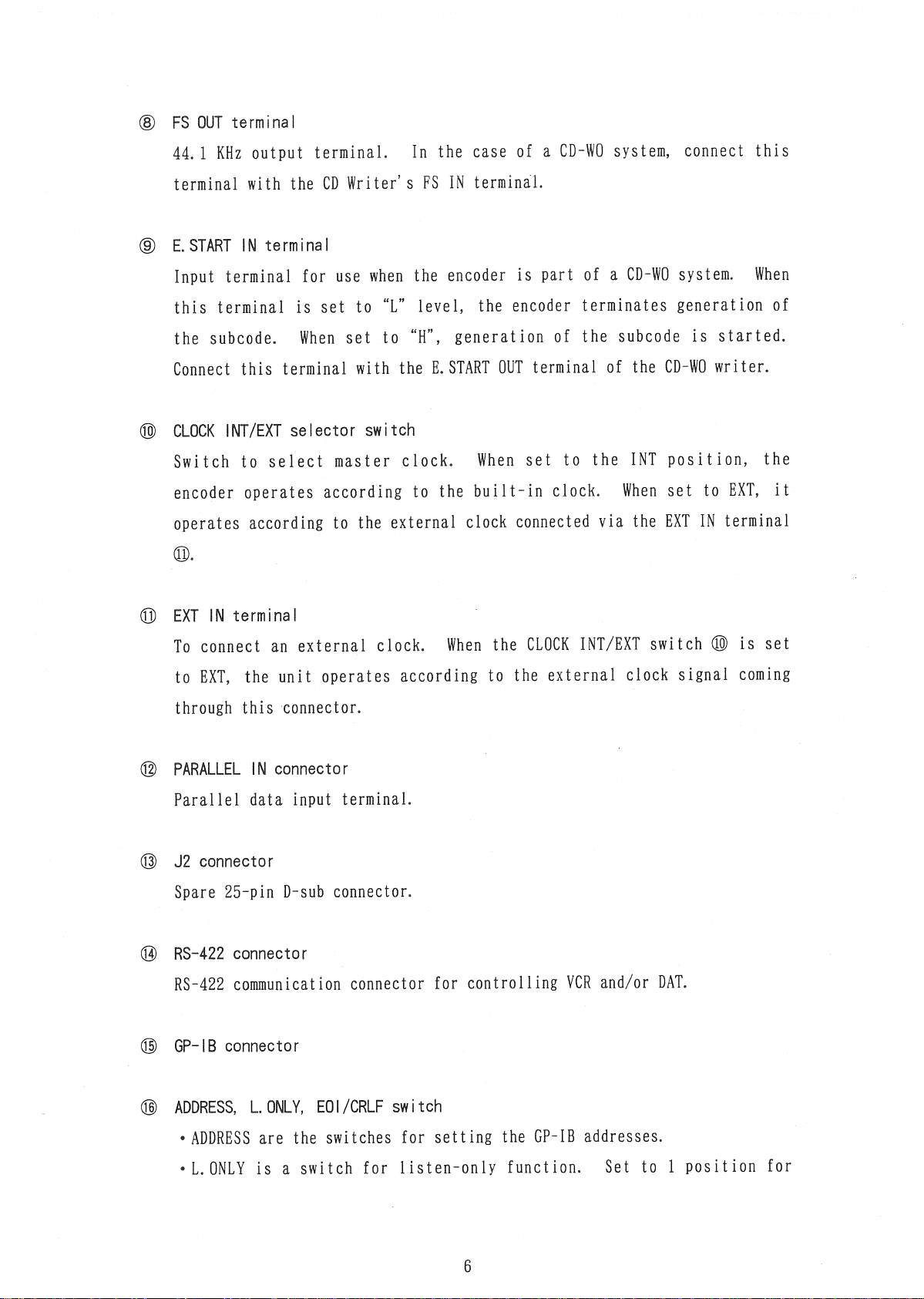

® FS OUT terminal
44. 1 KHz output terminal. Inthe case ofa CD-WO system, connect this
terminalwith the CD Writer's FS IN terminal.
(DE. START IN terminal
Inputterminal for use when the encoder is part ofa CD-WO system. When
this terminal isset to "L" level, the encoder terminatesgeneration of
the subcode. Whenset to "H", generation of the subcode is started.
Connect this terminalwith the E. START OUT terminal ofthe CD-WO writer.
© CLOCK INT/EXT selectorswitch
Switch to select master clock. Whenset to theINT pos i t ion, the
encoder operatesaccording to the built-in clock. When set to EXT, it
operatesaccording tothe externalclock connected via the EXTIN terminal
©.
© EXTIN terminal
To connect an externalclock. Whenthe CLOCK INT/EXT switch ® is set
to EXT, the unit operatesaccording tothe externalclocksignal coming
through this connector.
@ PARALLEL IN connector
Parallel datainputterminal.
© J2 connector
Spare 25-pin D-sub connector.
® RS-422 connector
RS-422 communication connector for controlling VCR and/or DAT.
© GP-IB connector
© ADDRESS,LONLY, EOI/CRLF switch
• ADDRESSare the switches for setting the GP-IB addresses.
•L. ONLYis a switch for 1isten-onlyfunct ion. Set to1 position for
6

listen-only mode.
• EOI/CRLF is a switch to select the delimiter. To select EOI, setto1
position.
© AC INPUT Fuseholder
Use2. 5 A glass tubetype fuses regardless ofthe voltage ofthe A. C.
mains.
@AC INPUT connector
Receptacle to connect the unit with theAC mains and feed the current
through the bui 1 t-in 1 ine filter. Usethe supplied power cord to
connect theCD Encoder to the AC mains.
® GND terminal
This isthe unit's earth terminal. FRAMEGNDis connected tothe
cabinet andthe center pinofthe power supplyconnector. For safety
reasons, always earth this terminal. .
The SIGNAL GNDistheGND terminal ofthe unit' s control signal system.
When shippedfrom factory, the SIGNAL GNDandFRAMEGNDare connected
via a short bar.
7

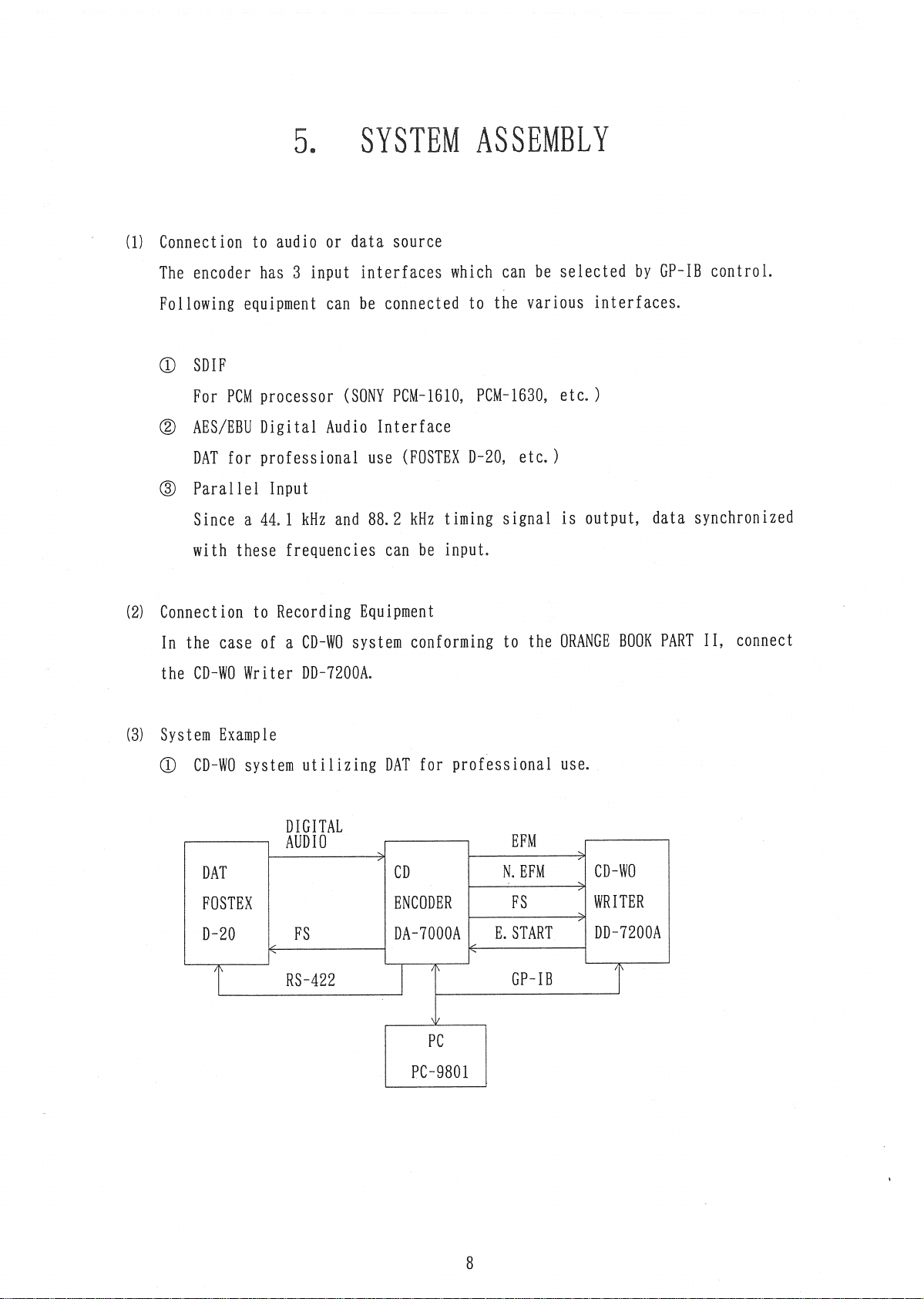

5. SYSTEMASSEMBLY
DAT
FOSTEX
D-20
DIGITAL
AUDIO
FS
RS-422
CD
ENCODER
DA-7000A
PC
PC-9801
GP-IB
CD-WO
WRITER
DD-7200A
8
(1) Connection to audio or datasource
Theencoder has 3 input interfaces which can be selected by GP-IB control.
Following equipment can be connected to the various interfaces.
© SDIF
For PCM processor (SONY PCM-1610, PCM-1630, etc. )
(D AES/EBU Digital Audio Interface
DAT for professional use (FOSTEX D-20,etc.)
(D Parallel Input
Since a 44.1 kHzand88.2kHz timing signal is output,datasynchronized
with these frequencies can be input.
(2) Connect ion to Recording Equipment
In the case of aCD-WO systemconforming to the ORANGEBOOK PART II, connect
the CD-WO Writer DD-7200A.
(3) SystemExample
® CD-WO system utilizing DAT for professional use.
EFM
N. EFM
FS
E. START

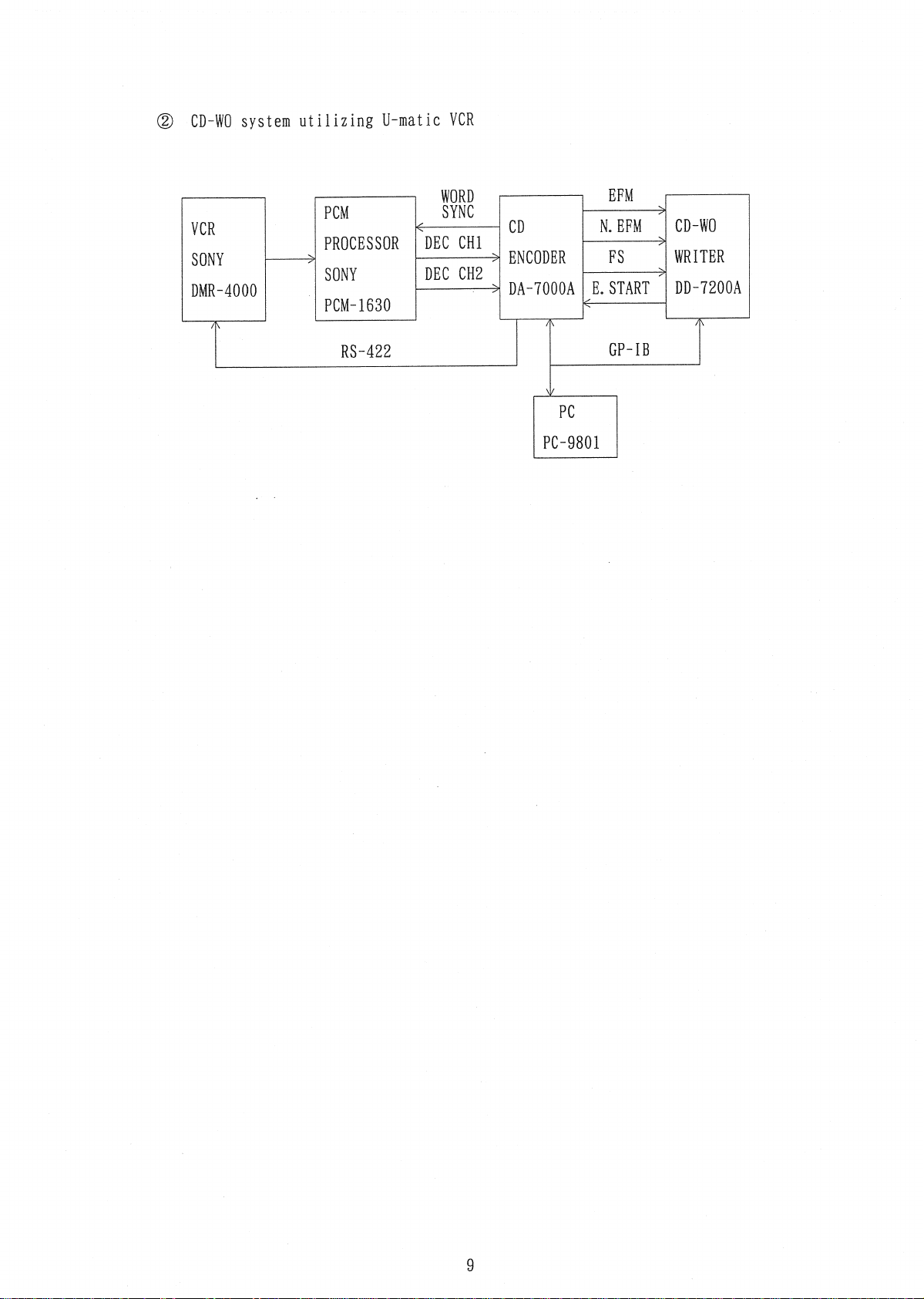

(D CD-WO system utilizing U-matic VCR
VCR
SONY
DMR-4000
PCM
PROCESSOR
SONY
PCM-1630
WORD
SYNC
CD
ENCODER
DA-7000A
EFM
N. EFM
FS
E. START
CD-WO
WRITER
DD-7200A
RS-422
~7fT
GP-IB
PC
PC-9801
9
DEC CHI
DEC CH2

6.GP-IB OPERATION

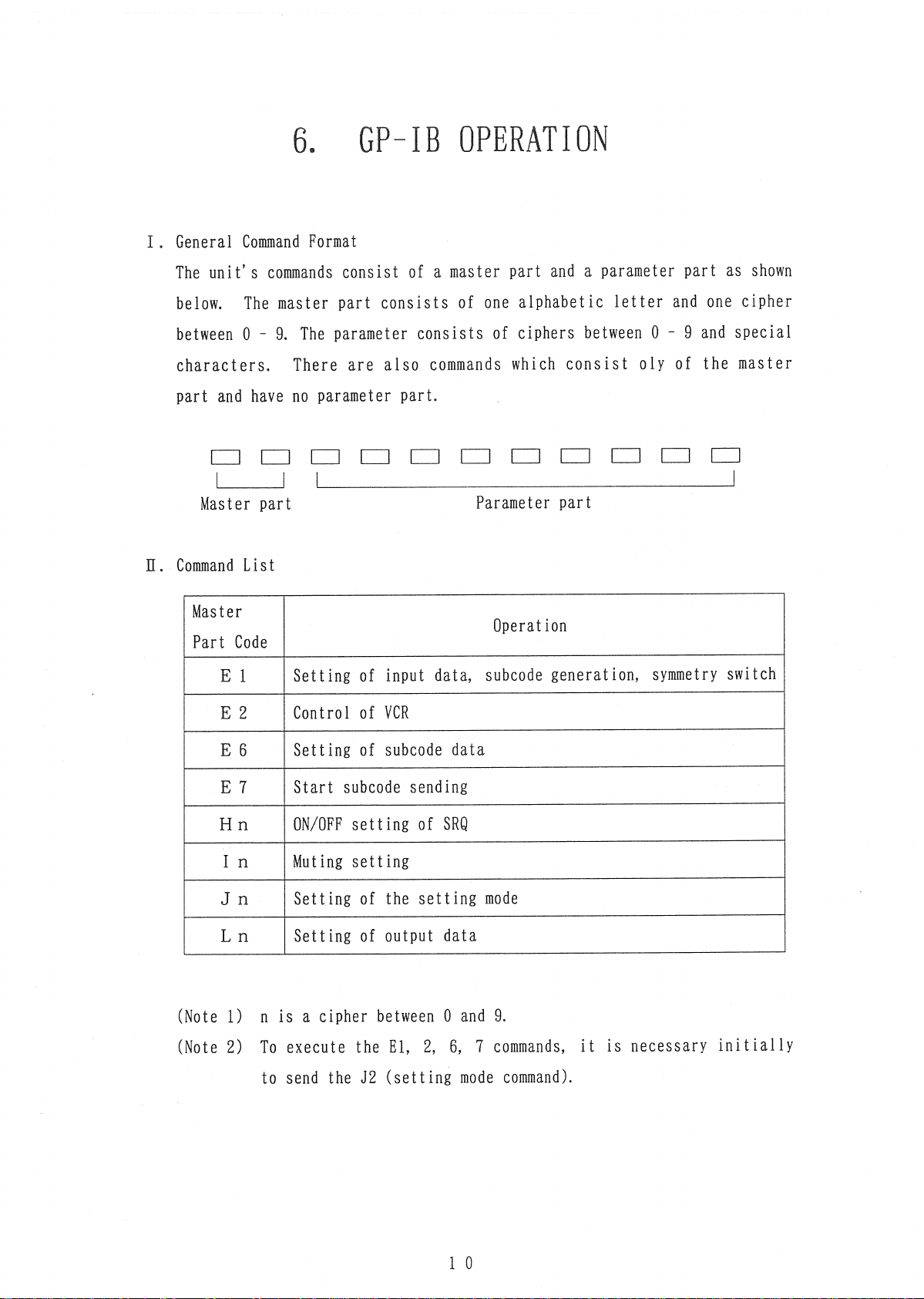

I. General Command Format
The unit's commands consist ofa master part anda parameter part as shown
below. The master partconsists ofone alphabetic letter andone cipher
between 0-9. The parameter consists of ciphers between 0 - 9 and special
characters. There are also commands which consist oly ofthe master
part and have no parameter part.
Master
Part Code
Operat ion
E 1
Setting of input data, subcode generation, symmetry switch
E 2
Control ofVCR
E 6
Setting of subcode data
E 7
Start subcodesending
Hn
ON/OFF setting ofSRQ
I n
Muting setting
J n
Setting of the sett ing mode
L n
Setting of output data
(Note 1)n is a cipher between 0 and9.
(Note 2)To execute the El, 2,6,7 commands,itis necessary initially
to send the J2 (setting mode command).
1 0
Master part
Parameter part
II. Command List

HL Command Operation
[El] Command
This commandhasthe following forms.

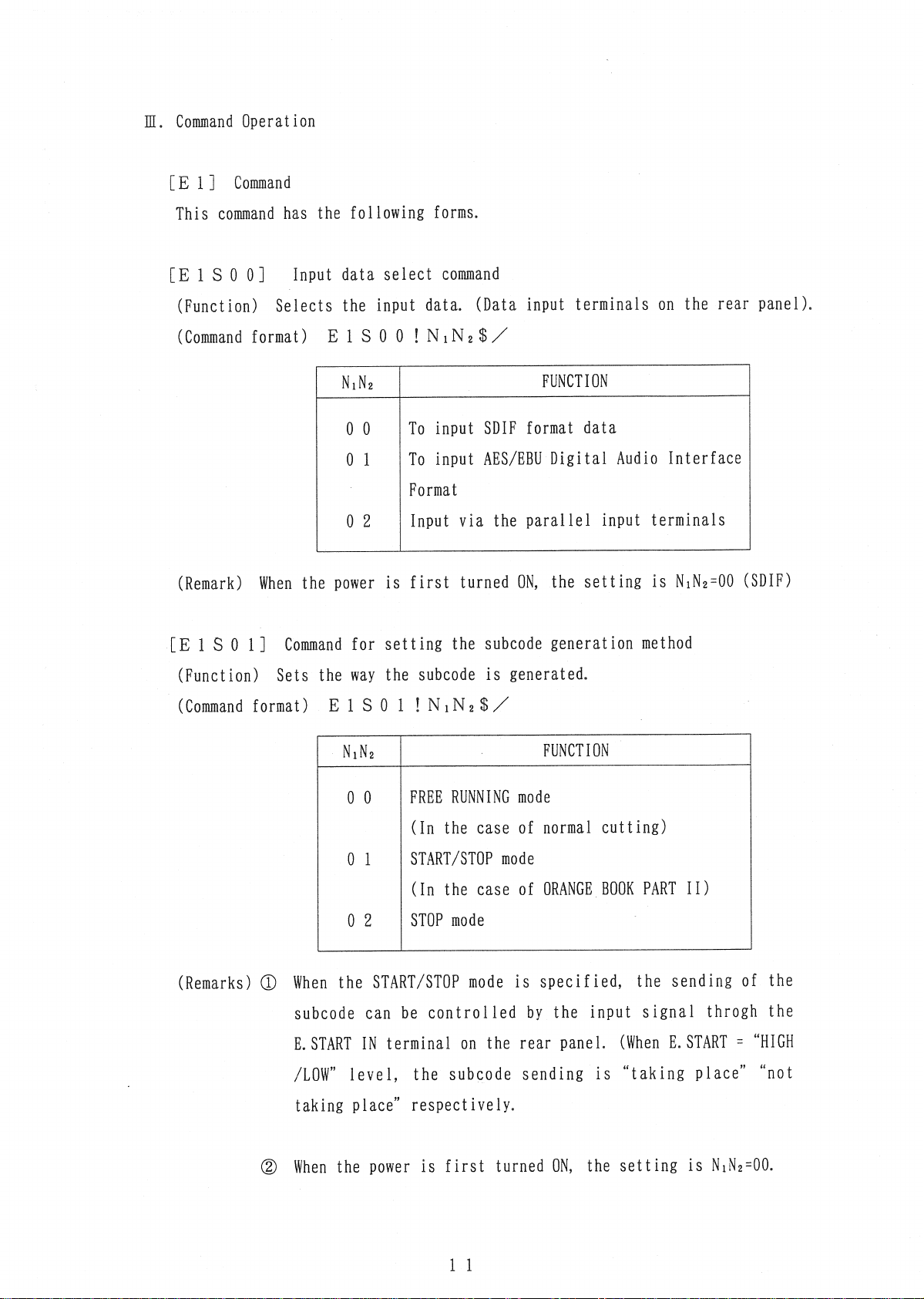

[E 1 S 0 0] Inputdata select command
(Function) Selects the inputdata.(Datainputterminals on the rearpanel).
(Command format) E 1 S 0 0 ! NiN2 %/
N,N2
FUNCTION
0 0
To input SDIF format data
0 1
To input AES/EBU Digital Audio Interface
Format
0 2
Input viathe parallei inputterminals
(Remark) When thepoweris first turned ON,the setting is NiN2=00 (SDIF)
[E 1 S 0 1 ] Command for setting the subcode generation method
(Function) Sets the waythe subcode is generated.
(Command format) E 1 S 0 1 ! NiN2 %/
NiN2
FUNCTION
0 0
FREE RUNNINGmode
(In the case of normal cutting)
0 1
START/STOP mode
(In the case ofORANGE BOOK PART II)
0 2
STOP mode
(Remarks) ® Whenthe START/STOP mode is specified, the sending ofthe
subcode canbe controlled bythe inputsignal throgh the
E. START IN terminal on the rearpanel. (When E. START - "HIGH
/LOW" level, the subcode sending is "takingplace" "not
taking place" respectively.
(D When thepoweris first turned ON,the setting is NiN2=00.
1 1

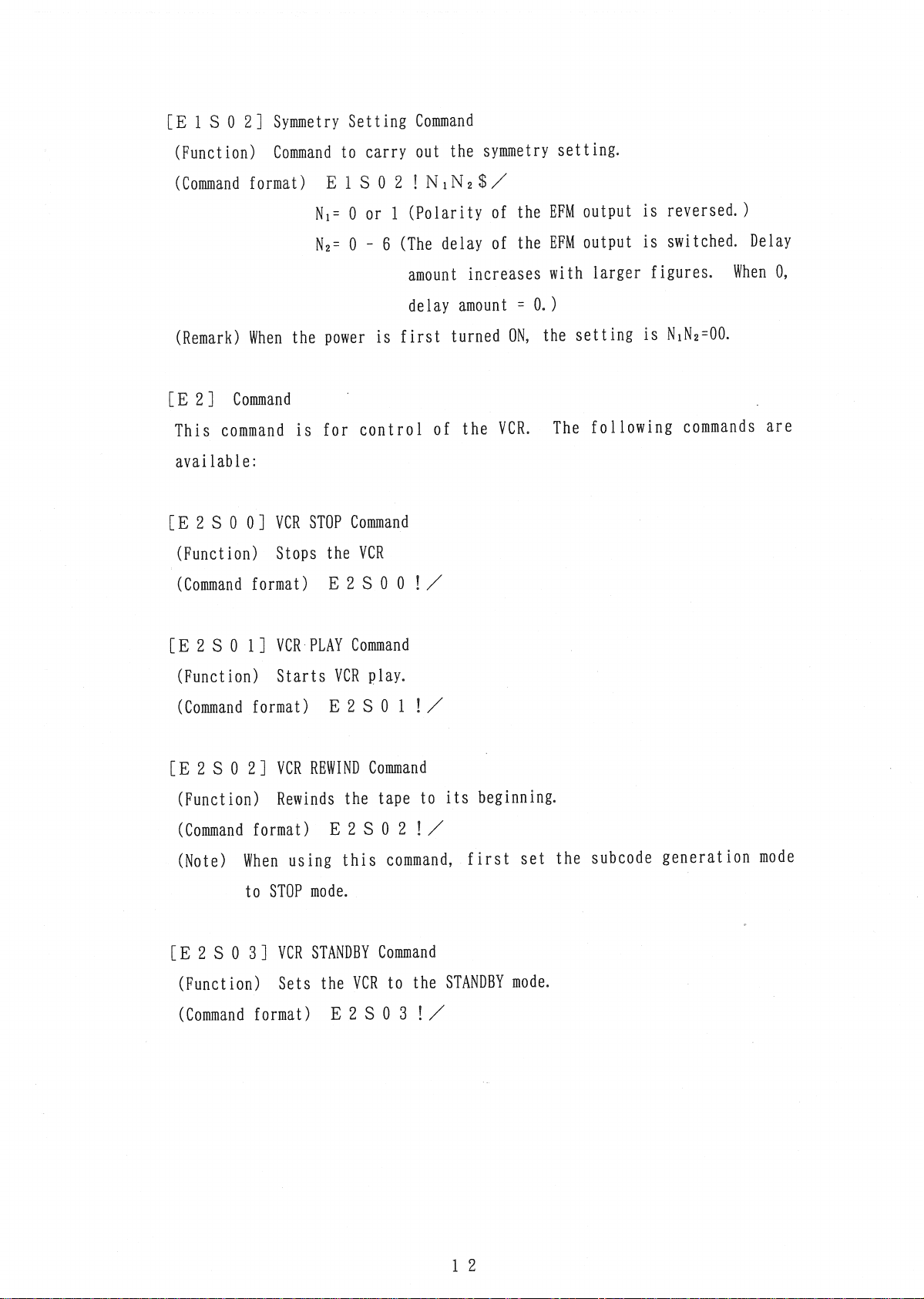

[E 1S 0 2] Symmetry Setting Command
(Function) Commandto carry out the symmetry setting.
(Command format) E 1 S 0 2 ! NiN2$/
Ni= 0 or1 (Polarity of the EFM outputisreversed.)
N2=0-6 (Thedelay of the EFM outputisswitched.Delay
amount increases with largerfigures. When0,
delay amount = 0.)
(Remark) When the power is first turned ON,the setting is NiN2=00.
[ E 2] Command
This commandis forcontrol oftheVCR.The fo1lowing commands are
available:
[E 2 S 0 0]VCR STOP Command
(Function) Stopsthe VCR
(Command format) E 2 S 0 0 ! /
[E 2 S 0 1]VCR PLAY Command
(Function) Starts VCR play.
(Command format) E 2 S 0 1 !/
[E 2 S 0 2]VCRREWINDCommand
(Function) Rewinds the tape to itsbeginning.
(Command format) E 2 S 0 2 !/
(Note) When using this command, first set the subcode generation mode
to STOP mode.
[E 2 S 0 3]VCR STANDBY Command
(Function) Setsthe VCRto the STANDBY mode.
(Command format) E 2 S 0 3 !/
1 2

[E 2S 1 0] VCR LOCATE Command
(Function) Transportstape to specified time-defined position.
(Command format) E2S1 0 ! HI0HIMI0MISI0SIFI0FI$/
H i o ~Fi indicates SMPTE time,minutes, seconds, frame
number in tens and single digits.
(Note)Beforeusing this command, set the subcode generation modeto STOP
modeand the VCR to PLAY mode.
[E 6 ] Command
This group ofcommands is used asthe data ofthe subcode generation.
[E 6S 0 0] Disc Type Setting
(Function) By setting the disc type,generation of the LEAD-IN portion' s
subcode takesplace in accordance with the disc type.
(Command format) E6S00 !NiN2$/
N,N2
DISC TYPE
0 0
0 1
0 2
CD-DA, CD-ROM
Undefined
Undefined
(Remark) When thepoweris first turned ON,the setting isNiN2=00.
[E 6 S 0 1] First Track Number Setting
(Function)
0During normal cutting and CD-WO uninterrupted writing, specify the
disc' s first track number. This value is used to create theLEAD-
INdata when setting the track time.Carry out this command
before setting the track time.
(D Inthe case of CD-WO incremental writ ing, specify the value by
adding 1 tothe last already writtentrack number.
(Command format) E6S0 1 !NiN2$/
01 ^ NiN2^ 99 (NiN2 are numeric values between 0-9)
(Remark) When thepoweris first turned ON,the setting N1N2 =01.
1 3

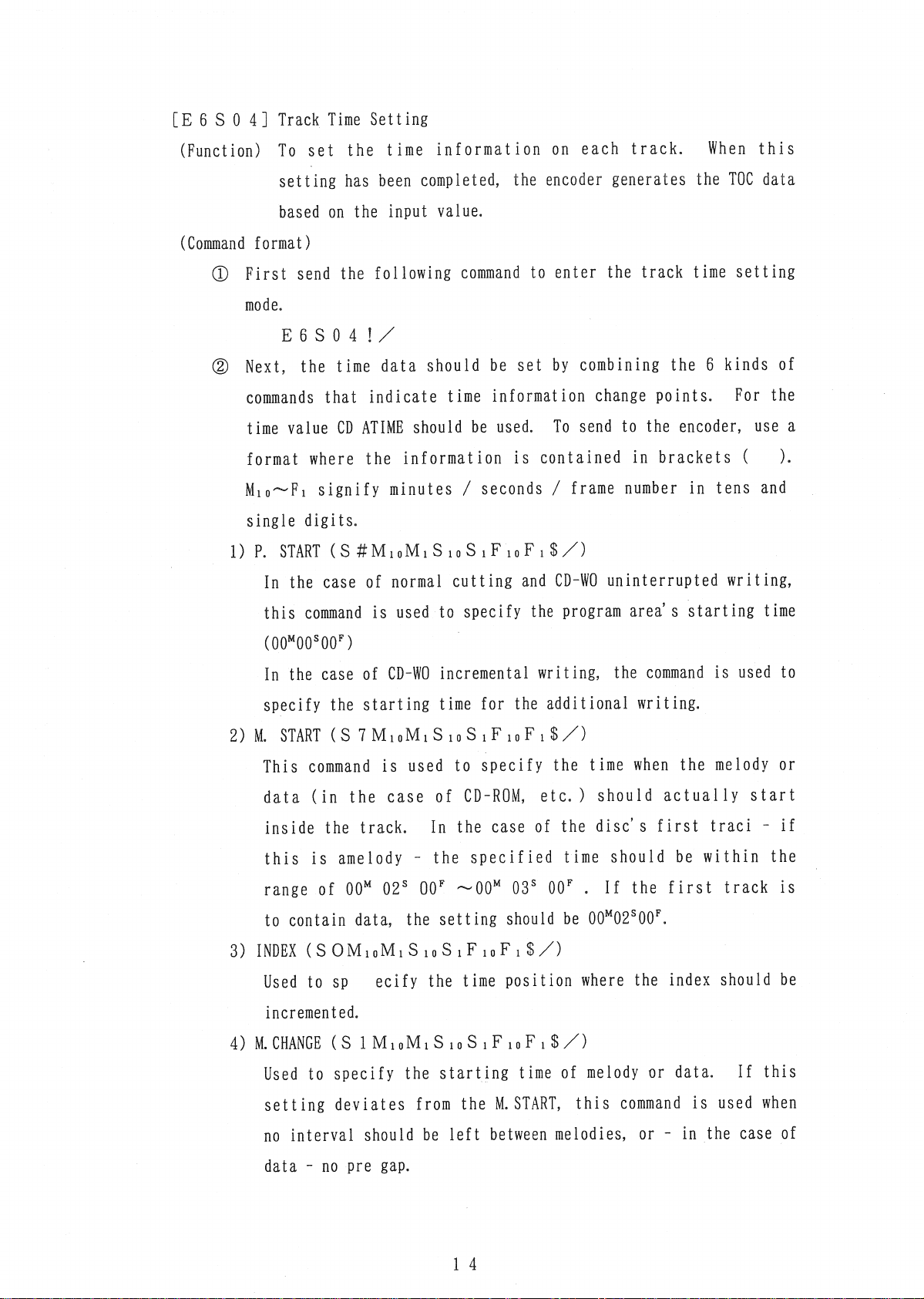

[E 6S 0 4]Track Time Setting
(Function) To setthetimeinformation on each track. When this
setting has been completed,the encoder generatesthe TOC data
based on theinput value.
(Command format)
® First send the following command toenterthe track time setting
mode.
E 6S 0 4 ! /
(2) Next,thetimedatashould be set by combiningthe 6 kinds of
commands that indicate timeinformation change points. Forthe
timevalue CD ATIME should be used. To send totheencoder,use a
format where theinformationiscontainedinbrackets ( ).
Mi0~F i signify minutes / seconds / frame number intens and
single digits.
1)P.START(S#MioMiSioSiFi0Fi$/)
In thecaseof normal cutting and CD-WO uninterrupted writing,
this command is used to specify the program area s starting time
(00M00S00F)
In thecaseof CD-WO incremental writing, the command is used to
specify the starting timeforthe additional writing.
2)M. START (S7MioMiSioSiF10Fi$/)
This command is used to specify thetime when the melody or
data (inthecase of CD-ROM, etc. ) should actual ly start
inside the track. Inthecase of the disc' s first traci - if
this is amelody - the specified timeshould be within the
range of00M02s00F -00M 03s00F. Ifthe first track is
to containdata,the setting should be 00M02S00F.
3) INDEX (SOMioMiSioSiFioFiS/)
Used to sp ecify thetime position where theindexshould be
incremented.
4) M. CHANGE (S1 MioMi S10S i F
10F
i %/)
Used to specify the starting timeof melody ordata.If this
setting deviates fromtheM. START, this command is used when
no interval should be left between melodies,or - inthecase of
data - no pregap.
1 4

5)M.STOP(S4MioM1Si0S1F10F1$/)
Indicates the ending ofthe melody or data. This also becomes
the start time ofthe next track. Inthe case of normal cutting
and CD-WO uninterrupted wr i t ing, usethe P. STOPforthe
program area's last melody or datastop. In the case of
incremental writ ing, also usethe P. STOPforthe last melody
ordatastop.
6) P.STOP (S%MIOMISIOSIFIOFI$/)
In the case of normal cutting and CD-WO uninterrupted writing,
this indicates the program area' s last melody or datastop and
becomes the start time of theLEAD-OUT area. Inthe case of
incremental writing, it indicates the ending time of the last
melody or data to be added.
When receiving this command,the encoder terminatesinput.

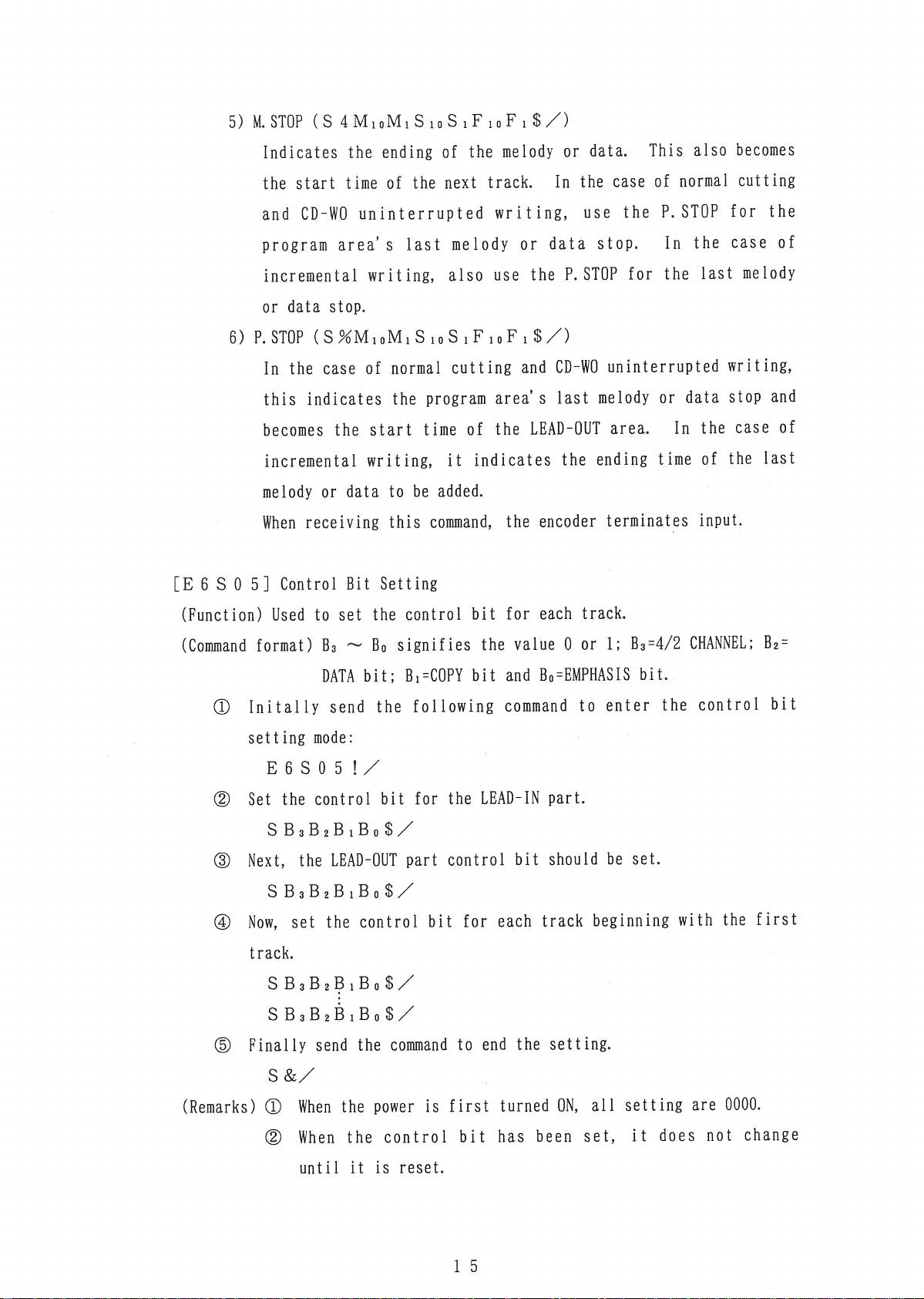

[E 6S 0 5] ControlBit Setting
(Function) Used tosetthe controlbit for each track.
(Command format) B3~ B0 signifies the value 0 or1; B3=4/2 CHANNEL; B2=
DATA bit; Bi-COPYbit andB0=EMPHASIS bit.
© Initally send the following command to enter the contro1 bit
setting mode:
E6S05 !/
© Setthe controlbit forthe LEAD-IN part.
S B 3 B 2 B i B o $ /
© Next, theLEAD-OUT partcontrolbitshould be set.
S B 3 B 2 B i B o $ /
@Now, setthe controlbit for each track beginningwith the first
track.
S B 3 B 2 B i B o $/
S B 3 B 2 B i B o $ /
(D Finally send the command toendthe setting.
S&/
(Remarks) CD When thepoweris first turned ON, all setting are 0000.
(D When the contro 1 bithas been set, it does not change
until itis reset.
1 5

[E 6 S 1 0] STARTTIME OF LEAD-IN Setting
(Function) Command for ORANGEBOOK PART II
Set theSTARTTIME OF LEAD-IN of theSPECIAL FUNCTION read from
the disc.
(Command format) E 6 S 1 0 ! MIOMISIOSIFI0FI$/
(Mio~Fi signify minutes / seconds / frame number in
tens an single digits.)
[E 6 S 1 1] PARTITION Number Setting
(Function) Command forthe ORANGEBOOK PART II
When writing to PCA, this command isused to setthePARTITION
number. After comp1e t i ng the setting, the encoder
calculates the ATIME value ofthe first subcodefor PCA
writing start based onthe previously set STARTTIME OF
LEAD-IN and the part it ion number sett ing.
(Command format) E6S11 !NiN2$/
00 < NiN2 ^ 99 (NiN2 are numeric values between 0 ~ 9)
(Remarks) ® Previous to this setting, theSTARTTIME OF LEAD-IN should
beset.
® When carrying out FINALIZING ofthe disc, thePCA writing
timeshould be NiN2= 00.
[E 6 S 1 2]PMA Data Setting (For INCREMENTAL WRITING)
(Function) Command for ORANGEBOOK PART II
Usedfor setting the necessarydata for PMA writing occuring
immediately after conclusion of INCREMENTAL WRITING.
(Command format)
(DSendthe following commandto enter the PMA data sett ing mode.
E 6 S 1 2 !
(DThensend 80 bits PMA data for one track by sending a t a time 4
bits, consisting of0~9 ciphers, 20 times.
SNi".N20&/
SNi--' N20&/
® Finally, send the following commandto finish the setting.
S &/
1 6

[E 6S 1 3] PMA Data Setting (For FINALIZING)
(Function) To readal1 PMA data from the disc tothe encoder when FINA-
LIZINGis carried out. From these values the encoder calcu-
lates thebeginningtime ofTOCandLEAD-OUT.
(Command format)
© Send the following commandto enter the PMA data sett ing mode.
E 6 S 1 3 !
(D Then send 80 bits PMA datafor one track by sending a ta time 4
bits, consisting of 0~9 ciphers, 20 times.
SN,-, N20&/
SNi--' N20&/
(D Finally, send the following commandto finish the sett ing.
S&/

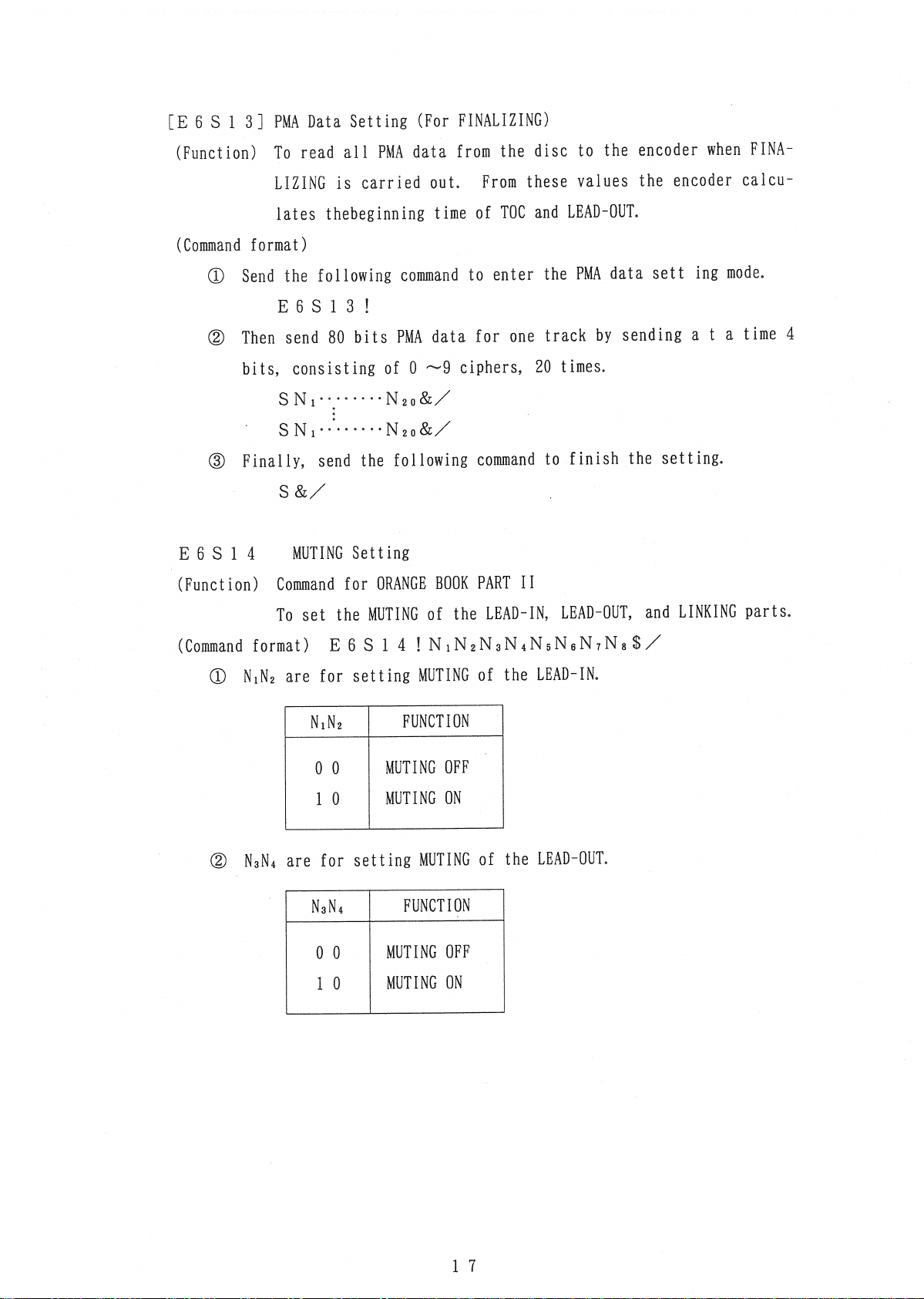

E 6S 1 4 MUTING Setting
(Function) Command for ORANGE BOOK PART II
Tosetthe MUTINGofthe LEAD-IN, LEAD-OUT,and LINKING parts.
(Command format) E6S1 4 INi^Ns^NsNaNzNsS/
® NiN2 are for setting MUTINGofthe LEAD-IN.
NiN2
FUNCTION
0 0
1 0
MUTINGOFF
MUTING ON
(D N3N4 are for setting MUTINGoftheLEAD-OUT.
N3N4
FUNCTION
0 0
1 0
MUTINGOFF
MUTING ON
1 7

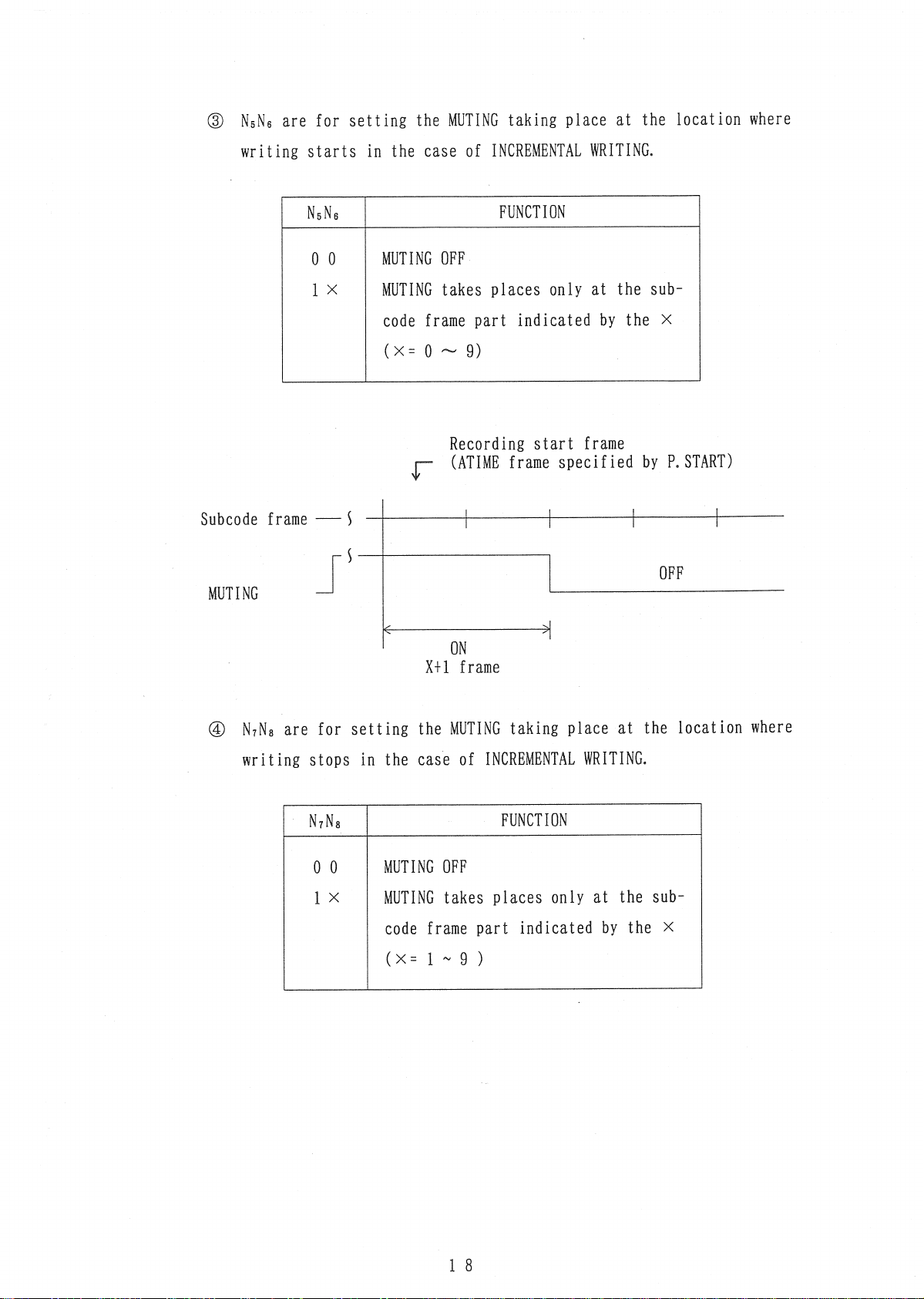

® N5N6 are for setting theMUTING takingplace atthe location where
writing starts inthe case of INCREMENTAL WRITING.
N5N6
FUNCTION
0 0
1 x
MUTING OFF
MUTING takesplaces only atthe sub-
code frame partindicated by the x
(x= 0 ~ 9)
Recording start frame
j- (ATIMEframe specified by P. START)
Subcode frame
MUTING
OFF
ON
X+l frame
© N7N8 are for setting theMUTING takingplace atthe location where
writing stops inthe case of INCREMENTAL WRITING.
N7N8
FUNCTION
0 0
1 x
MUTING OFF
MUTING takesplaces only atthe sub-
code frame partindicated by the x
(x= 1~ 9 )
1 8
