Kenwood PKT-23 User manual

PKT-23
Pocket-Sized HF FM Portable Radio
A Powerful Business Radio in the Palm of Your Hand
At only 3.9oz, Kenwood’s PKT-23 UHF two-way radio provides 1.5 watt transmit
power, 4 channels, and up to 15 hours of operation. This small but powerful
radio is simple to operate and durable, meeting or exceeding MIL- pec standards
810 C/D/E/F/G (11 items) and IP54 (dust/water intrusion). Connect to the standard
micro U B port to charge or use included charging cup, and plug Kenwood
headphones into the 3.5mm audio jack for hands free operation. Versatile,
strong, and small - the PKT-23 is built business tough.
GENERAL FEATURE
•1.5 Watts Transmit Power
•4 Channels
•39-QT/168-DQT Coded Squelch
•Super Lock (Manager Key Lock)
•Scan Function
•2 PF Keys
•Enhanced Kenwood Audio
•Micro USB Port
•V X Ready
•Voice Announcement
•Bell Tone Alert
•LED Battery Status Indicator
•IP54 & MIL-STD 810 C/D/E/F/G 11 items
•Battery Saver
•Time ut Timer
•Monitor
•Wireless Clone
•2-year Warranty
ACCE ORIE INCLUDED
•KNB-71L - 1,430mAh Li-Ion
•KSC-44 - 3-Hour Fast Charger
•KBH-20 - Belt Clip
•wner’s Manual
Actual Size
Operating Conditions
pen areas without
obstructions
Up to 5 miles (8 km)
Residential areas
(near buildings)
Up to 1.5 miles (2.4 km)
In steel and/or concrete
reinforced buildings
Up to 225,000 sq.ft
(20,900 sq.m)
In high-rise buildings Up to 17 floors
Note:
Talk range will vary based on terrain and
conditions.
LT

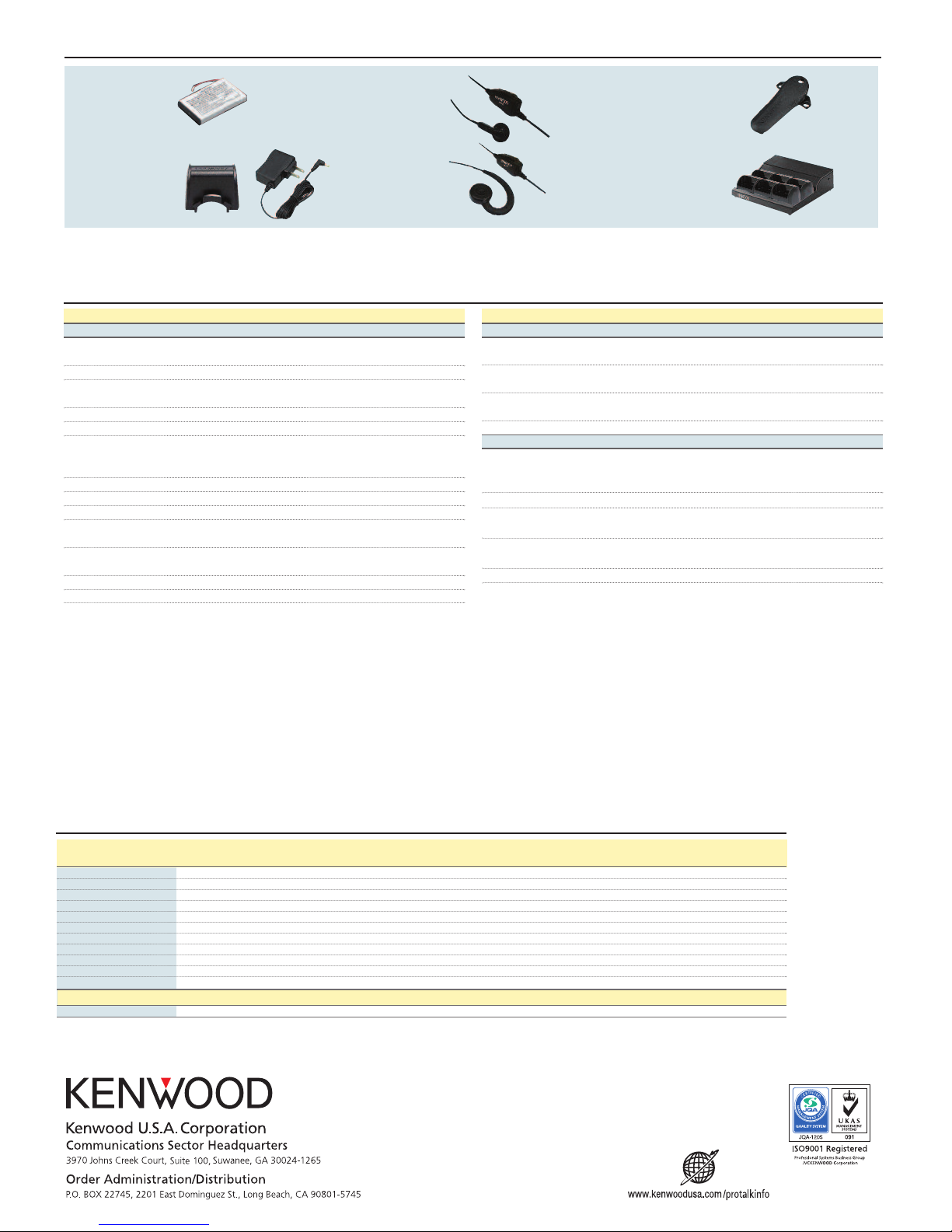

Options
ADS#40013 Printed in USA
Specifications shown are typical.
Specifications are subject to change without notice, due to advancements in technology.
ProTalk®is a registered trademark of JVCKENWOOD Corporation in the
United States and other countries.
Model PKT-23
GENERAL
Frequency Range 451-470 Hz
BRS Preset 99 Channels
Number of Channels 4
Channel Spacing
(FCC Narrow Compliant) 12.5 kHz
Channel Step 5, 6.25 kHz
Operating Voltage 3.8V DC±10%
Battery Life (5-5-90 duty cycle)
with KNB-71L (1,430mAh) Approx. 11 hours (Battery saver off)
Approx. 15 hours (Battery saver on)
Operating Temperature Range* -14°F ~ +140°F (-10°C ~ +60°C)
Frequency Stability ±2.5ppm (-14°F ~ +140°F)
Antenna Impedance 50 Ω
Dimensions (W x H x D), Projections not Included
Radio with KNB-71L 1.8 x 3.3 x 0.8 in. (46.0 x 85.0 x 21.0 mm)
Weight (net)
Radio with KNB-71L 3.9 oz. (110 g )
FCC ID ALH460300
FCC Compliance Part 90
Model PKT-23
RECEIVER (Measurements made per TIA/EIA-603)
Sensitivity (12dB SINAD)
Narrow 0.22 µV
Selectivity
Narrow 60 dB
Intermodulation Distortion
Narrow 50 dB
Audio Output 300 mW with less than 5% distortion
TRANSMITTER (Measurements made per TIA/EIA-603)
RF Output Power
High 1.5 W (ERP)
Low 0.5 W (ERP)
Spurious Response 55 dB
odulation
Narrow 11KØF3E
F HU & Noise
Narrow 50 dB
Audio Distortion Less than 5%
Specifications
All accessories and options may not be available in all markets.
Contact an authorized Kenwood dealer for details and complete list of all accessories and options.
Applicable MIL-STD & IP
Standard MIL 810C MIL 810D MIL 810E MIL 810F MIL 810G
Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures
Low Pressure 500.1/Procedure I 500.2/Procedure I, II 500.3/Procedure I, II 500.4/Procedure I, II 500.5/Procedure I, II
High Temperature 501.1/Procedure I, II 501.2/Procedure I, II 501.3/Procedure I, II 501.4/Procedure I, II 501.5/Procedure I, II
Low Temperature 502.1/Procedure I 502.2/Procedure I, II 502.3/Procedure I, II 502.4/Procedure I, II 502.5/Procedure I, II
Temperature Shock 503.1/Procedure I 503.2/Procedure I 503.3/Procedure I 503.4/Procedure I, II 503.5/Procedure I
Solar Radiation 505.1/Procedure I 505.2/Procedure I 505.3/Procedure I 505.4/Procedure I 505.5/Procedure I
Rain 506.1/Procedure I, II 506.2/Procedure I, II 506.3/Procedure I, II 506.4/Procedure I, III 506.5/Procedure I, III
Humidity 507.1/Procedure I, II 507.2/Procedure II, III 507.3/Procedure II, III 507.4 507.5/Procedure II
Salt Fog 509.1/Procedure I 509.2/Procedure I 509.3/Procedure I 509.4 509.5
Dust 510.1/Procedure I 510.2/Procedure I 510.3/Procedure I 510.4/Procedure I, III 510.5/Procedure I
Vibration 514.2/Procedure VIII, X 514.3/Procedure I 514.4/Procedure I 514.5/Procedure I 514.6/Procedure I
Shock 516.2/Procedure I, II, V 516.3/Procedure I, IV 516.4/Procedure I, IV 516.5/Procedure I, IV 516.6/Procedure I, IV
International Protection Standard
Dust & Water Protection IP54
■ KNB-71L
Li-Ion Battery
(1,430 mAh)
■ KSC-44K
Fast Char er
and Power Supply
■ KHS-33
Earbud In-line
PTT Headset
(Sin le Pin Jack)
■ KHS-34
C-Rin In-line
PTT Headset
(Sin le Pin Jack)
■ KBH-20
Sprin Action Belt Clip
■ KMB-44K
6 Radio Multi-Char er
*Based upon 5% transmit, 5% receive and 90% standby (standard duty cycle)
