Kenwood KTC-500DAB User manual

KTC-500DAB

Safety
Before you use your KTC-500DAB, read the following safety instructions.
1. Follow the operating instructions provided and take note of any warnings.
2. If you do not follow the operating instructions provided, it may compromise the safety of your product and this may invalidate the warranty.
3. Only use the supplied 12V power adapter with your product.
4. Do not install your product in a way that may interfere with the safe operation of the vehicle, or affect the deployment of air bags or other safety items. Do not install cables and wires near
the steering wheel.
5. Do not place your product on or near sources of your vehicle's heat or ventilation.
6. Do not use your product in a way that may cause careless driving or improper control of your vehicle.
7. Keep your product dry and only clean with a dry cloth.
8. Do not expose your product to naked flames.
9. Use batteries of the type listed in this user manual, and fit batteries correctly. Dispose of batteries in an environmentally friendly manner. Do not expose batteries to excessive heat or naked
flames.
10. Keep batteries away from children. If the battery compartment does not close securely, do not use the product and keep it away from children. If you think someone has swallowed a battery
or placed a battery inside their body, seek medical attention immediately.
11. Do not use your product in extremely hot or cold temperature.
12. If you need to connect your product to the rear of your vehicle's head unit, remove any power before you start to install your product. When you have safely installed your product, you can
reconnect the power. See your vehicle's owner's manual for more information.
13. Do not use the product if it is damaged.
14. Product repairs should only be carried out by authorised personnel.
15. Remove the 12V power adapter from the vehicle's power socket when you replace the battery of the vehicle.
Symbols on the product and in the user manual
Potentially serious risk to your personal safety. To avoid possible injury or death, obey all safety notices with this symbol.
Caution. Read the user manual before use.
12V DC
12V DC power supply.
1A
USBsocket rated at 1amp maximum.
Where to switch on or off the product, or put it in standby.
1

2
Safety 1
Contents 2
Overview 3
What's in the box 3
Controls 4
Display icons 5
Getting started 6
Installing your KTC-500DAB 6
Where to install your KTC-500DAB 7
Connecting the microphone to the antenna 8
Positioning the antenna 8
Positioning the microphone 9
Connecting the antenna 10
Installing the wireless controller 11
Switching your KTC-500DAB on for the first time 12
Switching your KTC-500DAB on and off 12
Digital radio 13
Listening to digital radio 13
Presets 13
Bluetooth 14
Pairing your KTC-500DAB with a mobile device 14
Listening to audio stored on your mobile device 14
Making and receiving calls on your KTC-500DAB 15
Using your mobile device's personal assistant 15
Settings 16
Changing between auxiliary connection and FM
transmission 16
Setting your KTC-500DAB to enter standby automatically 16
Radio settings 16
Display settings 17
Updating the software 18
Troubleshooting 19
Contents

Overview
What's in the box
Before you get started, check you have everything below.
1 2
3
6
4
7
5
8
9
1Antenna, with magnetic grounding tail attached 6Wireless controller bracket
2DAB film aerial 712V power adapter (dual USB port)
3Wireless controller 8Self-adhesive cable clips
4Two AAA batteries 9Microphone
5Cleaning cloth
3

Controls
AN S W ER RE J E C T
VO IC E
3
2
4
1
6
7
5
1 Select Turn to browse radio stations, songs and menu options. Press to select.
2 Previous / Call Press to skip to the previous song or preset, or answer an incoming call.
3 Power / Back Press to switch your KTC-500DAB on. Press and hold to put your KTC-500DAB in standby. Press to go back to the previous screen
or cancel an action.
4 Personal
assistant
Press and hold to use the personal assistant on your mobile device.
5 Play Press to play or pause songs over Bluetooth, or mute the radio.
6 Source /
Presets
Press to open the main menu. Press and hold to view your presets.
7 Next / End call Press to skip to the next song or preset, or reject an incoming call.
4

Display icons
The icons below appear on the screen of the wireless controller.
BBC R2
2 3 4
15
AN S W E R RE J E CT
VO IC E
1Digital radio mode 4Signal strength of connected mobile device
2Bluetooth mode 5Battery level of connected mobile device
3In a call
5

Getting started
Installing your KTC-500DAB
Before you can start using your KTC-500DAB, you need to do the following:
1. Connect the microphone to the antenna.
2. Position the antenna in your vehicle.
3. Position the microphone in your vehicle.
4. Connect the antenna to your vehicle's audio system, either with an auxiliary cable or by FM radio.
5. Install the wireless controller.
6. Switch your KTC-500DAB on for the first time.
Vehicle requirements
lFitted audio system with auxiliary (3.5mm) port or FM receiver.
lStandard 12V negative earth power supply. Your KTC-500DAB is not suitable for use with a 24V power supply.
Getting the best DAB signal
As with FMradio, DAB signal coverage changes depending on your location. As you use the KTC-500DAB in your vehicle, you may
travel through areas where DAB signal coverage is poor.
To help get the best DAB signal when coverage is poor or there is a weak signal:
lFollow the installation instructions carefully.
lEnsure the magnetic grounding tail is attached to the antenna.
lUse the supplied 12V power adapter, as other third-party adapters can cause interference.
lSwitch off other devices in your vehicle that aren't in use. Devices such as satellite navigation systems and dashboard cameras
can cause interference.
6

Where to install your KTC-500DAB
It's important to install your KTC-500DAB in a safe location in your vehicle. Do not fit any components in locations that may
interfere with safe operation of the vehicle, or affect the deployment of air bags or other safety products. Keep cables and
wires away from the steering wheel.
Where to install the antenna
We recommend you install the antenna for your
KTC-500DAB in the top corner of the windscreen, on the
passenger's side of your vehicle.
Install the antenna so that it is not within the swept area of
the windscreen. Make sure the antenna and wireless
controller do not obstruct the view of the driver.
If you have a heated windscreen in your vehicle, or the windscreen contains metallic UVfilters, it can cause interference for the DAB
signal. Install the antenna on a part of the windscreen that does not contain heating elements or UV filters.
For more information on where to safely and legally install your KTC-500DAB in your vehicle, contact your local transport office.
7

Connecting the microphone to the antenna
1. Insert the microphone connector into the socket at the top of the antenna, until it
clicks into place.
Note: Push the microphone cable in firmly, to ensure it's fully inserted.
2. To keep the microphone cable out of the way while you position the antenna,
temporarily clip the microphone so that it's near the driver's position. For example, clip
the microphone to the driver's sun visor.
Positioning the antenna
1. Choose a position for the antenna, so that it's as high as possible on the windscreen
and at least 4cm from the side of the screen.
Make sure the antenna does not obstruct the view of the driver.
2. Gently pull down the front of the roof liner in your vehicle, until there is a small gap.
3. Push the magnetic grounding tail through the gap, with the silver-coloured magnet
facing upwards. Make sure the magnet touches your vehicle's metal bodywork.
4. Clean the chosen area of the windscreen with a cleaning cloth and wait for it to dry.
5. Unpeel the backing from the antenna and stick the antenna onto your windscreen.
8

6. Insert the DAB film aerial into the slot in the antenna.
7. Gently unpeel the backing from the DAB film aerial and stick the aerial onto your
windscreen. Take care not to fold or twist the aerial.
Positioning the microphone
1. If possible, tuck the cable into the roof lining, keeping the microphone near the
driver's position. Alternatively, use self-adhesive clips to fix the microphone cable
along the top of your windscreen.
2. Clip the microphone to a suitable location, such as the roof lining or the driver's sun
visor.
9

Connecting the antenna
1. Place the antenna cable so that it follows a path to your vehicle's power socket.
2. If possible, tuck the cable behind the trim down the side of your windscreen.
Alternatively, secure the cable to your windscreen and dashboard with self-adhesive
clips.
3. Gently pull the auxiliary cable from the USBpower cable to separate them.
4. Insert the USB power cable into the supplied 12V power adapter, then insert the
power adapter into your vehicle's power socket.
5. If you're connecting your KTC-500DAB with an auxiliary cable, insert the cable into
your vehicle's auxiliary socket. If you're connecting your KTC-500DAB by FM radio,
you can store the auxiliary cable so it's out of the way.
We recommend you connect your KTC-500DAB with an auxiliary cable to get the
best audio quality.
10

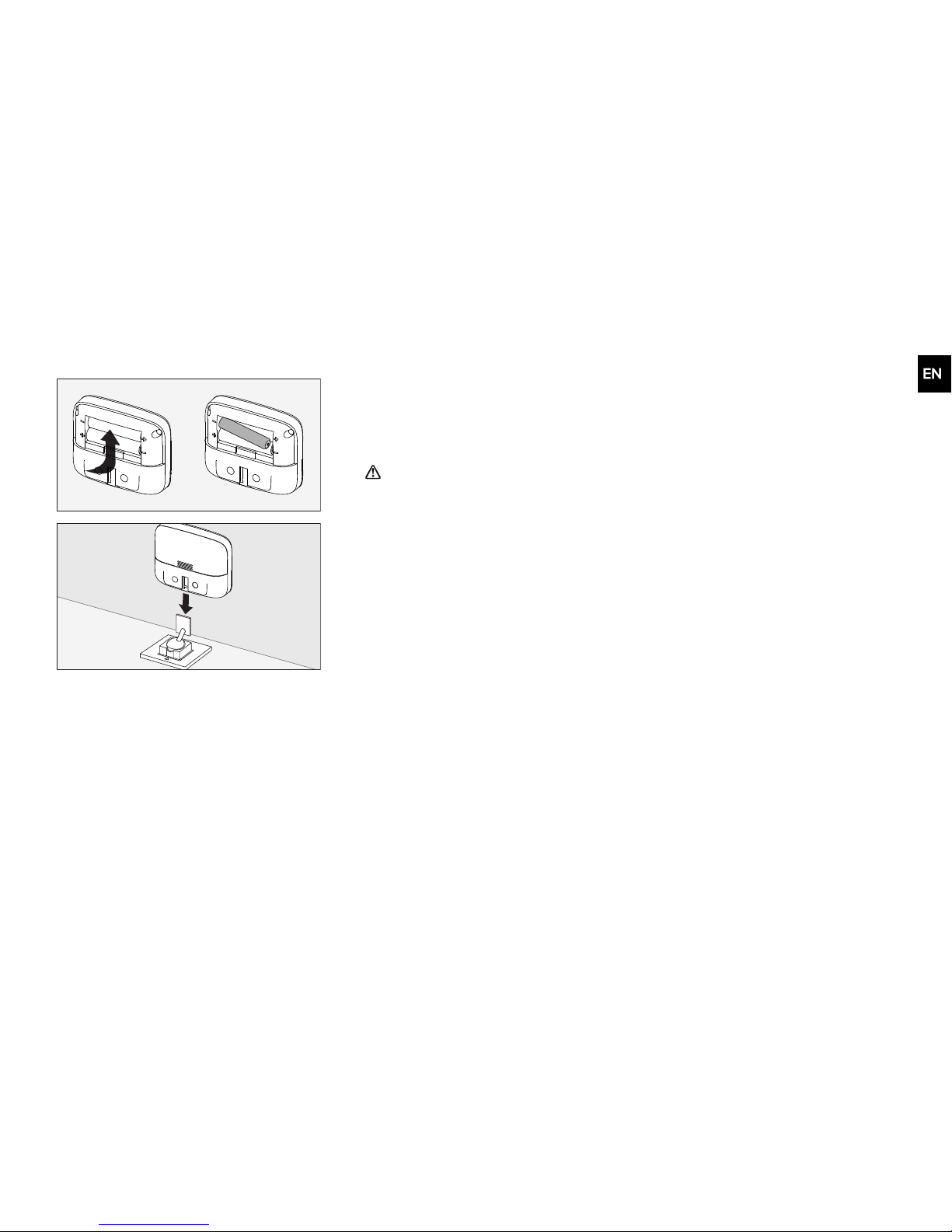

Installing the wireless controller
1. Slide the back cover off of the wireless controller and insert the batteries, then
replace the cover.
2. Choose an area on your vehicle's dashboard where you want to install the wireless
controller. Clean the surface with a cleaning cloth and wait for it to dry.
Make sure the wireless controller does not obstruct the view of the driver.
3. Peel off the backing from the wireless controller bracket and gently stick it onto your
dashboard. Gently press the bracket to ensure it's attached securely.
4. Slide the wireless controller onto the bracket, until it clicks into place.
11

Switching your KTC-500DAB on for the first time
After you've installed your KTC-500DAB, switch it on to finish setting it up.
1. Turn on your vehicle’s ignition to make sure the antenna is switched on. After a few seconds, the wireless controller automatically
connects to the antenna. If not, see page19.
2. Turn the Select dial to change the display language, then press the Select dial to choose it.
3. Turn and press the Select dial to choose how to connect your KTC-500DAB to your vehicle.
•If you've connected your KTC-500DAB with an auxiliary cable, choose ‘LINEOUT’.
•If you're connecting your KTC-500DAB by FM radio, choose ‘FMTRANSMIT' and then choose an FM frequency. Ensure a
radio station isn't using the frequency you choose.
Tune your vehicle’s audio system to the same FM frequency as your KTC-500DAB. To easily find the FM frequency in
the future, save it as a preset on your vehicle’s audio system.
After you’ve chosen how to connect your KTC-500DAB, it starts tuning to digital radio stations. When the autotune is complete, you can
start listening to digital radio.
Switching your KTC-500DAB on and off
•To switch on your KTC-500DAB, press .
•To put your KTC-500DAB in standby and use less power, press and hold .
Note: By default, the antenna automatically enters standby after 4hours, and the screen on the wireless controller dims after
15seconds. Read more about the display brightness on page18.
12

Digital radio
Listening to digital radio
1. Press .
2. Press the Select dial to choose 'DIG. RADIO'.
3. To change to another radio station, turn and press the Select dial.
Presets
You can save up to 20 of your favourite digital radio stations in the presets list.
Storing a radio station as a preset
1. When listening to a radio station, press and hold .
2. Turn the Select dial to choose a preset number. You can overwrite previous radio stations.
3. Press and hold to save the current radio station to the preset number.
Listening to a preset
1. When listening to digital radio, press and hold .
2. Turn and press the Select dial to choose the preset you want to listen to.
To skip to the previous or next preset, press or .
13

Bluetooth
Pairing your KTC-500DAB with a mobile device
You can use Bluetooth to wirelessly connect to a mobile device. You can then stream music from your mobile device and make hands-
free calls.
1. Switch on Bluetooth on your mobile device.
2. Press on the wireless controller for your KTC-500DAB.
3. Turn and press the Select dial to choose 'SETTINGS' > 'BLUETOOTH' > 'PAIR'.
4. On your mobile device, choose your KTC-500DAB from the list of Bluetooth devices and connect to it.
After you've paired a mobile device with your KTC-500DAB, your KTC-500DAB automatically connects to it when it's nearby.
To forget a paired mobile device on your KTC-500DAB, press . Then choose 'SETTINGS'> 'BLUETOOTH' > 'FORGET'.
Listening to audio stored on your mobile device
If you connect your KTC-500DAB to a mobile device using Bluetooth, you can play music that is stored on your mobile device.
1. Press .
2. Turn and press the Select dial to choose 'BTMUSIC'.
3. Turn and press the Select dial to choose a song to play.
4. To skip to the previous or next song, press or . To play and pause the current song, press .
Note: If you see 'BROWSENOT AVAILABLE', your mobile device or the current app does not support browsing.
If you see '+', the item is a folder that contains audio files. Press the Select dial to open the folder.
14

Making and receiving calls on your KTC-500DAB
You can make hands-free calls on your KTC-500DAB, using Bluetooth to connect to your mobile device. If the volume or microphone
aren't working, see page20.
Calling a contact
1. Press .
2. Turn and press the Select dial to choose 'PHONEBOOK'> 'CONTACTS'.
3. Turn the Select dial to find a contact in your contacts list.
4. To call the contact, press the Select dial.
5. To end the call, press .
To view your call history on your KTC-500DAB, press . Then choose 'PHONEBOOK'and view your dialled, received or
missed calls.
Answering or rejecting a call
lTo answer an incoming call, press . To end the call, press .
lTo reject an incoming call, press .
Using your mobile device's personal assistant
If you connect your KTC-500DAB to a mobile device using Bluetooth, you can use it to access your device's personal assistant.
1. Press and hold .
2. When prompted, ask a question to your mobile device's personal assistant.
To cancel your mobile device's personal assistant, press or .
15

Settings
Changing between auxiliary connection and FM transmission
You can choose how your KTC-500DAB is connected to your vehicle's audio system.
1. Press .
2. Turn and press the Select dial to choose 'SETTINGS' > 'AUDIOOUT'.
3. Turn and press the Select dial to choose how to connect your KTC-500DAB to your vehicle.
•If you've connected your KTC-500DAB with an auxiliary cable, choose ‘LINEOUT’. Then turn and press the Select dial to
choose a gain setting of 'LOW' or 'NORMAL'. If the audio sounds distorted, choose 'LOW'.
•If you're connecting your KTC-500DAB over FM radio, choose ‘FMTRANSMIT' and then choose an FM frequency. Ensure
a radio station isn't using the frequency you choose.
Setting your KTC-500DAB to enter standby automatically
By default, your KTC-500DAB enters standby after 4hours, but you can change the delay.
1. Press .
2. Turn and press the Select dial to choose 'SETTINGS' > 'AUTOSTANDBY'.
3. Turn and press the Select dial to choose a delay between 1 and 8 hours.
Radio settings
Performing an autotune
If you can't find any digital radio stations, try retuning your KTC-500DAB.
lTo perform an autotune, press and hold the Select dial when you are in digital radio mode.
16

Listening to alternative stations when the signal is weak
If the current radio station has a weak signal, your KTC-500DAB automatically tries to find a stronger signal. If your KTC-500DAB can't
find a stronger signal for the current radio station, it can automatically tune to a similar radio station when supported by the
broadcaster.
1. Press .
2. Turn and press the Select dial to choose 'SETTINGS' > 'DIG. RADIO' > 'ALTSTATION'.
3. Turn and press the Select dial to choose 'ON' or 'OFF'.
Switching traffic announcements on and off
You can set your KTC-500DAB to automatically play traffic announcements when you are listening to digital radio. When your
KTC-500DAB plays traffic announcements, it displays 'TRAFFIC'.
1. Press .
2. Turn and press the Select dial to choose 'SETTINGS' > 'DIG. RADIO' > 'TRAFFICMSG'.
3. Turn and press the Select dial to choose 'ON' or 'OFF'.
To cancel a traffic announcement when it plays, press .
Display settings
Changing the language
1. Press .
2. Turn and press the Select dial to choose 'SETTINGS' > 'DISPLAY' > 'LANGUAGE'.
3. Turn and press the Select dial to choose a language.
17

Changing the information displayed on the screen
Your KTC-500DAB can display the name of the radio station you are listening to, or the quality and signal strength of the station.
1. Press .
2. Turn and press the Select dial to choose 'SETTINGS' > 'DISPLAY' > 'INFO'.
3. Turn and press the Select dial to choose a setting.
lTo display the names of radio stations, choose 'STATION'.
lTo display the quality and signal strength of radio stations, choose 'QUALITY'.
Changing the screen brightness
A light sensor on the wireless controller automatically sets the screen brightness, but you can manually change it.
1. Press .
2. Turn and press the Select dial to choose 'SETTINGS' > 'DISPLAY' > 'BRIGHTNESS' > 'MANUAL'.
3. Turn and press the Select dial to choose a brightness level.
By default, the screen on the wireless controller automatically dims after 15seconds. To change the length of time before the
screen dims, choose 'SETTINGS' > 'DISPLAY' > 'TIMEOUT'.
Updating the software
We may provide software updates to improve your KTC-500DAB. To find out more about updating the software on your
KTC-500DAB, visit kenwood.com/cs/ce/.
18

Troubleshooting
Problem Possible cause Solution
The wireless controller
displays 'ANTENNA
CONNECTING' or
'CHECKPOWER
TOANTENNA'.
The antenna isn't connected to the power
supply, or the controller isn't paired correctly
with the antenna.
Remove the power adapter from the 12Vsocket, then insert it. If the
antenna has power, the antenna's status light lights up for 5seconds and
the controller connects to the antenna within 30seconds. Note: If you can't
access the power adapter, perform a power reset*.
If this doesn't solve the problem, pair the controller with the antenna:
1. Use a paperclip to press the reset button on the antenna. The status
light on the antenna flashes slowly.
2. Place the controller within 50cm of the antenna, then press and hold
, and together.
If the controller does not connect to the antenna within 30seconds, repeat
steps1 and2.
The status light on the
antenna is constantly lit.
Your KTC-500DAB is in update mode. If you are updating the software, finish the update. If not, remove the power
adapter from the 12Vsocket, then insert it. If the antenna has power, the
status light on the antenna lights up for 5 seconds and the controller
connects to the antenna within 30seconds. Note: If you can't access the
power adapter, perform a power reset*.
The status light on the
antenna is flashing.
The controller has lost connection with the
antenna.
To pair the controller with the antenna:
1. Use a paperclip to press the reset button on the antenna. The status
light on the antenna flashes slowly.
2. Place the controller within 50cm of the antenna, then press and hold
, and together.
If the controller does not connect to the antenna within 30seconds, repeat
steps1 and2.
19
