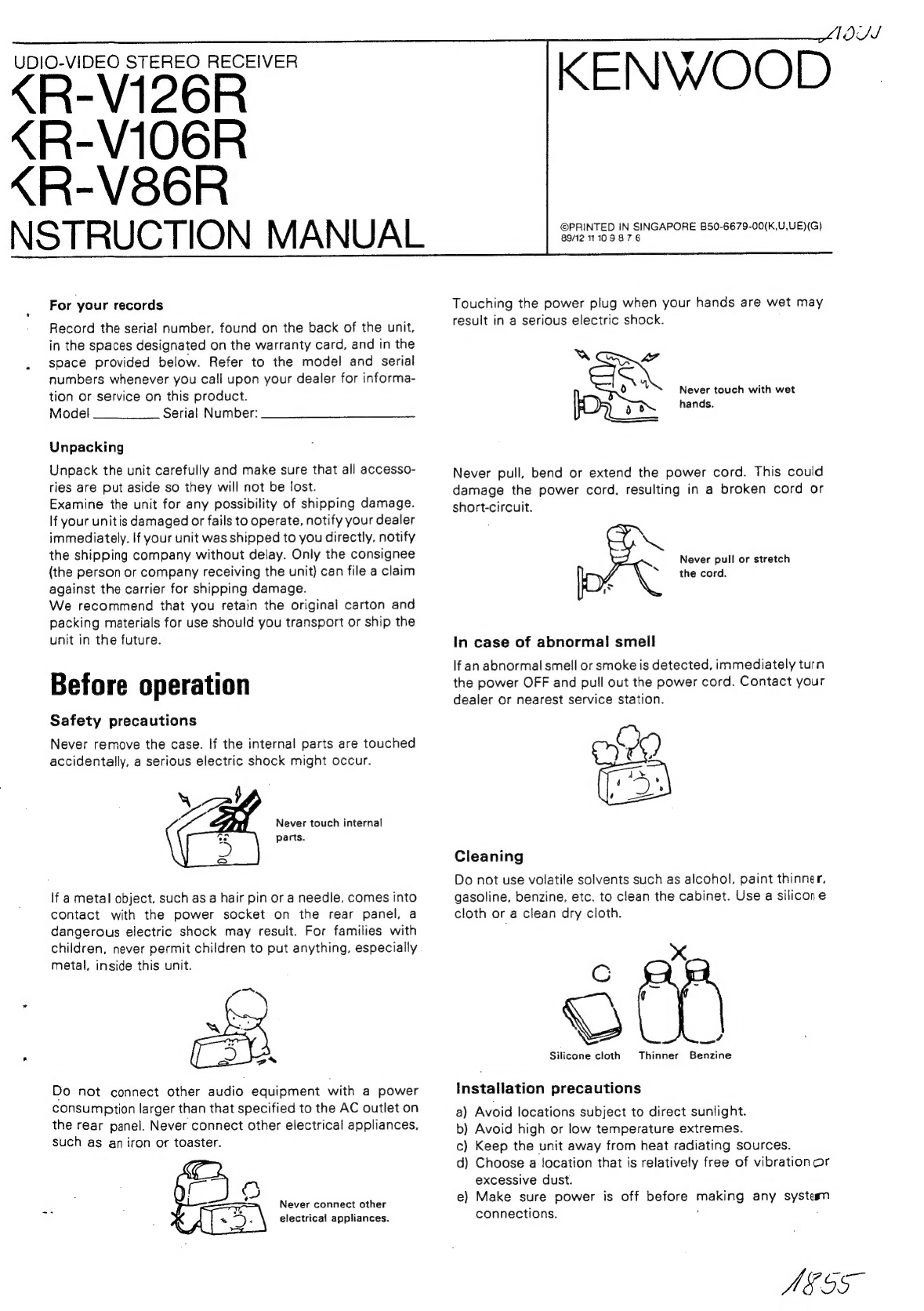

Kenwood KR-V126R User manual

UDIO-VIDEO STEREO RECEIVER
<R-V126R
<R-V106R
<R-V86R
NSTRUCTION MANUAL
For your records
Record the seria! number, found on the back of the unit,
in the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your dealer for informa-
tion or service on this product.
Model Serial Number:
Unpacking
Unpack the unit carefully and make sure that all accesso-
ries are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage.
If your unitis damaged or fails to operate, notify your dealer
immediately. If your unit was shipped to you directly, notify
the shipping company without delay. Only the consignee
(the person or company receiving the unit) can file a claim
against the carrier for shipping damage.
We recommend that you retain the original carton and
packing materials for use should you transport or ship the
unit in the future.
Before operation
Safety precautions
Never remove the case. If the internal parts are touched
accidentally, a serious electric shock might occur.
»
‘,
Ep
LN
Never touch internal
parts.
rr)
ey
If a metal object, such as a hair pin or a needle, comes into
contact with the power socket on the rear panel, a
dangerous electric shock may result. For families with
children, never permit children to put anything, especially
metal, inside this unit.
ws
Do not connect other audio equipment with a power
consumption larger than that specified to the AC outlet on
the rear panel. Never connect other electrical appliances,
such as an iron or toaster.
Never connect other
electrical appliances.
KENWOOD
©PRINTED IN SINGAPORE B50-6679-00(K,U,UE)(G)
89/12 11109876
Touching the power plug when your hands are wet may
result in a serious electric shock.
“ “se
av
™
o Never touch with wet
JOUER hands.
Never pull, bend or extend the power cord. This could
damage the power cord, resulting in a broken cord or
short-circuit.
Never pull or stretch
the cord.
In case of abnormal smell
If an abnormal smell or smoke is detected, immediately turn
the power OFF and pull out the power cord. Contact your
dealer or nearest service station.
Cleaning
Do not use volatile solvents such as alcohol, paint thinner,
gasoline, benzine, etc. to clean the cabinet. Use a silicone
cloth or a clean dry cloth.
i
Silicone cloth Thinner Benzine
Installation precautions
a) Avoid locations subject to direct sunlight.
b) Avoid high or low temperature extremes.
c) Keep the unit away from heat radiating sources.
d) Choose a location that is relatively free of vibration or
excessive dust.
e) Make sure power is off before making any systesn
connections. ;
AS SS”

Before
applying
power
IMPORTANT!
U.S.A.
Units
shipped
to
the
U.S.A.
are
designed
for
opera-
tion
on
120
volts
AC
only.
These
units
are
not
equipped
with
an
AC
voltage
selector
switch
and
the
discussion
of
such
a
switch
that
follows
should
be
disregarded.
All other countries
Units
shipped
to
countries
other
than
above
coun-
tries
are
equipped
with
an
AC
voltage
selector
switch
on
the
rear
panel.
Refer
to
the
following
paragraph
for the proper setting of this switch.
AC voltage selection
These
units
operates
on
110-120
volts
or
220-240
volts
AC.
The
AC
voltage
selector
switch
is
set
to
the
voltage
that
prevails
in
the
area
to
whcih
the
units
is
shipped.
Before
connecting
the
power
cord
to
your
AC
outlet,
make
sure
that
the
setting
position
of
this
switch
matches
your
line
voltage.
If
not,
it
must
be
set
to
your
voltage
in
accordance
with
the
following
direction.
Note:
——————
——__———__-?'.
OOO—OO0———O——O
OO
Our
warranty
does
not
cover
damage
caused
by
excessive
one
voltage
due
to
improper
setting
of
the
AC
voltage
selector
switch.
bare
MB
DIN
NORE
OO
CO
cake
sel
eee
nnn
ena
nt
een
oe
AC
110-120V\)
4
AC
220-240V\
AC
110-120V
<4
AC
220-240V\
This shows switch
fever
locked
in
the
lever
locked
in
the
110-120VV
posi-
220-240V~V
posi-
tion. tion.
This shows switch
Move switch lever to match your line
voltage with a small screwdriver or other
pointed tool.
Safety precautions
CAUTION
Safety precaution for AC plug
CAUTION:
TO
PREVENT
ELECTRIC
SHOCK
DO
NOT
USE
THIS
(POLARIZED)
PLUG
WITH
AN
EXTENSION
CORD,
RE-
CEPTACLE
OR
OTHER
OUTLET
UNLESS
THE
BLADES
CAN
BE
FULLY
INSERTED
TO
PREVENT
BLADE
EXPOSURE.
Note to CATV system installer:
This
reminder
is
provided
to
call
the
CATV
system
install-
er’s
attention
to
Article
820
-22
of
the
NEC
that
provides
guidelines
for
proper
grounding
and,
in
particular,
specifies
that
the
cable
ground
shall
be
connected
to
the
grounding
system
of
the
building,
as
close
to
the
point
of
cable
entry
as
practical.
WARNING:
TO
PREVENT
FIRE
OR
ELECTRIC
SHOCK,
DO
NOT
EXPOSE
THIS
AP-
PLIANCE
TO
RAIN
OR
MOISTURE.
CAUTION:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK,
DO
NOT
REMOVE
COVER
(OR
BACK).
NO
USER-SERVICEABLE
PARTS
INSIDE.
REFER
SERVICING
TO
RISK OF ELECTRIC SHOCK
DO NOT OPEN
QUALIFIED SERVICE PERSONNEL.
The
lightning
flash
with
arrowhead
symbol,
within
an
equilateral
triangle.
is
intended
to
alert
the
user
to
the
presence
of
uninsulated
“dangerous
voltage”
within
the
product's
enclosure
that
may
be
of
sufficient
magnitude
to
constitute
a
risk
of
electric
shock
to
persons.
The
exclamation
point
within
an
equilateral
triangle
is
intended
to
alert
the
user
te
the
presence
of
important
operating
and
maintenance
(servicing)
instructions
in
the
literature
accompanying
the
appliance.
2 KR-V126R/KR-V106R/KR-VBER {K)

System
connections
for
KR-V126R
or
KR-V1O6R
Right Left
Tape deck 1
TV monitor
Except for some
areas.
ANTENNA
Fuso
hw ©
caty
SURROUND
BALANCE
IMPEDANCE SELECTOR
LESS THA
5 aA Nee
6a
OR MORE
AUDIO OUT
SURROUND
SPEAKER
Turntable VTR (VCR) 1
LINE OUT
LU le -ol|fe ol\" ees
oe
SS
Te
(jel
eal
—
2-1-1 eoS5CrT) Se@crpo
CD player Tape deck 2 Right Left
Speaker system B
KR-V126R/KR-V106R/KR-V8ERK )

System
connections
for
KR-V86R
Speaker
system
A
Right
Left
Tape deck
pe
seeks
VTR
(VCR)
2
LINE OUT
AUDIO |
SWITCHED TOTAL 200W MAX,
dlamats
i ealewgataeiate
9 am
To AC
outlet
AUDIO IN
Turntable
VTR
(VCR)
1
VTR
(VCR)
3
or
VDP
LINE OUT
R
L
fleece ements
ae
alle—
3
seoesucy S&apm
CD
player
Tape
deck
2
:
Right
Lert
Speaker system B
4 KR-V126R/KR-V106R/KR-VBER (Kk)

System control connection for KR-V126R, KR-V106R and KR-V86R
Turntable
mf _
TTT
po
sh
To@
Cassette deck
CD player
SYSTEM CONTROL terminals
When the turntable, tape deck or CD player are usd in
connection with the receiver, they can be operatedf rom
the remote control unit of the receiver when their SYSTEM
CONTROL terminals are connected to the SYSTEM ON-
TROL terminals. (Ordinary audio cable connections an also
required.) For details, refer to the operating instructin $s for
the remote control unit on page 20 and SYSTEM TON-
TROL operation on page 19.
KR-V126R/KR-V1 O6R/KR-VB6R CF OD

SPEAKERS terminals
This
unit
has
two
pairs
of
speaker
terminals,
SPEAKERS
A
and SPEAKERS B.
Connecting one speaker system
Connect
speakers
rated
at
4
ohms
or
more
to
the
SPEAKERS A terminals.
Connecting
two
speaker
systems
To
connect
an
additional
pair
of
speakers,
use
the
B
terminals.
In
this
case,
each
speaker
must
be
rated
at
8
ohms or more.
Connection with speaker cords
1.
Connect
the
left
speaker
to
the
[L]
SPEAKERS
terminals
and
the
right
speaker
to
the
[R]
SPEAKERS
terminals.
2.
Be
careful
that
wires
do
not
contact
adjacent
terminals.
3.
Be
sure
to
connect
the
(+)
terminal
of
the
speaker
to
the
(+)
terminal
of
the
unit.
;
Never
short
the
(+)
and
(—)
terminals.
Erroneous
connection
of
speakers
may
result
in
poor
imaging or unnatural sound.
10
mm
®
@®
> ‘ a
r
:
Remove
insulation
———
from
lead
tip.
a ® Y ®
—lE-
lEr
Insert
the
wire
and
The
wire
is
return
the
lever.
now
focked.
Speaker
lead
connection
sxsf
and
solder.
Raise the lever.
Setting
speaker
IMPEDANCE
SELECTOR
When
connecting
one
pair
of
speakers
to
the
SPEAKERS
Aor
B
terminals,
set
the
IMPEDANCE
SELECTOR
accord-
ing
to
the
speaker
impedance.
When
two
pairs
of
speakers
are
connected
to
both
the
A
and
B
terminals,
match
the
speaker
impedance
to
the
speakers
with
the
lowest.
IMPEDANCE SELECTOR
LESS THAN, 80
ye} OR MORE
Note:
1.
During
speaker
system
connection
and
operation
of
SPEAKER
IMPEDANCE
SELECTOR,
set
the
POWER
switch
to
OFF.
2.
Check
that
the
connected
lead
wires
of
the
speaker
systems
do not’ contact with other jacks or terminals.
SURROUND SPEAKER terminals
(KR-V126R/KR-V106R)
Connect
speakers
having
an
impedance
of
between
8
ohms
and
16
ohms,
and
place
them
to
the
left
and
right
behind
the
listening
position.
6 KRV126R/KR-V106R/KR-V8ER (kK)
Twist wire tightly,
PHONO jacks
The
PHONO
jacks
of
the
unit
can
be
connected
to
MM
cartridge.
(KR-V126R
has
a
MC
Cartridge
Selector.)
Your
stereo
turntable
has
RCA
pin-plug
cords
that
is
terminated
with
phono
plugs.
Plug
the
left
channel
plug
into
the
[Lland
the
right
channel
plug
into
the
[R]
PHONO
jacks.
lf
the
turntable
has
a
ground
wire,
connect
it
to
the
unit's
GND
terminal
to
avoid
hum.
CD/AUX jacks
To
these
jacks,
high-level
signal
sources
such
as,
CD
player.
tuner,
extra
tape
decks,
TV.
VCR
sound
outputs.
etc.
can
be
connected.
GND (Ground)
For
maximum
safety
and
minimum
interference
connect
the
GND
terminal
to
a
good
earth
ground
if
practicable.
A
good
earth
ground
is
a
metal
stake
driven
into
moist
earth.
However,
never
use
a
gas
pipe
for
this
purpose.
TAPE jacks
TAPE 1
If
only
one
tape
deck
is
to
be
connected
to
the
system
it
is
recommended
that
it
be
connected
to
the
jacks
marked
TAPE
1.
TAPE 2
If
the
tape
deck
is
equipped
with
a
3
head
system,
the
simultaneous
monitoring
can
be
done.
Tape
deck
input
and
output
cables
are
normally
terminated
with
RCA
Pin
plug.
Playback
Connect the unit's PLAY [L] and [R] jacks to the cassetie
deck’s output terminals.
Record
Connect the unit’s REC (L] and[R] jacks to the cassetie
deck’s input terminals.
VIDEO (Audio/Video) jacks
Three
video
recorders
can
be
connected
to
the
VIDEO
1,
VIDEO
2
and
VIDEO
3
jacks.
Playback
Connect
the
unit’s
VIDEO
IN
jack
to
the
video
recorders
video
output
terminal.
Connect
the
unit's
AUDIO
IN
[L]
and
[R]
jacks
to
the
video
recorder’s
audio
output
terminals.
Record
Connect
the
unit’s
VIDEO
OUT
jack
to
the
video
recorde”
s
video
input
terminal.
Connect
the
unit's
AUDIO
OUT
(LJand[R]
jacks
to
the
vide
o
recorder’s
audio
input
terminals.
MONITOR
OUT
jack
.
Video
monitor
can
be
connected
to
the
MONITOR
OUT
jack.
(The
video
monitor
or
TV
should
be
equipped
with
video
input
terminals.)

ANTENNA connections
AM outdoor
antenna FM indoor
antenna
AM loop antenna
CATV cable
Connect as shown in the figure. When connecting a CATV
receiving unit, be careful of the following items.
@ If the signal at CATV IN terminal is weak, pulsating noise
or blinking picture may result on the television connect-
ed to the CATV OUT terminal. If this happens, connect
a CATV booster amplifier to the CATV IN terminal to
strengthen the signal.
@ Before connecting this unit to the CATV system, consult
the cable company.
@ When a CATV broadcast which is currently being
received with this unit is different from that received
with the TV receiver, the picture or sound may be
distorted.
AM antennas
AM loop antenna
Install the AM loop antenna to the supplied loop antenna
stand and place them on a shelf, etc., or install them in the
rack or wall with screws.
Rotate the AM loop antenna to the right or left for best
reception.
Note: ———-—_---______-—_____——--
Do notplace the AM loop antenna on the unit. As this unit employs
computing device, placing the AM loop antenna on the unit may
result in noise generation. Place the AM loop antenna away from
the unit.
3002
Feeder
FM outdoor
antenna
750
Coaxial
Cable
To TV Antenna termianl
CATV cable
Vary the direction of
the loop antenna.
AM l!foop antenna
Keep the speaker leads
and AC cord away from
the AM loop antenna.
AM loop antenna holder
KR-V126R/KR-V106R/KR-V86I€K) 7

AM outdoor antenna
in steel buildings or ata great distance from the transmitter,
it may be necessary to install an outside long wire antenna.
The end of this wire should be stripped of insulation and
connected to the AM terminal. At this time, keep the loop
antenna connected.
FM indoor antenna
Connect the T-shaped indoor antenna (supplied) to the
3009 FM ANTENNA terminals as shown in the antenna
connections diagram. Spread the two arms that form the
top of the “T” horizontally and hold them against conven-
ient wall surfaces. Try several locations for best results on
your favorite stations. Tape the antenna in place where the
best compromise is found between listening results and
appearance.
FM outdoor antenna
Consult with your dealer or service man about the best
method of selecting and erecting an outdoor FM antenna.
The choice of lead-in (feeder) wire is also important. The
flat ribbon-shaped twin lead performs well electrically, is
cheaper and is somewhat easier to handle in routing
through windows and around rooms. Coaxial cable is more
expensive, does a much better job of minimizing interfer-
ence, is less prone to the effects of weather and close-by
metal objects, and is nearly as good a signal conductor as
the ribbon type wire. The latter is particularly true of
foam-type coaxial cables. Coaxial cable is somewhat more
difficult to install at the point where the cable enters the
building. If coaxial cable is selected, make sure the antenna
is designed to drive the type of cable.
75 coaxial cable connection
After stripping the end of your coaxial cable, RG-6 or
RG-59 mount the supplied 750/300 FM antenna adapt-
er on the cable as shown. Then insert the plug into the 752,
ANTENNA terminal on the rear panel as shown in Antenna
connections diagram. ,
Press the claws in the
direction of the arrows
with the fingers to re-
Jease the lock and pull
out the cover.
How to open the 7502/3000 antenna adapter
1. Arrange the coaxial cable as illustrated.
Outer shield Outer shield i
(braid) Inner (braid) ad
Sa =
RG-6 RG-59
(5C-2V) bats (3C-2V) Ls ahs
8 KR-V 126R/KR-V106R/KR-V8ER (Kk)
2. Connect the processed coaxial cable to 752/300 anzenna adapter as
shown below. In the case of RG-6, insert and wind the inner conductor
around the slit. In the case of RG-59, further insert and wind the inner
conductor around the slit. Detach the collar in the antenna adapter.
Wind the inner
conductor here
750 antenna connection
3000 ribbon type cable connection
Although the unit is designed exclusively for use with 750
coaxial cable. it can also accept a 300 indoor antenna
or 3002 ribbon-type lead-in cable by using the supplied
7502/3000 antenna adapter. Strip the plastic insulation
from the wire ends for about 10mm (3/8 inch). Connect
the wires to the terminals on the adapter, then insert it into
the 7592 ANTENNA terminal on the rear panel (see
Antenna connections diagram).
If you connect a 3002 feeder cable, you need not detach
the cover in the 7502/3000 antenna adapter.
Note:
A
FM
outdoor
antenna
can
be
connected
to
the
receiver
with
either
a
759
coaxial
cable
or
3000
ribbon
feeder.
For
proper
connection.
carefully
read
the
instruction
manual
for
the
FM
outdoor antenna.
More than
=2 meters
Noise reduced if the >
antenna as installed in a
higher position or on the
opposite side of the
building
More than
| 4 meters
| (13 ft)
FM outdoor antenna setting

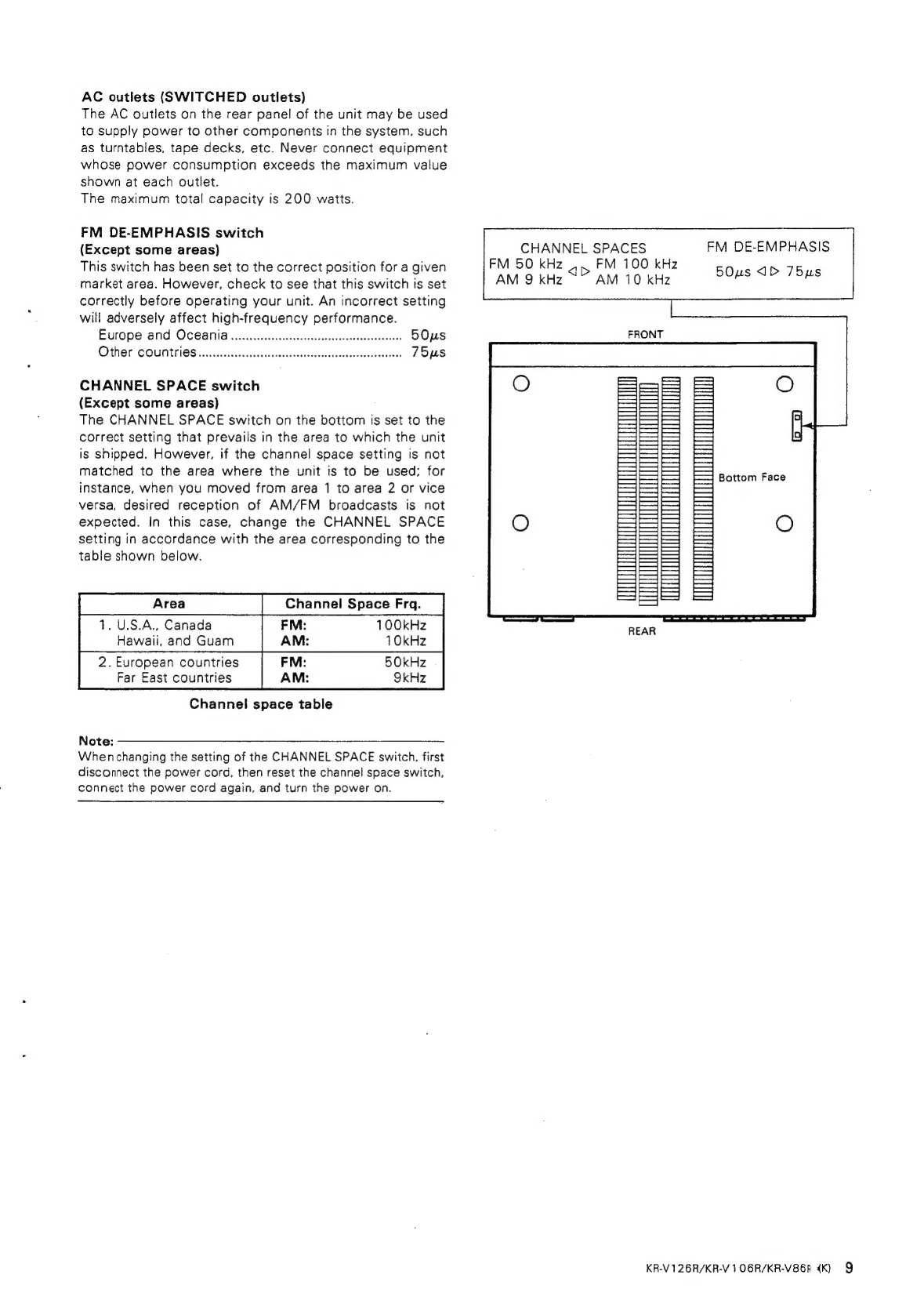

AC outlets (SWITCHED outlets)
The AC outlets on the rear panel of the unit may be used
to supply power to other components in the system, such
as turntables, tape decks, etc. Never connect equipment
whose power consumption exceeds the maximum value
shown at each outlet.
The maximum total capacity is 200 watts.
FM DE-EMPHASIS switch
(Except some areas)
This switch has been set to the correct position for a given
market area. However, check to see that this switch is set
correctly before operating your unit. An incorrect setting
will adversely affect high-frequency performance.
Europe and OC@AMA 0... eeccccesscssssestssseseeseneeneseeees 50us
Other countries
CHANNEL SPACE switch
(Except some areas)
The CHANNEL SPACE switch on the bottom is set to the
correct setting that prevails in the area to which the unit
is shipped. However, if the channel space setting is not
matched to the area where the unit is to be used; for
instance, when you moved from area 1 to area 2 or vice
versa, desired reception of AM/FM broadcasts is not
expected. In this case, change the CHANNEL SPACE
setting in accordance with the area corresponding to the
table shown below.
Channel Space Fra.
1. U.S.A., Canada FM: 100kHz
Hawaii, and Guam AM: 10kHz
2. European countries FM: 5OkHz
Far East countries AM: 9kHz
Channel space table
Note: ———_—_—_____—______—__—__—_—_—_——
Whenchanging the setting of the CHANNEL SPACE switch. first
disconnect the power cord, then reset the channel space switch,
connect the power cord again, and turn the power on.
FM DE-EMPHASIS
5Ous I> 75us
CHANNEL SPACES
FM 50 kHz aD FM 100 kHz
AM 9 kHz AM 10 kHz
Bottom Face
O
REAR
KR-V126R/KR-V 1 06R/KR-V86R 4K)
9

Controls and indicators
‘@ POWER switch
Press this switch to turn on power. (The POWER STAND
BY indicator lights.) Press it again to turn power off.
@ SPEAKERS A and B switches
A,B OFF - This position silences all speakers to permit
private use of headphones.
A ON - Activates speakers connected to the SPEAKERS
A terminals on the rear panel.
B ON - Activates speakers connected to the SPEAKERS
B terminals on the rear panel.
A,B ON - Activates speakers connected to the SPEAK-
ERS A and B terminals simultaneously.
Note:
When the SPEAKERS A and B switches are used at the same time,
the speakers connected to the SPEAKERS A and B terminals are
connected in series. In this respect, whenever using the SPEAK-
ERS A and B switches at the same time, be sure that two pairs
of speakers are connected to the terminals A and B, otherwise no
sound is Output.
@ PHONES jack
Stereo headphones are plugged into this jack.
© EQ (Equalizer) PRESET keys
Use these keys to store equalizer curves in memory or to
recall them.
PGM: User-adjusted equalizer curves can be programmed
as desired and stored in memory; up to five patterns.
SET: Five factory-preset equalizer curves are stored in
memory.
Upto 10 equalizer curve memories are available in total.
Press the PGM/SET key to select either the user-
programmed pattern or the factory-preset pattern.
© Equalizer level controls
Adjust these controls up and down to equalize the sound
by +12 dB to the center frequency indicated.
10 kR-v126R/KR-V106R/KR-V8ER (K)
‘OM/STANO BY
SPEAKERS
KENWOOD auoio-vineo sTeREO RECEIVER |«R-vidler
£0 |'sPi. PEA MOLD Cou
<ZEQ PRESENCE >
<I REAR VOLUME >>
DECREASE INCREASE DOWN:
ro EQUALIZER =F p— SURROUND ——
ON/DIFEAT EQHEC
sain
e
© 0008 00
@ EQUALIZER key
Press this switch to ON and the frequency characteristic
will be modified by passing through the graphic equalizer.
In the DEFEAT position, the frequency characteristic
remains unchanged.
@ EQ REC key
Used when recording the source onto the tape deck
through the equalized response of the graphic equalizer.
© EQ PRESENCE controls
Adjust these controls (INCREASE and DECREASE) to boost
or attenuate the equalizer curve indicated.
© PGM/SET key
Pressing this key alternates the preset equalizer curves to
be recalled between PGM (user-programmed patterns) and
SET (factory-preset patterns) groups.
@ Equalizer preset MEMORY key ;
This key is used to store an equalizer curve into the PGM
PRESET memories. First, select the desired equalizer curve
and then press this key. Then press any of the PRESET(A
to E) keys. The selected equalizer curve will be stored in
the memory indicated by the PRESET key pressed.
@® EQ/SPI key (KR-V126R/KR-V106R)
Pressing this key alternates the display mode between the
EQ (graphic equalizer) and SPI (spectram peak indicator-
spectrum analyzer).
@ PEAK HOLD ON/OFF key (KR-V126R/KR-V106R)
In the spectrum analyzer display (SPI) mode. pressing this
key activate or deactivate the Peak Hold function of the
power meter indicator.
ca aa
Zo
uP ZO s-O

(KR-V126R)
a) a IE
PRESET AUTO 1-10
SCAN MENORY SAR 148-20 CLEAR
Sy A, a a
TUNING
AUTOS
<_sown ve >> WANUAL__DIRECT
LE 1S A
ae DIGIT CHARACTER
SELEC
iu ira =
—
et
rar
Ca LRTI cantace
M/C
—S==a.
REMOTE SENSOR

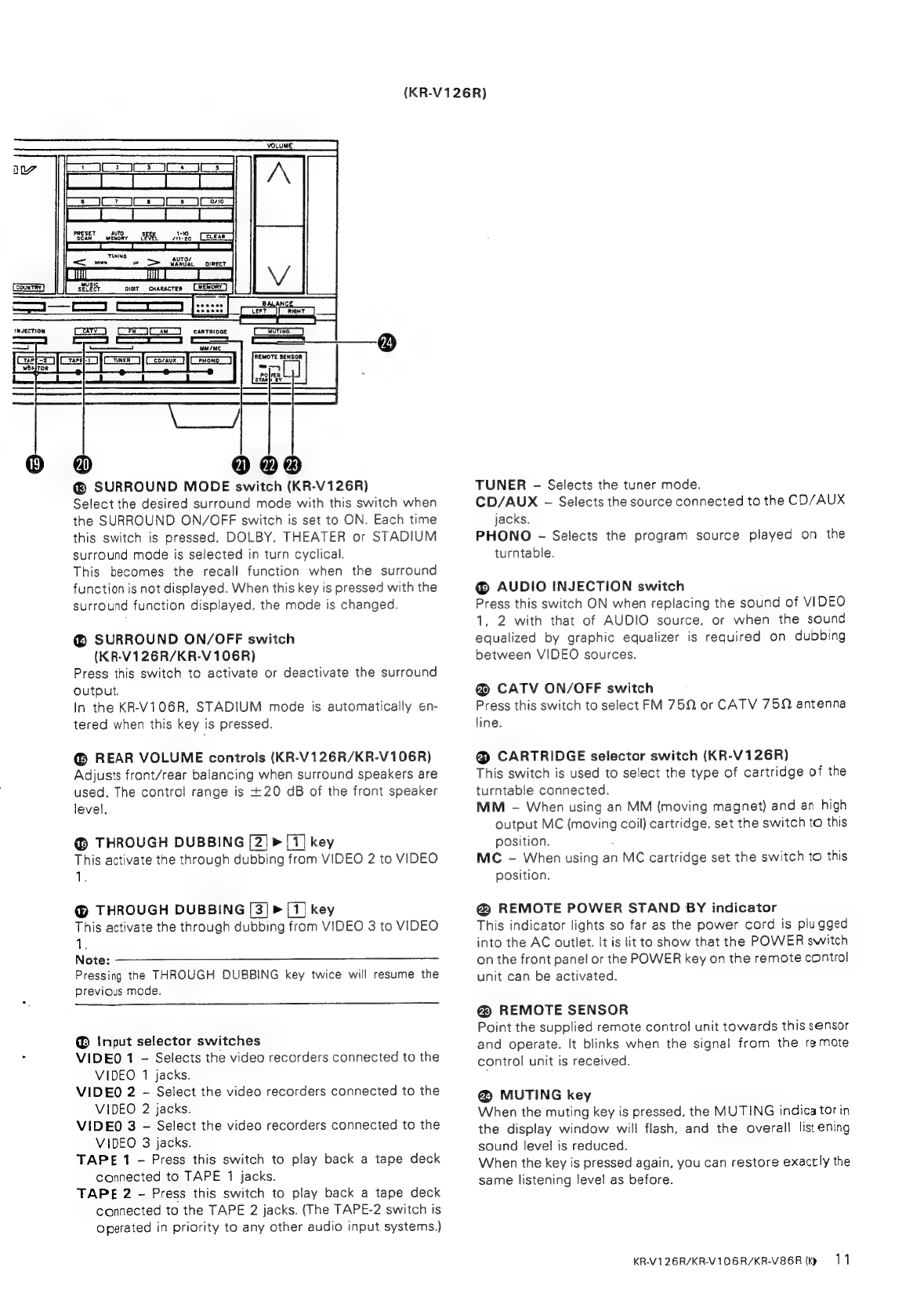

@ SURROUND MODE switch (KR-V126R)
Select the desired surround mode with this switch when
the SURROUND ON/OFF switch is set to ON. Each time
this switch is pressed, DOLBY, THEATER or STADIUM
surround mode is selected in turn cyclical.
This becomes the recall function when the surround
function is not displayed. When this key is pressed with the
surround function displayed, the mode is changed.
@ SURROUND ON/OFF switch
(KR-V126R/KR-V106R)
Press this switch to activate or deactivate the surround
output.
In the KR-V106R, STADIUM mode is automatically én-
tered when this key is pressed.
@® REAR VOLUME controls (KR-V126R/KR-V106R)
Adjusts front/rear balancing when surround speakers are
used. The control range is +20 dB of the front speaker
level,
@ THROUGH DUBBING [2] > [1] key
This activate the through dubbing from VIDEO 2 to VIDEO
Vs
@ THROUGH DUBBING [3]> [1] key
This activate the through dubbing from VIDEO 3 to VIDEO
1.
Note:
Pressing the THROUGH DUBBING key twice will resume the
previous mode.
@® Input selector switches
VIDEO 1 — Selects the video recorders connected to the
VIDEO 1 jacks.
VIDEO 2 -— Select the video recorders connected to the
VIDEO 2 jacks.
VIDEO 3 - Select the video recorders connected to the
VIDEO 3 jacks.
TAPE 1 — Press this switch to play back a tape deck
connected to TAPE 1 jacks.
TAPE 2 - Press this switch to play back a tape deck
connected to the TAPE 2 jacks. (The TAPE-2 switch is
Operated in priority to any other audio input systems.)
TUNER - Selects the tuner mode.
CD/AUX - Selects the source connected to the CD/AUX
jacks.
PHONO - Selects the program source played on the
turntable.
@® AUDIO INJECTION switch
Press this switch ON when replacing the sound of VIDEO
1, 2 with that of AUDIO source, or when the sound
equalized by graphic equalizer is required on dubbing
between VIDEO sources.
@ CATV ON/OFF switch
Press this switch to select FM 759 or CATV 752 antenna
line.
@ CARTRIDGE selector switch (KR-V126R)
This switch is used to select the type of cartridge of the
turntable connected.
MM - When using an MM (moving magnet) and an high
output MC (moving coil) cartridge, set the switch to this
position. ;
MC - When using an MC cartridge set the switch to this
position.
@ REMOTE POWER STAND BY indicator
This indicator lights so far as the power cord is plugged
into the AC outlet. It is tit to show that the POWER switch
on the front panel or the POWER key on the remote control
unit can be activated.
@& REMOTE SENSOR
Point the supplied remote contro! unit towards this sensor
and operate. It blinks when the signal from the remote
control unit is received.
@ MUTING key
When the muting key is pressed, the MUTING indica tor in
the display window will flash, and the overall list ening
sound level is reduced.
When the key is pressed again, you can restore exactly the
same listening level as before.
KR-V126R/KR-V106R/KR-V8ER (xy 11

@ BALANCE controls
Governs the amount of sound coming from each paired
speakers to get optimum stereo effect. Pressing the RIGHT
key will decrease the left channel volume and pressing the
LEFT key will decrease the right channel volume. When the
BALANCE controls is pressed, display window shows the
BALANCE indicator.
In the KR-V126R and KR-V106R, the balance of the rear
speakers are controlled at the same time.
@ VOLUME controls
This control adjusts the left- and right-channel volumes
simultaneously. Set it for the desired listening level.
Pressing the up (A) key increases the volume and pressing
the down (V) key decreases it.
In the KR-V126R and KR-V106R, the volume level of the
rear speakers are controlled at the same time.
Note:
A slight noise is heard from the speakers when operating the
VOLUME controls. This noise is the built-in microprocessor control
signal and is not a fault.
@ Preset (numeric) keys
Use these keys to:
1) input directly the digits of frequencies, or
2) store and recall frequencies in the preset memory.
@ DIRECT key
Used to tune to the station directly. Input the desired
frequency numerics with the numeric keys after pressing
the DIRECT key.
12 KR-V 126R/KR-V106R/KR-V86R {K)
ON/DEFEAT EQ. REC
@ AUTO/MANUAL (MONO) key
When this key is pressed, the AUTO indicator will light. The
frequency will automatically stop at a station in automatic
tuning mode. When a stereo broadcast is received, the
Output sound is automatically changed to stereo.
@ TUNING key
Used to change the frequency. Pressing UP side will
advance to the higher frequency and pressing DOWN side
to the lower frequency.
In the station name input mode, this key is used to select
the character.
@ BAND selector switches
FM - For FM broadcasts.
AM - For AM broadcasts.
@ DIGIT SELECT key
In the station name input mode, pressing this key advances
the column after selecting the character with the Tuning
UP/DOWN key. When this operation is repeated four time.
the station name input mode will be released automatically.
@ CHARACTER MODE key
Press this key to activate the station name input mode.
@ MEMORY key
When the input mode is tuner mode, use this button to
store new broudcast station data in the preset channel
memory. By pressing the MEMORY key. setting the preset
function key to 1-10 or 11-20 and by pressing one of the
PRESET 10 key, the frequency being received is storedn
the memory in the preset 10 key pressed.
KENWOOD. aunio-vingo sTeREO RECEIVER KR-V126R
<CEQ PRESENCE >
DECREASE INCREASE
ro EQUALIZER —~
FF

02@@® 0 0@
0) ||
if
ssaszt| Carr ner] |
—— —< <———e
Cay | CHC aT | cartrioce
=| ———— | —— |
Mi /MC
[_PHOND J
Beez Cnc) Es eutan] (Countey) Vv
20H DUBBING
AUDIO INJECTION
Vy OED
coe =
-—H
pcremnrory
framesa|
vibeO
TH)
4
{tare-2
Cronee
0)
f
Ceozaux_]
}
Cenon
7]
REMOTE
SENSOR
MONITOR
||
-—
POWER
STANO BY
a a
RE SST Urea
€ MUSIC SELECT key
Pressing this key alternates between the Music Select
mode and the Preset indicator mode.
€ MUSIC genre key
In the Preset indicator mode, a desired music genre can
be stored into each Preset Channel memory button. In the
Music select mode, this key is also used to select the music
genre.
€ CLEAR key
Used to clear the contents stored in the preset channel
memory. After recalling the preset channel to be cleared,
pressing this key will clear the memorized contents.
@ Preset function (1-10/11-20) key
Used to select 1-10 or 11-20 setting for the preset channel
key. In either FM or AM mode, 20 stations can be preset
as random as each setting (1-10" or “11-20") can contain
10 preset stations. Indicator “1-10” lights when “1-10”
setting is used, and indicator "1 1-20” lights when "11-20"
setting is used.
@ SEEK LEVEL select key (During FM reception only)
Used to select the stop level. When “L” is selected, the
Auto Stop and Auto Memory functions are possible even
for the weak-signal stations. When “H” is selected, the
Auto Stop/Auto Memory functions are performed only for
the stations having strong signal. Pressing this key alter-
nates between “L” and “H”.
(KR-V126R)
eeee 6
@ AUTO MEMORY key
When this key is pressed ON, the station frequencies will
be scanned and stored into the Preset Channels auto mati-
cally. Scanning operation is performed from the displayed
frequency to the higher range and finished after one cycle
is over with the receiving band. During Auto Memory
operation, the Memory indicator blinks. To release it, press
the AUTO MEMORY key again.
@ PRESET SCAN key
Use this key for preset channel scanning.
When a frequency stored in the preset memory is being
received, pressing this key shifts the reception to the next
frequency stored in the preset memory. (The preset
channels are scanned in the order 1, 2...... 11, 12.,.... 20.)
When frequencies other than those stored in the preset
memory received, pressing this key changes the rece ption
to the frequency in preset channel 1.
@ Tostop 4a scanning operation, press the SCAN keyagain.
@ In MUSIC SELECT mode. a preset scanning operation
is performed within the music genre selected.
KR-V126R/KR-V106R/KR-V86R (h =13

@ Display window
Taare | VIOEO
Ge
tt THROUsH
@ Display the power level display.
@® In graphic equalizer mode, displays the equalizer level
display, the music spectrum analyzer display and peak
hold display.
© Displays when storing or recalling equalizer preset
channel in memory.
@ This indicator lights when the Memory (EQ) key is
pressed to store the desired equalizer curve.
© Equalizer Presence Indicator.
© Lights when the EQUALIZER switch is set to “ON”.
Lights when the EQUALIZER switch is set to “DEFEAT”.
@® This indicator lights when EQ REC (equalizer recording)
is engaged for Tape 1.
Lights when the SURROUND ON/OFF switch is
pressed.
Lights when the MC cartridge is selected.
@ Lights when the CATV switch is pressed.
@ This displays the “L” or “‘H” seek level in FM mode.
@ This displays the input mode, preset channel, station
name, front volume level, rear level balance, surround
mode, EQ preset channel and music genre.
@ Lights when the MEMORY key is pressed.
Blinks when the AUTO MEMORY key is pressed.
Displays preset music genre selected at music select
mode, and all of the preset broadcast station channels
which are in the Preset indicator at preset indicator
mode.
14 KRV126R/KR-V106R/KR-V8ER (K)
STEREO
TUNES
WT ane a
@® Indicates the left and right volume balance.
Displays the volume level, also displays rear volume
level during flashing the REAR indicator.
@ Flashes when the REAR LEVEL controls is pressed.
Flashes when the MUTING key is pressed.
When the Music Select key and MUSIC GENRE key are
pressed, the “MUSIC SELECT” and one of the music
genre indicators light.
@ 1-10" or “11-20” lights according to the selection of
the preset function keys.
@) In tuner mode, lights when a station is tuned in.
@ In tuner mode, lights when a stereo broadcast is tuned
in.
@} Displays the digital frequency display.
@) Lights during auto tuning.
® Displays the tuner band “FM” or “AM”.
@ Lights when the TAPE-2 key is pressed.
@) Display the VIDEO dubbing mode, VIDEO monitor out
mode, EQ REC mode or through dubbing mode
displays.
Lights when the AUDIO INJECTION is pressed.
Lights when the PGM/SET key is set to “PGM”.
@ Lights when the PGM/SET key is set to “SET”.

Operating instructions
Listening to AM/FM and CATV broadcast
1. Press the Power switch to ON.
2. Press the TUNER key of the input selector.
3. Select FM or AM of the band (FM/AM) selector.
4. Press both keys FM of the band selector and CATV key:
when listen to a broadcasting of the CATV.
5. Select also AUTO or MANUAL mode of the tuning
mode key.
Auto tuning
1. Press the AUTO/MANUAL (MONO) key to set to
“AUTO”.
2. Press the UP or DOWN TUNING key: The frequency will
automatically increase or decrease until a station with
sufficient signal level is received. To stop the frequency
scanning before a station is received, press the
AUTO/MANUAL key to set to “MANUAL”.
3. Adjust the VOLUME control to the required listening
level and use the graphic equalizer control to adjust the
sound to your own preference.
Manual tuning
1. Press the AUTO/MANUAL (MONO) key to set to
“MANUAL”,
2. Press the UP/DOWN TUNING key to tune in the desired
station,
To continuously increase or decrease frequencies, hold
the TUNNING key depressed.
3. Adjust the VOLUME control to the required listening
level and use the graphic equalizer control to adjust the
sound to your own preference.
Direct tuning
1. Select FM or AM with the FM, AM selector switch.
2. Press the DIRECT key.
3. Input the desired frequency with PRESET keys.
4. The receiver enters the radio reception mode just after
the frequency value has been input.
(If the input value is outside the tuning range, the
frequency display flashes for 5 seconds and the receiver
returns to the radio reception mode of the last channel.)
Presetting broadcast station data
In total up to 20 stations data (station frequency, station
name and music genre) can be stored in memory.
1. Select the desired station with either AUTO tuning,
MANUAL tuning or DIRECT tuning.
2. Input the broadcast station name.
For the broadcast station names, up to 4 chartacters
can be input.
3. Select the music genre of the music genre selector.
@) Press the Music Select key to ON.
*@ Press the desired music genre key.
Note:
When the contents in items 2 and 3 are not required for display
memory, proceed to item 4 after item 1.
4. Press the preset function key to select ‘1-10’ or
"74-20".
5. Press the MEMORY key. (The MEMORY indicator
lights.)
6. Press one of the numeric keys: The frequency being
tuned in and the station name are stored in memory of
the digit key.
Character input procedure
1. Press the CHARACTER button to set the character
input mode. The first colum of the character display
section begins flashing.
2. Press the TUNING UP/DOWN key to select the
character.
3. When the desired character is displayed, press the
DIGIT key.
Flashing will shift to the next column.
4. Repeat procedure 3 and 4 for four times to complete
inputting. The character input mode will be released.
@ Even in the middle of inputting, pressing the CHARAC-
TER key again will release the character input mode. At
this time, the data which has been input is valid.
Exampre 1: To preset the 91.50 MHz FM broadcast and
a station name “W N YY” when the station
other than the preset channel memories is
received. Show the indicator flashing.
1. Tune to 91.50 MHz FM broadcast.
AUTO
FM oot i= “a MHz
-_— of Ju
ae
ce | CET
Ome
TIiIhNm.
LPI EL YN ch
2. Press the CHARACTER key.
AUTO
FM ry — Mrz
G 15a ho
seex
cever (Ci)
Ome Ls ]
V
3. Press the TUNING UP button twenty-three time to
select “W".
O-P>0Q—-R-S?-T?U>V>Ww
‘even
G me
I] eo, 2.
Vv ch
4. Press the DIGIT key.
Gmc Gl
i |
Het eT
5. TUNING UP button fourteen times to select “N”.
Jue r
I a
VV ch
KR-V126R/KR-V106R/KR-V86R (kK) 15

6. Press the DIGIT key.
sec
cevet
Oue Le |
Vt We Fa ah
7. TUNING UP key twenty-five times to select “Y”.
> A>B+C>D E> F > G>H 12 J > KL eM eN>
OQ>P>0>R~S? TU VW xX>Y
seex
! vever (oI8}
‘ Quc Lj
PIN eo ies
WIM ch
8. As the fourth column should be left blank, press the
DIGIT key twice or press the CHARACTER key.
one
Guc tr |
PINiV
WN IN I ch
9. Press the MEMORY key.
AUTO
FM cl 10 1 Mee
ot. pg
PINT W
VIN | rayon
10. Press channel 2 of the preset channels
AUTO
. FM ore a Miz
Io of ofa
ae ae fmcrxi-]
LINEN a
VIM LL ch

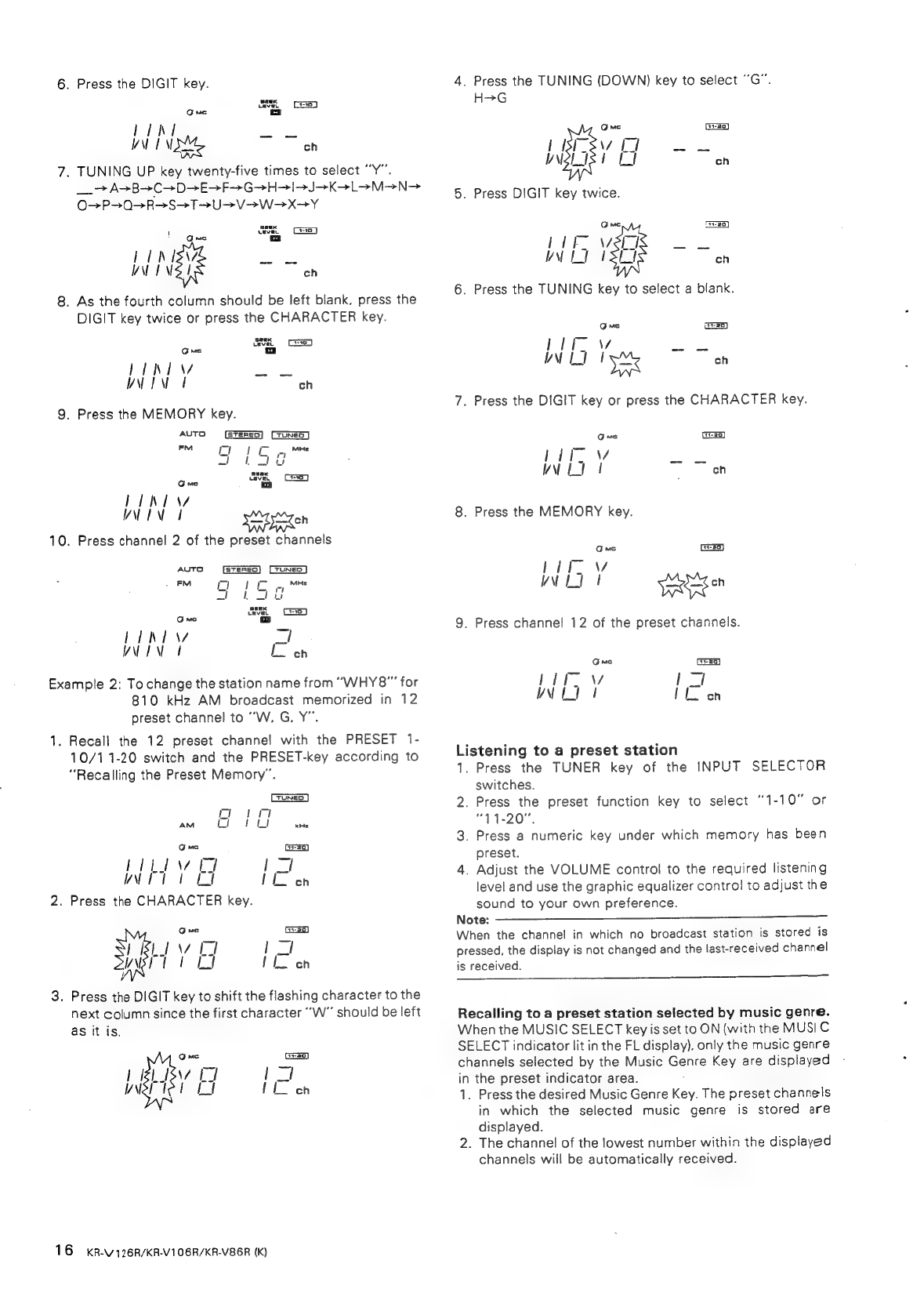

Example 2: To change the station name from “WHY8"" for
810 kHz AM broadcast memorized in 12
preset channel to “W, G, Y”.
1. Recall the 12 preset channel with the PRESET 1-
10/1 1-20 switch and the PRESET-key according to
“Recalling the Preset Memory”.
flor
AM ei? Lu kHz
Gmc Ge3s)
FA N-AES 2h
WNP dt Lod IL. ech
2. Press the CHARACTER key.
QGuc
3} Ist i \v Ed | _'.,
Wish to a Ly [Loc
3. Press the DIGIT key to shift the flashing character to the
next column since the first character “W” should be left
as it is.
GQ uc
4) Ldsi7 | Pl
birt am
_——
Mig
16 KR-v126R/KR-V106R/KR-V8ER (K)
4. Press the TUNING (DOWN) key to select “G”.
H>G
Guec
1 | Ye 2 ee
VV i Ld ch
5. Press DIGIT key twice.
Ome TEE
L1il Vv Sees
VM Lt | ch
6. Press the TUNING key to select a blank.
I
Gmc Fctes-3]
Lill wv Bae So
VM LI iC® ch
Gauc irae)
Pate Mf atts
WLI | ~~ ch
Gmc
Pid, \
IN LJ Teen
9. Press channel 12 of the preset channels.
Guc [exc 1-1]
L 1 FW | _
VM LS 1 If
Listening to a preset station
1. Press the TUNER key of the INPUT SELECTOR
switches.
2. Press the preset function key to select
“71-20",
3. Press a numeric key under which memory has been
preset.
4. Adjust the VOLUME control to the required listening
level and use the graphic equalizer control to adjust the
sound to your own preference.
Note:
When
the
channel
in
which
no
broadcast
station
is
stored
is
pressed,
the
display
is
not
changed
and
the
last-received
channel
is received.
i
"1-10" or
Recalling to a preset station selected by music genre.
When the MUSIC SELECT key is set to ON (with the MUSIC
SELECT indicator lit in the FL display). only the music genre
channels selected by the Music Genre Key are displayed
in the preset indicator area.
1. Press the desired Music Genre Key. The preset channels
in which the selected music genre is stored are
displayed.
2. The channel of the lowest number within the displayed
channels will be automatically received.

3. When more than two stations are stored in the selected
music genre, pressing the Music Genre Key again will
advance to the next station.
When the MUSIC SELECT key is pressed again, the
preset indicator mode will resume.
Note: ————_—
When no preset is memorized in the selected music genre, nothing
will be displayed in the preset indicator and the last-received
channel will be received.
Listening to record playing
1. Press the PHONO key of the INPUT SELECTOR
switches.
2. According to the type of phono-cartridge used, set the
CARTRIDGE selector switch to appropriate position.
(KR-V126R only)
3. Operate the turntable to play back a record.
4. Adjust the VOLUME control to the required listening
level and use the graphic equalizer control to adjust the
sound to your own preference.
Listening to the program source connected to
the CD/AUX jacks
1. Press the CD/AUX key of the INPUT SELECTOR
switches.
2. Operate the component connected to the CD/AUX
jacks.
3. Adjust the VOLUME control to the required listening
level and use the graphic equalizer controls to adjust
the sound to your own preference.
Tape deck operation
1 Press the appropriate TAPE key of the INPUT SELEC-
TOR switches (1 or2) to select output from a tape deck
connected to the TAPE 1 or 2 jacks.
2. Operate the tape deck.
3. Adjust the VOLUME control to the requiréd listening
level and use the graphic equalizer controls to adjust
the sound to your own preference.
Note: ———____+>77NA?—-__\__
When both key (TAPE-1 and TAPE-2) are pressed, TAPE-2 setting
has priority.
Recording
1. Press the appropriate key of the INPUT SELECTOR
switches.
2. Set up your tape deck(s) for recording and set the
recording level with the controls on your tape deck(s).
3. Adjust listening level at the unit to suit your listening
preference.
Tape dubbing
Tape recordings may be duplicated (dubbed) easily using
two tape decks connected to the TAPE 1 and 2 jacks.
For example: ;
(TAPE 1 to 2):
1. Connect two tape decks to the TAPE 1 and TAPE 2
jacks
2. Press the TAPE 1 switch.
3. Play back the recorded tape and adjust the recording
levels before starting tape dubbing.
(TAPE 2 to 1):
1. Press the TAPE 2 switch.
2. Press a key except TAPE 1 of the INPUT SELECTOR
switches,
3. Play back the recorded tape and adjust the recording
levels before starting tape dubbing.
4. Do not press the TAPE 1 switch during recording with
tape deck 1.
Note: ——- $$$
Adjust record levels on the deck that is making the copy using that
deck’s operating controls.
VIDEO deck operation
Listening to video recorder audio sound
1. Press the appropriate VIDEO (1. 2 or 3) key of the
INPUT SELECTOR to select output from a video
recorder connected to the VIDEO (1, 2 or 3) jacks.
. Operate the video recorder.
. Adjust the VOLUME controls for your preference.
. When a video monitor is connected to the VIDEO
MONITOR OUT jack on the rear panel, the picture from
the recorder can also be monitored.
AWN
Dubbing between three VCRs
Through dubbing
Video dubbing can be performed while listening to any
desired source.
@ Operate the VIDEO DUBBING switch so that
To ae a or ERS is displayed.
to tHRousH THROUGH
The arrow indicator lights in red.
(CIZIET: !n this position, direct dubbing froma VCR
“~~ connected to the VIDEO 2 jacks to a VCR
connected to the VIDEO 1 jacks can be
performed.
CUE JET: In this position, direct dubbing from a VCR
connected to the VIDEO 3 jacks toa VCR
connected to the VIDEO 1 jacks can be
performed.
@ For example:
When dubbing from VIDEO 2 to VIDEO 1 while listening
to record.
1. Operate the VIDEO DUBBING switch so that the
Ga Rae
A J THROUGH
display is illumi nated.
2. Press the PHONO switch of the INPUT SELECTOR
switches.
3. Play back the VIDEO 2 VCR as well as set the VIDEO
1 VCR to recording mode.
4. Start record play.
Note:
In the Through dubbing operation, graphic equalizer cay not be
applied to the recording source.
Normal dubbing
While playing back the picture and the sound, dubbrag can
be performed normally.
1. Operate the VIDEO DUBBING switch so the arrow mark
will be illuminated white in the display.
2. Select the desired source to be dubbed from VIDEO 1
to 3 with the INPUT SELECTOR.
3. Dubbing modes (picture and sound) when eachV/IDEO
source is selected are as follows:
KR-V126R/KR-V10GR/KR-V86RK) 17

Selector Dubbing mode
-@ VIDEO 1 VIDEO 1 > VIDEO 2
re’ VIDEO
@ VIDEO 2 VIDEO 2 > VIDEO 1
el VIDEO
(2)
7 s
@ VIDEO 3 VIDEO 3 > VIDEO 1°
VIDEO 3 ~ VIDEO 2*
*: When VIDEO 3 is selected, simultaneous dubbing to VIDEO 1 and
VIDEO 2 is possible.
(3)
Ec
cE
4. Operate each VCR for dubbing.
For example:
When playing a VCR connected to VIDEO 1 jacks while
dubbing to a VCR connected to VIDEO 2.
1. Set the INPUT SELECTOR to VIDEO 1.
2. Start playback the VIDEO 1 VCR as well as set the
VIDEO 2 VCR to record mode.
Audio injection
During video dubbing, the sound from the VCR can be
replaced with the desired audio source without affecting
the picture.
At
this,
graphic
equalizer
can
be
applied
to
the
recording
audio source.
1. Press the AUDIO INJECTION switch so that the “AU-
DIO INJECTION” display is illuminated.
2. Select the desired source to be dubbed, from VIDEO
1 to 3 with the INPUT SELECTOR switches.
(At
this
time,
the
selected
video
number
is
lit
on
the
VIDEO display.)
3. Select the desired audio source for Audio injection with
the INPUT SELECTOR.
4. Operate each VCR for dubbing.
18 kRv126R/KR-V106R/KR-V8ER {K)
Source to be dubbed
AUDIO INJECTION
rILIPFINI
EY
/, off |
Audio source used for
Audio injection (when
TAPE 2 is selected, the
TAPE 2 source is prior
to another.)
The
EQ
REC
indicator
lights
in
red
when
the
EQ
REC
key
is
pressed.
Graphic equalizer operation
Normal operation
1. Select the desired source.
2. Press the EQUALIZER key to ON.
3.
Press
the
equalizer
level
control
UP
DOWN
keys
so that
the
equalized
sound
is
heard
from
the
speakers
as
desired.
Preset procedure
Use
EQ
PRESET
key
to
store
equalizer
curves
in
memory
or
to
recall
them.
(Five
different
equalizer
curves
can
be
stored.)
1. Select the desired source.
2. Press the EQUALIZER key to ON.
3. Set the your desired equalizer curve.
4. Press the MEMORY (EQ) key. ;
5.
Press
the
desired
EQ
PRESET
keys
to
store
the
equalizer
curve.
Preset operation
The
preset
memory
of
this
unit
is
available
in
two
types
the
“PGM”
memory
in
which
the
user-created
desired
sound
response
can
be
preset,
and
the
“SET”
memory
in
which
the
factory-preset
sound
equalizer
curves
are
prepared.
Use
them
by
referring
to
“Characteristics
of
the
SET
preset
memories”.
1. Select SET or PGM.
2. Select preset key
Characteristics of the “SET” preset memories
A: For solid and punchy sound.
B:
For
effective
reproduction
of
the
dynamic
movie
sound.
C: For easy to listen background music.
D:
For
musical
sound
reproduction
in
a
sense
of
lively
E:
For
reproducing
the
vocal
music
realistically.
EQ Presence procedure
Used
when
emphasizing
the
previously
made
equalizer
curve momentarily.
1.
Adjust
these
controls
up
and
down
to
boost
or
atternu-
ate
the
frequency
indicated.
2.
When
the
&
and
Y
displays
go
off,
the
initial
condition
resumes.

EQ REC switch
Press this switch, signals will allow equalized to be
recorded on TAPE 1. If you wish to record non-equalized
signals with the equalizer switch in the ON position, turn
the equalizer recording switch to OFF. This will allow you
to hear the equalized signals while recording non-equalized
signals.
Note:
The equalized signal is not output at TAPE 2 REC jacks.
Surround operation
1.
2.
3.
Set the surround mode to On with the SURROUND
ON/OFF key.
Select the source which is desired to be expected for
surround sound effect, and play it.
The following surround sound effects are available with
the SURROUND MODE key depending on the source
to be played.
[ DOLBY ——» THEATER ——* STADIUM |
STADIUM: To obtain a lively effect with “‘being-there”
feeling just like in a baseball or soccer
stadium.
THEATER: To obtain a natural reverberation effect like
in a movie theater. Use this position for
pre-recorded movies which have not been
recorded with Dolby Surround encoder.
DOLBY: To obtain a Dolby Surround effect only for
the Dolby-encoded video programs.
. Adjust the volume balance between the front speakers
and the rear speakers by controlling the REAR VOLUME
control key.
Note:
1.
Since the SURROUND BALANCE knob located on the rear
Panel is set to its center position normally, it is not necessary
to adjust it again. However, if the left/right balance is shifted
incorrectly, first set the SURROUND mode to the DOLBY
position and reproduce the monaural source to adjust so that
no sound is heard from the rear speakers.
. When the SURROUND MODE key is pressed, the selected
mode is displayed for 5 seconds. Within this 5 seconds, when
the surround mode is not changed, the surround mode is not
switched, the selected mode is fixed and the input selector
display resumes. After then, when the MODE key is pressed,
the currently selected surround mode is displayed.
“DOLBY” and the double-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
System control operation
Connection
Using the system control cord provided with the system
component models as below, make connections as shown
on page 5.
The following models are available for the system
control operations.
Turntable: KD-76F or KD-66F
Cassette deck: KX-96W, KX-76R, KX-66CW,
KX-66W, KX-95W or KX-75R
CD player: DP-860, DP-760, DP-560 or
DP-850
Note:
Some models provide two or three system control jacks. However,
when used with this receiver, be sure to connect the system
control cord to the jack having a indication of @.
Operation
1. Automatic play operation
When starting play with the turntable, cassette deck or
CD player connected to the receiver, press the desired
INPUT SELECTOR switch on the receiver. The turnta-
ble, cassette deck or CD player will automatically enter
the play mode. :
In the same way, pressing the Play key of the turntable,
cassette deck or CD player will automatically switch the
INPUT SELECTOR on the receiver to the equipment on
which the Play key is pressed.
2. Synchro recording
To record the sound from the turntable or CD player
onto the tape with the cassette deck, press the PLAY
(START) key of the turntable or CD player. The cassette
deck will start recording automatically, synchronized
with the turntable or CD player starting play. For more
details, refer to the instruction manual of the cassette
deck.
Note: ————————_c——_————_“-—[-—
During recording with the cassette deck, the INPUT SELECT on
the receiver is fixed at the source from which the recording is
made, by the system control circuit. At this time, pressing any of
the INPUT SELECTOR keys does no function even when it is
pressed.
KR-V126R/KR-V106R/KR-V86R iC) 19

Operating
procedure
of
the
remote
control
unit
(RC-126)
Notes
@ When the power plug is connected to an AC outlet, this unit
enters the power standby mode and the indicator lights. At
that time, the unit can be operated only with the POWER
key of remote control unit.
First, enter the unit to the power on mode with the POWER
key of remote control unit, and operate with the other keys.
Installing the battery on the remote control unit
1. Remove the battery compartment cover.
2. Insert two size “AA” (R6) batteries confirming the
correct polarity and close the cover in its place.
Note:
The provided batteries are to be used for operation of the remote
control unit, and it may have shorter life. When the remote unit
becomes effective only for shorter distance on dose not effective
to operate, replace them with two new batteries.
Usable range of remote control unit
The usable range of the remote control unit may differ on
temperature, humidity or using conditions, however, it is
defined approximately as shown in the figure below:
Remote control unit operation range
20 = KR-V126R/KR-V106R/KR-VB8ER (kK)
Note for remote control operation
After
pressing
one
of
operation
keys,
when
the
next
operation
is required, press the next operation key firmly after approx.
1 second interval.
When the next operation key is pressed immediately after the
previous key, it may cause misoperation.
SS eh
=
+ PAUSE
PHONE COZAUX TUNER TAPE-4
ae
Cie
TY/VIDEO RECALL TVCH. TV VOL
onoeae
uP
KENWOOD
REMOTE CONTROL UNIT
RC-126
