Kenwood TK-2140K User manual

© B62-XXXX-00 (K)
09 08 07 06 05 04 03 02 01 00
KENWOOD CORPORATION
INSTRUCTION MANUAL
VHF FM TRANSCEIVER
TK-2140
TK-3140
UHF FM TRANSCEIVER

i
WARNING:
EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)
Turn off your transceiver while taking on fuel, or while parked in
gasoline service stations.
◆ GOVERNMENT LAW PROHIBITS THE OPERATION OF
UNLICENSED RADIO TRANSMITTERS WITHIN THE
TERRITORIES UNDER GOVERNMENT CONTROL.
◆ ILLEGAL OPERATION IS PUNISHABLE BY FINE OR
IMPRISONMENT OR BOTH.
◆ REFER SERVICE TO QUALIFIED TECHNICIANS ONLY.
SAFETY: It is important that the operator is aware of
and understands hazards common to the operation of
any transceiver.
THANK YOU
We are grateful you chose KENWOOD for your land
mobile radio applications. We believe this easy-to-use
transceiver will provide dependable communications to
keep personnel operating at peak efficiency.
KENWOOD transceivers incorporate the latest in
advanced technology. As a result, we feel strongly that
you will be pleased with the quality and features of this
product.
MODELS COVERED BY THIS MANUAL
•TK-2140: VHF FM Transceiver
•TK-3140: UHF FM Transceiver
NOTICES TO THE USER

ii
One or more of the following statements may be
applicable:
ATTENTION (U.S.A. Only):
The RBRC Recycle seal found on KENWOOD
nickel-cadmium (Ni-Cd) battery packs indicates
KENWOOD’s voluntary participation in an industry
program to collect and recycle Ni-Cd batteries after
their operating life has expired. The RBRC program
is an alternative to disposing Ni-Cd batteries with
your regular refuse or in municipal waste streams,
which is illegal in some areas.
For information on Ni-Cd battery recycling in your area, call (toll free)
1-800-8-BATTERY (1-800-822-8837).
KENWOOD’s involvement in this program is part of our commitment
to preserve our environment and conserve our natural resources.
FCC WARNING
This equipment generates or uses radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this equipment
if an unauthorized change or modification is made.
INFORMATIONTO THE DIGITAL DEVICE USER REQUIRED BY
THE FCC
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can generate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer for technical assistance.

iii
CONTENTS
UNPACKING AND CHECKING EQUIPMENT................... 1
Supplied Accessories...................................... 1
PREPARATION .................................................. 2
Installing/ Removing the (Optional) Li-ion Battery Pack .. 2
Installing the (Optional) Antenna ........................ 3
Installing the Belt Clip..................................... 3
Installing the Cover over the Universal Connector ..... 4
Installing the (Optional KMC-25) Speaker/ Microphone... 4
GETTING ACQUAINTED ........................................ 5
Display ...................................................... 7
PROGRAMMABLE AUXILIARY FUNCTIONS ................. 8
OPERATION OVERVIEW.......................................10
Trunking Format...........................................10
Conventional Format .....................................10
OPERATING BASICS...........................................11
Switching Power ON/ OFF................................11
Adjusting the Volume.....................................11
Selecting a System/ Group/ Channel ...................11
Time-out Timer (TOT) ....................................12
TRUNKED OPERATION (Trunking Format) ..................13
Placing a Dispatch Call ..................................13
Receiving a Dispatch Call................................13
CONVENTIONAL OPERATION (Trunking Format)...........14
Transmitting ...............................................14
Receiving ..................................................14

iv
SYSTEM SCAN (Trunking Format) ...........................15
Scanning Trunked Systems ..............................15
Scanning Conventional Systems ........................15
Scan Lockout ..............................................16
Scan Revert................................................16
GROUP SCAN (Trunking Format) ............................17
CONVENTIONAL OPERATION (Conventional Format) .....18
Transmitting ...............................................18
Receiving ..................................................18
SCAN (Conventional Format) ................................19
Priority Scan...............................................19
2-TONE SIGNALLING (Conventional Format) ..............20
FleetSync™: ALPHANUMERIC 2-WAY PAGING FUNCTION ... 21
Key Functions .............................................21
Selcall (Selective Calling) ...............................22
Status Message ...........................................23
Optional Short Messages Feature ......................26
AUDIBLE USER FEEDBACK TONES ..........................27

1
UNPACKING AND CHECKING EQUIPMENT
Note: The following unpacking instructions are for use by your
KENWOOD dealer, an authorized KENWOOD service facility, or the
factory.
Carefully unpack the transceiver. We recommend that
you identify the items listed in the following table before
discarding the packing material. If any items are
missing or have been damaged during shipment, file a
claim with the carrier immediately.
■Supplied Accessories
metI rebmuNtraP ytitnauQ
pilctleB1
pacrotcennoclarevinU1
teswercS1
dracytnarraW1
launamnoitcurtsnI1
Belt clip Universal
connector cap Screw set

2
PREPARATION
Match the guides of the
battery pack with the
corresponding grooves on
the upper rear of the
transceiver, then firmly
press the battery pack to
lock it in place.
To remove the battery pack,
press the release latch and
pull the battery pack away
from the transceiver.
■Installing/ Removing the (Optional) Li-ion Battery Pack
CAUTION:
◆ DO NOT RECHARGE THE BATTERY PACK IF IT IS ALREADY
FULLY CHARGED. DOING SO MAY CAUSETHE LIFE OF
THE BATTERY PACKTO SHORTEN OR THE BATTERY PACK
MAY BE DAMAGED.
◆ AFTER RECHARGING THE BATTERY PACK, DISCONNECT
IT FROMTHE CHARGER. IFTHE CHARGER POWER IS
RESET (TURNED ON AFTER BEING TURNED OFF),
RECHARGING WILL START AGAIN ANDTHE BATTERY PACK
WILL BECOME OVERCHARGED.
◆ DO NOT SHORTTHE BATTERY TERMINALS OR DISPOSE
OF THE BATTERY BY FIRE.
◆ NEVER ATTEMPTTO REMOVE THE CASING FROMTHE
BATTERY PACK.

3
Screw the antenna into the
connector on the top of the
transceiver by holding the
antenna at its base and
turning it clockwise until
secure.
■Installing the Belt Clip
If necessary, attach the belt
clip using the two supplied
3 x 6 mm screws.
Note: If the belt clip is not installed,
its mounting location may get hot
during continuous transmission or
when left sitting in a hot
environment.
■Installing the (Optional) Antenna

4
If you are not using the
optional KMC-25 speaker/
microphone, install the
cover over the univeral
connector using the
supplied 4 x 6 mm screw.
■Installing the Cover over the Universal Connector
■Installing the (Optional KMC-25) Speaker/ Microphone
1Insert the guide of the speaker/ microphone
connector into the groove of the universal
connector.
2Secure the connector in place using the attached
screw.

5
GETTING ACQUAINTED
qq
qq
qAntenna connector
Connect an (optional) antenna here.
ww
ww
wRotary encoder
Rotate this encoder to activate its programmable
function. (System or Group Up/ Down in Trunking
Format, and Group or Channel Up/ Down in
Conventional Format.) For further details, contact
your dealer.

6
ee
ee
ePOWER switch/ VOLUME control
Turn clockwise to switch ON the transceiver. Rotate
to adjust the volume. Turn counterclockwise fully to
switch OFF the transceiver.
rr
rr
rTransmit/ Battery low indicator
This red LED lights during transmission. If
programmed by your dealer, when the battery pack
power is low, the LED flashes during transmission.
Replace or recharge the battery pack.
tt
tt
tAuxiliary (orange) key
Press to activate its auxiliary function {page 8}.
yy
yy
yBattery pack release latch
Press this latch to release the battery pack. See
“Installing/ Removing the (Optional) Li-ion Battery
Pack” on page 2.
uu
uu
uPTT (Push-To-Talk) switch
Press this switch, then speak into the microphone to
call a station.
ii
ii
iSide 1, Side 2 keys
Press to activate their auxiliary functions {page 8}.
oo
oo
oS, A, tt
tt
tB, and Css
ss
skeys
Press to activate their auxiliary functions {page 8}.
!0!0
!0!0
!0 Universal connector
Connect the (optional KMC-25) speaker/ microphone
here. Otherwise, keep the supplied cover in place.

7

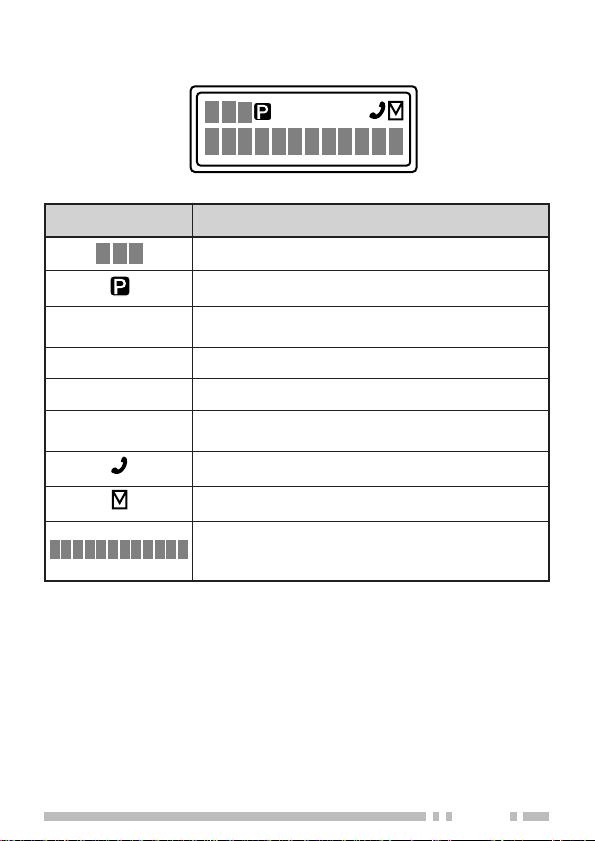

■Display
SVC
MON SCN LO
rotacidnI noitpircseD
.srebmunpuorgdnalennahcehtsyalpsiD
.nacSytiroirPgnimrofrepnehwsraeppA
sademmargorpyekehtnehwsraeppA rotinoM si
.desserp .reviecsnartsihtnodesutonsinocisihT
.nacSgnimrofrepnehwsraeppA sademmargorpyekehtnehwsraeppA rewoPFR
OL .desserpsi
.metsysenohpeletehtgnisuelihwsraeppA
.egassemaevahuoynehwsraeppA
puorg/metsysehtroemanpuorgehtsyalpsiD stigid2gniniamerehT.stigid01otpuhtiwrebmun .srotacidnisuoiravrofdesuera
MON
SVC
SCN
LO

8
PROGRAMMABLE AUXILIARY FUNCTIONS
Keys t, iand o{pages 5 and 6} can be programmed
with the auxiliary functions listed in the following table.
The keys can only be programmed with functions,
depending on whether you are using Conventional
Format or Trunking Format. Please contact your dealer
for further details on these functions.
noitcnuF lanoitnevnoC tamroF gniknurT tamroF
leTotuAoNseY
nwoDlennahCseYoN
pUlennahCseYoN
nwoD/pUlennahCseYoN
)TOB(DIFMTDseYseY
)TOE(DIFMTDseYseY
retcarahCyalpsiDseYseY
ycnegremE
1
seYseY
nwoDpuorGseYseY
pUpuorGseYseY
nwoD/pUpuorGseYseY
lennahCemoHseYoN
puorGemoHoNseY
kcoLyeKseYseY
pmaLseYseY
)OTS/LCR(yromeMseYseY
)LCR(yromeMseYseY
)OTS(yromeMseYseY
edoMegaseMseYseY

9
noitcnuF lanoitnevnoC tamroF gniknurT tamroF
rotinoM(ArotinoM ))yratnemoM(etumnU seYseY
rotinoM(BrotinoM ))elggoT(etumnU seYseY
reirraC(CrotinoM ))yratnemoM(hcleuqS seYseY
reirraC(DrotinoM ))elggoT(hcleuqS seYseY
TSOseYoN
laideRseYseY
OLrewoPFRseYseY
nacSseYseY
ddA/leDnacSseYseY
leD/pmeTnacSoNseY
noitaunettAPSseYseY
leveLQSseYoN
nwoDmetsySoNseY
pUmetsySoNseY
nwoD/pUmetsySoNseY
dnuorAklaTseYoN
tcennocsiDleToNseY
1This function can be programmed only on key t, the
Auxiliary (orange) key.

10
OPERATION OVERVIEW
Your dealer can program your transceiver for either
Trunking Format or Conventional Format.
■Trunking Format
This format can handle up to 32 systems with up to
250 groups in each system. The transceiver can be
used in both trunked mode and conventional mode.
Systems, groups, and their functions are
programmed by your dealer.
■Conventional Format
This format can handle up to 250 groups with 250
channels in each group. The transceiver can be
used only in conventional mode. Groups, channels,
and their functions are programmed by your dealer.

11
OPERATING BASICS
■Switching Power ON/ OFF
Turn the Power switch/ Volume control clockwise to
switch the transceiver ON.
Turn the Power switch/ Volume control
counterclockwise to switch the transceiver OFF.
If the Radio Password function is programmed,
“PASSWORD” will appear on the display when the
power is turned ON. To unlock the transceiver, enter
the password, then press the Skey. If you enter the
wrong password, an error tone sounds and the
transceiver remains locked. The password can
contain a maximum of 6 digits.
■Adjusting the Volume
Rotate the Power switch/ Volume control to adjust
the volume. Clockwise increases the volume and
counterclockwise decreases it.
■Selecting a System/ Group/ Channel
Select the desired system and group (Trunking
Format) using the encoder and the keys programmed
with System or Group Up/ Down.
Select the desired group and channel (Conventional
Format) using the encoder and the keys programmed
with Group or Channel Up/ Down.

12
■Time-out Timer (TOT)
The purpose of the Time-out Timer is to prevent any
caller from using a channel for an extended period of
time.
If you continuously transmit for a period of time that
exceeds the programmed time, the transceiver will
stop transmitting and an alert tone will sound. To
stop the tone, release the PTT switch.
Your dealer can program the TOT time in the range
of 15 seconds to 10 minutes.

13
TRUNKED OPERATION (Trunking Format)
■Placing a Dispatch Call
1Select the desired system and group using the
encoder and the System or Group keys.
2Press the PTT switch.
3If a tone does not sound, communication is
possible;start speaking into the microphone.
Release the PTT switch to receive.
•For best sound quality at the receiving station, hold
the microphone approximately 1.5 inches
(3 ~ 4 cm) from your mouth.
■Receiving a Dispatch Call
1Select the desired system and group using the
encoder and the System or Group keys. (If the
Scan function has been programmed, you can
switch it ON or OFF as desired.)
2When you hear the dispatcher’s voice, readjust
the volume as necessary.

14
CONVENTIONAL OPERATION (Trunking Format)
■Transmitting
1Select the desired system and group using the
encoder and the System or Group keys.
2Press the key programmed as Monitor to check
whether or not the channel is free.
•If the channel is busy, wait until it becomes free.
3Press the PTT switch and speak into the
microphone. Release the PTT switch to receive.
•For best sound quality at the receiving station, hold
the microphone approximately 1.5 inches
(3 ~ 4 cm) from your mouth.
■Receiving
1Select the desired system and group using the
encoder and the System or Group keys. (If the
Scan function has been programmed, you can
switch it ON or OFF as desired.)
2When you hear the dispatcher’s voice, readjust
the volume as necessary.

15
SYSTEM SCAN (Trunking Format)
If the Scan function is programmed, systems can be
scanned by pressing the key programmed as Scan.
When the Scan key is pressed, the SCN indicator and
“-SCAN-” or the revert system/ group number, appear on
the display and scanning starts. The systems not locked
out of the scanning sequence are scanned.
When a call is received, scanning stops and the system
and group digits appear. Press the PTT switch and
speak into the microphone to respond to the call. The
transceiver will continue scanning after a predetermined
time delay if the PTT switch is released and no further
signal is received.
■Scanning Trunked Systems
When scanning trunked systems, the revert groups
and the groups not locked out of the scanning
sequence are scanned. See “GROUP SCAN” on
page 17.
■Scanning Conventional Systems
When scanning conventional systems, the revert
groups and the groups not locked out of the scanning
sequence are scanned. See “GROUP SCAN” on
page 17.
