Kenwood TK-2200L User manual

INSTRUCTION MANUAL
© B62-1978-00 (K, K2, K3)
09 08 07 06 05 04 03 02 01 00
VHF FM TRANSCEIVER
TK-2200L
UHF FM TRANSCEIVER
TK-3200L

Thank You
We are grateful for your purchase of this KENWOOD product
and welcome you to the Business Radio Service (BRS).
Your KENWOOD 2-way Business Radio is called a “transceiver”,
meaning “transmitter & receiver”. We believe this easy-to-
use transceiver will provide you with dependable and reliable
communications. This KENWOOD transceiver is a precision
device. Treat it with care, and you will enjoy years of reliable
operation.
Models Covered bY This Manual
TK-2200L (K): 2-channel VHF FM Transceiver
TK-3200L (K): 2-channel UHF FM Transceiver
TK-2200L (K2): 8-channel VHF FM Transceiver
TK-3200L (K2): 8-channel UHF FM Transceiver
TK-3200L (K3): 15-channel UHF FM Transceiver
FeaTures
• 2 channels (K), 8 channels (K2) or 15 channels (K3) with 27
VHF operating frequencies (TK-2200L) or 56 UHF operating
frequencies (TK-3200L) and 122 tone/ code settings for each
channel allowing you to ignore unwanted calls.
• Built in voice scrambler gives you complete privacy for your
conversations.
• Hands free operation when using an optional headset.
• Voice announcement lets you know which channel you
have selected and which settings you have made when
reassigning key functions and channel settings.

i
Operating COnditiOns
Open locations
(no obstructions)
Up to 6 miles
(approximately 9.6 km)
Residential areas
(near buildings)
Up to 1.5 miles
(approximately 2.4 km)
In steel/ concrete reinforced
buildings
Up to 250,000 square feet
(approximately 23,220 m2)
In high rises Up to 20 oors
Note: The listed ranges are based on eld testing and may vary with
your operating conditions and individual transceiver.
ATTENTION (U.S.A. Only):
The RBRC Recycle seal found on KENWOOD
lithium-ion (Li-ion) battery packs indicates
KENWOOD’s voluntary participation in an industry
program to collect and recycle Li-ion batteries after
their operating life has expired. The RBRC program
is an alternative to disposing Li-ion batteries with
your regular refuse or in municipal waste streams,
which is illegal in some areas.
For information on Li-ion battery recycling in your area, call (toll free)
1-800-8-BATTERY (1-800-822-8837).
KENWOOD’s involvement in this program is part of our commitment
to preserve our environment and conserve our natural resources.

ii
FCC LiCense inFOrmatiOn
Your KENWOOD transceiver operates on communications
frequencies which are subject to FCC (Federal Communications
Commission) Rules & Regulations. FCC Rules require that all
operators using Private Land Mobile radio frequencies obtain a
radio license before operating their equipment. Application for
license must be made on FCC form 601, schedules D and H,
and Remittance form 159
FAX: Forms can be obtained by fax from the FCC Fax-On-
Demand system. Call 1-202-418-0177 from your fax machine
and request document number 000601 for the form, schedules,
and instructions.
MAIL: Forms can be ordered by telephone, and will be sent to
you by rst class mail. Call the FCC Forms Hotline at
1-800-418-FORM (1-800-418-3676).
INTERNET: Form 601 and instructions can be downloaded from
the FCC Forms website at
http://www.fcc.gov/formpage.html
Before lling out your Form 601 application Technical Data
section, you must decide on which frequencies you will operate.
See the frequency charts on pages 24 and 25.
QUESTIONS? Call the FCC for license application questions at
1-888-CALL-FCC (1-888-225-5322).
ChanneL spaCing
The TK-2200L/ TK-3200L uses 12.5 kHz channel spacing as
per the FCC regulations. Transceivers using 12.5 kHz channel
spacing may not have optimal sound quality when used with
transceivers using 25 kHz channel spacing.

iii
One or more of the following statements may be
applicable:
FCC WARNING
This equipment generates or uses radio frequency energy. Changes
or modications to this equipment may cause harmful interference
unless the modications are expressly approved in the instruction
manual. The user could lose the authority to operate this equipment
if an unauthorized change or modication is made.
INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY
THE FCC
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can generate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
•Consult the dealer for technical assistance.
FCC REGULATIONS REGARDING THE USE OF THE
EMERGENCY CHANNEL
The communications must be for the purpose of soliciting or
rendering assistance to a traveler, or for communicating in an
emergency pertaining to the immediate safety of life or the immediate
protection of property.

iv
nOtiCes tO the User
◆ Government law prohibits the operation of unlicensed radio
transmitters within the territories under government control.
◆ Illegal operation is punishable by ne and/or imprisonment.
◆ Refer service to qualied technicians only.
Safety: It is important that the operator is aware of, and
understands, hazards common to the operation of any
transceiver.
preCaUtiOns
• Do not charge the transceiver and battery pack when they are wet.
• Ensure that there are no metallic items located between the
transceiver and the battery pack.
• Do not use options not specied by KENWOOD.
• If the die-cast chassis or other transceiver part is damaged, do not
touch the damaged parts.
• If a headset or headphone is connected to the transceiver, reduce
the transceiver volume. Pay attention to the volume level when
turning the squelch off.
• Do not place the microphone cable around your neck while near
machinery that may catch the cable.
• Do not place the transceiver on unstable surfaces.
• Ensure that the end of the antenna does not touch your eyes.
• When the transceiver is used for transmission for many hours, the
radiator and chassis will become hot. Do not touch these locations
when replacing the battery pack.
• Do not immerse the transceiver in water.
• Always switch the transceiver power off before installing optional
accessories.

v
Turn the transceiver power off in the following locations:
• In explosive atmospheres (inammable gas, dust particles,
metallic powders, grain powders, etc.).
• While taking on fuel or while parked at gasoline service stations.
• Near explosives or blasting sites.
• In aircrafts. (Any use of the transceiver must follow the
instructions and regulations provided by the airline crew.)
• Where restrictions or warnings are posted regarding the use of
radio devices, including but not limited to medical facilities.
• Near persons using pacemakers.
• Do not disassemble or modify the transceiver for any reason.
• Do not place the transceiver on or near airbag equipment while
the vehicle is running. When the airbag inates, the transceiver
may be ejected and strike the driver or passengers.
• Do not transmit while touching the antenna terminal or if
any metallic parts are exposed from the antenna covering.
Transmitting at such a time may result in a high-frequency burn.
• If an abnormal odor or smoke is detected coming from the
transceiver, switch the transceiver power off immediately,
remove the battery pack from the transceiver, and contact your
KENWOOD dealer.
• Use of the transceiver while you are driving may be against
trafc laws. Please check and observe the vehicle regulations
in your area.
• Do not expose the transceiver to extremely hot or cold
conditions.
• Do not carry the battery pack (or battery case) with metal
objects, as they may short the battery terminals.
• When operating the transceiver in areas where the air is dry, it
is easy to build up an electric charge (static electricity). When
using a earphone accessory in such conditions, it is possible for
the transceiver to send an electric shock through the earphone
and to your ear. We recommend you use only a speaker/
microphone in these conditions, to avoid electric shocks.

vi
CONTENTS
UNPACKING AND CHECKING EQUIPMENT .........................................................1
sUppLied aCCessOries .....................................................................................1
ORIENTATION.....................................................................................................3
PREPARATION ...................................................................................................4
Battery paCk preCaUtiOns ..............................................................................4
Charging the Battery paCk.............................................................................8
instaLLing/ remOving the Battery paCk ..........................................................10
instaLLing the antenna .................................................................................11
instaLLing the BeLt CLip................................................................................11
instaLLing the Cap Over the speaker/ miCrOphOne JaCks .................................12
instaLLing the OptiOnaL speaker/ miCrOphOne (Or headset) ..............................12
GETTING STARTED...........................................................................................13
VOICE OPERATED TRANSMISSION (VOX) ........................................................14
vOX gain ...................................................................................................14
vOX OperatiOn............................................................................................16
KEY FUNCTIONS ..............................................................................................17
side 1 key..................................................................................................17
side 2 key..................................................................................................17
BACKGROUND OPERATIONS............................................................................19
time-OUt timer (tOt)..................................................................................19
LOw Battery warning ..................................................................................19
QUiet taLk (Qt)/ digitaL QUiet taLk (dQt) ....................................................20
CHANNEL SETUP MODE...................................................................................21
ChanneL Operating FreQUenCies .....................................................................23
QUiet taLk (Qt)/ digitaL QUiet taLk (dQt) settings .......................................26
ChanneL COnFiramatiOn mOde........................................................................30
KEY ASSIGNMENT MODE.................................................................................31
CaLLing aLert .............................................................................................34
key LOCk ....................................................................................................34
sUper LOCk .................................................................................................34
mOnitOr/ sQUeLCh OFF..................................................................................35
sCan ..........................................................................................................35
sCramBLer..................................................................................................36
ALL RESET MODE ............................................................................................37
OPTIONAL ACCESSORIES ................................................................................38
TROUBLESHOOTING GUIDE..............................................................................39

1
UNPACKING AND CHECKING EQUIPMENT
Carefully unpack the transceiver. We recommend you identify
the items listed in the following table before discarding the
packing material. If any items are missing or have been
damaged during shipment, le a claim with the carrier
immediately.
Supplied AcceSSorieS
Item Part Number Quantity
Antenna TK-2200L T90-1036-XX 1
TK-3200L T90-1039-XX 1
Rapid battery charger (KSC-35) W08-0988-XX 1
AC adapter W08-0989-XX 1
Li-ion battery pack (KNB-45L) W09-1033-XX 1
Speaker/ microphone jack cap B09-0680-XX 1
Speaker/ microphone locking
bracket J19-5472-XX 1
Belt clip (KBH-10) J29-0713-XX 1
Screw set N99-2046-XX 1
Warranty card — 1
Instruction manual B62-1978-XX 1

2
Belt clip
(KBH-10)
Speaker/ microphone
jack cap
Screw setSpeaker/ microphone
locking bracket
Li-ion battery pack
(KNB-45L)
Rapid battery charger
(KSC-35)
AC adapter
Antenna (TK-2200L) Antenna (TK-3200L)

3
ORIENTATION
Antenna
LED indicator
Indicates the transceiver
status. Lights red while
transmitting, green while
receiving, and flashes
red while the battery
power is low while
transmitting.
PTT (Push to
Talk) switch
Press and hold,
then speak into
the microphone
to transmit.
Side 1 key
For key function,
refer to page 17.
Side 2 key
For key function,
refer to page 17.
Speaker/
microphone
jacks
Battery pack
(KNB-45L)
Channel selector
Rotate to change the
operating channel.
(For the “S” position
on TK-3200L (K3)
model, refer to page
13.)
Power switch/
Volume control
Turn clockwise to
switch the power ON
and counterclockwise
to switch the power
OFF. Rotate to adjust
the volume.

4
BAttery pAck precAutionS
Do not use battery packs or battery chargers not recommended
by KENWOOD.
◆Do not recharge the battery pack if it is already fully charged. Doing
so may cause the life of the battery pack to shorten or the battery
pack may be damaged.
◆After recharging the battery pack, disconnect it from the charger.
If the charger power is reset (turned ON after being turned OFF),
recharging will start again and the battery pack will become
overcharged.
◆Do not use the transceiver while charging the battery pack. We
recommend you switch the transceiver power OFF while charging is
taking place.
◆Do not charge the battery pack when the battery pack or transceiver
is wet, to avoid the risk of re or damage. Wipe the water from the
battery pack or transceiver using a dry cloth before charging.
◆ Do not short the battery terminals or dispose of the battery by re.
◆Never attempt to remove the casing from the battery pack.
Information concerning the Li-ion battery pack:
The battery pack includes ammable objects such as organic solvent.
Mishandling may cause the battery to rupture producing ames or
extreme heat, deteriorate, or cause other forms of damage to the
battery. Please observe the following prohibitive matters.
• Do not disassemble or reconstruct battery!
The battery pack has a safety function and protection circuit to
avoid danger. If they suffer serious damage, the battery may
generate heat or smoke, rupture, or burst into ame.
• Do not short-circuit the battery!
Do not join the + and – terminals using any form of metal (such
as a paper clip or wire). Do not carry or store the battery pack in
containers holding metal objects (such as wires, chain-necklace or
hairpins). If the battery pack is short-circuited, excessive current
will ow and the battery may generate heat or smoke, rupture, or
burst into ame. It will also cause metal objects to heat up.
PREPARATION

5
• Do not incinerate or apply heat to the battery!
If the insulator is melted, the gas release vent or safety function is
damaged, or the electrolyte is ignited, the battery may generate
heat or smoke, rupture, or burst into ame.
• Do not use or leave the battery near res, stoves, or other
heat generators (areas reaching over 80°C/ 176°F)!
If the polymer separator is melted due to high temperature, an
internal short-circuit may occur in the individual cells and the
battery may generate heat or smoke, rupture, or burst into ame.
• Do not immerse the battery in water or get it wet by other
means!
If the battery’s protection circuit is damaged, the battery may
charge at extreme current (or voltage) and an abnormal chemical
reaction may occur. The battery may generate heat or smoke,
rupture, or burst into ame.
• Do not charge the battery near res or under direct sunlight!
If the battery’s protection circuit is damaged, the battery may
charge at extreme current (or voltage) and an abnormal chemical
reaction may occur. The battery may generate heat or smoke,
rupture, or burst into ame.
• Use only the specied charger and observe charging
requirements!
If the battery is charged in unspecied conditions (under high
temperature over the regulated value, excessive high voltage or
current over regulated value, or with a remodeled charger), it may
overcharge or an abnormal chemical reaction may occur. The
battery may generate heat or smoke, rupture, or burst into ame.
• Do not pierce the battery with any object, strike it with an
instrument, or step on it!
This may break or deform the battery, causing a short-circuit. The
battery may generate heat or smoke, rupture, or burst into ame.
• Do not jar or throw the battery!
An impact may cause the battery to leak, generate heat or smoke,
rupture, and/or burst into ame. If the battery’s protection circuit
is damaged, the battery may charge at an abnormal current (or
voltage), and an abnormal chemical reaction may occur. The
battery may generate heat or smoke, rupture, or burst into ame.

6
• Do not use the battery pack if it is damaged in any way!
The battery may generate heat or smoke, rupture, or burst into
ame.
• Do not solder directly onto the battery!
If the insulator is melted or the gas release vent or safety function
is damaged, the battery may generate heat or smoke, rupture, or
burst into ame.
• Do not reverse the battery polarity (and terminals)!
When charging a reversed battery, an abnormal chemical reaction
may occur. In some cases, an unexpected large amount of
current may ow upon discharging. The battery may generate
heat or smoke, rupture, or burst into ame.
• Do not reverse-charge or reverse-connect the battery!
The battery pack has positive and negative poles. If the battery
pack does not smoothly connect with a charger or operating
equipment, do not force it; check the polarity of the battery. If
the battery pack is reverse-connected to the charger, it will be
reverse-charged and an abnormal chemical reaction may occur.
The battery may generate heat or smoke, rupture, or burst into
ame.
• Do not touch a ruptured and leaking battery!
If the electrolyte liquid from the battery gets into your eyes, wash
your eyes out with fresh water as soon as possible, without
rubbing your eyes. Go to the hospital immediately. If left
untreated, it may cause eye-problems.
• Do not charge the battery for longer than the specied time!
If the battery pack has not nished charging even after the
regulated time has passed, stop it. The battery may generate
heat or smoke, rupture, or burst into ame.
• Do not place the battery pack into a microwave or high
pressure container!
The battery may generate heat or smoke, rupture, or burst into
ame.

7
• Keep ruptured and leaking battery packs away from re!
If the battery pack is leaking (or the battery emits a bad odor),
immediately remove it from ammable areas. Electrolyte leaking
from battery can easily catch on re and may cause the battery to
generate smoke or burst into ame.
• Do not use an abnormal battery!
If the battery pack emits a bad odor, appears to have different
coloring, is deformed, or seems abnormal for any other reason,
remove it from the charger or operating equipment and do not
use it. The battery may generate heat or smoke, rupture, or burst
into ame.
■Using the Li-ion Battery Pack
• Charge the battery pack before using it.
• To keep the battery discharge at a minimum, remove the
battery pack from the equipment when it is not in use. Store
the battery pack in a cool and dry location.
• When storing the battery pack for a long period:
1Remove the battery pack from the equipment.
2Discharge the battery pack, if possible.
3Store the battery pack in a cool (below 25°C/ 77°F) and dry
location.
■Characteristics of the Li-ion Battery Pack
• As the battery pack is charged and discharged repeatedly, the
battery capacity decreases.
• Even if the battery pack is unused, the battery pack degrades.
• It takes a longer time to charge the battery pack in cooler
areas.
• The life of battery pack is shortened when it is charged and
discharged in hotter areas. When the battery pack is stored in
a hot location, the battery pack degrades quicker. Do not leave
the battery pack in vehicles or near heating appliances.
• When the battery pack operating time becomes short, even
if it is fully charged, replace the battery pack. Continuing to
charge and discharge the battery pack may result in electrolyte
leakage.

8

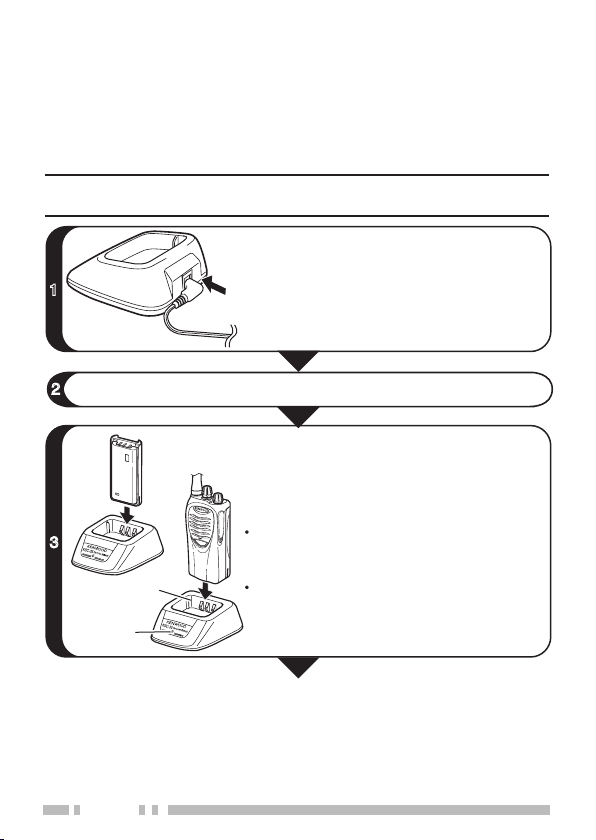

chArging the BAttery pAck
The battery pack is not charged at the factory; charge it before
use.
Average battery pack life (calculated using 5% transmit time, 5%
receive time, and 90% standby time) is 17 hours.
ATTENTION: Always switch OFF a transceiver equipped with a
battery pack before inserting the transceiver into the charger.
3
2
1
Plug the AC adapter cable into the
jack located on the rear of the
charger.
Plug the AC adapter into an AC outlet.
Slide a battery pack or a transceiver
equipped with a battery pack into the
charging slot of the charger.
Make sure the metal contacts of the
battery pack mate securely with the
charger terminals.
The charger LED lights red and
charging begins.
Charging
slot
Indicator

9
Note:
◆When the indicator blinks red, the battery pack is either defective
or the battery pack contacts are not properly mated with those of
the charger.
◆The ambient temperature should be between 41°F and 104°F (5
°C and 40°C) while charging is in progress. Charging outside this
range may not fully charge the battery.
◆The battery pack life is over when its operating time decreases
even though it is fully and correctly charged. Replace the battery
pack.
4
When charging is completed, the indicator lights green.
Remove the battery pack or the transceiver from the
charging slot of the charger.
It takes approximately 3 hours to charge the battery pack.
When the charger will not be used for a long time, unplug the
AC adapter from the AC outlet.

10

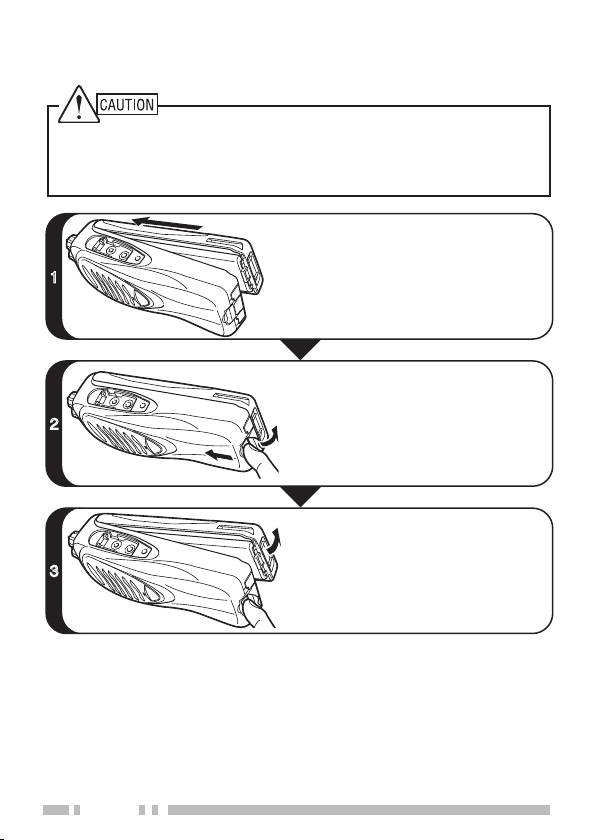

inStAlling/ removing the BAttery pAck
◆Do not short the battery terminals.
◆ Do not dispose of the battery by re.
◆Never attempt to remove the casing from the battery pack.
1
2
3
Align the battery pack with the
back of the transceiver, then
press the battery pack and
transceiver firmly together until
the release latch on the base of
the transceiver locks.
To remove the battery pack, lift
the safety catch on the base of
the transceiver, then press the
release latch underneath the
safety catch.
While pressing the release
latch, pull the battery pack
away from the transceiver.

11
inStAlling the AntennA
inStAlling the Belt clip
Do not use glue which is designed to prevent screw loosening when
installing the belt clip, as it may cause damage to the transceiver.
Acrylic ester, which is contained in these glues, may crack the
transceiver’s back panel.

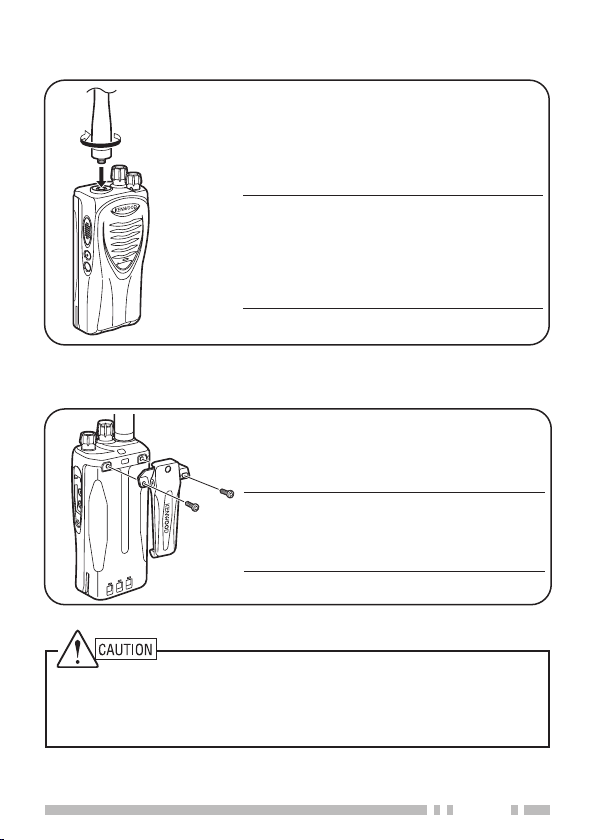

Screw the antenna into the connector
on the top of the transceiver by
holding the antenna at its base and
turning it clockwise until secure.
Note: The antenna is neither a handle,
a key ring retainer, nor a speaker/
microphone attachment point. Using the
antenna in these ways may damage the
antenna and degrade your transceiver's
performance.
If necessary, attach the belt clip using
the two supplied 3 x 8 mm screws.
Note: If the belt clip is not installed, its
mounting location may get hot during
continuous transmission or when left
sitting in a hot environment.

12
inStAlling the cAp over the SpeAker/ microphone JAckS
inStAlling the optionAl SpeAker/ microphone (or heAdSet)
If you are not using a speaker/
microphone, install the cover over
the speaker/ microphone jacks
using the supplied 3 x 6 mm screw.
Note: To keep the transceiver
water resistant, you must cover the
speaker/ microphone jacks with the
supplied cover.
2
1
2
Attach the locking bracket using
the supplied 3 x 6 mm screw.
Note: The transceiver is not fully
water resistant while using the
speaker/ microphone.
Insert the speaker/ microphone
(or headset) plugs into the speaker/
microphone jacks.
Note: Always switch OFF the
transceiver power when installing
or removing a speaker/ microphone
or headset.
