Kenwood TK-3230DX User manual

UHF FM TRANSCEIVER
INSTRUCTION MANUAL
TK-3230DX
B5A-1297-00 (K)

2
CONTENTS
FEATURES....................................................................... 4
OPERATING CONDITIONS.....................................................................4
NOTICES TO THE USER ....................................................... 5
FCC LICENSE INFORMATION................................................................6
PRECAUTIONS......................................................................................7
UNPACKING AND CHECKING EQUIPMENT ................................12
SUPPLIED ACCESSORIES...................................................................12
PREPARATION.................................................................12
INSTALLING/ REMOVING THE BATTERY PACK ..................................12
CHARGING THE BATTERY PACK.........................................................13
INSTALLING THE BELT CLIP...............................................................14
INSTALLING THE OPTIONAL SPEAKER/ MICROPHONE
(OR HEADSET)....................................................................................14
ORIENTATION..................................................................15
DISPLAY .............................................................................................16
BASIC OPERATION............................................................17
QUIET TALK/ DIGITAL QUIET TALK .........................................18
PRIVACY TALK.................................................................21
TRANSMIT POWER ...........................................................21
COMPANDER ..................................................................22
MONITOR.......................................................................22
LOCK FUNCTION ..............................................................23
KEY LOCK ..........................................................................................23
SUPER LOCK ......................................................................................23
SETTING MODE................................................................24
CHANNEL FREQUENCY SETUP..............................................26
SCAN............................................................................27
REVERT CHANNEL..............................................................................28
THANK YOU
We are grateful for your purchase of this KENWOOD product
and welcome you to the Business Radio Service (BRS).

3
SQUELCH LEVEL ..............................................................28
VOICE OPERATED TRANSMISSION (VOX).................................29
VOX OPERATION.................................................................................29
VOX Gain Level.................................................................................29
VOX Delay Time................................................................................30
Transmit Inhibit While Receiving......................................................30
VOX Proceed Tone............................................................................31
FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTION ................32
CALL KEY SETUP................................................................................32
CALL ALERT TONE..............................................................................33
Call Alert Side Tone ..........................................................................33
SELCALL (SELECTIVE CALLING)........................................................34
Making a Selcall ...............................................................................36
Receiving a Selcall............................................................................37
Data Transmit Modulation Delay Time..............................................38
PTT ID..............................................................................................38
PTT ID Side Tone..............................................................................39
Mute Hold Time................................................................................39
Caller ID Display...............................................................................40
BACKGROUND OPERATIONS ................................................40
DISPLAY BACKLIGHT .........................................................................40
MIC SENSE .........................................................................................41
TIME-OUT TIMER ...............................................................................41
BATTERY SAVER.................................................................................42
BATTERY LEVEL INDICATOR ..............................................................43
INCOMING CALL NOTIFICATION.........................................................44
BUSY CHANNEL LOCKOUT (BCL).......................................................44
BEEP TONE .........................................................................................45
MODE RESET TIMER ..........................................................................45
SELECTABLE POWER ON TONE..........................................................46
RESETTING THE TRANSCEIVER.............................................46
TROUBLESHOOTING GUIDE .................................................47
SPECIFICATIONS ..............................................................48

4
FEATURES
• Lightweight and compact design using a lithium-ion battery pack,
with a sturdy, polycarbonate body and a spring-loaded belt clip.
• 219 tone/code settings for each channel, allowing you to ignore
unwanted calls.
• Privacy Talk scrambles all your voice messages, giving you
complete privacy for your conversations.
• FleetSync operation, allowing a variety of call types.
• Automatic battery power saver, providing you with longer battery
usage.
• Battery power level indicator with low battery power warning.
• Key lock and Super Lock prevent you from accidentally changing
your transceiver settings.
• Ten different calling alert tones allows you to identify yourself to your
group before you begin speaking.
• Hands free operation when using an optional headset.
• Selectable Power ON Tone.
OPERATING CONDITIONS
Open locations (no obstructions) Up to 5 miles (8 km)
Residential areas (near buildings) Up to 1.5 miles (2.4 km)
In steel/ concrete reinforced buildings Up to 225,000 ft2(20,900 m2)
In high rises Up to 17 floors
Note:
◆The listed ranges are based on field testing and may vary with your
operating conditions.
Firmware Copyrights
The title to and ownership of copyrights for firmware embedded in KENWOOD
product memories are reserved for JVC KENWOOD Corporation.

5
NOTICES TO THE USER
◆Refer service to qualified technicians only.
Safety: It is important that the operator is aware of, and
understands, hazards common to the operation of any
transceiver.
One or more of the following statements may be applicable:
FCC WARNING
This equipment generates or uses radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless
the modifications are expressly approved by the party responsible/
JVC KENWOOD. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE
FCC
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can generate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that the interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer for technical assistance.

6
FCC LICENSE INFORMATION
Your KENWOOD transceiver operates on communications
frequencies which are subject to FCC (Federal
Communications Commission) Rules & Regulations. FCC
Rules require that all operators using Private Land Mobile
radio frequencies obtain a radio license before operating their
equipment. Application for license must be made on FCC form
601, schedules D and H, and Remittance form 159.
FAX: Forms can be obtained by fax from the FCC Fax-On-
Demand system. Call 1-202-418-0177 from your fax machine
and request document number 000601 for the form, schedules,
and instructions.
MAIL: Forms can be ordered by telephone, and will be sent to
you by first class mail. Call the FCC Forms Hotline at 1-800-
418-FORM (1-800-418-3676).
INTERNET: Form 601 and instructions can be downloaded
from the FCC Forms website at
http://www.fcc.gov/formpage.html
Before filling out your Form 601 application Technical Data
section, you must decide on which frequencies you will operate.
See the frequency charts on page 26.
QUESTIONS? Call the FCC for license application questions at
1-888-CALL-FCC (1-888-225-5322).
ATTENTION:
The RBRC Recycle seal found on KENWOOD
lithium-ion (Li-ion) battery packs indicates
KENWOOD’s voluntary participation in an
industry program to collect and recycle
Li-ion batteries after their operating life has
expired. The RBRC program is an alternative
to disposing Li-ion batteries with your regular
refuse or in municipal waste streams, which is
illegal in some areas.
For information on Li-ion battery recycling in your area, call (toll free)
1-800-8-BATTERY (1-800-822-8837).
KENWOOD’s involvement in this program is part of our commitment to
preserve our environment and conserve our natural resources.

7
PRECAUTIONS
• Do not charge the transceiver and battery pack when they are wet.
• Ensure that there are no metallic items located between the
transceiver and the battery pack.
• Do not use options not specified by KENWOOD.
• If the die-cast chassis or other transceiver part is damaged, do not
touch the damaged parts.
• If a headset or headphone is connected to the transceiver, reduce
the transceiver volume. Pay attention to the volume level when
turning the squelch off.
• Do not place the microphone cable around your neck while near
machinery that may catch the cable.
• Do not place the transceiver on unstable surfaces.
• Ensure that the end of the antenna does not touch your eyes.
• When the transceiver is used for long transmissions, the radiator
and chassis will become hot. Do not touch these locations when
replacing the battery pack.
• Do not immerse the transceiver in water.
• Always switch the transceiver power off before installing optional
accessories.
• To dispose of batteries, be sure to comply with the laws and
regulations in your country or region.
WARNING
Turn the transceiver power off in the following locations:
• In explosive atmospheres (inflammable gas, dust particles,
metallic powders, grain powders, etc.).
• While taking on fuel or while parked at gasoline service stations.
• Near explosives or blasting sites.
• In aircraft. (Any use of the transceiver must follow the
instructions and regulations provided by the airline crew.)
• Where restrictions or warnings are posted regarding the use of
radio devices, including but not limited to medical facilities.
• Near persons using pacemakers.

8
CAUTION
• Do not disassemble or modify the transceiver for any reason.
• Do not place the transceiver on or near airbag equipment while
the vehicle is running. When the airbag inflates, the transceiver
may be ejected and strike the driver or passengers.
• If an abnormal odor or smoke is detected coming from the
transceiver, switch the transceiver power off immediately,
remove the battery pack from the transceiver, and contact your
KENWOOD dealer.
• Use of the transceiver while you are driving may be against traffic
laws. Please check and observe the vehicle regulations in your
area.
• Do not expose the transceiver to extremely hot or cold
conditions.
• Do not carry the battery pack with metal objects, as they may
short the battery terminals.
• Danger of explosion if the battery is incorrectly replaced; replace
only with the same type.
• When attaching a commercial strap to the transceiver, ensure
that the strap is durable. In addition, do not swing the transceiver
around by the strap; you may inadvertently strike and injure
another person with the transceiver.
• If a commercially available neck strap is used, take care not to
let the strap get caught on nearby machine.
• When operating the transceiver in areas where the air is dry, it is
easy to build up an electric charge (static electricity). When using
an earphone accessory in such conditions, it is possible for the
transceiver to send an electric shock through the earphone and
to your ear. We recommend you use only a speaker/microphone
in these conditions, to avoid electric shocks.
• Do not expose the transceiver to long periods of direct sunlight,
nor place it near heating appliances.

9
Information concerning the battery pack:
The battery pack includes flammable objects such as organic
solvent. Mishandling may cause the battery to rupture
producing flames or extreme heat, deteriorate, or cause other
forms of damage to the battery. Please observe the following
prohibitive matters.
DANGER
• Do not disassemble or reconstruct battery!
The battery pack has a safety function and protection circuit to avoid
danger. If they suffer serious damage, the battery may generate heat
or smoke, rupture, or burst into flame.
• Do not short-circuit the battery!
Do not join the + and – terminals using any form of metal (such as a
paper clip or wire). Do not carry or store the battery pack in containers
holding metal objects (such as wires, chain-necklaces or hairpins). If
the battery pack is short-circuited, excessive current will flow and the
battery may generate heat or smoke, rupture, or burst into flame. It will
also cause metal objects to heat up.
• Do not incinerate or apply heat to the battery!
If the insulator is melted, the gas release vent or safety function is
damaged, or the electrolyte is ignited, the battery may generate heat
or smoke, rupture, or burst into flame.
• Do not leave the battery near fire, stoves, or other heat
generators (areas reaching over 80°C/ 176°F)!
If the polymer separator is melted due to high temperature, an
internal short-circuit may occur in the individual cells and the battery
may generate heat or smoke, rupture, or burst into flame.
• Do not immerse the battery in water or get it wet by other
means!
If the battery’s protection circuit is damaged, the battery may charge
at extreme current (or voltage) and an abnormal chemical reaction
may occur. The battery may generate heat or smoke, rupture, or
burst into flame.
• Do not charge the battery near fire or under direct sunlight!
If the battery’s protection circuit is damaged, the battery may charge
at extreme current (or voltage) and an abnormal chemical reaction
may occur. The battery may generate heat or smoke, rupture, or
burst into flame.

10
DANGER
• Use only the specified charger and observe charging
requirements!
If the battery is charged in unspecified conditions (under high
temperature over the regulated value, excessive high voltage or
current over regulated value, or with a remodeled charger), it may
overcharge or an abnormal chemical reaction may occur. The battery
may generate heat or smoke, rupture, or burst into flame.
• Do not pierce the battery with any object, strike it with an
instrument, or step on it!
This may break or deform the battery, causing a short-circuit. The
battery may generate heat or smoke, rupture, or burst into flame.
• Do not jar or throw the battery!
An impact may cause the battery to leak, generate heat or smoke,
rupture, and/or burst into flame. If the battery’s protection circuit
is damaged, the battery may charge at an abnormal current (or
voltage), and an abnormal chemical reaction may occur. The battery
may generate heat or smoke, rupture, or burst into flame.
• Do not use the battery pack if it is damaged in any way!
The battery may generate heat or smoke, rupture, or burst into
flame.
• Do not solder directly onto the battery!
If the insulator is melted or the gas release vent or safety function is
damaged, the battery may generate heat or smoke, rupture, or burst
into flame.
• Do not reverse the battery polarity (and terminals)!
When charging a reversed battery, an abnormal chemical reaction
may occur. In some cases, an unexpected large amount of current
may flow upon discharging. The battery may generate heat or
smoke, rupture, or burst into flame.
• Do not reverse-charge or reverse-connect the battery!
The battery pack has positive and negative poles. If the battery pack
does not smoothly connect with a charger or operating equipment,
do not force it; check the polarity of the battery. If the battery pack is
reverse-connected to the charger, it will be reverse-charged and an
abnormal chemical reaction may occur. The battery may generate
heat or smoke, rupture, or burst into flame.

11
DANGER
• Do not touch a ruptured and leaking battery!
If the electrolyte liquid from the battery gets into your eyes, wash
your eyes with fresh water as soon as possible, without rubbing your
eyes. Go to the hospital immediately. If left untreated, it may cause
eye-problems.
WARNING
• Do not charge the battery for longer than the specified time!
If the battery pack has not finished charging even after the regulated
time has passed, stop it. The battery may generate heat or smoke,
rupture, or burst into flame.
• Do not place the battery pack into a microwave or high
pressure container!
The battery may generate heat or smoke, rupture, or burst into
flame.
• Keep ruptured and leaking battery packs away from fire!
If the battery pack is leaking (or the battery emits a bad odor),
immediately remove it from flammable areas. Electrolyte leaking
from battery can easily catch on fire and may cause the battery to
generate smoke or burst into flame.
• Do not use an abnormal battery!
If the battery pack emits a bad odor, appears to have different
coloring, is deformed, or seems abnormal for any other reason,
remove it from the charger or operating equipment and do not use
it. The battery may generate heat or smoke, rupture, or burst into
flame.

12
UNPACKING AND CHECKING EQUIPMENT
Carefully unpack the transceiver. If any of the items listed
below are missing or damaged, file a claim with the carrier
immediately.
SUPPLIED ACCESSORIES
• Battery charger/ AC adapter (KSC-37S) ................................1
• Li-ion Battery pack (KNB-46L)................................................1
• Belt clip (KBH-14)...................................................................1
• Screw (M3 x 8 mm) ................................................................2
• Warranty card .........................................................................1
• Instruction manual ..................................................................1
PREPARATION
INSTALLING/ REMOVING THE BATTERY PACK
CAUTION
◆Do not short the battery terminals or dispose of the battery by
fire.
◆Never attempt to remove the casing from the battery pack.
1Match the guides of the
battery pack with the
corresponding grooves on the
upper rear of the transceiver,
then firmly press the battery
pack to lock it in place.
2To remove the battery pack, lift
the safety catch on the base
of the transceiver, then press
the release latch underneath
the safety catch.

13
CHARGING THE BATTERY PACK
The battery pack is not charged at the factory; charge it before
use.
Average battery pack life:
Battery Saver on: 18 hours
Battery Saver off: 14 hours
• Average times are calculated using 5% transmit time, 5% receive
time, and 90% standby time.
ATTENTION:
◆Always switch OFF a transceiver equipped with a battery pack
before inserting the transceiver into the charger.
1Plug the AC adapter cable into the jack located on the rear
of the charger.
2Plug the AC adapter into an AC outlet.
3Slide a battery pack or a transceiver equipped with a battery
pack into the charging slot of the charger.
• Make sure the metal contacts of the battery pack mate securely
with the charger metal terminals.
• The indicator lights red and charging begins.
Indicator
Charger metal
terminals
4When charging is completed, the indicator flashing green.
Remove the battery pack or the transceiver from the
charging slot of the charger.
• It takes approximately 2.5 hours to charge the battery pack.
• When the charger will not be used for a long time, unplug the AC
adapter from the AC outlet.
Note:
◆When the indicator blinks red, the battery pack is either defective or
the battery pack contacts are not properly mated with those of the
charger.

14
◆The ambient temperature should be between 41°F and 104°F (5°C
and 40°C) while charging is in progress. Charging outside this range
may not fully charge the battery.
◆The battery pack life is over when its operating time decreases even
though it is fully and correctly charged. Replace the battery pack.
INSTALLING THE BELT CLIP
If necessary, attach the belt clip
using the two supplied M3 x 8 mm
screws.
INSTALLING THE OPTIONAL SPEAKER/ MICROPHONE (OR
HEADSET)
1Open the SP/MIC tabs on the side of
the transceiver.
2Insert the accessory’s plugs into the
SP/MIC jacks.
3When you remove the accessory
from the transceiver, be sure to
cover the SP/MIC jacks with the
attached tabs, in order to keep dust
and dirt away from the contacts.

15

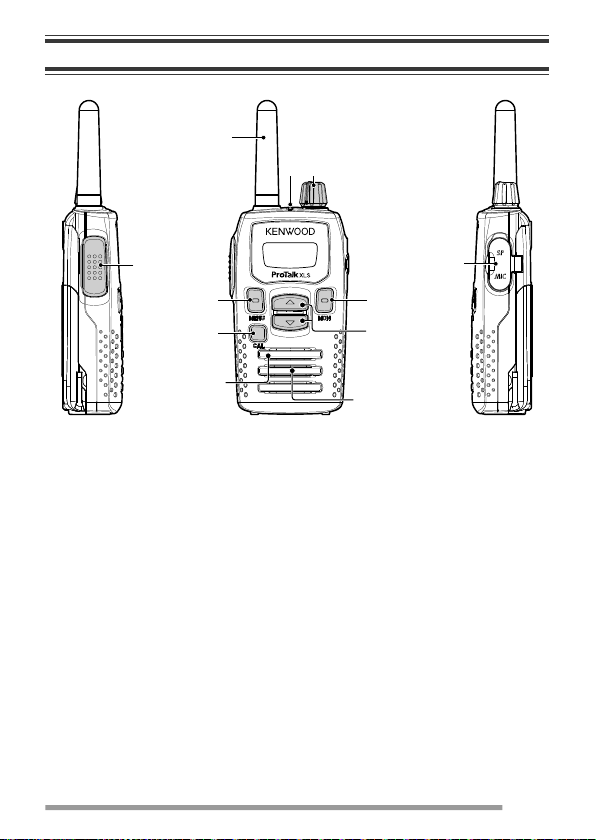

ORIENTATION
df
e
b a
h
c
g
Microphone
Speaker
Antenna
aPower switch/ Volume control
Turn clockwise to switch ON the transceiver. To switch OFF
the transceiver, turn counterclockwise until a click sounds.
Rotate to adjust the volume level.
bLED indicator
Indicates the transceiver status.
cPTT (Push to Talk) switch
Press and hold, then speak into the microphone to transmit.
dMENU key
Press to perform various functions. Press and hold while
switching the power ON to enter Setting Mode.
eCAL key
Press before making a call to alert the other party members,
or press to select a unit ID to make a call.
fMON key
Press to monitor the current channel for activity.

16
g/ keys
Press to change the operating channel, to select a menu in
Setting Mode, and to perform other functions.
hSP/MIC jacks
Insert the speaker/ microphone or headset plug into this jack.
DISPLAY
Icon Description
Appears when VOX is activated.
Appears when using low transmit power.
Appears when the channel is set up with a DQT
code.
Appears when making or receiving a selcall.
Displays the approximate battery power
remaining. Blinks when the battery power is
low, while transmitting.
Appears when Privacy Talk is activated.
Appears when the Caller’s ID is displayed.
Displays the channel number along with its
QT/DQT setting (if any). Also displays various
menus and menu settings.
Appears when compander is activated.
Appears while monitoring a channel.
Appears when the transceiver keys have been
locked.

17
BASIC OPERATION
Switch the Power ON
Switch the transceiver power ON by turning the
Power switch/ Volume control clockwise.
• A confirmation tone sounds, the LCD lights up
momentarily, then the current channel number is
displayed.
To switch the transceiver power OFF, turn
the Power switch/ Volume control fully
counterclockwise, until a click sounds.
Adjust the Volume
Set your desired volume level by rotating the
Power switch/ Volume control.
• Clockwise increases the volume and counterclockwise
decreases the volume.
Note:
◆To adjust the volume using background noise as a
reference, use the Monitor function {page 22}.
Select a Channel
Select a channel by pressing the or key.
• A confirmation tone sounds each time you press the
or key.
• When you receive a call on your selected channel, you
will hear audio from the speaker and the LED will light
green.
• To use a signaling code, refer to “QUIET TALK/
DIGITAL QUIET TALK” {page 18}.

18

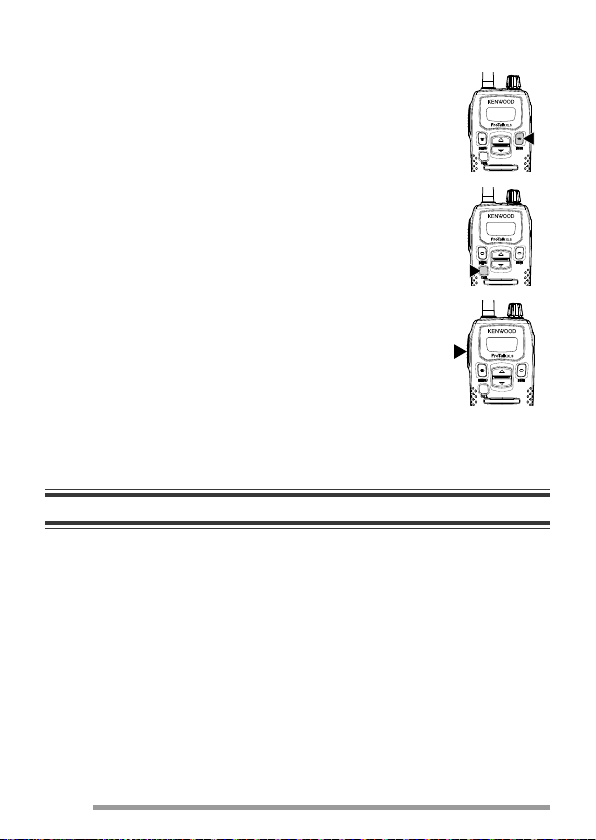

Make a Call
1Press the MON key to make sure the channel is
not in use {page 22}.
2Press and release the CAL key to alert the
other parties that you are beginning a call.
• A call alert tone will sound on the other party’s
transceiver.
3Press and hold the PTT switch, then speak into
the speaker area to transmit.
• The LED lights red while transmitting.
• For best sound quality, speak into the speaker
area in your normal speaking voice while holding
the transceiver approximately 1.5 inches (3 to 4
cm) from your mouth.
4Release the PTT switch when you have finished
speaking.
QUIET TALK/ DIGITAL QUIET TALK
QT (Quiet Talk) and DQT (Digital Quiet Talk) are functions
that reject signals from undesired parties that are using the
same channel as you. You will hear audio from the speaker
only when you receive a signal that contains a tone or code
matching the one set up on the channel you are using.
Likewise, when you transmit on a channel set up with QT or
DQT, the receiving station must have a matching tone or code
in order to hear your signal.
You can select a tone or code for each channel. There are 45
QT tones and 174 DQT codes. After changing the QT/ DQT
setting, confirm that the other members in your group have
selected the same tone or code.

19
QT
No.
QT Frq.
QT
No.
QT Frq.
QT
No.
QT Frq.
QT
No.
QT Frq.
167.0 Hz 13 103.5 Hz 25 156.7 Hz 37 241.8 Hz
271.9 Hz 14 107.2 Hz 26 162.2 Hz 38 250.3 Hz
374.4 Hz 15 110.9 Hz 27 167.9 Hz 39 69.3 Hz
477.0 Hz 16 114.8 Hz 28 173.8 Hz 40 67.0 Hz
579.7 Hz 17 118.8 Hz 29 179.9 Hz 41 67.0 Hz
682.5 Hz 18 123.0 Hz 30 186.2 Hz 42 67.0 Hz
785.4 Hz 19 127.3 Hz 31 192.8 Hz 43 67.0 Hz
888.5 Hz 20 131.8 Hz 32 203.5 Hz 44 67.0 Hz
991.5 Hz 21 136.5 Hz 33 210.7 Hz 45 67.0 Hz
10 94.8 Hz 22 141.3 Hz 34 218.1 Hz oF OFF
11 97.4 Hz 23 146.2 Hz 35 225.7 Hz
12 100.0 Hz 24 151.4 Hz 36 233.6 Hz
DQT
No.
DQT
Code DQT
No.
DQT
Code DQT
No.
DQT
Code DQT
No.
DQT
Code DQT
No.
DQT
Code
1D023N 21 D134N 41 D306N 61 D503N 81 D734N
2D025N 22 D143N 42 D311N 62 D506N 82 D743N
3D026N 23 D152N 43 D315N 63 D516N 83 D754N
4D031N 24 D155N 44 D331N 64 D532N 84 D645N
5D032N 25 D156N 45 D343N 65 D546N 85 D023I
6D043N 26 D162N 46 D346N 66 D565N 86 D025I
7D047N 27 D165N 47 D351N 67 D606N 87 D026I
8D051N 28 D172N 48 D364N 68 D612N 88 D031I
9D054N 29 D174N 49 D365N 69 D624N 89 D032I
10 D065N 30 D205N 50 D371N 70 D627N 90 D043I
11 D071N 31 D223N 51 D411N 71 D631N 91 D047I
12 D072N 32 D226N 52 D412N 72 D632N 92 D051I
13 D073N 33 D243N 53 D413N 73 D654N 93 D054I
14 D074N 34 D244N 54 D423N 74 D662N 94 D065I
15 D114N 35 D245N 55 D431N 75 D664N 95 D071I
16 D115N 36 D251N 56 D432N 76 D703N 96 D072I
17 D116N 37 D261N 57 D445N 77 D712N 97 D073I
18 D125N 38 D263N 58 D464N 78 D723N 98 D074I
19 D131N 39 D265N 59 D465N 79 D731N 99 D114I
20 D132N 40 D271N 60 D466N 80 D732N 100 (A0) D115I

20
DQT
No.
DQT
Code DQT
No.
DQT
Code DQT
No.
DQT
Code DQT
No.
DQT
Code DQT
No.
DQT
Code
101 (A1) D116I 116 (b6) D226I 131 (d1) D351I 146 (E6) D506I 161 (G1) D712I
102 (A2) D125I 117 (b7) D243I 132 (d2) D364I 147 (E7) D516I 162 (G2) D723I
103 (A3) D131I 118 (b8) D244I 133 (d3) D365I 148 (E8) D532I 163 (G3) D731I
104 (A4) D132I 119 (b9) D245I 134 (d4) D371I 149 (E9) D546I 164 (G4) D732I
105 (A5) D134I 120 (C0) D251I 135 (d5) D411I 150 (F0) D565I 165 (G5) D734I
106 (A6) D143I 121 (C1) D261I 136 (d6) D412I 151 (F1) D606I 166 (G6) D743I
107 (A7) D152I 122 (C2) D263I 137 (d7) D413I 152 (F2) D612I 167 (G7) D754I
108 (A8) D155I 123 (C3) D265I 138 (d8) D423I 153 (F3) D624I 168 (G8) D645I
109 (A9) D156I 124 (C4) D271I 139 (d9) D431I 154 (F4) D627I 169 (G9) D023N
110 (b0) D162I 125 (C5) D306I 140 (E0) D432I 155 (F5) D631I 170 (H0) D023N
111 (b1) D165I 126 (C6) D311I 141 (E1) D445I 156 (F6) D632I 171 (H1) D023N
112 (b2) D172I 127 (C7) D315I 142 (E2) D464I 157 (F7) D654I 172 (H2) D023N
113 (b3) D174I 128 (C8) D331I 143 (E3) D465I 158 (F8) D662I 173 (H3) D023N
114 (b4) D205I 129 (C9) D343I 144 (E4) D466I 159 (F9) D664I 174 (H4) D023N
115 (b5) D223I 130 (d0) D346I 145 (E5) D503I 160 (G0) D703I oF OFF

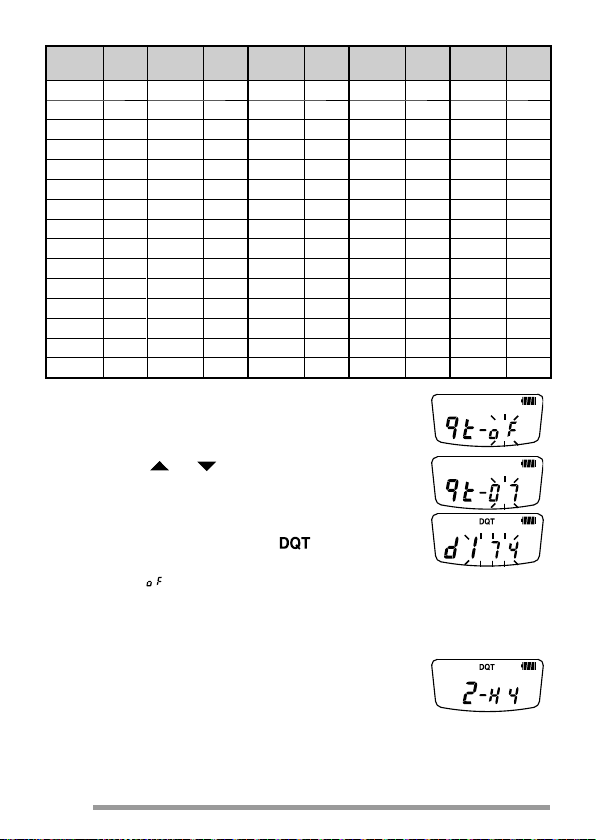

1Press the MENU key.
• The current setting blinks.
2Press the or key to select your desired
value.
• The values range from 1 to 45 for QT tones,
then proceed to 1 to 174 for DQT codes. When
selecting a DQT code, the icon appears
on the display.
• Select “ ” to turn off both QT and DQT.
3Press the MENU key 4 times, or press the PTT, MON, or
CAL key or wait for mode reset timer to elapse {page 45} to
confirm the selection and return to operating mode.
• In channel display, if DQT No. is 100 or more,
the first 2 digits will be replaced by alphabet.
