Kenwood TK-3601D-E User manual

USER GUIDE
GUIDE DE L'UTILISATEUR
GUÍA DEL USUARIO
GUIDA PER L'UTENTE
BENUTZERHANDBUCH
GEBRUIKERSHANDLEIDING
KULLANICI REHBERI
ΟΔΗΓΟΣ ΧΡΗΣΤΗ
GUIA DO UTILIZADOR
TK-3601D
B5A-2555-10/01 (E)

The AMBE+2TM voice coding Technology embodied in this
product is protected by intellectual property rights including
patent rights, copyrights and trade secrets of Digital Voice
Systems, Inc. This voice coding Technology is licensed
solely for use within this Communications Equipment.
The user of this Technology is explicitly prohibited from
attempting to extract, remove, decompile, reverse engineer,
or disassemble the Object Code, or in any other way convert
the Object Code into a human-readable form. U.S. Patent
Nos. #8,315,860, #8,595,002, #6,912,495, #8,200,497,
#7,970,606, and #8,359,197.
USER GUIDE
UHF DIGITAL TRANSCEIVER
TK-3601D

2
THANK YOU
We are grateful you have chosen KENWOOD for your dPMR446
applications.
CONTENTS
PRECAUTIONS............................................................ 4
UNPACKING AND CHECKING EQUIPMENT............................ 7
PREPARATION ............................................................ 8
ORIENTATION ............................................................12

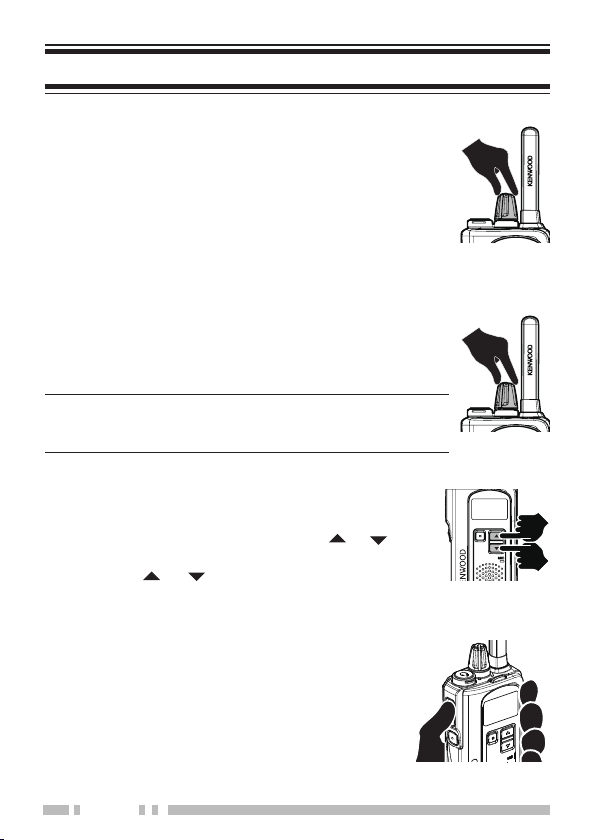

BASIC OPERATION ......................................................14
CHANNEL LIST...........................................................15

3
Firmware Copyrights
The title to and ownership of copyrights for firmware embedded in
KENWOOD product memories are reserved for JVCKENWOOD
Corporation.
OPERATING CONDITIONS
Open locations (no obstructions) : Up to 9.0 km
Residential areas (near buildings) : Up to 2.7 km
Note:
◆The above range is based on field testing and may vary with your operating
conditions.
NOTICES TO THE USER
Refer service to qualified technicians only.
Safety: It is important that the operator is aware of, and understands,
hazards common to the operation of any transceiver.
This equipment complies with the essential requirements of directive
2014/53/EU.
Information on disposal of old Electrical and electronic equipment and
batteries (applicable for countries that have adopted separate waste
collection systems)
Products and batteries with the symbol (crossed-out wheeled bin)
cannot be disposed as household waste.
Old electrical and electronic equipment and batteries should be
recycled at a facility capable of handling these items and their waste
byproducts.
Contact your local authority for details in locating a recycle facility
nearest to you.
Proper recycling and waste disposal will help conserve resources
whilst preventing detrimental effects on our health and the
environment.
Notice: The sign “Pb” below the symbol for batteries indicates that
this battery contains lead.

4
PRECAUTIONS
Observe the following precautions to prevent fire, personal injury, and
transceiver damage.
• Do not charge the transceiver and battery pack when they are wet.
• Ensure that there are no metallic items located between the transceiver and
the battery pack.
• Do not use options not specified by KENWOOD.
• If the chassis or other transceiver part is damaged, do not touch the
damaged parts.
• If a headset or earphone is connected to the transceiver, reduce the
transceiver volume.
• Do not place the optional speaker/ microphone, clip mic. with earphone, or
headset around your neck while near machinery that may catch the cable.
• Do not place the transceiver on unstable surfaces.
• Ensure that the end of the antenna does not touch your eyes.
•
When the transceiver is used for transmission for many hours, the radiator
and chassis will become hot. Do not touch these locations when replacing the
battery pack.
• Always switch the transceiver power off before installing optional
accessories.
• The charger is the device that disconnects the unit from the AC mains line.
The AC plug should be readily accessible.
• To dispose of batteries, be sure to comply with the laws and regulations in
your country or region.
WARNING
Turn the transceiver power off before entering the following
locations:
• Near explosives or blasting sites.
• In aircraft. (Any use of the transceiver must follow the instructions and
regulations provided by the airline crew.)
• Where restrictions or warnings are posted regarding the use of radio
devices, including but not limited to medical facilities.
• Near persons wearing pacemakers.
• In explosive atmospheres (inflammable gas, dust particles, metallic
powders, grain powders, etc.).
• While pumping fuel or while parked at gasoline service stations.

5
CAUTION
• Do not disassemble or modify the transceiver for any reason.
• Do not place the transceiver on or near airbag equipment while the vehicle
is running. When the airbag inflates, the transceiver may be ejected and
strike the driver or passengers.
• If an abnormal odor or smoke is detected coming from the transceiver,
switch the transceiver power off immediately, remove the battery pack from
the transceiver, and contact your KENWOOD dealer.
• Use of the transceiver while you are driving may be against traffic laws.
Please check and observe the vehicle regulations in your area.
• Do not expose the transceiver to extremely hot or cold conditions.
• Do not carry the battery pack (or battery case) with metal objects, as they
may short the battery terminals.
• Danger of explosion if the battery is incorrectly replaced; replace only with
the same type
.
• When attaching a commercial strap to the transceiver, ensure that the
strap is durable. In addition, do not swing the transceiver around by the
strap; you may inadvertently strike and injure another person with the
transceiver.
• If a commercially available neck strap is used, take care not to let the strap
get caught on nearby machine.
• When operating the transceiver in areas where the air is dry, it is easy to
build up an electric charge (static electricity). When using an earphone
accessory in such conditions, it is possible for the transceiver to send
an electric shock through the earphone and to your ear. We recommend
you use only a speaker/microphone in these conditions, to avoid electric
shocks.
• Do not expose the transceiver to long periods of direct sunlight, nor place
it near heating appliances.

6
INFORMATION CONCERNING THE BATTERY PACK
The battery pack includes flammable objects such as organic solvent.
Mishandling may cause the battery to rupture producing flames or
extreme heat, deteriorate, or cause other forms of damage to the
battery. Please observe the following prohibitive matters.
DANGER
• Do not disassemble or reconstruct battery.
• Do not short-circuit the battery.
• Do not incinerate or apply heat to the battery.
• Do not leave the battery near fires, stoves, or other heat generators
(areas reaching over 80°C).
• Do not immerse the battery in water or get it wet by other means.
• Do not charge the battery near fires or under direct sunlight.
• Use only the specified charger and observe charging requirements.
• Do not pierce the battery with any object, strike it with an instrument,
or step on it.
• Do not jar or throw the battery.
• Do not use the battery pack if it is damaged in any way.
• Do not solder directly onto the battery.
• Do not reverse the battery polarity (and terminals).
• Do not reverse-charge or reverse-connect the battery.
• Do not touch a ruptured and leaking battery.
If the electrolyte liquid from the battery gets into your eyes, wash your eyes
out with fresh water as soon as possible, without rubbing your eyes. Go to
the hospital immediately. If left untreated, it may cause eye-problems.
WARNING
• Do not charge the battery for longer than the specified time.
• Do not place the battery pack into a microwave or high pressure
container.
• Keep ruptured and leaking battery packs away from fire.
• Do not use an abnormal battery.
• Do not change or charge the battery in hazardous locations.

7
UNPACKING AND CHECKING EQUIPMENT
Carefully unpack the transceiver. If any of the items listed below are
missing or damaged, file a claim with the carrier immediately.
SUPPLIED ACCESSORIES
• Battery charger (KSC-50CR)..................................................1
• AC adapter ............................................................................1
• Li-ion Battery pack (KNB-81L) ...............................................1
• Belt clip ..................................................................................1
• Screw (M3 x 6 mm) ................................................................2
• Battery cover .........................................................................1
• User guide .............................................................................1
Note:
◆Refer to “PREPARATION” for accessory installation instructions.

8
PREPARATION
INSTALLING THE BATTERY PACK
The battery pack is not charged enough at the factory. Be sure to fully
charge the battery pack when first inserting it to the transceiver.
CAUTION
• Be sure to remove the battery pack when it will not be used for a long time.
• Do not short the battery terminals or dispose of the battery by fire.
• Never attempt to remove the casing from the battery pack.
WWYYR
Battery cover
Battery pack
Label
1Insert the battery pack into the battery
cover.
• Pay attention to the position of notch of
the battery pack.
• Insert the battery pack with the model
name label facing up.
• Be careful not to drop the battery pack.
ab
2Align the battery cover with the groove
on the back of the transceiver.
Lock lever
3 Slide the lock lever (both side) to lock it.
• There will be feedback in the form of a
click.
REMOVING THE BATTERY PACK
a
b
1Slide the lock lever (both side) to
unlock.
2Release the lock on the battery cover,
then remove the battery cover with a
coin or the like.
• Be careful not to drop the battery pack.

9

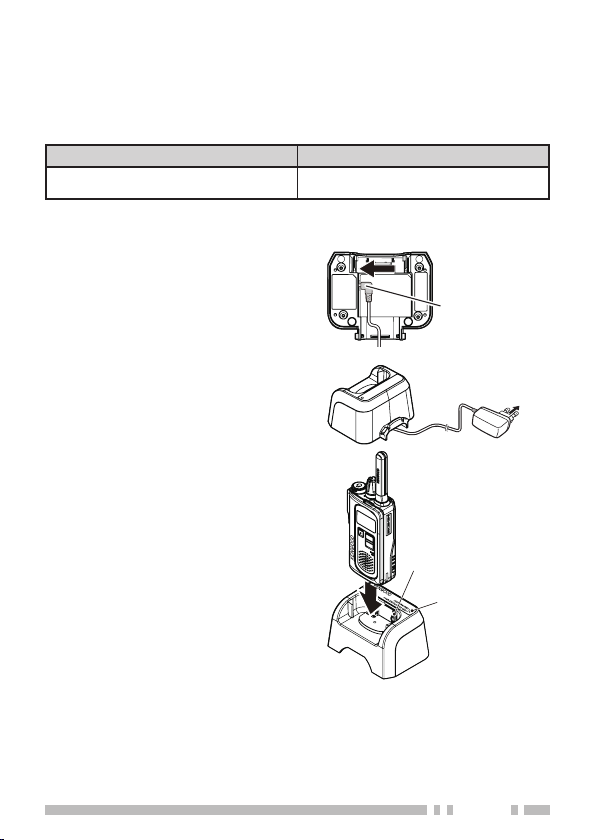

CHARGING THE BATTERY PACK
The battery pack is not charged enough at the factory. Be sure to fully
charge the battery pack when first inserting it to the transceiver.
Average battery pack life:
Battery Saver ON Battery Saver OFF
19 hours 14 hours
• Average times are calculated using 5% transmit time, 5% receive
time, and 90% standby time.
1Plug the AC adapter cable into the
jack located on the bottom of the
charger. DC plug
2Plug the AC adapter into an AC
outlet.
3Slide a transceiver equipped with a
battery pack into the charging slot
of the charger.
• Make sure the metal contacts of the
battery pack mate securely with the
charger metal terminals.
• The indicator lights red and charging
begins.
Charger
terminals
Indicator
4 When charging is completed, the indicator flashing green. Remove the
battery pack or the transceiver from the charging slot of the charger.
• It takes approximately 4.5 hours to charge the battery pack.
• When the charger will not be used for a long time, unplug the AC adapter
from the AC outlet.
To AC outlet

10
CAUTION
• Always switch OFF a transceiver equipped with a battery pack before
inserting the transceiver into the charger.
• Always remove the AC adapter from a wall outlet before attempting to
inspect or clean the charger. Removing the battery packs or changing the
controls does not remove the AC voltage from the charger.
• Position the AC adapter cable so it will not be stepped on, tripped over, nor
subjected to damage.
• Always remove the AC adapter from an AC wall outlet by pulling on the
adapter rather than the cable.
• Do not use the charger if it has a damaged AC adapter or adapter cable,
or if the charger has been damaged in any way. Contact your KENWOOD
dealer to replace or repair the damaged part.
Note:
◆The ambient temperature should be between 5°C and 40°C while charging
is in progress. Charging outside this range may not fully charge the battery.
◆The battery pack life is over when its operating time decreases even though
it is fully and correctly charged. Replace the battery pack.
◆While operating the transceiver using a Li-ion battery pack in areas of an
ambient temperature of –10°C and lower, operating time may be shortened.
Indicator color Meaning
Light red A transceiver is in the charging slot and charging has
started.
Flashing red The battery pack is either defective or the battery pack
contacts are not properly mated with those of the charger.
Flashing green Charging is completed; remove the battery pack from the
charger.
Alternates flashing
green and
orange
The temperature of the battery pack has not satisfied the
charging start temperature. Remove the battery pack from
the charger and wait until it reaches a normal temperature
before charging it again.
INSTALLING THE OPTIONAL SPEAKER/ MICROPHONE (OR
HEADSET)
1Turn the transceiver power OFF.
• For transceivers that are able to adjust the volume level, adjust the volume
to the minimum setting before turning the transceiver power OFF.

11
2Insert the plug into the SP/MIC jack on the transceiver, then fix it
with a nut.
• Fix the plug with a nut firmly to maintain waterproof protection for the
transceiver.
• The transceiver is not fully water protection when using a speaker/
microphone or headset.
• When not using an optional speaker/ microphone, clip mic. with earphone,
or headset, to keep the transceiver dust and water protection, you must
cover the SP/MIC jack with the cap securely with no gap.
SP/MIC jack cover
Plug
Nut
Note:
◆If the plug is not fully inserted, when the transceiver power is turned ON, a
beep sound will be heard and “ ” will be displayed.
INSTALLING THE BELT CLIP
If necessary, attach the belt clip using
the two supplied M3 x 6 mm screws.
Note:
◆If the belt clip is not installed, its
mounting location may get hot during
continuous transmission or when left
sitting in a hot environment.

12
ORIENTATION
BUTTONS AND CONTROL
f
e
c
d
b
a
g
Hole of the
hand strap
Antenna
(Not detachable)
Speaker
Microphone
Display
aPower switch/ Volume control
Turn clockwise to switch ON the transceiver. To switch OFF the
transceiver, turn counterclockwise until a click sounds. Rotate to
adjust the volume level.
bLED indicator
Indicates the transceiver status.
c(Up) / (Down) buttons
Press to change the operating channel, to select a menu in setting
mode, and to perform other functions.
dMenu button
Press to activate Channel Menu, to select the various functions.
Press and hold to activate its programmable function. The default is
Button Lock.
eSide button
Press and hold to activate its programmable function. The default is
Zone.

13
fPTT (Push to Talk) switch
Press and hold, then speak into the microphone to transmit.
gSP/MIC jack
Insert the speaker/ microphone or headset plug into this jack.
DISPLAY
PRIVACY
Indicator Description
When receiving: Appears the signal strength.
When transmitting : Appears the Transmit Power.
Receiving : : Strong : Sufficient : Weak
Transmitting : : High Power
Appears the battery power.
: High : Sufficient : Low (Flashing) : Very Low
Appears when channel type is set to digital.
Appears when the Scan is in progress.
Blinks when the Scan is paused.
Appears when the Compander is activated.
PRIVACY
Appears when the Scrambler (Analogue) is activated.
Appears when the VOX function is in progress.
Appears when the Button Lock function is activated.
Appears when the Earphone mode is activated.
Appears when the Second Scan function is activated.
Blinks when the Second Scan paused and staying on Second Channel.
Appears when the Monitor Open or Squelch Off is activated.

14
BASIC OPERATION
SWITCH THE POWER ON/ OFF
Switch the transceiver power ON by turning the Power
switch/ Volume control clockwise.
• A confirmation tone sounds, the LCD lights up
momentarily, then the current channel number is
displayed.
To switch the transceiver power OFF, turn the Power
switch/ Volume control fully counterclockwise, until a
click sounds.
ADJUST THE VOLUME
Set your desired volume level by rotating the Power
switch/ Volume control.
• Clockwise increases the volume and
counterclockwise decreases the volume.
Note:
◆To adjust the volume using background noise as a reference
in analogue mode, use the Squelch off Function.
SELECTING A ZONE AND CHANNEL
1 Select the desired zone using the button programmed
as [Zone]. Each zone contains a group of channels.
2Select the desired channel using the or button.
• A confirmation tone sounds each time you press the
[Zone], , or button.
MAKE A CALL
1To make a call, press and hold the PTT switch,
then speak around the microphone area using
your normal speaking voice.
• Hold the microphone approximately 1.5 inches (3 to
4 cm) from your lips.
2Release the PTT switch to receive.

15
CHANNEL LIST
This transceiver allows you to reprogram each of the channels with
different frequencies and ID (Digital)/ QT/DQT (Analogue) settings.
The table below lists the default channel settings.
Channel
Number
Analogue Digital
Zone 1 Zone 2 Zone 3
Frequency
(MHz) QT/DQT Frequency
(MHz) ID Frequency
(MHz) ID
1 446.006250 94.8 Hz 446.103125 1 446.003125 1
2 446.093750 88.5 Hz 446.109375 2 446.009375 2
3 446.031250 103.5 Hz 446.115625 3 446.015625 3
4 446.068750 79.7 Hz 446.121875 4 446.021875 4
5 446.043750 118.8 Hz 446.128125 5 446.028125 5
6 446.018750 123.0 Hz 446.134375 6 446.034375 6
7 446.081250 127.3 Hz 446.140625 7 446.040625 7
8 446.056250 85.4 Hz 446.146875 8 446.046875 8
9 446.006250 107.2 Hz 446.153125 9 446.053125 9
10 446.093750 110.9 Hz 446.159375 10 446.059375 10
11 446.031250 114.8 Hz 446.165625 11 446.065625 11
12 446.068750 82.5 Hz 446.171875 12 446.071875 12
13 446.043750 D132N 446.178125 13 446.078125 13
14 446.018750 D155N 446.184375 14 446.084375 14
15 446.056250 D134N 446.190625 15 446.090625 15
16 446.081250 D243N 446.196875 16 446.096875 16

La technologie de codage de la voix AMBE +2™ intégrée
dans ce produit est protégée par des droits sur la propriété
intellectuelle y compris les droits de brevet, les droits d’auteur
et les secrets de fabrication du Digital Voice Systems,
Inc. Cette technologie de codage de la voix est autorisée
uniquement pour une utilisation avec cet équipement de
communication. Il est formellement interdit de la part de
l’utilisateur de cette technologie d’essayer d’extraire, de
retirer, de décompiler, de procéder à une ingénierie inverse,
ou de démonter le code objet, ou d’aucune autre manière
que ce soit de convertir l’objet code dans un langage humain
intelligible. Brevets américains n°. #8,315,860, #8,595,002,
#6,912,495, #8,200,497, #7,970,606 et #8,359,197.
GUIDE DE L’UTILISATEUR
ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE UHF
TK-3601D

F-2
MERCI
Nous sommes heureux que vous ayez choisi KENWOOD pour vos
applications de dPMR446.
TABLE DES MATIÈRES
PRÉCAUTIONS............................................................ 4
DÉBALLAGE ET VÉRIFICATION DE L’ÉQUIPEMENT.................. 7
PRÉPARATION ............................................................ 8
ORIENTATION ............................................................12
FONCTIONNEMENT DE BASE..........................................14
LISTE DES CANAUX.....................................................15
