VHF / UHF FM TRANSCEIVER
INSTRUCTION
MANUAL
INTRODUCTION ...........
һом-
4-3. POWER CABLE
5. OPERATION
5-1.
5-2.
UNPACKING AND CHECKING EQUIPMENT...
INSTALLATION AND CONNECTION
4-1. INSTALLATION EQUIPMENT .....
4-2. PLANNING THE INSTALLATION..

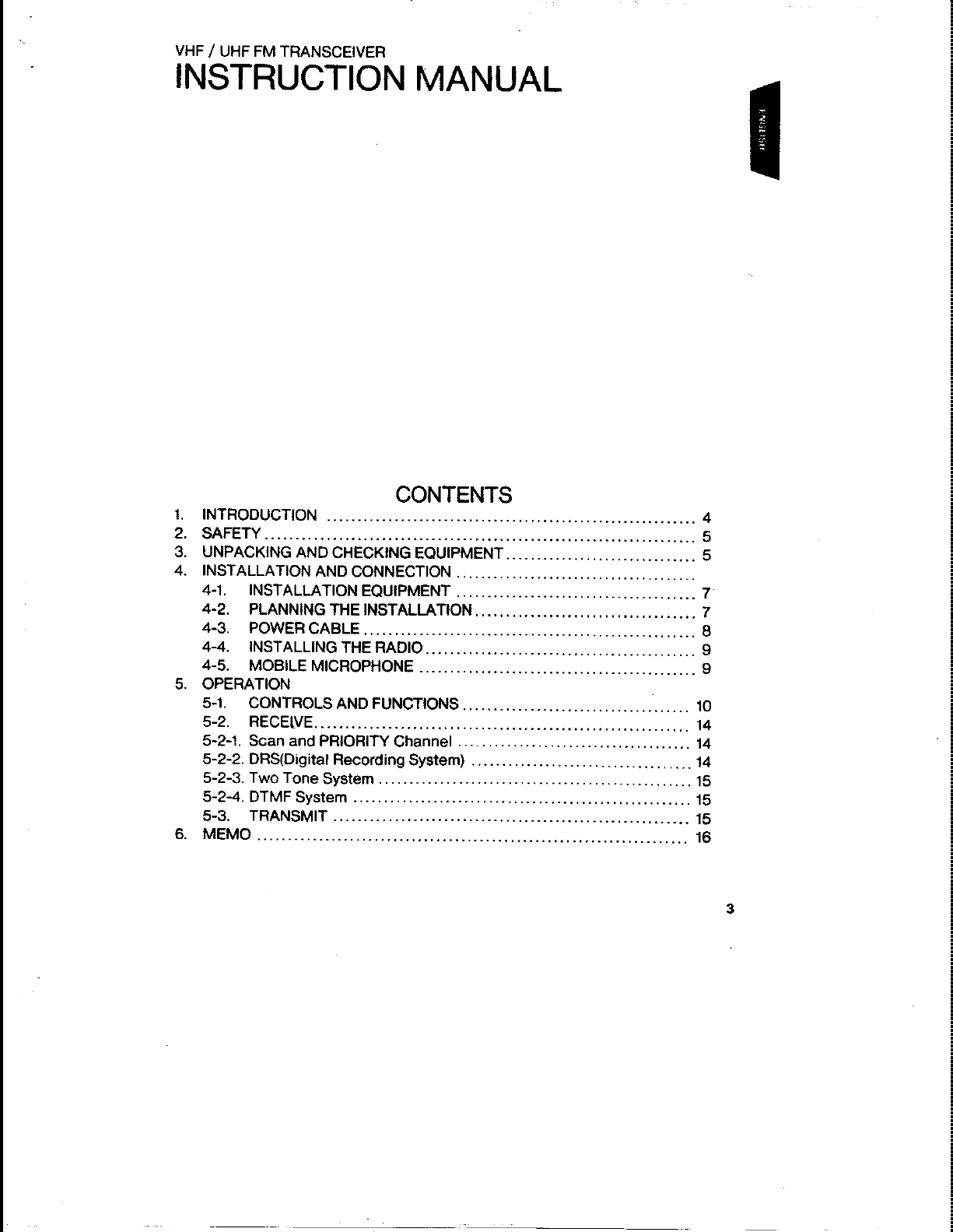

CONTENTS
4-4. INSTALLING THE RADIO. .
4-5. MOBILE MICROPHONE ....
5-2-2.
DRS(Digital
Recording
System)
...................................
|
14
5-2-3. Two Tone System
5-2-4. DTMF System .......
5-3. TRANSMIT ..........

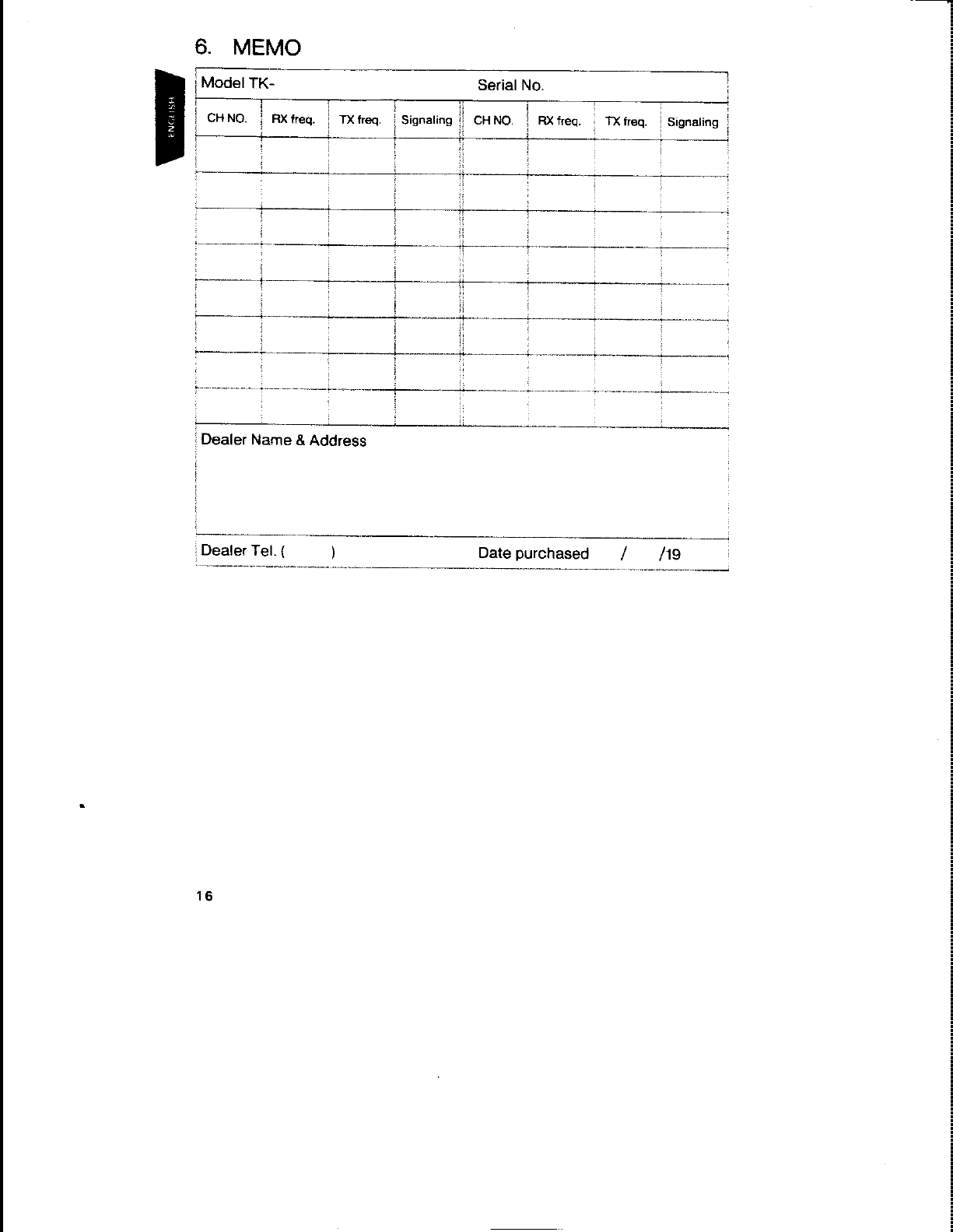

6. MEMO
2

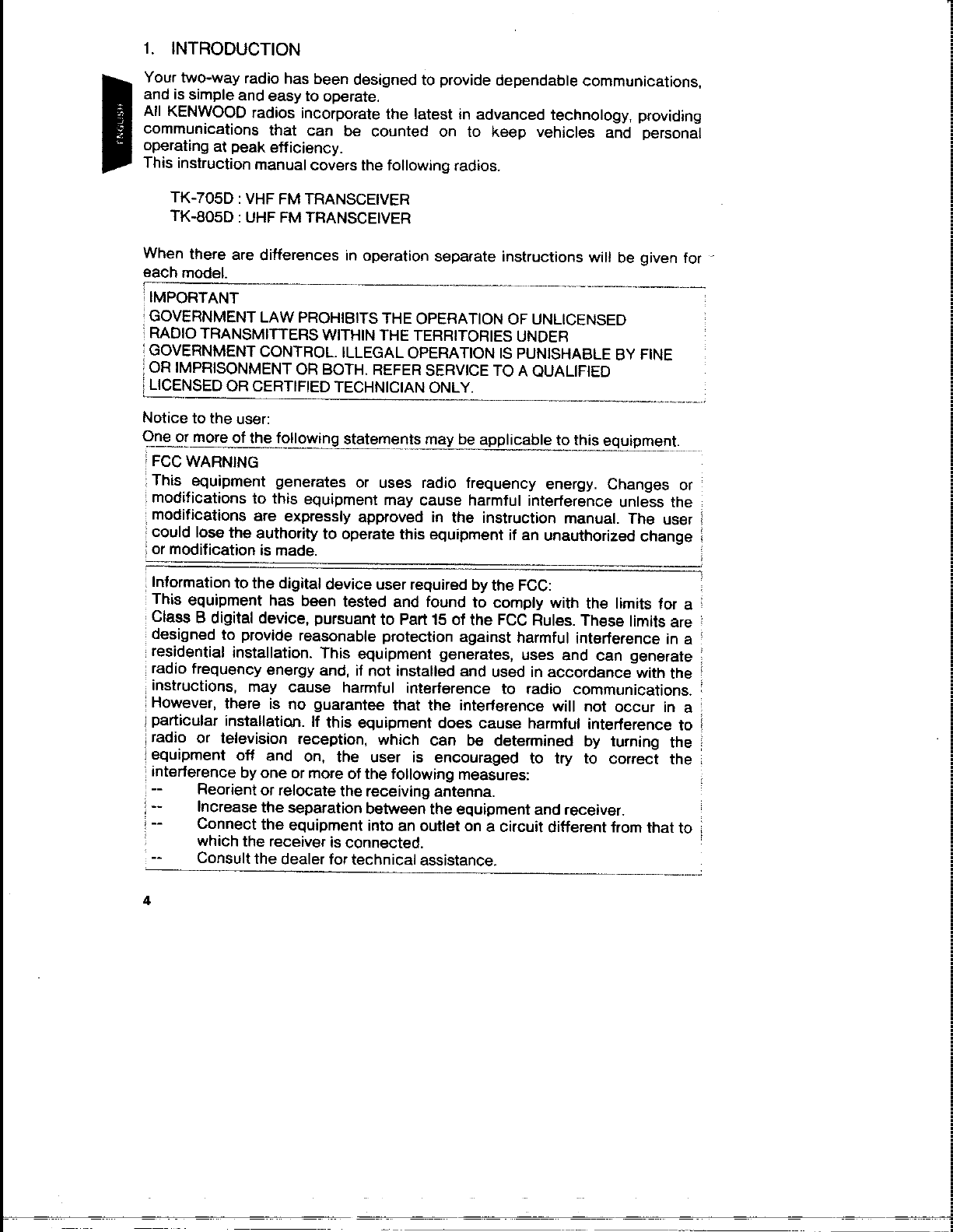

1. INTRODUCTION
Your
two-way
radio
has
been
designed
to
provide
dependable
communications,
and
is
simple
and
easy
to
operate.
All
KENWOOD
radios
incorporate
the
latest
in
advanced
technology,
providing
communications
that
can
be
counted
on
to
keep
vehicles
and
personal
operating
at
peak
efficiency.
This
instruction
manual
covers
the
following
radios.
TK-705D : VHF FM TRANSCEIVER
TK-805D : UHF FM TRANSCEIVER
When
there
are
differences
in
operation
separate
instructions
will
be
given
for
each
model.
IMPORTANT
|
GOVERNMENT
LAW
PROHIBITS
THE
OPERATION
OF
UNLICENSED
|
RADIO
TRANSMITTERS
WITHIN
THE
TERRITORIES
UNDER
|
GOVERNMENT
CONTROL.
ILLEGAL
OPERATION
IS
PUNISHABLE
BY
FINE
OR
IMPRISONMENT
OR
BOTH.
REFER
SERVICE
TO
A
QUALIFIED
LICENSED
OR
CERTIFIED
TECHNICIAN
ONLY.
Notice to the user:
One
or
more
of
the
following
statements
may
be
applicable
to
this
equipment.
FCC WARNING
This
equipment
generates
or
uses
radio
frequency
energy.
Changes
or
|
modifications
to
this
equipment
may
cause
harmful
interference
unless
the
:
modifications
аге
expressly
approved
іп
the
instruction
manual.
The
user
|
could
lose
the
authority
to
operate
this
equipment
if
an
unauthorized
change
|
or modification is made.
Information
to
the
digital
device
user
required
by
the
FCC:
:
This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
а
:
:
Glass
В
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
:
‘designed
to
provide
reasonable
protection
against
harmful
interference
in
a
!
i
residential
installation.
This
equipment
generates,
uses
and
сап
generate
;
|
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
|
:
instructions,
may
cause
harmful
interference
to
radio
communications.
·
|
However,
there
is
no
guarantee
that
the
interference
will
not
occur
in
a
|
particular
instalation.
If
this
equipment
does
cause
harmful
interference
to
|
iradio
or
television
reception,
which
can
be
determined
by
turning
the
|
|
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the:
interference
by
one
or
more
of
the
following
measures:
Reorient or relocate the receiving antenna.
Increase
the
separation
between
the
equipment
and
receiver.
Connect
the
equipment
into
an
outlet
on
a
circuit
different
from
that
to
which
the
receiver
is
connected.
Consult the dealer for technical assistance.

2. SAFETY
It
is
important
the
operator
understands
and
is
aware
of
hazards
common
to
the
operation
of
any
two-way
radio.
: WARNING
11. EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)
Тип
off
and
do
not
operate
your
radio
while
taking
on
fuel,
or
while
parked
іп
; gasoline service stations. Do not carry spare fuel containers in the trunk of |
- your vehicle if your radio is mounted in the trunk area.
2.
INJURY
FROM
RADIO
FREQUENGY
TRANSMISSIONS
“о
not
operate
your
radio
when
anyone
is
touching
the
antenna,
ог
when
:
г
anyone
is
standing
within
two
to
three
feet
of
your
antenna,
to
avoid
the
|
:
possibility
of
radio
frequency
burns or
related
physical
injury.
!
(3. DYNAMITE BLASTING CAPS
|
Dynamite
blasting
caps
may
explode
by
the
operation
of
two-way
radio
|
transmitters,
if
such
operation
occurs
within
500
feet
of
the
blasting
caps.
‘Turn
off
and
do
not
operate
your
г
radio
о
when
in
an
area
i
where
blasting
is
in
$
y
У
Posted.
=
ғу
уои
ае
,
transporting
blasting
caps
in
your
vehicie,
make
с
certain
they
are
:
=
=
=>
$armnedin
a
closed
metal
box
faving
a
padded
interior.
Do
not
transmit
during
|
| ће іте that caps are being placed into or removed from this container
3. UNPACKING AND CHECKING EQUIPMENT
NOTE
The
following
instructions
are
for
use
by
your
KENWOOD
dealer:
either
an
|
authorized
KENWOOD
service
facility,
or
the
factory
oniy.
:
Carefully
unpack
the
two-way
radio.
It
is
recommended
that
you
identify
the
items
listed
and
check
them
off
before
discarding
the
packing
material.
If
any
damage
has
occurred
to
the
equipment
during
shipment,
file
а
claim
with
the
carrier
immediately.

EQUIPMENT
Two-way radio
(DMicrophonetK type опіу).............. Т91-0374-18....
ог
@Microphone with cable(M type only)
Т91-0509-05 ........................
@Microphone саЫе(К type only)....... ЕЗ0-2089-08........................
@Microphone hanger.............. .... J19-1376-15 ...
Power cable ass’y ... .... E30-2076-05..
Браге fuse (10 А)... .... FO5-1031-05...
©Cable with connector ‚... ЕЗ0-2036-05..
@Mounting bracket ..................... Ј29-0441-03 ........................
Mounting hardware
@Некх. бой .....................2............2.
@Tapping screw (Large) ... . М09-0335-05..
Tapping screw (Small) . ....N46-4016-46 ..
Spring washer.......... .... N16-0050-46 ..
Flat washer......... .... N15-1050-46 .. 2.
Instruction manual ,..................... Вб2-0129-ХХ ......................
Warranty
сага
(К
type
опіу).......................................2.......4
444
© © ©

4. INSTALLATION AND CONNECTION
| WARNING
| interference with vehicular electronics - Electronic fuel injection systems,
‘electronic antiskid braking systems, electronic cruise control systems, etc.,
‘аге typica! of the types of electronic devices which may be prone to |
: malfunction due to the lack of protection from radio frequency energy which is |
| present when transmitting. If the vehicle contains such equipment, consult the
dealer for the make of vehicle and enlist his aid in determining if such |
: electronic circuits will perform normally when the radio is transmitting.
: NOTE
The following instructions are for use by your KENWOOD dealer; either an
- authorized KENWOOD service facility, or the factory only.
4-1. INSTALLATION EQUIPMENT
CAUTION |
Ве careful to avoid damaging some vital part of the vehicle when drilling :
| mounting holes. Always check to see how far the mounting screws will extend Å
' below the mounting surface before installing. |
The following tools are required for installing this two-way radio.
@ 1/4” or larger electric drill.
© Drills and circie cutters. (Sizes listed below.)
DRILL SIZES
¢42mm_ for 25х16 self-tapping screws.(Large)
932тт for $4X16 self-tapping screws.(Small)
4-2. PLANNING THE INSTALLATION
The accompanying illustrations should help you in planning your installation.
Before starting, plan your installation carefully so that it will be convenient for
the operator to use, protected from water damage, easy to service, and out of
the way of auto mechanics and passengers.

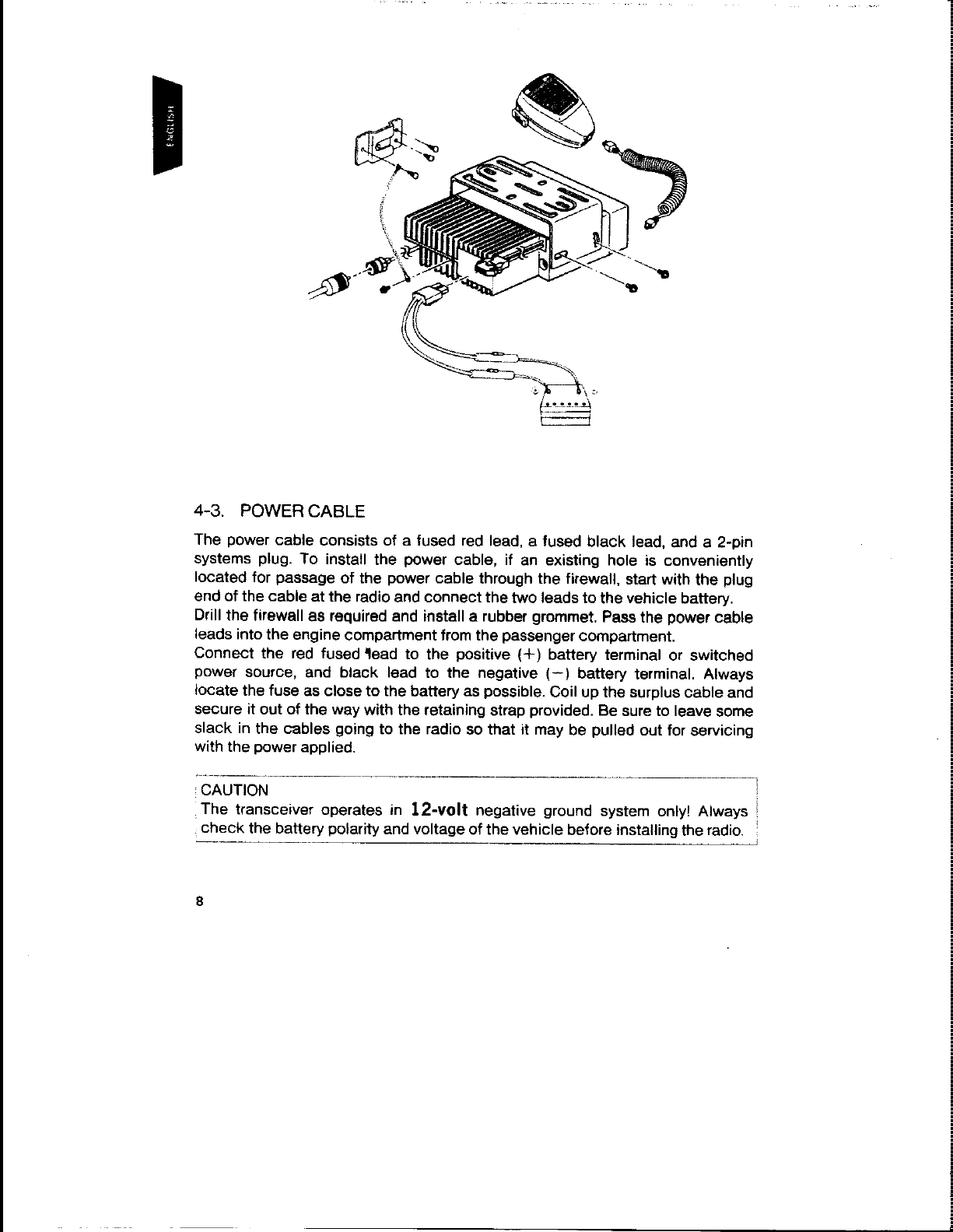

4-3. POWER CABLE
The power cable consists of а fused red lead, а fused black lead, and а 2-pin
systems plug. To install the power cable, if an existing hole is conveniently
located for passage of the power cable through the firewall, start with the plug
end of the cable at the radio and connect the two leads to the vehicle battery.
Drill the firewall as required and install a rubber grommet. Pass the power cable
leads into the engine compartment from the passenger compartment.
Connect the red fused ead to the positive (+) battery terminal or switched
power source, and black lead to the negative (—) battery terminal. Always
locate the fuse as close to the battery as possible. Coil up the surplus cable and
secure it out of the way with the retaining strap provided. Be sure to leave some
slack in the cables going to the radio so that it may be pulled out for servicing
with the power applied.
:GAUTION |
, The transceiver operates іп 12-volt negative ground system only! Always |
check the battery polarity and voltage of the vehicle before installing the radio. |

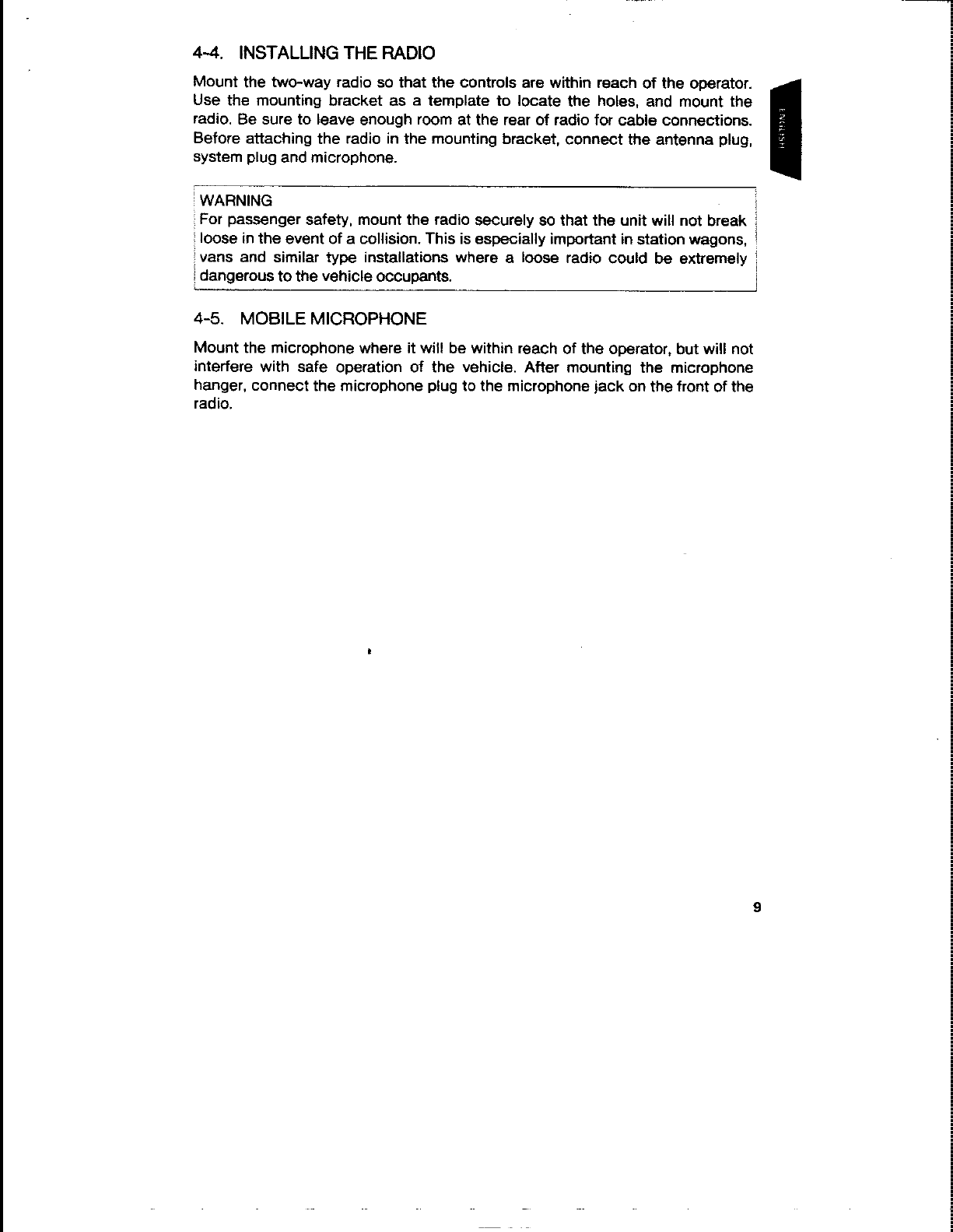

4-4. INSTALLING THE RADIO
Mount the two-way radio so that the controls are within reach of the operator.
Use the mounting bracket as а template to locate the holes, and mount the
radio. Be sure to leave enough room at the rear of radio for cable connections.
Before attaching the radio in the mounting bracket, connect the antenna plug,
system plug and microphone.
WARNING .
For passenger safety, mount the radio securely so that the unit will not break
loose in the event of a collision. This is especially important in station wagons, |
vans and similar type installations where a loose radio could be extremely
dangerous to the vehicle occupants.
4-5. MOBILE MICROPHONE
Mount the microphone where it will be within reach of the operator, but will not
interfere with safe operation of the vehicie. After mounting the microphone
hanger, connect the microphone plug to the microphone jack on the front of the
radio.

5. OPERATION
5-І. CONTROLS AND FUNCTIONS
FRONT PANEL
D
| “|
(D POWER switch
Press to turn the power ON or OFF.
@ MONITOR key
Allowing the operator to check for traffic on the channel before transmitting.
Press and hold the MONITOR key for longer than 2 seconds will cause
squeich off.
@ AUX кеу
(Not wired). Provided for control of auxiliary functions.
Installation and wiring of such auxiliary functions must be performed by your
dealer's licensed or certified service technicians.
@ If the optional DRS unit is mounted, playback begins.
@ if the Talkaround function is programmed, talkaround takes place.
@ If the optional Two-Tone or ОТМЕ Horn Alert System is mounted, it
functions.
@LCD display
М ОМ when channel is in use
N when MONITOR is in use
On during transmit.
hå SN when squeich is not used
\ Т
ON when AUX Am ці А 400 ON when ADD
is in use is in use
10

For example
DISPLAY
“88888,
z
Selected channel number.
On when TALK AROUND is selected.
- On when PRIORITY CHANNEL mode is
selected.(Fixed PRIORITY mode)
On when 2 TONE or DTMF Horn Alert
mode is selected.
On when 2 TONE or Horn Alert is
decoded.
On when recording mode.
On when playback mode.
During SCAN
On when SCAN stop.
On when SCAN stop on PRIORITY
CHANNEL
11

Е
8
D
©
© ы @
CHANNEL SELECTOR switch
Used when selecting a channel.
©D/A key
Press
and
hold
SCAN
key
then
press
this
key
when
a
channel
is
desired
to
be
skipped
during
scanning.
The
displayed
channel
is
deleted
so
that
the
channel
is
jumped
during
scanning.
To
release
this,
call
the
channel
on
display and Press and hold SCAN key then press this key.
| Note
|D/A
key
may
be
not
activate,
as
initially
selected
by
your
dealer
during
i installation.
@SCAN key
Press this key to scan channels.
®REC key
if the DRS unit is mounted, recording begins.
@Volume control
Turn the knob to increase or decrease the volume.
40 Microphone Input Receptacle.
12

REAR PANEL
External speaker jack Power input
receptacie
Antenna
connector
MICROPHONE
РТТ (Push-To-Taik) switch
Press this switch to transmit, and speak into the microphone.
13

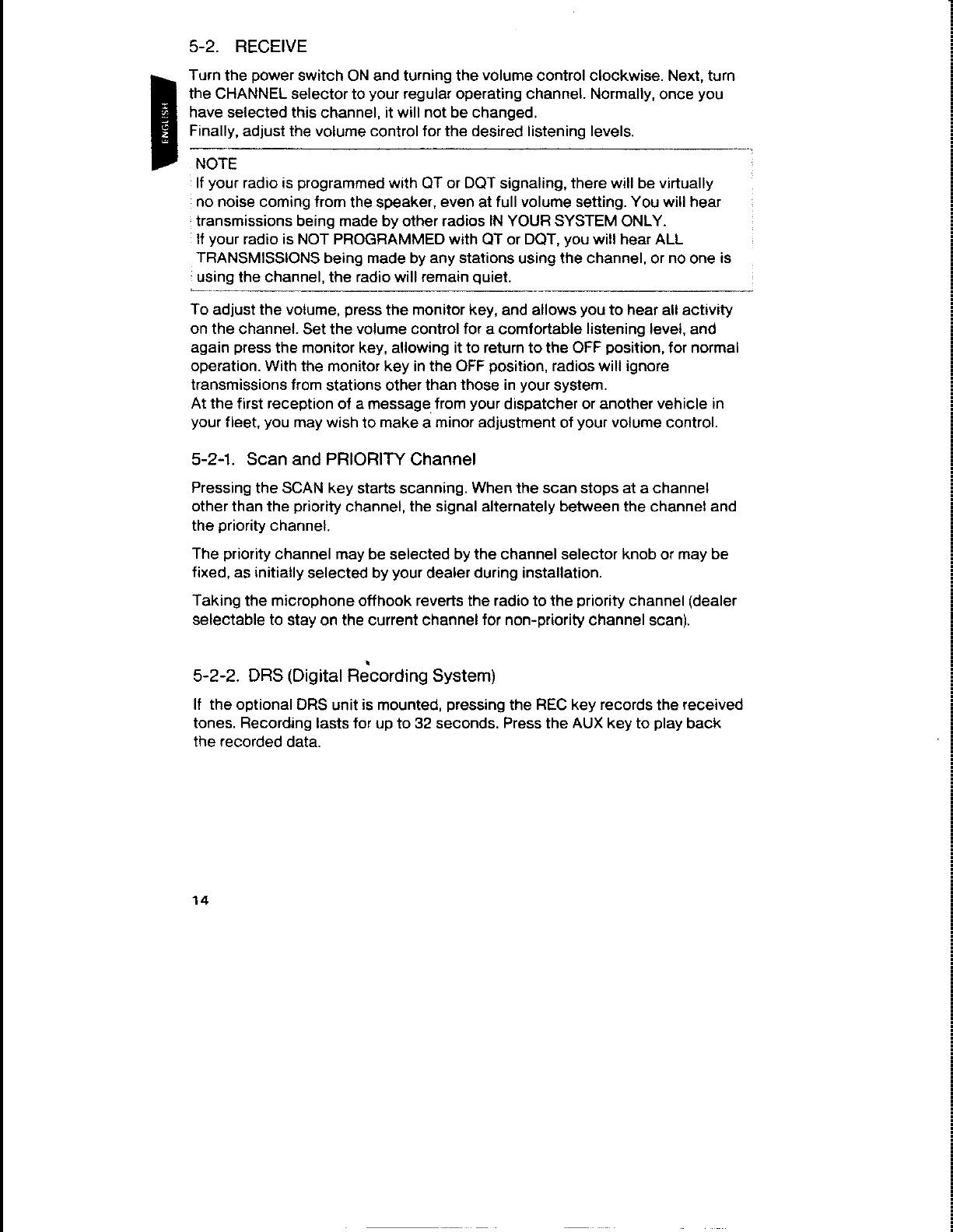

5-2. RECEIVE
Turn the power switch ON and turning the volume control clockwise. Next, turn
the CHANNEL selector to your regular operating channel. Normally, once you
have selected this channel, it will not be changed.
Finally, adjust the volume control for the desired listening levels.
NOTE
If your radio is programmed with QT or DQT signaling, there will be virtually
no noise coming from the speaker, even at full volume setting. You will hear
transmissions being made by other radios IN YOUR SYSTEM ONLY.
Н your radio is NOT PROGRAMMED with QT or DOT, you will hear ALL
TRANSMISSIONS being made by any stations using the channel, or no one is
using the channel, the radio will remain quiet.
To adjust the volume, press the monitor key, and allows you to hear alt activity
on the channel. Set the volume control for a comfortabie listening level, and
again press the monitor key, allowing it to return to the OFF position, for normal
operation. With the monitor key in the OFF position, radios will ignore
transmissions from stations other than those in your system.
At the first reception of a message from your dispatcher or another vehicle in
your fleet, you may wish to make a minor adjustment of your volume control.
5-2-1. Scan and PRIORITY Channel
Pressing the SCAN key starts scanning. When the scan stops at a channel
other than the priority channel, the signal alternately between the channe! and
the priority channel.
The priority channel may be selected by the channel selector knob or may be
fixed, as initially selected by your dealer during installation.
Taking the microphone offhook reverts the radio to the priority channel (dealer
selectable to stay on the current channel for non-priority channel scan).
5-2-2. DRS (Digital Recording System)
If the optional DRS unit is mounted, pressing the REC key records the received
tones. Recording lasts for up to 32 seconds. Press the AUX key to play back
the recorded data.
14

5-2-3. Two Tone System
If your radio contains the optional two-tone unit, and the programmed two-tone
matches, the display shows CA, and а receiving tone is output from the
speaker. To reset, set the microphone offhook, then onhook again. The Horn
Alert system is alternately set and canceled each time the AUX key is
depressed. When the system is on, НА appears on the LCD.
5-2-4. DTMF System
If your radio contains the optional DTMF unit, and the programmed DTMF code
matches, the display shows СА, and an alert tone and a receiving tone аге
output from the speaker.
The alert tone stops when the microphone is set offhook. To reset, set the
microphone onhook again. The Horn Alert system is alternately set and
canceled each time the AUX key is depressed. When the system is on, HA
appears on the LCD.
5-3. TRANSMIT
Calling another station on your KENWOOD radio is very simple:
First, press the monitor key ON, and listen for а few seconds to make certain
the channel is not being used.
Now, hold the microphone about one and one half inches from your lips,
squeeze the PTT (Push-To-Talk) switch, and speak in your normal speaking
voice.
The TX indicator will display during transmission. When you are through
speaking, release the PTT switch, and you are automatically back in the receive
mode. When your conversation is completed, place the microphone back on its
hook.
Notes
1. Do not press REC key during play back.
2. To stop play back operation or recording operation, please be sure to
press AUX key.
15

6. МЕМО
Model
TK-
Serial
No.
CH
NO.
RX
freq.
TX
freq.
|
Signaling
|
CHNO.
RX
freq.
TX
freq.
|
Signaling
ealer Name & Address
|
Dealer
Tel.
(
)
Date
purchased
/
/19
16
