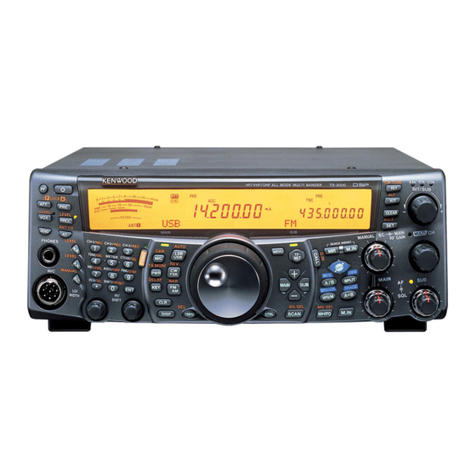

ALL MODE MULTI-BAND TRANSCEIVER
TS-2000/X
TS-B2000
SERVICE MANUAL
Knob (Main dial)
(K21-1104-03)
Knob ring (Main dial)
(K29-5395-04)
Knob
(K29-5397-13) x 2
Knob (Inside)
(K29-5398-03) x 3
Knob (Outside)
(K29-5399-03) x 3
Knob (RIT, MULTI)
(K29-5396-03) x 2
Key top (8 key)
(K29-5391-12)
Key top (18 key)
(K29-5393-12)
Key top (4 key)
(K29-5394-22)
Key top (25 key)
(K29-5392-12)
Front glass
(B10-2608-12)
Cabinet (Upper)
(A01-2176-11)
Foot (Front)
(J02-0442-04) x 2
Foot (Front)
(J02-0440-04)
MIC connector (8P)
(E06-0858-15)
Phone jack (9P)
(E11-0438-05)
Panel
(A62-0916-03)
Dressing plate
(B03-3608-03)
Phone jack (9P)
(E11-0438-05)
Cabinet (Upper)
(A01-2176-11)
Foot (Front)
(J02-0442-04) x 2
MIC connector (8P)
(E06-0858-15)
TS-2000/X
TS-B2000
SUPPLEMENT

2
TS-2000/X,TS-B2000
CONTENTS
DESCRIPTION OF COMPONENTS ......................................... 3
PARTS LIST .............................................................................. 4
ADJUSTMENT ....................................................................... 48
PC BOARD VIEWS / SCHEMATIC DIAGRAM
FILTER UNIT (X51-315X-XX) ............................................. 65
FINAL UNIT (X45-360X-XX) .............................................. 67
DISPLAY UNIT (X54-3320-00) ........................................... 79
CONTROL UNIT (X53-391X-XX) ....................................... 83
TX-RX 1 UNIT (X57-605X-XX)........................................... 97
TX-RX 2 UNIT (X57-606X-XX)......................................... 112
TX-RX 3 UNIT (X57-6070-00) .......................................... 135
SPECIFICATIONS ................................................................. 149
This serivce manual is aimed to revise and update the information on the PCBs that are used in the TS-2000(X)/TS-B2000
transceiver. Refer to the original TS-2000(X)/TS-B2000 serivce manual (B51-8558-00/B51-8569-00) for any information which
has not been covered in this manual.
■About PC BOARD VIEWS and SCHEMATIC DIAGRAM
This serivce manual contains the PC BOARD VIEWS and SCHEMATIC DIAGRAM for the serial numbers listed below, and
subsequent serial numbers. However, the PCB layout of the DISPLAY UNIT, TX-RX1 UNIT (C,D,E,G, and H/9) and TX-RX2 UNIT
(B,D,E,G,H,I,J, and K/11) remain unchanged from the initial lot. Also, refer to the original TS-2000(X) (B51-8558-00) or TS-B2000
(B51-8569-00) service manual for transceivers with serial numbers prior to those listed below. For the PC BOARD VIEWS and
SCHEMATIC DIAGRAM of common units, refer to the latest TS-B2000 service manual.
UNIT Name PC BOARD VIEWS SCHEMATIC DIAGRAM
Common Unit FINAL UNIT (X45-360X-XX) (A/2) S/No. 30500001~
(TS-2000(X)/ FINAL UNIT (X45-360X-XX) (B/2) S/No. 30500001~ S/No. 20900001~
TS-B2000) FILTER UNIT (X51-315X-XX) S/No. 30500001~ TS-2000 (E2), TS-B2000 (E) : S/No. 30600001~
Other models : S/No. 30500001~
CONTROL UNIT (X53-391X-XX) S/No. 30500001~ S/No. 30900001~
TX-RX1 UNIT (X57-605X-XX) (A/9) S/No. 30400141~ S/No. 31000001~
TX-RX1 UNIT (X57-605X-XX) (F/9) S/No. 30400141~ S/No. 20900001~
TX-RX2 UNIT (X57-606X-XX) (A/11) S/No. 30500001~ S/No. 30700001~
TX-RX2 UNIT (X57-606X-XX) (C/11) S/No. 30500001~ S/No. 21000001~
TX-RX2 UNIT (X57-606X-XX) (B,D,E,G,H,I,J,K/11) Initial lot (S/No. 20800001) ~
Individual Unit DISPLAY UNIT (X54-3320-00) *1 Initial lot (S/No. 20800001) ~
(TS-2000(X)/ TX-RX1 UNIT (X57-605X-XX) (B/9) *1 S/No. 30400141~ S/No. 30300001~
TS-B2000) TX-RX1 UNIT (X57-605X-XX) (C,D,E,G/9) *1 Initial lot (S/No. 20800001) ~
TX-RX1 UNIT (X57-605X-XX) (H/9) *2 Initial lot (S/No. 21000001) ~ S/No. 21100001~
TX-RX1 UNIT (X57-605X-XX) (I/9) *2 S/No. 30400141~ Initial lot (S/No. 21000001) ~
TX-RX3 UNIT (X57-6070-00) *3 S/No. 30500001~
*1 : TS-2000/X only
*2 : TS-B2000 only
*3 : TS-2000X only

3
TS-2000/X,TS-B2000
FINAL UNIT (HF) (X45-360X-XX) (A/2)
Ref. No. Use / Function Operation / Condition
Q1,2 Predrive amplifier HF/VHF band amplifier
Q3,4 Drive amplifier HF/VHF band push-pull wide-band
amplifier
Q6,7 Final amplifier HF/50MHz band push-pull wide-
band amplifier
Q8 Bias control HF/50MHz band final stage bias
current control
Q101,102 Final amplifier VHF band push-pull wide-band
amplifier
Q103 Bias control VHF band final stage bias current
control
Q201 Switching ANT1 and ANT2 changeover relay
control
Q202 Switching AT relay control
Q203 Switching HF RX antenna relay control
Q204 Switching Fan control (high speed)
Q205 Switching Fan control (low speed)
Q206 Switching High power supply voltage protection
Q207 Switching Power relay control (K201)
Q208~215 Switching HF/50MHz band LPF band changeover
Q216,217 Switching VHF band TX/RX changeover relay
control
Q218 Switching Drive stage bias current control
IC201,202 AVR SB→8V
IC203 AVR SB→10V
IC204 AVR 8V→5V
Ref. No. Use / Function Operation / Condition
IC205 Extended I/O LPF control signal serial-parallel
IC801 Extended I/O AT input C control signal serial-parallel
IC802 Extended I/O AT output C control signal serial-parallel
IC803 Extended I/O AT coil control signal serial-parallel
D1 Switching HF/VHF band drive input changeover
D2,3 Temperature Drive stage bias current control
compensation
D5 Switching HF/VHF band drive stage bias changeover
D6 Surge absorption Relay (K1)
D7,8 Temperature HF/50MHz band final stage bias
compensation current control
D101 High-frequency VHF band reflected wave detection
rectification
D102 High-frequency VHF band forward wave detection
rectification
D103,104 Temperature VHF band final stage bias current
compensation control
D201 Surge absorption Power surge protection
D202 Surge absorption Fan
D203 Zener diode Over voltage detection
D204 Surge absorption Relay (K201)
D206~209 Surge absorption IC205 output line protection
D210 Reverse current VHF band TX/RX relay control line
prevention
D211 Zener diode Voltage detection
D801~824 Surge absorption Antenna tuning relay (K801~824)
DESCRIPTION OF COMPONENTS

TS-2000/X,TS-B2000
PARTS LIST
4K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
✽New Parts. indicates safety critical components.
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L: Scandinavia K: USA P: Canada
Y: PX (Far East, Hawaii) T: England E: Europe
Y: AAFES (Europe) X: Australia M: Other Areas
TS-2000/X, TS-B2000 (Y52-327X-XX)
New Desti-
parts nation
Ref. No. Address Parts No. Description
New Desti-
parts nation
Ref. No.
Address Parts No. Description
TS-2000/X, TS-B2000
1 2A A01-2176-11 CABINET (UPPER)
2 1D A01-2177-11 CABINET (BOTTOM)
3 2C A10-4017-11 CHASSIS
4 1B A11-0417-01 SUB CHASSIS
5 1F A22-2502-21 SUB PANEL K,KX,E
5 1F A22-2502-21 SUB PANEL E2,EX
5 2F A22-2502-21 SUB PANEL KB,EB,E2B
6 2E A62-0771-03 PANEL ASSY K,KX,E
6 2E A62-0771-03 PANEL ASSY E2,EX
6 2E A62-0916-03 PANEL KB,EB,E2B
147 2E B03-3608-03 DRESSING PLATE KB,EB,E2B
7 1C B09-0355-05 CAP (REAR-COM)
82E✽B10-2608-12 FRONT GLASS K,KX,E
82E✽B10-2608-12 FRONT GLASS E2,EX
10 1I B42-7003-04 RATING LABEL (DC CORD) E,EB,E2
10 1I B42-7003-04 RATING LABEL (DC CORD) E2B,EX
18 2E B43-1222-04 BADGE (FRONT GLASS) K,KX,E
18 2E B43-1222-04 BADGE (FRONT GLASS) E2,EX
12 1J B46-0310-03 WARRANTY CARD E,EB,E2
12 1J B46-0310-03 WARRANTY CARD E2B,EX
12 1J B46-0469-10 WARRANTY CARD K,KB,KX
13 1J B52-0614-00 SCHEMATIC DIAGRAM
14 1J B52-0616-00 SCHEMATIC DIAGRAM
15 1J B52-0617-00 SCHEMATIC DIAGRAM
148 1J B52-0618-00 SCHEMATIC DIAGRAM
149 1J ✽B59-1777-10 PAMPHLET (R&TTE) E,EB,E2
149 1J ✽B59-1777-10 PAMPHLET (R&TTE) E2B,EX
-✽B59-2277-00 PAMPHLET (AI1 COMMAND)
-✽B59-2307-00 PAMPHLET (FREQUENCY) EX
16 1J ✽B62-1221-30 INSTRUCTION MANUAL (ENGLISH) K,KB,KX
16 1J ✽B62-1221-30 INSTRUCTION MANUAL (ENGLISH) E,EB,EX
16 1J ✽B62-1222-10 INSTRUCTION MANUAL (FRENCH) E,EB,EX
16 1J ✽B62-1223-10 INSTRUCTION MANUAL (SPANISH) E2,E2B
16 1J B62-1224-00 INSTRUCTION MANUAL (GERMAN) E,EB,EX
16 1J B62-1225-00 INSTRUCTION MANUAL (ITALIAN) E,EB,EX
16 1J B62-1226-00 INSTRUCTION MANUAL (DUTCH) E,EB,EX
17 2C B72-1641-04 MODEL NAME PLATE K
17 2C B72-1642-14 MODEL NAME PLATE E,E2
17 2C B72-1735-04 MODEL NAME PLATE KB
17 2C B72-1736-14 MODEL NAME PLATE EB,E2B
17 2C B72-1879-04 MODEL NAME PLATE KX
17 2C ✽B72-2072-04 MODEL NAME PLATE EX
19 2C E04-0167-05 RF COAXIAL PECEPTACLE (M)
20 2C E04-0170-05 RF COAXIAL RECEPTACLE (N)
21 2I E07-0751-05 DIN PLUG (7P) ACCESSORY
22 2I E07-0851-05 DIN PLUG (8P) ACCESSORY
- E07-0852-15 ROUND PLUG (MICROPHONE)
24 2I E07-1351-05 DIN PLUG (13P) ACCESSORY
25 2C E23-1164-04 EARTH LUG (ANT)
26 1I E30-3157-15 DC CORD ACCESSORY
27 2C E37-0866-05 FLAT CABLE (X57-605A CN26)
27 3C,2F E37-0866-05 FLAT CABLE (X57-605B CN800) K,KX,E
27 3C,2F E37-0866-05 FLAT CABLE (X57-605B CN800) E2,EX
28 1B E37-0867-05 FLAT CABLE (X57-606B CN501)
29 3C E37-0868-05 FLAT CABLE (X53 CN6)
30 1C E37-0869-05 FLAT CABLE (X53 CN504)
31 2B E37-0870-05 FLAT CABLE (X57-606A CN12)
32 1C E37-0871-05 FLAT CABLE (X45A CN9)
33 2B E37-0872-05 FLAT CABLE (X57-606A CN14)
34 3B E37-0873-05
LEAD WIRE WITH TERMINAL (X45A CN203,+B)
35 3B E37-0874-05 LEAD WIRE WITH TERMINAL (X45A CN204,GND)
- E37-0875-05 LEAD WIRE WITH MINIPIN PLUG (X57-606B CN502)
- E37-0876-05 LEAD WIRE WITH MINIPIN PLUG (X57-606C CN506)
- E37-0877-05 LEAD WIRE WITH MINIPIN PLUG (X57-606A CN8,13)
- E37-0878-05 LEAD WIRE WITH MINIPIN PLUG (X51 CN20,HF RX)
- E37-0879-05 LEAD WIRE WITH MINIPIN PLUG (X45A CN1,HFTX)
- E37-0880-05 LEAD WIRE WITH MINIPIN PLUG (X57-606A CN6)
- E37-0881-05 LEAD WIRE WITH MINIPIN PLUG (X45A CN2,14TX)
- E37-0882-05 LEAD WIRE WITH MINIPIN PLUG (X51 CN21,14RX)
- E37-0883-05 LEAD WIRE WITH MINIPIN PLUG (X57-606A CN2,3)
- E37-0886-05 LEAD WIRE WITH CONNECTOR (X53 CN505)
- E37-0887-05 LEAD WIRE WITH CONNECTOR (X53 CN503)
- E37-0888-05 LEAD WIRE WITH CONNECTOR (X57-606A CN9)
- E37-0889-05 LEAD WIRE WITH CONNECTOR (X57-605A CN31,32)
- E37-0890-05 LEAD WIRE WITH CONNECTOR (X57-606A CN10)
50 2C E37-0891-05 LEAD WIRE WITH CONNECTOR (EXT AT)
- E37-0897-05 LEAD WIRE WITH CONNECTOR (X57-607 CN1) KX,EX
- E37-0898-05
LEAD WIRE WITH CONNECTOR (X57-607 CN5) KX,EX
53 1B E37-0946-05 FLAT CABLE (X57-606B CN533)
54 3C E37-0947-05 FLAT CABLE (X53 CN1)
55 2F E37-0948-05 FLAT CABLE (X54 CN1) K,KX,E
55 2F E37-0948-05 FLAT CABLE (X54 CN1) E2,EX
- E37-0951-05
LEAD WIRE WITH MINIPIN PLUG (X51 CN4)
- E37-0952-05 LEAD WIRE WITH MINIPIN PLUG (X51 CN12,13)
- E37-0953-05 LEAD WIRE WITH MINIPIN PLUG (X57-606A CN18)
- E37-0957-05 LEAD WIRE WITH CONNECTOR (X51 CN10)
- E37-0958-05 LEAD WIRE WITH CONNECTOR (X51 CN9)
61 3B E37-0959-05 LEAD WIRE WITH CONNECTOR (SP)
62 3C E37-0963-05 FLAT CABLE (X57-607 CN6) KX,EX
- E37-0971-05
LEAD WIRE WITH CONNECTOR (X57-605I CN961) KB,EB,E2B
- E37-0972-05
LEAD WIRE WITH CONNECTOR (X57-605I CN960) KB,EB,E2B
65 1I,2I F05-2531-05 FUSE (BLADE) (25A/32V) ACCESSORY
66 2I F06-4027-05 FUSE (BLADE) (4A/32V) ACCESSORY
67 1C F07-1849-05 COVER (REAR-PANEL)
68 1C F09-0453-05 CAP (REAR-DIN)
69 3C F09-0471-05 FANMOTOR
70 2B F10-2328-02 SHIELDING PLATE
71 2B F10-2330-13 SHIELDING COVER (AT)
72 3B F10-2366-03 SHIELDING PLATE (1.2G) KX,EX
73 2B F10-2398-04 SHIELDING COVER (X51)
74 3G F12-0463-04 SHIELDING SHEET
- F15-0700-04 SHIELDING PLATE (1.2G ANT) K,KB,E
- F15-0700-04 SHIELDING PLATE (1.2G ANT) EB,E2,E2B
75 1A F20-1185-04 INSULATING SHEET
- F20-1186-04 INSULATING SHEET
- F20-3303-04 INSULATING SHEET (SUB PANEL)
76 3B F29-0014-05 INSULATING BUSH (X45-360A Q2)

TS-2000/X,TS-B2000
PARTS LIST
5
K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
TS-2000/X, TS-B2000
78 3E G02-0505-05 KNOB SPRING K,KX,E
78 3E G02-0505-05 KNOB SPRING E2,EX
79 1C G02-0570-04 FLAT SPRING
- G02-0729-14 FLAT SPRING (1.2G,A25)
80 3E G02-0854-03 FLAT SPRING (MAIN DIAL) K,KX,E
80 3E G02-0854-03 FLAT SPRING (MAIN DIAL) E2,EX
81 2A G02-0875-04 EARTH SPRING (X45-360B)
82 2F G02-0879-04 EARTH SPRING (PANEL ASSY) K,KX,E
82 2F G02-0879-04 EARTH SPRING (PANEL ASSY) E2,EX
83 3B G02-0881-04 FLAT SPRING (X45-360A IC201)
84 3E G09-0405-05 KNOB SPRING (RIT,MULTI) K,KX,E
84 3E G09-0405-05 KNOB SPRING (RIT,MULTI) E2,EX
110 2E G10-0789-04 FIBROUS SHEET (PANEL ASSY) K,KX,E
110 2E G10-0789-04 FIBROUS SHEET (PANEL ASSY) E2,EX
- G10-1218-04 FIBROUS SHEET (X45-360A IC201)
85 3E G10-1258-04
FIBROUS SHEET (FLAT SPRING:MAIN DIAL) K,KX,E
85 3E G10-1258-04
FIBROUS SHEET (FLAT SPRING:MAIN DIAL) E2,EX
86 2A,3A G10-1277-04 FIBROUS SHEET (CABINET UPPER)
87 1F G10-1278-04 FIBROUS SHEET (SUB PANEL) K,KX,E
87 1F G10-1278-04 FIBROUS SHEET (SUB PANEL) E2,EX
88 3D G10-1281-04 FIBROUS SHEET (FLAT CABLE)
98 2F G11-2521-04 SHEET (PANEL ASSY) K,KX,E
98 2F G11-2521-04 SHEET (PANEL ASSY) E2,EX
89 3C G11-2588-04 RUBBER SHEET (CHASSIS FRONT)
90 1I G11-2698-04 SHEET ACCESSORY
91 2F G11-4035-04 SHEET (KEY TOP) K,KX,E
91 2F G11-4035-04 SHEET (KEY TOP) E2,EX
92 2F G11-4036-04 SHEET (KEY TOP) K,KX,E
92 2F G11-4036-04 SHEET (KEY TOP) E2,EX
93 2F G11-4037-14 SHEET (KEY TOP) K,KX,E
93 2F G11-4037-14 SHEET (KEY TOP) E2,EX
94 2F G11-4038-04 SHEET (KEY TOP) K,KX,E
94 2F G11-4038-04 SHEET (KEY TOP) E2,EX
95 2F G11-4039-14 SHEET (KEY TOP) K,KX,E
95 2F G11-4039-14 SHEET (KEY TOP) E2,EX
96 2F G11-4041-04 SHEET (KEY TOP) K,KX,E
96 2F G11-4041-04 SHEET (KEY TOP) E2,EX
97 3C G11-4042-04 SHEET (FANMOTOR)
108 2F G11-4045-04 SHEET (4KEY) K,KX,E
108 2F G11-4045-04 SHEET (4KEY) E2,EX
- G11-4053-04 SHEET (FRONT GLASS) K,KX,E
- G11-4053-04 SHEET (FRONT GLASS) E2,EX
-✽G11-4059-04 SHEET (X53 CN7 FLAT CABLE)
99 2E G13-1775-13 CUSHION (LCD) K,KX,E
99 2E G13-1775-13 CUSHION (LCD) E2,EX
100 3B G13-1793-04 CUSHION (UNDER SP)
101 3A G13-1855-04 CUSHION (SP)
102 1C G13-1856-04 CUSHION (DRU-3A)
103 1D G13-1868-04 CUSHION (CABINET BOTTOM)
104 1G G13-1869-05 CONDUCTIVE CUSHION
105 1H G13-1870-05 CONDUCTIVE CUSHION
106 1H G13-1871-05 CONDUCTIVE CUSHION
107 3H G13-1872-05 CONDUCTIVE CUSHION
- G13-1877-05 CONDUCTIVE CUSHION (1.2G) KX,EX
- G13-1878-05 CONDUCTIVE CUSHION (1.2G) KX,EX
- H10-6631-12 POLYSTYRENE FOAMED FIXTURE (F)
- H10-6632-12 POLYSTYRENE FOAMED FIXTURE (R)
- H10-6640-04 POLYSTYRENE FOAMED FIXTURE KB,EB,E2B
- H20-1440-03 PROTECTION COVER
109 2J H52-1509-02 ITEM CARTON CASE K
109 2J H52-1590-02 ITEM CARTON CASE KB
109 2J H52-1712-02 ITEM CARTON CASE KX
109 2J H52-1773-02 ITEM CARTON CASE E,E2
109 2J H52-1774-02 ITEM CARTON CASE EB,E2B
109 2J ✽H52-1893-02 ITEM CARTON CASE EX
111 1D J02-0440-04 FOOT (FRONT) K,KX,E
111 1D J02-0440-04 FOOT (FRONT) E2,EX
112 3A,2D J02-0441-05 FOOT (SIDE)
113 2D J02-0442-04 FOOT (FRONT)
114 1D J02-0475-05 FOOT (REAR)
115 3B J21-8414-04 HARDWARE FIXTURE (1.2G)
116 1E J31-0141-04 COLLAR (MIC 8P) K,KX,E
116 1E J31-0141-04 COLLAR (MIC 8P) E2,EX
116 2E J31-0141-04 COLLAR (MIC 8P) KB,EB,E2B
117 3E J39-0638-04 SPACER (MAIN DIAL) K,KX,E
117 3E J39-0638-04 SPACER (MAIN DIAL) E2,EX
- J61-0307-05 BAND
120 2A K01-0420-05 HANDLE
121 3E K21-1104-03 KNOB (MAIN DIAL) K,KX,E
121 3E K21-1104-03 KNOB (MAIN DIAL) E2,EX
122 2E ✽K29-5391-12 KEY TOP (8KEY) K,KX,E
122 2E ✽K29-5391-12 KEY TOP (8KEY) E2,EX
123 2F K29-5392-12 KEY TOP (25KEY) K,KX,E
123 2F K29-5392-12 KEY TOP (25KEY) E2,EX
124 2F K29-5393-12 KEY TOP (18KEY) K,KX,E
124 2F K29-5393-12 KEY TOP (18KEY) E2,EX
125 2F ✽K29-5394-22 KEY TOP (4KEY) K,KX,E
125 2F ✽K29-5394-22 KEY TOP (4KEY) E2,EX
126 3E K29-5395-04 KNOB RING (MAIN DIAL) K,KX,E
126 3E K29-5395-04 KNOB RING (MAIN DIAL) E2,EX
127 3E K29-5396-03 KNOB (RIT,MULTI) K,KX,E
127 3E K29-5396-03 KNOB (RIT,MULTI) E2,EX
128 3E K29-5397-13 KNOB K,KX,E
128 3E K29-5397-13 KNOB E2,EX
129 3E K29-5398-03 KNOB (INSIDE) K,KX,E
129 3E K29-5398-03 KNOB (INSIDE) E2,EX
130 3E K29-5399-03 KNOB (OUTSIDE) K,KX,E
130 3E K29-5399-03 KNOB (OUTSIDE) E2,EX
- L79-1407-05 LINE FILTER
133 2I L79-1408-05
LINE FILTER (WITH BAND) ACCESSORY E,EB,E2
133 2I L79-1408-05
LINE FILTER (WITH BAND) ACCESSORY E2B,EX
A 1F N14-0569-04 CIRCULAR NUT K,KX,E
A 1F N14-0569-04 CIRCULAR NUT E2,EX
B 2C N15-1040-46 FLAT WASHER
C 3E N19-0670-05 SPECIAL WASHER K,KX,E
C 3E N19-0670-05 SPECIAL WASHER E2,EX
D 1F N19-0673-05 SPECIAL WASHER K,KX,E
D 1F N19-0673-05 SPECIAL WASHER E2,EX
E 2A,1D N33-3006-45 OVAL HEAD MACHINE SCREW
F 1D,2D N35-3008-41 BINDING HEAD MACHINE SCREW
G 3C N35-3020-46 BINDING HEAD MACHINE SCREW
H 2C N35-4010-46 BINDING HEAD MACHINE SCREW
J 2A N67-2608-46 PAN HEAD SEMS SCREW W
K 2A,3B N68-4006-46 PAN HEAD SEMS SCREW A
L 2F N87-2606-46 BRAZIER HEAD TAPTITE SCREW KB,EB,E2B
L 1E,2F N87-2606-46 BRAZIER HEAD TAPTITE SCREW K,KX,E
L 1E,2F N87-2606-46 BRAZIER HEAD TAPTITE SCREW E2,EX
M 2B,2F N87-2608-46 BRAZIER HEAD TAPTITE SCREW

TS-2000/X,TS-B2000
PARTS LIST
6K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
TS-2000/X, TS-B2000
FINAL UNIT (X45-360X-XX)
N 3E N90-3008-46 TP HEAD MACHINE SCREW K,KX,E
N 3E N90-3008-46 TP HEAD MACHINE SCREW E2,EX
135 1I N99-2024-05 SCREW SET ACCESSORY
- S50-1406-05 TACT SWITCH (MICROPHONE)
139 3B T07-0252-35 SPEAKER
140 1I T91-0352-15 MICROPHONE ACCESSORY
141 1J ✽T93-0123-25 CD-ROM ACCESSORY KB,EB,E2B
142 2F W02-1836-05 ENCODER (MAIN) K,KX,E
142 2F W02-1836-05 ENCODER (MAIN) E2,EX
143 1F W02-3619-05 ENCODER (RIT/SUB) K,KX,E
143 1F W02-3619-05 ENCODER (RIT/SUB) E2,EX
- W09-0873-05 LITHIUM CELL (X57-605A)
146 2E 212-2017-05 HEAT-PROOF TUBE (VOX,FUNC) K,KX,E
146 2E 212-2017-05 HEAT-PROOF TUBE (VOX,FUNC) E2,EX
C1 CK73FB1E104K CHIP C 0.10UF K
C2 CK73FB1H103K CHIP C 0.010UF K
C3 CK73FB1E104K CHIP C 0.10UF K
C4 CK73FB1H103K CHIP C 0.010UF K
C5 CK73FB1H102K CHIP C 1000PF K
C6 CK73FB1E104K CHIP C 0.10UF K
C7 CK73FB1C105K CHIP C 1.0UF K
C8,9 CK73FB1E104K CHIP C 0.10UF K
C10 CK73FB1C105K CHIP C 1.0UF K
C11 CK73FB1H102K CHIP C 1000PF K
C12 CE04EW1E100M ELECTRO 10UF 25WV
C13 CK73FB1E104K CHIP C 0.10UF K
C14 CK73FB1H102K CHIP C 1000PF K
C15 CK73FB1E104K CHIP C 0.10UF K
C16 CC73FCH1H100D CHIP C 10PF D
C17 CK73FB1E104K CHIP C 0.10UF K
C20 CC73FCH1H331J CHIP C 330PF J
C21 CK73FB1E104K CHIP C 0.10UF K
C22 CK73FB1H102K CHIP C 1000PF K
C24 CK73FB1E104K CHIP C 0.10UF K
C25 CK73FB1C105K CHIP C 1.0UF K
C26 CC73FCH1H390J CHIP C 39PF J
C27 CC73FCH1H470J CHIP C 47PF J
C29,30 CK73EB1H104K CHIP C 0.10UF K
C31 C93-0569-05 CHIP C 56PF J
C32 CK73FB1H102K CHIP C 1000PF K
C33 CE04EW1E100M ELECTRO 10UF 25WV
C34 CE04EW1E470M ELECTRO 47UF 25WV
C35 CK73FB1E104K CHIP C 0.10UF K
C36 CK73FB1C105K CHIP C 1.0UF K
C37 CK73FB1H102K CHIP C 1000PF K
C38 CK73FB1E104K CHIP C 0.10UF K
C39 CK73FB1H102K CHIP C 1000PF K
C40 CK73FB1C105K CHIP C 1.0UF K
C41,42 CK73FB1E104K CHIP C 0.10UF K
C43 CK73FB1H103K CHIP C 0.010UF K
C44 CK73FB1C105K CHIP C 1.0UF K
C45 CK73FB1H103K CHIP C 0.010UF K
C46 C93-0568-05 CHIP C 47PF J
C47 CM73F2H271J CHIP C 270PF J
C48 CM73F2H391J CHIP C 390PF J
C49-56 C93-0608-05 CHIP C 2700PF K
C57,58 C93-0572-05 CHIP C 100PF J
C59,60 C93-0568-05 CHIP C 47PF J
C61 CM73F2H331J CHIP C 330PF J
C63 C93-0555-05 CHIP C 5.0PF C
C67 C93-0555-05 CHIP C 5.0PF C
C68 CK73FB1E104K CHIP C 0.10UF K
C69 CK73FB1H102K CHIP C 1000PF K
C70 CE04EW1E100M ELECTRO 10UF 25WV
C71 CK73FB1H103K CHIP C 0.010UF K
C72 CK73FB1E104K CHIP C 0.10UF K
C73 CK73FB1H102K CHIP C 1000PF K
C74 CK73FB1E104K CHIP C 0.10UF K
C79 C90-4089-05 ELECTRO 220UF 25WV
C101 C93-0567-05 CHIP C 39PF J
C102 C93-0560-05 CHIP C 10PF D
C104 C93-0572-05 CHIP C 100PF J
C106 C93-0572-05 CHIP C 100PF J
C107 CM73F2H271J CHIP C 270PF J
C108 CM73F2H221J CHIP C 220PF J
C110 CM73F2H271J CHIP C 270PF J
C111 CM73F2H221J CHIP C 220PF J
C117,118 CM73F2H151J CHIP C 150PF J
C125 CK73EF1V225Z CHIP C 2.2UF Z
C127 CK73FB1H102K CHIP C 1000PF K
C130,131 CM73F2H151J CHIP C 150PF J
C132 CC73FSL1H471J CHIP C 470PF J
C133 CK73FB1H103K CHIP C 0.010UF K
C135 CK73FB1E104K CHIP C 0.10UF K
C138 CK73FB1H102K CHIP C 1000PF K
C139,140 CC73FSL1H331J CHIP C 330PF J
C141 CK73FB1H102K CHIP C 1000PF K
C142 CK73FB1E104K CHIP C 0.10UF K
C143 CK73FB1H471K CHIP C 470PF K
C144 CE04EW1E100M ELECTRO 10UF 25WV
C145 CK73FB1H471K CHIP C 470PF K
C146 CK73FB1E104K CHIP C 0.10UF K
C147 CK73FB1H102K CHIP C 1000PF K
C148 CC73FSL1H471J CHIP C 470PF J
C149 CK73FB1H103K CHIP C 0.010UF K
C150 CM73F2H680J CHIP C 68PF J
C151,152 C93-0554-05 CHIP C 4.0PF C
C153 CM73F2H680J CHIP C 68PF J
C154,155 C93-0554-05 CHIP C 4.0PF C
C157 CM73F2H200J CHIP C 20PF J
C158,159 C93-0603-05 CHIP C 1000PF K
C160 C93-0560-05 CHIP C 10PF D
C161,162 CC73FCH1H100D CHIP C 10PF D
C201,202 CK73FB1H102K CHIP C 1000PF K
C203,204 CK73FB1H103K CHIP C 0.010UF K
C205 C91-2691-05 CERAMIC 470PF 250WV
C206 CK73FB1H103K CHIP C 0.010UF K
C207 CE04EW1E471M ELECTRO 470UF 25WV
C208 CK73FB1H103K CHIP C 0.010UF K
C209 CK73FB1E104K CHIP C 0.10UF K
C210 CK73FB1H103K CHIP C 0.010UF K
C211 CK73FB1E104K CHIP C 0.10UF K
C212 CK73FB1H103K CHIP C 0.010UF K
C213 CE04EW1E471M ELECTRO 470UF 25WV
C214 CK73FB1H103K CHIP C 0.010UF K
FINAL UNIT (X45-360X-XX) 0-11 : K,KB,KX 2-71 : E,EB,E2,E2B,EX

TS-2000/X,TS-B2000
PARTS LIST
7
K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
FINAL UNIT (X45-360X-XX)
C215 CK73FB1E104K CHIP C 0.10UF K
C216 CK73FB1H102K CHIP C 1000PF K
C217-221 CK73FB1E104K CHIP C 0.10UF K
C222,223 CE04EW1E100M ELECTRO 10UF 25WV
C224 CE04EW1E102M ELECTRO 1000UF 25WV
C225,226 CK73FB1E104K CHIP C 0.10UF K
C227 C90-2021-05 ELECTRO 10UF 25WV
C228,229 CK73FB1E104K CHIP C 0.10UF K
C230 CE04EW1E100M ELECTRO 10UF 25WV
C231 CK73FB1E104K CHIP C 0.10UF K
C232-234 CK73FB1H103K CHIP C 0.010UF K
C235,236 CK73FB1H102K CHIP C 1000PF K
C237 CK73FB1H103K CHIP C 0.010UF K
C238 CK73FB1H102K CHIP C 1000PF K
C239 CE04EW1E470M ELECTRO 47UF 25WV
C240-244 CK73FB1H102K CHIP C 1000PF K
C250 CE04EW1E471M ELECTRO 470UF 25WV
C251 CK73FB1E104K CHIP C 0.10UF K
C252 CC73FCH1H470J CHIP C 47PF J
C253,254 CE04EW1C101M ELECTRO 100UF 16WV
C255 CK73FB1H103K CHIP C 0.010UF K
C256 CE04EW1HR22M ELECTRO 0.22UF 50WV
C259,260 CM73F2H331J CHIP C 330PF J
C262 CK73EF1V225Z CHIP C 2.2UF Z
C263 CK73FB1E104K CHIP C 0.10UF K
C264 CK73FB1H102K CHIP C 1000PF K
C265 CK73FB1H103K CHIP C 0.010UF K
C270 C93-0561-05 CHIP C 12PF J
C271 C93-0565-05 CHIP C 27PF J
C272,273 CK73FB1H102K CHIP C 1000PF K E,EB,E2
C272,273 CK73FB1H102K CHIP C 1000PF K E2B,EX
C274 CK73FB1H103K CHIP C 0.010UF K
C501,502 CK45FB1H103K CERAMIC 0.010UF K
C511,512 CK45FB1H103K CERAMIC 0.010UF K
C801-803 CK73FB1E104K CHIP C 0.10UF K
C804 CK73FB1H102K CHIP C 1000PF K
C805,806 C91-3115-05 HV CAP 10PF 2KV
C807 CK73FB1E104K CHIP C 0.10UF K
C808,809 CK73FB1H103K CHIP C 0.010UF K
C810-815 C91-3115-05 HV CAP 10PF 2KV
C816-821 CK73FB1H103K CHIP C 0.010UF K
C822-827 C91-3115-05 HV CAP 10PF 2KV
C828-833 CK73FB1H103K CHIP C 0.010UF K
C834,835 C91-3115-05 HV CAP 10PF 2KV
C836 C91-3126-05 HV CAP 10PF 3KV
C837-842 CK73FB1H103K CHIP C 0.010UF K
C843 C91-3126-05 HV CAP 10PF 3KV
C844 C91-3127-05 HV CAP 18PF 3KV
C845-850 CK73FB1H103K CHIP C 0.010UF K
C851,852 C91-3127-05 HV CAP 18PF 3KV
C853-858 CK73FB1H103K CHIP C 0.010UF K
C859 C91-3127-05 HV CAP 18PF 3KV
C860-865 CK73FB1H103K CHIP C 0.010UF K
C866-869 C91-3123-05 HV CAP 150PF 3KV
C870-875 CK73FB1H103K CHIP C 0.010UF K
C876,877 C91-3123-05 HV CAP 150PF 3KV
C878-883 CK73FB1H103K CHIP C 0.010UF K
C884-887 C91-3123-05 HV CAP 150PF 3KV
C888 CK73FB1E104K CHIP C 0.10UF K
C890,891 C91-3127-05 HV CAP 18PF 3KV
C901 CC73FCH1H470J CHIP C 47PF J
C903 CE04EW1E470M ELECTRO 47UF 25WV
C904,905 CK73FB1H471K CHIP C 470PF K
C906,907 CK73FB1H103K CHIP C 0.010UF K
C908,909 CK73FB1H471K CHIP C 470PF K
C911,912 CK73FB1H471K CHIP C 470PF K
C914 CK73FB1C105K CHIP C 1.0UF K
C915 CC73FCH1H101J CHIP C 100PF J
C916 CK73FB1H103K CHIP C 0.010UF K
C919,920 CK73FB1H471K CHIP C 470PF K
C921 CK73FB1H103K CHIP C 0.010UF K
C922 CK73FB1C105K CHIP C 1.0UF K
C924 CK73FB1H103K CHIP C 0.010UF K
C926 CK73FB1H471K CHIP C 470PF K
C928 CE04EW1E100M ELECTRO 10UF 25WV
C931 CC73FCH1H180J CHIP C 18PF J
C932 CC73FCH1H100D CHIP C 10PF D
C933 CE04EW1C470M ELECTRO 47UF 16WV
C934,935 CK73FB1H471K CHIP C 470PF K
C936,937 CM73F2H330J CHIP C 33PF J
C938 CK73FB1H103K CHIP C 0.010UF K
C940 CK73FB1H471K CHIP C 470PF K
C941,942 CK73FB1H103K CHIP C 0.010UF K
C943 C93-0564-05 CHIP C 22PF J
C944 CE04EW1E100M ELECTRO 10UF 25WV
C945,946 CK73FB1H471K CHIP C 470PF K
C947 C93-0564-05 CHIP C 22PF J
C948 CK73FB1H103K CHIP C 0.010UF K
C949,950 CM73F2H330J CHIP C 33PF J
C952,953 CK73FB1H471K CHIP C 470PF K
C955 CE04EW1E100M ELECTRO 10UF 25WV
C956 CK73FB1H103K CHIP C 0.010UF K
C958 CK73FB1E104K CHIP C 0.10UF K
C959 CE04NW1E470M ELECTRO 47UF 25WV
C960,961 CM73F2H390J CHIP C 39PF J
C962 CK73FB1H471K CHIP C 470PF K
C963 CK73FB1H103K CHIP C 0.010UF K
C964 CM73F2H040D CHIP C 4.0PF D
C965 CE04EW1E100M ELECTRO 10UF 25WV
C966 CK73FB1H103K CHIP C 0.010UF K
C967 CK73FB1H471K CHIP C 470PF K
C968 C93-0599-05 CHIP C 470PF K
C969 CK73FB1H471K CHIP C 470PF K
C970 CK73FB1H103K CHIP C 0.010UF K
C971 CK73FB1H471K CHIP C 470PF K
C973,974 CK73FB1H471K CHIP C 470PF K
C976 CK73FB1H471K CHIP C 470PF K
C977 C93-0599-05 CHIP C 470PF K
C978 C93-0559-05 CHIP C 9.0PF D
C980 C93-0555-05 CHIP C 5.0PF C
C981 CC73FCH1H471J CHIP C 470PF J
C982 CM73F2H120J CHIP C 12PF J
C983 C93-0553-05 CHIP C 3.0PF C
C985 C93-0566-05 CHIP C 33PF J
C987 C93-0562-05 CHIP C 15PF J
C989-991 CC73FCH1H101J CHIP C 100PF J
C992 CM73F2H240J CHIP C 24PF J
C993 C93-0558-05 CHIP C 8.0PF D
C994 CM73F2H060D CHIP C 6.0PF D
C995 C93-0566-05 CHIP C 33PF J

TS-2000/X,TS-B2000
PARTS LIST
8K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
FINAL UNIT (X45-360X-XX)
C996,997 CC73FCH1H471J CHIP C 470PF J
TC101,102 C05-0309-05 CERAMIC TRIMMER CAP (40PF)
TC901 C05-0030-15 CERAMIC TRIMMER CAP (20PF)
CN1,2 E04-0154-05 PIN SOCKET
CN3 E23-0996-05 TEST TERMINAL
CN4 E04-0154-05 PIN SOCKET
CN5 E40-3240-05 PIN ASSY
CN8 E40-3237-05 PIN ASSY
CN9 E40-6078-05 FLAT CABLE CONNECTOR
CN10 E40-5764-05 FLAT CABLE CONNECTOR
CN11,12 E23-0996-05 TEST TERMINAL
CN14 E23-0996-05 TEST TERMINAL
CN15 E40-3256-05 PIN ASSY
CN16 E40-3254-05 PIN ASSY
CN17 E23-0996-05 TEST TERMINAL
CN22 E40-3246-05 PIN ASSY
CN27 E40-3238-05 PIN ASSY
CN102,103 E23-0996-05 TEST TERMINAL
CN203,204 E23-1116-05 RELAY TERMINAL
CN801,802 E04-0154-05 PIN SOCKET
CN901 E04-0190-05 PIN SOCKET
CN902 E40-5765-05 FLAT CABLE CONNECTOR
CN903,904 E23-1116-05 RELAY TERMINAL
CN905 E04-0190-05 PIN SOCKET
CN906 E23-0486-05 TERMINAL
CN907-909 E23-0996-05 TEST TERMINAL
W1 E37-0975-15 LEAD WIRE WITH TERMINAL K,KB,KX
W1 E37-0976-15 LEAD WIRE WITH TERMINAL E,EB,E2
W1 E37-0976-15 LEAD WIRE WITH TERMINAL E2B,EX
F1 F53-0093-05 FUSE (5A/125V)
F2 F06-4027-05 FUSE (BLADE) (4A/32V)
CN6,7 J13-0410-05 FUSE HOLDER
- L92-0105-05 TROIDAL CORE
- L92-0412-05 TROIDAL CORE E,EB,E2
- L92-0412-05 TROIDAL CORE E2B,EX
L1 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L2 L40-1095-34 SMALL FIXED INDUCTOR (1UH)
L3 L33-0699-05 CHOKE COIL
L4 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L5 L39-1255-05 TOROIDAL COIL
L6 L33-0699-05 CHOKE COIL
L7 L39-1452-05 TOROIDAL COIL
L8 L92-0131-05 FERRITE CHIP
L9,10 L33-0699-05 CHOKE COIL
L11 L39-1434-05 TOROIDAL COIL
L13 L39-1434-05 TOROIDAL COIL
L14-16 L33-0699-05 CHOKE COIL
L17 L39-1451-05 TOROIDAL COIL
L18 L39-1437-05 TOROIDAL COIL
L21 L34-1231-15 AIR-CORE COIL
L23 L40-4795-34 SMALL FIXED INDUCTOR (4.7UH)
L24 L33-0617-15 CHOKE COIL
L25 L33-0651-05 CHOKE COIL
L26 L40-4795-34 SMALL FIXED INDUCTOR (4.7UH)
L27 L39-1450-05 TOROIDAL COIL
L29 L39-1450-05 TOROIDAL COIL
L30-33 L92-0149-05 FERRITE CHIP
L101,102 L34-0895-05 AIR-CORE COIL
L103,104 L34-1058-05 AIR-CORE COIL
L105,106 L34-1177-05 AIR-CORE COIL
L107,108 L34-0908-05 AIR-CORE COIL
L109 L34-1359-05 AIR-CORE COIL
L111,112 L40-1095-34 SMALL FIXED INDUCTOR (1UH)
L114 L92-0149-05 FERRITE CHIP
L115 L34-4652-05 AIR-CORE COIL
L116 L34-4656-05 AIR-CORE COIL
L117 L34-1185-05 AIR-CORE COIL
L118 L34-4652-05 AIR-CORE COIL
L119 L34-4653-05 AIR-CORE COIL
L120 L34-4402-05 AIR-CORE COIL
L121,122 L34-0452-05 AIR-CORE COIL
L124,125 L92-0149-05 FERRITE CHIP
L126 L34-4658-05 AIR-CORE COIL
L127 L92-0149-05 FERRITE CHIP
L201,202 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L205 L40-1001-12 SMALL FIXED INDUCTOR
L206,207 L40-1005-34 SMALL FIXED INDUCTOR (10UH)
L208 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L209 L40-1001-12 SMALL FIXED INDUCTOR
L210 L40-1095-34 SMALL FIXED INDUCTOR (1UH)
L211 L92-0131-05 FERRITE CHIP
L501,502 L39-0421-04 COIL
L801 L40-1001-12 SMALL FIXED INDUCTOR
L802,803 L39-1441-05 TOROIDAL COIL
L804 L39-1440-05 TOROIDAL COIL
L805-807 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L808 L34-4633-05 AIR-CORE COIL
L809-811 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L812 L34-4630-05 AIR-CORE COIL
L813-815 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L816 L34-4490-05 AIR-CORE COIL
L817-819 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L820 L34-4490-05 AIR-CORE COIL
L821-823 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L824 L34-4629-05 AIR-CORE COIL
L825-827 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L828 L34-4490-05 AIR-CORE COIL
L829-831 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L832 L34-4490-05 AIR-CORE COIL
L833-835 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L852,853 L39-1441-05 TOROIDAL COIL
L854 L39-1440-05 TOROIDAL COIL
L855 L34-1177-05 AIR-CORE COIL
L901 L40-1085-34 SMALL FIXED INDUCTOR (100NH)
L902 L92-0149-05 FERRITE CHIP
L903 L40-1095-34 SMALL FIXED INDUCTOR (1UH)
L904 L92-0149-05 FERRITE CHIP
L905 L34-0895-05 AIR-CORE COIL
L906 L34-0742-05 AIR-CORE COIL
L907 L92-0149-05 FERRITE CHIP
L909 L34-0742-05 AIR-CORE COIL
L910 L34-1185-05 AIR-CORE COIL
L911 L40-1085-34 SMALL FIXED INDUCTOR (100NH)
L912 L34-0742-05 AIR-CORE COIL
L913 L92-0149-05 FERRITE CHIP
L915 L34-1232-15 AIR-CORE COIL
L916 L34-1231-15 AIR-CORE COIL

TS-2000/X,TS-B2000
PARTS LIST
9
K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
FINAL UNIT (X45-360X-XX)
L917 L34-1239-05 AIR-CORE COIL
L918,919 L34-1185-05 AIR-CORE COIL
L921,922 L34-1185-05 AIR-CORE COIL
L923 L34-4617-15 AIR-CORE COIL
L924 L34-1239-05 AIR-CORE COIL
L926 L40-2275-34 SMALL FIXED INDUCTOR (22NH)
L927-931 L40-1085-34 SMALL FIXED INDUCTOR (100NH)
L932 L34-4617-15 AIR-CORE COIL
CN803,804 R92-1061-05 JUMPER REST 0 OHM
R1,2 RK73FB2A101J CHIP R 100 J 1/10W
R3 RK73FB2A150J CHIP R 15 J 1/10W
R4 RK73FB2A681J CHIP R 680 J 1/10W
R5 RK73FB2A332J CHIP R 3.3K J 1/10W
R6 RK73FB2A681J CHIP R 680 J 1/10W
R7 RK73FB2A152J CHIP R 1.5K J 1/10W
R8 RK73FB2A471J CHIP R 470 J 1/10W
R9 RK73FB2A100J CHIP R 10 J 1/10W
R10 R92-0670-05 CHIP R 0 OHM
R11 RK73FB2A221J CHIP R 220 J 1/10W
R12 RK73FB2A391J CHIP R 390 J 1/10W
R13 RK73FB2A471J CHIP R 470 J 1/10W
R14 R92-2021-05 CHIP R 2.2 J 1/2W
R15 RK73EB2B221J CHIP R 220 J 1/8W
R16-19 RK73FB2A1R0J CHIP R 1.0 J 1/10W
R20,21 RK73FB2A101J CHIP R 100 J 1/10W
R24 R92-1213-05 CHIP R 100 J 1/2W
R25 RK73FB2A820J CHIP R 82 J 1/10W
R26 RK73FB2A270J CHIP R 27 J 1/10W
R27 R92-2018-05 CHIP R 560 J 1/2W
R30 R92-1318-05 CHIP R 100 J 1W
R31,32 R92-2673-05 RESISTOR 1.0
R33,34 R92-3511-05 RESISTOR 8.2
R35-40 RK73EB2E1R0J CHIP R 1.0 J 1/4W
R41,42 R92-1240-05 CHIP R 10 J 1/4W
R43 RK73FB2A331J CHIP R 330 J 1/10W
R44 RS14DB3A4R7J
FL-PROOF RS 4.7 J 1W
R45,46 RS14DB3D390J
FL-PROOF RS 39 J 2W
R101 R92-1318-05 CHIP R 100 J 1W
R102 RS14DB3A100J
FL-PROOF RS 10 J 1W
R103 RS14DB3F101J
FL-PROOF RS 100 J 3W
R106 R92-1213-05 CHIP R 100 J 1/2W
R107 R92-1212-05 CHIP R 27 J 1/2W
R108 RK73FB2A100J CHIP R 10 J 1/10W
R109 RK73FB2A331J CHIP R 330 J 1/10W
R110 RK73FB2A561J CHIP R 560 J 1/10W
R111 R92-2559-05 RESISTOR 12
R201 RK73FB2A472J CHIP R 4.7K J 1/10W
R202 R92-2536-05 CHIP R 2.2 J 1/4W
R203 RK73FB2A472J CHIP R 4.7K J 1/10W
R204 R92-1259-05 CHIP R 18 J 1/2W
R205 RK73FB2A102J CHIP R 1.0K J 1/10W
R206 RK73FB2A100J CHIP R 10 J 1/10W K,KB,KX
R207 RK73FB2A333J CHIP R 33K J 1/10W
R208 RK73FB2A102J CHIP R 1.0K J 1/10W
R209-212 RK73FB2A101J CHIP R 100 J 1/10W
R213 R92-2021-05 CHIP R 2.2 J 1/2W
R214 R92-0679-05 CHIP R 0 OHM
R216,217 R92-0670-05 CHIP R 0 OHM
R218 RK73FB2A101J CHIP R 100 J 1/10W
R219 RK73FB2A681J CHIP R 680 J 1/10W
R220 RK73FB2A100J CHIP R 10 J 1/10W
R221 RK73FB2A4R7J CHIP R 4.7 J 1/10W
R222 R92-0679-05 CHIP R 0 OHM
R223 RK73FB2A181J CHIP R 180 J 1/10W
R224 RK73FB2A680J CHIP R 68 J 1/10W
R225 RK73FB2A332J CHIP R 3.3K J 1/10W
R226 RK73FB2A103J CHIP R 10K J 1/10W
R227 RK73FB2A122J CHIP R 1.2K J 1/10W
R228 RK73FB2A270J CHIP R 27 J 1/10W
R501,502 RS14DB3F820J
FL-PROOF RS 82 J 3W
R901 RK73FB2A563J CHIP R 56K J 1/10W
R902 R92-0670-05 CHIP R 0 OHM
R903 RK73FB2A470J CHIP R 47 J 1/10W
R904 RK73FB2A274J CHIP R 270K J 1/10W
R906 R92-0670-05 CHIP R 0 OHM
R907 RK73FB2A332J CHIP R 3.3K J 1/10W
R908 R92-0670-05 CHIP R 0 OHM
R909 RK73FB2A470J CHIP R 47 J 1/10W
R910 RK73FB2A183J CHIP R 18K J 1/10W
R911 RK73FB2A221J CHIP R 220 J 1/10W
R912 R92-1221-05 CHIP R 82 J 1/4W
R913 RK73FB2A391J CHIP R 390 J 1/10W
R914 R92-1261-05 CHIP R 150 J 1/2W
R915 R92-1253-05 CHIP R 82 J 1/2W
R916,917 RK73FB2A681J CHIP R 680 J 1/10W
R918 R92-1253-05 CHIP R 82 J 1/2W
R919-922 RK73FB2A183J CHIP R 18K J 1/10W
R923,924 RK73FB2A220J CHIP R 22 J 1/10W
R925 RK73FB2A390J CHIP R 39 J 1/10W
R928 R92-0679-05 CHIP R 0 OHM
VR1 R12-6730-05 TRIMMING POT. (220)
VR2 R12-6737-05 TRIMMING POT. (3.3K)
VR102 R12-6737-05 TRIMMING POT. (3.3K)
VR901 R12-6730-05 TRIMMING POT. (220)
VR902 R12-6737-05 TRIMMING POT. (3.3K)
K1 S76-0424-05 RELAY
K201 S76-0429-05 RELAY
K801,802 S76-0419-05 RELAY
K803 S76-0415-05 RELAY
K804,805 S76-0419-05 RELAY
K806 S76-0415-05 RELAY
K807,808 S76-0419-05 RELAY
K809 S76-0415-05 RELAY
K810,811 S76-0419-05 RELAY
K812 S76-0415-05 RELAY
K813,814 S76-0419-05 RELAY
K815 S76-0415-05 RELAY
K816,817 S76-0419-05 RELAY
K818 S76-0415-05 RELAY
K819,820 S76-0419-05 RELAY
K821 S76-0415-05 RELAY
K822,823 S76-0419-05 RELAY
K824 S76-0415-05 RELAY
D1 DAN235E DIODE
D2 MA2C029W-B VARISTOR
D3 1SS355 DIODE
D5 DAN202K DIODE
D6 1SS355 DIODE

TS-2000/X,TS-B2000
PARTS LIST
10 K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
FINAL UNIT (X45-360X-XX)
FILTER UNIT (X51-315X-XX)
D7,8 MA27-B VARISTOR
D101,102 MA742 DIODE
D103,104 MA27-B VARISTOR
D201 ZSH5MA27 SURGE ABSORBER
D202 1SS355 DIODE
D203 02CZ16(X) ZENER DIODE
D203 02CZ16(Y) ZENER DIODE
D204 1SS355 DIODE
D206-209 DAP202U DIODE
D210 1SS355 DIODE
D211 ✽02CZ12(Z) ZENER DIODE
D801-824 1SS355 DIODE
D901-903 MA27-B VARISTOR
D904,905 HSM88ASR DIODE
D906 MA4PH633 DIODE
D908 XB15A709 DIODE
D909 HVU131 DIODE
IC201 TA7808F IC (AVR)
IC202 TA7808S IC (AVR)
IC203 BA10T IC (AVR)
IC204 TA7805F IC (AVR)
IC205 BU2099FV IC (EXTENDED I/O)
IC801-803 UPD6345GS IC (EXTENDED I/O)
Q1 2SK2596 FET
Q2 2SC1971 TRANSISTOR
Q3,4 2SC1972-26 TRANSISTOR
Q6,7 2SC5125 TRANSISTOR
Q8 2SC3421(Y) TRANSISTOR
Q101,102 2SC2694 TRANSISTOR
Q103 2SC3421(Y) TRANSISTOR
Q201 ✽IMD2A TRANSISTOR
Q202,203 DTA143EKA DIGITAL TRANSISTOR
Q204,205 DTD123EK DIGITAL TRANSISTOR
Q206 DTC114EKA DIGITAL TRANSISTOR
Q207 DTC143TKA DIGITAL TRANSISTOR
Q208-215 DTB143EK DIGITAL TRANSISTOR
Q216,217 ✽IMD2A TRANSISTOR
Q218 2SC2412K(R) TRANSISTOR
Q901 2SK2596 FET
Q902 2SK2595 FET
Q903 2SC3022 TRANSISTOR
Q904 2SC3421(Y) TRANSISTOR
Q905 2SC3102 TRANSISTOR
TH101,102 157-501-55003 THERMISTOR
TH201 5TP-41S THERMISTOR
TH901 157-153-53002 THERMISTOR
- 212-1021-05 INSULATING TUBE
C2 C93-0553-05 CHIP C 3.0PF C
C3 C93-0562-05 CHIP C 15PF J
C5 CK73FB1H103K CHIP C 0.010UF K
C7 CK73FB1H102K CHIP C 1000PF K
C8 CC73FCH1H680J CHIP C 68PF J
C9 C93-0553-05 CHIP C 3.0PF C
C10 CC73FCH1H560J CHIP C 56PF J
C11 CK73FB1H102K CHIP C 1000PF K
C12-14 CK73FB1H103K CHIP C 0.010UF K
C15,16 CC73FCH1H470J CHIP C 47PF J
C17-26 CK73FB1H103K CHIP C 0.010UF K
C27 CK73FB1H102K CHIP C 1000PF K
C28,29 CK73FB1E104K CHIP C 0.10UF K
C30 CE04EW1E470M ELECTRO 47UF 25WV
C31,32 CK73FB1H103K CHIP C 0.010UF K
C34 C93-0562-05 CHIP C 15PF J
C35 C93-0565-05 CHIP C 27PF J
C36 CK73FB1H103K CHIP C 0.010UF K
C37 C93-0556-05 CHIP C 6.0PF D
C38 CC73FCH1H330J CHIP C 33PF J E,EB,E2
C38 CC73FCH1H330J CHIP C 33PF J E2B,EX
C201 CM73F2H102J CHIP C 1000PF J
C202 CM73F2H561J CHIP C 560PF J
C203 CM73F2H102J CHIP C 1000PF J
C204 CM73F2H821J CHIP C 820PF J
C205 C93-0573-05 CHIP C 120PF J
C206 CM73F2H102J CHIP C 1000PF J
C207 CK73FB1H103K CHIP C 0.010UF K
C208,209 C93-0570-05 CHIP C 68PF J
C251 CM73F2H561J CHIP C 560PF J
C252 C93-0573-05 CHIP C 120PF J
C253 CM73F2H102J CHIP C 1000PF J
C255 C93-0573-05 CHIP C 120PF J
C256 CM73F2H561J CHIP C 560PF J
C258 CK73FB1H103K CHIP C 0.010UF K
C261 C93-0565-05 CHIP C 27PF J
C262,263 C93-0573-05 CHIP C 120PF J
C301,302 C93-0572-05 CHIP C 100PF J
C303,304 CM73F2H471J CHIP C 470PF J
C305 C93-0564-05 CHIP C 22PF J
C306 CM73F2H331J CHIP C 330PF J
C307 CK73FB1H103K CHIP C 0.010UF K
C308 CM73F2H271J CHIP C 270PF J
C311 CM73F2H331J CHIP C 330PF J
C351 C93-0571-05 CHIP C 82PF J E,EB,E2
C351 C93-0571-05 CHIP C 82PF J E2B,EX
C353 C93-0568-05 CHIP C 47PF J E,EB,E2
C353 C93-0568-05 CHIP C 47PF J E2B,EX
C355 CM73F2H471J CHIP C 470PF J E,EB,E2
C355 CM73F2H471J CHIP C 470PF J E2B,EX
C356 C93-0572-05 CHIP C 100PF J E,EB,E2
C356 C93-0572-05 CHIP C 100PF J E2B,EX
C357 C93-0573-05 CHIP C 120PF J E,EB,E2
C357 C93-0573-05 CHIP C 120PF J E2B,EX
C358 CK73FB1H103K CHIP C 0.010UF K E,EB,E2
C358 CK73FB1H103K CHIP C 0.010UF K E2B,EX
C360 CK73FB1H103K CHIP C 0.010UF K
C362 C93-0573-05 CHIP C 120PF J E,EB,E2
C362 C93-0573-05 CHIP C 120PF J E2B,EX
C401,402 C93-0573-05 CHIP C 120PF J
C403 C93-0569-05 CHIP C 56PF J E,EB,E2
C403 C93-0569-05 CHIP C 56PF J E2B,EX
C403 C93-0572-05 CHIP C 100PF J K,KB,KX
C404,405 C93-0573-05 CHIP C 120PF J
C406 C93-0565-05 CHIP C 27PF J E,EB,E2
C406 C93-0565-05 CHIP C 27PF J E2B,EX
C406 C93-0567-05 CHIP C 39PF J K,KB,KX
C407 C93-0566-05 CHIP C 33PF J K,KB,KX
C407 C93-0571-05 CHIP C 82PF J E,EB,E2
FILTER UNIT (X51-315X-XX) 0-11 : K,KB,KX 2-71 : E,EB,E2,E2B,EX

TS-2000/X,TS-B2000
PARTS LIST
11
K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
FILTER UNIT (X51-315X-XX)
C407 C93-0571-05 CHIP C 82PF J E2B,EX
C408 CK73FB1H103K CHIP C 0.010UF K
C411 C93-0560-05 CHIP C 10PF D K,KB,KX
C451,452 C93-0562-05 CHIP C 15PF J
C453 C93-0572-05 CHIP C 100PF J
C454 C93-0571-05 CHIP C 82PF J
C455 C93-0566-05 CHIP C 33PF J
C456 C93-0571-05 CHIP C 82PF J
C457 CK73FB1H103K CHIP C 0.010UF K
C458 C93-0552-05 CHIP C 2.0PF C
C501 C93-0571-05 CHIP C 82PF J
C502 C93-0569-05 CHIP C 56PF J
C503 C93-0571-05 CHIP C 82PF J
C504 C93-0572-05 CHIP C 100PF J
C505 C93-0562-05 CHIP C 15PF J
C506 C93-0570-05 CHIP C 68PF J
C507 CK73FB1H103K CHIP C 0.010UF K
C508 C93-0555-05 CHIP C 5.0PF C
C509 C93-0552-05 CHIP C 2.0PF C
C551 C93-0558-05 CHIP C 8.0PF D
C553 C93-0568-05 CHIP C 47PF J
C554 C93-0559-05 CHIP C 9.0PF D
C555 C93-0569-05 CHIP C 56PF J
C557 C93-0562-05 CHIP C 15PF J
C558 C93-0563-05 CHIP C 18PF J
C559,560 CK73FB1H103K CHIP C 0.010UF K
C561 C93-0558-05 CHIP C 8.0PF D
C562 C93-0554-05 CHIP C 4.0PF C
C563 C93-0553-05 CHIP C 3.0PF C
C601 C93-0555-05 CHIP C 5.0PF C
TC1 C05-0031-15 CERAMIC TRIMMER CAP (10PF)
CN2,3 E23-0996-05 TEST TERMINAL
CN4 E04-0154-05 PIN SOCKET
CN5-8 E23-0996-05 TEST TERMINAL
CN9 E40-3256-05 PIN ASSY
CN10 E40-3254-05 PIN ASSY
CN12,13 E04-0154-05 PIN SOCKET
CN20 E04-0154-05 PIN SOCKET
CN21 E04-0190-05 PIN SOCKET
- L92-0104-05 TROIDAL CORE
- L92-0107-05 TROIDAL CORE
- L92-0108-05 TROIDAL CORE
L2,3 L34-1232-15 AIR-CORE COIL
L4 L40-1095-34 SMALL FIXED INDUCTOR (1UH)
L5 L34-1088-05 AIR-CORE COIL
L6 L40-1021-12 SMALL FIXED INDUCTOR
L7 L39-0480-15 TOROIDAL COIL
L8 L40-1021-12 SMALL FIXED INDUCTOR
L9 L39-1442-05 TOROIDAL COIL
L10 L39-1443-05 TOROIDAL COIL
L11,12 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L13 L40-1885-48 SMALL FIXED INDUCTOR (180NH)
L14,15 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L16 L40-2775-34 SMALL FIXED INDUCTOR (27NH) E,EB,E2
L16 L40-2775-34 SMALL FIXED INDUCTOR (27NH) E2B,EX
L201 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L202 L39-1259-05 TOROIDAL COIL
L203 L39-1260-05 TOROIDAL COIL
L251 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L252 L39-1405-05 TOROIDAL COIL
L253 L39-1225-05 TOROIDAL COIL
L301 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L302,303 L39-1457-05 TOROIDAL COIL
L351 L40-4705-34 SMALL FIXED INDUCTOR (47UH) E,EB,E2
L351 L40-4705-34 SMALL FIXED INDUCTOR (47UH) E2B,EX
L352,353 L39-1221-05 TOROIDAL COIL E,EB,E2
L352,353 L39-1221-05 TOROIDAL COIL E2B,EX
L401 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L402-404 L39-1456-05 TOROIDAL COIL
L451 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L452,453 L34-1279-05 AIR-CORE COIL
L501 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L502 L34-4661-05 AIR-CORE COIL
L503 L34-1282-05 AIR-CORE COIL
L551 L40-4705-34 SMALL FIXED INDUCTOR (47UH)
L552 L34-4662-05 AIR-CORE COIL
L553 L34-4491-05 AIR-CORE COIL
L554 L34-1359-05 AIR-CORE COIL
R2,3 R92-1205-05 CHIP R 120 J 1/4W
R5 RK73FB2A100J CHIP R 10 J 1/10W
R6 R92-0686-05 CHIP R 33 J 1/2W
R7 R92-1212-05 CHIP R 27 J 1/2W
R8 R92-1316-05 CHIP R 39 J 1W
R9,10 RK73FB2A101J CHIP R 100 J 1/10W
R11-14 RK73FB2A104J CHIP R 100K J 1/10W
R15,16 RK73FB2A102J CHIP R 1.0K J 1/10W
R17,18 RK73FB2A101J CHIP R 100 J 1/10W
R19,20 RK73FB2A104J CHIP R 100K J 1/10W
R21,22 RK73FB2A103J CHIP R 10K J 1/10W
R23,24 RK73FB2A152J CHIP R 1.5K J 1/10W
R25,26 RK73FB2A102J CHIP R 1.0K J 1/10W
R27,28 RK73FB2A332J CHIP R 3.3K J 1/10W
R29,30 RK73FB2A151J CHIP R 150 J 1/10W
R31,32 RK73FB2A122J CHIP R 1.2K J 1/10W
R33 RK73FB2A103J CHIP R 10K J 1/10W
R34 RK73FB2A332J CHIP R 3.3K J 1/10W
R35 RK73FB2A103J CHIP R 10K J 1/10W
R36 RK73FB2A332J CHIP R 3.3K J 1/10W
R37,38 RK73FB2A103J CHIP R 10K J 1/10W
R39 RK73FB2A101J CHIP R 100 J 1/10W
R40 RK73FB2A333J CHIP R 33K J 1/10W
R41 R92-0670-05 CHIP R 0 OHM K,KB,KX
VR1 R12-6730-05 TRIMMING POT. (220)
VR2 R12-6742-05 TRIMMING POT. (22K)
K1 S51-1429-05 RELAY
K2 S76-0430-05 RELAY
K3,4 S76-0424-05 RELAY
K201,202 S76-0423-05 RELAY
K251,252 S76-0423-05 RELAY
K301,302 S76-0423-05 RELAY
K351,352 S76-0423-05 RELAY E,EB,E2
K351,352 S76-0423-05 RELAY E2B,EX
K401,402 S76-0423-05 RELAY
K451,452 S76-0423-05 RELAY
K501,502 S51-1420-05 RELAY
K551,552 S51-1420-05 RELAY
D2 1SS355 DIODE

TS-2000/X,TS-B2000
PARTS LIST
12 K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
FILTER UNIT (X51-315X-XX)
CONTROL UNIT (X53-391X-XX)
D3,4 1SS348 DIODE
D5-7 1SS355 DIODE
D8,9 DSA301LA DIODE
D10,11 HSM88AS DIODE
D201 1SS355 DIODE
D251 1SS355 DIODE
D301 1SS355 DIODE
D351 1SS355 DIODE E,EB,E2
D351 1SS355 DIODE E2B,EX
D401 1SS355 DIODE
D451 1SS355 DIODE
D501 1SS355 DIODE
D551 1SS355 DIODE
IC1 TA75S393F IC (COMPARATOR)
IC2 TC7WH74FU IC (D FLIP-FLOP)
Q1,2 2SK208(GR) FET
Q3,4 FMW1 TRANSISTOR
C1-7 CK73GB1H102K CHIP C 1000PF K
C8-11 CK73GB1C104K CHIP C 0.10UF K
C12-15 CC73GCH1H101J CHIP C 100PF J
C16,17 CK73GB1C104K CHIP C 0.10UF K
C18 CK73GB1H103K CHIP C 0.010UF K
C19 C92-0562-05 ELECTRO 330UF 6.3WV
C20,21 CK73GB1C104K CHIP C 0.10UF K
C22 CK73GB1H103K CHIP C 0.010UF K
C23,24 CK73GB1C104K CHIP C 0.10UF K
C25 CK73GB1H103K CHIP C 0.010UF K
C26 C92-0041-05 CHIP-ELE 10UF 10WV
C27 C92-0560-05 CHIP-TAN 10UF 6.3WV
C28-33 CK73GB1H103K CHIP C 0.010UF K
C34,35 CC73GCH1H100D CHIP C 10PF D
C36-44 CK73GB1H103K CHIP C 0.010UF K
C45-48 CK73GB1H102K CHIP C 1000PF K
C49 CK73GB1C104K CHIP C 0.10UF K
C50-62 CK73GB1H102K CHIP C 1000PF K
C64 CK73GB1C104K CHIP C 0.10UF K
C66-79 CK73GB1H103K CHIP C 0.010UF K
C80-83 CK73GB1H102K CHIP C 1000PF K
C84-86 CC73GCH1H101J CHIP C 100PF J
C87-91 CK73GB1H102K CHIP C 1000PF K
C92 CC73GCH1H101J CHIP C 100PF J
C93,94 CK73GB1H102K CHIP C 1000PF K
C95-98 CC73GCH1H101J CHIP C 100PF J
C99,100 CK73GB1H102K CHIP C 1000PF K
C101-110 CC73GCH1H101J CHIP C 100PF J
C111 CK73GB1H103K CHIP C 0.010UF K
C112-127 CK73GB1H102K CHIP C 1000PF K
C128-139 CC73GCH1H101J CHIP C 100PF J
C140-143 CK73GB1H102K CHIP C 1000PF K
C145 CK73GB1C104K CHIP C 0.10UF K
C147,148 CC73GCH1H160J CHIP C 16PF J
C149 CK73GB1C104K CHIP C 0.10UF K
C150 CK73GB1H103K CHIP C 0.010UF K
C151 CK73GB1C104K CHIP C 0.10UF K
C152 CK73FB1A105K CHIP C 1.0UF K
C153,154 CK73GB1C104K CHIP C 0.10UF K
C155 CK73GB1E223K CHIP C 0.022UF K
C156 CC73GCH1H221J CHIP C 220PF J
C157 CK73GB1H222K CHIP C 2200PF K
C158 CK73GB1C104K CHIP C 0.10UF K
C159 CK73GB1H682K CHIP C 6800PF K
C160 CK73GB1E223K CHIP C 0.022UF K
C161 CK73GB1H102K CHIP C 1000PF K
C162 CK73GB1H103K CHIP C 0.010UF K
C163 CK73GB1H682K CHIP C 6800PF K
C164 CK73GB1E223K CHIP C 0.022UF K
C165 CK73GB1H682K CHIP C 6800PF K
C166 CK73GB1H471K CHIP C 470PF K
C167 CC73GCH1H101J CHIP C 100PF J
C168 CK73GB1H472K CHIP C 4700PF K
C169 CK73GB1H103K CHIP C 0.010UF K
C170 CK73GB1H471K CHIP C 470PF K
C171 CK73GB1C104K CHIP C 0.10UF K
C172,173 CK73FB1A105K CHIP C 1.0UF K
C174 CK73GB1H103K CHIP C 0.010UF K
C175 CK73GB1C473K CHIP C 0.047UF K
C176,177 CK73GB1C104K CHIP C 0.10UF K
C178,179 CK73GB1H102K CHIP C 1000PF K
C180 C92-0523-05 CHIP-ELE 10UF 16WV
C181 CK73GB1C473K CHIP C 0.047UF K
C182,183 CK73GB1C104K CHIP C 0.10UF K
C185 CK73FB1A105K CHIP C 1.0UF K
C186 CK73GB1C104K CHIP C 0.10UF K
C187 CK73GB1H102K CHIP C 1000PF K
C188 CK73GB1C104K CHIP C 0.10UF K
C501,502 CK73GB1C104K CHIP C 0.10UF K
C503 C92-0048-05 ELECTRO 100UF 6.3WV
C504-507 CK73GB1H103K CHIP C 0.010UF K
C508 C92-0048-05 ELECTRO 100UF 6.3WV
C509-519 CK73GB1H103K CHIP C 0.010UF K
C520 CK73GB1C104K CHIP C 0.10UF K
C521 CK73GB1H103K CHIP C 0.010UF K
C522 CK73GB1C104K CHIP C 0.10UF K
C523 C92-0048-05 ELECTRO 100UF 6.3WV
C524,525 CK73GB1H103K CHIP C 0.010UF K
C526 CK73GB1C104K CHIP C 0.10UF K
C527 CK73GB1H103K CHIP C 0.010UF K
C528,529 CK73GB1C104K CHIP C 0.10UF K
C530,531 CK73GB1H103K CHIP C 0.010UF K
C532 CK73GB1C104K CHIP C 0.10UF K
C533,534 CC73GCH1H100D CHIP C 10PF D
C535 CK73GB1C104K CHIP C 0.10UF K
C536 CK73GB1H103K CHIP C 0.010UF K
C537 CK73GB1C104K CHIP C 0.10UF K
C538 C92-0048-05 ELECTRO 100UF 6.3WV
C539,540 CK73GB1H103K CHIP C 0.010UF K
C541 CK73GB1C104K CHIP C 0.10UF K
C542 CK73GB1H103K CHIP C 0.010UF K
C543,544 CK73GB1C104K CHIP C 0.10UF K
C545,546 CK73GB1H103K CHIP C 0.010UF K
C547 CK73GB1C104K CHIP C 0.10UF K
C548,549 CC73GCH1H100D CHIP C 10PF D
C550 CK73GB1H103K CHIP C 0.010UF K
C551,552 CK73GB1H102K CHIP C 1000PF K
C553,554 CK73GB1C104K CHIP C 0.10UF K
CONTROL UNIT (X53-391X-XX)
0-11 : K,KB,KX 2-71 : E,EB,EX 2-72 : E2,E2B

TS-2000/X,TS-B2000
PARTS LIST
13
K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
CONTROL UNIT (X53-391X-XX)
C555,556 C92-0041-05 CHIP-ELE 10UF 10WV
C557,558 CK73GB1C104K CHIP C 0.10UF K
C559 CC73GCH1H100D CHIP C 10PF D
C560,561 CK73GB1H103K CHIP C 0.010UF K
C562 CC73GCH1H100D CHIP C 10PF D
C563 C92-0048-05 ELECTRO 100UF 6.3WV
C564 CK73GB1H103K CHIP C 0.010UF K
C565 C92-0560-05 CHIP-TAN 10UF 6.3WV
C566,567 C92-0507-05 CHIP-TAN 4.7UF 6.3WV
C568-570 CK73GB1C104K CHIP C 0.10UF K
C571,572 C92-0507-05 CHIP-TAN 4.7UF 6.3WV
C573-575 CK73GB1C104K CHIP C 0.10UF K
C576,577 CK73GB1H222K CHIP C 2200PF K
C578 C92-0560-05 CHIP-TAN 10UF 6.3WV
C579,580 C92-0507-05 CHIP-TAN 4.7UF 6.3WV
C581-583 CK73GB1C104K CHIP C 0.10UF K
C584,585 C92-0507-05 CHIP-TAN 4.7UF 6.3WV
C586-588 CK73GB1C104K CHIP C 0.10UF K
C589,590 CK73GB1H222K CHIP C 2200PF K
C591 CK73GB1H272K CHIP C 2700PF K
C592,593 CC73GCH1H331J CHIP C 330PF J
C594 CK73GB1H103K CHIP C 0.010UF K
C595 C92-0560-05 CHIP-TAN 10UF 6.3WV
C596 CK73GB1C104K CHIP C 0.10UF K
C599 C92-0560-05 CHIP-TAN 10UF 6.3WV
C600 CK73GB1H103K CHIP C 0.010UF K
C601 C92-0560-05 CHIP-TAN 10UF 6.3WV
C602 CK73GB1C104K CHIP C 0.10UF K
C603 C92-0560-05 CHIP-TAN 10UF 6.3WV
C604 CC73GCH1H151J CHIP C 150PF J
C605 CK73GB1H152K CHIP C 1500PF K
C606 C92-0560-05 CHIP-TAN 10UF 6.3WV
C607 CK73GB1H103K CHIP C 0.010UF K
C608 C92-0560-05 CHIP-TAN 10UF 6.3WV
C609 CK73GB1C104K CHIP C 0.10UF K
C610 C92-0560-05 CHIP-TAN 10UF 6.3WV
C611 CK73GB1H471K CHIP C 470PF K
C612 CK73GB1H472K CHIP C 4700PF K
C613 CK73GB1H103K CHIP C 0.010UF K
C614 CK73GB1H102K CHIP C 1000PF K
C615,616 C92-0560-05 CHIP-TAN 10UF 6.3WV
C617 CK73GB1C104K CHIP C 0.10UF K
C618 C92-0560-05 CHIP-TAN 10UF 6.3WV
C619 CK73GB1H103K CHIP C 0.010UF K
C620 C92-0560-05 CHIP-TAN 10UF 6.3WV
C621 CK73GB1C104K CHIP C 0.10UF K
C622,623 C92-0560-05 CHIP-TAN 10UF 6.3WV
C624 CK73GB1H103K CHIP C 0.010UF K
C625 CK73GB1H102K CHIP C 1000PF K
C626 CK73GB1H103K CHIP C 0.010UF K
C627 CK73GB1H102K CHIP C 1000PF K
C628,629 C92-0560-05 CHIP-TAN 10UF 6.3WV
C630 CK73GB1H103K CHIP C 0.010UF K
C631 C92-0560-05 CHIP-TAN 10UF 6.3WV
C632 CK73GB1C104K CHIP C 0.10UF K
C633,634 C92-0560-05 CHIP-TAN 10UF 6.3WV
C635 CK73GB1H103K CHIP C 0.010UF K
C636 CK73GB1H102K CHIP C 1000PF K
C637 CK73GB1H472K CHIP C 4700PF K
C638 CK73GB1H471K CHIP C 470PF K
C639-641 C92-0560-05 CHIP-TAN 10UF 6.3WV
C642 CK73GB1C104K CHIP C 0.10UF K
C643 CK73GB1H103K CHIP C 0.010UF K
C644 C92-0560-05 CHIP-TAN 10UF 6.3WV
C645 CK73GB1C104K CHIP C 0.10UF K
C646,647 C92-0560-05 CHIP-TAN 10UF 6.3WV
C648 CK73GB1H681K CHIP C 680PF K
C649 CK73GB1H682K CHIP C 6800PF K
C650 CK73GB1H103K CHIP C 0.010UF K
C651-655 CK73GB1C104K CHIP C 0.10UF K
C656,657 CK73GB1E223K CHIP C 0.022UF K
C658 CK73GB1H102K CHIP C 1000PF K
C659 C92-0004-05 CHIP-TAN 1.0UF 16WV
C660-673 CK73GB1H102K CHIP C 1000PF K
C674 CC73GCH1H101J CHIP C 100PF J
C675-678 CK73GB1H102K CHIP C 1000PF K
C700 C92-0041-05 CHIP-ELE 10UF 10WV
C701 CK73GB1C104K CHIP C 0.10UF K
C702 C92-0560-05 CHIP-TAN 10UF 6.3WV
C703 CK73GB1C104K CHIP C 0.10UF K
C704 C92-0560-05 CHIP-TAN 10UF 6.3WV
C705 CK73FB1A105K CHIP C 1.0UF K
C708 CK73FB1A105K CHIP C 1.0UF K
C711-714 CK73GB1H102K CHIP C 1000PF K
C715 C92-0507-05 CHIP-TAN 4.7UF 6.3WV
C716 C92-0041-05 CHIP-ELE 10UF 10WV
C717 CK73GB1H102K CHIP C 1000PF K
C718 CC73GCH1H220J CHIP C 22PF J
C719-728 CK73GB1H102K CHIP C 1000PF K
C729 C92-0560-05 CHIP-TAN 10UF 6.3WV
CN1 E40-5762-05 FLAT CABLE CONNECTOR
CN3 E40-3250-05 PIN ASSY
CN4 E40-5978-05 FLAT CABLE CONNECTOR
CN5 E40-6074-05 FLAT CABLE CONNECTOR
CN6 E40-5902-05 FLAT CABLE CONNECTOR
CN7 E40-5744-05 FLAT CABLE CONNECTOR
CN503 E40-3251-05 PIN ASSY
CN504 E40-5902-05 FLAT CABLE CONNECTOR
CN505 E40-3248-05 PIN ASSY
CN506 E40-3250-05 PIN ASSY
L1,2 L33-0742-05 SMALL FIXED INDUCTOR
L3,4 L92-0137-05 FERRITE CHIP
L5-8 L40-1005-85 SMALL FIXED INDUCTOR (10U)
L9 L92-0137-05 FERRITE CHIP
L10,11 L33-0742-05 SMALL FIXED INDUCTOR
L13 L40-1005-85 SMALL FIXED INDUCTOR (10U)
L14 L33-0742-05 SMALL FIXED INDUCTOR
L15-17 L40-1005-85 SMALL FIXED INDUCTOR (10U)
L502 L33-0742-05 SMALL FIXED INDUCTOR
L504-508 L40-1005-85 SMALL FIXED INDUCTOR (10U)
X1 L77-1680-05 CRYSTAL RESONATOR (11.0592MHZ)
X2 L78-0459-05 RESONATOR (4.19MHZ)
X3 L77-1780-05 CRYSTAL RESONATOR (7.9872MHZ)
X501,502 L77-1680-05 CRYSTAL RESONATOR (11.0592MHZ)
X503 L77-1679-05 CRYSTAL RESONATOR (12.288MHZ)
CP1,2 RK75GB1J101J CHIP-COM 100 J 1/16W
CP3-16 RK75GB1J473J CHIP-COM 47K J 1/16W
CP18-33 RK75GB1J101J CHIP-COM 100 J 1/16W
CP501-503 RK75GB1J473J CHIP-COM 47K J 1/16W
CP504-508 RK75GB1J101J CHIP-COM 100 J 1/16W

TS-2000/X,TS-B2000
PARTS LIST
14 K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
CONTROL UNIT (X53-391X-XX)
R1,2 RK73GB1J472J CHIP R 4.7K J 1/16W
R3 RK73GB1J103J CHIP R 10K J 1/16W
R5 RK73GB1J473J CHIP R 47K J 1/16W
R7 R92-0686-05 CHIP R 33 J 1/2W
R9,10 RK73GB1J473J CHIP R 47K J 1/16W
R11,12 RK73GB1J102J CHIP R 1.0K J 1/16W
R13-17 RK73GB1J473J CHIP R 47K J 1/16W
R19-26 RK73GB1J473J CHIP R 47K J 1/16W
R28 RK73GB1J101J CHIP R 100 J 1/16W
R45 RK73GB1J473J CHIP R 47K J 1/16W
R46 RK73GB1J105J CHIP R 1.0M J 1/16W
R47 R92-1252-05 CHIP R 0 OHM J 1/16W E2,E2B
R48 R92-1252-05 CHIP R 0 OHM J 1/16W E,EB,EX
R52-54 R92-1252-05 CHIP R 0 OHM J 1/16W E,EB,E2
R52-54 R92-1252-05 CHIP R 0 OHM J 1/16W E2B,EX
R52,53 R92-1252-05 CHIP R 0 OHM J 1/16W K,KB,KX
R55-58 RK73GB1J101J CHIP R 100 J 1/16W
R67 RK73GB1J101J CHIP R 100 J 1/16W
R100 RK73GB1J101J CHIP R 100 J 1/16W
R101 RK73GB1J471J CHIP R 470 J 1/16W
R114 RK73GB1J101J CHIP R 100 J 1/16W
R117 RK73GB1J101J CHIP R 100 J 1/16W
R120 RK73GB1J104J CHIP R 100K J 1/16W
R121,122 R92-1252-05 CHIP R 0 OHM J 1/16W
R124 RK73GB1J103J CHIP R 10K J 1/16W
R125 RK73GB1J102J CHIP R 1.0K J 1/16W
R126 RK73GB1J103J CHIP R 10K J 1/16W
R127 RK73GB1J472J CHIP R 4.7K J 1/16W
R128 RK73GB1J103J CHIP R 10K J 1/16W
R129 R92-1252-05 CHIP R 0 OHM J 1/16W
R130 RK73GB1J103J CHIP R 10K J 1/16W
R131 RK73GB1J104J CHIP R 100K J 1/16W
R132 RK73GB1J103J CHIP R 10K J 1/16W
R133,134 RK73GB1J332J CHIP R 3.3K J 1/16W
R135,136 RK73GB1J123J CHIP R 12K J 1/16W
R137 RK73GB1J393J CHIP R 39K J 1/16W
R138 RK73GB1J103J CHIP R 10K J 1/16W
R139 RK73GB1J222J CHIP R 2.2K J 1/16W
R140 RK73GB1J823J CHIP R 82K J 1/16W
R141 RK73GB1J103J CHIP R 10K J 1/16W
R142,143 RK73GB1J123J CHIP R 12K J 1/16W
R144 RK73GB1J103J CHIP R 10K J 1/16W
R145 RK73GB1J123J CHIP R 12K J 1/16W
R146 RK73GB1J473J CHIP R 47K J 1/16W
R147 RK73GB1J683J CHIP R 68K J 1/16W
R148 RK73GB1J332J CHIP R 3.3K J 1/16W
R149 RK73GB1J104J CHIP R 100K J 1/16W
R150 RK73GB1J103J CHIP R 10K J 1/16W
R151 RK73GB1J104J CHIP R 100K J 1/16W
R152,153 RK73GB1J223J CHIP R 22K J 1/16W
R154 RK73GB1J102J CHIP R 1.0K J 1/16W
R155 RK73GB1J272J CHIP R 2.7K J 1/16W
R157 RK73GB1J104J CHIP R 100K J 1/16W
R158 RK73GB1J563J CHIP R 56K J 1/16W
R159 RK73GB1J272J CHIP R 2.7K J 1/16W
R160 RK73GB1J102J CHIP R 1.0K J 1/16W
R161 RK73GB1J103J CHIP R 10K J 1/16W
R162,163 RK73GB1J102J CHIP R 1.0K J 1/16W
R164,165 RK73GB1J473J CHIP R 47K J 1/16W
R186-188 RK73GB1J101J CHIP R 100 J 1/16W
R200 R92-1252-05 CHIP R 0 OHM J 1/16W
R201-204 RK73GB1J473J CHIP R 47K J 1/16W
R206,207 RK73GB1J473J CHIP R 47K J 1/16W
R209-211 RK73GB1J473J CHIP R 47K J 1/16W
R213 RK73GB1J104J CHIP R 100K J 1/16W
R214 RK73GB1J473J CHIP R 47K J 1/16W
R215 RK73GB1J104J CHIP R 100K J 1/16W
R216,217 RK73GB1J473J CHIP R 47K J 1/16W
R218 RK73GB1J474J CHIP R 470K J 1/16W
R219 RK73GB1J104J CHIP R 100K J 1/16W
R220 R92-1252-05 CHIP R 0 OHM J 1/16W
R221,222 RK73GB1J473J CHIP R 47K J 1/16W
R223 RK73GB1J183J CHIP R 18K J 1/16W
R224 RK73GB1J103J CHIP R 10K J 1/16W
R225 R92-1252-05 CHIP R 0 OHM J 1/16W
R226 RK73GB1J222J CHIP R 2.2K J 1/16W
R228 RK73GB1J473J CHIP R 47K J 1/16W
R501,502 R92-2685-05 METAL GLAZE RESISTOR
R503,504 R92-2686-05 METAL GLAZE RESISTOR
R505 R92-2685-05 METAL GLAZE RESISTOR
R506,507 R92-2686-05 METAL GLAZE RESISTOR
R508 R92-2685-05 METAL GLAZE RESISTOR
R509,510 R92-2686-05 METAL GLAZE RESISTOR
R511 R92-2685-05 METAL GLAZE RESISTOR
R512,513 R92-2686-05 METAL GLAZE RESISTOR
R514-516 R92-2685-05 METAL GLAZE RESISTOR
R517 R92-2686-05 METAL GLAZE RESISTOR
R518 R92-2685-05 METAL GLAZE RESISTOR
R519,520 R92-2686-05 METAL GLAZE RESISTOR
R521 R92-2685-05 METAL GLAZE RESISTOR
R522,523 R92-2686-05 METAL GLAZE RESISTOR
R524 R92-2685-05 METAL GLAZE RESISTOR
R525,526 R92-2686-05 METAL GLAZE RESISTOR
R527 R92-2685-05 METAL GLAZE RESISTOR
R528 R92-2686-05 METAL GLAZE RESISTOR
R529-531 R92-2685-05 METAL GLAZE RESISTOR
R532 R92-2686-05 METAL GLAZE RESISTOR
R533-536 RK73GB1J473J CHIP R 47K J 1/16W
R537 R92-1252-05 CHIP R 0 OHM J 1/16W
R538-540 RK73GB1J103J CHIP R 10K J 1/16W
R541-550 R92-1252-05 CHIP R 0 OHM J 1/16W
R552,553 RK73GB1J103J CHIP R 10K J 1/16W
R554,555 RK73GB1J101J CHIP R 100 J 1/16W
R557 R92-1252-05 CHIP R 0 OHM J 1/16W
R558 RK73GB1J101J CHIP R 100 J 1/16W
R559-561 RK73GB1J103J CHIP R 10K J 1/16W
R563 RK73GB1J103J CHIP R 10K J 1/16W
R565,566 RK73GB1J472J CHIP R 4.7K J 1/16W
R567 RK73GB1J474J CHIP R 470K J 1/16W
R568 RK73GB1J473J CHIP R 47K J 1/16W
R570,571 RK73GB1J103J CHIP R 10K J 1/16W
R572,573 RK73GB1J101J CHIP R 100 J 1/16W
R575 R92-1252-05 CHIP R 0 OHM J 1/16W
R576 RK73GB1J101J CHIP R 100 J 1/16W
R577-581 RK73GB1J103J CHIP R 10K J 1/16W
R582,583 RK73GB1J472J CHIP R 4.7K J 1/16W
R584 RK73GB1J474J CHIP R 470K J 1/16W
R585,586 RK73GB1J104J CHIP R 100K J 1/16W
R588,589 RK73GB1J103J CHIP R 10K J 1/16W
R590,591 RK73GB1J100J CHIP R 10 J 1/16W

TS-2000/X,TS-B2000
PARTS LIST
15
K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
CONTROL UNIT (X53-391X-XX)
R592 RK73GB1J103J CHIP R 10K J 1/16W
R593 RK73GB1J100J CHIP R 10 J 1/16W
R594,595 RK73GB1J103J CHIP R 10K J 1/16W
R596 RK73GB1J562J CHIP R 5.6K J 1/16W
R597 RK73GB1J103J CHIP R 10K J 1/16W
R598 RK73GB1J562J CHIP R 5.6K J 1/16W
R599 RK73GB1J103J CHIP R 10K J 1/16W
R600,601 RK73GB1J472J CHIP R 4.7K J 1/16W
R602 RK73GB1J104J CHIP R 100K J 1/16W
R603 RK73GB1J221J CHIP R 220 J 1/16W
R604 RK73GB1J103J CHIP R 10K J 1/16W
R605 RK73GB1J104J CHIP R 100K J 1/16W
R606 RK73GB1J332J CHIP R 3.3K J 1/16W
R607,608 RK73GB1J472J CHIP R 4.7K J 1/16W
R610 RK73GB1J331J CHIP R 330 J 1/16W
R611,612 RK73GB1J472J CHIP R 4.7K J 1/16W
R613,614 RK73GB1J223J CHIP R 22K J 1/16W
R616 RK73GB1J223J CHIP R 22K J 1/16W
R618 RK73GB1J331J CHIP R 330 J 1/16W
R619 RK73GB1J332J CHIP R 3.3K J 1/16W
R620,621 RK73GB1J472J CHIP R 4.7K J 1/16W
R623,624 RK73GB1J472J CHIP R 4.7K J 1/16W
R625-630 RK73GB1J223J CHIP R 22K J 1/16W
R631 RK73GB1J561J CHIP R 560 J 1/16W
R632-635 RK73GB1J472J CHIP R 4.7K J 1/16W
R636,637 RK73GB1J223J CHIP R 22K J 1/16W
R638 RK73GB1J561J CHIP R 560 J 1/16W
R639,640 RK73GB1J223J CHIP R 22K J 1/16W
R641 RK73GB1J103J CHIP R 10K J 1/16W
R642 RK73GB1J223J CHIP R 22K J 1/16W
R643 RK73GB1J221J CHIP R 220 J 1/16W
R644,645 RK73GB1J472J CHIP R 4.7K J 1/16W
R646 RK73GB1J103J CHIP R 10K J 1/16W
R647 RK73GB1J223J CHIP R 22K J 1/16W
R648 RK73GB1J221J CHIP R 220 J 1/16W
R649,650 RK73GB1J223J CHIP R 22K J 1/16W
R651 RK73GB1J472J CHIP R 4.7K J 1/16W
R652,653 RK73GB1J223J CHIP R 22K J 1/16W
R654-659 RK73GB1J472J CHIP R 4.7K J 1/16W
R660,661 RK73GB1J223J CHIP R 22K J 1/16W
R662 RK73GB1J472J CHIP R 4.7K J 1/16W
R663 RK73GB1J223J CHIP R 22K J 1/16W
R664 RK73GB1J103J CHIP R 10K J 1/16W
R665 RK73GB1J472J CHIP R 4.7K J 1/16W
R666,667 RK73GB1J222J CHIP R 2.2K J 1/16W
R668 RK73GB1J223J CHIP R 22K J 1/16W
R669,670 RK73GB1J334J CHIP R 330K J 1/16W
R671 RK73GB1J223J CHIP R 22K J 1/16W
R672,673 RK73GB1J102J CHIP R 1.0K J 1/16W
R674 RK73GB1J472J CHIP R 4.7K J 1/16W
R686-688 R92-1252-05 CHIP R 0 OHM J 1/16W
R693-699 R92-1252-05 CHIP R 0 OHM J 1/16W
R700 RK73GB1J473J CHIP R 47K J 1/16W
R701 RK73GB1J154J CHIP R 150K J 1/16W
R702 RK73GB1J103J CHIP R 10K J 1/16W
R703-706 RK73GB1J472J CHIP R 4.7K J 1/16W
R707 RK73GB1J104J CHIP R 100K J 1/16W
R709,710 RK73GB1J104J CHIP R 100K J 1/16W
R712 RK73GB1J104J CHIP R 100K J 1/16W
R714-716 RK73GB1J470J CHIP R 47 J 1/16W
R717 R92-1252-05 CHIP R 0 OHM J 1/16W
R718,719 RK73GB1J473J CHIP R 47K J 1/16W
R720,721 RK73GB1J104J CHIP R 100K J 1/16W
R722,723 R92-1252-05 CHIP R 0 OHM J 1/16W
R725 R92-1252-05 CHIP R 0 OHM J 1/16W
R731 R92-1252-05 CHIP R 0 OHM J 1/16W
R736 R92-1252-05 CHIP R 0 OHM J 1/16W
R738 RK73GB1J561J CHIP R 560 J 1/16W
R739 RK73GB1J124J CHIP R 120K J 1/16W
R740 R92-0699-05 CHIP R 10 J 1/2W
R741 RK73GB1J104J CHIP R 100K J 1/16W
R742,743 RK73GB1J473J CHIP R 47K J 1/16W
R745-747 R92-0670-05 CHIP R 0 OHM
R748 RK73GB1J104J CHIP R 100K J 1/16W
R749 RD14BB2C473J RD 47K J 1/6W
D5 RLS245 DIODE
D6 MA729 DIODE
D11 DAN202U DIODE
D12 MA2S111 DIODE
D13 02DZ8.2(Y) ZENER DIODE
D14-17 MA2S111 DIODE
D501-504 DAN202U DIODE
IC1 M62003FP IC (RESET IC)
IC2,3 TA7805F IC (AVR)
IC4 XC62FP3302P IC (3.3V AVR FOR DSP)
IC5 TC74HC4053AFT IC (ANALOG SWITCH)
IC6 TC74HC4052AFT IC (ANALOG SWITCH)
IC7 AT25128N10SI27 IC (EEPROM)
IC8 64F2633JXUC IC (MAIN MICROCOMPUTER)
IC9 TC74LVX4245FS
IC (CONVERSION BETWEEN 5V AND 3V)
IC10,11 TC74LVX4245FS IC (CONVERSION FROM 5V TO 3V)
IC12 LC73881M IC (DTMF DECODER IC)
IC13 TC74VHC08FT IC (INPUT/OUTPUT PORT LOGIC)
IC14 TC74VHC32FT IC (INPUT/OUTPUT PORT LOGIC)
IC15 TC74VHC04FT IC (INPUT/OUTPUT PORT LOGIC)
IC16-18 TC74VHC08FT IC (INPUT/OUTPUT PORT LOGIC)
IC19,20 TC74VHC573FT MOS IC (INPUT PORT)
IC21-25 TC74VHC573FT MOS IC (OUTPUT PORT)
IC26 TMT0111Q IC (TNC MICROCOMPUTER)
IC27 TA75W393FU IC (OP AMPLIFIER)
IC28 TGT0210Q IC (TNC LOGIC CIRCUIT)
IC29 TA75W01FU IC (OP AMPLIFIER)
IC30 TA75S393F IC (COMPARATOR)
IC31 TC7SH08FU IC (AND)
IC32,33 PST9130NR IC (RESET IC)
IC501 TA48M033F IC (AVR)
IC502,503 XC62FP1802P IC (1.8V AVR FOR DSP)
IC504 29LV800BAJXSD IC (FLASH ROM FOR DSP2)
IC504 29LV800BJWGD IC (FHASH ROM FOR DSP2)
IC505,506 TC74VHC573FT IC (FOR DSP PORT OUTPUT)
IC507 TC74VHC02FT IC (INPUT/OUTPUT PORT LOGIC)
IC508 ✽29LV800BAJXQE IC (FLASH ROM FOR DSP1)
IC508 ✽29LV800BJWFE IC (FLASH ROM FOR DSP1)
IC509 TC74VHC32FT IC (INPUT/OUTPUT PORT LOGIC)
IC510 TC7WU04FU IC (INPUT/OUTPUT PORT LOGIC)
IC511 TC74VHC08FT IC (INPUT/OUTPUT PORT LOGIC)
IC512 TC74VHC573FT IC (FOR DSP PORT INPUT)
IC513 TC74VHC32FT IC (INPUT/OUTPUT PORT LOGIC)
IC514 TC74VHC573FT IC (FOR DSP PORT INPUT)
IC515,516 320VC5402PGE IC (DSP)

TS-2000/X,TS-B2000
PARTS LIST
16 K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
IC517 NJM2904V IC (ANALOG AGC BUFFER)
IC518 AK4524 IC (CODEC(24BIT))
IC519 TC7W74FU IC (FOR CODEC CLOCK DIVISION)
IC520 TC7WU04FU IC (FOR CODEC CLOCD DIVISION)
IC521 TC74VHC4040FT IC (FOR CODEC CLOCK DIVISION)
IC522,523 AK4518 IC (DODEC(16BIT))
IC524-529 NJM2100V
IC (BUFFER FOR ANALOG SIGNAL INPUT/OUTPUT)
IC530 BU2099FV IC (SERIAL/PARALLEL)
IC531-534 BU4066BCFV IC (ANALOG SWITCH)
IC535 NJM2100V
IC (BUFFER FOR ANALOG SIGNAL INPUT/OUTPUT)
Q1 DTC143EUA DIGITAL TRANSISTOR
Q2 DTA143EUA DIGITAL TRANSISTOR
Q3 DTC143EUA DIGITAL TRANSISTOR
Q4 DTA143EUA DIGITAL TRANSISTOR
Q5 DTC143EUA DIGITAL TRANSISTOR
Q9,10 DTC114EUA DIGITAL TRANSISTOR
Q13,14 2SC4617(R) TRANSISTOR
Q15 2SA1774(R) TRANSISTOR
Q16 2SC4617(R) TRANSISTOR
Q17 DTC143TUA DIGITAL TRANSISTOR
Q18 DTA143EUA DIGITAL TRANSISTOR
Q19 2SA1774(R) TRANSISTOR
Q20 DTA143EUA DIGITAL TRANSISTOR
Q501 DTC144EUA DIGITAL TRANSISTOR
201 1E B11-1245-02 ILLUMINATION GUIDE
202 1E B11-1246-13 FILTER
203 2E B11-1257-03 FILTER
204 1E B30-2221-05 LAMP (5.5V/125MA/)
205 2E B38-0837-05 LCD
D1,2 B30-2217-05 LED (Y)
D3-9 B30-2167-05 LED (GR)
C1,2 CK73GB1H103K CHIP C 0.010UF K
C3-9 CK73FB1E104K CHIP C 0.10UF K
C10 CK73GB1H103K CHIP C 0.010UF K
C11 CK73FB1E104K CHIP C 0.10UF K
C12 C92-0041-05 CHIP-ELE 10UF 10WV
C13 CK73GB1H103K CHIP C 0.010UF K
C15-23 CK73GB1H102K CHIP C 1000PF K
C25-32 CK73GB1H102K CHIP C 1000PF K
C33 C92-0038-05 CHIP-ELE 22UF 16WV
C34 C92-0041-05 CHIP-ELE 10UF 10WV
C35 CK73FB1E223K CHIP C 0.022UF K
C36 CK73GB1H103K CHIP C 0.010UF K
207 2E E29-1186-04 INTER CONNECTOR
208 2E E29-1187-04 INTER CONNECTOR
CN1 E40-5736-05 FLAT CABLE CONNECTOR
211 2E G11-4043-04 SHEET
212 2E J21-8397-03 HARDWARE FIXTURE
L3,4 L40-1095-48 SMALL FIXED INDUCTOR (1UH)
R1,2 RK73GB1J154J CHIP R 150K J
R3 RK73FB2A105J CHIP R 1.0M J
R4 RK73FB2A684J CHIP R 680K J 1/10W
R5 RK73FB2A100J CHIP R 10 J 1/10W
R6-21 RK73GB1J101J CHIP R 100 J 1/16W
R23 RK73GB1J101J CHIP R 100 J 1/16W
R27 RK73FB2A681J CHIP R 680 J 1/10W
R29 RK73FB2A681J CHIP R 680 J 1/10W
R31 RK73FB2A560J CHIP R 56 J 1/10W
R32 RK73FB2A221J CHIP R 220 J 1/10W
R35 RK73FB2A222J CHIP R 2.2K J 1/10W
R36 RK73FB2A102J CHIP R 1.0K J 1/10W
R37 RK73FB2A392J CHIP R 3.9K J 1/10W
R38 RK73FB2A682J CHIP R 6.8K J 1/10W
R39 RK73FB2A152J CHIP R 1.5K J 1/10W
R40 RK73FB2A272J CHIP R 2.7K J 1/10W
R41-43 R92-1211-05 CHIP R 5.6 J 1/2W
VR1 R32-0676-05 SEMI FIXED VARIABLE RESISTOR
S1-12 S70-0475-05 TACT SWITCH
IC1,2 NJU6433F IC (LCD DRIVER)
IC3 SED1526F0A IC (LCD DRIVER)
IC4 BU2099FV IC (SERIAL/PARALLEL)
Q1 2SA1641(S,T) TRANSISTOR
Q2 2SC2712(Y) TRANSISTOR
Q3 2SA1162(Y) TRANSISTOR
D86 B30-2001-05 LED (RED)
D105 B30-2001-05 LED (RED)
D801 B30-2138-05 LED (SR) K,KX,E
D801 B30-2138-05 LED (SR) E2,EX
D802 B30-2139-05 LED (G) K,KX,E
D802 B30-2139-05 LED (G) E2,EX
D803 B30-2138-05 LED (SR) K,KX,E
D803 B30-2138-05 LED (SR) E2,EX
D804 B30-2139-05 LED (G) K,KX,E
D804 B30-2139-05 LED (G) E2,EX
D810-824 B30-2167-05 LED (GR) K,KX,E
D810-824 B30-2167-05 LED (GR) E2,EX
D825 B30-2146-05 LED (OR) K,KX,E
D825 B30-2146-05 LED (OR) E2,EX
D826-834 B30-2167-05 LED (GR) K,KX,E
D826-834 B30-2167-05 LED (GR) E2,EX
D953,954 B30-2217-05 LED (Y) K,KX,E
D953,954 B30-2217-05 LED (Y) E2,EX
D955 B30-2167-05 LED (GR) K,KX,E
D955 B30-2167-05 LED (GR) E2,EX
D956 B30-2218-05 LED (OR) K,KX,E
D956 B30-2218-05 LED (OR) E2,EX
D957 B30-2140-05 LED (Y) K,KX,E
D957 B30-2140-05 LED (Y) E2,EX
D958 B30-2168-05 LED (RED) KB,EB,E2B
C1,2 CK73GB1H103K CHIP C 0.010UF K
C3 CC73GCH1H470J CHIP C 47PF J
C4 CC73GCH1H070D CHIP C 7.0PF D
C5 CC73GCH1H470J CHIP C 47PF J
C6 CK73EB1H104K CHIP C 0.10UF K
C7,8 CK73GB1H103K CHIP C 0.010UF K
C9 CK73GB1H222K CHIP C 2200PF K
C10 CK73FB1E104K CHIP C 0.10UF K
C11 CK73FB1C105K CHIP C 1.0UF K
DISPLAY UNIT (X54-3320-00) : K,KX,E,E2,EX
TX-RX 1 UNIT (X57-605X-XX)
0-11 : K,KX 0-12 : KB 2-71 : E,E2,EX 2-72 : EB,E2B
CONTROL UNIT (X53-391X-XX)
DISPLAY UNIT (X54-3320-00) : K,KX,E,E2,EX
TX-RX 1 UNIT (X57-605X-XX)

TS-2000/X,TS-B2000
PARTS LIST
17
K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
TX-RX 1 UNIT (X57-605X-XX)
C12 CE04EW1E4R7M ELECTRO 4.7UF 25WV
C13 CK73FB1E104K CHIP C 0.10UF K
C14 CK73GB1H103K CHIP C 0.010UF K
C15 CK73GB1H472K CHIP C 4700PF K
C16 CK73GB1H222K CHIP C 2200PF K
C17 CK73FB1E104K CHIP C 0.10UF K
C18 CK73GB1H103K CHIP C 0.010UF K
C19 CK73FB1C105K CHIP C 1.0UF K
C20 CK73FB1E104K CHIP C 0.10UF K
C21 CK73GB1H152K CHIP C 1500PF K
C22 CK73GB1H472K CHIP C 4700PF K
C23 CK73GB1H152K CHIP C 1500PF K
C24,25 CK73GB1H103K CHIP C 0.010UF K
C26 CK73GB1H392K CHIP C 3900PF K
C27 CK73FB1E104K CHIP C 0.10UF K
C28-30 CK73GB1H102K CHIP C 1000PF K
C31 CK73GB1H332K CHIP C 3300PF K
C32 CK73FB1E104K CHIP C 0.10UF K
C33 CK73GB1H222K CHIP C 2200PF K
C34 CK73FB1E104K CHIP C 0.10UF K
C35 CK73GB1H102K CHIP C 1000PF K
C36 CK73GB1H561K CHIP C 560PF K
C37 CK73GB1H102K CHIP C 1000PF K
C38 CK73GB1H222K CHIP C 2200PF K
C39 CK73FB1E104K CHIP C 0.10UF K
C40 CK73GB1H102K CHIP C 1000PF K
C41 CK73FB1E104K CHIP C 0.10UF K
C42 CK73GB1H102K CHIP C 1000PF K
C43 CC73GCH1H271J CHIP C 270PF J
C44,45 CK73GB1H102K CHIP C 1000PF K
C46,47 CK73FB1E104K CHIP C 0.10UF K
C48 CK73GB1H102K CHIP C 1000PF K
C49,50 CC73GCH1H100D CHIP C 10PF D
C51 CK73GB1H102K CHIP C 1000PF K
C52 CK73FB1E104K CHIP C 0.10UF K
C53 CK73GB1H102K CHIP C 1000PF K
C54 CK73FB1E104K CHIP C 0.10UF K
C55 CK73GB1H102K CHIP C 1000PF K
C56 CC73GCH1H121J CHIP C 120PF J
C57,58 CK73GB1H102K CHIP C 1000PF K
C59 CK73FB1E104K CHIP C 0.10UF K
C60 CK73GB1H102K CHIP C 1000PF K
C61 CK73FB1E104K CHIP C 0.10UF K
C62 CK73GB1H102K CHIP C 1000PF K
C63 CC73GCH1H820J CHIP C 82PF J
C64,65 CK73GB1H102K CHIP C 1000PF K
C66,67 CK73FB1E104K CHIP C 0.10UF K
C68 CK73GB1H102K CHIP C 1000PF K
C69,70 CC73GCH1H040C CHIP C 4.0PF C
C71 CK73GB1H102K CHIP C 1000PF K
C72 CK73FB1E104K CHIP C 0.10UF K
C73 CK73GB1H391K CHIP C 390PF K
C74 CK73FB1E104K CHIP C 0.10UF K
C75 CK73GB1H102K CHIP C 1000PF K
C76 CC73GCH1H560J CHIP C 56PF J
C77 CK73GB1H102K CHIP C 1000PF K
C78 CK73GB1H471K CHIP C 470PF K
C79 CK73FB1E104K CHIP C 0.10UF K
C80 CC73GCH1H151J CHIP C 150PF J
C81 CK73FB1E104K CHIP C 0.10UF K
C82 CK73GB1H102K CHIP C 1000PF K
C83 CC73GCH1H390J CHIP C 39PF J
C84 CK73GB1H102K CHIP C 1000PF K
C85 CC73GCH1H181J CHIP C 180PF J
C86 CK73FB1E104K CHIP C 0.10UF K
C87 CC73GCH1H220J CHIP C 22PF J
C88 CK73FB1E104K CHIP C 0.10UF K
C89 CK73GB1H102K CHIP C 1000PF K
C90 CC73GCH1H470J CHIP C 47PF J
C91 CK73GB1H102K CHIP C 1000PF K
C93 CK73FB1E104K CHIP C 0.10UF K
C94 CC73GCH1H120J CHIP C 12PF J
C95 CK73FB1E104K CHIP C 0.10UF K
C96 CK73GB1H102K CHIP C 1000PF K
C97 CC73GCH1H330J CHIP C 33PF J
C98 CK73GB1H102K CHIP C 1000PF K
C99 CK73FB1E104K CHIP C 0.10UF K
C100 CC73GCH1H560J CHIP C 56PF J
C101 CC73GCH1H150J CHIP C 15PF J
C102 CK73FB1E104K CHIP C 0.10UF K
C103 CC73GCH1H820J CHIP C 82PF J
C104 CK73GB1H102K CHIP C 1000PF K
C105 CC73GCH1H390J CHIP C 39PF J
C106 CC73GCH1H330J CHIP C 33PF J
C107 CK73GB1H103K CHIP C 0.010UF K
C108-111 CK73FB1E104K CHIP C 0.10UF K
C112 CK73GB1H471K CHIP C 470PF K
C113 CC73GCH1H010B CHIP C 1.0PF B
C114 CK73GB1H103K CHIP C 0.010UF K
C115 CK73GB1C104K CHIP C 0.10UF K
C116 CC73GCH1H180J CHIP C 18PF J
C117 CK73GB1H103K CHIP C 0.010UF K
C118 CC73GCH1H020B CHIP C 2.0PF B
C119 CK73GB1H103K CHIP C 0.010UF K
C121 CK73FB1C105K CHIP C 1.0UF K
C123 CK73GB1C104K CHIP C 0.10UF K
C124 CK73GB1H103K CHIP C 0.010UF K
C125,126 CK73GB1C104K CHIP C 0.10UF K
C127 CK73FB1C105K CHIP C 1.0UF K
C129,130 CK73GB1H103K CHIP C 0.010UF K
C131 CC73GCH1H270J CHIP C 27PF J
C132 CK73GB1H103K CHIP C 0.010UF K
C133 CK73GB1H471K CHIP C 470PF K
C134 CK73FB1E104K CHIP C 0.10UF K
C135,136 CK73GB1H103K CHIP C 0.010UF K
C137 CK73GB1H471K CHIP C 470PF K
C138,139 CK73GB1H103K CHIP C 0.010UF K
C140 CC73GCH1H060D CHIP C 6.0PF D
C141 CC73GCH1H020B CHIP C 2.0PF B
C143,144 CK73GB1H103K CHIP C 0.010UF K
C145 CC73GCH1H030C CHIP C 3.0PF C
C146,147 CC73GCH1H020B CHIP C 2.0PF B
C148 CK73GB1H103K CHIP C 0.010UF K
C149 CC73GCH1H101J CHIP C 100PF J
C150 CK73GB1H102K CHIP C 1000PF K
C151 CC73GCH1H010B CHIP C 1.0PF B
C152-154 CK73GB1H103K CHIP C 0.010UF K
C156 CK73GB1H103K CHIP C 0.010UF K
C158-164 CK73GB1H103K CHIP C 0.010UF K
C165 CC73GCH1H020B CHIP C 2.0PF B

TS-2000/X,TS-B2000
PARTS LIST
18 K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
TX-RX 1 UNIT (X57-605X-XX)
C166 CK73GB1H103K CHIP C 0.010UF K
C167 CC73GCH1H100D CHIP C 10PF D
C168,169 CK73GB1H103K CHIP C 0.010UF K
C172-177 CK73GB1H103K CHIP C 0.010UF K
C178 CC73GCH1H100D CHIP C 10PF D
C179 CC73GCH1H060D CHIP C 6.0PF D
C180 CK73GB1H103K CHIP C 0.010UF K
C181 CC73GCH1H100D CHIP C 10PF D
C182,183 CK73GB1H103K CHIP C 0.010UF K
C184 CC73GCH1H120J CHIP C 12PF J
C185,186 CK73GB1H103K CHIP C 0.010UF K
C187 CC73GCH1H120J CHIP C 12PF J
C190 CC73GCH1H080D CHIP C 8.0PF D
C191 CC73GCH1H200J CHIP C 20PF J
C192 CK73GB1H103K CHIP C 0.010UF K
C193 CC73GCH1H080D CHIP C 8.0PF D
C196 CK73GB1H103K CHIP C 0.010UF K
C197 CE04EW1C100M ELECTRO 10UF 16WV
C198-201 CK73GB1H103K CHIP C 0.010UF K
C202 CC73GCH1H100D CHIP C 10PF D
C203 CC73GCH1H040C CHIP C 4.0PF C
C204 C92-0628-05 CHIP-TAN 10UF 10WV
C205 CC73GCH1H100D CHIP C 10PF D
C206-211 CK73GB1H103K CHIP C 0.010UF K
C213,214 CK73GB1H103K CHIP C 0.010UF K
C216 C92-0003-05 CHIP-TAN 0.47UF 25WV
C217,218 CK73GB1H103K CHIP C 0.010UF K
C219 C92-0003-05 CHIP-TAN 0.47UF 25WV
C221,222 CK73GB1H103K CHIP C 0.010UF K
C223 CK73GB1H102K CHIP C 1000PF K
C224 CC73GCH1H100D CHIP C 10PF D
C225 CK73GB1H103K CHIP C 0.010UF K
C227,228 CK73GB1H103K CHIP C 0.010UF K
C229 C92-0004-05 CHIP-TAN 1.0UF 16WV
C230 CE04EW1C101M ELECTRO 100UF 16WV
C233 CC73GCH1H270J CHIP C 27PF J
C234,235 CK73GB1H103K CHIP C 0.010UF K
C236 CK73GB1H102K CHIP C 1000PF K
C237,238 CK73GB1C104K CHIP C 0.10UF K
C239 CC73GCH1H221J CHIP C 220PF J
C241 CK73GB1C104K CHIP C 0.10UF K
C242 CK73GB1H472K CHIP C 4700PF K
C243 CK73GB1C104K CHIP C 0.10UF K
C244 CK73FB1C105K CHIP C 1.0UF K
C245 CK73GB1C104K CHIP C 0.10UF K
C246-250 CK73FB1C105K CHIP C 1.0UF K
C251 CK73GB1C104K CHIP C 0.10UF K
C252 CK73GB1C473K CHIP C 0.047UF K
C254 CK73GB1E223K CHIP C 0.022UF K
C258 CE04EW1C100M ELECTRO 10UF 16WV
C259-262 CK73GB1C104K CHIP C 0.10UF K
C263 CK73GB1H103K CHIP C 0.010UF K
C264-269 CK73GB1C104K CHIP C 0.10UF K
C270 CC73GCH1H101J CHIP C 100PF J
C271 CK73GB1C104K CHIP C 0.10UF K
C272 CC73GCH1H331J CHIP C 330PF J
C273,274 CK73GB1C104K CHIP C 0.10UF K
C275 CC73GCH1H271J CHIP C 270PF J
C276-278 CK73GB1C104K CHIP C 0.10UF K
C279 CK73GB1H103K CHIP C 0.010UF K
C281 CK73FB1C105K CHIP C 1.0UF K
C282 CC73GCH1H101J CHIP C 100PF J
C283 CE04EW1C100M ELECTRO 10UF 16WV
C284 CK73GB1H103K CHIP C 0.010UF K
C286 CK73FB1C105K CHIP C 1.0UF K
C287,288 CK73GB1C104K CHIP C 0.10UF K
C289 CK73GB1H103K CHIP C 0.010UF K
C290 CK73GB1C104K CHIP C 0.10UF K
C291 CK73FB1E104K CHIP C 0.10UF K
C292 CC73GCH1H390J CHIP C 39PF J
C293,294 CK73GB1H103K CHIP C 0.010UF K
C295-298 CK73GB1C104K CHIP C 0.10UF K
C299-301 CK73GB1H103K CHIP C 0.010UF K
C302 CC73GCH1H150J CHIP C 15PF J
C303 CK73GB1H471K CHIP C 470PF K
C304 CK73GB1H103K CHIP C 0.010UF K
C305 CK73GB1H471K CHIP C 470PF K
C306,307 CK73GB1H103K CHIP C 0.010UF K
C308 CC73GCH1H010B CHIP C 1.0PF B
C309 CK73GB1H103K CHIP C 0.010UF K
C310 CC73GCH1H180J CHIP C 18PF J
C311 CC73GCH1H0R5B CHIP C 0.5PF B
C312 CK73GB1C104K CHIP C 0.10UF K
C313 CC73GCH1H180J CHIP C 18PF J
C314 CC73GCH1H020B CHIP C 2.0PF B
C315 CK73GB1H103K CHIP C 0.010UF K
C316 CC73GCH1H270J CHIP C 27PF J
C317-320 CK73GB1H103K CHIP C 0.010UF K
C321 CC73GCH1H150J CHIP C 15PF J
C322,323 CK73GB1H103K CHIP C 0.010UF K
C324 CK73GB1H332K CHIP C 3300PF K
C327-337 CK73GB1H103K CHIP C 0.010UF K
C338 CK73FB1C105K CHIP C 1.0UF K
C339-342 CK73GB1H103K CHIP C 0.010UF K
C343 CK73GB1C104K CHIP C 0.10UF K
C344-346 CK73GB1H103K CHIP C 0.010UF K
C347 CK73FB1C474K CHIP C 0.47UF K
C348 CK73GB1H471K CHIP C 470PF K
C349 CK73GB1C273K CHIP C 0.027UF K
C350 CK73GB1H103K CHIP C 0.010UF K
C351 CK73FB1E104K CHIP C 0.10UF K
C352 CK73GB1C473K CHIP C 0.047UF K
C353-358 CK73GB1H103K CHIP C 0.010UF K
C359 CC73GCH1H010B CHIP C 1.0PF B
C361-363 CK73GB1H103K CHIP C 0.010UF K
C364 CE04EW1C100M ELECTRO 10UF 16WV
C365-369 CK73GB1H103K CHIP C 0.010UF K
C370 CC73GCH1H100D CHIP C 10PF D
C373 C92-0606-05 CHIP-TAN 4.7UF 10WV
C374 CK73FB1C105K CHIP C 1.0UF K
C375-378 CK73GB1H103K CHIP C 0.010UF K
C379 CC73GCH1H030C CHIP C 3.0PF C
C380 CK73GB1H103K CHIP C 0.010UF K
C381,382 CC73GCH1H221J CHIP C 220PF J
C383 CC73GUJ1H070D CHIP C 7.0PF D
C384 CC73GUJ1H030C CHIP C 3.0PF C
C385 CK73FB1C105K CHIP C 1.0UF K
C386 CK73GB1H103K CHIP C 0.010UF K
C388 C92-0628-05 CHIP-TAN 10UF 10WV
C389 CK73GB1E223K CHIP C 0.022UF K

TS-2000/X,TS-B2000
PARTS LIST
19
K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
TX-RX 1 UNIT (X57-605X-XX)
C390,391 CK73FB1C105K CHIP C 1.0UF K
C393 CK73FB1C105K CHIP C 1.0UF K
C394 C92-0606-05 CHIP-TAN 4.7UF 10WV
C395 CK73GB1H103K CHIP C 0.010UF K
C396 CE04EW1C101M ELECTRO 100UF 16WV
C397,398 CE04EW1C470M ELECTRO 47UF 16WV
C399 CE04EW1C471M ELECTRO 470UF 16WV
C400 CE04EW1C331M ELECTRO 330UF 16WV
C401 CE04EW1C471M ELECTRO 470UF 16WV
C402 CK73FB1E104K CHIP C 0.10UF K
C403 CE04EW1C470M ELECTRO 47UF 16WV
C404 CK73FB1E104K CHIP C 0.10UF K
C405 CE04EW1C470M ELECTRO 47UF 16WV
C406 CK73GB1H103K CHIP C 0.010UF K
C407,408 CE04EW1C100M ELECTRO 10UF 16WV
C409 CK73FB1C105K CHIP C 1.0UF K
C410-413 CK73FB1E104K CHIP C 0.10UF K
C417 CK73GB1H102K CHIP C 1000PF K
C418 CK73GB1H471K CHIP C 470PF K
C419 CK73GB1H102K CHIP C 1000PF K
C420 C92-0004-05 CHIP-TAN 1.0UF 16WV
C421 CK73GB1H102K CHIP C 1000PF K
C422,423 CK73GB1H471K CHIP C 470PF K
C424 CK73GB1H102K CHIP C 1000PF K
C425 CK73FB1E104K CHIP C 0.10UF K
C426 CK73GB1H222K CHIP C 2200PF K
C427 CK73GB1H332K CHIP C 3300PF K
C428 CE04EW1C470M ELECTRO 47UF 16WV
C429 CK73GB1H103K CHIP C 0.010UF K
C430,431 CE04EW1C470M ELECTRO 47UF 16WV
C432,433 CK73GB1H103K CHIP C 0.010UF K
C434-436 CK73GB1H102K CHIP C 1000PF K
C437 CK73GB1H103K CHIP C 0.010UF K
C438 CK45FE2H222P CERAMIC 2200PF P
C439,440 CK73GB1H103K CHIP C 0.010UF K
C441-444 CK73GB1H102K CHIP C 1000PF K
C449-452 CK73FB1C105K CHIP C 1.0UF K
C453 CK73GB1H103K CHIP C 0.010UF K
C454 CK73FB1C105K CHIP C 1.0UF K
C455 CK73GB1H102K CHIP C 1000PF K
C456 CE04EW1C101M ELECTRO 100UF 16WV
C457 CK73GB1H102K CHIP C 1000PF K
C458 CK73FB1C105K CHIP C 1.0UF K
C459 CK73GB1H103K CHIP C 0.010UF K
C460,461 CK73GB1H102K CHIP C 1000PF K
C462 CK73GB1H103K CHIP C 0.010UF K
C463-466 CK73GB1H102K CHIP C 1000PF K
C467-470 CK73GB1H103K CHIP C 0.010UF K
C471 CK73GB1E223K CHIP C 0.022UF K
C472 C92-0003-05 CHIP-TAN 0.47UF 25WV
C473 CK73GB1C473K CHIP C 0.047UF K
C474 CK73GB1H102K CHIP C 1000PF K
C475 CK73GB1H103K CHIP C 0.010UF K
C476 CE04EW1C100M ELECTRO 10UF 16WV
C477 CE04EW1E4R7M ELECTRO 4.7UF 25WV
C478 CK73GB1H103K CHIP C 0.010UF K
C479 CC73GCH1H101J CHIP C 100PF J
C480 CE04EW1E4R7M ELECTRO 4.7UF 25WV
C481-484 CK73GB1H102K CHIP C 1000PF K
C485-487 CC73GCH1H101J CHIP C 100PF J
C488 CE04EW1C100M ELECTRO 10UF 16WV
C489 CK73GB1H103K CHIP C 0.010UF K
C490,491 CC73GCH1H101J CHIP C 100PF J
C492 C92-0004-05 CHIP-TAN 1.0UF 16WV
C493-499 CK73GB1H103K CHIP C 0.010UF K
C500 CK73GB1C104K CHIP C 0.10UF K
C501 CK73GB1H103K CHIP C 0.010UF K
C502 CK73GB1C104K CHIP C 0.10UF K
C505 CK73GB1H102K CHIP C 1000PF K
C506 CE04EW1C220M ELECTRO 22UF 16WV
C507,508 CK73GB1H102K CHIP C 1000PF K
C509 CE04EW1C220M ELECTRO 22UF 16WV
C510,511 CK73GB1H102K CHIP C 1000PF K
C512 CE04EW1C220M ELECTRO 22UF 16WV
C513,514 CK73GB1H102K CHIP C 1000PF K
C515 CE04EW1C220M ELECTRO 22UF 16WV
C516 CK73GB1H102K CHIP C 1000PF K
C517-520 CK73FB1E104K CHIP C 0.10UF K
C521 CK73GB1H102K CHIP C 1000PF K
C522 CE04EW1C101M ELECTRO 100UF 16WV
C523-525 C92-0606-05 CHIP-TAN 4.7UF 10WV
C526-528 CK73FB1C105K CHIP C 1.0UF K
C529-531 C92-0606-05 CHIP-TAN 4.7UF 10WV
C532-537 CK73GB1H102K CHIP C 1000PF K
C538,539 CK73GB1H103K CHIP C 0.010UF K
C547 CK73GB1H103K CHIP C 0.010UF K
C553 CE04EW1C221M ELECTRO 220UF 16WV
C556 CK73FB1C105K CHIP C 1.0UF K
C601 CK73GB1C473K CHIP C 0.047UF K
C602 CE04EW1C100M ELECTRO 10UF 16WV
C603 CK73GB1C473K CHIP C 0.047UF K
C604 CK73GB1H472K CHIP C 4700PF K
C605-607 CK73GB1H103K CHIP C 0.010UF K
C608 CE04EW1C100M ELECTRO 10UF 16WV
C609 CK73GB1H472K CHIP C 4700PF K
C610-613 CK73GB1C473K CHIP C 0.047UF K
C614 CK73GB1H102K CHIP C 1000PF K
C615 CK73GB1H182K CHIP C 1800PF K
C616 CK73GB1H102K CHIP C 1000PF K
C617 CE04EW1C100M ELECTRO 10UF 16WV
C618,619 CK73GB1C473K CHIP C 0.047UF K
C620 CK73GB1H472K CHIP C 4700PF K
C621-623 CK73GB1H103K CHIP C 0.010UF K
C624 CE04EW1C100M ELECTRO 10UF 16WV
C625,626 CK73GB1C473K CHIP C 0.047UF K
C627 CK73GB1H472K CHIP C 4700PF K
C628,629 CK73GB1C473K CHIP C 0.047UF K
C630 CC73GCH1H680J CHIP C 68PF J
C631 CC73GCH1H180J CHIP C 18PF J
C632 CC73GCH1H820J CHIP C 82PF J
C633 CC73GCH1H080D CHIP C 8.0PF D
C634 CC73GCH1H390J CHIP C 39PF J
C635 CE04EW1C100M ELECTRO 10UF 16WV
C636,637 CK73GB1C473K CHIP C 0.047UF K
C638 CK73GB1H472K CHIP C 4700PF K
C639-641 CK73GB1H103K CHIP C 0.010UF K
C642 CE04EW1C100M ELECTRO 10UF 16WV
C643 CK73GB1H472K CHIP C 4700PF K
C644-647 CK73GB1C473K CHIP C 0.047UF K
C648 CC73GCH1H390J CHIP C 39PF J

TS-2000/X,TS-B2000
PARTS LIST
20 K : TS-2000 (K) KB : TS-B2000 (K) KX : TS-2000X (K) E : TS-2000 (E)
EB : TS-B2000 (E) E2 : TS-2000 (E2) E2B : TS-B2000 (E2) EX : TS-2000X (E)
Ref. No. Address Parts No. Description Ref. No. Address Parts No. Description
New Desti-
parts nation
New Desti-
parts nation
TX-RX 1 UNIT (X57-605X-XX)
C649 CC73GCH1H180J CHIP C 18PF J
C650 CC73GCH1H820J CHIP C 82PF J
C651 CC73GCH1H090B CHIP C 9.0PF B
C652 CC73GCH1H390J CHIP C 39PF J
C700 CE04EW1C220M ELECTRO 22UF 16WV
C703 CK73GB1H103K CHIP C 0.010UF K
C704 CK73GB1C104K CHIP C 0.10UF K
C705 CC73GCH1H221J CHIP C 220PF J
C706-708 CC73GUJ1H040C CHIP C 4.0PF C
C709,710 CK73GB1H103K CHIP C 0.010UF K
C711 CK73GB1H102K CHIP C 1000PF K
C712-716 CK73GB1H103K CHIP C 0.010UF K
C718 CC73GUJ1H040C CHIP C 4.0PF C
C719 CK73GB1H103K CHIP C 0.010UF K
C720 CC73GCH1H390J CHIP C 39PF J
C721,722 CK73GB1C104K CHIP C 0.10UF K
C723 C92-0606-05 CHIP-TAN 4.7UF 10WV
C724,725 CK73GB1H103K CHIP C 0.010UF K
C726 CK73FB1C105K CHIP C 1.0UF K
C727,728 CC73GCH1H101J CHIP C 100PF J
C739 CK73GB1H103K CHIP C 0.010UF K
C741 CK73FB1C105K CHIP C 1.0UF K
C743 CK73GB1C104K CHIP C 0.10UF K
C744 CK73GB1H103K CHIP C 0.010UF K
C745,746 CK73GB1C104K CHIP C 0.10UF K
C747 CK73FB1C105K CHIP C 1.0UF K
C749 CK73GB1H103K CHIP C 0.010UF K
C750 CK73FB1E104K CHIP C 0.10UF K
C752 CC73GCH1H560J CHIP C 56PF J
C753 CC73GCH1H100D CHIP C 10PF D
C754 CC73GCH1H221J CHIP C 220PF J
C755 CC73GCH1H271J CHIP C 270PF J
C757 CK73GB1H102K CHIP C 1000PF K
C758 CK73GB1E223K CHIP C 0.022UF K
C759,760 CK73FB1C105K CHIP C 1.0UF K
C761,762 CK73GB1H103K CHIP C 0.010UF K
C763 CC73GCH1H030C CHIP C 3.0PF C
C765,766 CK73GB1H103K CHIP C 0.010UF K
C767 CC73GCH1H010B CHIP C 1.0PF B
C770,771 CK73GB1H102K CHIP C 1000PF K
C772 CC73GCH1H470J CHIP C 47PF J
C773-776 CK73GB1H102K CHIP C 1000PF K
C777 CC73GCH1H221J CHIP C 220PF J
C778 CE04EW1C100M ELECTRO 10UF 16WV
C779 CK73GB1C104K CHIP C 0.10UF K
C780 CK73GB1H103K CHIP C 0.010UF K
C781 CC73GCH1H101J CHIP C 100PF J
C782 C92-0004-05 CHIP-TAN 1.0UF 16WV
C783 CK73GB1C104K CHIP C 0.10UF K
C784,785 CK73GB1H152K CHIP C 1500PF K
C786 CK73FB1C334K CHIP C 0.33UF K
C787 CK73FB1E104K CHIP C 0.10UF K
C788,789 CK73FB1C105K CHIP C 1.0UF K
C790,791 CK73GB1H103K CHIP C 0.010UF K
C792 CK73EB1H104K CHIP C 0.10UF K
C793,794 CK73GB1H471K CHIP C 470PF K
C795 CK73FB1C105K CHIP C 1.0UF K
C800 CK73GB1E223K CHIP C 0.022UF K K,KX,E
C800 CK73GB1E223K CHIP C 0.022UF K E2,EX
C801,802 CK73GB1C104K CHIP C 0.10UF K K,KX,E
C801,802 CK73GB1C104K CHIP C 0.10UF K E2,EX
C803 C92-0038-05 CHIP-ELE 22UF 16WV K,KX,E
C803 C92-0038-05 CHIP-ELE 22UF 16WV E2,EX
C804 CK73GB1C104K CHIP C 0.10UF K K,KX,E
C804 CK73GB1C104K CHIP C 0.10UF K E2,EX
C806 CK73GB1H102K CHIP C 1000PF K K,KX,E
C806 CK73GB1H102K CHIP C 1000PF K E2,EX
C810,811 CK73GB1C104K CHIP C 0.10UF K K,KX,E
C810,811 CK73GB1C104K CHIP C 0.10UF K E2,EX
C812-816 CK73GB1H102K CHIP C 1000PF K K,KX,E
C812-816 CK73GB1H102K CHIP C 1000PF K E2,EX
C818-820 CK73GB1C104K CHIP C 0.10UF K K,KX,E
C818-820 CK73GB1C104K CHIP C 0.10UF K E2,EX
C821,822 CC73GCH1H100D CHIP C 10PF D K,KX,E
C821,822 CC73GCH1H100D CHIP C 10PF D E2,EX
C823 CK73GB1C104K CHIP C 0.10UF K K,KX,E
C823 CK73GB1C104K CHIP C 0.10UF K E2,EX
C824 CK73GB1H103K CHIP C 0.010UF K K,KX,E
C824 CK73GB1H103K CHIP C 0.010UF K E2,EX
C826-842 CK73GB1H102K CHIP C 1000PF K K,KX,E
C826-842 CK73GB1H102K CHIP C 1000PF K E2,EX
C844 CK73GB1H102K CHIP C 1000PF K K,KX,E
C844 CK73GB1H102K CHIP C 1000PF K E2,EX
C847-850 CK73GB1H102K CHIP C 1000PF K K,KX,E
C847-850 CK73GB1H102K CHIP C 1000PF K E2,EX
C851 CK73GB1H103K CHIP C 0.010UF K K,KX,E
C851 CK73GB1H103K CHIP C 0.010UF K E2,EX
C852-855 CK73GB1H102K CHIP C 1000PF K K,KX,E
C852-855 CK73GB1H102K CHIP C 1000PF K E2,EX
C858-860 CK73GB1H102K CHIP C 1000PF K K,KX,E
C858-860 CK73GB1H102K CHIP C 1000PF K E2,EX
C861 CK73GB1H103K CHIP C 0.010UF K K,KX,E
C861 CK73GB1H103K CHIP C 0.010UF K E2,EX
C862-866 CK73GB1H102K CHIP C 1000PF K K,KX,E
C862-866 CK73GB1H102K CHIP C 1000PF K E2,EX
C867,868 CK73GB1C104K CHIP C 0.10UF K K,KX,E
C867,868 CK73GB1C104K CHIP C 0.10UF K E2,EX
C869 CK73FB1C105K CHIP C 1.0UF K K,KX,E
C869 CK73FB1C105K CHIP C 1.0UF K E2,EX
C870,871 CK73GB1C473K CHIP C 0.047UF K K,KX,E
C870,871 CK73GB1C473K CHIP C 0.047UF K E2,EX
C950,951 CK73GB1H103K CHIP C 0.010UF K
C952-955 CK73EF1C105Z CHIP C 1.0UF Z K,KX,E
C952-955 CK73EF1C105Z CHIP C 1.0UF Z E2,EX
C956-959 CK73GB1H103K CHIP C 0.010UF K
C962-965 CK73EF1C105Z CHIP C 1.0UF Z KB,EB,E2B
C966 CK73GB1C104K CHIP C 0.10UF K KB,EB,E2B
C967-969 CK73FB1C105K CHIP C 1.0UF K KB,EB,E2B
C970 CE04EW1A101M ELECTRO 100UF 10WV
C971 CK73GB1A474K CHIP C 0.47UF K E,EB,E2
C971 CK73GB1A474K CHIP C 0.47UF K E2B,EX
C972 CK73FB1C105K CHIP C 1.0UF K KB,EB,E2B
TC1,2 C05-0344-05 CERAMIC TRIMMER CAP (30PF) E,EB,E2
TC1,2 C05-0344-05 CERAMIC TRIMMER CAP (30PF) E2B,EX
TC3 C05-0369-05 CERAMIC TRIMMER CAP
- E18-0254-05 SOCKET
- E23-1176-04 EARTH LUG
- E37-0895-05 LEAD WIRE WITH TERMINAL KB,EB,E2B
CN1 E04-0154-05 PIN SOCKET
CN2-4 E40-5487-05 PIN ASSY
