KessTech ESM2 User manual
Feel the Sound.
INSTALLATION MANUAL

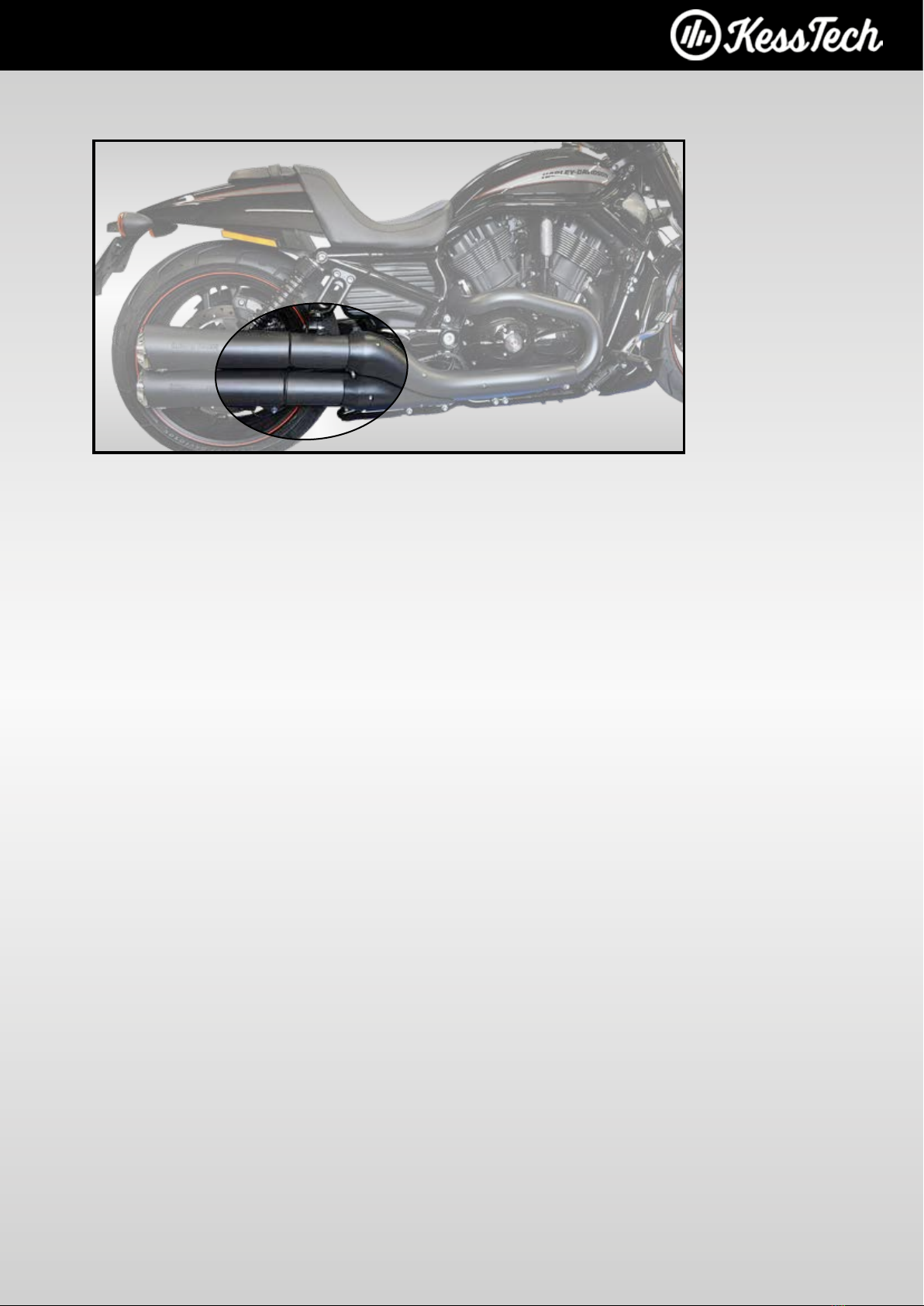

Harley-Davidson VRSC 2in2
ESM2 ESM3
01. Fold up the seat and remove the pillion seat. Dismount OEM slipon, loosen manifold to ensure
mounting without tension.
02. Place the delivered spacer on the mounting screw between the frame and the accumulator.
Place the M8 nut back on the screw. Tighten after the exhaust is mounted straight.
Modelspecicfeatures:
Spacer for Street Rod, Night Rod Special 2007 up, and V-Rod Anniversary 2012. Place the
7mm spacer on the OEM mounting screw between the frame and auxiliary volume, place the
M8 nut back on the screw. Tighten after the exhaust is mounted straight.
HD VRSC 2IN2 ESM2 ESM3 02a
HD VRSC 2IN2 ESM2 ESM301
HD VRSC 2IN2 ESM2 ESM3 02b
example of soldering
05. Wiring diagram for KessTech electronics with the cable colors of the Harley-Davidson models.
Yellow cable – RPM signal, green cable – speed signal
04. Solder the KessTech electronics into the existing electronics. Use cable colors and pin
according to the wiring diagram KessTech electronics.
03. Mount handlebar switch with the help of the supplied screw.
06. Connect all plugs. Align the KessTech electronics.
HD VRSC 2IN2 ESM2 ESM3 03
HD VRSC 2IN2 ESM2 ESM3 04
HD VRSC 2IN2 ESM2 ESM3 06a HD VRSC 2IN2 ESM2 ESM3 06b
MODEL YEAR PIN/YELLOW CABLE PIN/GREEN CABLE INFORMATION IGNITION PLUS
VRSC 2003-2006 29 blue/orange 33 white orange/white
VRSC 2007- 29 blue/orange 33 black/blue orange/white
12. Otherinformation:
The following additional support letters can be found in the “Technical Help“ section in the
Dealer-Loginofourwebsitewww.kesstech.de/en:
• Jumper plug to avoid the error message on the display
• Jumper plug MUM-5 shortcut 2
• Jumper plug MUM-5 aoo
• Shell mounting
• Description ESM2 function
• Care instructions Black Velvet
11. SafetyNote:
After about 200 kms retighten all exhaust screws and after every service intervals as well as
every 4,000 kms. If not correctly performed, the KessTech warranty will be void. If there is any
subsequent change of the exhaust, the vehicle type-approval will be invalid.
07. Mount the heat shields.
HD VRSC 2IN2 ESM2 ESM3 07
08. Ensurethattheheaders,holders,servomotors,driveshaftsandu-jointsaswellasmufersdo
not interfear with motorcycle parts.
09. Clean the exhaust and perform a function check.
10. Perform a test ride.
KESSTECH GmbH
Sailershäuser Straße 1
D-97531 Obertheres
Phone: +49(9521)95420-0
Fax: +49(9521)95420-122
Mail: [email protected]
www.kesstech.de/en
Installation Manual Harley-Davidson VRSC 2in2 ESM2 ESM3
Version:07/2018
Amendments and errors reserved.
KessTech exhaust systems are always developed, constructed, designed and homologated to
the delivery condition of the original vehicle. KessTech cannot evaluate whether the installation
of further accessory parts together with a KessTech exhaust system is possible and still legal
and therefore assumes no warranty or liability. Our Technical Support will be happy to answer
any question.
For warranty claims, see the section “Warranty Processing“ in the Dealer-Login of our website
www.kesstech.de/en, as well as the general terms and conditions.
If you need more information or have any further questions, feel free to contact us.
Your KessTech Team
