Ketra S30 PAR 30 Lamp User manual

LAMP
Tunable Wireless Lamp
INSTALLATION GUIDE
Models:
S30 PAR 30 Lamp
S38 PAR 38 Lamp
A20 Lamp

PAGE 2770-0000XX-0X r9LAMP INSTALLATION GUIDE
Use in dry locations only. Shock Hazard.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Maintain at least 1.8m of spacing between any KetraNet Mesh
product and Wi-Fi routers and access points.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
! !
WARNING

PAGE 3770-0000XX-0X r9LAMP INSTALLATION GUIDE
CONTENTS
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimension Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Fixture Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
After Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warranty/ Tech Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

PAGE 4770-0000XX-0X r9LAMP INSTALLATION GUIDE
PRODUCT OVERVIEW
© 2016 Ketra. Inc. All rights reserved.Designed in Austin, Texas +1.512.872.4349 | www.ketra.com
770-000020-01-6
TUNABLE S30 LED LAMP
Project:
Comments:
Prepared By:
ECO DESCRIPTION
01 ORIGINATED
A
B
C
D
3
4
5
6
7
8
8
7
6
5
4
3
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
KETRA, INC. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF KETRA, INC.
IS PROHIBITED.
DIMENSIONS ARE IN MILLIMETERS
INTERPRET GEOMETRIC
TOLERANCING PER:
ASME Y14.5 - 2009
DESCRIPTION
UNLESS OTHERWISE SPECIFIED:
PRODUCT DOCUMENT
PROPRIETARY AND CONFIDENTIAL
3815 S. CAPITAL OF TEXAS HIGHWAY SUITE 100
AUSTIN, TEXAS 78704 [phone]
DRAWN BY
Vendor
DATE
Vendor PN
THIRD ANGLE
PROJECTION
TOLERANCES:
ANGLE
+/- 1°
DECIMAL
.X +/- 0.5MM
.XX +/- 0.25MM
.XXX +/- 0.125MM
DEREK LOGAN
08/31/15
DEVELOPMENT
PHASE VERSION
02
Specifications1
Optical Performance
Lumen Output2825 lm/ 1050 lm
CRI (Ra) >90 (R9 >90)
Lumen Maintenance436,000 hours to L70 @ 25°C TA
Color Spatial Uniformity angle
Color Point Maintenance <1 MacAdam ellipse over product
lifetime
Equivalent Traditional Lamp 75W halogen PAR30
Dimming Range50.1 - 100% lm
Mechanical
Weight 11.95 oz, 339 g
Housing Material Powder Coated Aluminum, Polymer
Lens Material Non-yellowing PMMA
Base Type E26 or GU24
Electrical
Power Consumption S30.08 11W/ S30.10 17W
Power Factor >0.9
Current 170 mA Max
S30.08 75 lm/W / S30.10 62 lm/W
Environmental
Operating Temperature (TA)60 - 50°C
Storage Temperature -20 - 80°C
Humidity 0 - 95%, Non-condensing
UL, cUL, RoHS, FCC Class B
Location UL Damp Location, IP20, Suitable for
use in fully enclosed luminaires
1 All performance measurements taken at 3000K, 25°C ambient, 100% power input, unless otherwise stated.
2Lumen measurement complies with IES LM-79-08 testing procedures.
3See color gamut chart at the end of this document.
4Lumen maintenance values calculated in accordance to TM-21 procedures based on LM-80 compliant measurement data.
5Intensity and color point controlled via Ketra’s wireless network
6Suitable for use in fully enclosed luminaires
PRODUCT WEIGHT
REVISIONS
ZONE REV. ECO DESCRIPTION DATE APPROVED
C
A
A
C
SCALE:
00
PRODUCT DOCUMENT
DRAWING, A20, 810-000017-
XX
775-0000XX-XX
PROPRIETARY AND CONFIDENTIAL
B
TOLERANCES:
JOHN MICHALKO
9/23/2014
1 1
1:1
PRODUCTION
© 2015 Ketra. Inc. All rights reserved.Designed in Austin, Texas +1.512.347.1100 | www.ketra.com
770-000001-01-16
Specications are subject to change without notice.
TUNABLE S38 LED LAMP
Project:
Comments:
Prepared By:
E26 Base
4.80”, 122 mm Ø
GU24 Base
4.95”, 126 mm
4.95”, 126 mm
4.80”, 122 mm
E26 Base
4.80”, 122 mm Ø
GU24 Base
4.95”, 126 mm 4.95”, 126 mm
4.80”, 122 mm
Specifications1
CAD les available upon request
Optical Performance
Lumen Output2900 lm/ 1100 lm
CRI (Ra) >90 (R9 >90)
Lumen Maintenance436,000 hours to L70 @ 25°C TA
Color Spatial Uniformity <2 MacAdam ellipses across eld
angle
Color Point Maintenance <1 MacAdam ellipse over product
lifetime
Equivalent Traditional Lamp 75W/ 100W halogen PAR38
Dimming Range50.1 - 100% lm
Mechanical
Weight 13.8 oz, 390 g
Housing Material Powder Coated Aluminum, Polymer
Lens Material Non-yellowing PMMA
Base Type E26 or GU24
Electrical
Power Consumption S38.09 13W/ S38.11 18W
Power Factor >0.9
Current 170 mA Max
Ecacy S38.09 69 lm/W / S38.11 62 lm/W
Environmental
Operating Temperature (TA)60 - 50°C
Storage Temperature -20 - 80°C
Humidity 0 - 95%, Non-condensing
Certication UL, cUL, RoHS, FCC Class B
Location UL Damp Location, IP20, Suitable for
use in fully enclosed luminaires
1 All performance measurements taken at 3000K, 25°C ambient, 100% power input, unless otherwise stated.
2Lumen measurement complies with IES LM-79-08 testing procedures.
3See color gamut chart at the end of this document.
4Lumen maintenance values calculated in accordance to TM-21 procedures based on LM-80 compliant measurement data.
5Intensity and color point controlled via Ketra’s wireless network
6Suitable for use in fully enclosed luminaires
Accessories
S38 Accessory Snoot 30° cuto S38ASNT30
S38 Accessory Snoot 55° cuto S38ASNT55
S38 Accessory Louver 45° cuto (Requires S38ASNT55) S38ALUV45
S38 Accessory Bae 15° cuto (Requires S38ASNT30) S38ABFL15

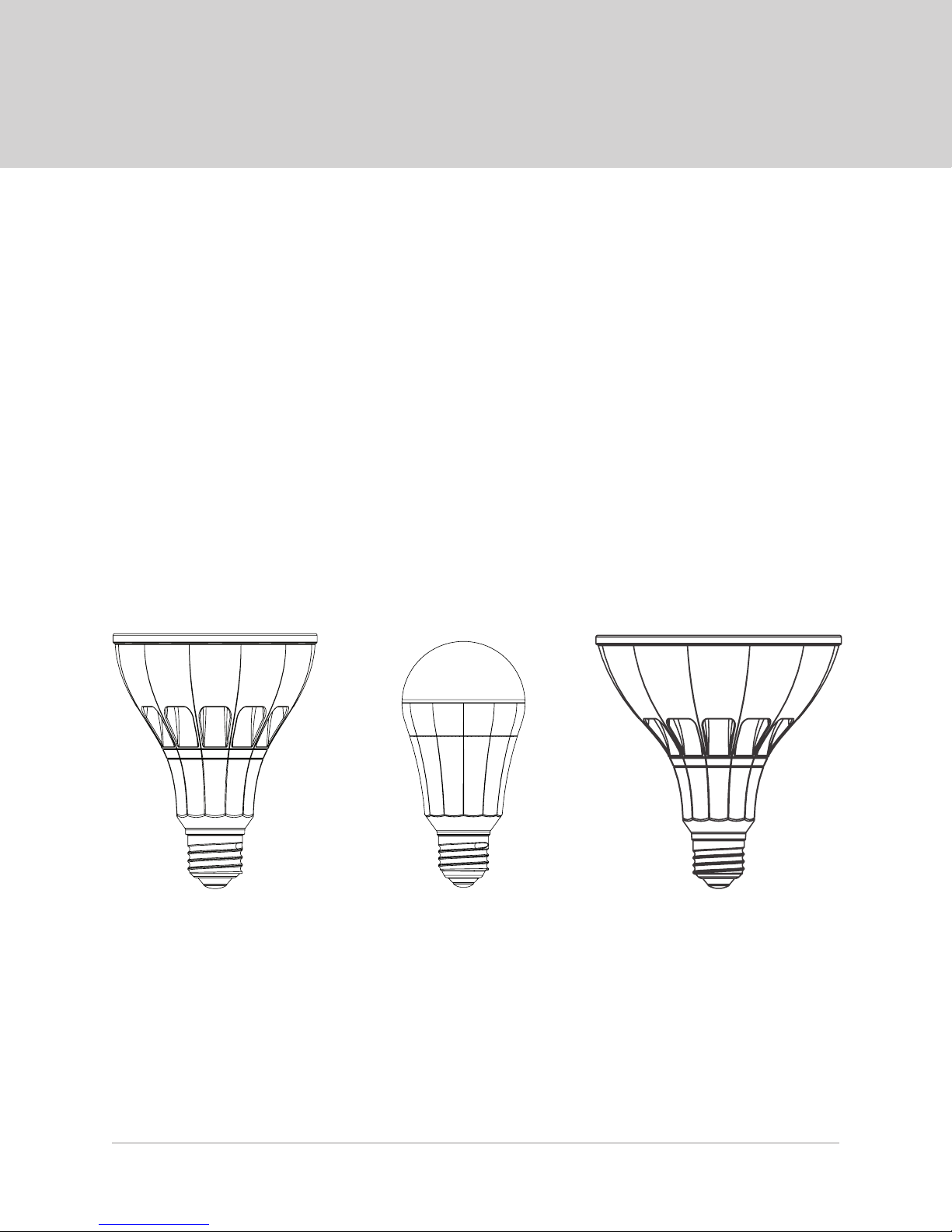

S PAR  LONGNECK LAMP A LAMP S PAR  LONGNECK LAMP
Ketra’s Family of lamps are an all-encompassing
LED solution with the ability to render 90+ CRI
white light, saturated colors and pastels from a
fully mixed, single point source.
Ketra’s custom driver chip and optics incorporate closed-loop thermal and optical
feedback, maintaining a factory-calibrated color point to one MacAdam ellipse over the
product’s lifetime. Each lamp is wirelessly controlled and individually addressable through
Ketra’s accompanying software

PAGE 5770-0000XX-0X r9LAMP INSTALLATION GUIDE
DIMENSION DRAWINGS
© 2016 Ketra. Inc. All rights reserved.Designed in Austin, Texas +1.512.347.1100 | www.ketra.com
770-000017-14
Specications are subject to change without notice.
A20 TUNABLE LED LAMP
Project:
Comments:
Prepared By:
REVISIONS
ZONE REV.
ECO
DESCRIPTION DATE APPROVED
C
A
A
C
SCALE:
00
PROPRIETARY AND CONFIDENTIAL
B
TOLERANCES:
1 2
1:2
00
NOTES:
E26 Base
4.95”, 126 mm
2.52”, 64 mm
Specifications1
CAD les available upon request
Optical Performance
Lumen Output
2
600 lm/ 800 lm
CRI (Ra) >90
Lumen Maintenance
3
25,000 hours to L70 @ 25°C Ambient
Color Spatial Uniformity <2 MacAdam ellipses across eld angle
Color Point Maintenance <1 MacAdam ellipse over product lifetime
Equivalent Traditional Lamp 40W/ 60W Incandescent lamp
Dimming Range
4
0.1 - 100% lm
Mechanical
Weight 8.39 oz, 234 g
Housing Material Powder Coated Aluminum, Polymer
Lens Material Non-yellowing PMMA
Base Type E26
GU24
Electrical
Power Consumption A20.06 10W/ A20.08 11W
Power Factor >0.9
Current 100 mA Max
Ecacy >60 lm/W
Environmental
Ambient Operating Temperature
5
0 - 50°C
Storage Temperature -20 - 80°C
Humidity 0 - 95%, Non-condensing
Certication UL, cUL, RoHS, FCC Class B
Location
UL Damp Location, IP20,
Suitable for use in fully enclosed
luminaires
1
All performance measurements taken at 3000K, 25°C ambient, 100% power input, unless otherwise stated.
2
Lumen measurement complies with IES LM-79-08 testing procedures.
3
Lumen maintenance values calculated in accordance to TM-21 procedures based on LM-80 compliant measurement data.
4
Intensity and color point controlled via Ketra’s wireless network
5
Suitable for use in fully enclosed luminaires.
PRODUCT WEIGHT
REVISIONS
ZONE REV. ECO DESCRIPTION DATE APPROVED
C
A
A
C
SCALE:
00
PRODUCT DOCUMENT
DRAWING, A20, 810-000025-
XX
775-000005-01
PROPRIETARY AND CONFIDENTIAL
B
TOLERANCES:
JOHN MICHALKO
4/20/2015
1 2
1:1
DEVELOPMENT
03
GU24 Base
4.95”, 126 mm
2.52”, 64 mm
A LAMP
4.95”, 126 mm
E26 Base
2.52”, 64 mm
© 2015 Ketra. Inc. All rights reserved.Designed in Austin, Texas +1.512.347.1100 | www.ketra.com
770-000001-01-16
Specications are subject to change without notice.
TUNABLE S38 LED LAMP
Project:
Comments:
Prepared By:
E26 Base
4.80”, 122 mm Ø
GU24 Base
4.95”, 126 mm
4.95”, 126 mm
4.80”, 122 mm
E26 Base
4.80”, 122 mm Ø
GU24 Base
4.95”, 126 mm 4.95”, 126 mm
4.80”, 122 mm
Specifications1
CAD les available upon request
Optical Performance
Lumen Output2900 lm/ 1100 lm
CRI (Ra) >90 (R9 >90)
Lumen Maintenance436,000 hours to L70 @ 25°C TA
Color Spatial Uniformity <2 MacAdam ellipses across eld
angle
Color Point Maintenance <1 MacAdam ellipse over product
lifetime
Equivalent Traditional Lamp 75W/ 100W halogen PAR38
Dimming Range50.1 - 100% lm
Mechanical
Weight 13.8 oz, 390 g
Housing Material Powder Coated Aluminum, Polymer
Lens Material Non-yellowing PMMA
Base Type E26 or GU24
Electrical
Power Consumption S38.09 13W/ S38.11 18W
Power Factor >0.9
Current 170 mA Max
Ecacy S38.09 69 lm/W / S38.11 62 lm/W
Environmental
Operating Temperature (TA)60 - 50°C
Storage Temperature -20 - 80°C
Humidity 0 - 95%, Non-condensing
Certication UL, cUL, RoHS, FCC Class B
Location UL Damp Location, IP20, Suitable for
use in fully enclosed luminaires
1 All performance measurements taken at 3000K, 25°C ambient, 100% power input, unless otherwise stated.
2Lumen measurement complies with IES LM-79-08 testing procedures.
3See color gamut chart at the end of this document.
4Lumen maintenance values calculated in accordance to TM-21 procedures based on LM-80 compliant measurement data.
5Intensity and color point controlled via Ketra’s wireless network
6Suitable for use in fully enclosed luminaires
Accessories
S38 Accessory Snoot 30° cuto S38ASNT30
S38 Accessory Snoot 55° cuto S38ASNT55
S38 Accessory Louver 45° cuto (Requires S38ASNT55) S38ALUV45
S38 Accessory Bae 15° cuto (Requires S38ASNT30) S38ABFL15
S, PAR  LAMP
4.95”, 126 mm
4.80”, 122 mm
E26 Base
© 2016 Ketra. Inc. All rights reserved.Designed in Austin, Texas +1.512.872.4349 | www.ketra.com
770-000020-01-6
Specications are subject to change without notice.
TUNABLE S30 LED LAMP
Project:
Comments:
Prepared By:
3.7in
95.0mm
4.7in
118.6mm
1.0in
25.4mm
2.4in
60.1mm
1.8in
44.7mm
REVISIONS
REV. ECO DESCRIPTION DATE APPROVED
01 ORIGINATED 08/31/15 DLOGAN
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
KETRA, INC. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF KETRA, INC.
IS PROHIBITED.
DIMENSIONS ARE IN MILLIMETERS
INTERPRET GEOMETRIC
TOLERANCING PER:
ASME Y14.5 - 2009
DESCRIPTION
SIZE
REV
SCALE:
UNLESS OTHERWISE SPECIFIED:
01
PRODUCT DOCUMENT
DRAWING, S30 LN, E26
SHEET
775-000008-01
DWG. NO.
PROPRIETARY AND CONFIDENTIAL
B
3815 S. CAPITAL OF TEXAS HIGHWAY SUITE 100
AUSTIN, TEXAS 78704 [phone]
DRAWN BY
Vendor
DATE
Vendor PN
THIRD ANGLE
PROJECTION
TOLERANCES:
ANGLE
+/- 1°
DECIMAL
.X +/- 0.5MM
.XX +/- 0.25MM
.XXX +/- 0.125MM
DEREK LOGAN
08/31/15
Ketra Format REV-03
1 4 OF
1:1
DO NOT SCALE DRAWING WEIGHT
DEVELOPMENT
PHASE VERSION
02
Specifications1
CAD les available upon request
Optical Performance
Lumen Output2825 lm/ 1050 lm
CRI (Ra) >90 (R9 >90)
Lumen Maintenance436,000 hours to L70 @ 25°C TA
Color Spatial Uniformity <2 MacAdam ellipses across eld
angle
Color Point Maintenance <1 MacAdam ellipse over product
lifetime
Equivalent Traditional Lamp 75W halogen PAR30
Dimming Range50.1 - 100% lm
Mechanical
Weight 11.95 oz, 339 g
Housing Material Powder Coated Aluminum, Polymer
Lens Material Non-yellowing PMMA
Base Type E26 or GU24
Electrical
Power Consumption S30.08 11W/ S30.10 17W
Power Factor >0.9
Current 170 mA Max
Ecacy S30.08 75 lm/W / S30.10 62 lm/W
Environmental
Operating Temperature (TA)60 - 50°C
Storage Temperature -20 - 80°C
Humidity 0 - 95%, Non-condensing
Certication UL, cUL, RoHS, FCC Class B
Location UL Damp Location, IP20, Suitable for
use in fully enclosed luminaires
1 All performance measurements taken at 3000K, 25°C ambient, 100% power input, unless otherwise stated.
2Lumen measurement complies with IES LM-79-08 testing procedures.
3See color gamut chart at the end of this document.
4 Lumen maintenance values calculated in accordance to TM-21 procedures based on LM-80 compliant measurement data.
5 Intensity and color point controlled via Ketra’s wireless network
6Suitable for use in fully enclosed luminaires
4.7in
118.8mm
3.7in
95.0mm
.3in
6.5mm
.5in
13.8mm
2.4in
60.3mm
1.8in
44.7mm
.9in
24.0mm
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
KETRA, INC. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF KETRA, INC.
IS PROHIBITED.
DIMENSIONS ARE IN MILLIMETERS
INTERPRET GEOMETRIC
TOLERANCING PER:
ASME Y14.5 - 2009
DESCRIPTION
SIZE
REV
SCALE:
UNLESS OTHERWISE SPECIFIED:
01
PRODUCT DOCUMENT
DRAWING, S30 LN, GU24
SHEET
775-000008-02
DWG. NO.
PROPRIETARY AND CONFIDENTIAL
B
3815 S. CAPITAL OF TEXAS HIGHWAY SUITE 100
AUSTIN, TEXAS 78704 [phone]
DRAWN BY
Vendor
DATE
Vendor PN
THIRD ANGLE
PROJECTION
TOLERANCES:
ANGLE
+/- 1°
DECIMAL
.X +/- 0.5MM
.XX +/- 0.25MM
.XXX +/- 0.125MM
DEREK LOGAN
08/31/15
Ketra Format REV-03
2 4 OF
1:1
DO NOT SCALE DRAWING WEIGHT
DEVELOPMENT
PHASE VERSION
00
S, PAR  LONGNECK LAMP
E26 Base

PAGE 6770-0000XX-0X r9LAMP INSTALLATION GUIDE
 FT MAX
NODE NODE NODE
 FT MAX
 NODES MAX PER N
* Ketra’s lighting products should only be controlled via our digital control architecture. Please refer to our controls
products for more information
INSTALLATION
FIXTURE PLACEMENT
For ideal KetraNet Mesh wireless performance, position the Lamp according to
these guidelines:
• Keep within range: Place the Lamp within 50 ft (15.24m) of at least one or more
KetraNet Mesh enabled device in it’s network.
• Avoid obstructions: Avoid having metal obstructions or walls between the Lamp and
the nearest device.
• Avoid metal enclosures.
• Separate from Wi-Fi devices: Maintain at least 6 ft (1.8m) of spacing between any
KetraNet Mesh product and Wi-Fi routers and access points.
• Avoid obstructions: Avoid having metal obstructions or walls between the Lamp and
the nearest device
POWER
The S30, S38, and A20 all require 120 VAC 60 Hz.
Note: Ketra lighting products should not be connected to, or directly controlled by, AC
mains line voltage dimmers.* Ketra’s lighting products should only be controlled via our
digital control architecture. Please refer to our controls products for more information.

PAGE 7770-0000XX-0X r9LAMP INSTALLATION GUIDE
INSTALLATION
AFTER INSTALLATION
Ketra lamps power on to a warm white color. They are not controllable until being
commissioned in Ketra’s Design Studio software. Commissioning requires at least one
Ketra N4 Hub connected to a DHCP-enabled router. For manuals and installation guides,
see the Design Studio product page and the N4 Hub product page on our website.
Design Studio product page
N4 Hub product page

PAGE 8770-0000XX-0X r9LAMP INSTALLATION GUIDE
Limited warranty terms can be found at:
www.ketra.com/warranty
For questions and technical support please contact:
[phone]
ketr[email protected]
WARRANTY/ TECH SUPPORT

6231 E. Stassney Ln.
Suite 400
Austin, TX 78744
ketra.com
[phone]
