Key Digital KD-X222PO User manual

4K HDMI over CAT5e/6 HDBaseT Extender Tx + Rx Kit.
10.2Gbps Bandwidth. IR Emitter and Sensor Included.
The Experts in Digital Video Technology and Solutions™
Operating Instructions
KD-X222PO

2
Table of Contents
Key Features ..................................................................1
Quick Setup Guide ..............................................................2
Installation and Operation .........................................................2
Application Example .............................................................3
Connections ...................................................................4
Extending IR or RS-232 Control .....................................................5
Settings ......................................................................8
LED Indicator Lights ............................................................10
RS-232 Commands ............................................................10
Specifications .................................................................12
Always follow the instructions provided in this Operating Manual.
Please visit www.keydigital.com for the latest product documentation and software
downloads. Product features and specifications are subject to change without notice.
Introduction
Key Digital®KD-X222PO HDBaseT/HDMI (Tx + Rx) Extenders are an HDCP 2.2 compliant product that
extend 4K/UHD 24/25/30 (4:4:4) and 4K/UHD 60 (4:2:0) signals up to 150 ft. using CAT6A cable, or
up to 125 ft. using a CAT5e/6 cable. 1080p/60, 1920x1200, 3D signals are extended up to 250 ft.
via CAT6A cable, or up to 230 ft. using a CAT5e/6 cable. In addition to HDMI video and audio signals,
KD-X222PO carries IR or RS-232 for controlling remotely located equipment or the RS-232 port can
be used to control the KD-X222PO.

1
Key Features
›HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback,
equalization, and amplification depending on cabling length
›Power over HDBaseT: Tx unit powers Rx unit. Only one power connection needed.
›Signal Extension:
»Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using CAT6A cabling
»Up to 125 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using CAT5e/6 UTP/STP cabling
»Up to 250 ft. @ 1080p / 1920x1200 using CAT6A cabling
»Up to 230 ft. @ 1080p / 1920x1200 using third-party CAT5e/6 UTP/STP cabling
›HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
›HDR (High Dynamic Range): HDR is achieved with AppleTV source at 4K/30 [4:2:2] 12bit deep
color, enabling more life-like images through a greater range of luminance levels.
›4K/Ultra HD Resolution: Supports signals up to 4096x2160 60Hz [4:2:0] 8bit, 4096x2160 30Hz
[4:2:2] 12bit, and 4096x2160 30Hz [4:4:4] 8bit
›Deep Color Support: Up to UHD/4K 30Hz 4:2:2/12 bits or 60Hz 4:2:0/8 bit
›Low Profile: Super slim chassis design
›HDMI®and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest
technology such as 4K/UHD 4:2:0/8bit at 60f/s
›EDID Control: Internal library features 15 default EDID configurations and native EDID data from
Output/Display devices connected via Rx
›Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to
connected input devices
›Full Buffer System™:Manages TMDS re-clocking / signal re-generation, HDCP authentication
with source & display, EDID Control handshake, and Hot Plug control
›IR Sensor: Sensor powering via +5V on Rx unit’s IR In port collects line-of-sight IR from remote(s)
without external IR connecting block
›Up/Down IR: Two channels of IR enable control to/from devices connected to Tx and Rx units
›RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
›Rotary Switch RS-232 Control Mode: Provides control of Tx unit as well as connectivity status
›3D: Support for standard 3D stereoscopic signal formats
›Surround Sound Audio: Supports Dolby®TrueHD, Dolby®Digital Plus, Dolby Atmos®, and DTS-HD
Master Audio™multi-channel audio formats
›CEC Support: For inter-device control between input and output HDMI channel
›I2C Communication: EDID and HDCP authentication to Display and Source
›Control System Support: Fully controllable by all RS-232 supported control systems via open API:
Compass Control®, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton®etc.

2
Accessories
›(1) 12V 2A DC Power Supply (Screw-In Type), model KD-PS12V2ASC, (2) Mounting Brackets,
(1) IR Emitter, (1) IR Sensor
›KD-X222PO only requires power on the Tx unit, which extends power to the Rx unit
Quick Setup Guide
Step 1: Find a safe and convenient location to mount or place your KD-X222PO units
Step 2: Begin with the KD-X222PO Tx/Rx units and all input/output devices turned off with power
cables removed
Step 3: Connect your HDMI source to the input port of your KD-X222PO Tx unit
Step 4: Connect your HDMI displays to the output port of your KD-X222PO Rx unit
Step 5: Connect KD-X222PO Rx unit to KD-X222PO Tx with CAT5e/6 cable using 568-B termination.
Step 6: Connect additional IR/RS-232 control connections and IR sensors
Step 7: Set the EDID rotary to position A for 4K resolution with 2ch audio. For 1080p with 2ch audio,
use position 7. Refer to the SETTINGS section for more information
Step 8:
BEFORE connecting power supply to power outlet, screw-in the power supply to the
KD-X222PO Tx unit
Step 9:
AFTER all connections are made, plug-in power supplies to power outlets
Step 10: Power on input/output devices
Installation and Operation
Before permanently securing the unit for final installation, test for proper operation of the unit and cables
in your system. It is recommended that you leave enough ventilation space to provide sufficient airflow
and cooling.
You MUST use the Power Supply PROVIDED with your unit or you VOID the Key Digital®
Warranty and risk damage to your unit and associated equipment.

3
Application Example
Up to 150 ft.@ 4K
WiFi
RS-232
HDMI
HDMI
CAT5e/6
WiFi Router
Master Controller
KD-MC1000
KD-X222PO
KD-X222PO
RS-232
Cable / Satellite
Technical Support:
email: [email protected]
phone: [phone] ext 3
www.keydigital.com/compass
Compass Control®Pro Site
521 East 3rd Street • Mount Vernon • NY 10553
phone: [phone] • fax: [phone]
Enterprise Software License
for Compass Control®Pro
Supports iOS & Android
KD-ProCL8
KD-ProCL6
KD-ProCL4
KD-ProCL1
KD-ProCL1
IR Out
IR

4
Connections
Before making any connections, power off your source and display devices.
Tx Unit:
›Using a short HDMI cable, connect your source device to the HDMI port labeled “HDMI Input”.
For DVI-D/DVI-I sources, use appropriate adapters. For Display Port, use active converters.
›Connect the CAT5e/6 UTP or STP cable that connects to the Rx Unit at the port labeled
“CAT5e/6 Output”. Use 568-B Termination.
›Make IR In and Out connections to receive (IR In port) or send (IR Out port) control signals.
Refer to the “Extending IR & RS-232 Control” for more information.
›Connect a stripped wire to DB9 adapter cable for bi-directional RS-232 control.
Refer to the “Extending IR or RS-232 Control” and the “RS-232 Commands” section for more
information.
Rx Unit:
›Using a short HDMI cable, connect your output / display device to the HDMI port labeled
“HDMI Output”.

5
›Connect the CAT5e/6 cable at the port labeled “CAT5e/6 Input”. Use 568-B Termination.
›If you are sending or receiving IR, connect included IR Sensor and/or IR Emitter.
›If you are transmitting or receiving RS-232, connect to the IR out (RS-232) port.
›After all the connections are made, connect power using the included power supply and then
power up your source and display equipment.

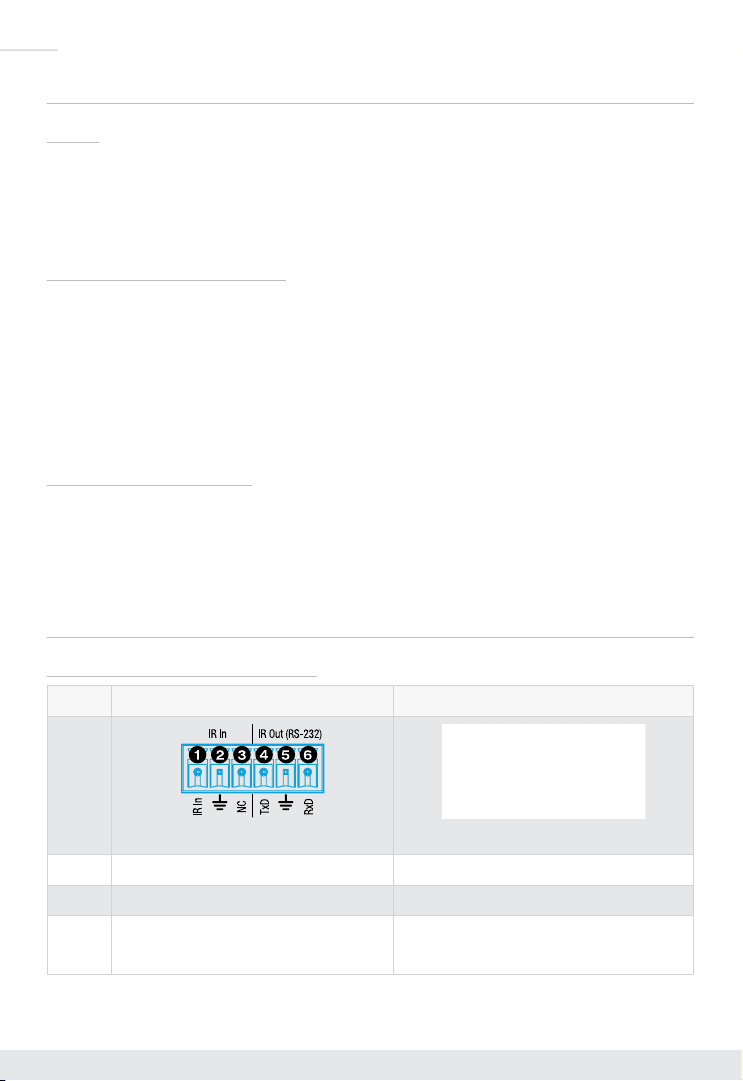

Extending IR or RS-232 Control
RS-232:
Bi-directional RS-232 is achieved utilizing the IR Out (RS-232) port on the Tx and Rx units. The
connector is 3-pin phoenix and the pinout is the same on the Tx and Rx unit. RS-232 can not be used
at the same time as IR.
›RS-232 Pass-through Mode
»Send and receive (bi-directional) RS-232 commands for controlling remote equipment. Supports
baud rate up to 115,200bps.
›Control Mode
»Provides control of Tx units as well as connectivity status
»See RS-232 Commands section for more information
›Firmware Upgrade Mode
»Two different types of firmware may be updated: MCU (KD-X222PO units), and HDBaseT
(extension over CAT5e/6)
RS-232 Cabling
RS-232 cables are available through Key Digital and other wire suppliers, and can also be fabricated by
skilled technicians.

6
Key Digital RS-232 Cable Pinout Charts
Model Wire DB9 Pin Signal
KD-3.5FDB96
3.5mm Stereo to Female DB9 (sold separately)
Red 2 TxD
White 3 RxD
Black 5 Ground
Green N/C NA
KD-3.5FDB96 with 3.5mm TRS Connector KD-3.5FDB96 after stripping wire
Model Wire DB9 Pin Signal
KD-3.5MDB96
3.5mm Stereo to Male DB9 (sold separately)
Red 2 TxD
Black 3 RxD
Shield 5 Ground
KD-3.5MDB96 with 3.5mm TRS Connector KD-3.5MDB96 after stripping wire
IR
Bi-directional IR control extension is supported. IR can not be used at the same time as RS-232.
»“IR In” port on the Tx unit extends to the “IR Out” port of the Rx unit
»“IR In” port on the Rx unit extends to the “IR Out” port of the Tx unit
›IR In:
The IR In port is different for the Tx and Rx units. The Tx unit’s IR In port supports a Serial IR
(hardwired) connection. The Rx unit’s IR In port supports an IR Sensor.
»Tx Unit / Serial IR:
»A fixed 5V input signal on 2 phoenix pins
»Signal and ground are required
»Typically fed from a dedicated control system or an IR distribution block

7

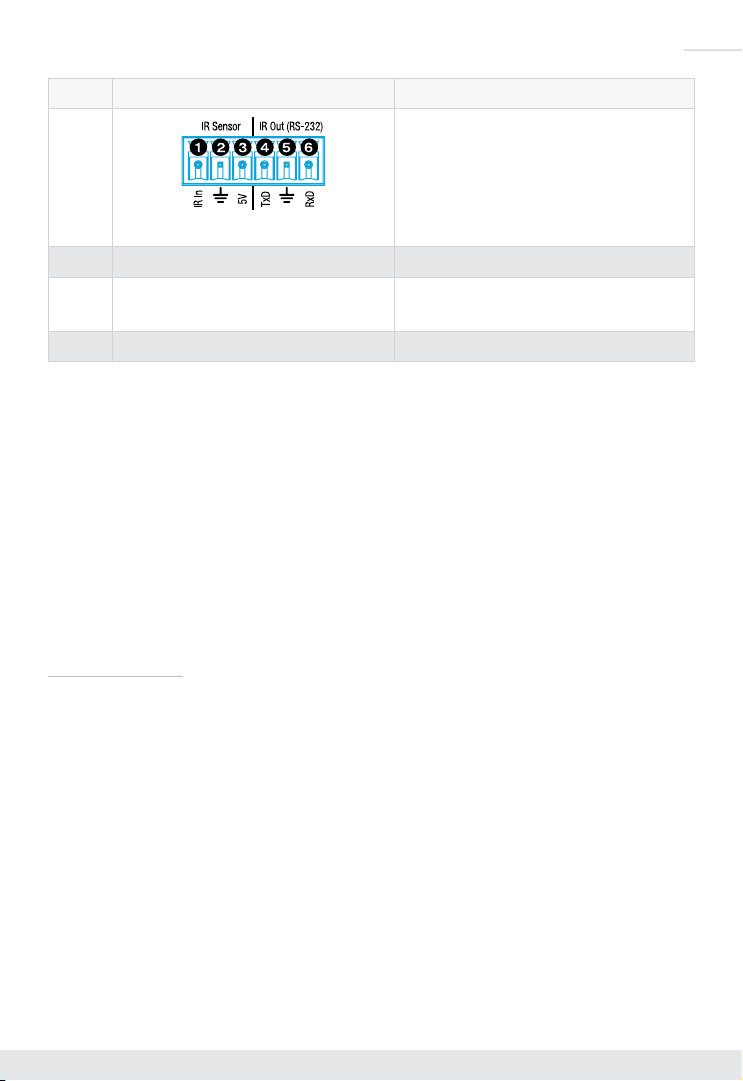

»Rx Unit / IR Sensor:
»IR Sensors can be connected directly into the Rx unit’s IR In port, without the need for an
external IR distribution block
»IR signal on the Tip, with 5V powering of the IR sensor on the power wire.
IR Sensor / IN Pinout Wire Signal
Red 5V Power
White IR Signal
Black Ground
›IR Out:
»Pass-through from signal of corresponding IR In port or bi-directional RS-232, as determined by
the position of the Control Rotary
»Driving power: 5V with 32mA minimum current
»Typically connected with an IR emitter
IR Emitter / OUT Pinout Wire Signal
Dashed/Marked IR Signal
Solid/Black Ground
IR Cabling
Your KD-X222PO includes an IR Sensor and an IR Emitter.
Signal acceptance: The IR Sensor receives signals from a 90° angle at up to 30 ft. away. It accepts a
maximum IR burst frequency of 55kHz.
Only the included IR sensors are compatible with the KD-X222PO. Third-party IR Sensors may not be
compatible.
The included IR Sensor.
Connects to the IR In port on the Rx unit.
The included blinking-type IR Emitter.
Connects to the IR Out port.

8
Settings
EDID Control
EDID authentication is provided from the KD-X222/ KD-X222PO Tx unit to the connected input / source
device. The EDID file (AKA “handshake”) is selected using the EDID Control rotary on the Tx unit and
provides a list of compatible video and audio formats as well as digital data, informing the source device
what it should output. Most sources will comply with a new EDID file without a power-cycle, but each
source may behave differently.

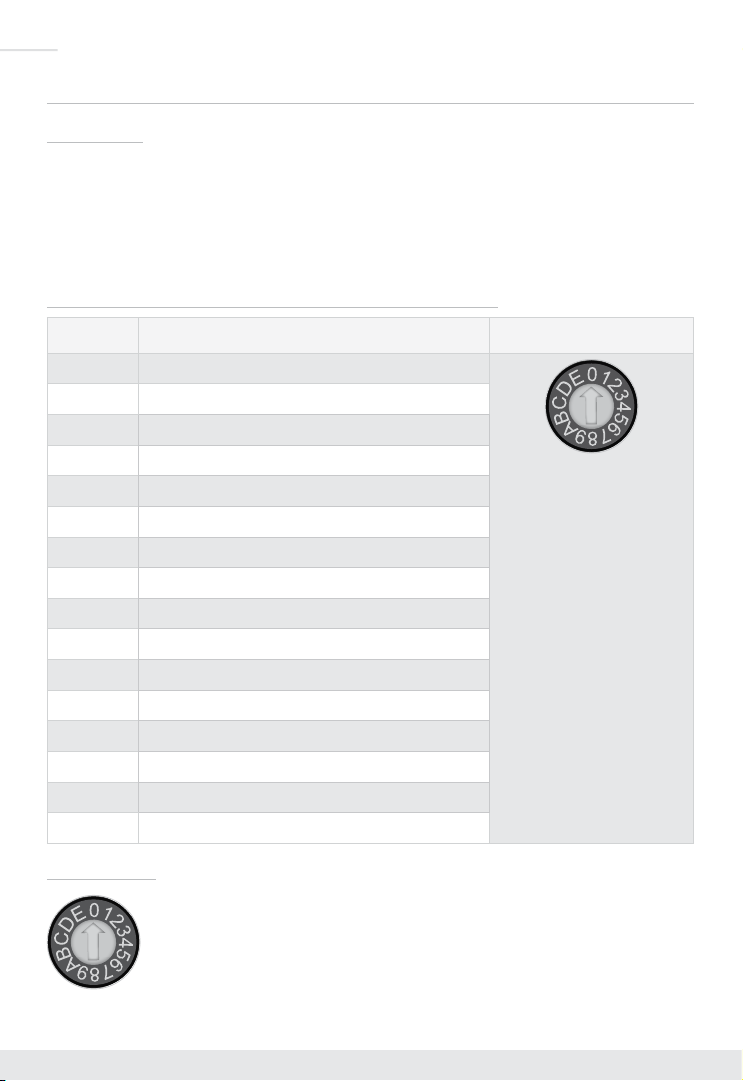

Default EDID Control Table, selected via EDID Control rotary
Position EDID Description EDID Control Rotary
0Copy EDID from CAT5e/6 Output
IMPORTANT! Please apply
light pressure to the Control
rotary when making your
selection
11080i, 2CH AUDIO
21080i, DOLBY/DTS 5.1
31080i, HD AUDIO
41080p, 2CH AUDIO
51080p, DOLBY/DTS 5.1
61080p, HD AUDIO
74Kx2K@30, 2CH AUDIO
84Kx2K@30, DOLBY/DTS 5.1
94Kx2K@30, HD AUDIO
A4Kx2K@60, 2CH AUDIO
B4Kx2K@60, DOLBY/DTS 5.1
C4Kx2K@60, HD AUDIO
D1280x720p@60 DVI (no audio)
E1920x1080@30 DVI (no audio)
F3840x2160p@30 DVI (no audio)
Control Rotary
The Control rotary enables the integrator to choose the desired setting for IR Out
(RS-232) ports, RS-232 Mode, and Hot Plug Detection control.
The Control Rotary is located on the Tx unit.
›IMPORTANT! Please apply light pressure to the Control rotary when making
your selection

9
Control Rotary Position Assignments:
Position IR Out (RS-232) Mode Hot Plug Detection Control
0Serial IR Bypass
1Serial IR Bypass
2Serial IR Forced HPD On
3Serial IR Forced HPD On
4RS-232 Pass-Through Bypass
5RS-232 Pass-Through Bypass
6RS-232 Pass-Through Forced HPD On
7RS-232 Pass-Through Forced HPD On
8RS-232 Control Bypass
9RS-232 Control Bypass
AFirmware Upgrade for MCU Forced HPD On
BFirmware Upgrade for MCU Forced HPD On
CFirmware Upgrade for HDBaseT Bypass
DFirmware Upgrade for HDBaseT Bypass
EFirmware Upgrade for HDBaseT Forced HPD On
FFirmware Upgrade for HDBaseT Forced HPD On
Forced Hot Plug Detection (HPD)
Hot Plug Detection (HPD) may be forced on the Tx Rx unit in order to provide connected devices with
necessary voltage to inform the device that a partner (display) is connected and active. If the Control
rotary is set to any HPD Bypass setting, HPD signals from the output to the input device will pass as
normal. In cases of many layers of connectivity, HPD may be lost leading to no signal at the display. In
those cases, fix the Control rotary to any Forced HPD setting.
Range and Resolution:
Distance performance is significantly increased when using CAT6A Cabling.
»Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using CAT6A cabling
»Up to 125 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using CAT5e/6 UTP/STP cabling
»Up to 250 ft. @ 1080p / 1920x1200 using CAT6A cabling
»Up to 200 ft. @ 1080p / 1920x1200 using CAT5e/6 UTP/STP cabling
NOTE: Use shielded metal RJ45 connectors with soldered ground wires
when terminating shielded CAT5e/6.

10
LED Indicator Lights
Power:
»Color: Green
»Solid illumination during power on state, as provided by healthy connection with power supply.
»Steady blink if power is not adequate and/or if there is a connectivity problem with the KD-
X222PO Rx unit
HDMI Link (HDMI Input/Output):
»Color: Blue
»Tx Unit: Solid illumination from active signal (HDMI TMDS) reception from connected source
device
»Rx Unit: Solid illumination from active Hot Plug Detection voltage with connected display/output
device
»If Hot Plug Detection is forced to input device from Tx unit, the HDMI Active light will illuminate
solid regardless of HDMI signal from connected device.
CAT5e/6 Input/Output Link:
»Color: Blue
»Tx Unit: Solid illumination from active link and Hot Plug Detection voltage
from Rx unit
»Rx Unit: Solid illumination from active link with Tx unit
RS-232 Commands
Phoenix Terminal Connection Guide
Pin Signal Corresponding Wire (Accessory)
Tx unit Phoenix connector IR Sensor
1IR In Signal White (IR sensor)
2IR In Ground Black (IR sensor)
3Tx: N/C
Rx: IR In Sensor Power
Red (IR sensor)

11
Pin Signal Corresponding Wire (Accessory)
Rx unit Phoenix connector
IR Emitter
4IR Out Signal / RS-232 TxD Dashed (IR emitter)
5IR Out Ground /
RS-232 Ground
Solid (IR emitter)
6RS-232 RxD N/A
Connection protocol is as follows:
»Baud Rate = 57600 bits per second
»Data Bits = 8
»Stop Bits = 1
»Parity = None
»Flow Control = None
»Carriage Return: Required
»Line Feed: Required
Commands are not case-sensitive. Spaces shown below may be excluded. Carriage return
and line feed is required at the end of each string.
Status Command:
KD-X222PO > STA
-------------------------------------------------------------------------
-- Key Digital Systems STATUS --
-------------------------------------------------------------------------
-- KD-X222PO System Address : 00 F/W Version : 1.00 --
-- RS232 : Baud Rate=57600bps, Data=8bit, Parity=None, Stop=1bit --
-- Running Day : 000, Time : 00:03 --
-- HD-BaseT Mode : Normal , Link = ON , Auto Reset = ON --
-- --
-- Video Input Status --
-- EDID = 00, PWR5V = ON , Link = ON , HDCP = 2.x, Video = HDMI --
-- --
-- CAT5e/6 Video Output Status --
-- DISP = SAM 2014, HPD = ON , HDCP = ON , DDC = GOOD, OUT = ON , HDMI--
-------------------------------------------------------------------------

12
Help Command:
KD-X222PO > H
-------------------------------------------------------------------------
-- Key Digital Systems HELP --
-------------------------------------------------------------------------
-- KD-X222PO System Address : 00 F/W Version : 1.00 --
-- Azz : All Commands may have Prex System Address zz=[01-99] --
-- H : Help --
-- STA : Global Status --
-- SPCA xx : Set System Address, xx = [00-99] (00=Single) --
-- --
-- Video I/O Setup Commands: --
-- SPO DBG ON/OFF : Set Output DGB ON/OFF --
-- SPO ON/OFF : Set CAT5e/6 Output ON/OFF --
-- --
-- SPC ART ON/OFF : Set HD-BaseT Auto Reset ON/OFF --
-- SPC RSB z : Set RS232 Baud Rate to z bps, z=[0-4] --
-- [0:57600, 1:38400, 2:19200, 3:9600, 4:4800] --
-------------------------------------------------------------------------
Specifications
Technical:
»Inputs Tx (Each): 1 HDMI, 1 IR In
»Outputs Tx (Each): 1 CAT5e/6 UTP/STP, 1 IR Out /RS-232 Bi-Directional
»Inputs Rx (Each): 1 CAT5e/6 UTP/STP, 1 IR In
»Outputs Rx (Each): 1 HDMI, 1 IR Out /RS-232 Bi-Directional
»DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
»HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
»HDMI Connector: Type A, 19 Pin Female
»RJ45 Connector: Shielded Link Connector, HDBaseT
»IR In Connector: Phoenix Connectors
»IR Out (RS-232) Connector: Phoenix Connectors
General
»Regulation: CE, RoHS, WEEE
»Enclosure: Black Metal
»Product (Each): 4.1” x 2.8” x 0.875”, Weight: 0.75 lbs
»Power (Tx Only): KD-PS12V2ASC, 12V/2A, 100-240VAC, 50-60Hz, Interchangeable head
with screw-in connector
»Accessories: (2) Mounting Brackets, (1) IR Emitter, (1) IR Sensor

13
Important Product Warnings:
1. Connect all cables before providing power to the unit.
2. Test for proper operation before securing unit behind walls or in hard to access spaces.
3. If installing the unit into wall or mounting bracket into sheet-rock, provide proper screw support
with bolts or sheet-rock anchors.
Safety Instructions:
Please be sure to follow these instructions for safe operation of your unit.
1. Read and follow all instructions. Heed all warnings.
2. Do not use this device near water. Clean only with dry cloth.
3. Install in accordance with the manufacturer’s instructions.
4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
5. Only use attachments/accessories specified by the manufacturer.
6. Refer all servicing to qualified service personnel. Servicing is required when the device has been
damaged in any way including:
»Damage to the power supply or power plug
»Exposure to rain or moisture
Power Supply Use:
You MUST use the Power Supply PROVIDED with your unit or you VOID the Key Digital®Warranty
and risk damage to your unit and associated equipment.
Contacting Key Digital
®
Technical Support
For technical questions about using Key Digital®products, please contact us at:
›Phone: [phone] or E-mail: [email protected]
Repairs and Warranty Service
Should your product require warranty service or repair, please obtain a Key Digital®Return Material
Authorization (RMA) number by contacting us at:
›Phone: [phone] or E-mail: [email protected]
Warranty Information
All Key Digital®products are built to high manufacturing standards and should provide years of trouble-
free operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy.
http://www.keydigital.com/warranty.htm

14
Key Digital®, led by digital video pioneer Mike Tsinberg,
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high-end video and control are important. Key Digital®
is at the forefront of the video industry for Home
Theater Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
Rev 2 – Sept 2020
Key Digital®:: 521 East 3rd Street :: Mount Vernon, NY 10553
Phone : [phone] Fax : [phone] Web : www.keydigital.com
© 2020 Key Digital, Inc. All rights reserved.
