Key Digital KD-X411ProK User manual

HDBaseT/HDMI via Single CAT5e/6 (Tx+Rx Set) Extenders, with
Audio De-embedding, EDID Control, Hot Plug Control, Full Buffer System,
IR Sensor, Up/Down IR & RS-232, support Ultra HD/4K & HDCP2.2
Power over HDBaseT/HDMI via Single CAT5e/6 (Tx+Rx Set) Extenders,
with Audio De-embedding, EDID Control, Hot Plug Control, Full Buffer
System, IR Sensor, Up/Down IR & RS-232, support Ultra HD/4K & HDCP2.2
KD-X411ProK
KD-X411POHK
Rev 0 – Sept 2015
Operating Instructions
Key Digital®, led by digital video pioneer Mike Tsinberg,
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high-end video and control are important. Key Digital®
is at the forefront of the video industry for Home Theater
Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
The Experts in Digital Video Technology and Solutions™
Key Digital®Systems :: 521 East 3rd Street :: Mount Vernon, NY 10553
Phone : [phone] Fax : [phone] Web : www.keydigital.com
KD-X411ProK_X411POHK_Manual.indd 2-3 11/17/15 12:40 PM

4 1
About KD-X411ProK/KD-X411POHK
KD-X411ProK/KD-X411POHK HDBaseT/HDMI (Tx & Rx) Extenders are an HDCP
2.2 compliant product that extend 4K/UHD 24/25/30 (4:4:4) and 4K/UHD 60 (4:2:0)
signals up to 150 ft. using Key Digital
®
KD-CAT6STP1X Super CAT6A Shielded cable,
or up to 125 ft. using a single third-party CAT5e/6 cable. 1080p/60, 1920x1200, 3D
signals are extended up to 250 ft. via single Key Digital
®
KD-CAT6STP1X Super CAT6A
shielded cable, or up to 230 ft. using a single third-party CAT5e/6 cable. In addition to
HDMI video and audio signals, KD-X411ProK/POHK carries IR, RS-232 and TCP-IP
signals for controlling remotely located equipment. Audio de-embed ports on the Tx
unit enable external audio connectivity with audio distribution systems and amplifiers.
Key Features
➔ HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic
adjustment of feedback, equalization, and amplification depending on
cabling length
➔ KD-X411POHK: Features power extension from Tx to Rx with Power Over
HDBaseT, Rx unit does not require power supply
➔ Signal Extension:
»Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using KD-CAT6STP1X cabling
»Up to 125 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using third-party CAT5e/6
UTP/STP cabling
»Up to 250 ft. @ 1080p / 1920x1200 using KD-CAT6STP1X cabling
»Up to 230 ft. @ 1080p / 1920x1200 using third-party CAT5e/6 UTP/STP
cabling
➔ 4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at
4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit
➔ Audio De-Embedding: Audio from the HDMI input is de-embedded through the
Coax digital (PCM) and/or Analog L/R audio output
➔ HDMI®and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and
HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60f/s
➔ EDID Control: Internal library features 15 default EDID configurations and
native EDID data from Output/Display devices connected via Rx
Table of Contents
About KD-X411ProK/KD-X411POHK ..................................1
Quick Setup Guide ................................................3
Installation and Operation ...........................................3
Application Example ...............................................5
Connections .....................................................6
Audio De-Embedding Outputs........................................8
Extending IR or RS-232 Control.......................................9
Settings.........................................................12
LED Indicator Lights ...............................................16
RS-232 Commands ...............................................17
Specifications ....................................................19
Important Product Warnings & Safety Instructions .........................20
How to Contact Key Digital
®
.........................................21
Warranty Information ...............................................22
© 2015 Key Digital, Inc. All rights reserved.
Please read all instructions to insure safe operation of the product.
KD-X411ProK_X411POHK_Manual.indd 1 11/17/15 12:40 PM

2 3
➔ Hot Plug Detection Control: Enables integrator to choose if active signal
voltage is forced to connected input devices
➔ Full Buffer System™: Manages TMDS re-clocking / signal re-generation,
HDCP authentication with source & display, EDID Control handshake,
and Hot Plug control
➔ IR Sensor: Sensor powering via +5V on Rx unit’s IR In port collects line-of-sight
IR from remote(s) without external IR connecting block
➔ Up/Down IR: Two channels of IR enable control to/from devices connected
to Tx and Rx units
➔ RS-232: Bi-Directional control to/from Tx and Rx unit on 3.5mm connector
➔ Rotary Switch RS-232 Control Mode: Provides control of Tx unit as well as
connectivity status
➔ 3D: Support for standard 3D stereoscopic signal formats
➔ Deep Color Support: 12bit Deep Color video / 8bit color for 4K/UHD
➔ Lossless compressed digital audio: Support for Dolby
®
TrueHD, Dolby
®
Digital
Plus and DTS-HD Master Audio
™
➔ CEC Support: For inter-device control between main input and output
HDMI channel
➔ I2C Communication: EDID and HDCP authentication to Display and Source
➔ Control System Support: Compatible with Compass Control
®
, AMX
®
,
Control4
®
, Crestron
®
, RTI
®
, Savant, URC
®
, Leviton
®
etc.
KD-X411ProK Accessories
➔(2) 5V 2A DC Power Supplies (Screw-In Type), (2) Mounting Brackets,
(1) IR Emitter, (1) IR Sensor
➔KD-X411ProK requires power on both Tx and Rx units
KD-X411POHK Accessories
➔(1) 12V 2A DC Power Supply (Screw-In Type), (2) Mounting Brackets,
(1) IR Emitter, (1) IR Sensor
➔KD-X411POHK only requires power on the Tx unit, which extends power
to the Rx unit
Quick Setup Guide
Step 1: Find a safe and convenient location to mount or place your
KD-X411ProK/KD-X411POHK units
Step 2: Begin with the KD-X411ProK/KD-X411POHK Tx/Rx units and all
input/output devices turned off with power cables removed
Step 3: Connect your HDMI source to the input port of your
KD-X411ProK/KD-X411POHK Tx unit
Step 4: Connect your HDMI displays to the output port of your
KD-X411ProK/KD-X411POHK Rx unit
Step 5: Connect KD-X411ProK/KD-X411POHK Tx unit to
KD-X411ProK/KD-X411POHK Tx with CAT5e/6 cable
Step 6: Connect additional IR/RS-232 control connections and IR sensors
Step 7:
BEFORE connecting power supply to power outlet, screw-in the power
supply to the KD-X411ProK/KD-X411POHK Tx units and KD-X411ProK
Rx unit
Step 8:
AFTER all connections are made, plug-in power supplies to
power outlets
Step 9: Power on input/output devices
Installation and Operation
Before permanently securing the unit for final installation, test for proper operation
of the unit and cables in your system. It is recommended that you leave enough
ventilation space to provide sufficient airflow and cooling.
You MUST use the Power Supply provided with your unit or you VOID
the Key Digital
®
Warranty and risk damage to your unit and associated
equipment.
KD-X411ProK_X411POHK_Manual.indd 3 11/17/15 12:40 PM

4 5
Application Example
iPad
WiFi
EDID Control
KD-MC1000
Master Controller
Satellite
RS-232
HDMI
CAT5e/6
KD-X411ProK
KD-X411ProK
IR Out
Satellite
Remote
IR Sensor
IR In
WiFi Router
AVR
Surround
Multi-Zone Audio
4K up to 150’ with
Key Digital
®
KD-CAT6STP1X
Display
RS-232
IR Out
HDMI
HDMI
Apple TV
PCM
L/R Audio
KD-X411ProK_X411POHK_Manual.indd 4-5 11/17/15 12:40 PM

6 7
➔Use the 3.5mm analog audio and/or PCM coaxial digital audio de-embed ports to
integrate with audio distribution systems, amplifiers, or AV receivers.
Rx Unit:
➔Using a short HDMI cable, connect your output / display device to the HDMI port
labeled “HDMI Output”.
➔Connect the CAT5e/6 cable at the port labeled “CAT5e/6 Input”.
➔If you are sending or receiving IR, connect included IR Sensor and/or IR Emitter
Connections
Before making any connections, power off your source and display devices.
Tx Unit:
➔Using a short HDMI cable, connect your source device to the HDMI port labeled
“HDMI Input”. To connect DVI or Display Port, use appropriate adapters.
➔Connect the CAT5e/6 cable that connects to the Rx Unit at the port labeled
“CAT5e/6 Output”.
➔Make IR In and Out connections to receive (IR In port) or send (IR Out port)
control signals. Refer to the “Extending IR & RS-232 Control” for more information.
➔Connect a 3.5mm Stereo cable for bi-directional RS-232 control.
Refer to the “Extending IR or RS-232 Control” and the “RS-232 Commands”
section for more information.
KD-X411ProK_X411POHK_Manual.indd 6-7 11/17/15 12:40 PM

8 9

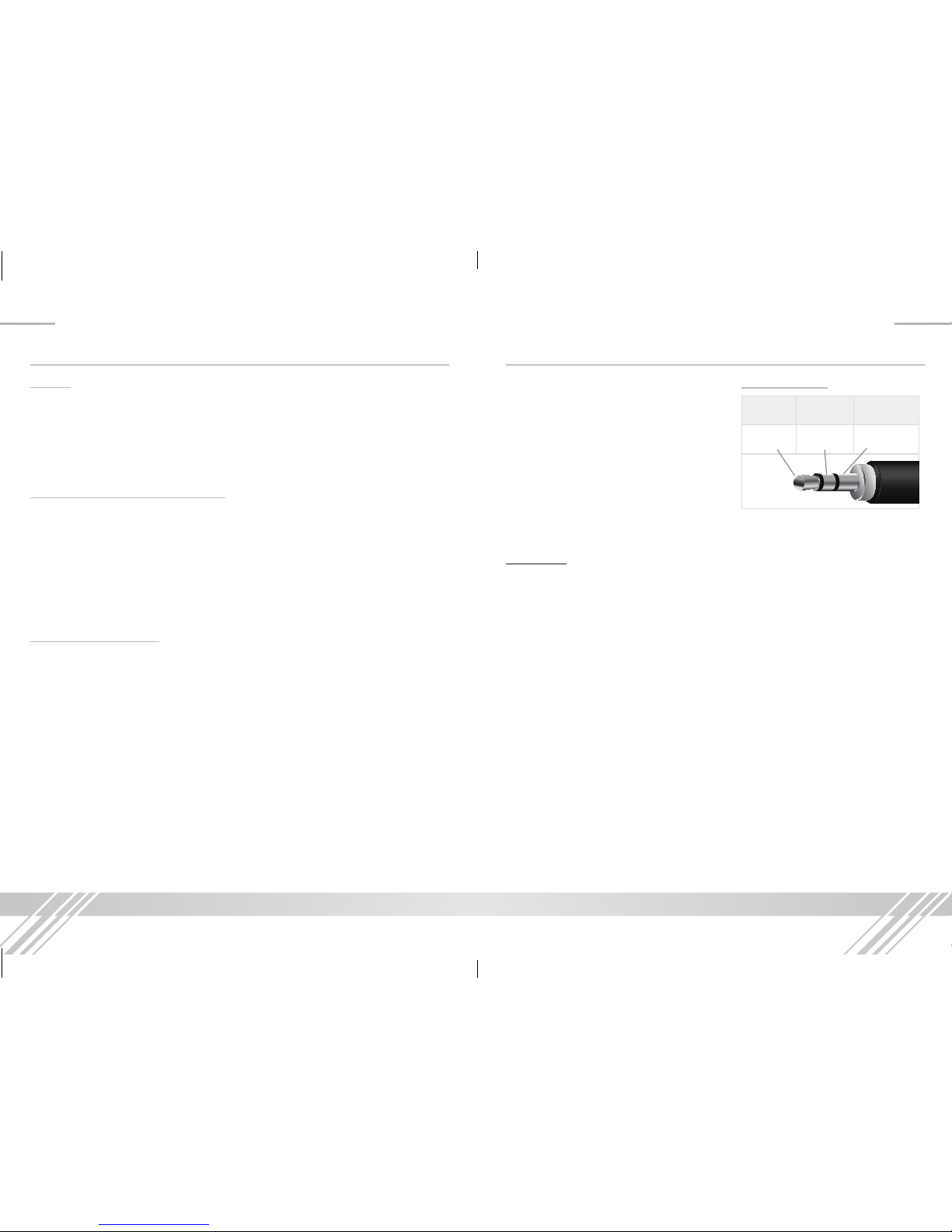

Extending IR or RS-232 Control
RS-232:
Bi-directional RS-232 is achieved utilizing the RS-232 port on the Tx and Rx units.
The connector is 3.5mm stereo and the pinout is the same on the Tx and Rx unit.
➔RS-232 Pass-through Mode
»Send and receive (bi-directional) RS-232 commands for controlling remote
equipment.
➔Control Mode
»Provides control of Tx units as well as connectivity status
»See RS-232 Commands section for more information
➔Firmware Upgrade Mode
»Two different types of firmware may be updated:
MCU (KD-X411ProK/KD-X411POHK units),
and HDBaseT (extension over CAT5e/6)

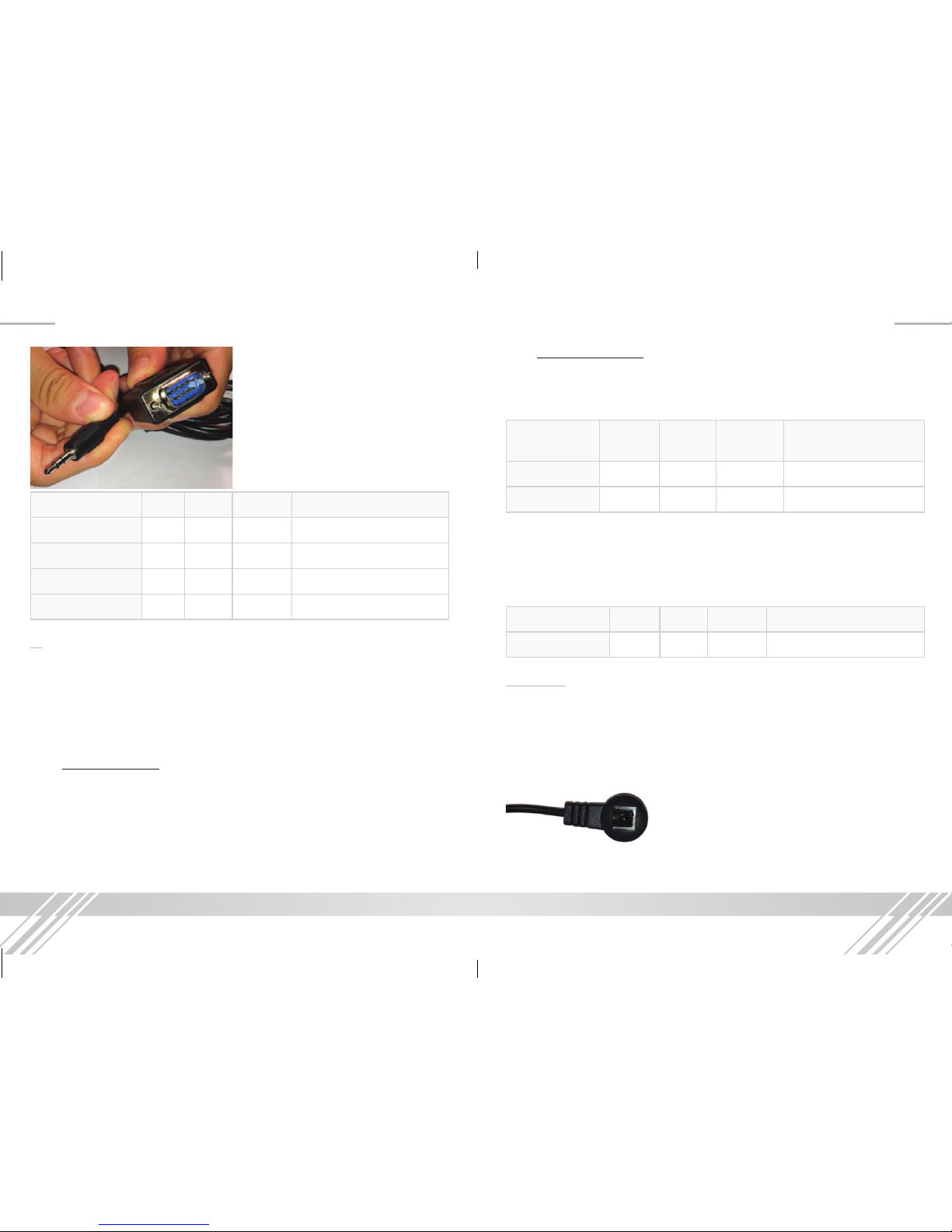

RS-232 Cabling
3.5mm stereo to RS-232 adapter cables are available through Key Digital and other
wire suppliers, and can also be fabricated by skilled technicians.
3.5mm stereo to Female DB9
connector (not included).
Key Digital part KD-3.5FDB96.
Typically used to connect to the COM
port of the computer or master controller.
➔If you are transmitting or receiving RS-232, connect to the RS-232 port
➔ After all the connections are made, connect power to the Tx and Rx
(KD-X411ProK only) using the included power supplies and then power up
your source and display equipment.
Audio De-Embedding Outputs
Analog L/R Audio Output (3.5mm Stereo):
➔Provides de-embedded 2ch analog audio output
from HDMI input source
Digital Audio Output (Digital Coaxial RCA):
➔Provides de-embedded Digital Audio Output from HDMI input
Notes:
➔There are no volume or tone control features
➔There are no DSP features. Ie, in order to achieve 2ch analog audio output,
the HDMI input source audio format must be 2ch
➔External audio connectors may be set off via RS-232.
See the RS-232 Commands section for more information.
Audio Input
Signal Format
Analog L/R
Output
Digital Audio
Output
2CH PCM Pass-through Pass-through
Multi-Channel PCM MUTE MUTE
DOLBY/DTS MUTE Pass-through
HD Audio MUTE MUTE
KD-X411ProK_X411POHK_Manual.indd 8-9 11/17/15 12:40 PM

10 11

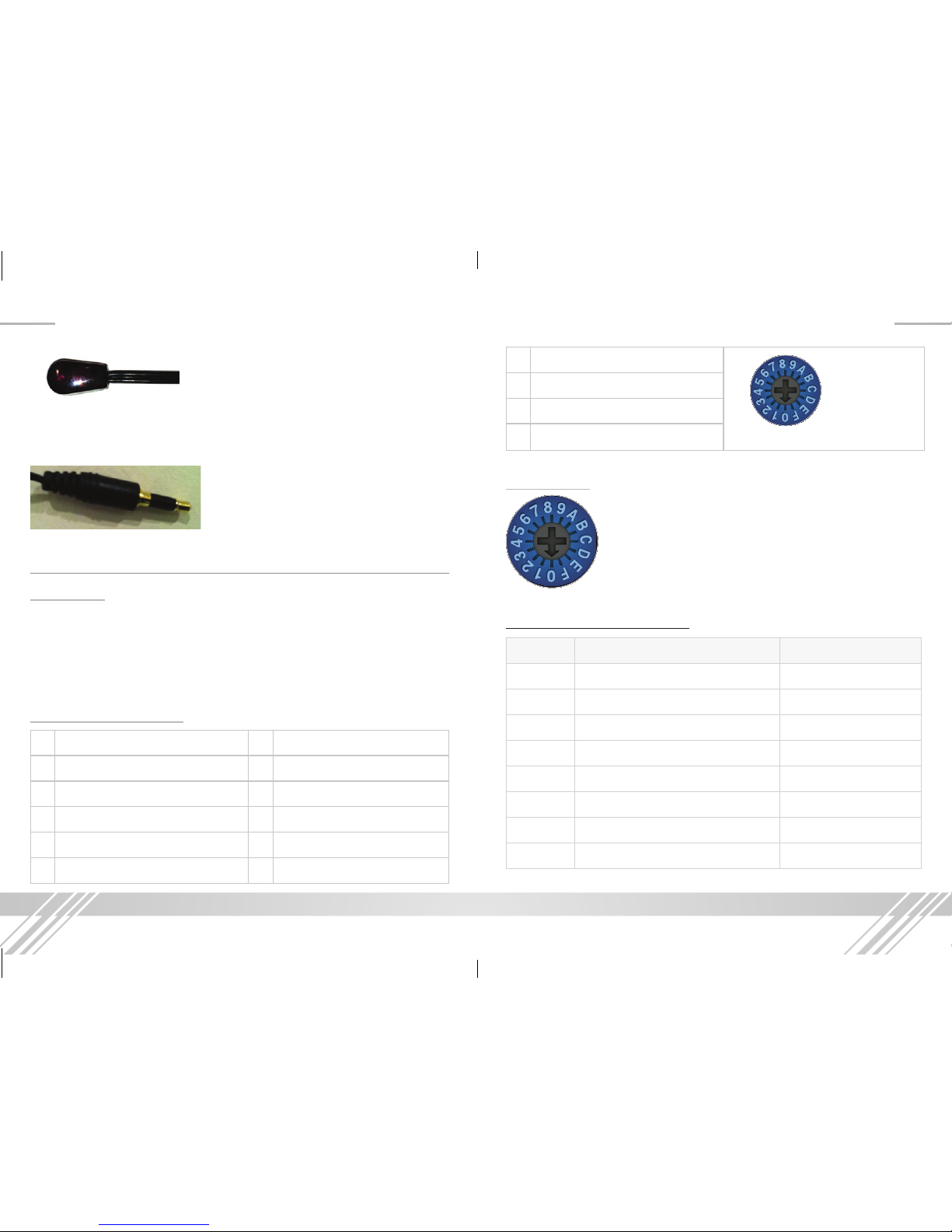

» Rx Unit / IR Sensor:
»IR Sensors can be connected directly into the Rx unit’s IR In port, without
the need for an external IR distribution block
»IR signal on the Tip, with 5V powering of the IR sensor on the Ring.
IR In Tip Ring Sleeve Typical 3.5mm
Connector-type
Serial IR (Tx) IR In N/C Ground Mono
IR Sensor (Rx) IR In 5V Ground Stereo
➔IR Out:
»Pass-through from signal of corresponding IR In port, as determined by the
position of the Control Rotary
»Driving power: 5V with 32mA minimum current
»Typically connected with an IR emitter
IR Out Tip Ring Sleeve Control Rotary Position
Serial IR IR Out N/C Ground Any
IR Cabling
Your KD-X400ProK/KD-X400POHK includes an IR Sensor and an IR Emitter.
Signal acceptance:
The IR Sensor receives signals from a 90° angle at up to 30 ft.
away. It accepts a maximum IR burst frequency of 55kHz.
Only the included IR sensors are compatible with the KD-X411ProK/KD-X411POHK.
Third-party IR Sensors may not work with KD-X411ProK/KD-X411POHK
The included IR Sensor.
The 3.5mm connector is
stereo and it connects to
the IR In port of the Rx unit.
3.5mm stereo to Male DB9 connector
(not included).
Key Digital part KD-3.5MDB96.
Typically used to connect to the controlled
device.
RS-232 Mode Tip Ring Sleeve Control Rotary
Pass-through Tx Rx Ground 0-7
Control Mode Tx Rx Ground 8, 9
F/W MCU Tx Rx Ground A, B
F/W HDBaseT Tx Rx Ground C, D, E, F
IR
Bi-directional IR control extension is supported.
»“IR In” port on the Tx unit extends to the “IR Out” port of the Rx unit
»“IR In” port on the Rx unit extends to the “IR Out” port of the Tx unit
➔IR In: The IR In port is different for the Tx and Rx units. The Tx unit’s IR In port
supports a Serial IR (hardwired) connection. The Rx unit’s IR In port supports an
IR Sensor.
»
Tx Unit / Serial IR:
»A fixed 5V input signal with a 3.5mm mini jack
»IR signal on the tip. Mono or stereo 3.5mm mini jacks are supported, with
the ring open / having no contact.
»Typically fed from a dedicated control system or an IR distribution block
KD-X411ProK_X411POHK_Manual.indd 10-11 11/17/15 12:40 PM

12 13
61080p, HD AUDIO
Rotary EDID
Switch:
74Kx2K@30, 2CH AUDIO
84Kx2K@30, DOLBY/DTS 5.1
94Kx2K@30, HD AUDIO
Control Rotary
The Control rotary enables the integrator to choose the
desired setting for RS-232 Mode and Hot Plug Detection
Control Mode.
In many settings, the Control rotary setting may not match on
the Tx and Rx units.
IMPORTANT! Please apply light pressure to the
Control rotary when making your selection
Control Rotary Position Assignments:
Position RS-232 Mode Hot Plug Detection Control
0 Pass-Through Bypass
1 Pass-Through Bypass
2 Pass-Through Forced HPD On
3 Pass-Through Forced HPD On
4 Pass-Through Bypass
5 Pass-Through Bypass
6 Pass-Through Forced HPD On
7 Pass-Through Forced HPD On
The included blinking-type IR Emitter.
The 3.5mm connector is
mono and it connects to
the IR Out port of the Tx or Rx unit.
The sleeve of the 3.5mm Male connector must have good physical contact
with 3.5 mm Female input/output on the KD-X411ProK/POHK.
Some 3.5mm Male plugs feature a plastic
sleeve that extends longer than an average
sleeve. This may cause poor grounding
contact. See the example on the left.
Settings
EDID Control
EDID authentication is provided from the KD-X411ProK/KD-X411POHK Tx unit to
the connected input / source device. The EDID file (AKA “handshake”) is selected
using the EDID Control rotary on the Tx unit and provides a list of compatible video
and audio formats as well as digital data, informing the source device what it should
output. Most sources will comply with a new EDID file without a power-cycle, but
each source may behave differently. Adjustments
Default EDID Control Table
0Copy EDID from CAT5e/6 Output A4Kx2K@60, 2CH AUDIO
11080i, 2CH AUDIO B4Kx2K@60, DOLBY/DTS 5.1
21080i, DOLBY/DTS 5.1 C4Kx2K@60, HD AUDIO
31080i, HD AUDIO D1280x720p@60 DVI (no audio)
41080p, 2CH AUDIO E1920x1080p@60 DVI (no audio)
51080p, DOLBY/DTS 5.1 F1080p, 2CH AUDIO
KD-X411ProK_X411POHK_Manual.indd 12-13 11/17/15 12:40 PM

14 15
NOTE: Use shielded metal RJ45 connectors with
soldered ground wires when terminating shielded
CAT5e/6. Key Digital part: KD-RJ45SC (compatible
with KD-CAT6STP1X and other third-party CAT6/STP)
8 Control Mode Bypass
9 Control Mode Bypass
A Firmware Upgrade for MCU Forced HPD On
B Firmware Upgrade for MCU Forced HPD On
C Firmware Upgrade for HDBaseT Bypass
D Firmware Upgrade for HDBaseT Bypass
E Firmware Upgrade for HDBaseT Forced HPD On
F Firmware Upgrade for HDBaseT Forced HPD On
Forced Hot Plug Detection (HPD)
Hot Plug Detection (HPD) may be forced on the Tx Rx unit in order to provide
connected devices with necessary voltage to inform the device that a partner
(display) is connected and active. If the Control rotary is set to any HPD Bypass
setting, HPD signals from the output to the input device will pass as normal. In
cases of many layers of connectivity, HPD may be lost leading to no signal at the
display. In those cases, fix the Control rotary to any Forced HPD setting.
Range and Resolution:
Distance performance is significantly increased when using Key Digital
KD-CAT6STP1X Super CAT6/STP Cabling.
➔Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using KD-CAT6STP1X cabling
➔Up to 125 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using third-party CAT5e/6 UTP/
STP cabling
➔Up to 250 ft. @ 1080p / 1920x1200 using KD-CAT6STP1X cabling
➔Up to 200 ft. @ 1080p / 1920x1200 using third-party CAT5e/6 UTP/STP cabling
KD-X411ProK_X411POHK_Manual.indd 14-15 11/17/15 12:40 PM

16 17
RS-232 Commands
RS-232 Pinout:
Tip Ring Sleeve
Tx Rx Ground
Connection protocol is as follows:
➔Baud Rate = 57600 bits per second
➔Data Bits = 8
➔Stop Bits = 1
➔Parity = None
➔Flow Control = None
➔Carriage Return: Required
➔Line Feed: Required
Commands are not case-sensitive. Spaces shown below may be excluded.
Carriage return and line feed is required at the end of each string.
Commands:
KD-X411ProK> H
-------------------------------------------------------------------------
-- Key Digital Systems HELP --
-------------------------------------------------------------------------
-- KD-X411ProK System Address : 00 F/W Version : 1.00 --
-- Azz : All Commands may have Prex System Address zz=[01-99] --
-- H : Help --
-- STA : Global Status --
-- SPCA xx : Set System Address, xx = [00-99] (00=Single) --
-- --
-- Video I/O Setup Commands: --
-- SPO DBG ON/OFF : Set Output DGB ON/OFF --
-- SPO ON/OFF : Set CAT5e/6 Output ON/OFF --
-- --
-- Audio Output Setup Commands: [E=Enable, D=Disable] --
-- SPO AA E/D : Enable/Disable External Analog Audio Output --
-- SPO DA E/D : Enable/Disable External Digital Audio Output --
-- --
-- SPC RSB z : Set RS232 Baud Rate to z bps, z=[0-4] --
-- [0:57600, 1:38400, 2:19200, 3:9600, 4:4800] --
-------------------------------------------------------------------------
LED Indicator Lights
Power:
»Color: Green
»Solid illumination during power on state, as provided by healthy connection
with power supply.
»Steady blink if power is not adequate and/or if there is a connectivity problem
with the KD-X411ProK/ KD-X411POH Rx unit
HDMI Active (HDMI Input/Output):
»Color: Blue
»Tx Unit: Solid illumination from active signal (HDMI TMDS) reception from
connected source device
»Rx Unit: Solid illumination from active Hot Plug Detection voltage with
connected display/output device
»If Hot Plug Detection is forced to input device from Tx unit, the HDMI Active
light will illuminate solid regardless of HDMI signal from connected device.
CAT5e/6 Input/Output:
»Color: Blue
»Tx Unit: Solid illumination from active link and Hot Plug Detection voltage
from Rx unit
»Rx Unit: Solid illumination from active link with Tx unit
KD-X411ProK_X411POHK_Manual.indd 16-17 11/17/15 12:40 PM

18 19
Specifications
Technical:
➔Inputs Tx (Each): 1 HDMI, 1 IR In, 1 Bi-Directional RS-232
➔Outputs Tx (Each): 1 CAT5e/6 UTP/STP, 1 IR Out, 1 Analog Audio,
1 Digital Audio
➔Inputs Rx (Each): 1 CAT5e/6 UTP/STP, 1 IR In
➔Outputs Rx (Each): 1 HDMI, 1 Bi-Directional RS-232
➔DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
➔HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
➔HDMI Connector: Type A, 19 Pin Female
➔RJ45 Connector: Shielded Link Connector, HDBaseT
➔IR Connectors: 3.5 mm stereo mini jack
➔RS-232 Connector: 3.5 mm stereo mini jack
General
➔Regulation: CE, RoHS, WEEE
➔Enclosure: Black Metal
➔Product (Each): 5” x 4.06” x 1.06”, Weight: 0.5 lbs
➔KD-X411ProK Power: (2) KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz,
Interchangeable head with screw-in connector
➔KD-X411POHK Power (Tx Only): KD-PS12V2ASC, 12V/2A, 100-240VAC,
50-60Hz, Interchangeable head with screw-in connector
➔Accessories: (2) Mounting Brackets, (1) IR Emitter, (1) IR Sensor
Status:
KD-X411ProK> STA
-------------------------------------------------------------------------
-- Key Digital Systems STATUS --
-------------------------------------------------------------------------
-- KD-X411ProK System Address : 00 F/W Version : 1.00 --
-- RS232 : Baud Rate=57600bps, Data=8bit, Parity=None, Stop=1bit --
-- Running Day : 000, Time : 00:01 --
-- HD-BaseT Mode : Normal, Link = ON --
-- --
-- Video/Audio Input Status --
-- EDID = 04, PWR5V = ON , Link = ON , HDCP = 1.x , Video = HDMI1.x --
-- AUDIO = PCM, 2.0CH, 48kHz, 24bit --
-- --
-- HD-BaseT Video Output Status --
-- DISP = SAM 2014, HPD = ON , HDCP = 1.x , DDC = GOOD, OUT = ON , HDMI--
-------------------------------------------------------------------------
KD-X411ProK_X411POHK_Manual.indd 18-19 11/17/15 12:40 PM

20 21
How to Contact Key Digital
®
System Design Group (SDG)
For system design questions please contact us at:
➔Phone: [phone]
➔E-mail: [email protected]
Customer Support
For customer support questions please contact us at:
➔Phone: [phone]
➔E-mail: [email protected]
Technical Support
For technical questions about using Key Digital
®
products, please contact us at:
➔Phone: [phone]
➔E-mail: [email protected]
Repairs and Warranty Service
Should your product require warranty service or repair, please obtain a
Key Digital
®
Return Material Authorization (RMA) number by contacting us at:
➔Phone: [phone]
➔E-mail: [email protected]
Feedback
Please email any comments/questions about the manual to:
➔E-mail: [email protected]
Important Product Warnings:
1. Connect all cables before providing power to the unit.
2. Test for proper operation before securing unit behind walls or in hard to access
spaces.
3. If installing the unit into wall or mounting bracket into sheet-rock, provide proper
screw support with bolts or sheet-rock anchors.
Safety Instructions:
Please be sure to follow these instructions for safe operation of your unit.
1. Read and follow all instructions.
2. Heed all warnings.
3. Do not use this device near water.
4. Clean only with dry cloth.
5. Install in accordance with the manufacturer’s instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
7. Only use attachments/accessories specified by the manufacturer.
8. Refer all servicing to qualified service personnel. Servicing is required when the
device has been damaged in any way including:
»Damage to the power supply or power plug
»Exposure to rain or moisture
Power Supply Use:
You MUST use the Power Supply provided with your unit or you VOID
the Key Digital®Warranty and risk damage to your unit and associated
equipment.
KD-X411ProK_X411POHK_Manual.indd 20-21 11/17/15 12:40 PM

22 23
Warranty Information
All Key Digital
®
products are built to high manufacturing
standards and should provide years of trouble-free operation.
They are backed by a Key Digital Limited 10 Year Product
Warranty Policy. http://www.keydigital.com/warranty.htm
KD-X411ProK_X411POHK_Manual.indd 22-23 11/17/15 12:40 PM

24 25
KD-X411ProK_X411POHK_Manual.indd 24-25 11/17/15 12:40 PM
