Verified Network Switch Guide
For use with Key Digital AV over IP Systems
IMPORTANT: Configure your network switch according to this guide BEFORE connecting your AV over IP units.
Introduction Pg. 2
Key Digital Supported AV over IP Models Pg. 2
System Facts Pg. 3
Network Switch Requirements for KD AV over IP Pg. 4
Verified Network Switches Table Pg. 5
Araknis Verified Switch Model List
Araknis Setup for 1080p Systems Pg. 9
Araknis Setup for 4K Systems Pg. 12
Cisco Verified Switch Model List
Cisco Meraki Series Pg. 16
Cisco SG / SF Series Pg. 17
Cisco Catalyst Setup for 4K Systems Pg. 24
D-Link Verified Switch Model List
D-Link Setup for 4K and 1080p Systems Pg. 35
Edgecore Verified Switch Model List
Edgecore AS4610-54T / Cumulus Linux version 3.7.15 Pg. 42
Engenius Verified Switch Model List
Engenius IGMP Setup for 1080p Systems Pg. 43
Linksys Verified Switch Model List
Linksys IGMP Setup for LGS***MPC models Pg. 47
Linksys IGMP Setup for 1080p Systems (Legacy) Pg. 58
Linksys IGMP Setup for 4K Systems (Legacy) Pg. 64
Luxul Verified Switch Model List
Luxul IGMP Setup for 4K and 1080p Systems Pg. 72
Netgear Verified Switch Model List
Netgear AV Series Network Switches Pg. 78
Netgear IGMP Setup for 4K and 1080p Systems Pg. 79
Niveo Verified Switch Model List
Niveo NGS Series IGMP Setup for 4K systems Pg. 84
Pakedge Verified Switch Model List
Pakedge S3 IGMP Setup for 4K and 1080p Systems Pg. 88
Pakedge SX Series IGMP Setup for 4K and 1080p Systems Pg. 94
Signamax Verified Switch Model List
Signamax SC-300 Series IGMP Setup for 4K systems Pg. 99
Titan Networx Verified Switch Model List
Titan Networx IGMP Setup for 1080p Systems Pg. 104
TP Link Verified Switch Model List
TPLink TL SG2428P Pg. 111
Wifi Router Setup and Requirements Pg. 119

2 | P a g e
Back to top
Introduction
Thank you for purchasing a Key Digital AV over IP system.
Follow the instructions in this guide to enable the features for a reliable foundation for your AVoIP system.
Your AV over IP system MUST be integrated with one these verified network switches to function.
Network Switch setup may be different for 4K (KD-IP922, KD-IP822, KD-IP1022) and 1080p (KD-IP1080, KD-IP120)
systems. There are separate setup instructions for each where applicable.
Key Digital AV over IP Supported Models:
•4K Systems:
oKD-IP922ENC, KD-IP922DEC
oKD-IP822ENC, KD-IP822DEC
oKD-IP1022ENC, KD-IP1022DEC
•1080p Systems:
oKD-IP1080Tx, KD-IP1080Rx
oKD-IP120Tx, KD-IP120Rx, KD-IP120POETx, KD-IP120POERx
Key Digital’s AV over IP product family consists of many different models. Not all models are compatible together.

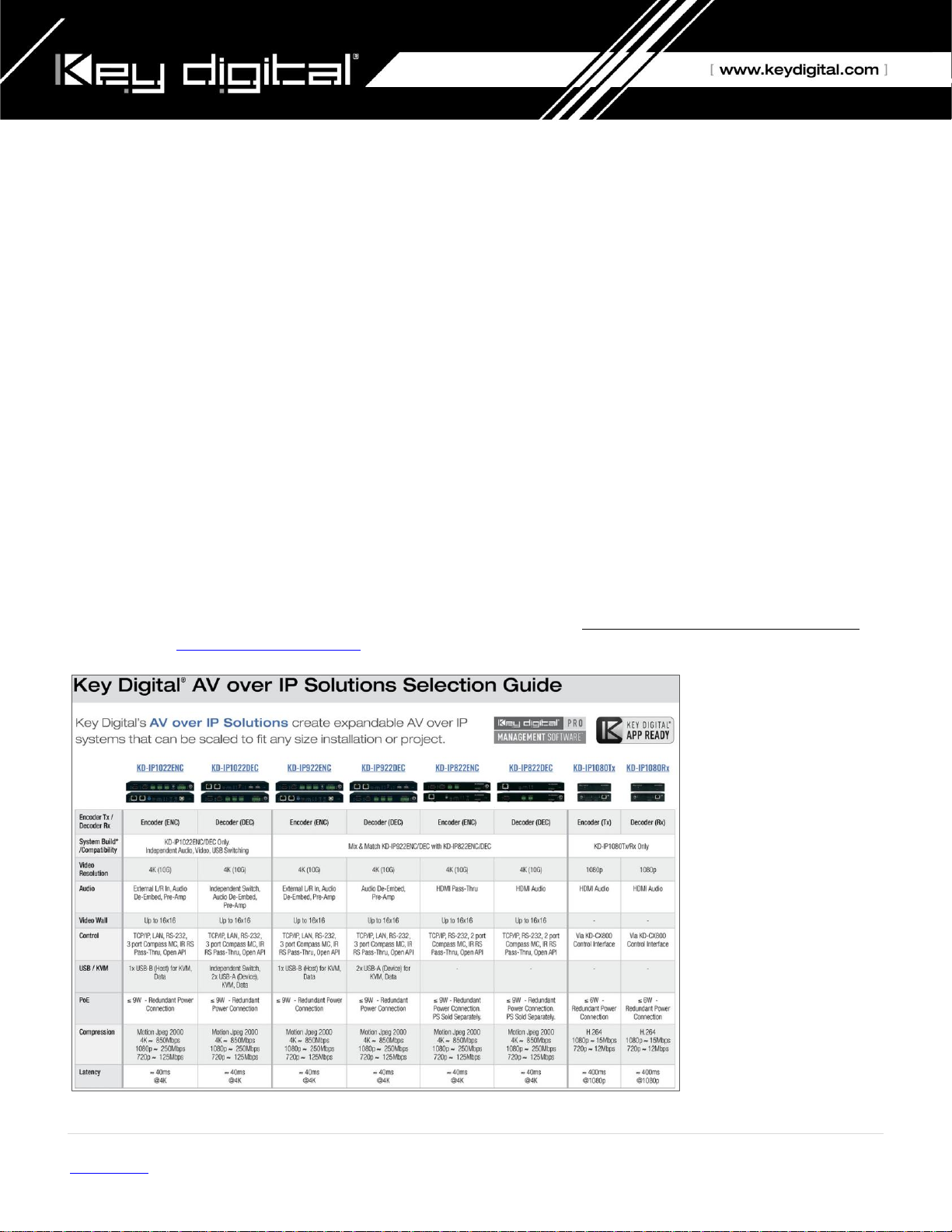

See Key Digital AV over IP Selection Guide for more info

3 | P a g e
Back to top
System Facts
4K Systems: KD-IP822, KD-IP922, KD-IP1022 models
•Video Compression Standard: Motion JPEG 2000
•Data Stream Bandwidth: < 900 Mbps
Stream Resolution
Bandwidth
4K @ 60Hz/30Hz
≤ 850 Mbps
1080p @ 60Hz
≤ 250 Mbps
1080i / 720p @ 60Hz
≤ 125 Mbps
•Latency: ≈ 40ms @4K. Less at lower resolutions.
•PoE Power Consumption: ≤ 9 Watts per unit
•Required network cabling: CAT6 UTP/STP, CAT6A, CAT7
1080p Systems: KD-IP1080, KD-IP120 models
•Video Compression Standard: H.264
•Data Stream Bandwidth: < 15 Mbps
Stream Resolution
Bandwidth
1080p @ 60Hz
≤ 15 Mbps
1080i / 720p @ 60Hz
≤ 12 Mbps
480p @ 60Hz
≤ 4 Mbps
•Latency: ≈ 400ms @1080p. Less at lower resolutions.
•PoE Power Consumption: ≤ 6 Watts per unit
•Required network cabling: CAT5e UTP/STP, CAT6 UTP/STP, CAT6A, CAT7

4 | P a g e
Back to top
Network switch Requirements for KD AV over IP
Key Digital’s AV over IP systems utilize multicasting technology to broadcast streams throughout the network.
AV over IP requires a network switch with IGMP (Internet Group Management Protocol) support to direct traffic of
the broadcast streams, ensuring that only the desired decoders receive the stream from the selected encoder.
If the system spans multiple network switches, it is required for the switches to be connected via 10G fiber cabling
for the purpose of stacking. You must use two of the same series of network switch in these scenarios for best
compatibility.
For 1080p systems (KD-IP1080, KDIP120 models) that plan to use the video preview feature of the Key Digital App,
IGMP v3 must be enabled. For 1080p or 4K systems that will not use the video preview feature, IGMP v2 is enabled.
KD-IP822, 922, 1022 systems require the following IP addresses to be reserved.They cannot be assigned to KD-
IP822, 922, or 1022 units:
192.168.1.1, 192.168.1.50, 192.168.1.90, 192.168.1.100, 192.168.1.150, 192.168.1.200
Feature
4K System
(KD-IP822, KD-IP922, KD-IP1022 models)
1080p System
(KD-IP1080, KD-IP120 models)
IGMP v2
X
X (for non-video preview systems)
IGMP v3
X (for video preview systems)
Bandwidth
1Gbps
100BaseT
8K Jumbo Frame
X
PoE
Optional
Optional (excl KD-IP120PoE models)

5 | P a g e
Back to top
Verified Network Switches
Brand
Model
Port
Number
PoE
10G Fiber
Stacking
Approved for
KD-IP1080/120
Approved for
KD-IP822/922
Approved
for
KD-IP1022
Araknis
AN-210-SW-R-
8-POE
8
YES
NO
YES
YES
AN-210-SW-F-
8-POE
8
YES
NO
YES
YES
AN-210-SW-R-
16-POE
16
YES
NO
YES
YES
AN-210-SW-F-
16-POE
16
YES
NO
YES
YES
AN-210-SW-R-
24-POE
24
YES
NO
YES
YES
AN-210-SW-F-
24-POE
24
YES
NO
YES
YES
AN-210-SW-F-
48-POE
48
YES
NO
YES
YES
AN-310-SW-R-
8
8
NO
NO
YES
YES
AN-310-SW-F-
8
8
NO
NO
YES
YES
AN-310-SW-R-
16
16
NO
NO
YES
YES
AN-310-SW-F-
16
16
NO
NO
YES
YES
AN-310-SW-R-
24
24
NO
NO
YES
YES
AN-310-SW-F-
24
24
NO
NO
YES
YES
AN-310-SW-R-
8-POE
8
YES
NO
YES
YES
AN-310-SW-F-
8-POE
8
YES
NO
YES
YES
AN-310-SW-R-
16-POE
16
YES
NO
YES
YES
AN-310-SW-F-
16-POE
16
YES
NO
YES
YES
AN-310-SW-R-
24-POE
24
YES
NO
YES
YES
AN-310-SW-F-
24-POE
24
YES
NO
YES
YES
AN-310-SW-F-
48-POE
48
YES
NO
YES
YES

6 | P a g e
Back to top
Brand
Model
Port
Number
PoE
10G Fiber
Stacking
Approved for
KD-IP1080/120
Approved for
KD- IP822/922
Approved
for
KD-IP1022
Cisco
SF500-48
48
NO
NO
YES
NO
NO
SG300-28
NO
NO
YES
YES
Catalyst 3850
Series
YES
NO
YES
YES
Meraki MS225
24
YES
YES
YES
D-Link
DGS-3630-
52PC
52
YES
YES
YES
YES
YES
DGS-3630-
52TC
52
YES
YES
YES
YES
DGS-3630-
28PC
28
YES
YES
YES
YES
YES
DGS-3630-
28SC
28
NO
YES
YES
YES
YES
DGS-3630-
28TC
28
NO
YES
YES
YES
YES
DGS-3130-
54PS
54
YES
NO
YES
YES
Edgecore
Mellanox
Edgecore
AS4610-54T
48
YES
YES
YES
YES
Engenius
EGS5212P
8
YES
NO
YES
NO
NO
EGS7228FP
24
YES
NO
YES
NO
NO
EGS7252FP
24
YES
NO
YES
NO
NO
EWS1200D-
10T
10
NO
NO
YES
NO
NO
EWS1200D-
28T
24
NO
NO
YES
NO
NO
EWS1200D-
52T
48
NO
NO
YES
NO
NO
EWS5912FP
8
YES
NO
YES
NO
NO
EWS7928P
24
YES
NO
YES
NO
NO
EWS7928FP
24
YES
NO
YES
NO
NO
EWS7952FP
48
YES
NO
YES
NO
NO

7 | P a g e
Back to top
Brand
Model
Port
Number
PoE
10G Fiber
Stacking
Approved for
KD-IP1080/120
Approved for
KD-IP822/922
Approved
for
KD-IP1022
Linksys
LGS352MPC
48
YES
YES
YES
YES
NO
LGS328MPC
24
YES
YES
YES
YES
NO
LGS310MPC
8
YES
NO
YES
YES
NO
LGS552P
52
YES
YES
YES
YES
LGS528P
28
YES
YES
YES
YES
LGS326P
26
YES
NO
YES
YES
LGS318P
18
YES
NO
YES
YES
LGS326MP
26
YES
NO
YES
YES
LGS326P
26
YES
NO
YES
YES
LGS326
26
NO
NO
YES
YES
LGS318P
18
YES
NO
YES
YES
LGS318
18
NO
NO
YES
YES
LGS308MP
8
YES
NO
YES
YES
LGS308P
8
YES
NO
YES
YES
LGS308
8
NO
NO
YES
YES
Luxul
AMX-4424P
24
YES
YES
YES
YES
Netgear
GS716T
16
NO
NO
YES
YES
GS724T
24
NO
NO
YES
YES
GS748T
48
NO
NO
YES
YES
GS752TP
48
YES
NO
YES
YES
YES
GS728TP
28
YES
NO
YES
YES
M4250-
10G2XF-PoE
10
YES
(8)
YES
YES
YES
YES
M4250-
26G4XF-PoE+
24
YES
YES
YES
YES
M4250-
40G8XF-PoE+
40
YES
YES
YES
YES

8 | P a g e
Back to top
Brand
Model
Port
Number
PoE
10G Fiber
Stacking
Approved for
KD-IP1080/120
Approved for
KD-IP822/922
Approved
for
KD-IP1022
Niveo
NGSME24TH-
AV
24
YES
NO
YES
YES
Pakedge
S3L-24P
24
YES
YES
NO
NO
SX-8EP
8
YES
YES
SX-8P
8
YES
YES
YES
SX-24
24
YES
YES
SX-24P8
24
YES
(8)
YES
YES
SX-24P16
24
YES
(16)
YES
YES
SX-24P
24
YES
(24)
YES
YES
Signamax
SC30020
24
YES
NO
YES
YES
Titan
Networx
TNSS2400P
24
YES
YES
NO
NO
TP-Link
TL-SG2428P
24
YES
NO
YES
YES

9 | P a g e
Back to top
IGMP Setup Guide: Araknis
1080p Systems (KD-IP1080, KD-IP120)
1. IMPORTANT: Disconnect all the DHCP devices like routers, servers from the Araknis network switch.
2. Locate a pinhole “RESET” button at the front panel left bottom corner of your Araknis network switch. Using
a paper clip press and hold a reset button for more than 10 seconds and then release. Wait while the device
is restarted and ready to use (about 5min).
3. IMPORTANT: At this point all the displays should be displaying distorted randomly flashing video images.
4. Connect your PC to the Araknis network switch directly using a network cable.
5. If you have not done yet, configure your PC’s IP address to the same range as the switch (default
192.168.20.xxx).
6. Enter the switch’s IP address (default is 192.168.20.254) in your browser and press ENTER.
7. Enter username and password (default is “araknis” for both). Then click Log In.

10 | P a g e
Back to top

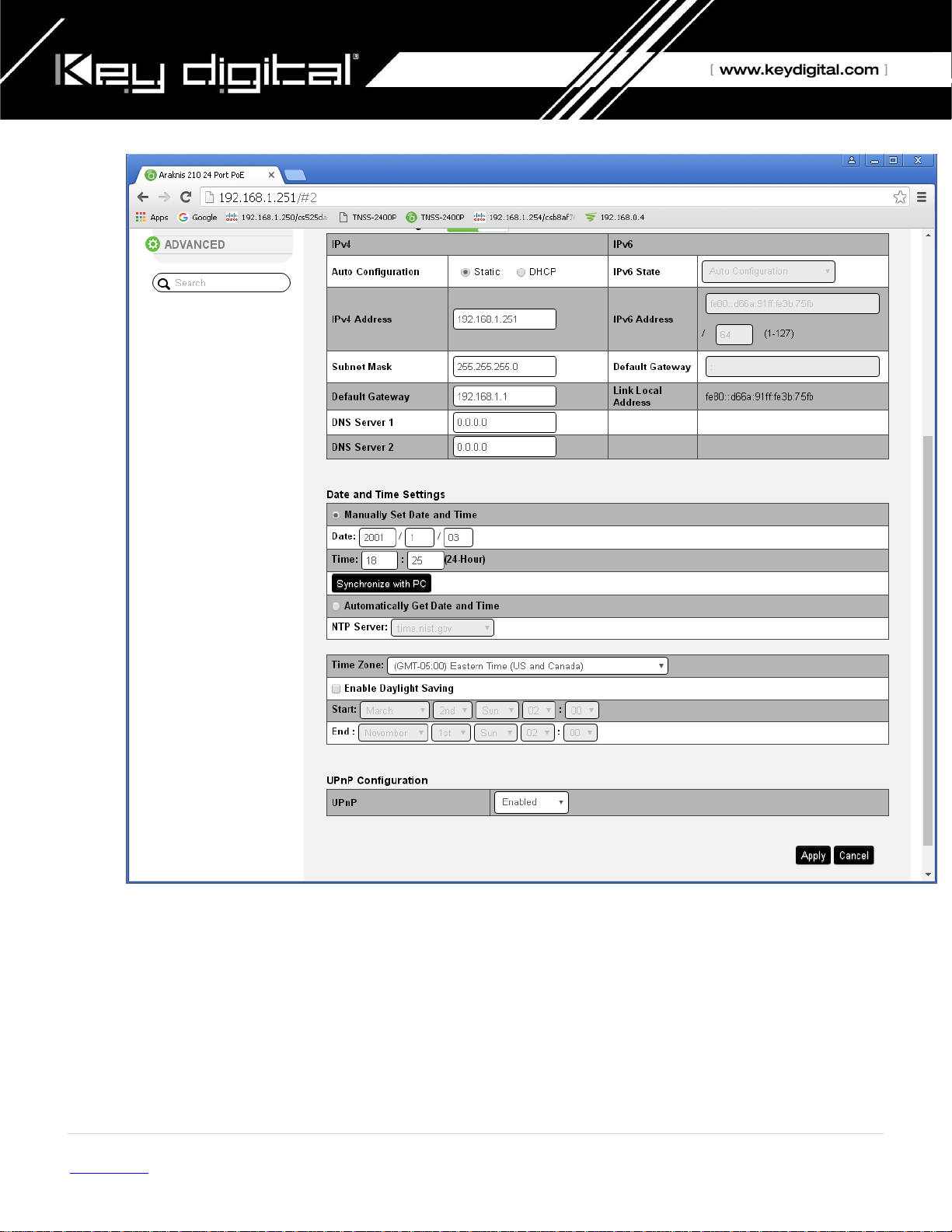

8. Navigate to Settings -> System. Under IP Address Settings elect Static. Change an IP address to
192.168.1.251, Subnet Mask to 255.255.255.0, Default Gateway to 192.168.1.1 (in this case), and at the
bottom click Apply. If you are setting up multiple network switches it is recommended to set first one to
192.168.1.251, second to 192.168.1.252, and so on, and each switch must be set individually same way as
described below.

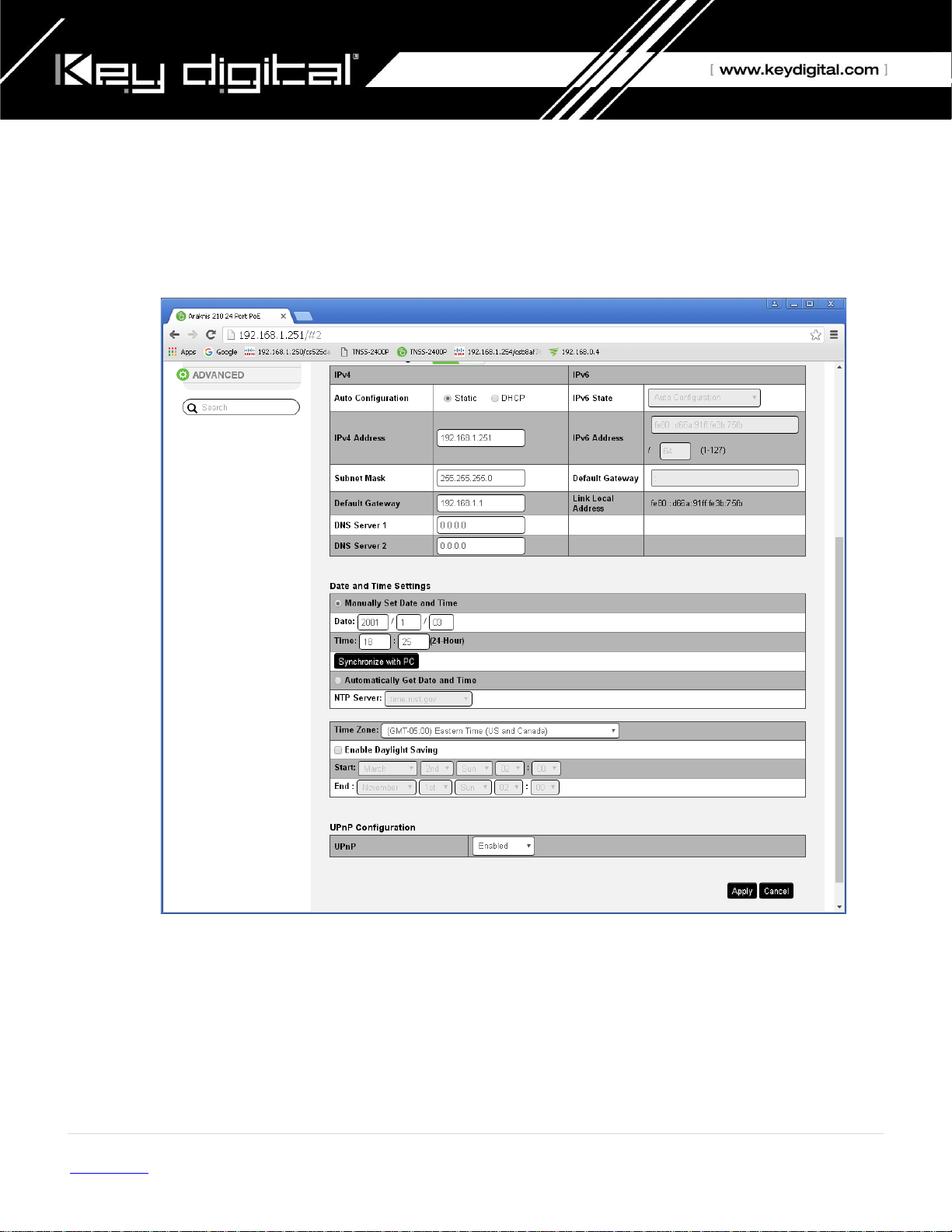

9. Page will refresh. Configure your PC’s IP address to the same range as the switch (default 192.168.1.xxx).
Enter the switch’s IP address (default is 192.168.1.251) in your browser and press ENTER.
10. Make sure the settings remain as above.
11. Navigate to Advanced -> Multicast -> IGMP Snooping. Under Settings select Enable for Status, V3 for
Version, and Enable for Report Suppression. Under VLAN Settings / VLAN ID 1 select Enable for IGMP

11 | P a g e
Back to top
Snooping Status and Enable for Fast Leave. Under Querier Settings / VLAN ID 1 select Enable for Querier
State, V3 for Querier Version and make sure all other setting are exactly as shown below. Click Apply.
12. IMPORTANT: At this point all the displays should be displaying stable running video from the selected
sources. If you do not have them displaying properly, than network switch is configured incorrectly.

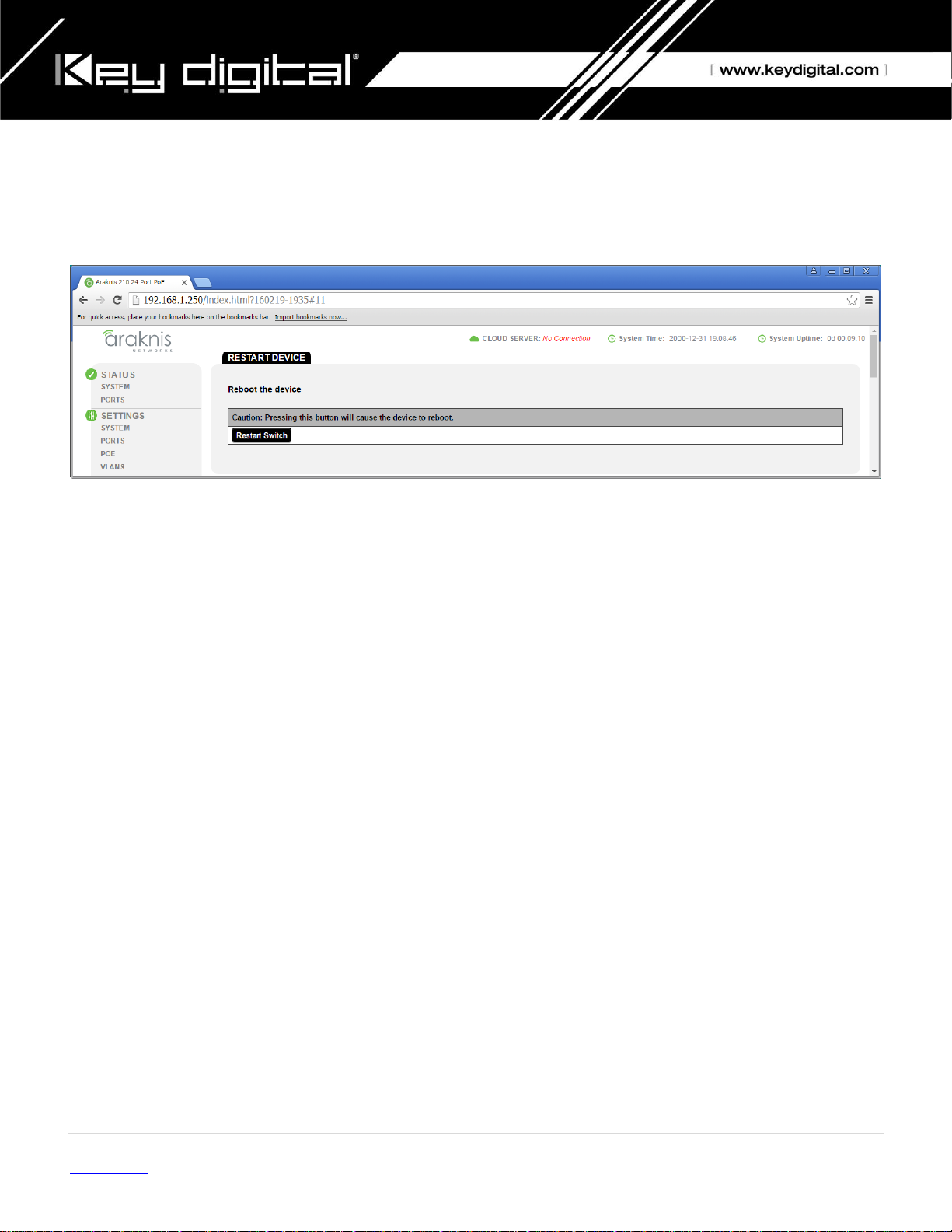

13. Navigate to Maintenance -> Restart Device and click Restart Switch. After the reboot is complete, check all
settings again.
14. IMPORTANT: Now you can connect back you DHCP equipment (routers, servers and so on).
15. Power down Araknis network switch and power it up back again. Wait for the whole system to start and
until you can see video on your displays.
16. Log in to your Araknis network switch again and make sure that IGMP settings are intact.
17. Rescan your components with Key Digital Management Software and make sure HDMI video switch is
functional.
18. At this point your Araknis network switch is set and ready to use
19. Connect your encoders, decoders, allow approx 3 mins for bootup, and perform a network scan using KD
Management Software.

12 | P a g e
Back to top
IGMP Setup Guide: Araknis
4K Systems (KD-IP822/922/1022)
1. IMPORTANT: Disconnect all the DHCP devices like routers, servers from the Araknis network switch.
2. Locate a pinhole “RESET” button at the front panel left bottom corner of your Araknis network switch. Using
a paper clip press and hold a reset button for more than 10 seconds and then release. Wait while the device
is restarted and ready to use (about 5min).
3. IMPORTANT: At this point all the displays should be displaying distorted randomly flashing video images.
4. Connect your PC to the Araknis network switch directly using a network cable.
5. If you have not done yet, configure your PC’s IP address to the same range as the switch (default
192.168.20.xxx).
6. Enter the switch’s IP address (default is 192.168.20.254) in your browser and press ENTER.
7. Enter user name and password (default is “araknis” for both). Then click Log In.
8. Navigate to Settings -> System. Under IP Address Settings elect Static. Change an IP address to
192.168.1.251, Subnet Mask to 255.255.255.0, Default Gateway to 192.168.1.1 (in this case), and at the
bottom click Apply. If you are setting up multiple network switches it is recommended to set first one to
192.168.1.251, second to 192.168.1.252, and so on, and each switch must be set individually same way as
described below.

13 | P a g e
Back to top
9. Page will refresh. Configure your PC’s IP address to the same range as the switch (default 192.168.1.xxx).
Enter the switch’s IP address (default is 192.168.1.251) in your browser and press ENTER.
10. Make sure the settings remain as above.
11. Navigate to Advanced -> Multicast -> IGMP Snooping. Under Settings select Enable for Status, V2 for
Version, and Enable for Report Suppression. Under VLAN Settings / VLAN ID 1 select Enable for IGMP
Snooping Status and Enable for Fast Leave. Under Querier Settings / VLAN ID 1 select Enable for Querier
State, V2 for Querier Version and make sure all other setting are exactly as shown below. Click Apply.

14 | P a g e
Back to top
12. Enter Settings -> Ports and set Jumbo Frame size to 9216 bytes, enabling the required 8K jumbo frame
support feature.

15 | P a g e
Back to top
13. IMPORTANT: At this point all the displays should be displaying stable running video from the selected
sources. If you do not have them displaying properly, then network switch is configured incorrectly.
14. Navigate to Maintenance -> Restart Device and click Restart Switch. After switch is rebooted and back to
normal log in again, check all the settings again.
15. IMPORTANT: Now you can connect back you DHCP equipment (routers, servers and so on).
16. Power down Araknis network switch and power it up back again. Wait for the whole system to start and
until you can see video on your displays.
17. Log in to your Araknis network switch again and make sure that IGMP settings are intact.
18. Rescan your components with Key Digital Management Software and make sure HDMI video switch is
functional.
19. At this point your Araknis network switch is set and ready to use.
20. Connect your encoders, decoders, allow approx 3 mins for bootup, and perform a network scan using KD
Management Software.

16 | P a g e
Back to top
Cisco Meraki series
After gaining access to the Cisco Dashboard, navigate to the following and applied settings as depicted:

17 | P a g e
Back to top
IGMP Setup Guide: Cisco SG and SF Series
4K Setup for SG Series
1080p Setup for SF Series
Note: SF Series is Compatible with KD-IP1080, KD-IP120 AV over IP Systems Only
1. IMPORTANT: Disconnect all the DHCP devices like routers, servers from the Cisco network switch.
2. Locate a pinhole “RESET” button at the front panel left bottom corner of your Cisco network switch. Using a
paper clip press and hold a reset button for more than 10 seconds and then release. Wait while the device
is restarted and ready to use (about 5min).
3. IMPORTANT: Make sure the green “SYSTEM”LED next to the pinhole “RESET” button is flashing.
4. IMPORTANT: At this point all the displays should be displaying distorted randomly flashing video images.
5. Connect your PC to the Cisco network switch directly using a network cable.
6. If you have not done yet, configure your PC’s IP address to the same range as the switch (default
192.168.1.xxx).
7. Enter the switch’s IP address in your browser and press ENTER (check the user manual for a default IP
address - it is usually 192.168.1.254).
8. Enter user name and password (check the user manual for a default user name and password; it is usually
“cisco” for both). Then click Log In.
9. Change Password screen will appear. Enter old and then new password two times as at the picture below
and click Apply.

18 | P a g e
Back to top
10. Getting Started screen will appear.
11. Navigate to Configration Wizards to access the Gettting Started Wizard, which will be used to set the
desired IP address of the switch.

19 | P a g e
Back to top

20 | P a g e
Back to top
12. Log in again using new password and new IP address.
13. Navigate to Multicast -> IGMP Snooping. Check the IGMP Snooping Status: Enable box and click Apply.
