KD-HDMI2X8P

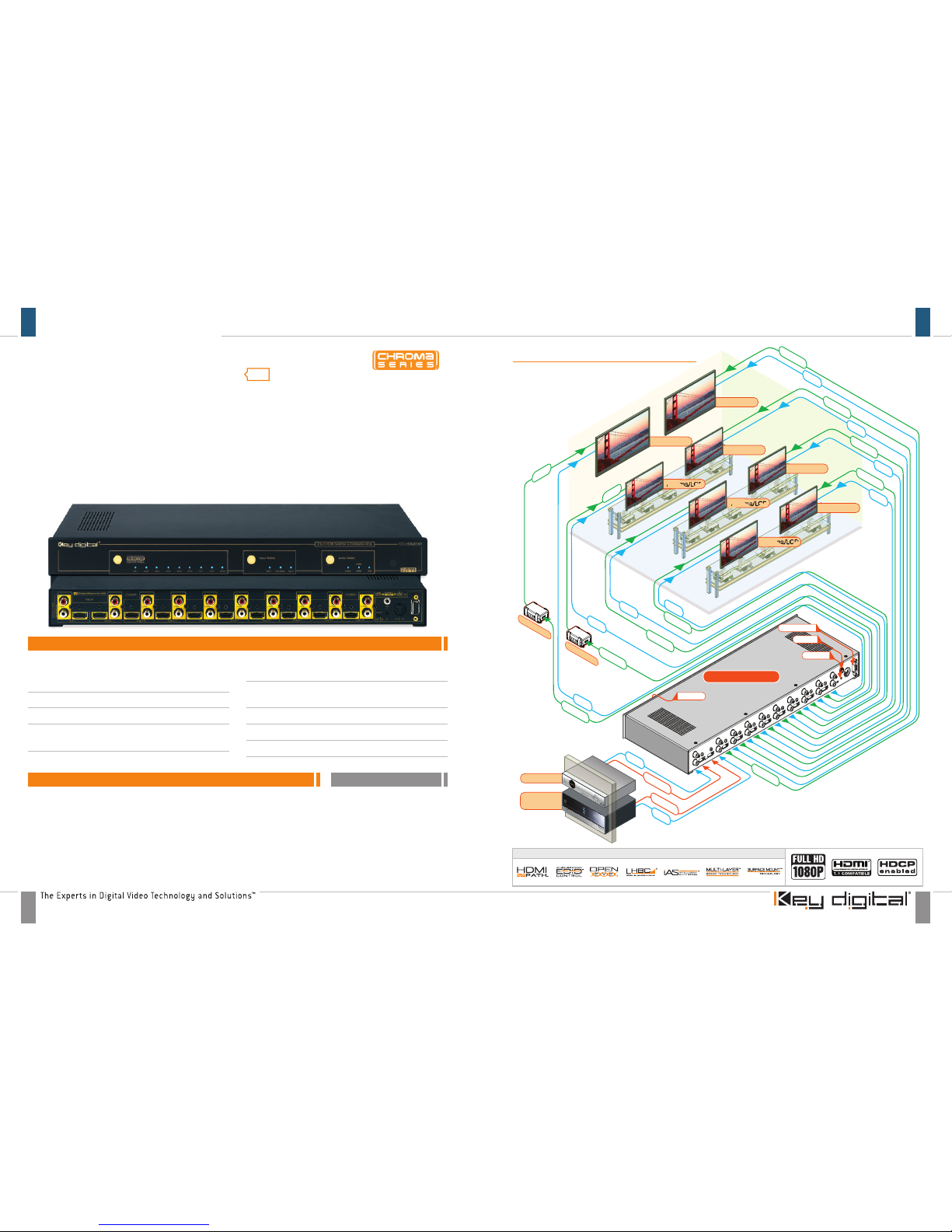

KD-HDMI2X8P is a Video/Audio HDMI switcher and distribution amplifier capable
of switching 2 HDMI/DVID (up to 1080p) Inputs and distributing Input to 8 Outputs
HDMI/DVI
HDMI/DVI
Audio
Audio
Audio
HDMI
HDMI
HDMI/DVI
HDMI/DVI
KD-HDMIXHDMI KD-HDMIXHDMI
Audio
Audio
HDMI/DVI
HDMI/DVI
HDMI/DVI
HDMI/DVI
Audio
Audio
Audio
HDMI/DVI
Audio
Audio
HDMI/DVI
HDMI/DVI
Plasma/LCD
Plasma/LCD
Plasma/LCD
Plasma/LCD
Plasma/LCD
Plasma/LCD
Plasma/LCD
Plasma/LCD
Cable Box
HD DVD or
Blu-Ray
KD-HDMI2x8P
Optical IR
Optical IR
Serial IR
RS232 Control
Retail Application
Model: KD-HDMI2X8P
Key Digital
®
Exclusive Technologies
4Switches between two HDMI/DVID video sources with
analog or digital (PCM or HDMI) audio and distributes
to all 8 outputs
4Supports analog, coaxial digital (PCM)
4Supports any HDMI/DVID resolution at 50 Hz and 60 Hz
4Decodes HDMI digital audio into Coaxial PCM digital audio
for output on white RCA L/PCM connector
4iAS™(Intelligent Auto Sense) auto senses signal presence
and switches to active input
4LEDs indicate the selected source and
input/output status
4Flexible EDID (Handshake) Control for any output
4Incorporates 7 Key Digital®Exclusive Technologies
4Optical IR, Serial IR, RS-232, Front Panel Controls
Key Benefits
Key Solutions General Info
Switches 2 HDMI Video/Audio sources for distribution to 8 displays
Can be cascaded to support up to 100 outputs or displays
Control systems supported via RS-232/IR: AMX (supports AMX DDDP – Dynamic Device
Discovery Protocol), Crestron, Control4, RTI, Universal, Xantech and more
›
›
›
Regulation: CE, RoHS
Power: 100VAC to 240VAC,
50Hz and 60Hz
Rack Mount: Yes - 1U
Remote Control: Included
Enclosure: Black Metal
Dimensions:
17” x 7.5” x 1.75”
Shipping Carton Dimensions:
23” x 13” x 4.5”
Product Weight: 6 lbs
Shipping Weight: 9 lbs
›
›
›
›
›
›
›
›
›
