Key-Disp KD986 User manual

1

2
Product name and model
Name: Intelligent TFT display for E-bike
Model: KD986
Specifications
●24V/36V/48V Power Supply
●Rated working current: 50mA
●The maximum working current: 200mA
●Off-state leakage current: <1μA
●Operating temperature: -20℃~ 60℃
●Storage temperature: -30℃~ 70℃
Appearance and Size

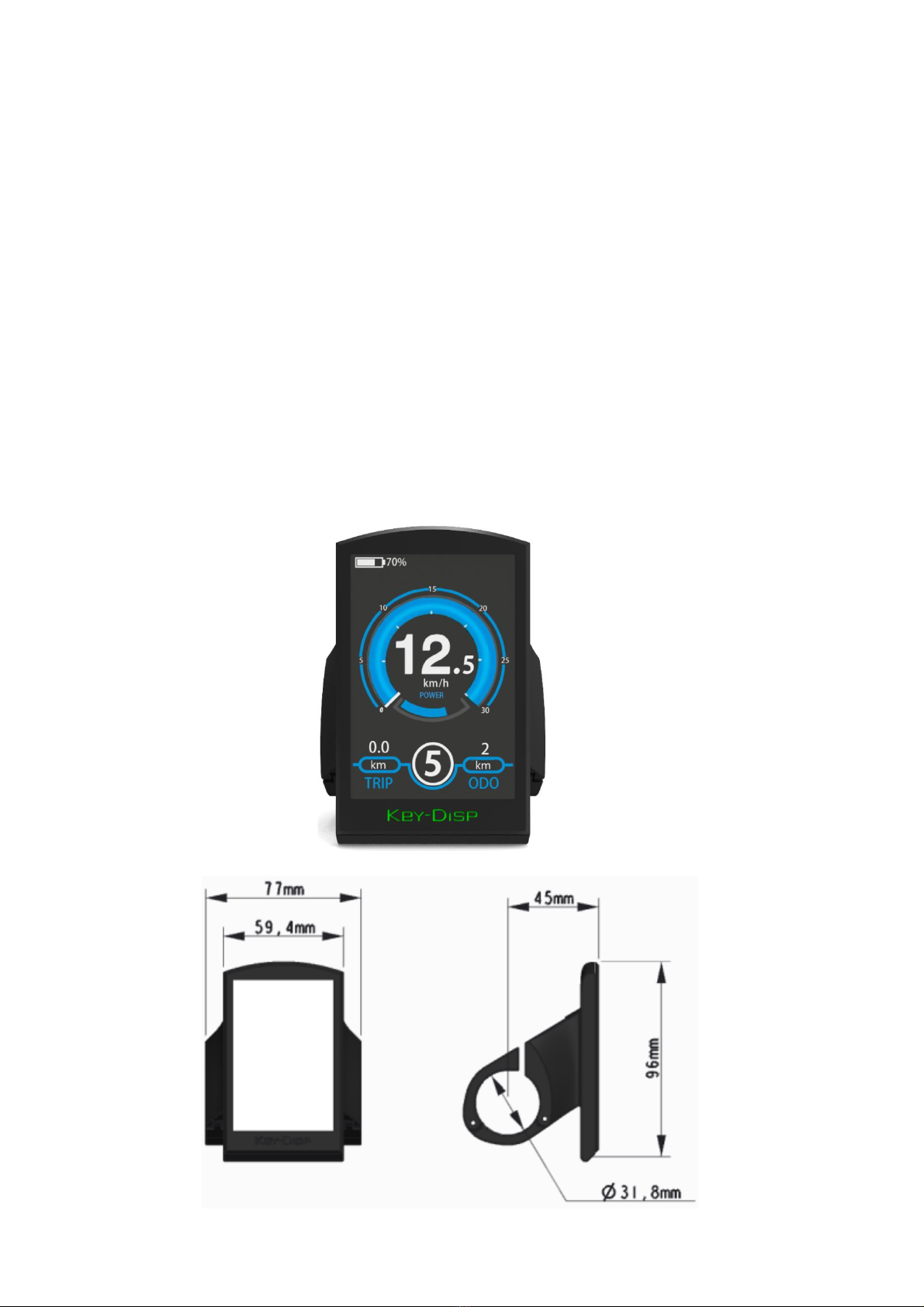

◆Display appearance and dimensional drawing (unit: mm)

3

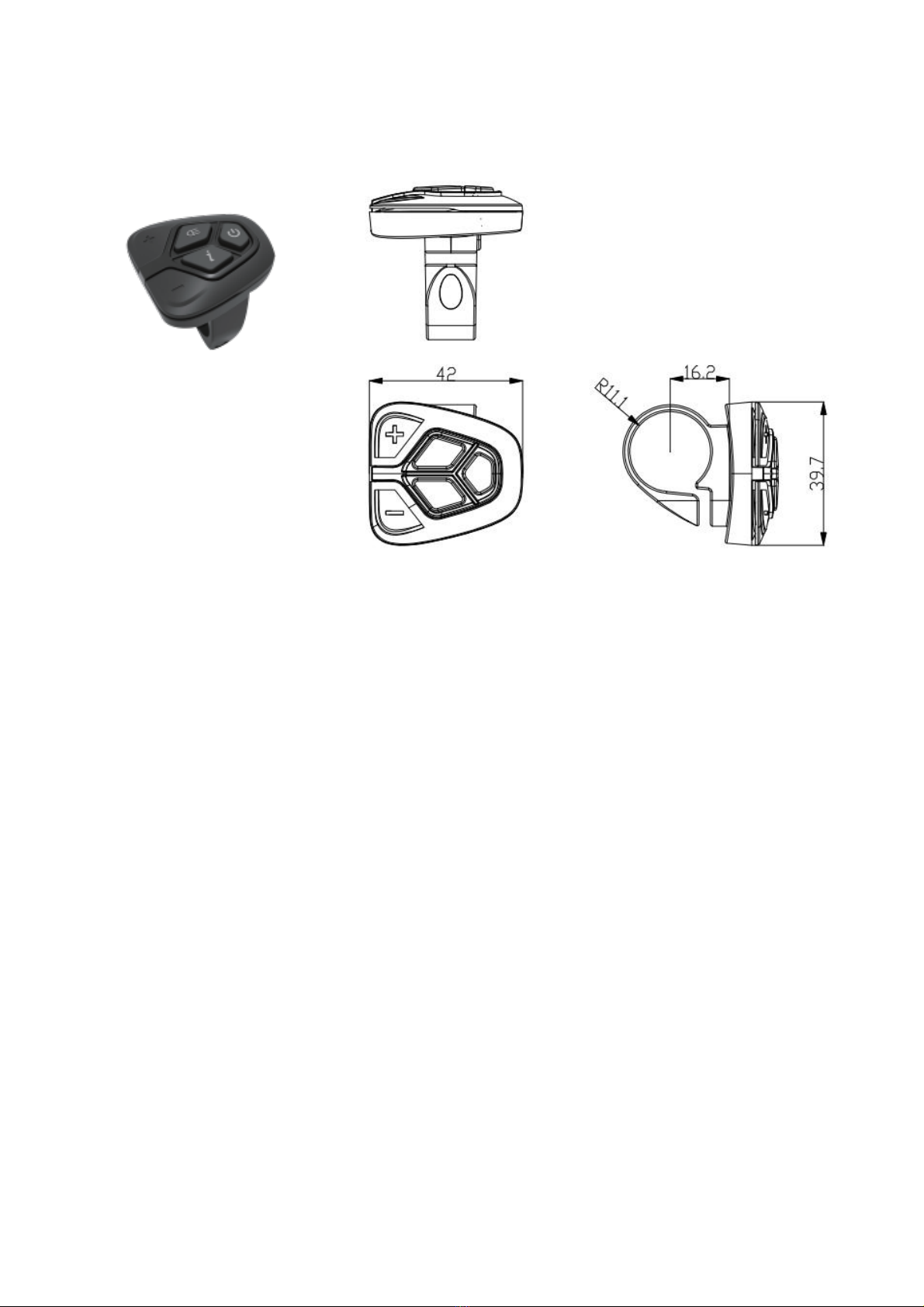

◆Remote control appearance and dimensional drawing (unit: mm)
Function Summary
KD986 can provide a lot of functions to fit the Users needs. The indicating contents are as
follows:
●Battery SOC percentage indication
●Motor Power indication
●Assist-level indication
●Speed indication (incl. running speed, Max. speed and Ave. speed)
●Odometer and trip distance
●The push-assistance function
●Trip time indication
●Backlight On/Off
●Error code indication
●USB connection indicator
●Various Parameters Settings (e.g., wheel size, speed limit, voltage set, assistance level,
controller limited current, password enable/change/disable, etc.)

4
General Operation
◆Switching the E-bike System On/Off
Briefly press the power button to switch on the E-bike system.
To hold the power button for 2s, the E-bike system will be switched off .The E-bike system no
longer uses the battery power.
When switching off the E-bike system, the leakage current is less than 1 μA.
■When parking the E-bike for more than 10 minutes, the E-bike system switches off
automatically.

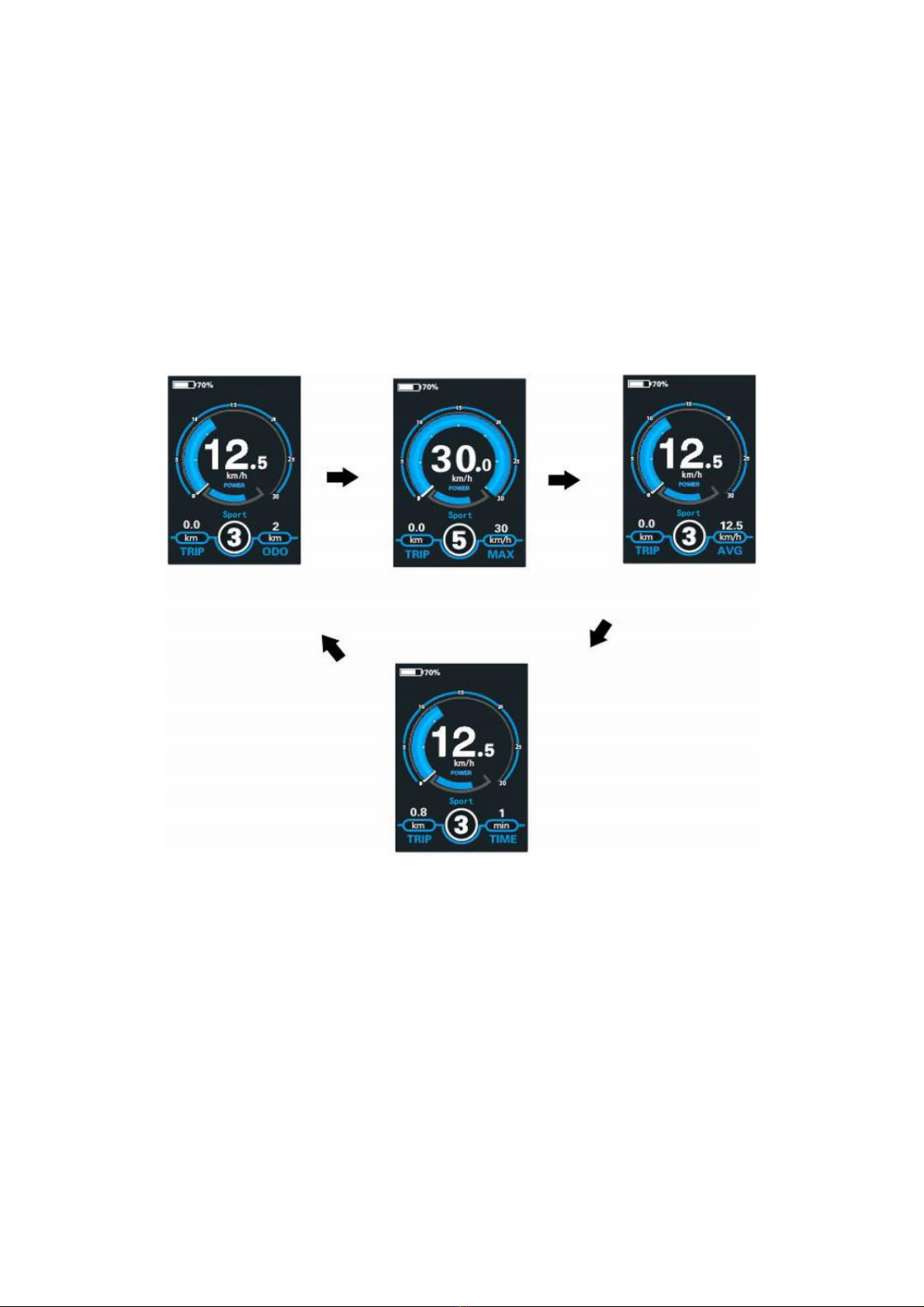

◆Display Interface
After switching on the E-bike system, the display will show Speed and Trip Distance by
default. Pressing the “i”button to switch between following elements:
Trip (Km) →ODO (Km)→Max. Speed (Km/h)→ Avg. Speed (Km/h) →Time (Min.) .
Display Indication Cycle Interface

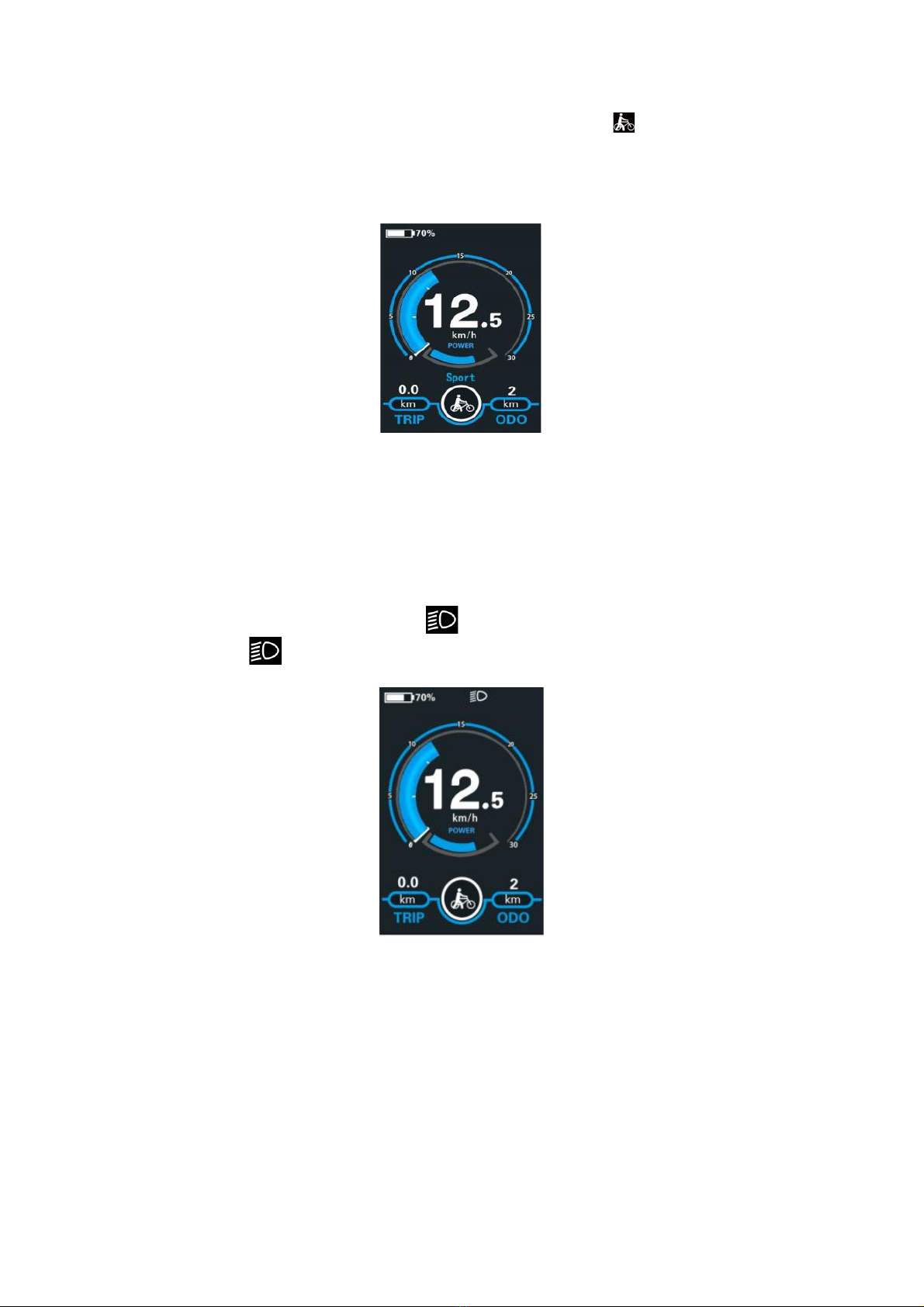

◆Switching Push-assistance Mode On/Off
To activate the push-assistance function, hold the “-”button. After 2s, The E-bike’s drive

5
is activated at a uniform speed of 6 Km/h while the screen displays “ ”. The push-
assistance function is switched off as soon as you release the “-”button on the operating
unit .The E-bike system stops the power output immediately.
Push-assistance Mode
■Push-assistance function may only be used when pushing the E-bike.
Be aware of danger of injury when the wheels of the E-bike do not have ground contact
while using the push-assistance function.
◆Switching the Lighting On/Off
To switch on the headlight, hold the button. The backlight brightness is automatically
reduced. Hold the button again, the lighting can be switched off.
Switching the Lighting Mode On/Off Interface
◆Assist Level Selection
Briefly press "+" or "-" button to switch between assistance levels so as to change the motor
output power, The default assistance level ranges from level “0”to level “5”, The output
power is zero on Level “0”. Level “1”is the minimum power. Level “5”is the maximum
power. When you reach “5”, press the "+" button again, the interface still shows “5”, and
blinks at“5”to indicate the power highest. After the power downshift reaches “0”, press the
"-" button again, the interface still shows “0”and blinks at “0”to indicate the power minimum.
The default value is level “1”.

6
Assist Level Interface
◆Battery SOC Indicator
By default, the battery SOC is displayed by percentage.The battery bar is in green color
when the battery is in high voltage. When percentage is less than 20%, red square for low
voltage appears and battery needs to be recharged immediately.
Battery SOC Indication Interface

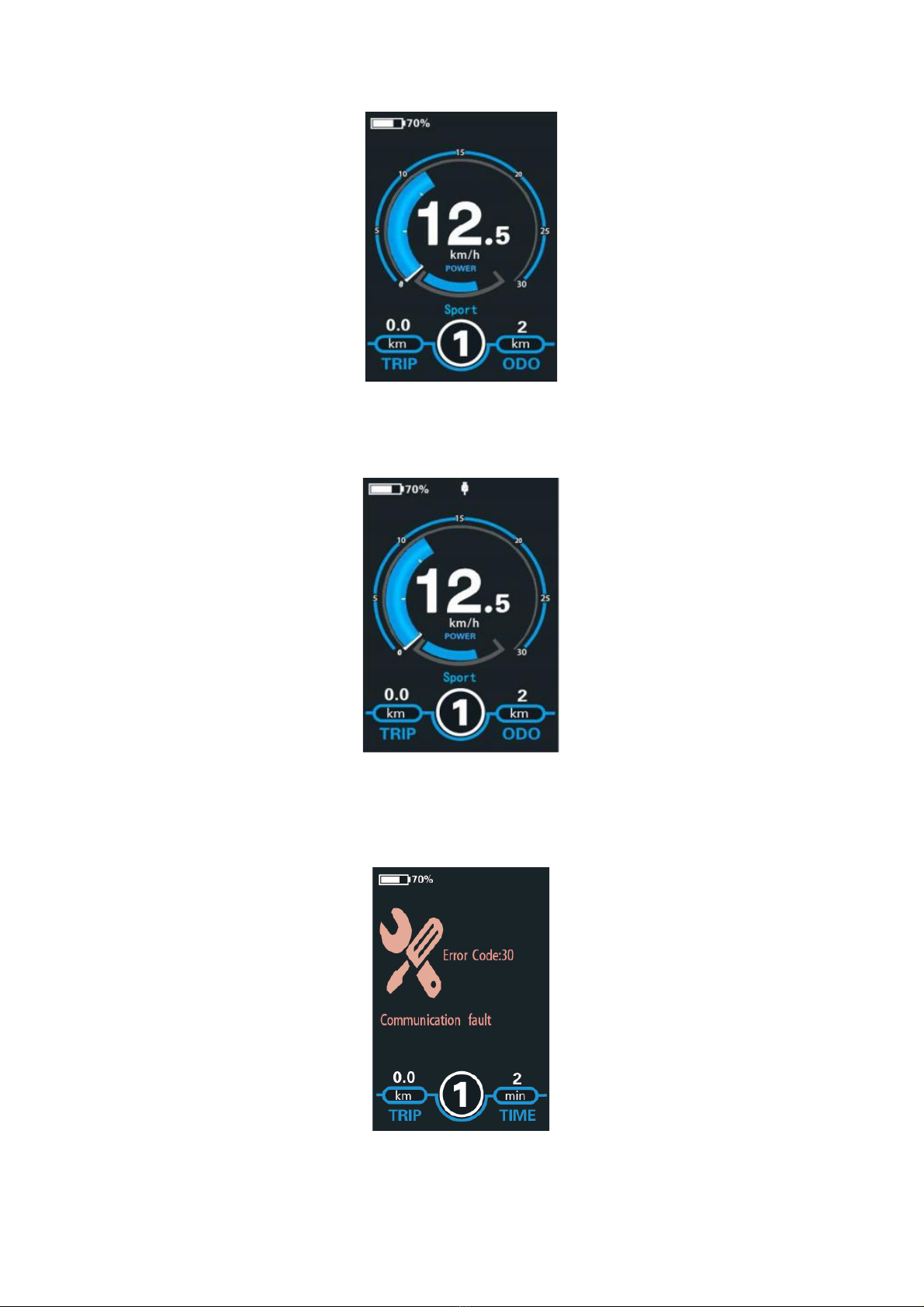

◆Motor Power Indicator
The power of the motor can be read via below interface

7
Motor Power Indication Interface
◆USB connection indication
When the display is inserted into a USB external device, the display interface will show as
below.
USB Connection Indication Interface
◆Error Code Indication
The components of the E-bike system are continuously and automatically monitored. When
an error is detected, the respective error code is indicated in text indication area.
Here is the detail message of the error code in Attached list 1.
Error Code Indication
■Have the display repaired when error code appears. Otherwise, you will not be able to ride
the bike normally. Please always refer to an authorized dealer.
Setting

8

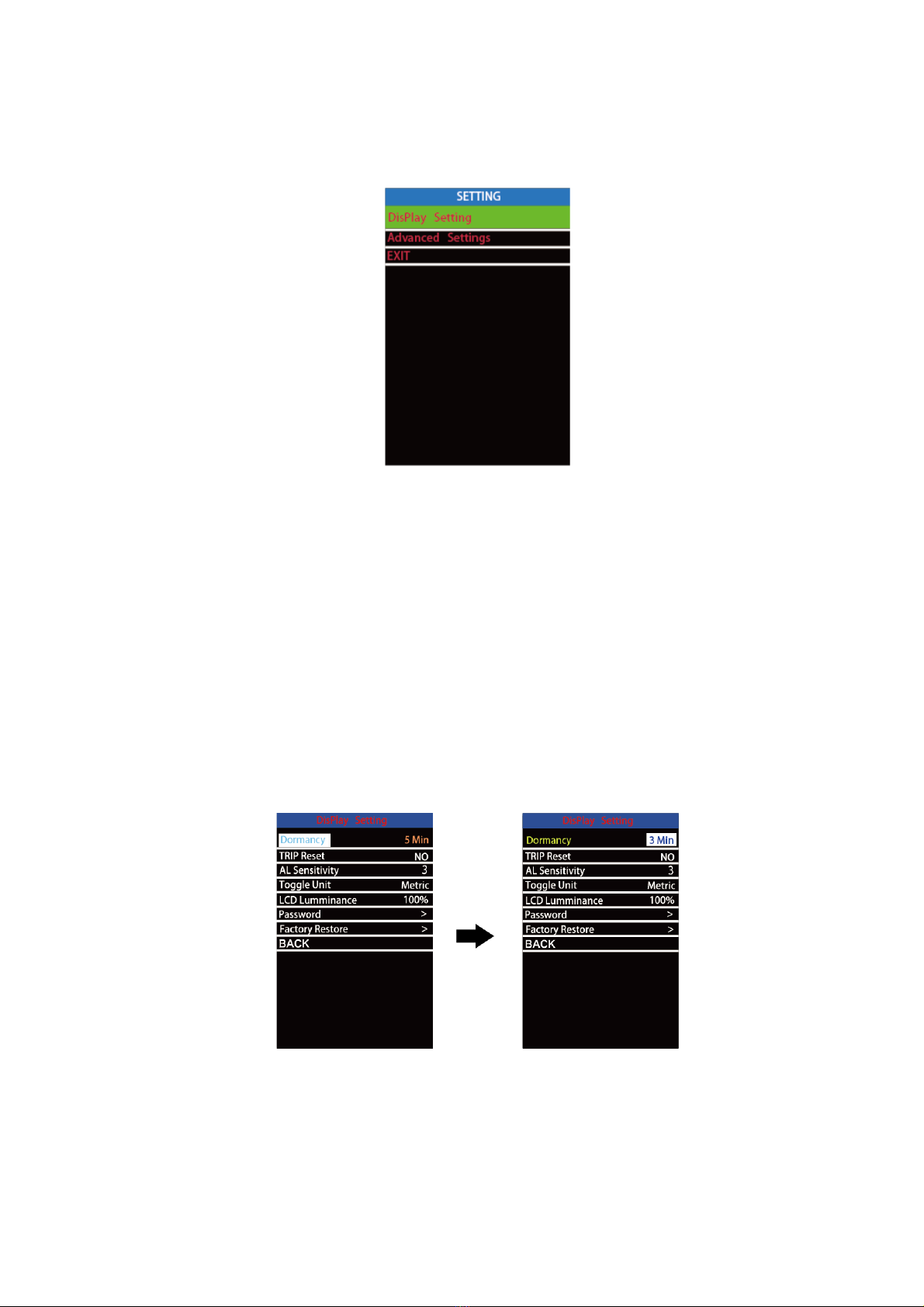

Press the On/Off button to switch on the display.
To access Setting page, hold both the “+” button and the “-” button for 2s. Display setting
and Advanced settings
Setting interface
▉All the Settings are operated on a parked E-bike.
◆Dormancy Settings
Dormancy represents display auto-off time settings.
To change display automatic shutdown time, press Dormancy and press the “+”
button or the “-” button to choose the desired duration. The default auto-off time is 5
minutes.
To store a changed setting, briefly press the “i” button.
Dormancy setting interface
◆Trip Distance Clearance

9
Trip Reset represents trip distance clearance setting.
To clear trip distance, press the “+” button or the “-” button to select Yes or No. Yes
represents clearing a single ride distance. No represents not clearing a single ride
distance.
To store a changed setting, briefly press the “i” button to confirm.
Trip Distance Clearance Settings Interface
◆AL sensitivity
AL sensitivity represents Ambient Light Sensor settings. It can help with adjusting the
screen brightness as per the ambient light conditions automatically. When you ride the bike
at night or in a place where there is a lack of light, the display backlight and bike light will be
turned on automatically.
The sensitivity of AL sensor ranges from 1 to 5 and OFF (light sensor function is disabled).
The default value is 3. Press +/- button to choose the desired sensitivity value.
To store a changed setting, briefly press the “i” button to confirm.
AL sensitivity setting interface

10

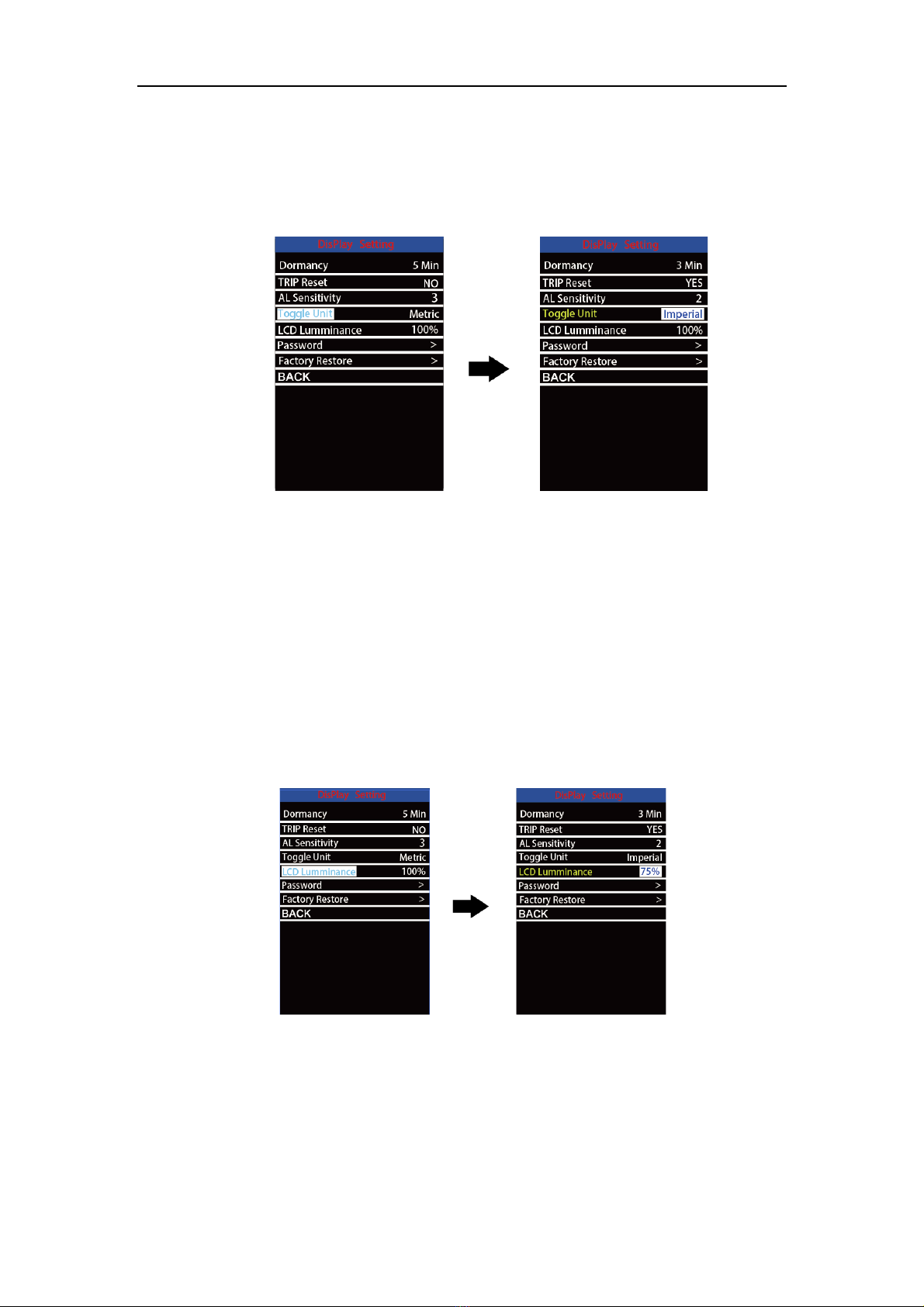

◆Unit km/mile Conversion
Toggle Unit represents unit settings.
To toggle the unit, press the “+” button or the “-” button to choose the desired unit and
press the “i”button to confirm The default unit is “Metric (km)”.
To store a changed setting, briefly press the “i” button to confirm.
Mile and Kilometer Toggling Interface
◆LCD luminance Settings
LCD luminance represents backlight brightness settings. The less the percentage
value, the lower the backlight brightness.
To change the backlight brightness, press the “+” button or the “-” button to choose
the desired percentage.
To store a changed setting, briefly press the “i” button to confirm.
LCD luminance Settings Interface

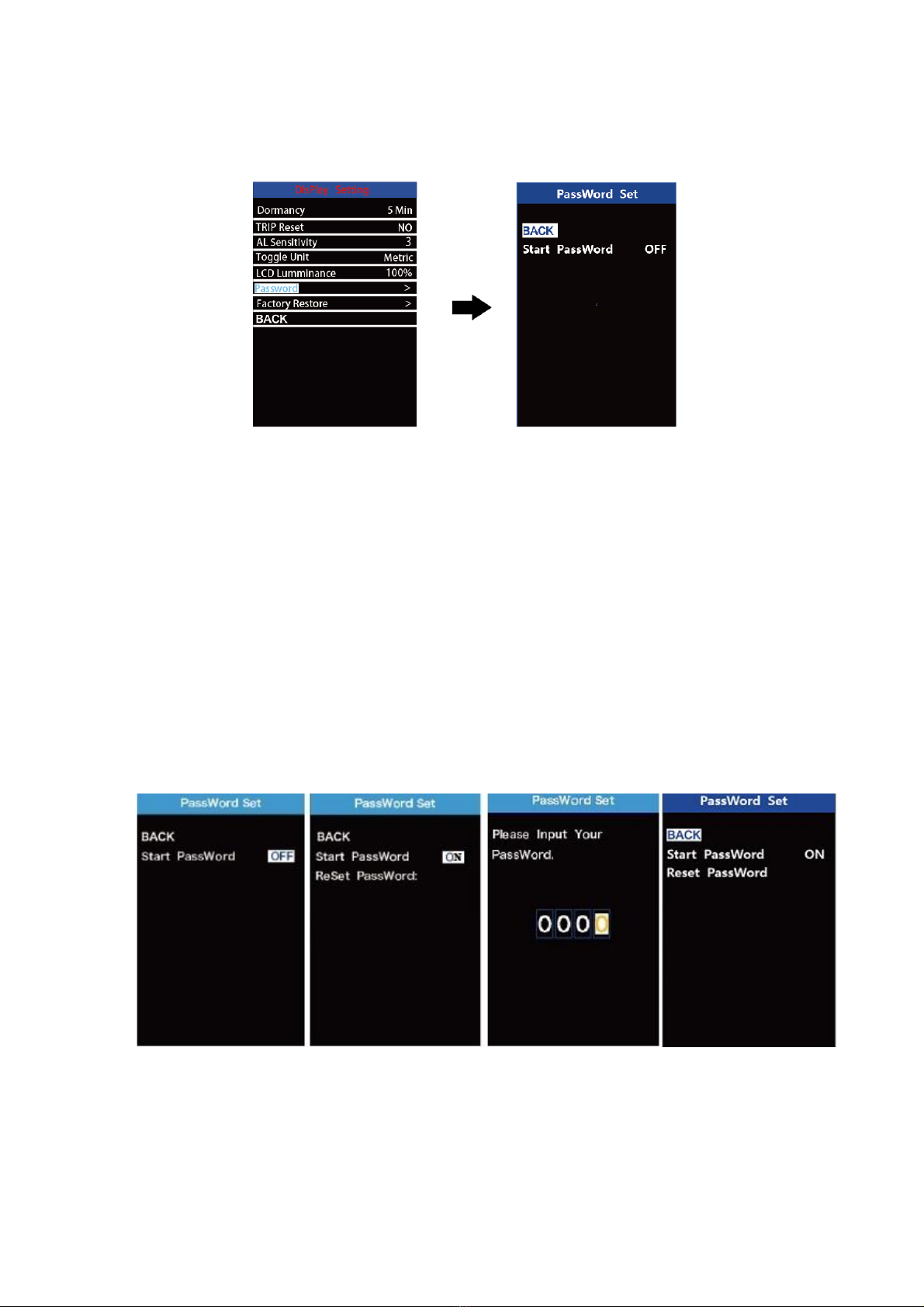

◆Password Settings
Password means display power-on password settings
To access the power-on password setting page, select ‘Password’in the menu and
press “i”button to confirm.

11
PassWord Set means power-on password settings. Power-on password is a 4-digit
code. The default password is ‘1212’
Password Setting Interface
1.Power-on Password Disable/Enable
To enable or disable Start PassWord settings, press the “+”or the “-”button to
select ON or OFF. ON means enabling a power-on password while OFF means disabling
a power-on password. The default value is OFF.
To enable a power-on password, choose ON and press “i”button to confirm and
input the current password or default password’1212’. Press the “+”or the “-”button to
change the number and press the “i”button to confirm digits one by one until the correct
password( current password or default password’1212’) is completed.
To disable the current password, choose OFF and press “i”button to confirm and
input the current password correctly. The screen displays ‘PassWord Canceled
Successfully’. *Then the display resumes to use the default code ‘1212’.
Password Enable/Disable Settings Interface

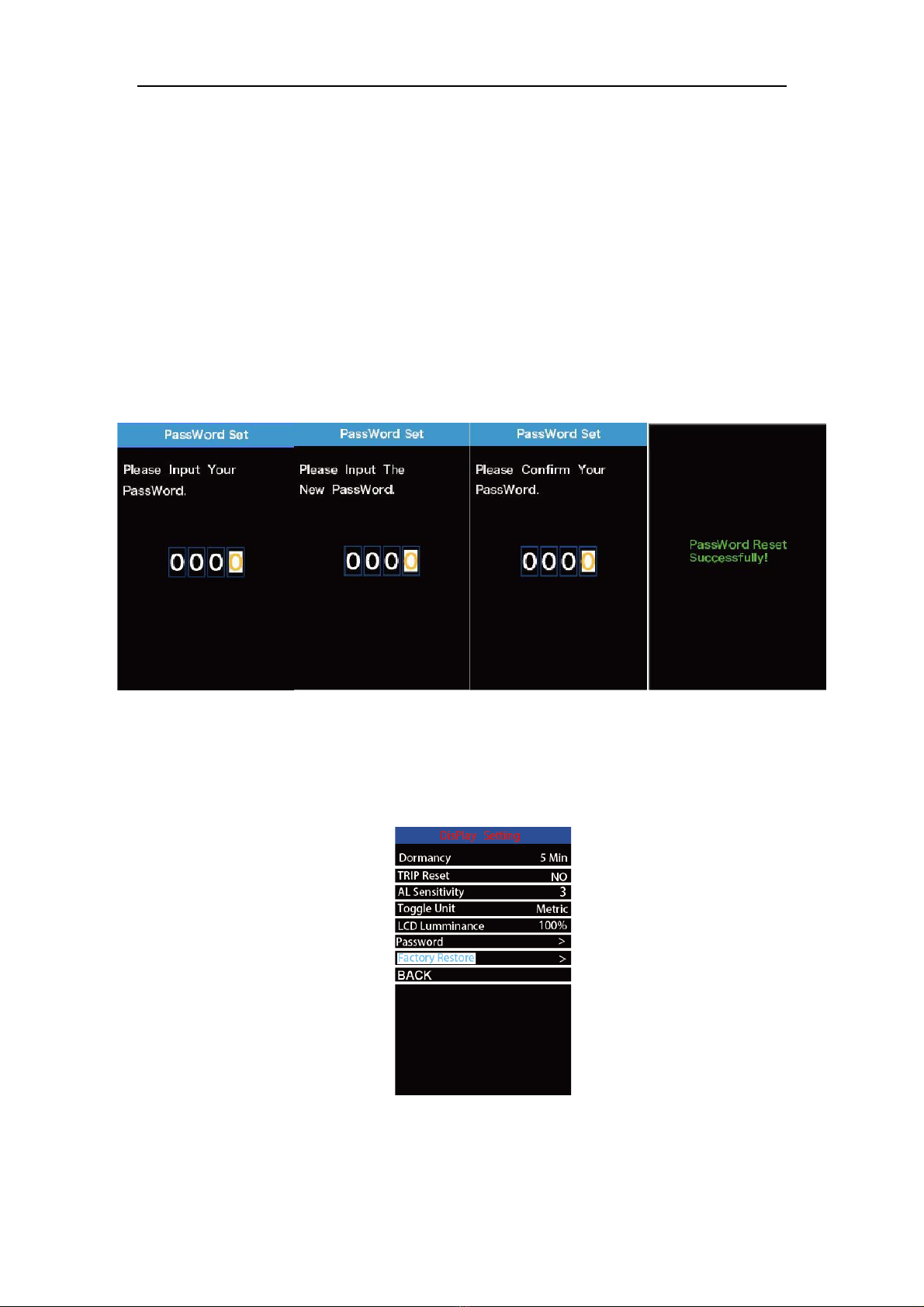

2.Power-on Password Reset

12
From the last interface above, press the “+”or the “-”button to select ‘Reset PassWord’and
press the “i”button to confirm to access power-on password reset interface. There are 3 pages
for setting up a new password:
In the first page, please enter the current password or default password ‘1212’correctly.
Then it moves to the second page for inputting a new password. Press the “+” or the “-” button
to increase or decrease the number and then press the “i” button to confirm digits one by one
until a new 4-digit password is completed.
Finally, it comes to the third page and reenter the new password again for confirmation. The
screen displays ‘PassWord Reset Successfully’
When switching on the E-bike system next time, please enter the new password to power on
the display.
Password Change Interface
◆Factory Defaults
Factory settings. To reset to factory defaults，press +/- to choose YES or NO. The default is
NO. Press “i”button to store a changed setting.
Factory defaults setting interface

13
Advanced setting

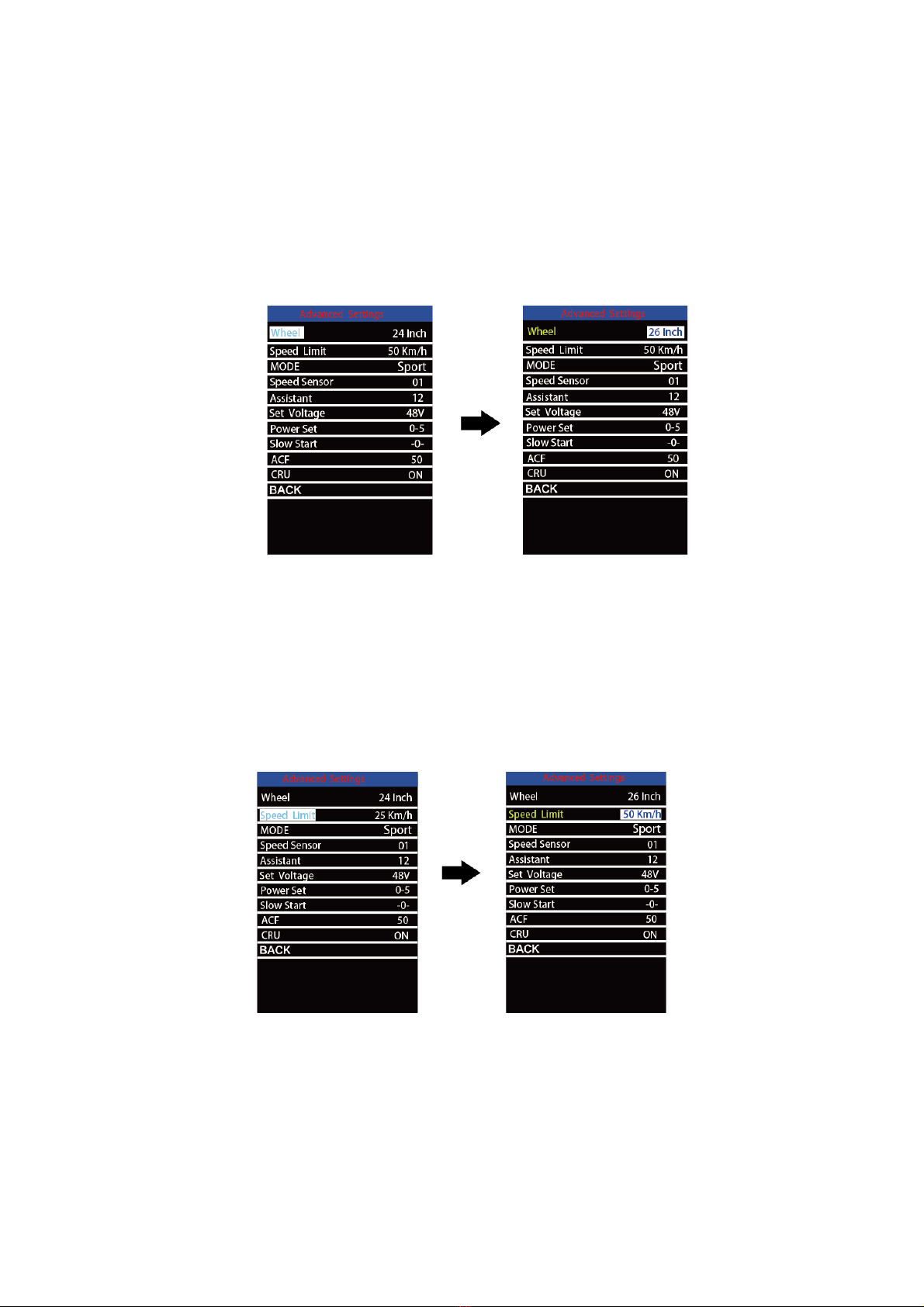

◆Wheel Diameter Settings
Wheel represents wheel diameter settings. To change basic settings, press the “+”
or the “-” button to increase or decrease until the desired value is displayed. The default
value is 28”.
To store a changed setting, press the “i” button to confirm.
◆Speed-limit Settings
Speed Limit represents the limited speed settings. When the current speed is faster
than speed limit, the E-bike system will be switched off automatically. Speed limit range is
15Km/h to 99.9Km/h.
To change basic settings, press the “+” or the “-” button to increase or decrease until the
desired value is displayed. Press the “i” button to confirm.
To store a changed setting, press the “i” button to confirm.
Speed limit settings interface

14
◆MODE
MODE options: ECO and SPORT two options. Press +/- to change the mode option.
Sport mode: motor is in high speed running condition. Assistance response is more
active with better power strength; speed pick-up is faster.
Economy mode: motor is low speed running condition. Power assist response and
speed pick-up is relatively lower than sport mode. But save battery power.
Normal mode: motor is in the normal running condition. Assistance response and speed
pick-up both are medium.
MODE setting page
◆Speed Sensor
Speed Sensor represents speed sensor settings.
To change speed sensor settings, press the “+” or the “-” button to select the quantity of
magnet poles on the e-bike spoke (the range is from 1 to 15). The default value is 1.
To store a changed setting, press the “i” button to confirm.
Speed sensor setting

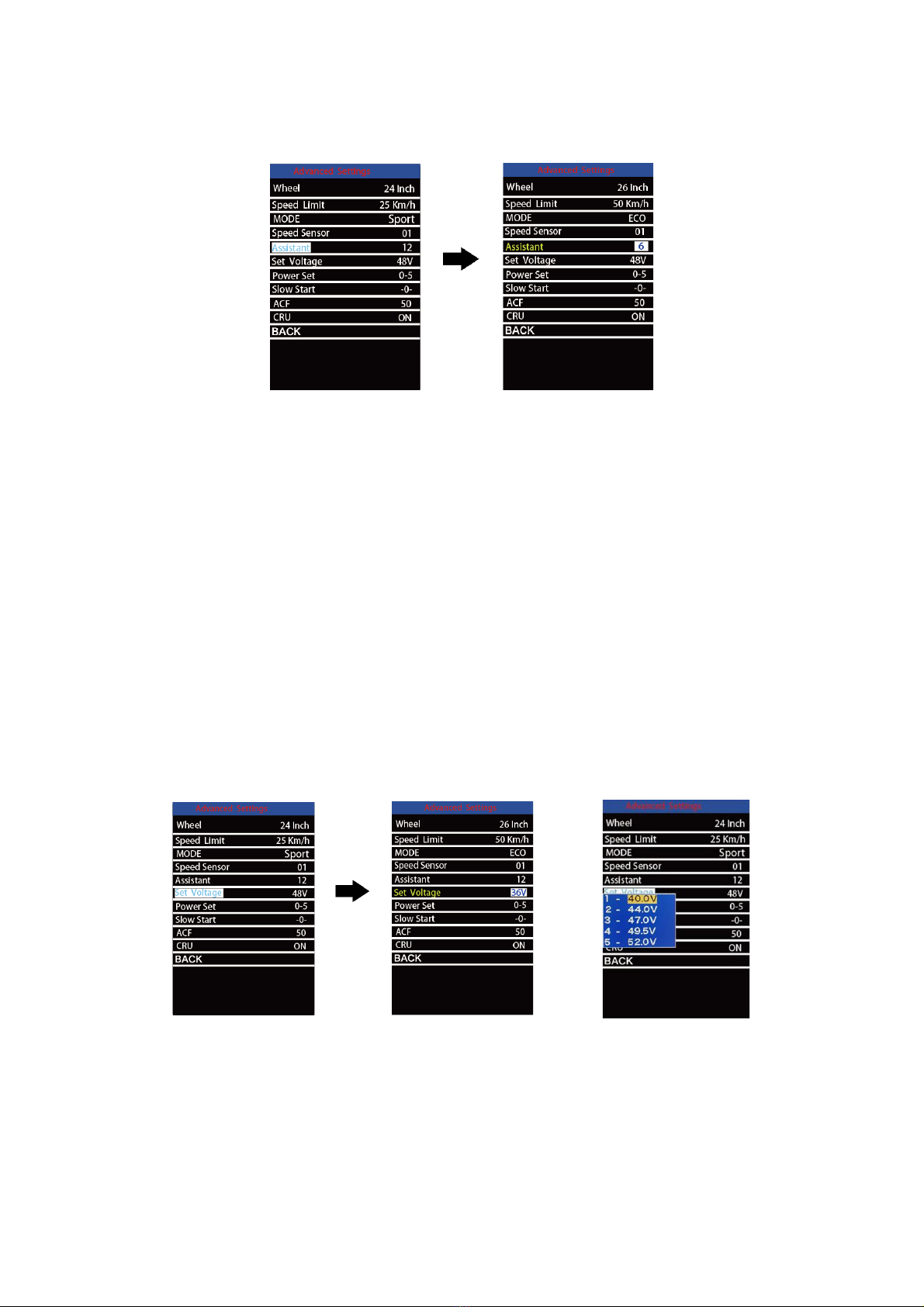

◆Power Assistant Sensor Magnets
Assistant represents the number of magnets in the PAS disk.
To change the magnet number of power assist sensor, press the “+” or the “-” button
to choose the desired number.

15
To store a changed setting, press the “i” button to confirm
Assistant setting interface
◆Battery Power Bar Settings
Set Voltage represents battery voltage segmented value settings. 36V/48V
switchable.
5 bar-voltage values for 36V or 48V must be entered one by one. Take 48V for
example, “1-”is the first bar voltage value and its default value is 41.2V.
To set battery power bar value, press the “+” or the “-” button to increase or
decrease the voltage values.
To store a changed setting and access the next bar voltage setting, press the “i”
button.
In the same manner, after 5 bar-voltage values are entered completely, press the “i”
button to confirm.
Battery Voltage Settings Interface
◆Assist Level Settings
Assist Level Mode Options

16
Power Set represents assist level settings. In assist level mode settings, there are 8
modes for your choice：0-3, 1-3, 0-5, 1-5, 0-7, 1-7, 0 -9, 1-9.
To change assist level mode, press the “+” or the “-” button to choose the desired mode
and press the “i” button to confirm.
Assist Level Mode Settings Interface
◆Slow Start
When you stepping on the pedal, it will take a certain time duration before the motor assist is engaged.
This time duration setting range is 1~4. 4 is the slowest. The default value is 1. press +/- to change the
slow start value and press i button to store a changed setting.
Slow start setting page

17

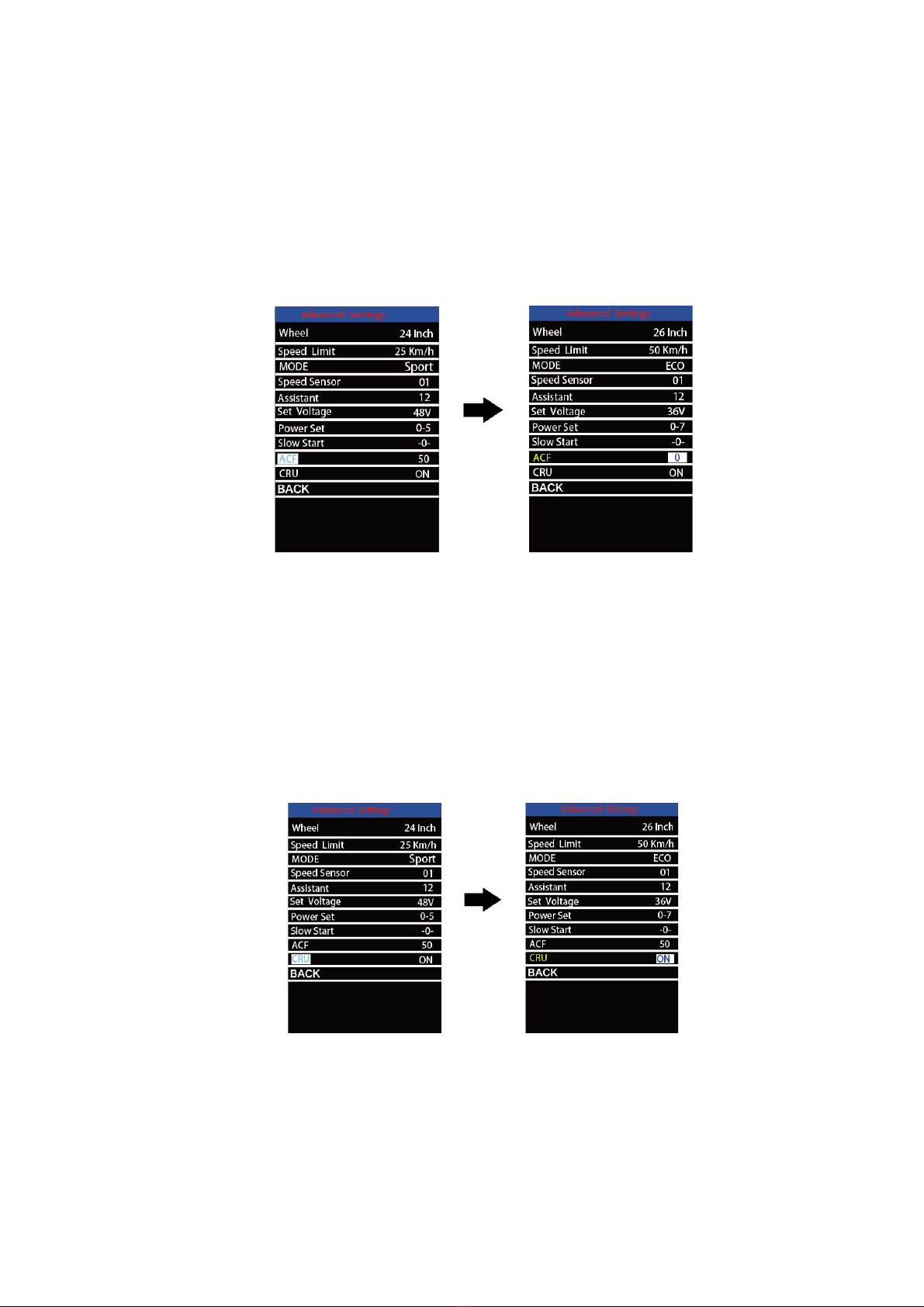

◆ACF
ACF means charging switch setting. 0 is OFF and 50 is ON. Press +/- to change the setting and press i
button to save a changed setting.
ACF setting page
◆CRU
CRU means CRUISE function. Press +/- to switch ON/OFF the cruise mode. press i button to store a
changed setting. When display keeps stable speed, you can activate the cruise mode and bike runs at a
fixed speed.
Cruise mode setting
■If there is no setting operations in one minute; the display will exit the settings state
automatically

18
Quality Assurance and Warranty Scope
ⅠWarranty
（1）The warranty will be valid only for products used in normal usage conditions.
（2）The warranty is valid for 24 months after the shipment or delivery to customers
ⅡThe following cases do not belong to our warranty scope.
1. The display is demolished.
2. The damage of the display is caused by wrong installation or operation.
3. Shell of the display is broken when the display is out of the factory.
4. Wire of the display is broken.
5. The fault or damage of the display is caused by the force majeure (e.g., fire,
earthquake, etc.).
6. Beyond Warranty period.

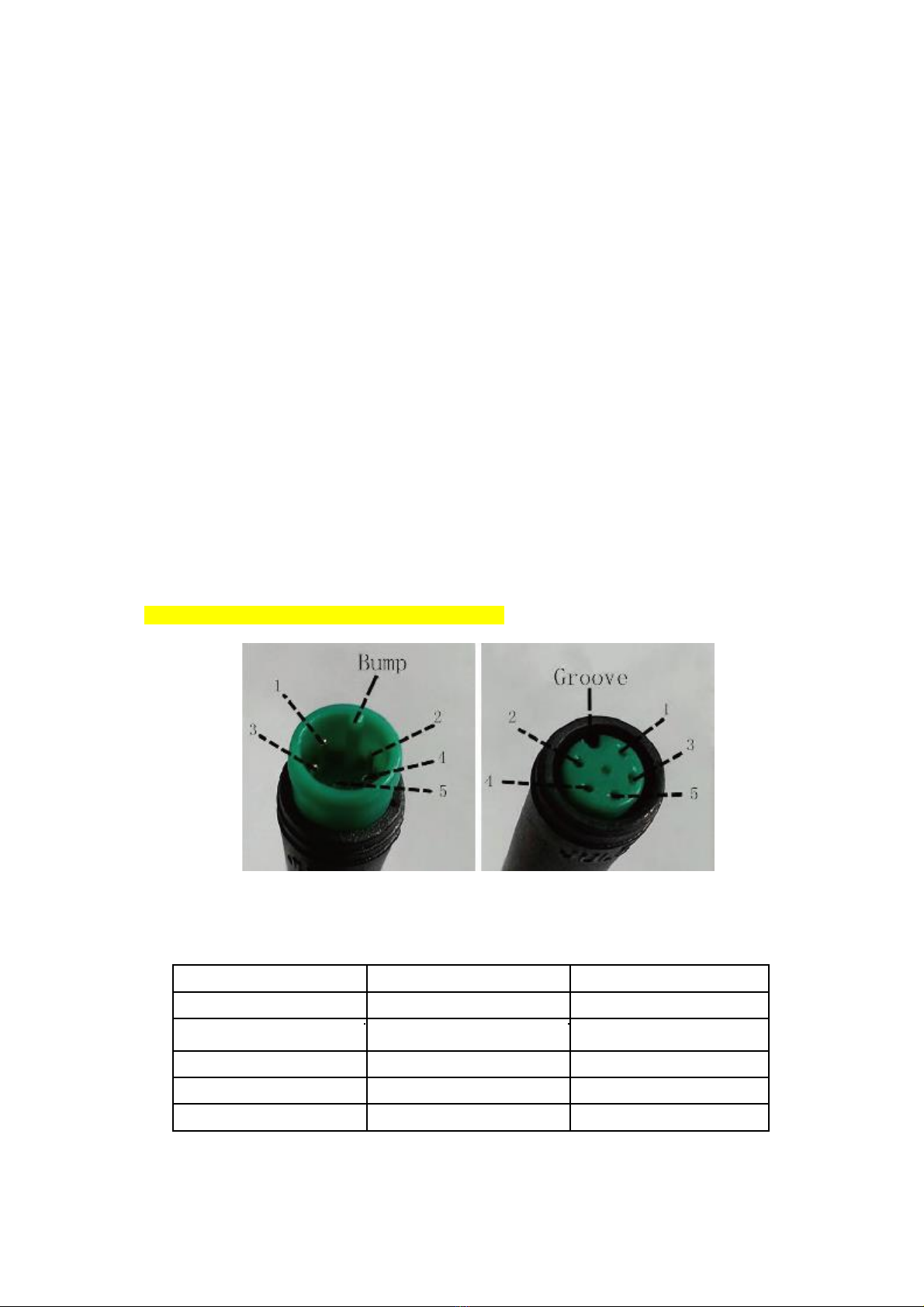

Connection Layout
Socket type male connector (display is cable free)
Display-side socket mating connector from controller side
wire sequence table
Wire no.
Color
Function
1
Red（VCC）
﹢
2
Blue（K）
Lock
3
Black（GND）
﹣
4
Green（RX）
RX
5
Yellow（TX）
TX

19
■Some displays have wire connection with water-proof connectors, users can
not see the color of lead wires in the harness.
Warnings:
◆Use the display with caution. Don’t attempt to release or link the connector when battery is
on. ◆Try to avoid hitting the display.
◆Don’t modify system parameters to avoid parameter disorder.
◆Make the display repaired when error code appears.
*This manual instruction is a universal version for DISPLAY KD986. Some versions
of this display may be different from specification to specification as to the software.
Please always refer to an actual version.
Attached list 1：Error code definition
Error Code
Definition
21
Current Abnormality
22
Throttle Abnormality
23
Motor Phase Abnormality
24
Motor Hall Signal Abnormality
25
Brake Abnormality
30
Communication Abnormality
