Keysight Technologies 16495C User manual

Keysight
16495C/D/E/F/G/H/J/K
Connector Plate
Installation
Guide

Notices
© Keysight Technologies 1997-2014
No part of this manual may be reproduced in
any form or by any means (including elec-
tronic storage and retrieval or translation into
a foreign language) without prior agreement
and written consent from Keysight Technolo-
gies as governed by United States and inter-
national copyright laws.
Manual Part Number
16495-90000
Edition
Edition 1, August 1997
Edition 2, January 2000
Edition 3, August 2003
Edition 4, January 2005
Edition 5, July 2005
Edition 6, August 2014
Keysight Technologies
1400 Fountaingrove Parkway 
Santa Rosa, CA 95403
Warranty
The material contained in this docu-
ment is provided “as is,” and is subject
to being changed, without notice, in
future editions. Further, to the maxi-
mum extent permitted by applicable
law, Keysight disclaims all warranties,
either express or implied, with regard
to this manual and any information con-
tained herein, including but not limited
to the implied warranties of merchant-
ability and fitness for a particular pur-
pose. Keysight shall not be liable for
errors or for incidental or consequential
damages in connection with the fur-
nishing, use, or performance of this
document or of any information con-
tained herein. Should Keysight and the
user have a separate written agreement
with warranty terms covering the mate-
rial in this document that conflict with
these terms, the warranty terms in the
separate agreement shall control.
Technology Licenses
The hardware and/or software described in
this document are furnished under a license
and may be used or copied only in accor-
dance with the terms of such license.
Restricted Rights Legend
If software is for use in the performance of a
U.S. Government prime contract or subcon-
tract, Software is delivered and licensed as
“Commercial computer software” as defined
in DFAR 252.227-7014 (June 1995), or as a
“commercial item” as defined in FAR 2.101(a)
or as “Restricted computer software” as
defined in FAR 52.227-19 (June 1987) or any
equivalent agency regulation or contract
clause. Use, duplication or disclosure of
Software is subject to Keysight Technologies’
standard commercial license terms, and
non-DOD Departments and Agencies of the
U.S. Government will receive no greater than
Restricted Rights as defined in FAR
52.227-19(c)(1-2) (June 1987). U.S. Govern-
ment users will receive no greater than Lim-
ited Rights as defined in FAR 52.227-14
(June 1987) or DFAR 252.227-7015 (b)(2)
(November 1995), as applicable in any tech-
nical data.
Declaration of Conformity
To get the latest version of the declaration of
conformity, go to http://regulations.prod-
ucts.keysight.com/DoC/search.htm and type
in the product number in the Search field.
Latest Information
To get the latest firmware/software/elec-
tronic manuals/support information, go to
www.keysight.com and type in the product
number in the Search field at the top of the
page.

PRELIMINARY
Installation Guide
Keysight 16495C/D/E/F/G/H/J/K Connector Plate
16495-90006
December 2013
Edition 6

This product complies with the WEEE Directive (2002/96/EC) marking requirements.
The affixed label indicates that you must not discard this electrical/ electronic product
in domestic household waste.
Product Category: With reference to the equipment types in the WEEE Directive
Annex I, this product is classed as a “Monitoring and Control instrumentation”
product.
Do not dispose in domestic household waste.
To return unwanted products, contact your local Keysight office, or see
www.keysight.com/environment/product/ for more information.

Safety Summary
The following general safety precautions must be observed during all phases of
operation, service, and repair of this instrument. Failure to comply with these
precautions or with specific warnings elsewhere in this manual may impair the
protections provided by the instrument. In addition, it violates safety standards of
design, manufacture, and intended use of the instrument. Keysight Technologies, Inc.
assumes no liability for customer’s failure to comply with these requirements.
Product manuals may be provided on CD-ROM or in printed form. Printed manuals are
an option for many products. Manuals may also be available on the Web. Go to
www.keysight.com and type the product model number in the Search field at the top
of the page.
•DANGEROUS PROCEDURE WARNINGS
Warnings, such as example below, shall be complied. Procedures throughout in
this manual prevent you from potentially hazard. Their instructions contained in
the warnings must be followed.
WARNING Hazardous voltage of up to the instrument’s maximum voltage may appear at Force,
Guard, and Sense terminals if Interlock terminal is closed. Open the Interlock
terminal when the Force, Guard, and Sense terminals are accessible. Voltage
applied to the terminals will be limited up to ±40 or 42 V depending on the
instrument.
•BEFORE APPLYING POWER
Verify that all safety precautions are taken. Make all connections to the
instrument before applying power. Note the instrument's external markings
described under “Safety Symbols”.
•GROUND THE INSTRUMENT
This is Safety Class I instrument. To minimize shock hazard, the instrument
chassis and cabinet must be connected to an electrical ground. The power
terminal and the power cable must meet International Electrotechnical
Commission (IEC) safety standards.
•DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE
Do not operate the instrument in the presence of flammable gases or fumes.
Operation of any electrical instrument in such an environment constitutes a
definite safety hazard.

•DO NOT REMOVE COVERS
No operator serviceable parts inside. Refer servicing to qualified personnel. To
prevent electrical shock do not remove covers.
•IN CASE OF DAMAGE
Instruments that appear damaged or defective should be made inoperative and
secured against unintended operation until they can be repaired by qualified
service personnel. Return the instrument to a Keysight Technologies sales or
service office for services and repair to ensure that safety features are maintained.
•USE ONLY THE SPECIFIC ACCESSORIES
Specific accessories satisfy the requirements for specific characteristics for using
the instrument. Use the specific accessories, cables, adapters, and so on for
safety reasons.

Safety Symbols
The general definitions of safety symbols used on equipment or in manuals are listed
below.
Instruction manual symbol. The equipment will be marked with this symbol when it is
necessary for the user to refer to the instruction manual.
Hazardous voltage and potential for electrical shock. Do not touch terminals that have
this symbol when the equipment is on.
Protective conductor terminal. For protection against electrical shock in case of a
fault. Used with field wiring terminals to indicate the terminal which must be
connected to ground before operating equipment.
Frame or chassis terminal. A connection to the frame (chassis) of the equipment
which normally includes all exposed metal structures.
Grounded terminal which indicates the earth potential.
Direct current.
Alternating current.
On supply.
Off supply.
Standby supply. The equipment will be marked with this symbol is not completely
disconnected from AC mains when power switch is in the standby position.
IEC Measurement Category I
WARNING The warning sign denotes a hazard. It calls attention to a procedure, practice,
condition or the like, which, if not correctly performed or adhered to, could result in
injury or death to personal.
CAUTION The caution sign denotes a hazard. It calls attention to an operating procedure,
practice, condition or the like, which, if not correctly performed or adhered to, could
result in damage to or destruction of part or all of the equipment.

>
`
^
CAT I

Installation Guide

2 Keysight 16495 Installation Guide, Edition 6
Installation Guide
Keysight 16495 connector plate is the interface to connect your prober or test fixture
to the instruments (Keysight B1500/E5260/E5270/4142/4155/4156 semiconductor
parameter analyzers, Keysight B2200/E5250 switching matrix, and so on).
This manual provides the information to install the connector plate, and consists of
the following sections:
•“Connector Plates” introduces the 16495C/D/E/F/G/H/J/K connector plates.
•“Required Parts” lists the parts needed to install the connector plate.
•“Installing Connector Plate” describes how to install the connector plates on
your shielding box for prober or fixture.
•“Installing Interlock Circuit” describes how to install the interlock circuit on
your shielding box.
•“Connecting DUT Cables” describes how to connect the cables between the
connector plate and the DUT interface such as manipulators and probe card.
WARNING You should install the connector plate on your shielding box for prober or test
fixture. And you should install an interlock circuit on the door of shielding box.
The reasons are:
• To prevent the operator from receiving an electric shock by the voltage or
current applied from instrument during measurement.
• To minimize the effects of environmental noise and ambient light.
If the instrument has the interlock capability, you must make the interlock
circuit on your shielding box, and connect the instrument to the interlock
connector on the connector plate. See “Installing Interlock Circuit” on page 11
and “To Connect Interlock Cable” on page 15. When you open the shielding
box door, the voltages applied to the DUT are reduced automatically to a
non-dangerous level.
If you use an instrument that does not have the interlock capability, dangerous
voltages can still be applied to the DUT even when you open the shielding box
door.


Keysight 16495 Installation Guide, Edition 6 3
Installation Guide
Connector Plates
Connector Plates
The following connector plates are available for Keysight Technologies
semiconductor parametric measurement instruments such as the B1500, B2200,
E5250, E5260, E5270, 4142, 4155, 4156, 41501 and so on.

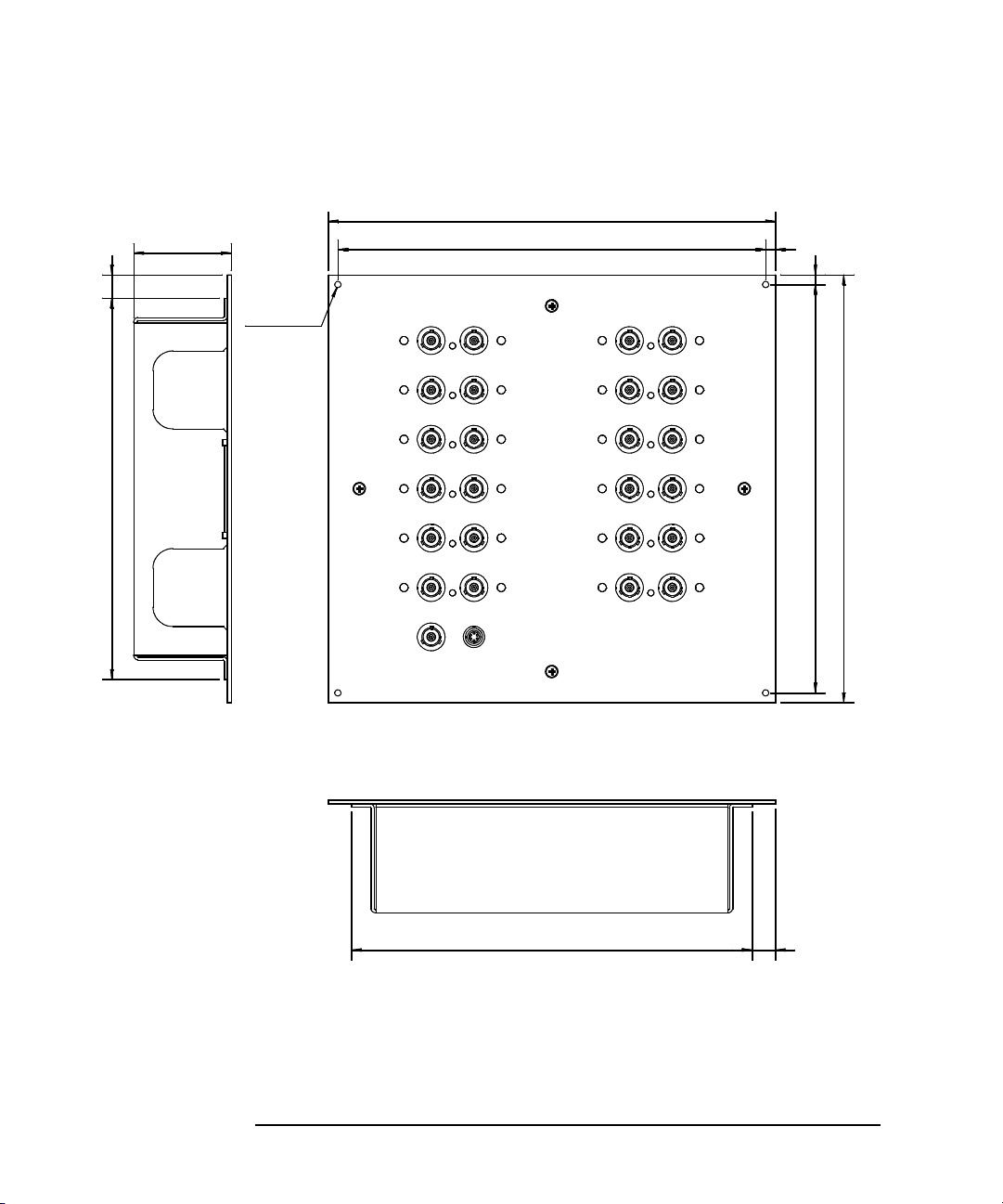

Size and dimensions of the half size connector plates and the full size connector
plates are shown in Figure 1 and Figure 2 respectively. They show the 16495F and
the 16495G as example.
Keysight 16495C Half size connector plate for multiplexer
The 16495C has six 8-channel shielded coaxial connectors, an Intlk connector, and a
GNDU connector. The back of each connector is designed for soldering.
Keysight 16495D Full size connector plate for multiplexer
The 16495D has twelve 8-channel shielded coaxial connectors, an Intlk connector,
and a GNDU connector. The back of each connector is designed for soldering.
Keysight 16495F Half size connector plate for matrix
16495F-001 has 12 triaxial through connectors (female to female), an Intlk
connector, and a GNDU connector (triaxial through, female to female). The back of
the Intlk connector is designed for soldering.
16495F-002 has 12 triaxial connectors, an Intlk connector, and a GNDU connector.
The back of each connector is designed for soldering.
Keysight 16495G Full size connector plate for matrix
16495G-001 has 24 triaxial through connectors (female to female), an Intlk
connector, and a GNDU connector (triaxial through, female to female). The back of
the Intlk connector is designed for soldering.
16495G-002 has 24 triaxial connectors, an Intlk connector, and a GNDU connector.
The back of each connector is designed for soldering.
NOTE 16495C/D/F/G Connector Plates
Connector plate is electrically connected to the outer conductor of the connectors.
So, ignore the Insulator in figures to show the connection examples of the SMU
(source monitor unit) and the GNDU (ground unit).

4 Keysight 16495 Installation Guide, Edition 6
Installation Guide
Connector Plates
Keysight 16495H Half size connector plate for analyzer
16495H-001 has 6 triaxial through connectors (female to female), 6 BNC through
connectors (female to female), an Intlk connector, and a GNDU connector (triaxial
through, female to female). The back of the Intlk connector is designed for
soldering.
16495H-002 has 6 triaxial connectors, 6 BNC connectors, an Intlk connector, and a
GNDU connector. The back of each connector is designed for soldering.
Keysight 16495J Half size connector plate for analyzer
16495J-001 has 8 triaxial through connectors (female to female), 4 BNC through
connectors (female to female), an Intlk connector, and a GNDU connector (triaxial
through, female to female). The back of the Intlk connector is designed for
soldering.
16495J-002 has 8 triaxial connectors, 4 BNC connectors, an Intlk connector, and a
GNDU connector. The back of each connector is designed for soldering.
Keysight 16495K Half size connector plate with universal cable holder
16495K-001 does not have any connectors. This plate provides the cable hole and
the cover with rubber used to block the light from the cable hole. This plate will be
used with the Keysight E5288A Atto Sense/Switch Unit (ASU) or the Keysight
N1301A-200 Guard Switch Unit (GSWU) that will be installed in the shielding box.
The cable hole is to pass the cables from the ASU or GSWU to the instrument such
as the Keysight B1500A, E5270B, and so on. And the cables will be fixed to the
shielding box by using the cover with rubber that will close the opening of the cable
hole.
Keysight 16495E Half size blank plate
This plate is used to cover openings when you made too big openings for installing
the connector plate. You will use this plate to cover openings if you install the half
size connector plate in openings made for the full size connector plate.

Keysight 16495 Installation Guide, Edition 6 5
Installation Guide
Connector Plates
Figure 1 Dimensions of Half Size Connector Plate (in mm)
196
12
5
5
50
4 -

3.2
105
115
220210
91 12

6 Keysight 16495 Installation Guide, Edition 6
Installation Guide
Connector Plates
Figure 2 Dimensions of Full Size Connector Plate (in mm)
196
12
50
4 -

3.2
230
220
220
210
206 12
5
5

Keysight 16495 Installation Guide, Edition 6 7
Installation Guide
Required Parts
Required Parts
The parts needed to install the connector plate are listed in Table 1.
Table 1 Required Parts
Usage Keysight
Part Number Qty. Description
To install connector
plate 0515-0986 4Screw (20mm)
2190-0584 4Washer Spring
3050-0891 4Washer Flat
0535-0031 4Nut
To install interlock
circuit N1254A-402 or 3101-3241 2Switch
1450-0641 1LED
(VF 2.1 V @ IF= 10 mA)
8150-5680 a
a. Length and quantity depend on your measurement environment.
Wire
(24 AWG, 600 V, 150 C)
To connect GNDU
output 8121-1189 or 8150-2639 aCoax. Cable or Wire
To connect SMU outputs 8121-1191 aLow Noise Coax. Cable
To connect VMU inputs/
VSU outputs 8150-0447 aWire
To connect PGU outputs 8120-0102 or
8121-1191 aLow Noise Coaxial Cable
To connect MFCMU
outputs 8120-0367 a50 Coaxial Cable

8 Keysight 16495 Installation Guide, Edition 6
Installation Guide
Installing Connector Plate
Installing Connector Plate
This section explains how to install the connector plates on your shielding box for
prober or test fixture.
Before installing the connector plate, do the following.
1. Prepare the parts required for installing the connector plate. See Table 1.
2. Ground the shielding box if it is not grounded.
3. On the shielding box, create openings and screw holes that match the size of
connector plate. The dimensions for the openings and screw holes are as
follows.
• Screw holes: 3 mm in diameter
• Openings:
• Half size connector plate: 95 mm (W) 200 mm (H)
• Full size connector plate: 210 mm (W) 200 mm (H)
For the position of the screw holes, see “Connector Plates” on page 3.
4. If any instrument is connected to the connector plate, turn it off.
5. Disconnect all cables from the connector plate.
Install the connector plate as shown below.
1. For the 16495C/D/F/G/H/J-002, remove the shield cover from wiring side of
connector plate by removing screws on the connector plate.
2. Install the interlock circuit to the shielding box. See “Installing Interlock
Circuit” on page 11.
3. Make connections between the connector plate and the DUT interface, such as
manipulators and probe card. See “Connecting DUT Cables” on page 16.
4. Fix the connector plate on the shielding box by using the screws, nuts, and
washers. See Figure 3. This will ground the connector plate.
5. For the 16495C/D/F/G/H/J-002, re-attach the shield cover to the connector plate.
This will ground the cover and avoid the chance to touch the soldered joints.
6. For the 16495K, continue the procedure shown in “To Install 16495K” on page
10.

Keysight 16495 Installation Guide, Edition 6 9
Installation Guide
Installing Connector Plate
Figure 3 To Install Connector Plate
Screw
Screw
Op eni ng f o r
Connector Plat e
Screw Hole Shielding Box
Screw Hole
Connec t or Plat e
Nut
Wa s h e r Fl a t Nut
Wa s h e r S p r i n g

10 Keysight 16495 Installation Guide, Edition 6
Installation Guide
Installing Connector Plate
To Install 16495K
Pass the ASU control cable and measurement cables, or pass the GSWU control
cable through the cable hole as shown below. See Figure 4 or Figure 5.
1. Remove the cover with rubber by removing screws on the 16495K plate.
2. Pass the ASU cables or the GSWU cable through the cable hole, and adjust the
cable length inside the shielding box. The cables must be connected between the
unit (ASU or GSW) and the instrument such as the Keysight B1500A, E5270B,
and so on.
3. Re-attach the cover with rubber to the 16495K plate. The cables will be
sandwiched between the cover and the plate. And the cable hole will be closed.
Figure 4 To Install 16495K and ASU
Figure 5 To Install 16495K and GSWU
Shielding box
To E5270B/4284A
16495K 16495K
ASU
DUT interface
ASU
Prober
CMU Return
CMU Return
Wire
Shielding box
To B1500A/
SCUU
16495K
GSWU DUT interface
Prober
Wire from CMU Guard

Keysight 16495 Installation Guide, Edition 6 11
Installation Guide
Installing Interlock Circuit
Installing Interlock Circuit
Interlock circuit is to prevent electric shock when touching measurement terminals.
Before installing the connector plate, you must install an interlock circuit to prevent
dangerous voltages when door of shielding box is open.
This circuit can be made with an instrument that has the interlock capability, such as
the Keysight B1500/E5260/E5270/4155/4156.
The following figure shows the pin assignments of the Intlk connector on the
connector plate and the interlock circuit you need to make on your shielding box.
Recommended parts for making interlock circuit are shown in Table 1.
Figure 6 Interlock Connector
NOTE Intlk Connector
Intlk connector on the connector plate is compatible with the Intlk connector of the
Keysight B1500/E5260/E5270/4155/4156.
If you use an instrument that has a BNC type interlock connector (such as the 4142),
use the Keysight 16435A interlock cable adapter and Keysight 16493J interlock
cable.
To connect the interlock connector of instrument and connector plate, see “To
Connect Interlock Cable” on page 15.
1
2
34
5
6
Connector side
Interlock switch
Wiring side
LED
1
2
3 4
5
6

12 Keysight 16495 Installation Guide, Edition 6
Installation Guide
Installing Interlock Circuit
To Install Interlock Circuit
Install the interlock circuit as follows.
1. Fix two mechanical switches on your shielding box, so that the switches close
when the door of the shielding box is closed, and open when the door is opened.
For the dimensions of the switches, see Figure 7 and Figure 8.
2. Use wire and connect the two switches in series between pin number 1 and 2 (or
3) of the Intlk connector. See Figure 6.
For example, if the Keysight B1500/E5260/E5270/4155/4156 is connected to the
Intlk connector, it cannot force dangerous voltage, more than ±40 or 42 V depending
on the instrument, when the door is open. When the door is closed, it can force the
dangerous voltage. For details of interlock capability, see the manual of the
instrument you use.
Figure 7 Dimensions of the Interlock Switch (N1254A-402)
3.1
35.6
8.1
14
NC
NO
COM
6.4
22.2
27.8
2.8
6.3 15.9 18.8
4.7510.3 4.3
2.8
2.8
3.2
10.3
2.8
3.1
Switch off
Units: mm
15.3
