Keysight APM0100E User manual

Keysight APM0100E
100BASE-T1/Ethernet Media
Converter
User Guide

2 Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide
Notices
Copyright Notice
© Keysight Technologies 2020
No part of this manual may be repro-
duced in any form or by any means
(including electronic storage and
retrieval or translation into a foreign
language) without prior agreement and
written consent from Keysight Technol-
ogies, Inc. as governed by United
States and international copyright
laws.
Edition
February 2020
Published by:
Keysight Technologies
Bayan Lepas Free Industrial Zone,
11900 Penang, Malaysia
Technology Licenses
The hardware and/or software
described in this document are fur-
nished under a license and may be
used or copied only in accordance with
the terms of such license.
Declaration of Conformity
Declarations of Conformity for this
product and for other Keysight prod-
ucts may be downloaded from the
Web. Go to http://www.keysight.com/
go/conformity. You can then search by
product number to find the latest Dec-
laration of Conformity.
U.S. Government Rights
The Software is “commercial computer
software,” as defined by Federal Acqui-
sition Regulation (“FAR”) 2.101. Pursu-
ant to FAR 12.212 and 27.405-3 and
Department of Defense FAR Supple-
ment (“DFARS”) 227.7202, the U.S.
government acquires commercial com-
puter software under the same terms
by which the software is customarily
provided to the public. Accordingly,
Keysight provides the Software to U.S.
government customers under its stan-
dard commercial license, which is
embodied in its End User License
Agreement (EULA), a copy of which can
be found at http://www.keysight.com/
find/sweula. The license set forth in the
EULA represents the exclusive authority
by which the U.S. government may use,
modify, distribute, or disclose the Soft-
ware. The EULA and the license set
forth therein, does not require or per-
mit, among other things, that Keysight:
(1) Furnish technical information
related to commercial computer soft-
ware or commercial computer software
documentation that is not customarily
provided to the public; or (2) Relinquish
to, or otherwise provide, the govern-
ment rights in excess of these rights
customarily provided to the public to
use, modify, reproduce, release, per-
form, display, or disclose commercial
computer software or commercial com-
puter software documentation. No
additional government requirements
beyond those set forth in the EULA
shall apply, except to the extent that
those terms, rights, or licenses are
explicitly required from all providers of
commercial computer software pursu-
ant to the FAR and the DFARS and are
set forth specifically in writing else-
where in the EULA. Keysight shall be
under no obligation to update, revise or
otherwise modify the Software. With
respect to any technical data as
defined by FAR 2.101, pursuant to FAR
12.211 and 27.404.2 and DFARS
227.7102, the U.S. government
acquires no greater than Limited Rights
as defined in FAR 27.401 or DFAR
227.7103-5 (c), as applicable in any
technical data.
Warranty
THE MATERIAL CONTAINED IN THIS
DOCUMENT IS PROVIDED “AS IS,”
AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN
FUTURE EDITIONS. FURTHER, TO THE
MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, KEYSIGHT DIS-
CLAIMS ALL WARRANTIES, EITHER
EXPRESS OR IMPLIED, WITH REGARD
TO THIS MANUAL AND ANY INFORMA-
TION CONTAINED HEREIN, INCLUD-
ING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. KEYSIGHT
SHALL NOT BE LIABLE FOR ERRORS
OR FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES IN CONNECTION
WITH THE FURNISHING, USE, OR
PERFORMANCE OF THIS DOCUMENT
OR OF ANY INFORMATION CON-
TAINED HEREIN. SHOULD KEYSIGHT
AND THE USER HAVE A SEPARATE
WRITTEN AGREEMENT WITH WAR-
RANTY TERMS COVERING THE MATE-
RIAL IN THIS DOCUMENT THAT
CONFLICT WITH THESE TERMS, THE
WARRANTY TERMS IN THE SEPARATE
AGREEMENT SHALL CONTROL.
Safety Information
CAUTION
A CAUTION notice denotes a hazard. It
calls attention to an operating proce-
dure, practice, or the like that, if not
correctly performed or adhered to,
could result in damage to the product
or loss of important data. Do not pro-
ceed beyond a CAUTION notice until
the indicated conditions are fully
understood and met.
WARNING
A WARNING notice denotes a hazard. It
calls attention to an operating proce-
dure, practice, or the like that, if not
correctly performed or adhered to,
could result in personal injury or death.
Do not proceed beyond a WARNING
notice until the indicated conditions are
fully understood and met.

Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide 3
Table of Contents
1ProductInspection
Check the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Visual Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Operation and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Interfaces and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Conventional Ethernet Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Automotive Ethernet Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
100BASE-T1/Ethernet Media Converter Hardware Setup . . . . . . . . . .18
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
USB Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Ethernet Transceivers/PHYs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Other Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
3 Troubleshooting
No LEDs are Illuminated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Conventional Ethernet Link LED is not Illuminated . . . . . . . . . . . . . . . .27
Automotive Ethernet Link LED is not Illuminated . . . . . . . . . . . . . . . . .28
Err LED Lights Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Data Sent by the Automotive Ethernet Device is Not Received . . . . . .29
Data Sent by the Conventional Ethernet Device is Not Received . . . . .29
Difficulty Removing the BroadR-Reach (100BASE-T1) Cable from the Molex
Mini50 Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

4 Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide
AAppendix
List of Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
BAppendix
Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide 5
List of Figures
Figure 2-1 100BASE-T1/Ethernet Media Converter Block 
Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

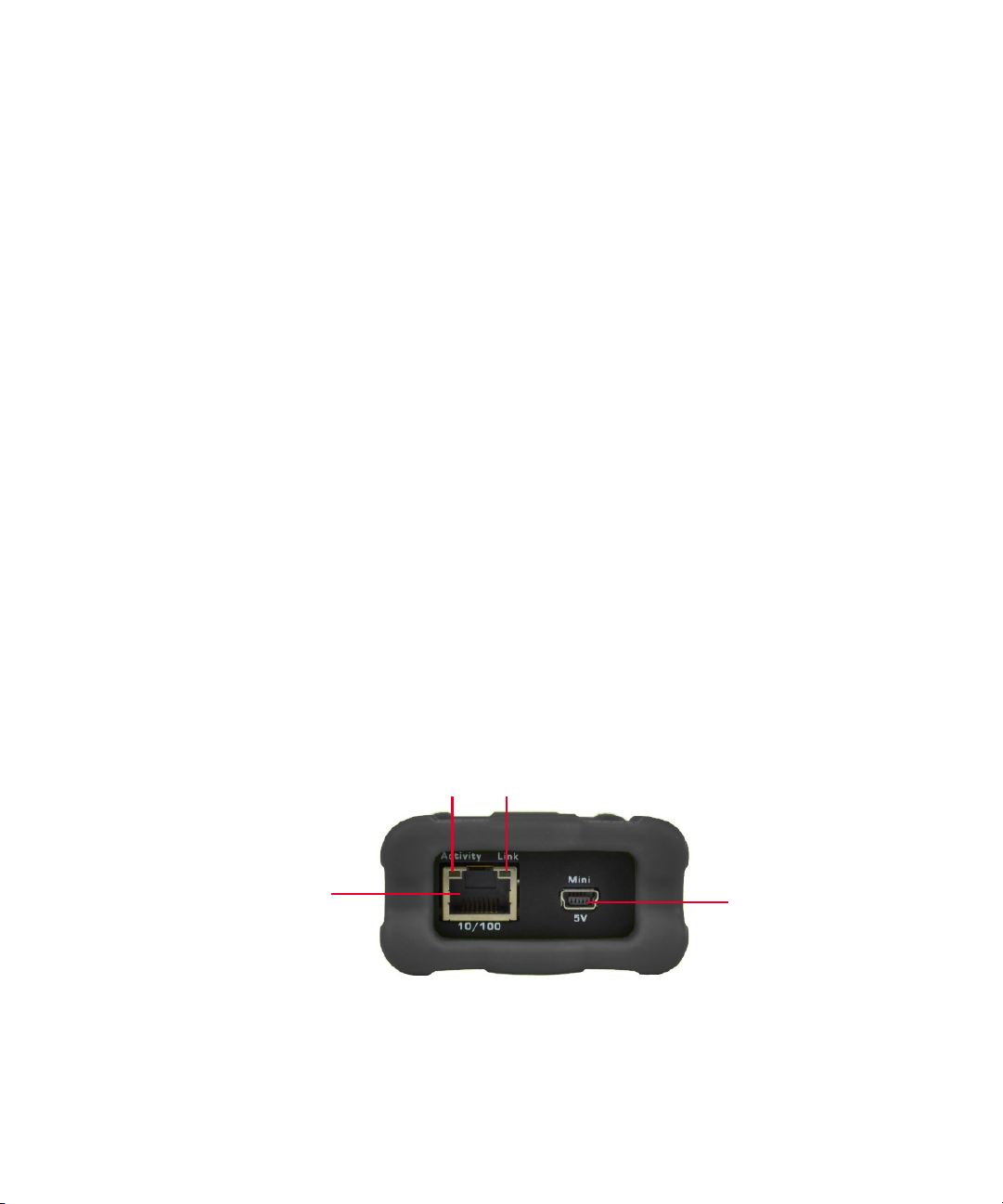

Figure 2-2 100BASE-T1/Ethernet Media Converter Conventional
Ethernet Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

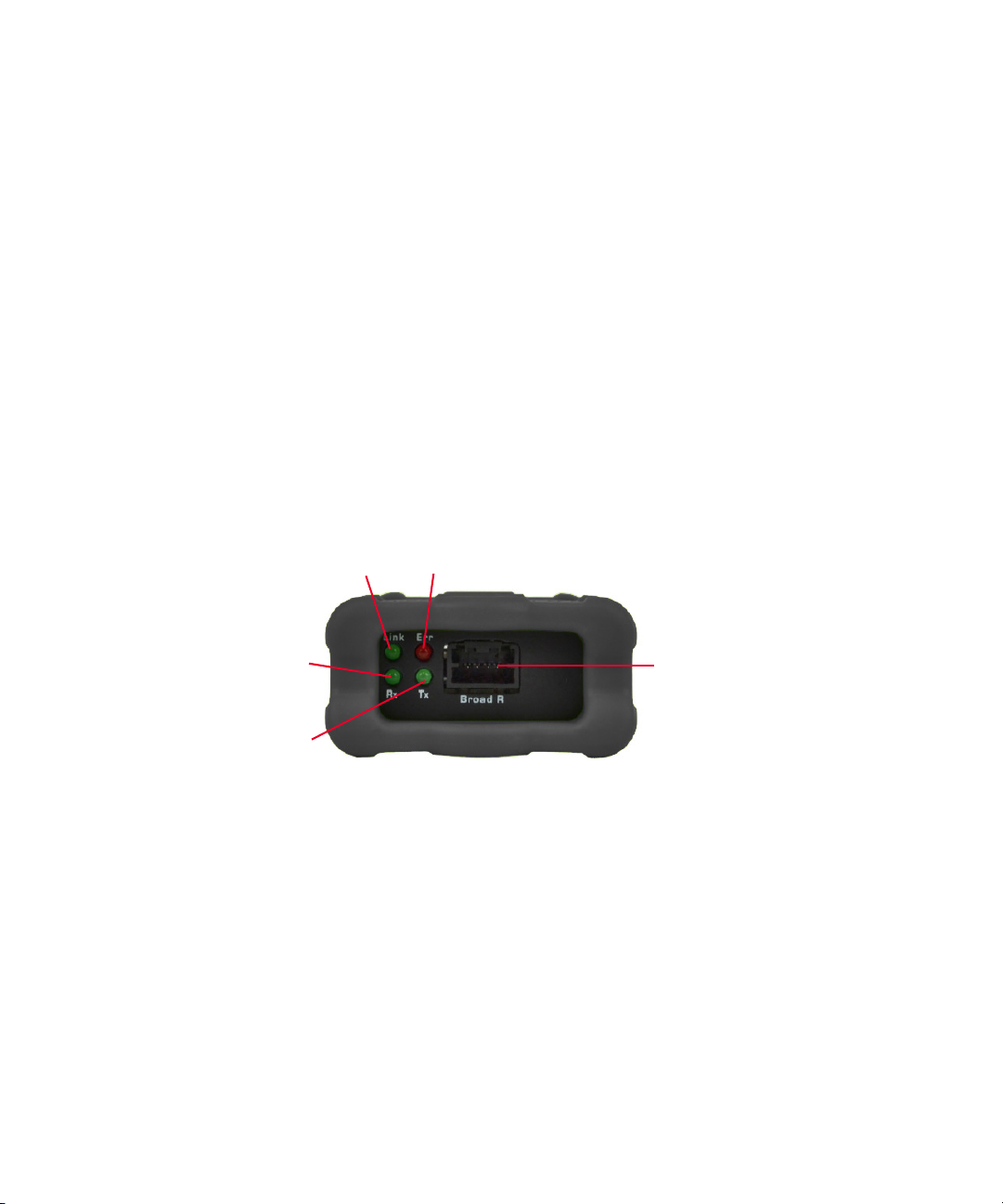

Figure 2-3 100BASE-T1/Ethernet Media Converter Automotive 
Ethernet Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

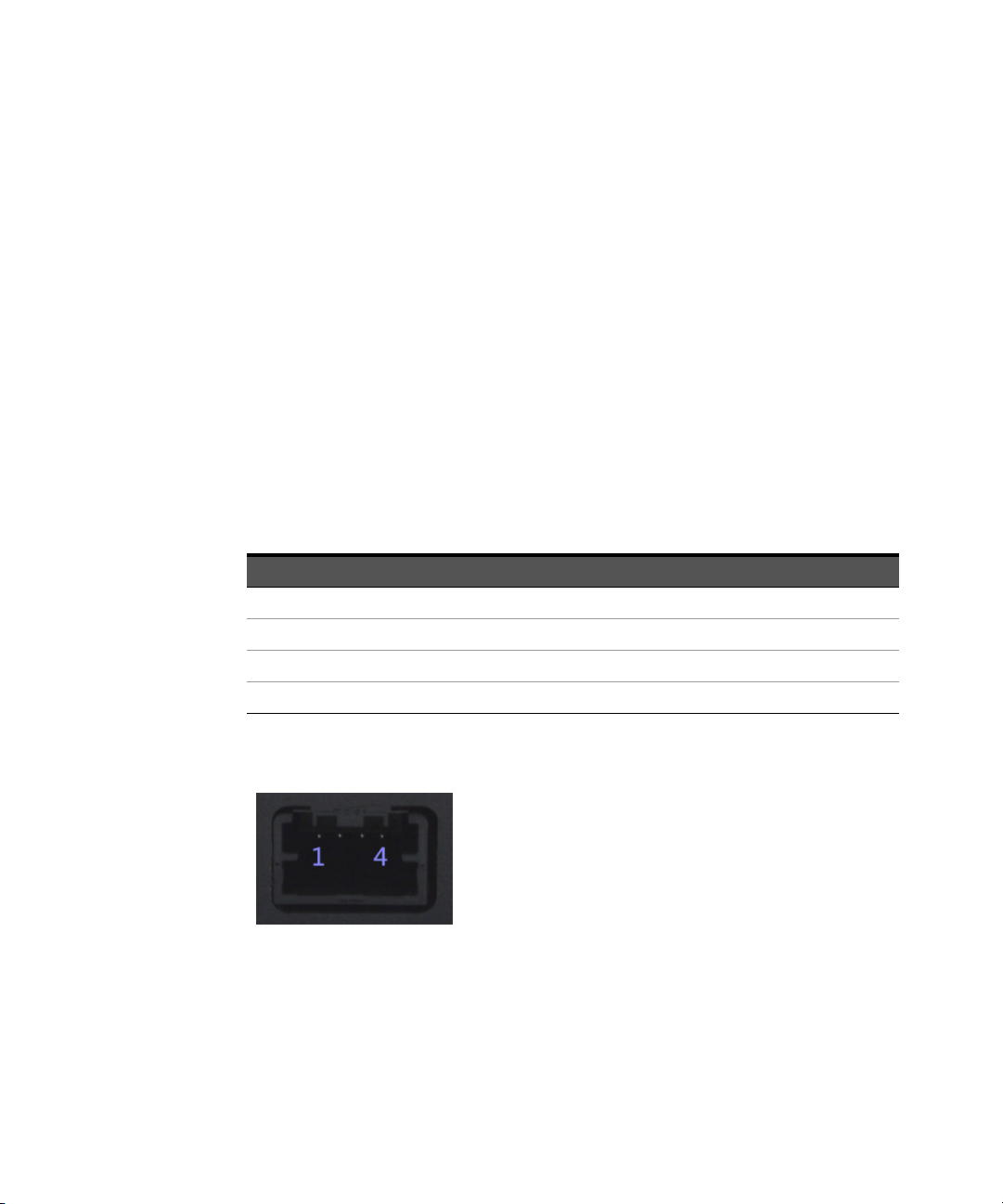

Figure 2-4 100BASE-T1/Ethernet Media Converter BroadR-Reach
(100BASE-T1) Molex Mini50 Jack with Pin 
Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

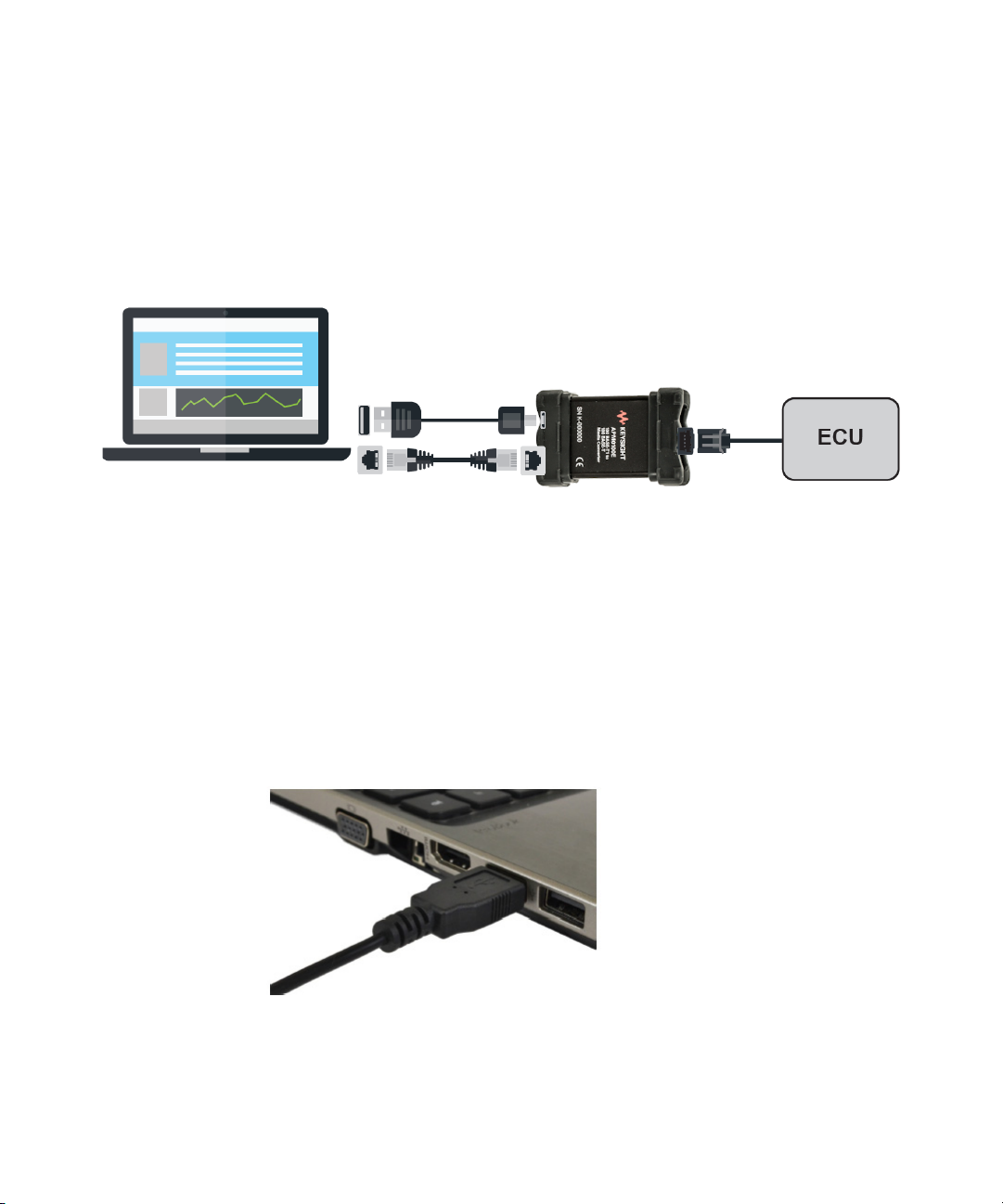

Figure 2-5 100BASE-T1/Ethernet Media Converter Hardware
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Figure 2-6 Connecting the USB Cable to a Laptop USB Port . . .18
Figure 2-7 Connecting the USB Cable to the 100BASE-T1/Ethernet
Media Converter . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Figure 2-8 Connecting the Ethernet Cable to a PC . . . . . . . . . . .19

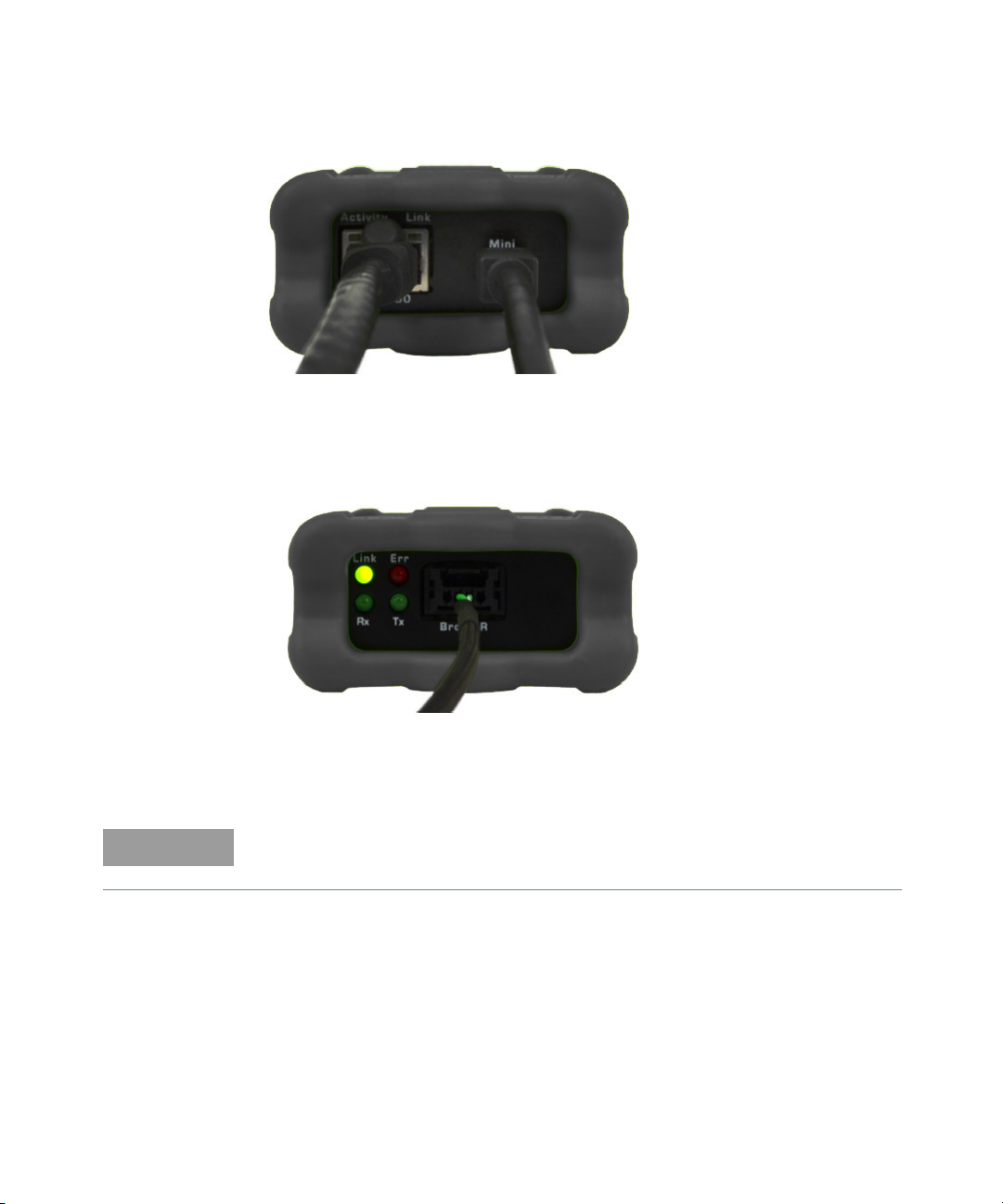

Figure 2-9 Connecting the Ethernet Cable to the 100BASE-T1/
Ethernet Media Converter . . . . . . . . . . . . . . . . . . . .20
Figure 2-10 Connecting the BroadR-Reach (100BASE-T1) Cable to the
100BASE-T1/Ethernet Media Converter . . . . . . . .20

6 Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide
THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK.

Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide 7
List of Tables
Table 2-1 100BASE-T1/Ethernet Media Converter Data
BroadR-Reach (100BASE-T1) Molex Mini50 Jack
Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Table 2-2 100BASE-T1/Ethernet Media Converter Standard 
Dimensions and Weight . . . . . . . . . . . . . . . . . . . . .21
Table 2-3 Characteristics for the Automotive Ethernet
(BroadR-Reach (100BASE-T1)) transceiver . . . . . .22
Table 2-4 Characteristics for the Standard Ethernet (100BASE-TX)
Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Table 2-5 Other Specifications for 100BASE-T1/Ethernet Media
Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Table A-1 Abbreviation and Definition . . . . . . . . . . . . . . . . . . . . .32

8 Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide
THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK.

Keysight APM0100E 100BASE-T1/Ethernet Media Converter
User Guide
9
1 Product Inspection
Check the Product 10

1 Product Inspection
10 Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide
Check the Product
Upon receiving the APM0100E 100BASE-T1/Ethernet Media Converter from
Keysight Technologies, perform the following product inspection:
– Inspect the outer shipping container, foam-lined instrument case, and product
for damage.
– Retain the outer cardboard shipping container until you have inspected the
contents of the shipment for completeness, and you have checked the product
mechanically and electrically.
– Locate the shipping list and verify that all items ordered were received.
Package Contents
Your 100BASE-T1/Ethernet Media Converter package contains the following:
– One 100BASE-T1/Ethernet Media Converter device
– One BroadR-Reach (100BASE-T1) cable (Dual Molex Mini50)
– One standard 4-wire Ethernet cable
– One standard USB to mini-USB cable
If anything is missing, contact Keysight Technologies “Service and Support” on
page 34 for prompt assistance.
Visual Inspection
Be sure to inspect all instrument cables, Ethernet cables, and devices carefully
before making a connection. Inspect all cables and connectors for metal particles,
scratches, deformed threads, dents, or bent, broken, or misaligned center
conductors. Do not use damaged cables.

Keysight APM0100E 100BASE-T1/Ethernet Media Converter
User Guide
11
2 Introduction
Overview 12
Operation and Features 13
Interfaces and Indicators 15
100BASE-T1/Ethernet Media Converter Hardware Setup 18
Technical Specifications 21

2Introduction
12 Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide
Overview
The 100BASE-T1/Ethernet Media Converter is a powerful yet inexpensive tool that
effectively bridges the gap between Automotive Ethernet and conventional
Ethernet.
100BASE-T1/Ethernet Media Converter consists of the following:
– One BroadR-Reach (100BASE-T1) Automotive Ethernet port
– One standard, 4-wire 10/100 Mb/s Ethernet port
Data received on either port is copied to the other, allowing you to connect an
Automotive Ethernet ECU to a standard PC network interface card or Ethernet
switch. Powered by USB for convenience, the 100BASE-T1/Ethernet Media
Converter is packaged in a rugged, lightweight enclosure, making it easy to take
anywhere it's needed.
The 100BASE-T1/Ethernet Media Converter is ideal for monitoring, analysis,
diagnostics, and other applications in an Automotive Ethernet environment.

Introduction 2
Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide 13
Operation and Features
Understanding 100BASE-T1/Ethernet Media Converter's design will help you get
the most out of its operation and features.
General Operation
The 100BASE-T1/Ethernet Media Converter contains two different Ethernet
physical layer implementations (PHYs) that are internally connected as follows:
– A BroadR-Reach (100BASE-T1) PHY
– A conventional 10/100 twisted-pair Ethernet PHY
You can connect an Automotive Ethernet ECU or device under test (DUT) to the
BroadR-Reach (100BASE-T1) PHY using the 100BASE-T1/Ethernet Media
Converter's Molex Mini50 connector, while a regular Ethernet device attaches
through the 100BASE-T1/Ethernet Media Converter's RJ-45 jack.
Data received over either connection is automatically sent out on the other,
creating a seamless link between the two attached devices. Full-duplex operation
is supported so that data can be sent in both directions simultaneously.
100BASE-T1/Ethernet Media Converter's standard mini-USB connector provides
power to the device. Several LEDs provide useful information about the status of
the converter.
A typical application of the 100BASE-T1/Ethernet Media Converter is to connect
an Automotive Ethernet ECU to the Ethernet jack on a laptop or desktop PC.
Ethernet frames from the ECU can then be monitored using Intrepid's Vehicle Spy
3 software. Messages can also be transmitted from Vehicle Spy 3 through the
100BASE-T1/Ethernet Media Converter to the ECU, allowing any Automotive
Ethernet device to be queried, tested, and managed.
Features
The following lists the features of the 100BASE-T1/Ethernet Media Converter:
– Powered by an industry-standard mini-USB connection
– Broadcom BCM89810 BroadR-Reach (100BASE-T1) PHY
– Automatic master/slave configuration for the attached Automotive Ethernet
device

2Introduction
14 Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide
– Molex Mini50 for Automotive Ethernet connection
– Standard RJ-45 for 10/100 Ethernet connection with an automatic
configuration for 10 Mb/s or 100 Mb/s Ethernet networks
– Link and activity LEDs for both connections.
– Full-duplex support for simultaneous data transmission and reception across
both PHYs
– Rugged aluminum enclosure with rubber bumpers for durability
– Ethernet cable and USB cable included
Figure 2-1 shows the main functional elements of the 100BASE-T1/Ethernet
Media Converter. The two PHYs are connected directly to each other via the
standard Ethernet Media Independent Interface (MII).
Figure 2-1 100BASE-T1/Ethernet Media Converter Block Diagram

Introduction 2
Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide 15
Interfaces and Indicators
All of 100BASE-T1/Ethernet Media Converter's components are located on its two
sides, making the device easier to use in cramped quarters. The two sides are as
follows:
– Conventional Ethernet Side
– Automotive Ethernet Side
Conventional Ethernet Side
Figure 2-2 shows the side of the 100BASE-T1/Ethernet Media Converter that
attaches to a conventional Ethernet network. The two components are as follows:
–RJ-45 Port: An industry-standard conventional Ethernet jack with integrated
Link and Activity LEDs that provide information about the 100BASE-T1/
Ethernet Media Converter's conventional Ethernet connection:
–Link LED (Green): Indicates that there is a valid connection between the
100BASE-T1/Ethernet Media Converter and another 10/100 Ethernet
device.
–Activity LED (Orange): Flashes when traffic passes in either direction over
the attached Ethernet cable.
In normal operation, you should see the Link LED is always on, and the
Activity LED flashing at a variable rate, with faster flashing meaning a higher
data transfer rate.
–Mini-USB Port: A standard mini-USB port that provides power to the device.
Figure 2-2 100BASE-T1/Ethernet Media Converter Conventional Ethernet
Side
RJ-45 Port Mini USB Port
Activity LED Link LED

2Introduction
16 Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide
The 100BASE-T1/Ethernet Media Converter's standard 10/100 Ethernet
connection will automatically negotiate to match the speed of the Ethernet device
to which it is attached. In most cases, it will run at 100 Mb/s, though it will
support connection to a device that runs at 10 Mb/s. The 100BASE-T1/Ethernet
Media Converter can be forced to run at either 10 Mb/s or 100 Mb/s by forcing
the other device to the desired speed.
Automotive Ethernet Side
This side of the 100BASE-T1/Ethernet Media Converter contains just one
interface — a Molex Mini50 jack shown in Figure 2-3. While there is no
standardized Automotive Ethernet connector type, many BroadR-Reach
(100BASE-T1) devices, which include the Broadcom switches and other
Automotive Ethernet hardware, use the Molex Mini50. The BroadR-Reach
(100BASE-T1) connection automatically configures itself as master or slave as
needed.
Figure 2-3 100BASE-T1/Ethernet Media Converter Automotive Ethernet
Side
The four LEDs indicate the status of the 100BASE-T1/Ethernet Media Converter’s
Automotive Ethernet link:
–Link (Green): Turns on when the 100BASE-T1/Ethernet Media Converter is
connected to an active Automotive Ethernet device and remains on as long as
the link is maintained.
–Err (Red): Flickers upon detection of an error by the 100BASE-T1/Ethernet
Media Converter's BroadR-Reach (100BASE-T1) PHY, such as detecting a data
transmission error in a received frame.
Molex Mini50
BroadR-Reach
(100BASE-T1)
connector
Link Err
Rx
Tx

Introduction 2
Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide 17
–Rx (Green): Flashes when receiving data by the 100BASE-T1/Ethernet Media
Converter from the connected Automotive Ethernet device.
–Tx (Green): Flashes each time when transmitting data by the 100BASE-T1/
Ethernet Media Converter to the attached Automotive Ethernet device.
Under normal circumstances, you will see the Link LED always on, with the Rx and
Tx LEDs flashing at different rates depending on how much data is being sent by
each device connected to the 100BASE-T1/Ethernet Media Converter. Assuming
that all devices are functioning correctly, the Err LED should rarely, if ever, light
up.
BroadR-Reach (100BASE-T1) Connector Pinout
Refer to Table 2-1 for the pinout of the 100BASE-T1/Ethernet Media Converter's
Molex Mini50 jacks, with the pin numbers shown in Figure 2-4.
Pins are numbered 1 to 4 from left to right looking at the jack shown in Figure 2-4.
Figure 2-4 100BASE-T1/Ethernet Media Converter BroadR-Reach
(100BASE-T1) Molex Mini50 Jack with Pin Numbers
Table 2-1 100BASE-T1/Ethernet Media Converter Data BroadR-Reach
(100BASE-T1) Molex Mini50 Jack Pinout
Pin Number Label Description
1NoConnect–
2 TRD+ Data transmit and receive, positive
3 TRD- Data transmit and receive, negative
4NoConnect–

2Introduction
18 Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide
100BASE-T1/Ethernet Media Converter Hardware Setup
Refer to Figure 2-5 for the 100BASE-T1/Ethernet Media Converter hardware
setup.
Figure 2-5 100BASE-T1/Ethernet Media Converter Hardware Setup
You can use different methods to connect an Automotive Ethernet cable to an
ECU. The following instructions are for devices that are already connected to the
100BASE-T1/Ethernet Media Converter with its BroadR-Reach (100BASE-T1)
cable attached.
1 Remove Components from Package. Take out the 100BASE-T1/Ethernet
Media Converter, Ethernet cable, and USB cable from the 100BASE-T1/
Ethernet Media Converter package.
2 Connect USB Cable to PC or USB Hub. Attach the larger USB connector on
the USB cable to an open USB port on a PC or a USB hub shown in Figure 2-6.
Figure 2-6 Connecting the USB Cable to a Laptop USB Port
PC
USB Cable
Ethernet Cable
100BASE-T1/
Ethernet Media
Converter BroadR-Reach
(100BASE-T1)
Cable

Introduction 2
Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide 19
3 Connect the USB Cable to 100BASE-T1/Ethernet Media Converter. Connect
the mini-USB connector on the other end of the USB cable to the
100BASE-T1/Ethernet Media Converter shown in Figure 2-7.
Figure 2-7 Connecting the USB Cable to the 100BASE-T1/Ethernet Media
Converter
4 Connect Ethernet Cable to Ethernet Device. Attach one end of the included
standard Ethernet cable to an RJ-45 jack on a PC, switch, or other Ethernet
devices. You should hear a click indicating that the cable is properly seated in
the jack shown in Figure 2-8.
Figure 2-8 Connecting the Ethernet Cable to a PC
5 Connect Ethernet Cable to 100BASE-T1/Ethernet Media Converter. Attach
the other end of the Ethernet cable to the 100BASE-T1/Ethernet Media
Converter's standard Ethernet port shown in Figure 2-9. You will hear a click
upon attaching the Ethernet cable to 100BASE-T1/Ethernet Media Converter.
When you power on the PC or other Ethernet devices, you should now see the
Link LED lighting up and remain lit; the Activity LED may also begin to flash.

2Introduction
20 Keysight APM0100E 100BASE-T1/Ethernet Media Converter User Guide
Figure 2-9 Connecting the Ethernet Cable to the 100BASE-T1/Ethernet
Media Converter
Your 100BASE-T1/Ethernet Media Converter is now ready for operation.
Figure 2-10 Connecting the BroadR-Reach (100BASE-T1) Cable to the
100BASE-T1/Ethernet Media Converter
NOTE
If you experience any issues setting up the hardware, refer to “Troubleshooting”
on page 25.
