Keysight Technologies
N9029ACST Compact Frequency
Converter Modules
The Keysight N9029ACST are frequency up (CCU) or down (CCD) millimeter-wave compact
frequency converter (CC) modules, manufactured by Virginia Diodes, Inc. (VDI).
The CCU module provides high performance broadband frequency up-conversion and the CCD
provides the down-conversion. The modules can be used with microwave signal generators and
spectrum analyzers to extend the frequency range for wide band modulated millimeter-wave
signals. These modules achieve low conversion loss and excellent noise figure. The CC also have a
DC jack for use with VDI amplifiers. Refer to the VDI User’s Guide included on the USB drive.
For more information, see the VDI website at http://vadiodes.com. For specifications, see the VDI
web page at https://www.vadiodes.com/images/Products/CC/VDI-737_CC_Product_Manual.pdf.
Due to the double sideband nature of the CCUs, two sidebands (upper and lower sidebands) are
generated during the up-conversion process. A filter may be preferred for certain applications to
eliminate one sideband. See N9029AV99 model for available band pass filters.
Waveguide amplifiers may be required to boost the transmitted signal power out of the up-
converter.
The power supply will be included with the module in the transport case.
To order accessories, see Accessories and Information on page 15.
For more information, see the white paper (PDF) "Applying a Very Wide-Bandwidth Millimeter-
Wave Testbed to Power Amplifier DPD" at
http://literature.cdn.keysight.com/litweb/pdf/5992-1954EN.pdf
Converter Module
Power Supply
USB
User's Guide N9029-90033
3

Table 1 Instrument Dimensions
Model Weight Height Width Depth
N9029ACST ~1 lb. (for N9029ACST-D06, U06, H06) 1.5 inchesa3.0 inchesa3.75 inchesa
Dimensions and Space Requirements
a. 1.5" (H) x 3.5" (W) x 5.0" (D) for N9029ACST-D06, U06, H06
Power Requirements
•Voltage and/or range (V): 100-240 Vac (AC input for AC/DC adapter), 9 Vdc (input
for module)
•Frequency and/or range (Hz): 50-60 Hz (AC input for AC/DC adapter)
•Power in Watts, VA or Current (A): 1.2 A max (input for AC/DC adapter), 4 A (input
for module)
The instrument can operate with mains supply voltage fluctuations up to
± 10% of the nominal voltage.
Environmental Conditions
•For indoor use only
This product is designed for use in INSTALLATION CATEGORY II and
POLLUTION DEGREE 2.
Install the instrument so that the detachable power cord is readily identifiable and is
easily reached by the operator. The detachable power cord is the instrument
disconnecting device. It disconnects the mains circuits from the mains supply before
other parts of the instrument. Alternatively, an externally installed switch or circuit
breaker (which is readily identifiable and is easily reached by the operator) may be
used as a disconnecting device.

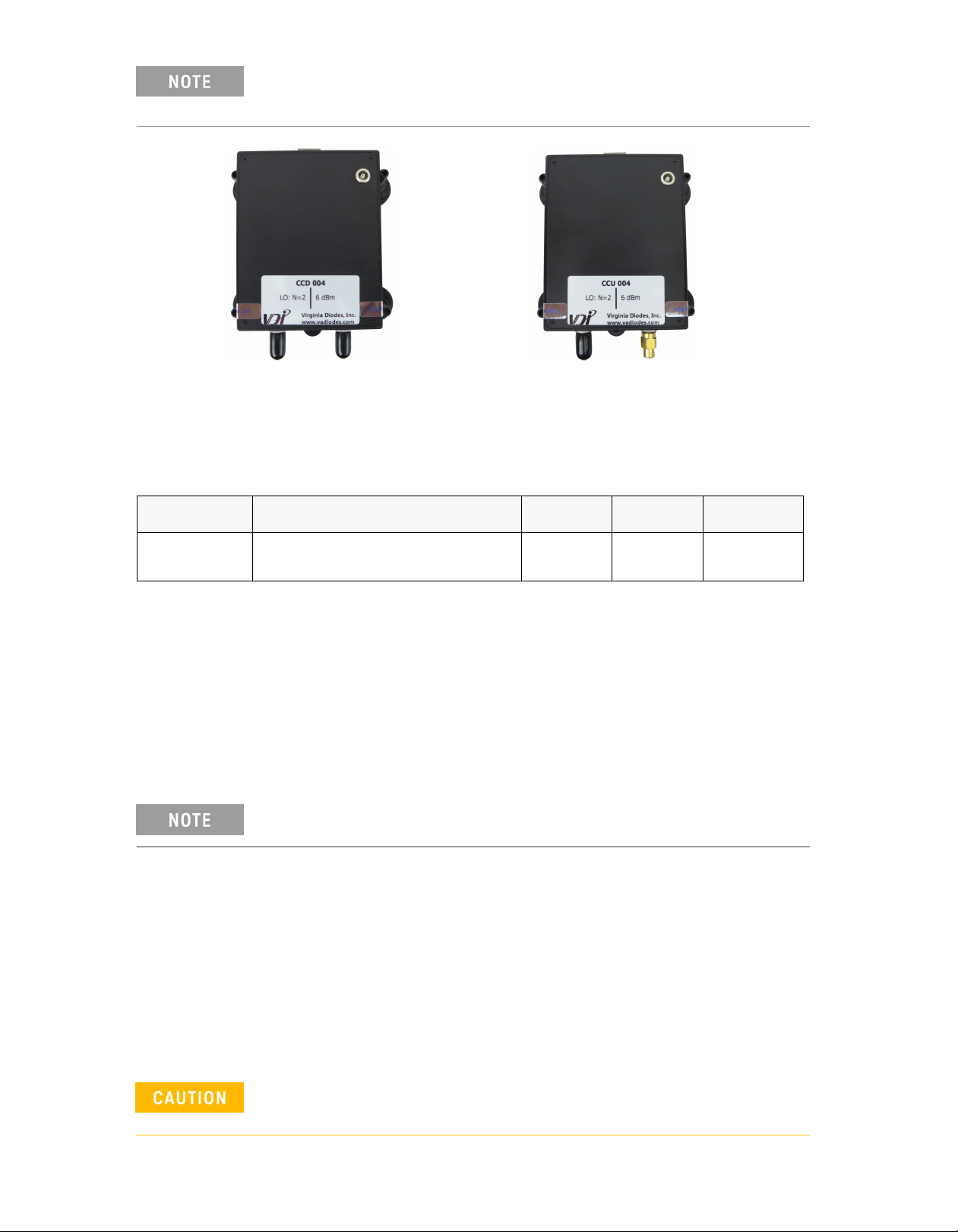

Down Converter Up Converter
The product serial number is the OEM serial number CCDxxxx or
CCUxxxx (xxxx = numbers in the OEM serial number) assigned by Virginia
Diodes, Inc. Refer to the label on the product for the serial number.
4
User's Guide N9029-90033

N9029ACST Compact Frequency Converter Options
Select an Up or Down frequency converter, frequency band, position of aperture
E-Field, and for some models, LO Multiplier.
•Options for Up-Converter CCU start with a U, H or P
•Options for Down-Converter CCD start with a D or N
•Options for Up Converter CCU-B start with a P1
•Options for Down Converter CCD-B start with an N1
Frequency Band Options2
Frequency Band
WR2.2
WR3.4
WR5.1
WR6.5
WR10
WR12
WR19
WR28
Options
U02 and D02
U03 and D03
U04 and D04
U05 and D05
U06 and D06
U08 and D08
P10 and N10
P12, P12
P15, N15
H19
U28 and D28

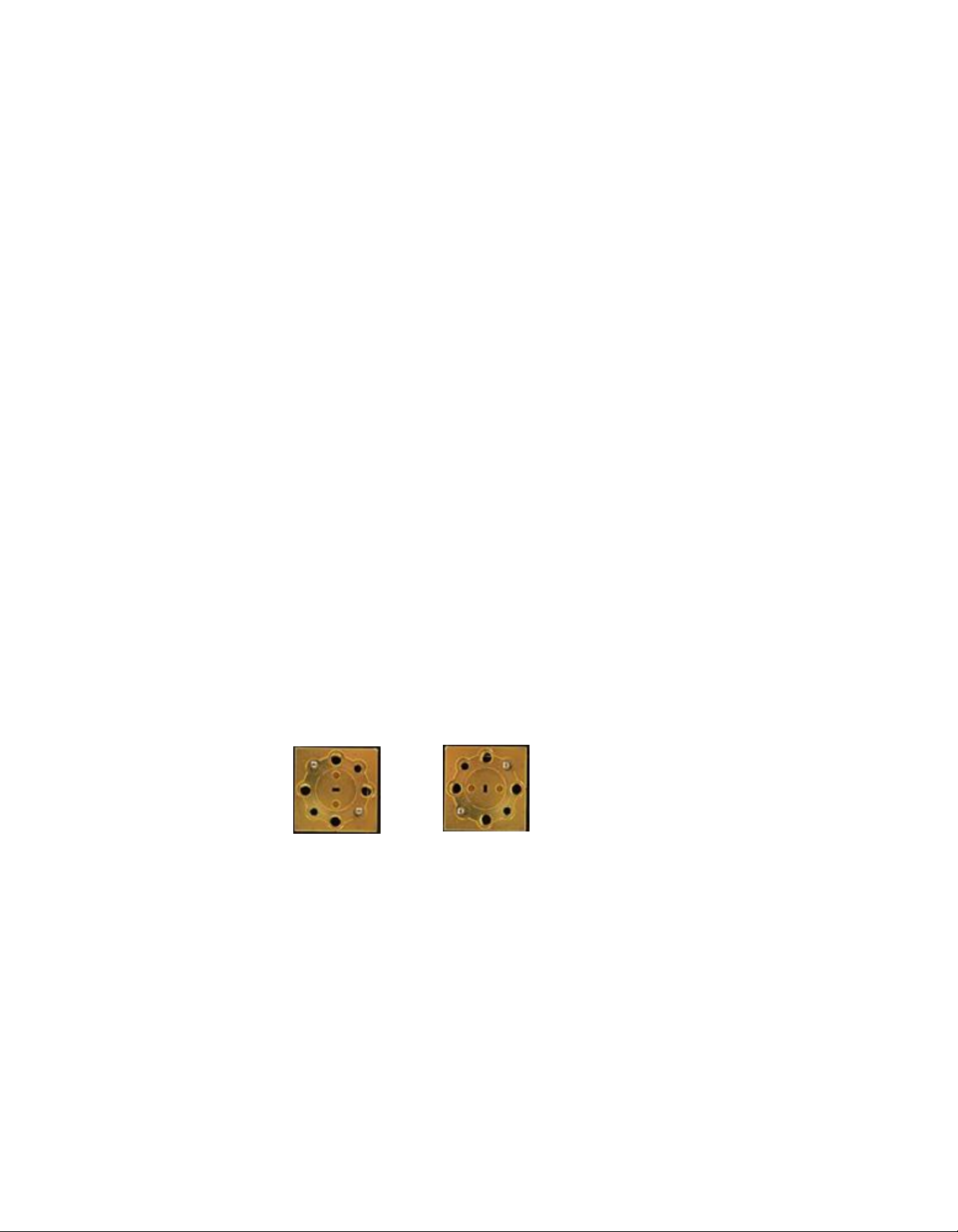

Options for Aperture E-Field Polarity
Option VEF or HEF (see pictures below; ensure position of the aperture desired)
VEF = Vertical HEF = Horizontal
Please observe that the VEF aperture actually has a horizontal orientation as you
look at it, as shown in the picture above. The same follows for the HEF, with a
vertical orientation of its aperature.
For new orders it is recommended to have the new vertical E-Field.
Options for LO Multiplier
M01 LO x1
M02 LO x2
M04 LO x4
M06 LO x6
M12 LO x12
Available for
U28/D28 only
U08/D08, P10/N10, P12/N12, P15/N15, H19
U06/D06
U06/D06, U03/D03
U02/D02, U03/D03
General Specifications and Information
•WR2.2 to WR15 have waveguide flange UG-387/U-M
•WR19 to WR28 have waveguide flange UG599/U-M
•All CCU and CCD products include a 9vdc/4 amp power supply and are
shipped in a transit case.
•For manuals, specifications, and drawings, visit VDI's website at
https://www.vadiodes.com/en/products/compact-converters
See available option combinations for each band on Table 2 on starting on page 8.
(330-500 GHz)
(220-330 GHz)
(170-260 GHz)
(140-220 GHz)
(110-170 GHz)
(90-140 GHz)
(75-110 GHz)
(60-90 GHz)
(50-75 GHz)
(40-60 GHz)
(26.5-40 GHz)
1. CCU-B and CCD-B options are available for frequency bands WR10, WR12, WR15, and WR19.
2. Options for frequency band are indicated by the last two digits.
WR4.3
WR8.0
User's Guide N9029-90033
5
WR15

Compact Converter Configurations

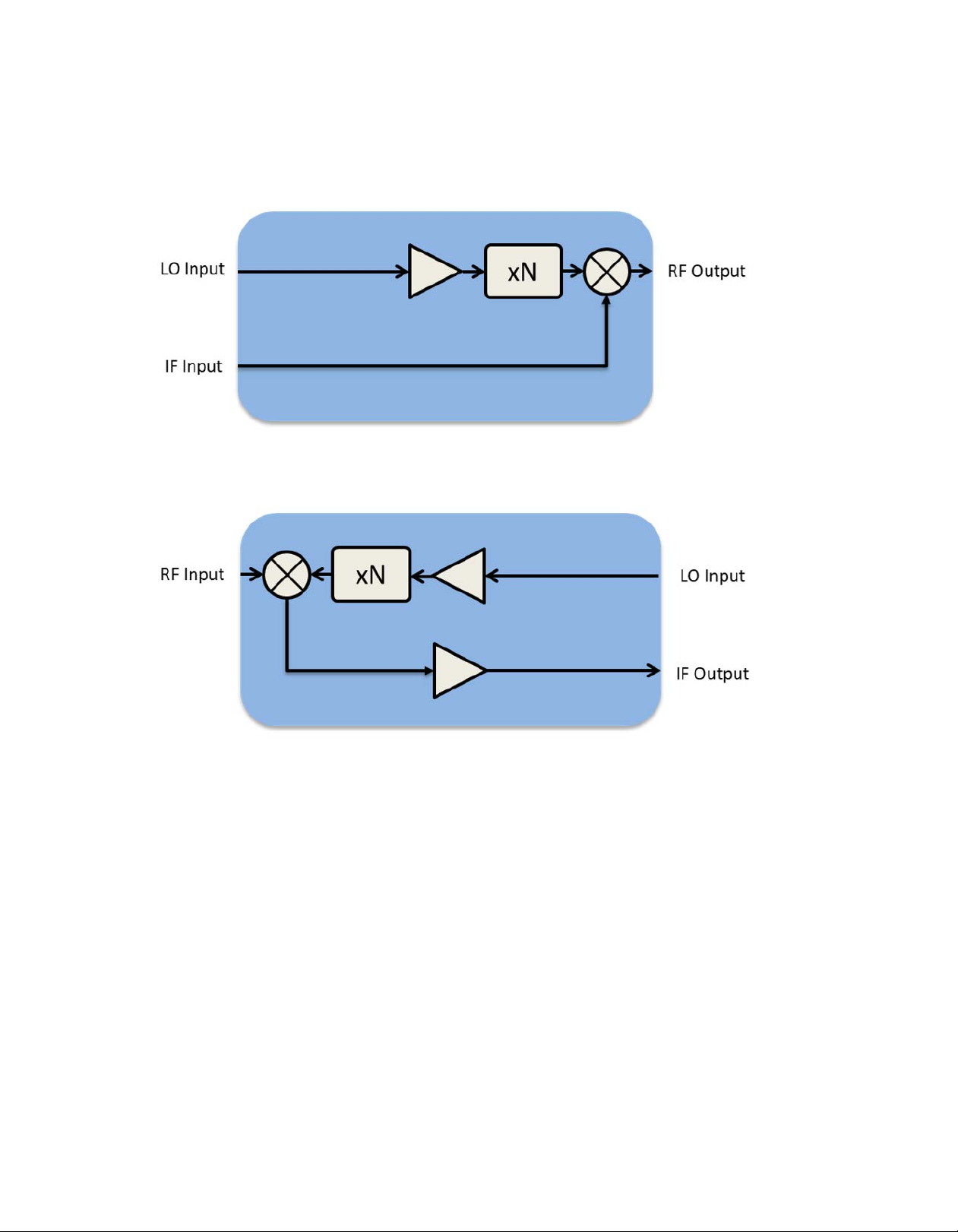

Figure 1 Compact Up-Converter (CCU)
Figure 2 Compact Down-Converter (CCD)
6
User's Guide N9029-90033

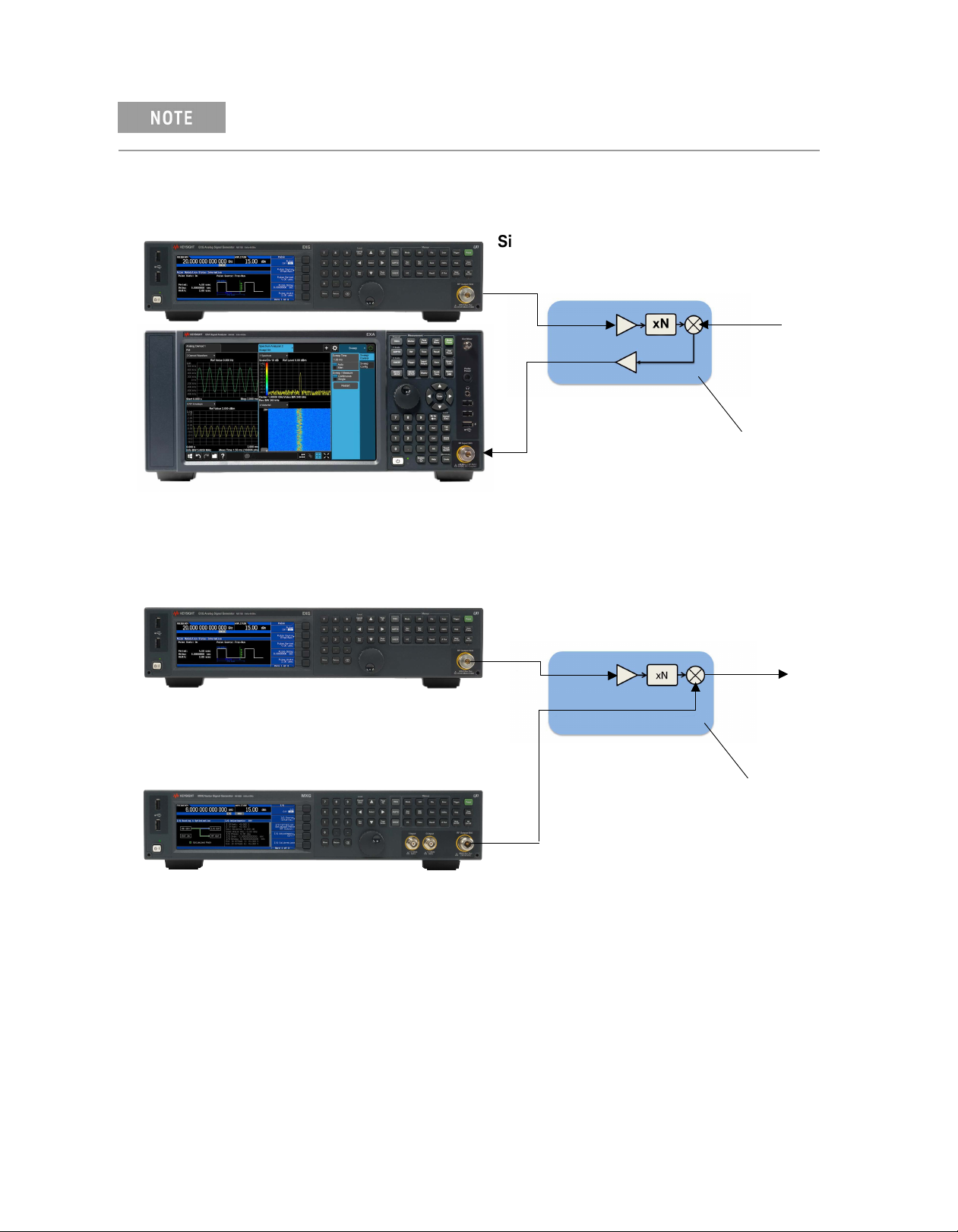

Figure 3 Connection Diagram for Frequency Down-Conversion
CCD
(Down Converter)
LO Input
M Output (IF)
Signal Analyzer
Signal Source (40 or 67 GHz)
Figure 4 Connection Diagram for Frequency Up-Conversion
CCU
(Up Converter)
LO Input
M Input (IF)
Caution - ESD sensitive
Signal Source
Signal Source
Waveguide
RF Output
Waveguide
RF Input
Refer to the LO multiplier and power level on the CCU or CCD. See information
on the USB or on the VDI website.
•If using both CCD with CCU, use a power splitter and one LO source for best results.
•CCU can be verified for power out using an N1913PM5B power meter for frequencies of
75 GHz or greater.
User's Guide N9029-90033
7

Available Options for N9029ACST Compact Frequency Converters
Table 2 Available Options
Keyight Options E-Field Keysight P/N Description VDI P/N
WR2.2 Band
U02, M12, HEF (330-500 GHz) N9029-80162 WR2.2 Up Converter WR2.2CCU-M12-H
LO Input (GHz)
27.5 to 41.7
LOx
12 Horizontal
U02, M12, VEF (330-500 GHz) N9029-80201 WR2.2 Up Converter WR2.2CCU-M12-V 27.5 to 41.7
12 Vertical
D02, M12, HEF (330-500 GHz) N9029-80163 WR2.2 Down Converter WR2.2CCD-M12-H 27.5 to 41.7
12 Horizontal
D02, M12, VEF (330-500 GHz) N9029-80202 WR2.2 Down Converter WR2.2CCD-M12-V 27.5 to 41.7
12 Vertical
WR3.4 Band
U03, M06, HEF (220-330 GHz) N9029-80165 WR3.4 Up Converter WR3.4CCU-M6-H 36.7 to 556 Horizontal
U03, M06, VEF (220-330 GHz) N9029-80203 WR3.4 Up Converter WR3.4CCU-M6-V 36.7 to 556 Vertical
D03, M06, HEF (220-330 GHz) N9029-80164 WR3.4 Down Converter WR3.4CCD-M6-H 36.7 to 556 Horizontal
D03, M06, VEF (220-330 GHz) N9029-80204 WR3.4 Down Converter WR3.4CCD-M6-V 36.7 to 556 Vertical
U03, M12, HEF (220-330 GHz) N9029-80205 WR3.4 Up Converter WR3.4CCU-M12-H 18.3 to 27.512 Horizontal
U03, M12, VEF (220-330 GHz) N9029-80206 WR3.4 Up Converter WR3.4CCU-M12-V 18.3 to 27.512 Vertical
D03, M12, HEF (220-330 GHz) N9029-80207 WR3.4 Down Converter WR3.4CCD-M12-H 18.3 to 27.512 Horizontal
D03, M12, VEF (220-330 GHz) N9029-80208 WR3.4 Down Converter WR3.4CCD-M12-V 18.3 to 27.512 Vertical
WR4.3 Band
U04, M06, HEF (170-260 GHz) N9029-80227 WR4.3 Up Converter WR4.3CCU-M6-H 28.3 to 43.36 Horizontal
U04, M06, VEF (170-260 GHz) N9029-80228 WR4.3 Up Converter WR4.3CCU-M6-V 28.3 to 43.36 Vertical
D04, M06, HEF (170-260 GHz) N9029-80229 WR4.3 Down Converter WR4.3CCD-M6-H 28.3 to 43.36 Horizontal
D04, M06, VEF (170-260 GHz) N9029-80230 WR4.3 Down Converter WR4.3CCD-M6-V 28.3 to 43.36 Vertical
WR5.1 Band
Table 2 continued on next page
U05, M06, HEF (140-220 GHz) N9029-80153 WR5.1 Up Converter WR5.1CCU-M6-H 23.3 to 36.76 Horizontal
U05, M06, VEF (140-220 GHz) N9029-80209 WR5.1 Up Converter WR5.1CCU-M6-V 23.3 to 36.76 Vertical
D05, M06, HEF (140-220 GHz) N9029-80152 WR5.1 Down Converter WR5.1CCD-M6-H 23.3 to 36.76 Horizontal
D05, M06, VEF (140-220 GHz) N9029-80210 WR5.1 Down Converter WR5.1CCD-M6-V 23.3 to 36.76 Vertical
8
User's Guide N9029-90033

Available Options for N9029ACST Compact Frequency Converters
Table 2 Available Options (Continued)
Keyight Options E-Field Keysight P/N Description VDI P/N
WR6.5 Band
U06, M06, HEF (110-170 GHz) N9029-60007 WR6.5 Up Converter WR6.5CCU-M6-H
LO Input (GHz)
18.3 to 28.4
LOx
6Horizontal
U06, M06, VEF (110-170 GHz) N9029-80211 WR6.5 Up Converter WR6.5CCU-M6-V 18.3 to 28.46 Vertical
D06, M06, HEF (110-170 GHz) N9029-60009 WR6.5 Down Converter WR6.5CCD-M6-H 18.3 to 28.46 Horizontal
D06, M06, VEF (110-170 GHz) N9029-80212 WR6.5 Down Converter WR6.5CCD-M6-V 18.3 to 28.46 Vertical
Table 2 continued on next page
U06, M04, HEF (110-170 GHz) N9029-80213 WR6.5 Up Converter WR6.5CCU-M4-H 27.5 to 42.54 Horizontal
U06, M04, VEF (110-170 GHz) N9029-80214 WR6.5 Up Converter WR6.5CCU-M4-V 27.5 to 42.54 Vertical
D06, M04, HEF (110-170 GHz) N9029-80215 WR6.5 Down Converter WR6.5CCD-M4-H 27.5 to 42.54 Horizontal
D06, M04, VEF (110-170 GHz) N9029-80216 WR6.5 Down Converter WR6.5CCD-M4-V 27.5 to 42.54 Vertical
WR8.0 Band
U08, M04, HEF (90-140 GHz) N9029-80259 WR8.0 Up Converter WR8.0CCU-M4-H 22.5 to 354 Horizontal
U08, M04, VEF (90-140 GHz) N9029-80260 WR8.0 Up Converter WR8.0CCU-M4-V 22.5 to 354 Vertical
D08, M04, HEF (90-140 GHz) N9029-80261 WR8.0 Down Converter WR8.0CCD-M4-H 22.5 to 354 Horizontal
D08, M04, VEF (90-140 GHz) N9029-80262 WR8.0 Down Converter WR8.0CCD-M4-V 22.5 to 354 Vertical
WR10 Band
User's Guide N9029-90033
9
P10, M04, HEF (75-110 GHz) WR10CCU-B-M4-H75 to 110
N9029-80237
Horizontal WR10 Up Converter
4
P10, M04, VEF (75-110 GHz) WR10 Up Converter WR10CCU-B-M4-V75 to 110N9029-80238
Vertical
4
N10, M04, HEF (75-110 GHz) 4
4
Horizontal
Vertical
WR10 Down Converter
WR10 Down Converter
WR10CCD-B-M4-H
WR10CCD-B-M4-V
75 to 110
75 to 110
N10, M04, VEF (75-110 GHz)
N9029-80231
N9029-80232

Available Options for N9029ACST Compact Frequency Converters
Table 2 Available Options (Continued)
WR15 Band
WR19 Band
P15, M02, HEF (50-75 GHz) N9029-80241 WR15 Up Converter WR15CCU-B-M2-H 25 to 37.52 Horizontal
P15, M02, VEF (50-75 GHz) N9029-80242 WR15 Up Converter WR15CCU-B-M2-V 25 to 37.52 Vertical
N15, M02, HEF (50-75 GHz) N9029-80235 WR15 Down Converter WR15CCD-B-M2-H 25 to 37.52 Horizontal
N15, M02, VEF (50-75 GHz) N9029-80236 WR15 Down Converter WR15CCD-B-M2-V 25 to 37.52 Vertical
H19, M02, VEF (40-60 GHz) N9029-60010 WR19 Up Converter WR19CCU-B-M2-V 20 to 302 Vertical
WR28 Band
U28, M01, HEF (26.5-40 GHz) N9029-80142 WR28 Up Converter WR28CCU-M1-H 26.5 to 401 Horizontal
U28, M01, VEF (26.5-40 GHz) N9029-80225 WR28 Up Converter WR28CCU-M1-V 26.5 to 401 Vertical
D28, M01, HEF (26.5-40 GHz) N9029-80141 WR28 Down Converter WR28CCD-M1-H 26.5 to 401 Horizontal
D28, M01, VEF (26.5-40 GHz) N9029-80226 WR28 Down Converter WR28CCD-M1-V 26.5 to 401 Vertical
10
User's Guide N9029-90033
WR12 Band
N12, M04, HEF (60-90 GHz) N9029-80194 WR12 Down Converter WR12CCD-B-M4-H 15 to 22.54 Horizontal
N12, M04, VEF (60-90 GHz) N9029-80195 WR12 Down Converter WR12CCD-B-M4-V 15 to 22.54 Vertical
P12, M04, HEF (60-90 GHz) N9029-80196 WR12 Up Converter WR12CCU-B-M4-H 15 to 22.54 Horizontal
P12, M04, VEF (60-90 GHz) N9029-80197 WR12 Up Converter WR12CCU-B-M4-V 15 to 22.54 Vertical
P12, M02, HEF (60-90 GHz) N9029-80239 WR12 Up Converter WR12CCU-B-M2-H 30 to 452 Horizontal
P12, M02, VEF (60-90 GHz) N9029-80240 WR12 Up Converter WR12CCU-B-M2-V 30 to 452 Vertical
N12, M02, HEF (60-90 GHz) N9029-80233 WR12 Down Converter WR12CCD-B-M2-H 30 to 452 Horizontal
N12, M02, VEF (60-90 GHz) N9029-80234 WR12 Down Converter WR12CCD-B-M2-V 30 to 452 Vertical
Keyight Options E-Field Keysight P/N Description VDI P/N LO Input (GHz)LOx

Use ESD precautions when using these devices. The IF port for CCDs has
ESD protection, but the IF port for CCUs is extremely ESD sensitive. Do not
apply any DC biases or surges when connecting or disconnecting from the
IF port. Discharge static from cables befor connecting to the device.
Replace the IF with provided 50 Ω termination when IF port is not in use.
Observe the power level you are applying to the LO, IF, and RF
waveguide input ports. Damage will occur if it is not observed.
Before using your converter module, please read all documentation from
VDI (included on the USB drive). It is important to follow the General
Operating Procedures and Guidelines section.
This product has been designed and tested in accordance with accepted
industry standards and has been supplied in a safe condition. The
documentation contains information and warnings that must be followed
by the user to ensure safe operation and to maintain the product in a safe
condition.
Safety and Information
Only Keysight approved accessories shall be used.
Use the Keysight supplied power cord or one with the same or better
electrical rating.
No operator serviceable parts inside. Refer servicing to qualified
personnel. To prevent electrical shock do not remove covers.
The Mains wiring and connectors shall be compatible with the
connector used in the premise electrical system. Failure to ensure
adequate earth grounding by not using the correct components may
cause product damage and serious injury.
This instrument has auto-ranging line voltage input. Be sure the
supply voltage is within the specified range and voltage fluctuations
do not to exceed 10 percent of the nominal supply voltage.
The main power cord can be used as the system disconnecting device. It
disconnects the mains circuits from the mains supply.
If this product is not used as specified, the protection provided by the
equipment could be impaired. This product must be used in a normal
condition (in which all means for protection are intact) only.
User's Guide N9029-90033
11

Instrument Markings
Listed below are definitions for the markings that may be found on the product.
IP 2 0
The instruction documentation symbol. The product is marked with this symbol when it is
necessary for the user to refer to the instructions in the documentation.
The AC symbol indicates the required nature of the line module input power.
This symbol indicates separate collection for electrical and electronic equipment, mandated
under EU law. All electric and electronic equipment are required to be separated from
normal waste for disposal (Reference WEEE Directive).
This symbol indicates that the power line switch is ON.
This symbol indicates that the power line switch is in the STANDBY position.
This symbol indicates that the power line switch is in the OFF position.
This symbol is used to identify a terminal which is internally connected to the product frame or
chassis.
The CE mark is a registered trademark of the European Community.
The Keysight email address is required by EU directives applicable to our product.
The CSA mark is a registered trademark of the CSA International.
This is a symbol of an Industrial Scientific and Medical Group 1 Class A product (CISPR 11,
Clause 5).
This is a marking to indicate product compliance with the Canadian Interference-Causing
Equipment Standard (ICES-001).
Direct Current.
The instrument has been designed to meet the requirements of IP 2 0 for egress and
operational environment.
The RCM mark is a registered trademark of the Australian Communications and Media
Authority.
Indicates the time period during which no hazardous or toxic substance elements are
expected to leak or deteriorate during normal use. Forty years is the expected useful life of
the product.
This symbol on all primary and secondary packaging indicates compliance to China standard
GB 18455-2001.
South Korean Certification (KC) mark; includes the marking's identifier code which follows the
format: R-R-Kst-ZZZZZZZ.
ICES/NMB-001
[email protected]
12
User's Guide N9029-90033

EMC Compliance
•IEC/EN 61326-1
•CISPR Pub 11 Group 1, Class A
•AS/NZS CISPR 11
•ICES/NMB-001
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme a la norme NMB-001 du
Canada.
Acoustic Statement (European Machinery Directive)
Acoustic noise emission
LpA <70 dB
Operator position
Normal operation mode per ISO 7779
To find a current Declaration of Conformity for a specific Keysight product, go to:
https://regulations.about.keysight.com/DoC/default.htm
This instrument complies with the essential requirements of the European
Low Voltage Directive.
Safety
South Korean Class A EMC Declaration
If there is a "KC" mark on the instrument, then the following statement applies:
This equipment has been conformity assessed for use in business environments. In a
residential environment, this equipment may cause radio interference.
※This EMC statement applies to the equipment only for use in a business
environment.
사 용 자 안 내 문
이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서
가정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다.
※사용자 안내문은 “업무용 방송통신기자재”에만 적용한다.
Complies with the essential requirements of the European EMC Directive as well as current
editions of the following standards (dates and editions are cited in the Declarations of
Conformity):
User's Guide N9029-90033
13

Keysight Technologies does not guarantee the performance of the VDI modules, or system
performance. However, if warranty or repair is needed Keysight will provide full support to our
customer.
Inspect the shipping container. If the container or packing material is damaged, it should be
kept until the contents of the shipment have been checked mechanically and electrically. If
there is mechanical damage or if the instrument does not pass the performance tests, notify the
nearest Keysight Technologies office. Keep the damaged shipping materials (if any) for
inspection by the carrier and a Keysight Technologies representative.
When shipping the product to Keysight for repair, use original or comparable packaging.
Contacting Keysight
Assistance with test and measurement needs, and information on finding a local Keysight
office are available on the Internet at:
http://www.keysight.com/find/assist
You can also purchase accessories or find documentation items on the Internet at:
http://www.keysight.com/find/sa_mmwave
If you do not have access to the Internet, contact your field engineer.
In any correspondence or telephone conversation, refer to the Keysight
product by its model number and full serial number. With this information,
the Keysight representative can determine the warranty status of your unit.
Accessories and Information
A list of accessories fcan be found on the N9029AV99 Waveguide Accessories for mm-Wave
Product Note (N9029-90035) at https://www.keysight.com/us/en/assets/9921-01743/user-
manuals/N9029AV99-Millimeter-Waveguide-Accessories-Product-Note.pdf.
For information concerning the operation and connections, reference the VDI User Guide
(included on the USB Drive), or the Keysight X-Series Signal Analyzer's documentation by
searching http://www.keysight.com/find/pxa_manuals. You may also reference the X-Series
Signal Analyzer On-line Help System for operational information.
For more information, visit the Virginia Diodes, Inc. website at:
https://www.vadiodes.com/en/products/signal-generator
14
User's Guide N9029-90033

User's Guide N9029-90033
15

This information is subject to change without notice.
© Keysight Technologies 2017 - 2023
Edition 13: March 2023
Supersedes: November 2022
www.keysight.com
