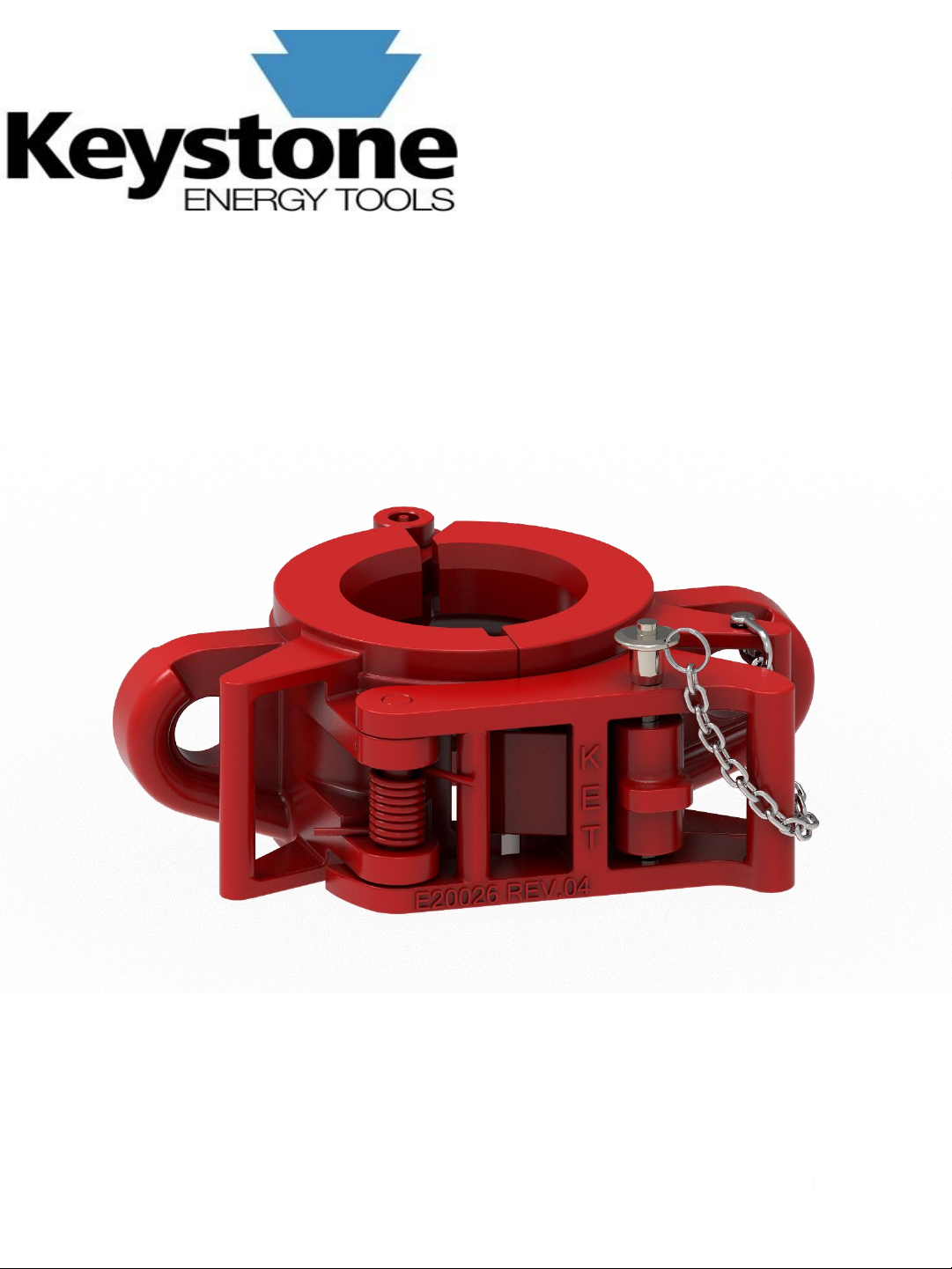

Keystone SJ-30 User manual

THE SINGLE JOINT 7.5 TON BOTTLENECK & CASING ELEVATOR
OPERATING PROCEDURE MANUAL
OP-06 REV.09 02/06/2023 1

Table of Contents
Keystone ENERGY TOOLS 3
Table of Contents
Keystone ENERGY TOOLS
OP-06 REV.09 02/06/2023 2
Table of contents
Safety instructions

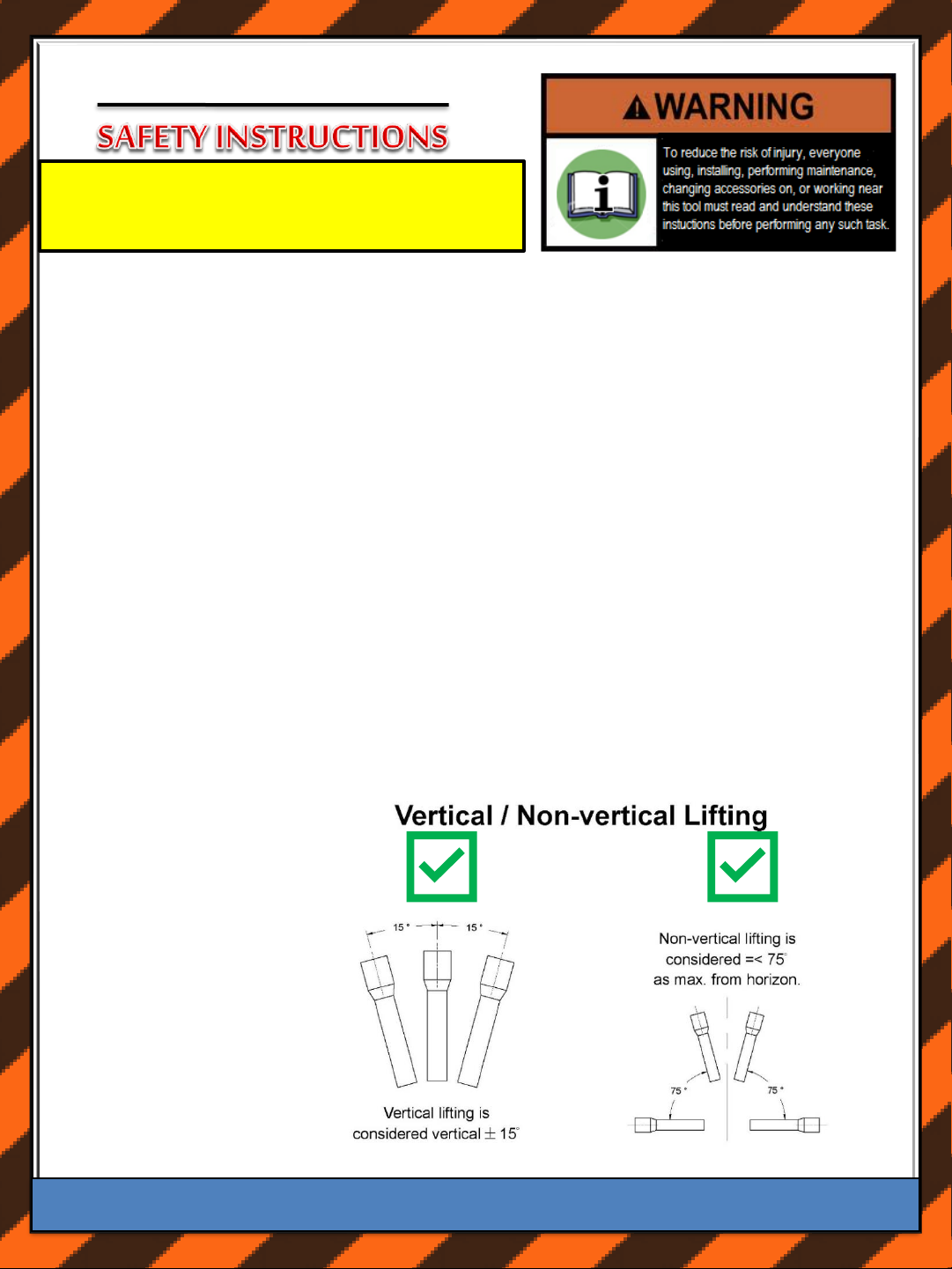

vertical vs horizontal lifts
Figure 1-4 - latching elevator correctly/incorrectly
Safety instructions
1.0 Introduction
Figure 5 –SJ model chart
CE Marking
2.0 Installation & Operation
3.0 Maintenance & Inspection
Figure 6 –maintenance locations
3.0 Maintenance & Inspection
Figure 7 –maintenance frequency chart
4.0 Repair
Figure 8 –critical area map

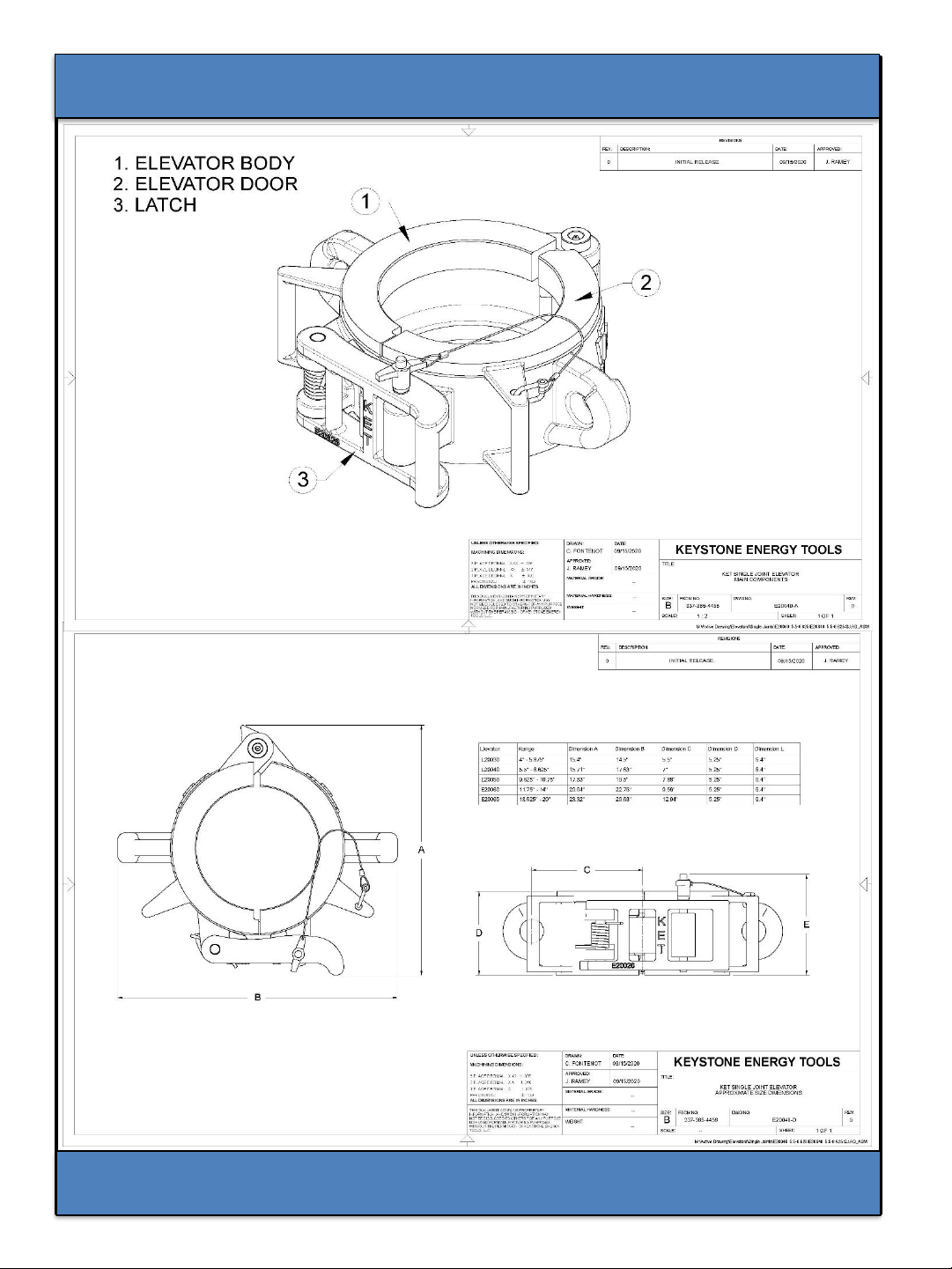

5.0 Technical drawings

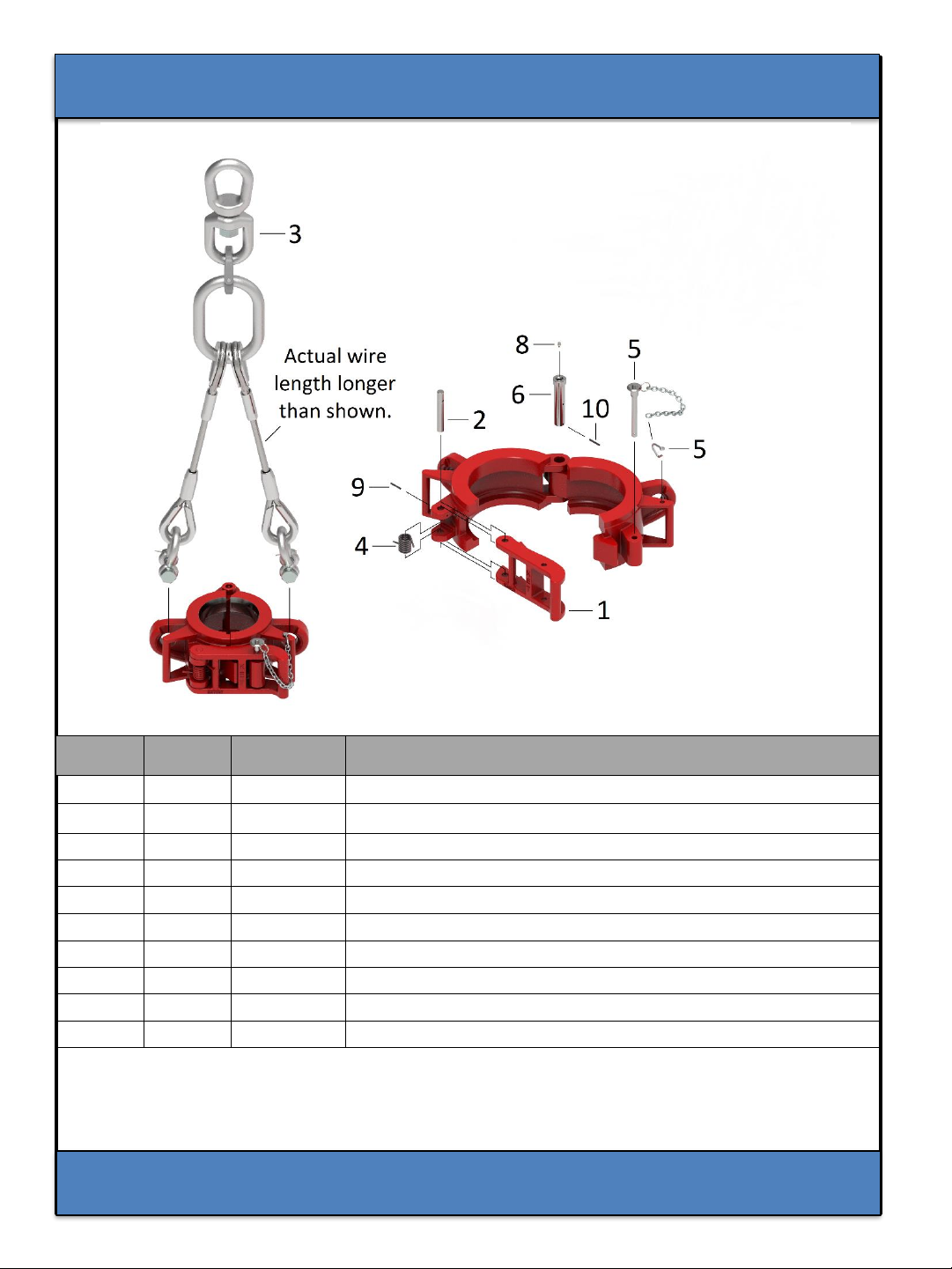

6.0 Replacement parts
7.0 Wear data
8.0 Reception, storage, transport, decommissioning
Certificate of warranty & guarantee of quality
Manufacture Information & Revision History
2
3
3
4
5
6
6
6
6
7
7
8
8
9
9
10
11
12
13
14
15

“SJ” SERIES ELEVATOR
The most important safety device for this tool is YOU.
Your good judgment is the best protection against
injury.
DO NOT DISCARD –GIVE TO USER Keystone ENERGY TOOLS
⚠WARINING: Do not overload
the elevator. Overloading the
recommended rating could cause
series injury or death.
⚠WARINING: Secure the Latch
Lock Pin in it’s proper position.
Failure to secure the pin when
picking up or laying down pipe
could cause serious injury or
death. See Figure 4.
⚠WARINING: Always ensure
that the elevator and bore code
are correct for the tubular it is to
be used on. Failure to use the
proper elevator and bore code
could result in injury or death.
⚠WARINING: Always ensure
that the tool joint or collar O.D.
of the pipe is correct. Failure to
maintain adequate contact area
could result in injury or death.
⚠WARINING: To prevent injury
or elevator malfunction, inspect
the elevator bore, latch, hinge
pin, and latch pin regularly for
wear. Failure to inspect these
parts could cause injury or death.
⚠WARINING: Do not use
oversized pipe. Using oversized
pipe could make it difficult or
impossible to properly latch the
elevator.
⚠WARINING: Do not use
undersized pipe. Using
undersized pipe could cause an
inadequate load bearing area
and uneven stress distribution.
Both of which may result in
injury or death.
⚠WARINING: Do not use the
elevator if the latch or latch lock
pin is malfunctioning. Latch or
latch lock pin failure, may result
in injury or death.
⚠WARINING: All warning labels
attached to the equipment must
be observed. The warning labels
must be present on the tool. Do
not remove the labels. If they are
missing, replacing is mandatory.
⚠WARINING: The company
operating the tool is responsible
for issuing work instructions for
safe and proper use of the
equipment.
⚠WARINING: The operating
company is responsible for
verifying that any personnel
operating, servicing, inspecting, or
otherwise involved with the use of
the tool must be properly trained
correctly.
⚠WARINING: Never install the
safety pin without the elevator
being properly latched. If pin is
installed before it is completely
latched, the elevator will have a
partial/false latch and could result
in injury or death. See Figure 1-3
Operating Hazards
OP-06 REV.09 02/06/2023 3

“SJ” SERIES ELEVATOR
The most important safety device for this tool is
YOU. Your good judgment is the best protection
against injury.
DO NOT DISCARD –GIVE TO USER Keystone ENERGY TOOLS
OP-06 REV.09 02/06/2023 4

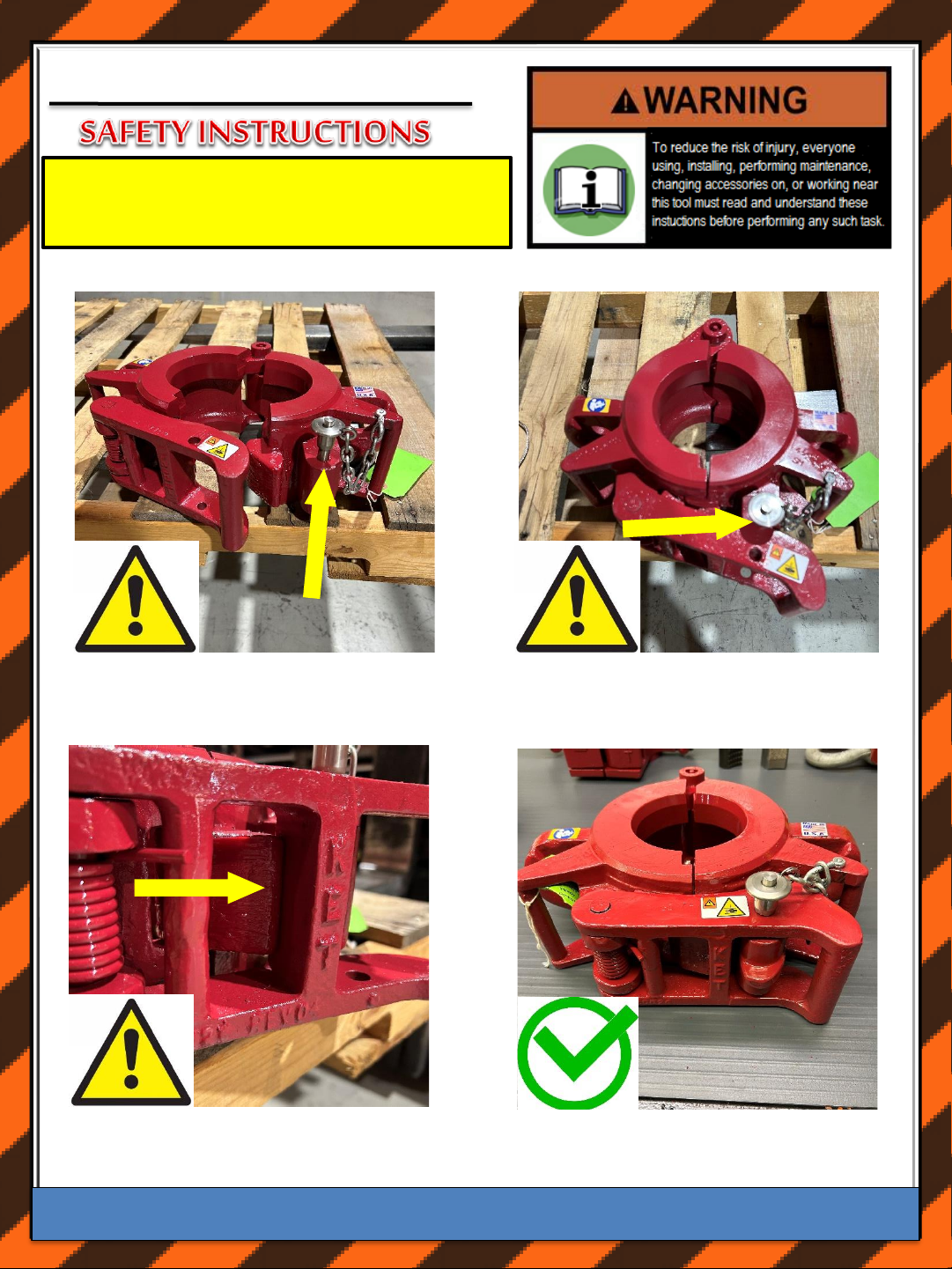

Figure 1: Safety Lock Pin installed
incorrectly in the door lug before the elevator
is latched
Figure 2: Elevator latched incorrectly with
the safety lock pin installed in the door lug
Figure 4: Shows the correct way the elevator
should be latched with the safety latch lock pin
installed
Figure 3: Shows the “Partial Latch” that occurs
when the safety latch lock pin is used incorrectly.

“SJ” SERIES ELEVATOR
The most important safety device for this tool is
YOU. Your good judgment is the best protection
against injury.
DO NOT DISCARD –GIVE TO USER Keystone ENERGY TOOLS
Workplace Hazards
⚠WARINING: keep hands fingers
clear of the elevator bore when
installing the elevator around the
pipe.
⚠WARINING: Always use the
proper tools and wear eye, head,
hand, and foot protection when
servicing this elevator.
⚠WARINING: Maintain a
balanced body position and
secure footing.
⚠WARINING: For professional
use only.
Maintenance Hazards
⚠WARINING: Use only Keystone
Energy Tool components on
equipment. Failure to do so may
affect the correct functioning of
the tool and may cause injury or
death.
⚠WARINING: KET equipment is
made of cast alloy heat treated
steel and should never be
welded on in the field. Improper
welding can cause cracks or
brittleness in the castings which
could result in drastic weakening
or failure of the equipment. Any
welding or machining must be
performed by an authorized KET
or API certified repair center.
⚠WARINING: Improper welding
and/or re-machining of cast alloy
heat treated steel can cause
personnel injury, property
damage, or death.
Read Operation manual
before use.
OP-06 REV.09 02/06/2023 5

1.0 Introduction
Keystone ENERGY TOOLS
This manual contains operation and maintenance
instructions for the Keystone Energy Tools (KET) “SJ”
series single joint elevator and provides instruction for
its proper field use, disassembly and repair; including a
complete parts breakdown.
(KET) “SJ” elevators are designed to replace rope
slings for hoisting collar type and bottleneck pipe into
position when adding to a string. SJ elevators allow the
crew to handle pipe properly, thus avoiding pipe thread
damage and reduces the chances of accidents/injuries.
The SJ series pick up elevator has a simple, reliable
latch that closes simultaneously when the elevator is
closed. To ensure the Latch does not open, the Latch
Lock Pin must be used. The size range of the SJ
series elevator is as illustrated in the table provided.
(See Figure 5)
If the safety latch lock pin is installed correctly, then the
SJ series elevator can perform non-vertical lifts
(picking up of horizontal pipe). Failure to not install the
safety latch lock pin correctly may result in injury or
death. (See Figure 4)
If the Safety Latch Lock Pin is inserted into the Latch
or Door Lug before closing the Elevator, the Safety
Latch Lock Pin will prevent the latch from fully
engaging the Latch Lug on the door resulting in a
partial/false latch. (See Figure 1-3)
2.0 Installation & Operation
NOTE: Use on pipe weighing 7.5- Short Tons (6.8
metric tons) or less.
As with any manual operated elevator, the SJ is easily
installed by the user. Perform the actions prescribed
below after the elevator is hoisted to the rig floor and
properly positioned.
Remove the bolt from the shackle on the
swivel suspension assembly.
Attach the shackle over the lifting eye on the
elevator then replace the bolt to the shackle.
Repeat the process for the opposite lifting eye.
To remove the elevator, simply reverse the
process.
The operation of the SJ elevator is straightforward. The
door is opened by removing the Safety Latch Pin and
pulling outward on the Latch. When the elevator is
properly closed around the pipe, install the Latch Lock
Pin Retainer.
Model Tons Range
SJ-30 7.5 4” – 5 7/8”
SJ-40 7.5 5 ½” – 8 5/8”
SJ-50 7.5 9 5/8” – 10 ¾”
SJ-60 7.5 11 ¾” – 14”
SJ-65 7.5 18”-22”
Figure 5
6OP-06 REV.09 02/06/2023

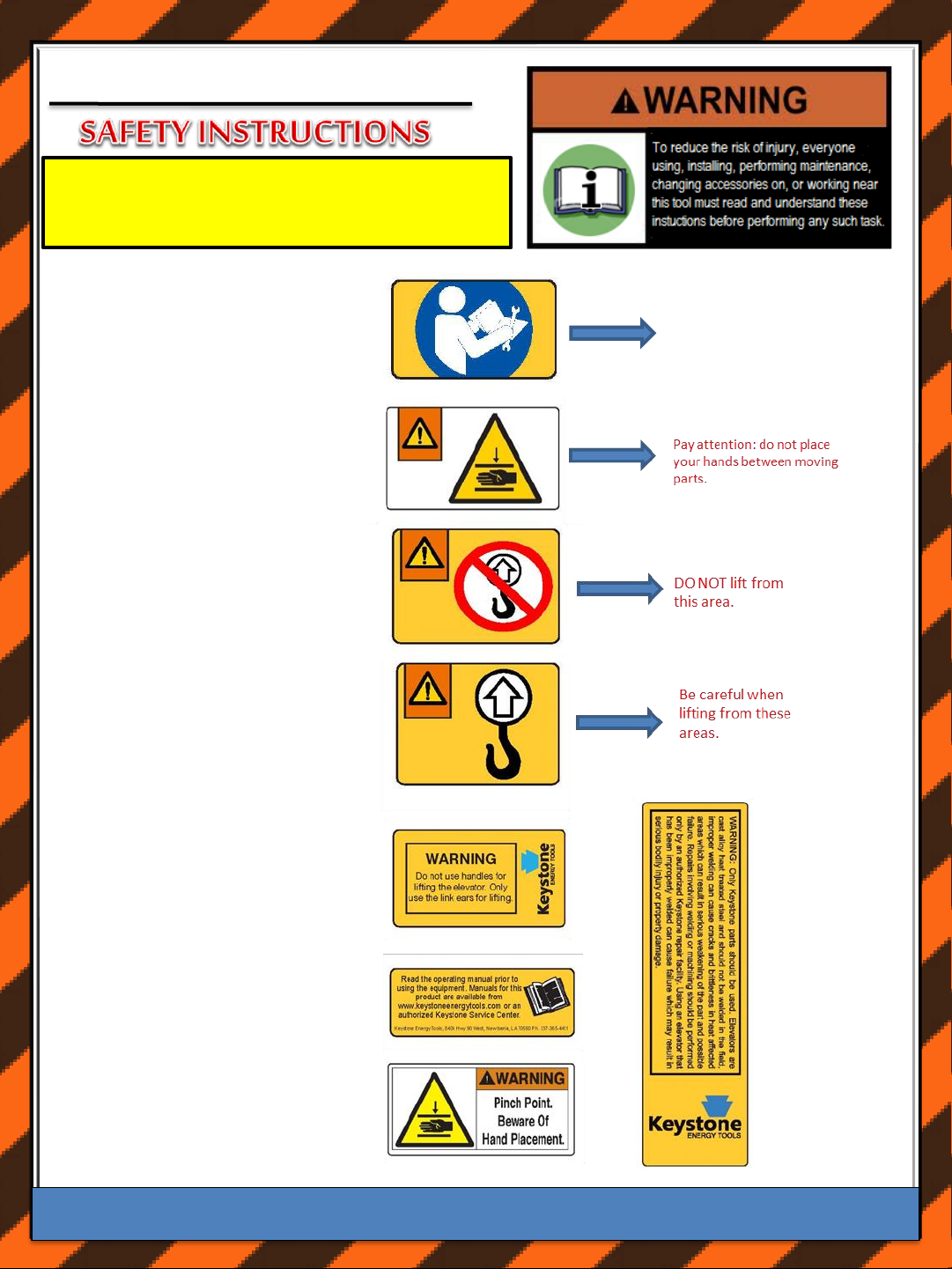

NOTE: WARNING labels have been installed at
critical areas on the tool. Familiarize yourself with their
message and locations before proceeding to operate
equipment.
See Safety Instructions Page 4
CE Marking
The tool complies with the Machinery Directive
98/37/EC and 2006/42/EC
This operating manual is a part of the technical
documentation for the product.
The EC Declaration of Conformity is delivered
together with the product. Keep these instructions and
the associated documents for later use.

3.0 Maintenance & Inspection
Keystone ENERGY TOOLS
To ensure optimum performance, perform the below-listed weekly checks.
•Check for worn Hinge Pin and Latch Pin and their mating parts. These, if worn, may hinder proper opening and
closing of the door and latch.
•Check the Latch Lock Pin assembly for worn or damaged parts. (e.g. Safety Latch Pin)
•Check for proper Latch Spring performance.
•Check for proper operation of Latch Stop mechanism. Latch should not stop against the door when engaged.
•Check springs for damage, deformation and lack of tension.
Lubricate the elevator regularly during usage and storage to prevent corrosion. Use an extreme pressure, multi-
purpose, lithium base grease of No. 1 or No. 2 consistency or a lubricant that meets MIL-SPEC-A907E.
7
OP-06 REV.09 02/06/2023

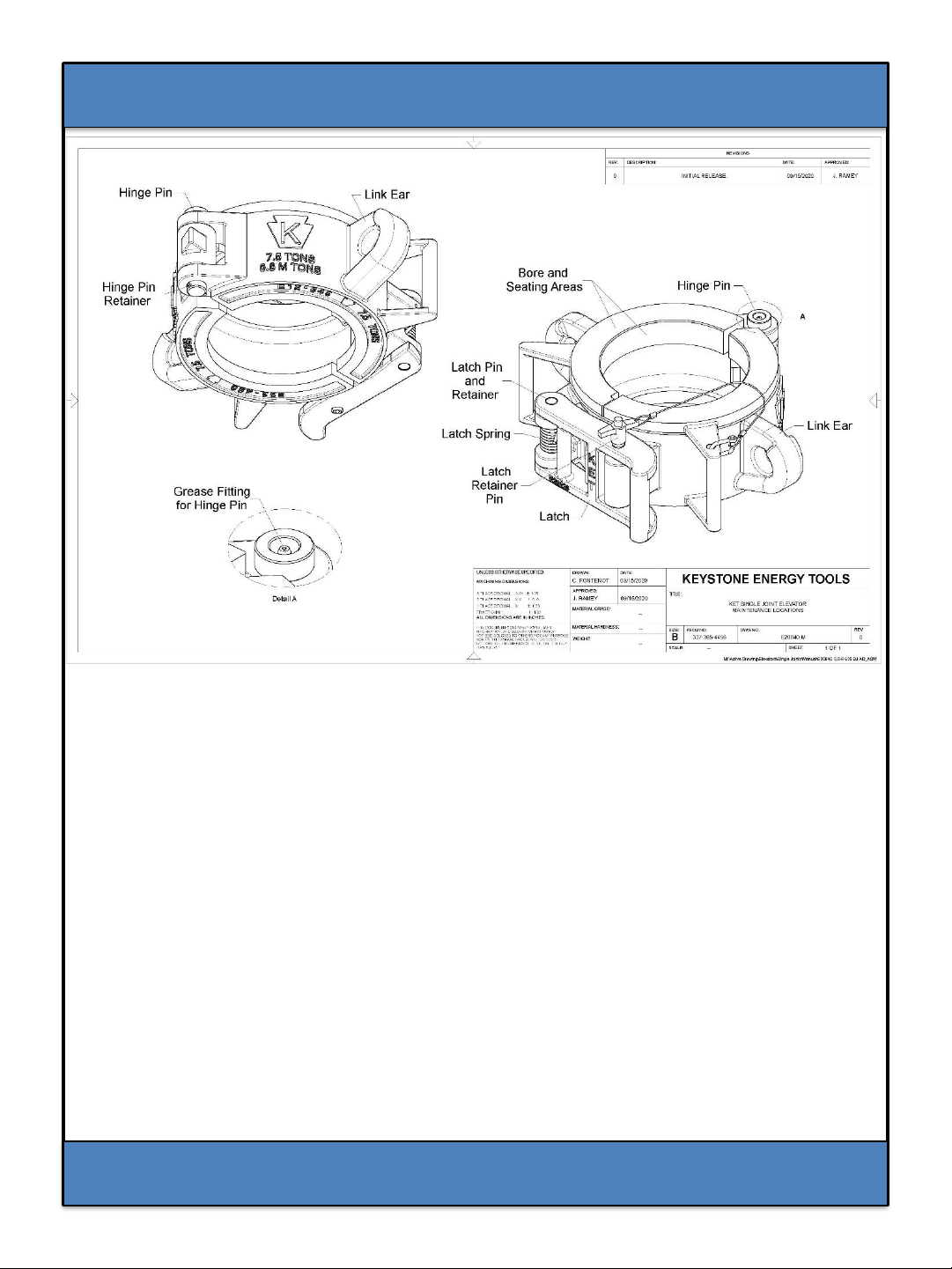

Figure 6

3.0 Maintenance & Inspection
Keystone ENERGY TOOLS
The owner/user of the equipment should develop schedules of inspection based upon experience,
manufactures recommendations, and one or more of the following factors:
Environment
Load Cycles
Regulatory requirements
Operating time
Testing
Repairs
Remanufacture
“Proof Load Test” shall be performed only once following manufacture or remanufacture. This is by
applying a load equal to 1.5 times the rated load for a period no less than 5 min. A proof load test shall be
followed by surface NDT no earlier than 24 hrs. after proof of testing.
Lubricate the elevator regularly during usage and storage to prevent corrosion. Use an extreme pressure, multi-
purpose, lithium base grease of No. 1 or No. 2 consistency or a lubricant that meets MIL-SPEC-A907E.
***When greasing of pins make sure the pump grease until it comes out of both ends.***
Maintain elevator as prescribed in the below periodic Actions/Examinations. (See Figure 7)
Tool Maintenance
ACTION FREQUENCY
FIG.
Grease Hinge Pin
Daily
6
Lubricate Latch Pin
6
Lubricate Latch Lock
Bolt
6
Grease Underside of
Lifting Eye
6
Grease Bore and
Seating Surface
6
MPI
Category III Every 6 Months 8
MPI Category IV
Every 12 Months 8
Performance
Load
Test
Every 365 Days
“See left” -
Reference API 8B Recommended Practice
Category III: Every 6 months the equipment should
include NDT of critical areas and may involve some
disassembly to access specific components and to
identify wear that exceeds the allowable wear
tolerances.
Category IV: Every 12 months the equipment shall be
disassembled to permit the necessary full NDT
inspection of all primary load carrying components
per ASTM E-709 (see figure 5). Including inspection
for excessive wear, cracks, flaws , and deformations.
If any repair work is required, the equipment shall be
sent into a Keystone Energy Tool facility for
evaluation. Figure 7
8OP-06 REV.09 02/06/2023
“Performance Load Test” is recommended after 365 days of accumulative use. This test is to
verify the function of the equipment to perform under the conditions or in conjunction with
other equipment. The Performance Test may consist of loads up to, but not exceeding, the rated
load of the equipment.

4.0 Repair & Critical Areas
Keystone ENERGY TOOLS

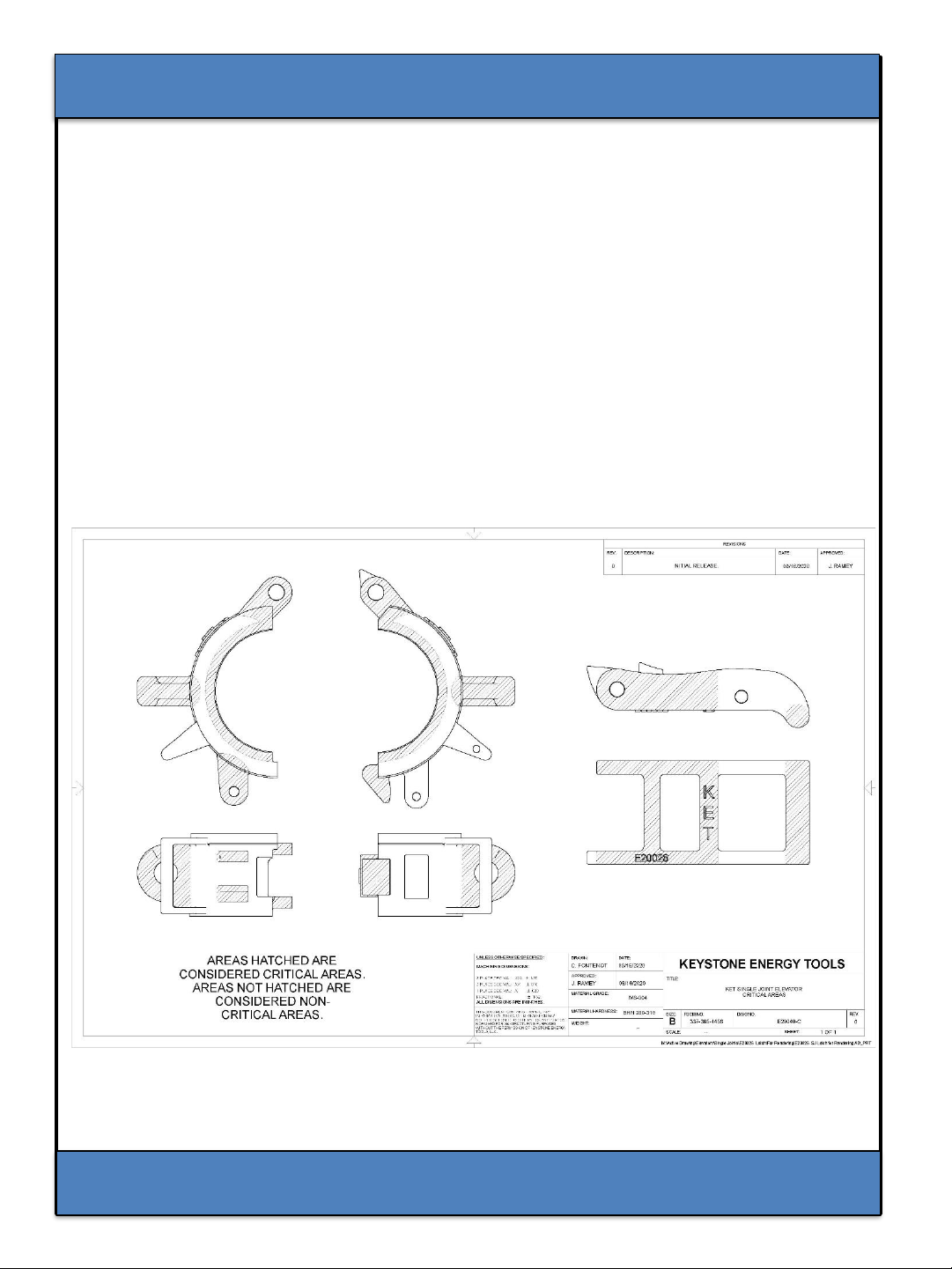

We have identified those areas considered critical to
tool performance and functionality. These should be
examined for repair or replacement.(See Figure 8)
Bodies, doors and latches are specifically matched
by trained Keystone Energy Tools professionals. For
this reason, a body, door or latch from one elevator
should never be exchanged with a body, door, or
latch from another elevator.
Illustrated below are the critical and non-critical
areas associated with the subject tool. Critical areas
are identified by the shaded areas. All non-shaded
areas are considered non-critical.
The SJ series elevator requires minimum attention. To
Remove and Replace the Hinge Pin, Hinge Pin
Retainer Pin , Latch Pin, and Latch Lock Pin assembly
described below.
•To remove the Hinge Pin, first remove the Hinge Pin
Retainer Pin. Drive out the Hinge pin from the bottom
of the elevator. Replace the Hinge Pin and Hinge Pin
Retainer Pin.
•To remove the Latch Pin, first remove the Latch Pin
Retainer Pin. Drive out the Latch Pin from the bottom
of the elevator. Replace the Latch Pin, Latch Pin
Spring, and Latch Retainer Pin.
•To remove Latch Lock Pin Assembly, remove the
cable end ring from the split ring on the elevator door
handle.
9
OP-06 REV.09 02/06/2023
Figure 8

5.0 Elevator Technical Drawings
Keystone ENERGY TOOLS
OP-06 REV.09 02/06/2023 10
*NOTE –PAINT CAN NOT EXCEED A THICNKESS
OF 0.2mm

6.0 Replacement Parts
Keystone ENERGY TOOLS
ITEM QTY PART No. DESCRIPTION
1 1 E20026 LATCH
2 1 E39-050 LATCH PIN
3 1 E34568 SJ SWIVEL SUSPENSION ASSEMBLY
4 1 E7829-1 LATCH SPRING
5 1 E39-051-8 LATCH LOCK RETAINER PIN ASSEMBLY
6 1 E39-052 HINGE PIN *COMES WITH GREASE ZERT*
7 1 N/A N/A
8 1 E316-TI TAP IN GREASE FITTING
9 1 E316RP LATCH PIN RETAINER (SAME AS HINGE)
10 1 E316RP HINGE PIN REATAINER (SAME AS LATCH)
⚠WARINING: Use only Keystone Energy Tool components on equipment. Failure to do so
may affect the correct functioning of the tool and may cause injury or death.
11
OP-06 REV.09 02/06/2023

Keystone ENERGY TOOLS 8
OP-00 Rev AOP-00 Rev AOP- Rev A

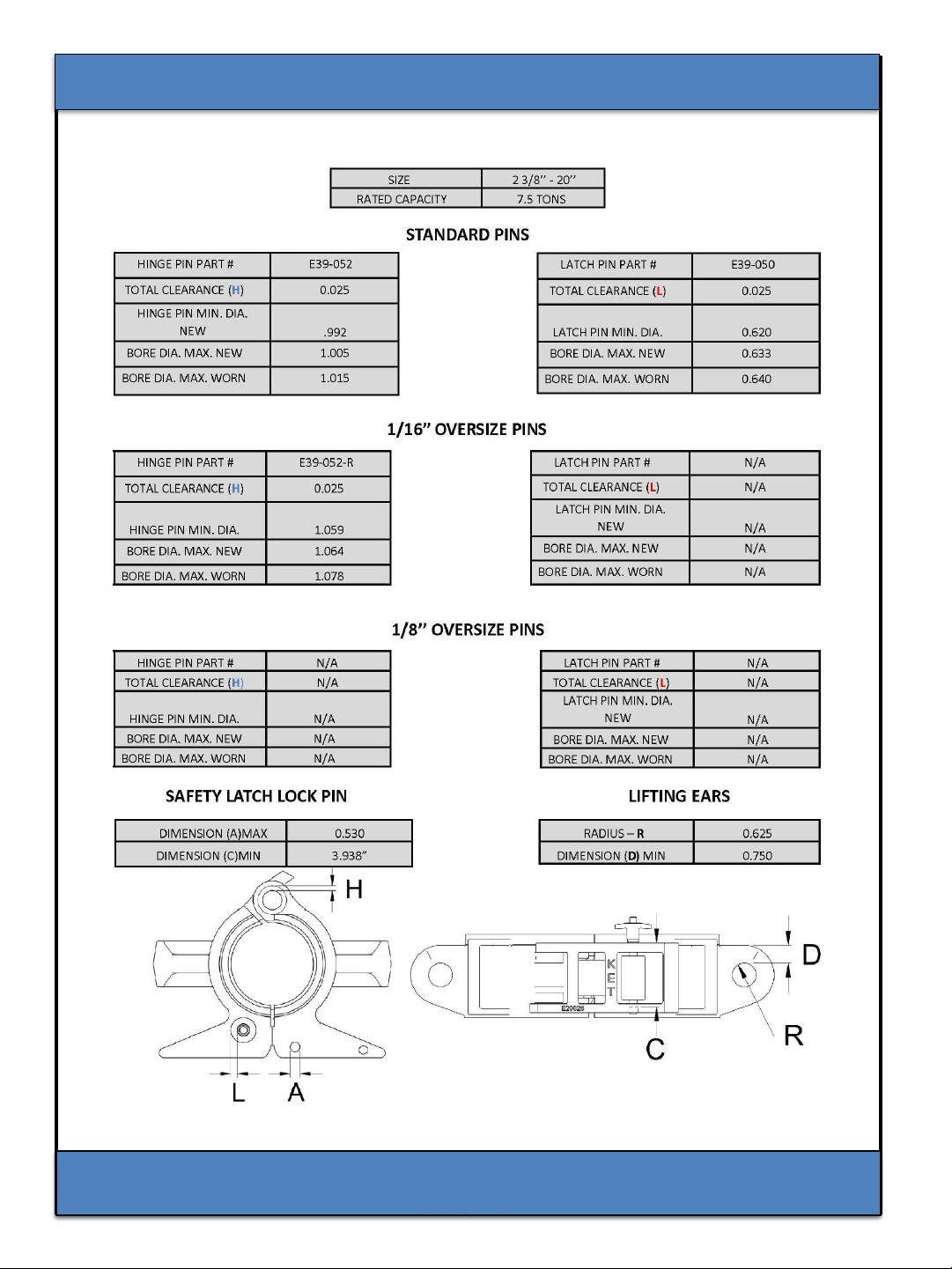

7.0 Wear Data for Single Joint Elevators
Keystone ENERGY TOOLS
OP-06 REV.09 02/06/2023 12

OP-06 REV.09 02/06/2023
Keystone ENERGY TOOLS 8
OP-00 Rev AOP-00 Rev A
8.0 Reception, Storage, Transport &
Decommissioning
Keystone ENERGY TOOLS
Reception
Check the tool immediately after reception and re-preserve the tool as required (try to
have this completed withing 1 month).
Any exposed or non painted metal surfaces should be coated with a rust preventative to
prevent any corrosion build up.
Storage
The tool should be stored or palletized in a clean and dry place to avoid all environmental
elements. It is recommended to store in an indoor environment of 60 –70 Deg F with
max humidity of 80%. If the tool is to be stored outdoor, then a cargo container would be
appropriate to ensure the tool is not exposed to weather conditions.
Preserve the tool by greasing all areas defined in the maintenance requirements per the
manual.
During storage, the tool shall still be inspected annually per inspection requirements in
the user's manual.
Transport
When lifting the tool do so only by using its lifting ears only. The best way of transporting
the tool is in its original palletized state. Ensure the tool is banded down accordingly to
prevent the possibility of potential dropped objects and broken shipments.
Decommissioning
The tool may contain grease, steel, rubbers, plastic, stainless steel, mild steel and several
assembled components with undefined consistency or mixtures. The tool can be
contaminated with drilling fluids, hydraulic fluids and preservatives. After the tool is
decommissioned, it is recommended to disassemble the tool in a place where waste
fluids can be contained and properly disposed of.
⚠WARINING: any fluids, mud, or grease are potentially unsafe when in contact with the
skin. Always wear gloves and safety goggles when disassembling the tool.
1. Clean the tool with a steam cleaner.
2. It is recommended to disassemble the tool in a place where drainage for waste
fluids is possible.
13

CERTIFICATE OF WARRANTY AND GUARANTEE OF QUALITY
Keystone ENERGY TOOLS
KET warrants all materials and products manufactured to be free from defects in
material and workmanship, under normal use and service, when installed, used, and
serviced in the manner provided and intended by the seller for a period of twelve (12)
months after delivery. Seller’s obligation under this warranty is expressly limited to
repair or replacement, at its option, of any materials or products, returned to the
seller’s plant in New Iberia, Louisiana and which are determined by the seller to be
defective. All freight charges for return and reshipment shall be paid by the customer.
A new warranty period shall not be established for repaired or replaced material or
products; such items shall remain under warranty only for the remainder of the
warranty period on the original materials or products. This is the sole warranty of the
seller and no other warranty is either expressed or implied, in fact or by law, including
any warranty at to the merchantability or fitness for a particular use or purpose.
In case of goods or parts not wholly of seller’s manufacture, seller shall make
available to the customer whatever warranty or guarantee is extended to seller for
such goods or parts by the supplier or manufacturer thereof.
Seller will not assume responsibility or liability for any repairs, rebuilding, welding or
heat treating done to its material or products outside of seller’s plant, such work shall
void all warranties. All parts used in the manufacture and /or final assembly of seller’s
materials or products are necessary for both safety and operational performance.
Omission of any part or failure to replace any worn part may result in the malfunction
and a consequent safety hazard for which seller disclaims any responsibility or liability
for injuries or damage as a result thereof.
Buyer’s sole and only remedy in regard to any defective materials or products shall be
the repair or replacement thereof as herein provided, and seller shall not be liable for
any consequential, special, incidental or punitive damages resulting from or caused
by any defective materials, products or supplies.
OP-06 REV.09 02/06/2023 14

Keystone ENERGY TOOLS
For more information, please contact us at:
Keystone Energy Tools
3711 Melancon Rd.
Broussard, LA 70518
www.k-e-t.com
Office: 1-337-365-4411
Fax: [phone]
Revision History
Revision
Date
Changes
03
05/26/2021
Format change/rev history added
04
10/18/2021
Added Category III & IV definitions
05
05/02/2022
Update Wear Data
06
07/13/2022
Update Wear Data
07
07/19/2022
Updated address
08
11/10/2022
Updated Introduction & added warning to warning
page concerning use of safety latch lock pin
09
02/06/2023
Added page 4 safety instructions & figures of latching
the elevator properly/incorrectly
OP-06 REV.09 02/06/2023 15
