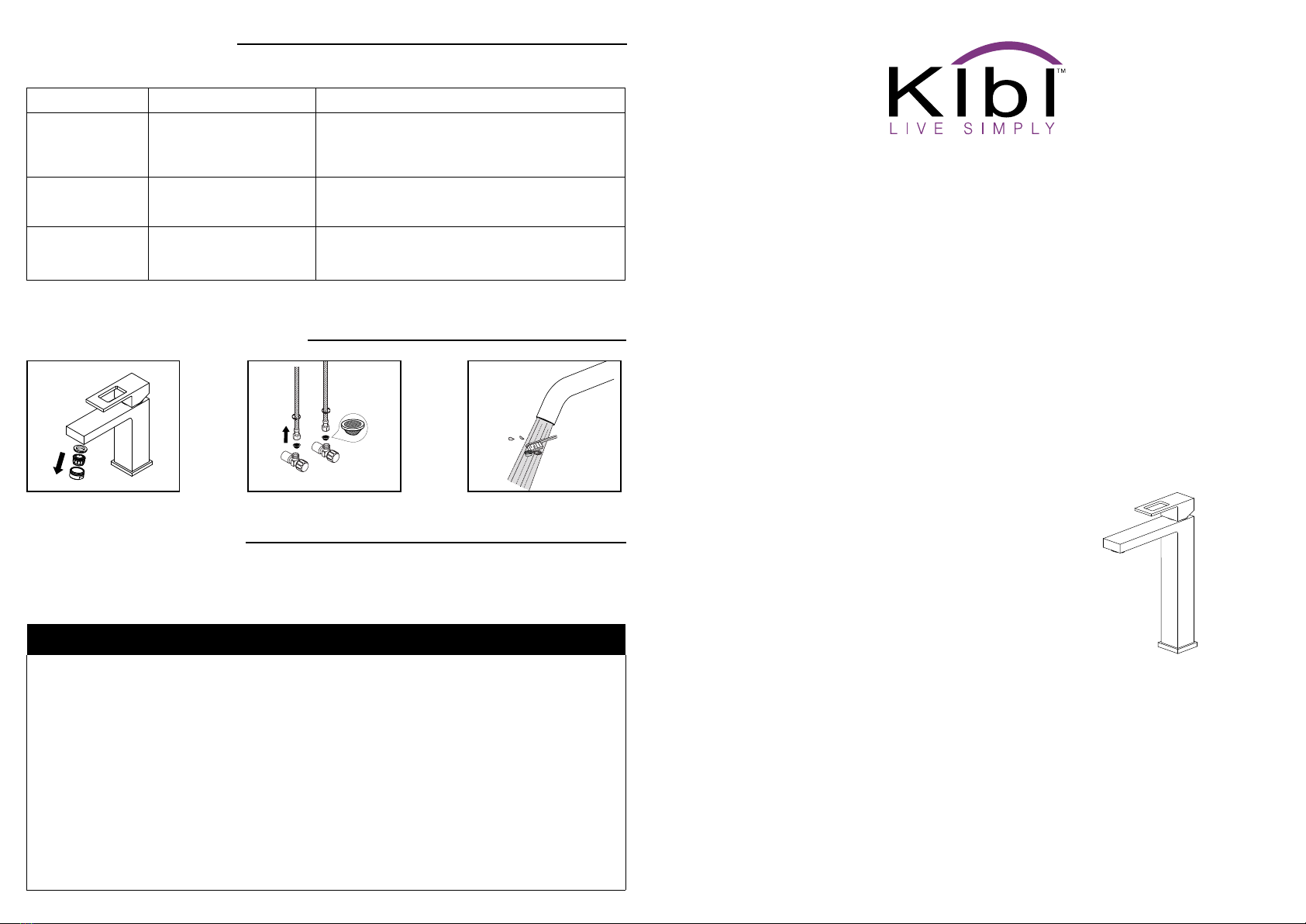

KIBI Cubic KBF1003 User manual

Problem Cause Action
Low flow Aerator(4) or fliter(8) may be
clogged
Unscrew aerator to check rubber packing or replace
aerator.
(Note: some models require wrench to remove aerator.)
Faucet leaks from
under handle
Bonnet(2) nut has come loose
or cartridge(3) needs to be
reseated
Remove handle and cap. Using a wrench, ensure bonnet
nut is tight.
Water will not shut off
completely.
Dirty or worn out plastic washer
in the cartridge.
Adjust or replace cartridge.
WARNING: Failure to securely tighten bonnet nut with a
wrench could result in water damage.
LIMITED LIFETIME WARRANTY
KIBI provides its customers with an extensive warranty as a result of our excellent workmanship and high quality
components used in our products.
Mechanical warranty: A limited lifetime warranty is provided on all mechanical parts to be free from manufacturing
defects in materials and workmanship under normal use for as long as the original purchaser owns their home.
Finish warranty: A 5-year warranty is provided on all KIBI faucet finishes to the original purchaser against manu-
facturing defects in materials and workmanship.
At its sole discretion, KIBI will repair or replace any part or finish that proves to be defective in material and/or
workmanship under normal installation, use and service.
This warranty is extended to the original consumer owner, but does not cover installation or any other labor
charges. In no event shall KIBI be liable for any incidental, consequential or special damages, installation cost,
labor, travel time, freight costs incurred, lost profits, or contingent liabilities. KIBI makes no representation that its
products comply with any or all local building or plumbing codes. It is the consumer’s responsibility to determine
local code compliance.
TROUBLE SHOOTING
CLEAN AERATOR AND FLITER
CLEANING AND CARE
Clean the faucet often with a soft cloth to keep it looking like new. For heavy cleaning you can use mild liquid deter-
gents or non-abrasive liquid polisher. Rinse with water and dry with a soft cloth. Avoid abrasive cleaners, steel wool
and harsh chemicals as these will dull the finish and void your warranty.
If you’ve followed the instructions carefully and your faucet still does not work properly, take these corrective steps.
Installation Guide
www.kibiusa.com
Cubic
KBF1003

DIMENSIONS
PARTS
21
6
3 4
5
Connect and tighten the supply hoses by using
two adjustable wrenches (avoid twisting or
kinking). Turn on the angle valve and check for
leaks.
Note: Do not remove the net filter that
attached into the connecting end!
From below the sink, Slide rubber washer,
metal washer and mounting bracket onto the
thread shank.
Put the rubber O-ring into the bottom gap of
faucets then Insert faucet into faucet hole.
Remove the mounting hardware from the
mounting pipe.
Shut off water suppliers. Remove the old
faucet, clean the mounting surface.
Note: For first time install, flush the pipes
first by open the angel valve to run 60s.
Adjust position of faucet body if necessary,
Then tighten the mounting nuts with phillips
screwdriver until snug.
INSTALLATION
6-7/16”
(163 mm)
10-1/8”
(257 mm)
12-3/8”
(315 mm)
8-1/16”
(204 mm) 1-5/8”
(42 mm)
1-15/16”
(50 mm)
Φ1-3/8”
(Φ35 mm)
Max 1-3/4”
(Ma
x 45 mm)
Cubic- KBF1003
Cubic- KBF1003
1 Lever Handle
2 Bonnet nut and cap
3 Cartridge
4 Aerator
5 Trim Ring
6 Mounting Bracket
7 Waterlines
8 Fliter
1
4
2
3
5
6
7
8
