KID Trax MARVEL SPIDER-MAN KT1240I User manual

tWARNING!
This manual contains important safety
and use informaon. Keep this manual for
future reference.
• An adult must read this enre manual
• Adult supervision is required at
all mes
6V MARVEL’S
SPIDER-MAN
TODDLER TRIKE
KT1240I
Age: 18-30 months
Weight: Maximum 44 lbs (20 kg)
Maximum Speed: 1.5 MPH
Baery: 6V4AH

2
--
Safety
1
FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT IN SERIOUS INJURY OR DEATH. The owner’s manual
contains assembly, use and maintenance instrucons.
WARNING!
Child Safety Warnings
• Adults supervising children must read and understand this enre
manual before allowing any child to use this product.
• Adults must evaluate their own children as to maturity, strength,
judgment and ability to follow safety rules. Published age
guidelines are not a substute for careful evaluaon of your own
child.
• Adults must teach children about thinking ahead while riding as
this may be the rst me a child has ever controlled a motorized
ride-on toy. While you supervise, see through the child’s eyes,
and verbally teach them about steering and avoiding obstacles in
the approved riding area.
• Riding a motorized ride-on toy can be a dangerous acvity,
even under the best of circumstances. Good choices regarding
where and when to ride, constant adult supervision of riding,
and pracce and careful riding by the child can all help to
minimize risk. However this ride-on toy is intended to move and
therefore it is possible to lose control, fall o and/or get into
dangerous situaons that no amount of care, instrucon or
experse can eliminate.
• If this inherent risk is not acceptable, adults should not allow
children to ride this ride-on toy.

3
--
Safe Riding Warnings
Before using the ride-on toy the child should understand the
controls and safety issues. They must also demonstrate the
capability to handle the ride-on toy and operate its controls. It is
the responsibility of the adult to educate the child and supervise
the use. Explain the following safety warnings to any child using
the ride-on toy before riding
• Adults must teach their children not to allow other children to
use this ride-on toy. Adults must communicate this message to
the adult supervisors of friends and neighbors who have
children that play with your children.
• Never leave child unaended. Connuous adult supervision
required.
• Body parts such as hands, legs, hair and clothing can get caught
in moving parts. Never place a body part near a moving part or
wear loose clothing while using the ride-on toy.
• Always wear shoes when using the ride-on toy.
• Not to be used by children under 18 months or over 30 months
of age.
• Do not exceed the maximum weight capacity of 44 lbs.
• Children must not have access to the charging equipment or
touch any part of the ride-on toy while it is charging.
• Always use common sense and safe pracces when using the
ride-on toy.
• Never use the ride-on toy in an unsafe manner. Examples include
but are not limited to:
ͳPulling the ride-on toy with another ride-on or similar
moving product
ͳAllowing more than one rider
ͳPushing the user from the back
ͳTraveling at an unsafe speed
ͳAny kind of stunt riding or other more risky use
ͳGoing over jumps or other type of ramps
ͳ Not riding in a seated posion
ͳ Not riding with the baery or other covers fully closed
• ADULTS MUST SET UP PHYSICAL BARRIERS, SUCH AS GATES OR
FENCES, TO KEEP CHILDREN AWAY FROM HAZARDOUS AREAS.
• Always use the ride-on toy in a safe, secure environment with
connuous adult supervision.
• This ride-on toy does not have brakes or any braking capability.
Do not leave a child unaended while using this ride-on toy or
allow use of this ride-on toy in any locaon that requires braking
capability, as this could result in a roll away or loss of control,
which may cause serious injury or death.
WARNING!

4
-- WARNING! --
Baery and Charging Warnings
The following safety hazards may result in serious injury or
death to the user of the ride-on:
Corrosive Material Warnings
• Baery posts, terminals and related accessories contain lead
and lead compounds (acids) chemicals and are toxic and
corrosive. Never open the baery.
• Contact or exposure to baery leakage (lead acid) may cause
serious injury. If contact or exposure occurs with the skin or in
the eyes, or if the chemical is swallowed, immediately call 911.
WARNING!
Safe Riding Warnings (connued)
• Do not ride in wet condions such as rain and snow. Doing so
may result in unexpected acon such as p over and skidding,
as well as damage to the electrical system and baery.
• Do not ride near swimming pools or other bodies of water.
• Do not ride on roads, streets, near other ride-on toys or where
other types of moving objects are present.
• Do not ride at night or in condions of low visibility.
• Do not ride near drop-os such as steps, sloped surfaces
or hills.
• Do not ride into loose dirt, mud, sand, ne gravel, loose gravel
and rough surfaces.
• For best performance, ride-on at, hard surfaces.
• Never hitch (aach) on to another ride-on or pull anyone
or anything.

5
-- WARNING!
Electric Shock / Fire Warnings
• Liquids on the baery may cause re or electric shock.
Always keep all liquids away from the baery and keep the
baery dry.
• Tampering or modifying the electric circuit system may cause a
shock, re or explosion and permanently damage the system.
Exposed wiring, circuitry in the charger may cause electric
shock. Always keep the charger housing closed.
• Regularly check charger, supply cord and connector for wear
and damage. Look for frayed or kinked wires, any exposed inner
wires, any missing insulaon. If any damage is observed do not
plug in the charger and do not charge
the baery.
Flammable and Explosive Materials Warnings
• Use of a baery or charger other than the supplied 6V
rechargeable baery and charger may cause a re or explosion.
Only use the supplied 6V rechargeable baery and charger with
the ride-on toy.
• Do not charge the baery near heat or ammable materials.
• Using the 6V recharbeable baery and charger for any other
product many result in overheang, re or explosion. Never use
the 6V rechargeable baery and charger with another product.
• Contact between the posive and negave terminals may result
in re or explosion. Avoid direct contact between the terminals.
Liing the baery by the wires or charger can cause damage to
the baery and may result in a re. Always li the baery by its
case or handles.
• Plug wall charger directly into a wall outlet. Do not use an
extension cord when charging as the use of an extension cord
can cause a re.
Baery and Charging Warnings (connued)

6
-- CAUTION!WARNING!
If you are unsure of any informaon in this manual or have a queson regarding assembly or use please call customer service. Always
keep this manual for reference and include it with resale of the ride-on toy.
Re-Charge Interval and Time
Important!
• Damage to the baery may occur if it is allowed to drain
completely. Do not allow the baery to drain completely.
• Check the baery and charger (supply cord, connector) for
wear and damage before charging. Do not charge the baery if
damage has occurred. Do not use an extension cord when
charging the ride-on toy.
• On average you will need to charge the baery for 10 hours
and no more than 24 hours. Failure to charge the baery as
directed could cause permanent damage to the baery and
void the warranty.
• Only an adult who has read and understands the safety
warnings should handle, charge and recharge the baery.
Product Warning
• This product can expose you to chemicals including lead, which
is known to the State of California to cause cancer and birth
defects or other reproducve harm. For more informaon go
to www.P65Warnings.ca.gov.
Assembly Warnings
• The ride-on toy must be assembled by an adult who has read
and understands the instrucons in this manual.
• Choking hazard to children under the age of 3 years.
This ride-on toy contains small parts that are for adult
assembly only. Keep small children away when assembling.
• Remove and dispose of all protecve materials, plasc bags
and packaging before assembly.

7
PRE-RIDE SAFETY CHECKLIST
(To be performed by a supervising adult)
Before every ride, it is important to carry out the following
safety checks. Do not ride a baery powered ride-on toy that is
not in proper working condion! Replace any worn or broken parts
as needed.
Steering and Control
The steering wheel or handlebars are ghtened and secured in
the mount or dashboard.
The steering wheel or handlebars are posioned so that the
rider can easily operate and steer the ride-on. There must be
no diculty for the rider in turning and/or operang the
powered foot pedal or hand operated push buon.
The steering wheel or handlebars are aligned so that the
steering column and front wheels are oriented in the
same direcon.
Wheels
The wheels are securely aached to the baery powered
ride-on and the are in good condion. It is acceptable to have
slight lateral movement in each wheel.
The wheels have no holes or are worn down in any one area
and that the tracon strips are intact and secured to the
wheels.
The drive wheel is securely fastened to the gear box, which
houses the motor.
Ride-on
For all electrical components, make sure:
ͳ The baery is fully charged
ͳ The charging cord is NOT aached to the ride-on in
any way
ͳAll connectors are securely snapped in place and will not
come detached while riding
ͳNo wiring is exposed, worn, or detached in any way; the
motor is not hot to touch
ͳ All electrical buons, including the power buon,
accelerator foot pedal or hand operated buon, and any
buons for lights and sounds, work properly
ͳIf the ride-on’s electrical components show any sign of
damage or missing parts DO NOT RIDE unl the condion
is corrected
Make sure the ride-on is:
ͳ Clean, dry, and in good condion
ͳ All plasc pieces, including fenders, seat, footrests,
steering wheel or handlebars, wheels, bumpers, and/or
hub caps are securely aached
ͳThere are no cracks or structural problems on the
ride-on toy
ͳIf the ride-on toy shows any sign of damage or missing
parts DO NOT RIDE IT unl the condion is corrected
Make sure all safety labels are in place and readable, and
understood by the rider.

8
vvv
Parts
2
1
2
3
6
9
8 7
5
4

9
Before beginning assembly, check to ensure that the parts listed
above are present. Some hardware is aached to the sub assembly.
Hardware (actual size)
Tools Required
Parts List
Part
Number Part name Quanty
1Handlebars 1
2Seat 1
3Spiderman Body 1
4Rear Wheels 2
5Rear Hubcaps 2
6Front Axle 1
7Front Fork 1
8Front Wheel 1
9Charger 1
x4x4 x2
x1 x1
(included) 2x

10
Assembly
3
Aach the Rear Wheels
When you ghten the nuts (steps 4 and 9), if you aempt to ghten one
nut at a me the axle will spin prevenng the nut from properly
ghtening. Instead ghten both nuts simultaneously to ensure that all
hardware is locked into place.
TIP!
❷❺ ❿
❸❾❹ ❽❼
❻
❶

11
Insert the Fork into the Body Place the Front Wheel Between the Fork

12
Insert the Front Axle Aach the Front Wheel Hardware
❸
❷
❶
❹

13
Aach the Handlebars
❶
❷
❸
❸
❹
❹

14
WARNING!
NOTICE
Charging the Baery
• A baery contains hazardous material that may cause serious
injury or death if handled, connected, or charged improperly.
Only an adult who has read and understands the warnings
and instrucons in this manual should handle, connect, or
charge the baery. Always contact Pacic Cycle at
1-877-741-6154 if you have any quesons or concerns
regarding handling, connecng, or charging the baery.
• Charging the baery more than 24 hours could cause the
baery to explode or ignite resulng in serious injury, death
or property damage. Do not charge the baery for more than
24 hours. Always disconnect the product from the charger
aer the baery is completely charged. Immediately
disconnect the charger from the wall aer the charger
indicator light turns green.
• A damaged supply cord, connector, or charger could cause
burns to the skin, an electrical re, serious injury, death, or
property damage. Always inspect the supply cord, connector,
and charger for damage. (e.g., frayed or kinked wires, exposed
inner wires, missing insulaon) before use. If damaged, do not
use the supply cord, connector or charger for any purpose and
properly dispose
• Connecng the baery and baery charger to an extension
cord(s) could result in overheang, explosion, re, serious
injury, death, or property damage. Never charge the baery
using an extension cord. Always plug the charger directly into
a wall outlet.
• See addional baery and charging warnings on p.4
• The baery may become damaged if allowed to drain
completely. Always keep the baery charged.
• The average me to charge the baery is between 10 and 12
hours. Failure to follow the instrucons regarding charging the
baery may result in permanent damage to the baery and void
the warranty.

15
• The product will not turn on while plugged into the
charger. Remove from charger prior to turning on.
• Watch for the LED light to turn green to indicate
when charging is complete.
TIP!
❸
❶
❷
10
10 Charge the baery
for 10 hours before
the rst use, and
each use aerwards.
24+ Do not charge the
baery for more
than 24 hours
❹
❺

16

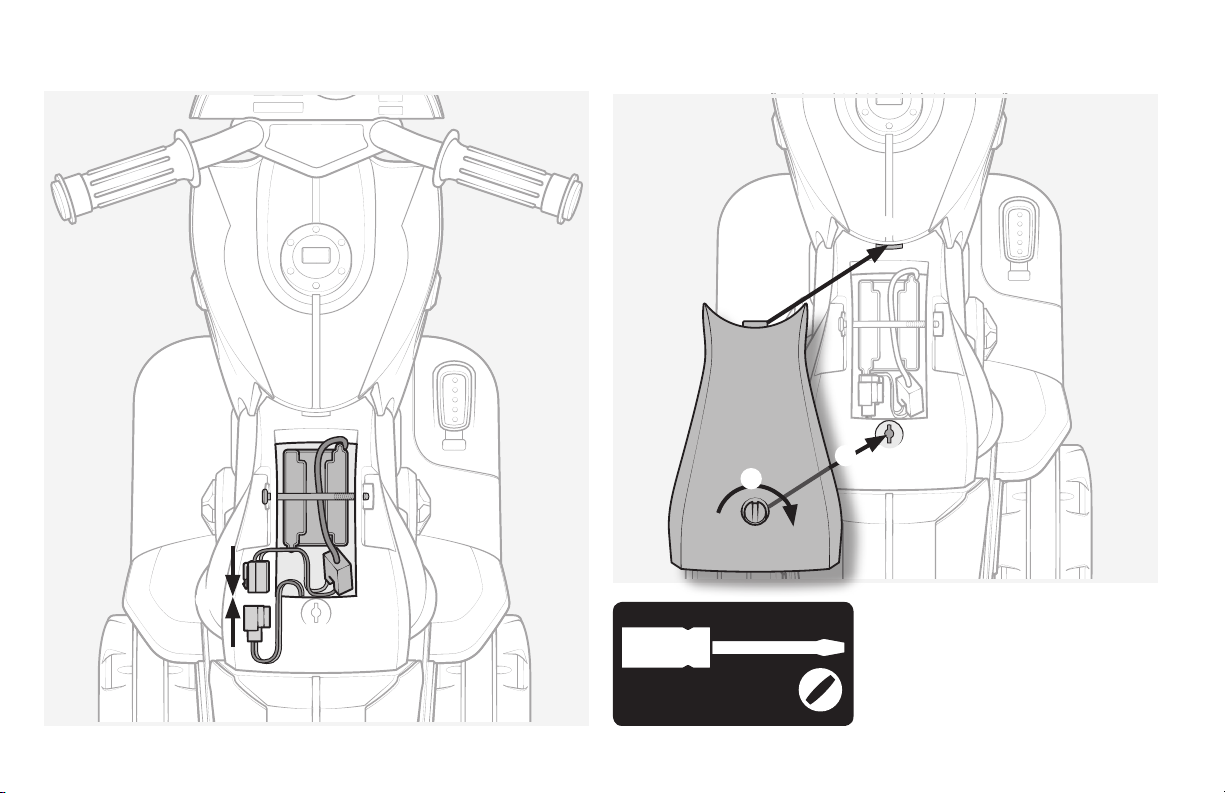

Connect the Baery to the Motor Aach the Seat
❺
❶
❷
❸

17
Use
4
Controls & Funcons
Maximum Speed: 1.5 MPH
Minimum Speed: 0 MPH
Note
Li foot o pedal to stop.
Press pedal to accelerate.
When the pedal is
pressed the LED lights
come on.

18
Baery Replacement and Disposal
The baery will eventually lose the ability to hold a charge.
Depending on the amount of use, and varying condions, the
baery should operate for one to three years. Follow these steps
to replace and dispose the baery.
Important! Recycle the dead baery responsibly. The baery
contains lead acid (electrolyte) and must be disposed of properly
and legally. It is illegal in most areas to incinerate lead acid
baeries or dispose of them in landlls. Take it to a federal or
state-approved lead acid baery recycler, such as an authorized
service center or your local automove baery retailer. Do not
throw the baery away with your regular household trash!
Maintenance
5
This ride-on toy contains a sealed lead
acid NON SPILLABLE BATTERY. This
baery must be recycled.
❷
❸
❶

19
Disconnect the Baery Remove and Dispose of the Baery
❹
❺
❻❼

20
The ride-on toy should be checked for damage, missing or badly
worn parts before each use.
• Check the ghtness of the fasteners before each use.
• Check the ghtness of the wheels before each use.
• Ensure the baery is securely in place before each use.
• Store the to ride-on toy indoors or cover it with a tarp to
protect it from the wet weather. Keep it away from sources of
heat, such as stoves and heaters.
• Do not leave the vehicle in the sun for long periods of me or
fading may occur. Store in shade or cover with tarp.
• Do not wash the vehicle with a hose.
• Do not wash the vehicle with soap and water.
• Clean the vehicle with a so, dry cloth. To restore shine to plasc
parts, use a non-wax furniture polish. Do not use car wax,
abrasive cleaners or wash the vehicle with soap and water. Water
will damage the motor, electrical system and baery.
Note
