Kidotec pokky series User manual

Assembly Instructions
Do not use Pokky until you read and understand theses instructions
English version
Pokky series
TM
TM

Table of Contents:
Introduction Page 01
Specifications Page 01
Warnings Page 02
Package contents Page 03
Assembly Page 03
Warranty&Service Page 09

Introduction
Congratulations for choosing POKKY.
POKKY is a multifunctional lightweight vehicle for parents and children.
It is a innovative design aims to improve your daily parental life and make it less restrained and more enjoyable.
We wish you and your loved ones much fun and pleasure with your POKKY. If you have any concerns, questions or comments
about your POKKY or how to use it, please don't hesitate to contact us. We'd love to hear from you.
Frame High-finish aluminum alloy 6061
Front brake Disk brakes on both wheels
Rear brake Shimano Nexus roller brake(option)
Rim Aluminum alloy rim
Tires 16" pneumetic tires
Baby seat 600D oxford fabric with EU standard
Safety harness 5 point extra strong safety belt harness with EU standard
Bicycle dimention/Stroller dimention(cm) 70W x 167L x 118H / 70W x 130L x 118H
Package size(cm) 115 x 28 x 65
G.W./N.W. 30kg/28kg
Accessories rain cover, mosquito net, warm foot bag, the second baby seat,
travel system, shopping basket,umbrella
Maximum weight allowed rider:100kg / child:15kg / luggage in underseat basket:4.5kg
Specifications
introduction&specification
01

Failure to follow all warnings and instructions could result in serious injuiry or death.
➔Please notice that POKKY is a tricycle. To maintain stability when you riding,please slow down before turning and
lean your body into the turn.
➔Because it is impossible to anticipate every situation or condition which can occur while riding, this manual makes no
representation about the safe use of the tricycle under all conditions. There are risks associated with the use of any
bicycle / tricycle which cannot be predicted or avoided, and which are the sole responsibility of the rider.
➔Many countries and states require specific safety devices. It is your responsibility to familiarize yourself with the laws
of the state where you ride and to comply with all applicable laws.
➔Never leave child unattend, even sleeping
➔Excessive weight (beyond the maximum weights allowed in the table above) in either the child seat or the basket
may cause hazardous unstable conditions to exist.
➔Always use the safety harness to avoid serious injury from falling or sliding out. Always secure all safety harness
straps. Ensure the safety harness is correctly fitted and adjusted and secures the child firmly.
➔When children climb in and out, the tricycle may tip down in front unless held from the back of the tricycle.
➔Always use a bicycle helmet for yourself and your child when riding POKKY (not necessary in strolling mode).
➔Do not stand or let children stand on the curved tube between the wheels. This is unsafe and can damage the POKKY.
➔Do not use POKKY if any part is broken, torn or missing.
➔Parcels or accessories attached to the handlebar or the child seat stand will have a negative impact on the stability of
the POKKY.
➔This POKKY is not suitable for running or skating.
➔Ensure that the child seat is properly attached to the arm adapters before use.
➔Always lock the converting quick release after converting POKKY from strolling mode to riding mode, or vice versa.
➔As with all mechanical components, POKKY is subject to wear and tear. Different materials and components may
react to wear or stress fatigue in different ways. If the expected usage life of a component has been exceeded, it may
suddenly fail, possibly causing injuries to the rider. Any form of crack, scratches or discoloration in highly stressed areas
indicates that the life of the component has been reached and it should be replaced.
Warnings
warnings 02

Package Contents
The POKKY comes with the following main parts:
1. Rear frame
+ Right steering handle
2. Front frame
+ Left steering handle
3. Front wheel (left&right)
4. Arm adapter(left&right)
5. Under-seat Basket
6. One baby seat
7. Baby seat adapter
8. wrench x1
Assembly
Step 1: Assembling the front wheels

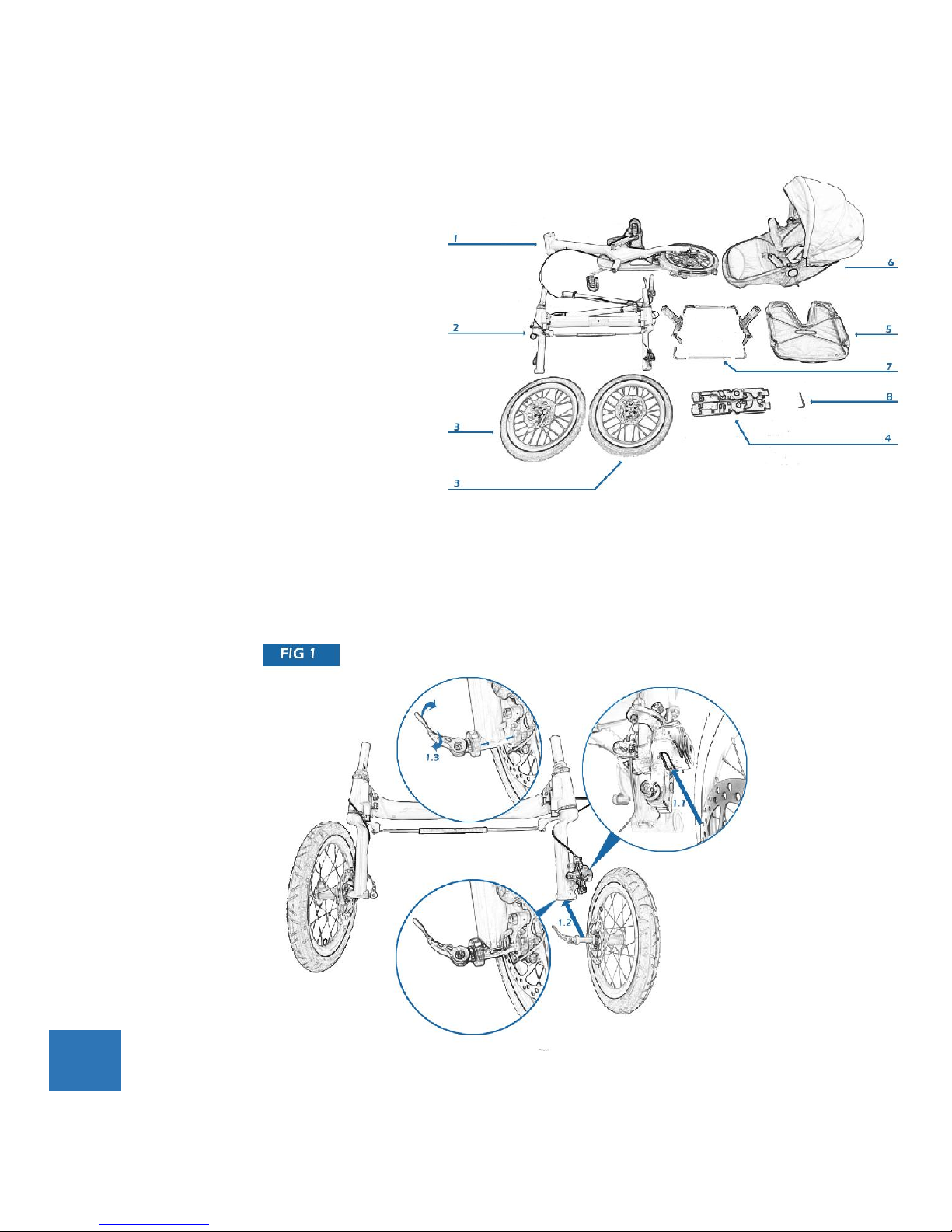

1.Fix the front wheels on the fork dropouts(FIG 1)[1.2] .The brake disk should be inserted in the middle of the brake caliper.
Make sure the brake disk don't touch the brake caliper(FIG 1)[1.1].
2. Tighten the wheel quick release(FIG 1)[1.3].
package content&assembly
03

Step 2: Assembling the main frame
1. Loose two screws by hand (FIG 2)[2.1], and pen the converting quick release in middle (FIG 2)[2.2][2.3].
2. Hold the rear frame with the rear wheel facing up and gently assembling with the front frame. Make sure two trenches
from the frame are matches(FIG 3)
3.Make sure you tighten the security screws by hand (FIG 4)[1]and the connecting quick release is properly
closed(FIG4)[4.2][4.3].
assembly 04

Step 3: Assembling the adapter arms

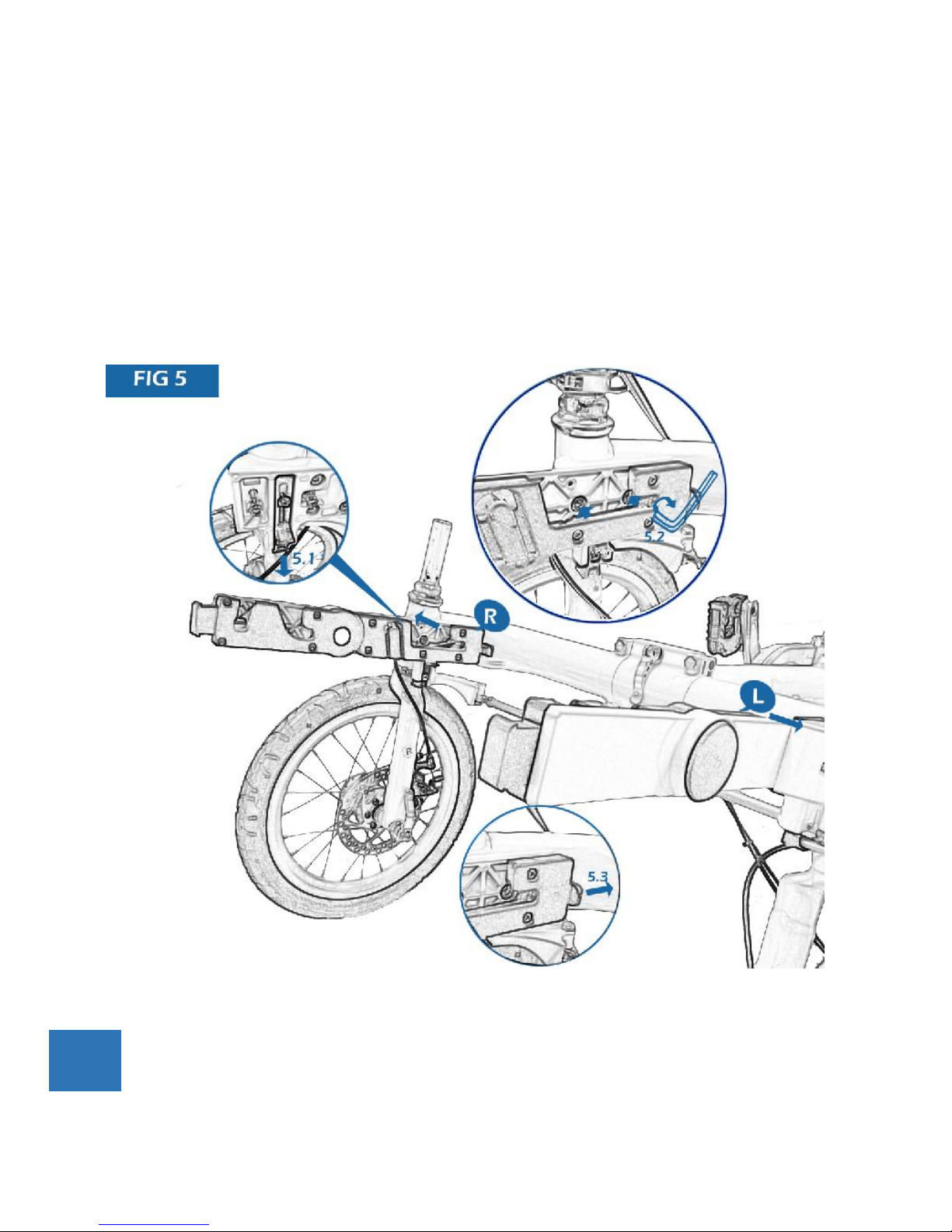

1. Put down the steering lock lever (FIG 5)[5.1], place the adapter arm in place(See mark "L"&"R",from the rider position)
with two screws on the front frame, tighten the arm to the frame with the wrench(FIG 5)[5.2].
2.Pull out the rear buttons to the release the internal lever (FIG 5)[5.3].
assembly
05

Step 4: Assembling the steering post
Insert the steering posts to their location and make sure they are positioned at right angles(FIG 6)[6.1]. Close the lever on the
steering post (FIG 6)[6.2].
Step 5:Assembling the underseat basket
Insert the basket arms into the adapter arms slots as illustrated (FIG 7)[7.1]. Compress the basket arm and slide all the way
down until locked in its final position (FIG 7)[7.2].
CAUTION
The basket's niche should be facing forward as photo shows
06
assembly

Step 6: Assembling the baby seat adapter

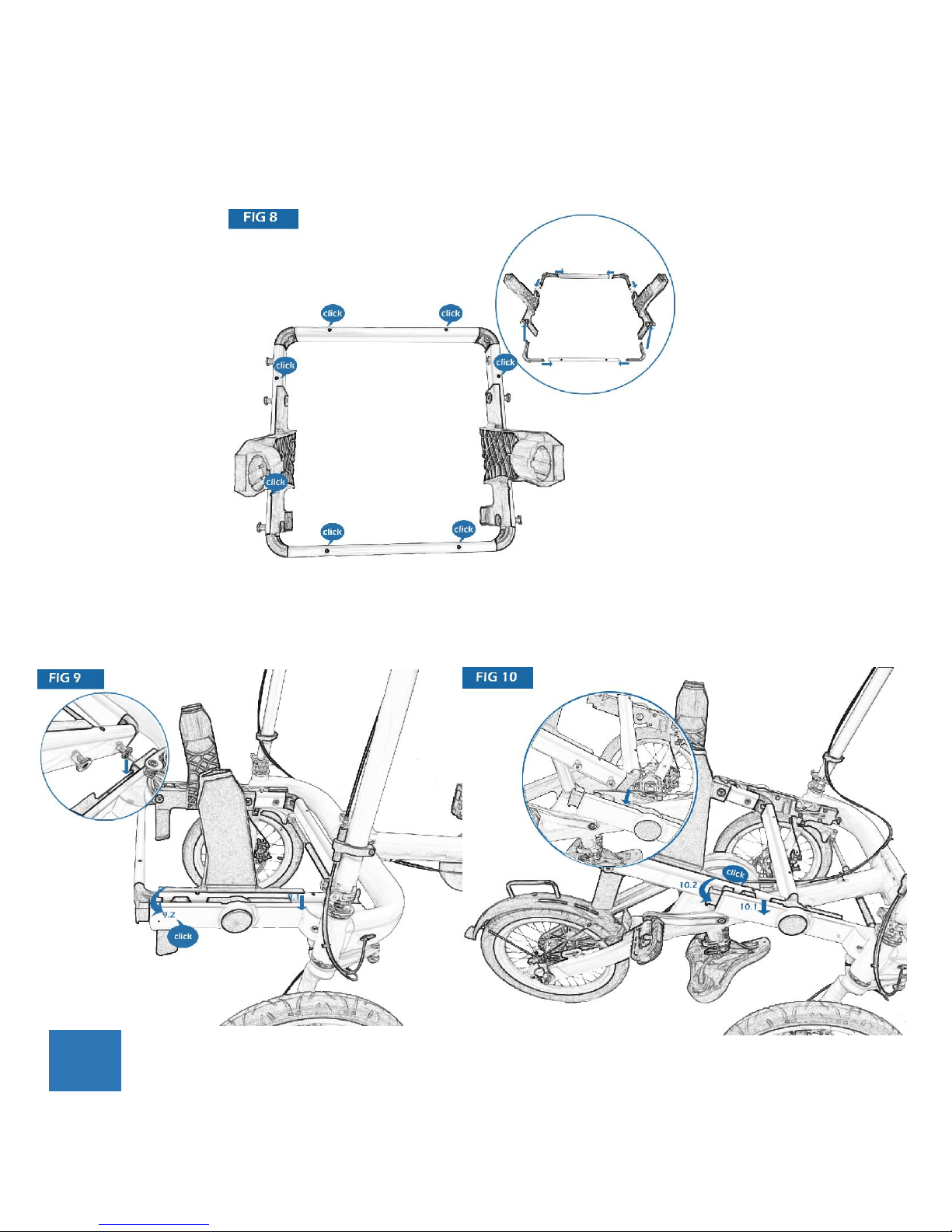

With four plastic parts, linked four tubes. Make it becomes a closed square.(FIG 8)
Step 7:Assembling the baby seat adapter to the adapter arms
In ride mode, assembling the baby seat adapter to the adapter arms in the rear position as photo(FIG 9)[9.1], until you
hear a “click”(FIG 9)*9.2+. In stroller mode, assembling the baby seat adapter to the adapter arms in the front position
as photo(FIG 10)[10.1], until you hear a "click"(FIG 10)[10.2].
07 assembly

Step 8: Assembling the baby seat
Put the baby seat into the baby seat adapter(FIG 11).
Step 9: Adjusting the saddle
Open the lower lever and slide up the bottom seat post to a comfortable height. Then close the lever firmly(FIG 12).
08
assembly

Service:
In the event of a defect, you are requested to first contact your Authorized POKKY Reseller. If the reseller is unable to
repair the defect, he will refer you to an Authorized POKKY Service Center or you can contact our customer service by
email at [e-mail].
Warranty& service
As the manufacturer, the POKKY vehicle under warranty,subject to thefollowing conditions:
➔The warranty automatically applies to every POKKY purchase.
➔The warranty is valid in the continent of purchase only
➔The warranty covers any manufacturing defects in materials and workmanship, for POKKY used in normal conditions and in
compliance with operating instructions.
➔The warranty period is two years on the majority of POKKY components including the frame, gear and child seat frame.
➔To request repairs under the warranty for defects in materials and workmanship, you must present proof of purchase, made
within the 24 months preceding the service request and fill in the warranty card.
No warranty will be provided in the following circumstances:
➔The warranty does not cover damage caused by normal wear and tear, accident, or negligence. Examples include wheels and
fabric worn down by regular use and the natural breakdown of colors and materials over extended time and use.
➔The warranty does not cover abusive use, negligence, or the consequences of failing to comply with the operating
instructions supplied with the POKKY.
➔The warranty does not cover any repairs made after 24 months from date of purchase.
➔The warranty does not cover any paint scratch caused by daily use
➔The warranty does not cover second hand or resold POKKY tricycles
➔The warranty does not cover any failures caused by using non-original spare parts.
➔The warranty will not be provided if the serial number has beendamaged or removed.
The warranty does not include shipping fees and labor costs.
If your POKKY fails due to a manufacturing or workmanship defect, our first option will be to repair the item, free of charge. If
the POKKY is not reparable, or if the cost of repairing the item exceeds the cost of a new one, it will be replaced by another
POKKY part of the same model, or if not available, by the closest model and available color.
The POKKY warranty are given in addition to, and do not affect, your statutory (legal) rights. Legal rights may vary by country.
warranty&service
09

Thank you for purchasing POKKY. It is important for us to hear your thoughts.
Please feel free to contact us!
Email:[email protected]om
Tel:[phone]
Fax:[phone]
China office:1/F Building1,XinYe plaza,No.1418-60 MoGanShan Road,
Gongshu district,Hangzhou city,Zhejiang provience,China

POKKY series assembly instruction - January 2016
