KIFFE K1 User manual

K 1 Operating Manual
BA1.indd 1 20.04.2017 11:39:26

K1 control unit in detail
battery capacity display (3 LED‘s
show the battery status)………...................
..............................start and stop
........ speed regulator
(stageless and continuous)
electronic freewheel mode..........................
(manoeuvring against the running
direction)
K 1 Operating Manual
BA1.indd 2 20.04.2017 11:39:32

K 1 Operating Manual
Congratulations on your KIFFE K1!
We are of the opinion that no golfer deserves mediocre equipment.
And that‘s exactly why we at KIFFE Golf Manufaktur produce
technically superior trolleys with perfect craftsmanship, and we
attach the utmost importance to well-thought-out functionality and
ease of use with each of our models, so that you can concentrate on
one thing only: Your Game.
For it to remain that way in the long term, please follow the
instructions in this manual. Should you have any further questions,
please contact our service department at:
[email protected].
We wish you many special moments with your trolley and a good
game always!
yours KIFFE Golf Manufaktur
___________________________________________
After receiving your trolley, please check:
● thepackagingforpossibleshippingdamage
● hecompletenessofthescopeofdeliveryasperthedelivery
note
● thetrolleyforvisibledefects/damage
Please report any visible defects, transport damage or incomplete
deliveries in writing without delay, but at the latest within two working
days after delivery:
● bye-mailat:[email protected]or
● byfaxat:0049-7420-91395-20
Please take into account that complaints received later can unfor-
tunately no longer be acknowledged.
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
BA1.indd 3 20.04.2017 11:39:32

KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
K 1 Operating Manual

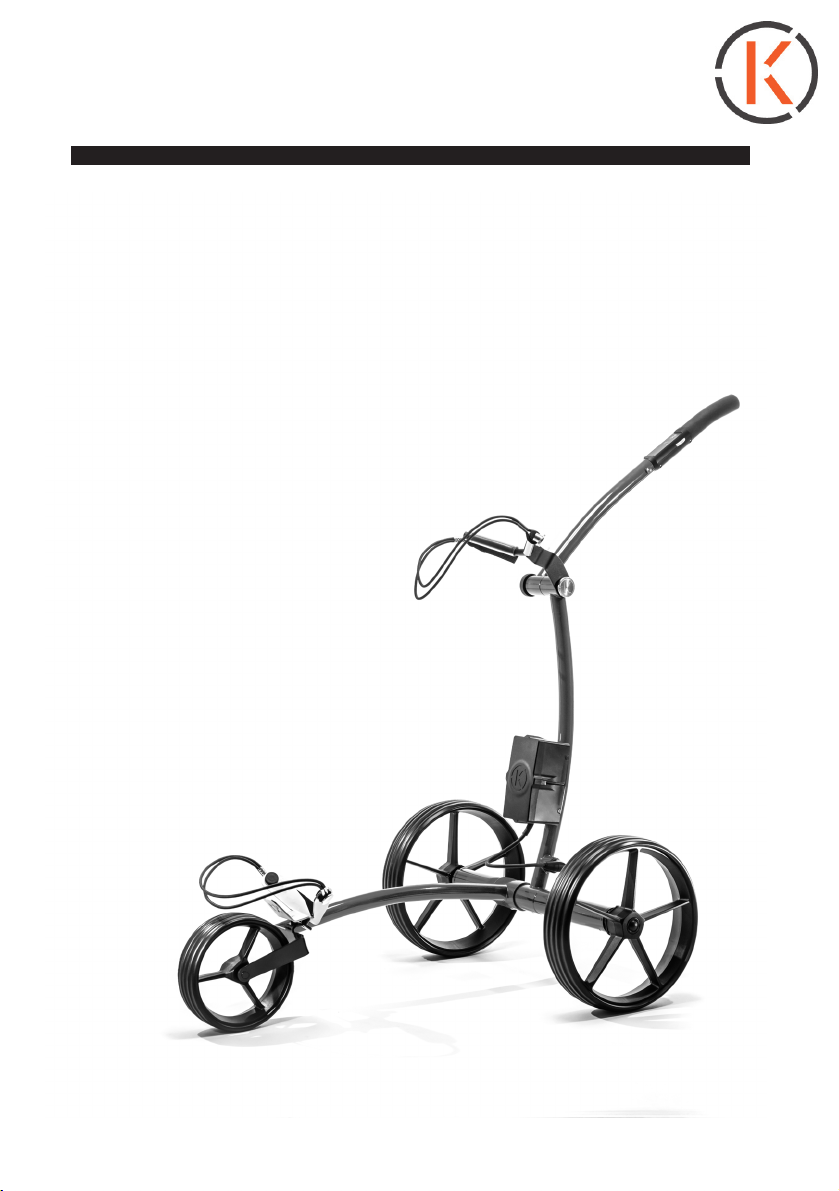

....... upper steering rod,
individually adjustable
control unit .....
knob for fastening the height -
adjustable steering rod ...............................
..........xedupperbagrestwith
secure mounting points
..... battery in hard cover with
magnetic connector
............. solid GRP
wheels, emovable
by pressing a button
lower bag rest.....
lower steering rod ...............
BA1.indd 4 20.04.2017 11:39:35

Trolley packed All the trolley components
Charger from power grid Connection charger - battery
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
K 1 Operating Manual
Only when a noticeable re-
sistance has been overcome
when connecting to the battery
and charger are correctly con-
nected. Charging can begin.
Charge the battery for 24 hours
uninterrupted before using the
trolley for the rst time!
BA1.indd 5 20.04.2017 11:39:36

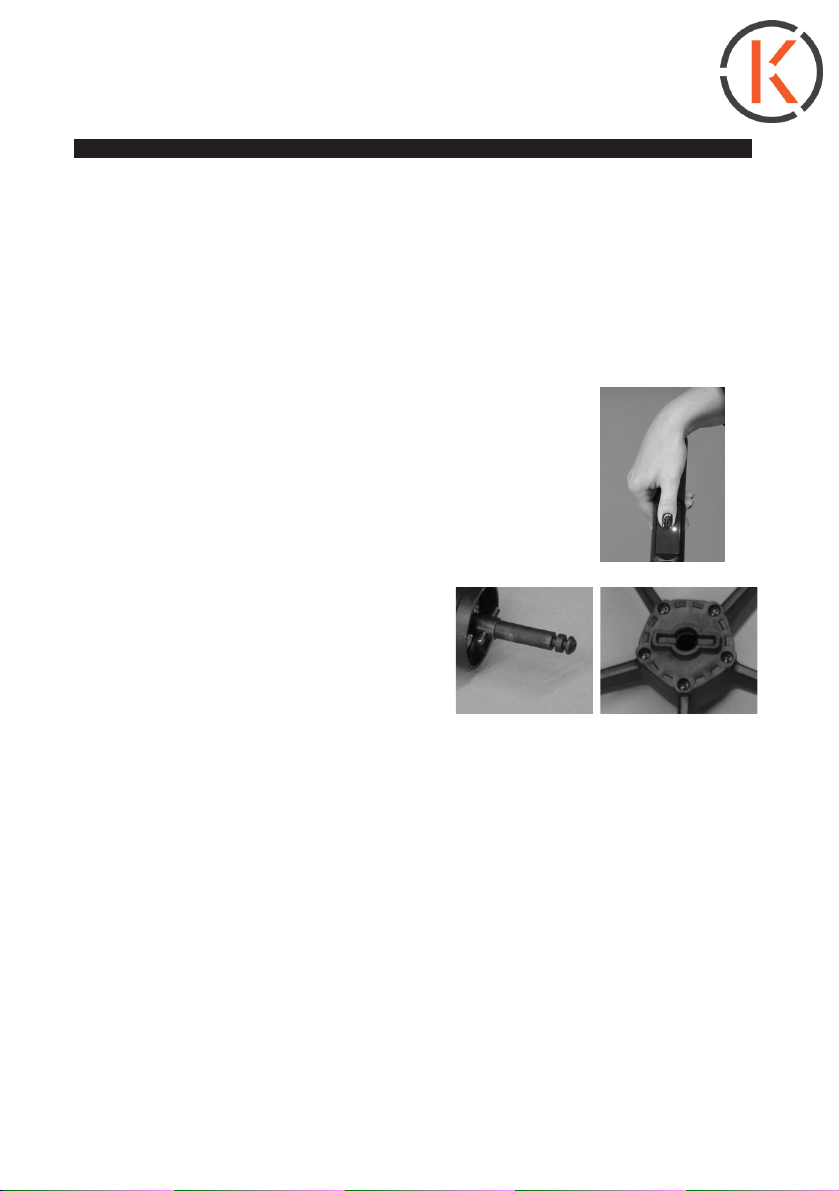

Drive axle Back side of drive wheel
Open the push button, place the
wheel on the drive axle
Press the push button (= lock)
Trolley with attached, locked drive
wheels (push button closed)
K 1 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]

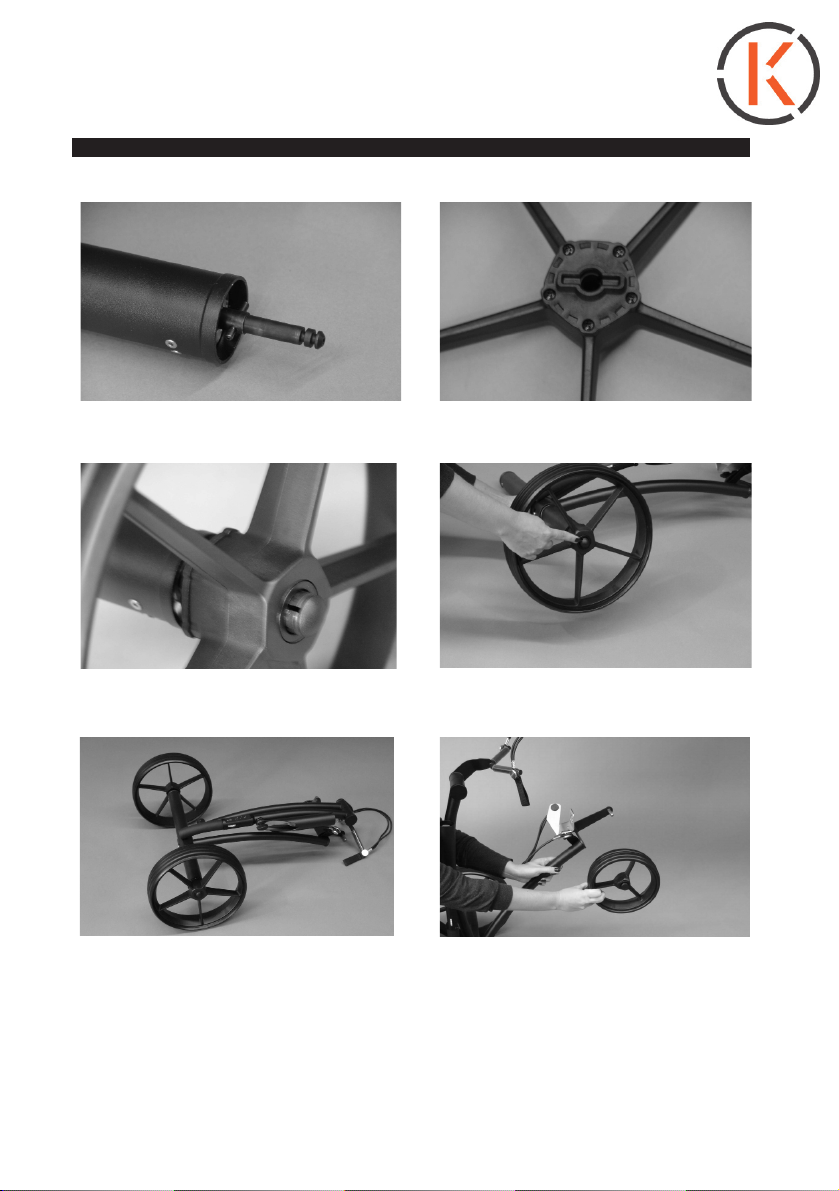

Put the front wheel (open) on the
front axle. Maintain distance from
axle shank and lock with the push
button. Set the trolley upright.
BA1.indd 6 20.04.2017 11:39:36

Attaching the upper steering rod
Mount the battery with the cable
down on both the stems of the
steering rod
To avoid impurities, do not place
theplugontheoor.
Battery connection by magnetic
connector. Flahing signal at the
control unit indicates battery con-
nected.
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
K 1 Operating Manual
BA1.indd 7 20.04.2017 11:39:41

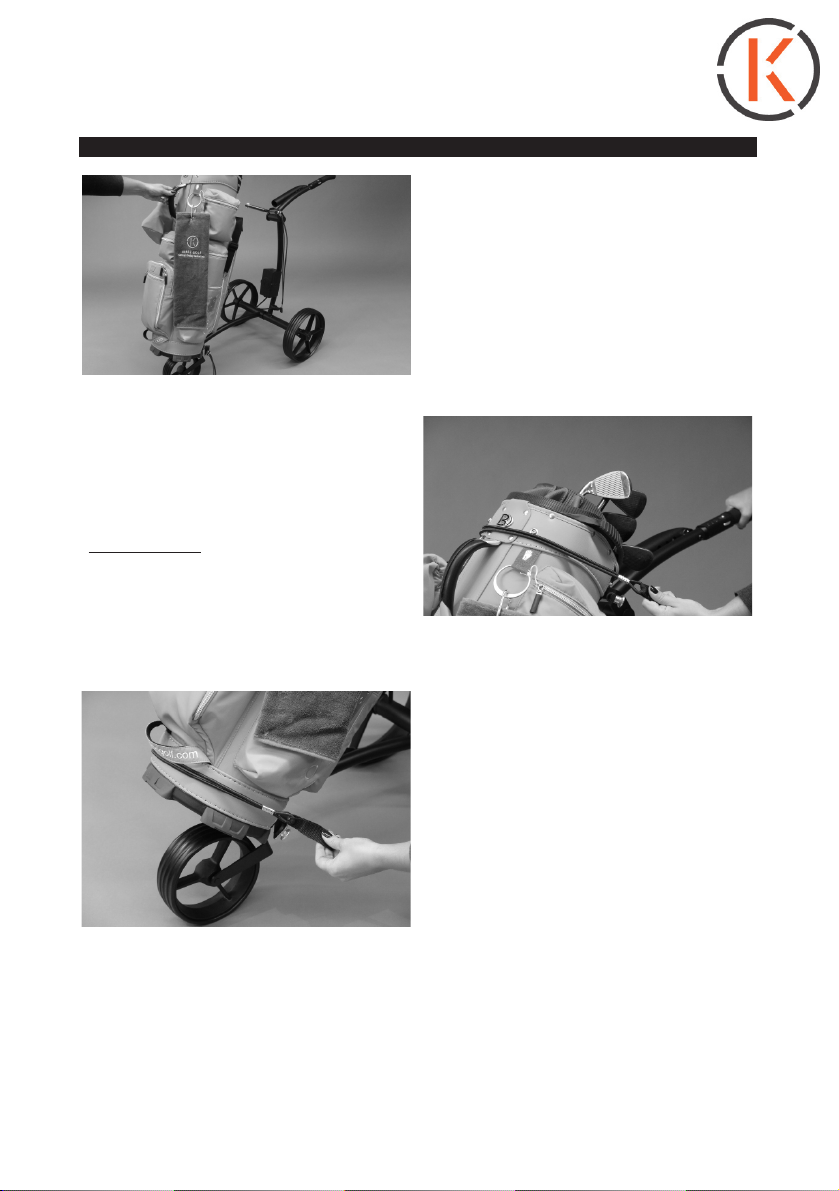

Place the golf bag on the trolley
Attach the bag onto the upper bag
rest by hooking the bag elastic over
the mounting point.
ATTENTION: The bag rest ist rigid,
so it cannot be customized.
Attach the bag onto the lower bag
rest by hooking the bag elastic over
the mounting point.
K 1 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
BA1.indd 8 20.04.2017 11:39:41

Operation/Maintenance
1. Switching the trolley on
Switch on by briefly pressing the
start / stop button "K". The charge
status indicator lights up.
3 x green = full charge, reduced to
2 x green when consumed,
1 x green, orange, red = emptyp
The trolley is ready to start when
the LED‘s above the „K“ light con-
stantly. (= Battery charge indicator:
comprises a total of 3 LED‘s)
2.Thetrolleyisstartedbyturning
the speed control wheel. This will
increase or slow down the speed.
The speed controller (continuous
wheel) can be operated both form
left as well as from the right.
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
K 1 Operating Manual
BA1.indd 9 20.04.2017 11:39:46

3. The trolley has a speed memory: It saves the last speed you drove it
at(bybrieypressingthestart/stopbutton.
4. The trolley has both a manual and an electronic freewheel. The elect-
ronic freewheel is set by pressing a key on the control unit. Press the
button above „K“ button to do this. The LED next to the key lights up
white. The drive is thereby switched off. This driving
mode is required to maneuver the trolley against the
running direction. The manual freewheel is recom-
mended for using the trolley without a battery. This
mode is activated as follows:
1. Unlock the drive wheels and pull
them outwards about 1 cm.
2.Re-lockintheoutergroove
proleoftheaxlebymeansof
the push button.
5. The trolley has a cruise control, which keeps the set speed even when
the trolley drinving downhill. In sloping terrains, the trolly must be
parked crosswise to the slope in order to avoid rolling away.
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
K 1 Operating Manual
BA1.indd 10 20.04.2017 11:39:46

K 1 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
Battery and charging
Charging
●Beforeusingthetrolleyforthersttime,chargethebatterywiththesup-
pliedoriginalchargerfor24hourswithoutinterruption.
●Todoso,firstconnectthechargertothepowersupplyandthenconnect
the battery and charger.
●ChargingiscompleteassoonastheLEDonthechargerareconstantly
green.
●Assoonasthebatteryisfullycharged,thechargerprovidesamainte- 
nance charge (indicated by the fast green flashing LED of the charger).
●Ideally,rechargethebatterycompletelyaftereachuse.Inthiswayno
“memory effect” is created.
●Besuretodisconnectthebatteryfromthechargerwhenthechargeris
not connected to the power supply.
●Thebatterymayonlybechargedinwell-ventilatedandwell-tempered
rooms(notbelow5°Corabove35°C.)Thechargermustnotbecover-
ed during charging.
Safety and warnings
●Checkthechargerforproperoperation.Adefectivechargercandamage
the battery! The LED of the charger lights constantly green when the
battery is not connected. When the battery is connected, the color
changes to red, i.e. the charging process begins.
●Thebatteryispackedinahardcoverwhichmustnotbeopenedunder
any circumstances.
BA1.indd 11 20.04.2017 11:39:46

K 1 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
●Donotthrow,drop,ormanipulatethebattery(forexample,bydrilling, 
soldering, gluing, etc.)
●Keepthebatteryawayfromopenamesanddonotexposetoextreme
temperatures permanently (for example in a parked car in summer, in
unheated caddy halls in winter).
●Donotimmersebatteryorpouranykindofuidontoit.
●Donotreuseortransportdamagedbatteries(whetherhardcoveror
cable). Please inform KIFFE Golf Manufaktur GmbH immediately.
●UsethebatteryonlyforoperatingKIFFEgolftrolleys.
Please note that not complying with the safety and warning notices can
damage the battery. This will invalidate the warranty. This can even lead to
increasedriskofreundercertaincircumstances.
Cleaning and care
Regular maintenance and care will contribute to the preservation of your
trolley. The trolley should ideally be cleaned with compressed air after
every round. Alternatively you can also clean it with a damp cloth. Remo-
ve the battery before cleaning. In any case, avoid water from coming into
the control, battery connection and electronic components. Please do not
use abrasive or sharp cleaning agents or oil and greases for cleaning. All
the components of the trolley are designed in such a way that greases are
superuousandinfactrathercounterproductive.
BA1.indd 12 20.04.2017 11:39:46

K 1 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
Warranty conditions
Please contact the dealer you bought the trolley from in a warranty case.
Please note that your dealer will need the trolley together with the battery
and charger and other special accessories to return to the factory. Please
keep the completed guarantee form ready for a case like this.
KIFFE Golf Manufaktur GmbH has a 3-year warranty on all models of the
K-linefrom2016-includingonthebatteryandcharger.
Exceptions to the warranty and guarantee are wearing parts (such as
wheels, tires, controls, handles, rubber bands, etc.) or lacquer damage.
Batteries are subject to an irreversible aging process. Therefore, perfor-
mance reductions are not production errors. The KIFFE‘s own BMS system
also ensures a longer service life as well as careful handling of the battery.
Please observe the notes on charging, as well as the safety and warning
instructions in this manual.
The warranty-related replacement of the trolley or parts thereof, as well as
repairs carried out, do not extend the warranty period.
The basic prerequisites for carrying out warranty services are:
 ●Compliancewiththeinstructionsinthismanual
 ●Properintendeduseofthetrolley(transportingagolfbagona
golf course)
 ●Regular,appropriatecare
 ●Exclusiveuseoftheoriginalbatteryandchargersuppliedby
KIFFE.
BA1.indd 13 20.04.2017 11:39:46

K 1 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
The warranty is invalidated:
●ifthetrolleyisnotusedormaintainedproperly
●inthecaseofoverloadduetointeraliatowing,usingabuggyorgolfcart,
or the use of the trolley as a traction device
●withwaterdamage
●withtransportdamage
●withdamagecausedbyafall
●bydefectivecare
●bychangestothesystem(mechanical,electrical,changetoparameters
and/orsoftware)
●byremoval/destructionofthegivenserialnumbers
●byinterventionsorrepairscarriedoutwithouttheexpresswrittenconsent
of the manufacturer
●bydefectsordamageattributabletoforcemajeureoraccidents
●bydefectsanddamageattributabletonotusingoriginalKIFFEspare 
parts
●ifthebatteryorchargershowtracesofhavingbeenopened,
disassembled, drilled, dropped, crushed, exposed to extreme tempera-
tures, manipulated, shorted, dipped in water or other liquids, deep
discharge or other damage
●mechanicaldamagetoplugsorcables
●impropertransportorstorageofthetrolleyand/orbattery
●damagetothebatterycausedbyexternalenvironmentalinfluences(e.g.
power surge through lightning strike)
In case of technical modifications and further developments
of a model, there is no claim to retrofitting.
BA1.indd 14 20.04.2017 11:39:46

K 1 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
Declaration of conformity
Manufacturer: KIFFE Golf Manufaktur GmbH
   DauchingerStrasse6
   78652Deisslingen
Germany
The manufacturer declares that the above-mentioned trolley, in its
concept and design, is in compliance with the essential health and
safetyrequirementsofECDirective2004/108/EC.
Type description: electric golf trolley
Model series: K1
Specicationsapplied:
DINEN6100-6-2:2006.03plusAmendment1:2001.06
DINEN55011:2011.04
RoHSDirective2011/65/EU
The trolley is only suitable for the transport of a golf bag on the golf
course.
The manufacturer accepts no liability for any changes made to the
device that have not been explicitly approved by the manufacturer.
BA1.indd 15 20.04.2017 11:39:46

K 1 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
BA1.indd 16 20.04.2017 11:39:46
