K 5/6 Operating Manual
Congratulations on your KIFFE K5!
We are of the opinion that no golfer deserves mediocre equipment.
And that‘s exactly why we at KIFFE Golf Manufaktur produce
technically superior trolleys with perfect craftsmanship, and we
attach the utmost importance to well-thought-out functionality and
ease of use with each of our models, so that you concentrate on one
thing only: Your Game.
For it to remain that way in the long term, please follow the
instructions in this manual. Should you have any further questions,
please contact our service department at: [email protected].
We wish you many special golf moments with your trolley and a
good game always!
yours KIFFE Golf Manufaktur
___________________________________________
After receiving your trolley, please check:
● thepackagingforpossibleshippingdamage
● hecompletenessofthescopeofdeliveryasperthedelivery
note
● thetrolleyforvisibledefects/damage
Please report any visible defects, transport damage or incomplete
deliveries in writing without delay, but at the latest within two working
days after delivery:
● bye-mailat:[email protected]oder
● byfaxat:0049-7420-91395-20
Please take into account that complaints received later can unfor-
tunately no longer be acknowledged.
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
BA5.indd 3 20.04.2017 11:22:11

KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
K 5/6 Operating Manual
.......upper steering rod,
individually adjustable
control unit .................
knob for fastening the height-
adjustable steering rod............................
..........xedupperbagrestwithsecure
mounting points
.........battery in hard cover with
magnetic connector
............. solid GRP
wheels, remo-
vable by pressing
a button
lower bag rest .....
lower steering rod..............
BA5.indd 4 20.04.2017 11:22:15

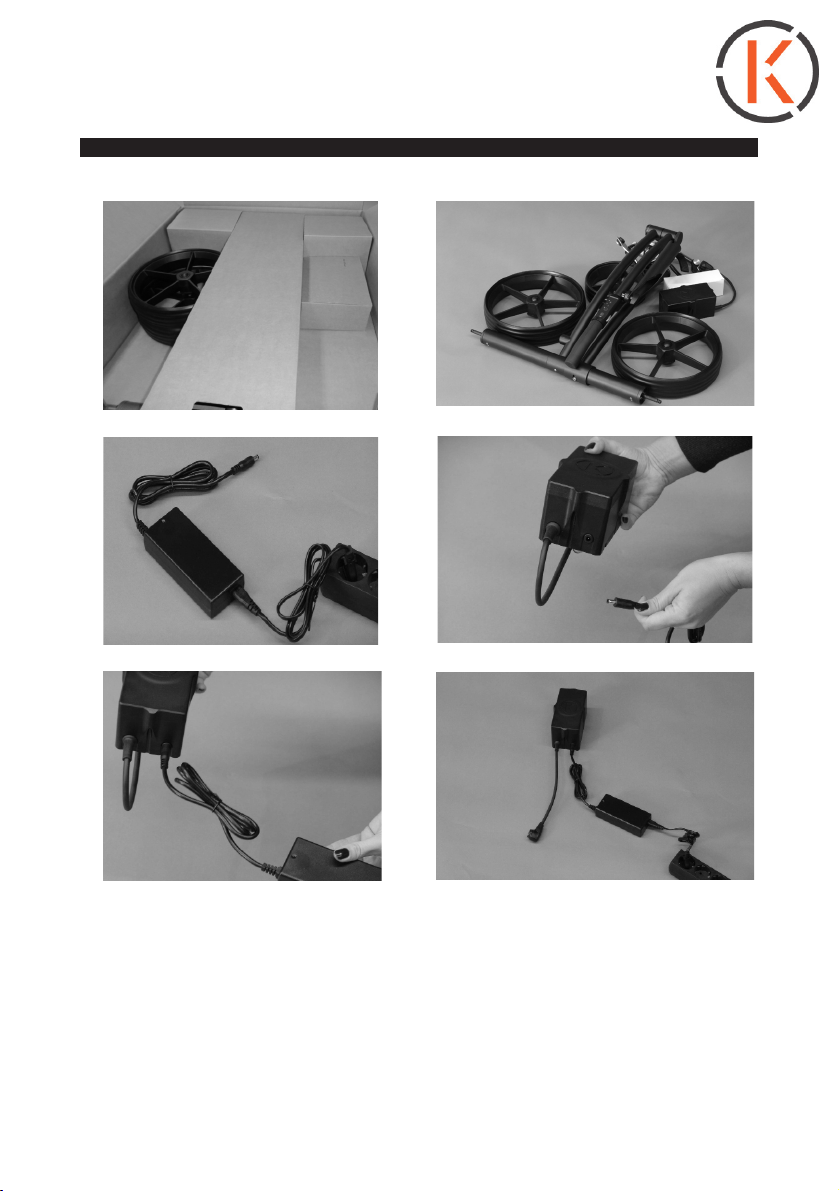

Trolley packed all the trolley components
Charger from power grid Connection charger-battery
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
K 5/6 Operating Manual
Only when a noticeable re-
sistance has been overcome
when connection to the batte-
ry, the battery and charger are
correctly connected. Charging
can begin.
Charge the battery for 24 hours
uninterrupted before using the
trolley for the st time!
BA5.indd 5 20.04.2017 11:22:15

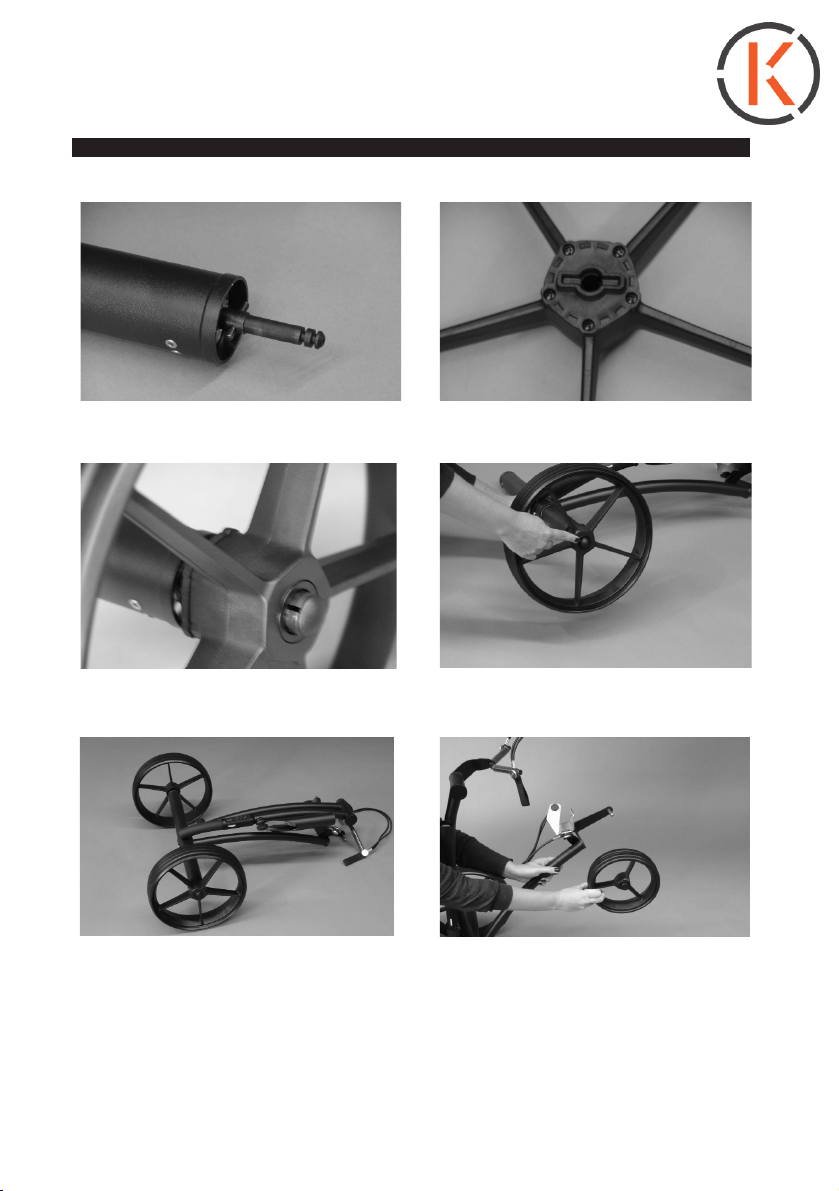

Drive axle Back of drive wheel
Open the push button, place the
wheel on the drive axle
Press the push button (=lock)
Trolley with attached, locked drive
wheels (push button closed)
K 5/6 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
Put the front wheel (open) on the
front axle. Maintain distance from
axle shank and lock with the push
button. Set the trolley upright.
BA5.indd 6 20.04.2017 11:22:16

Attaching the upper steering rod
Mount the battery with the cable
down on both the stems of the
steering rod
Battery connection by magnetic
connector. Flashing signal at the
control unit indicates battery conec-
ted.
To avoid impurities, do not place
theplugontheoor
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
K 5/6 Operating Manual
BA5.indd 7 20.04.2017 11:22:24

Place the golf bag on the trolley.
Attach the bag onto the upper bag
rest by hooking the bag elastic over
the mounting point.
ATTENTION: The bag rest is rigid,
so it cannot be customized.
Attach the bag onto the lower bag
rest by hooking the bag elastic over
the mounting point.
K 5/6 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
BA5.indd 8 20.04.2017 11:22:29

Operation/Maintenance

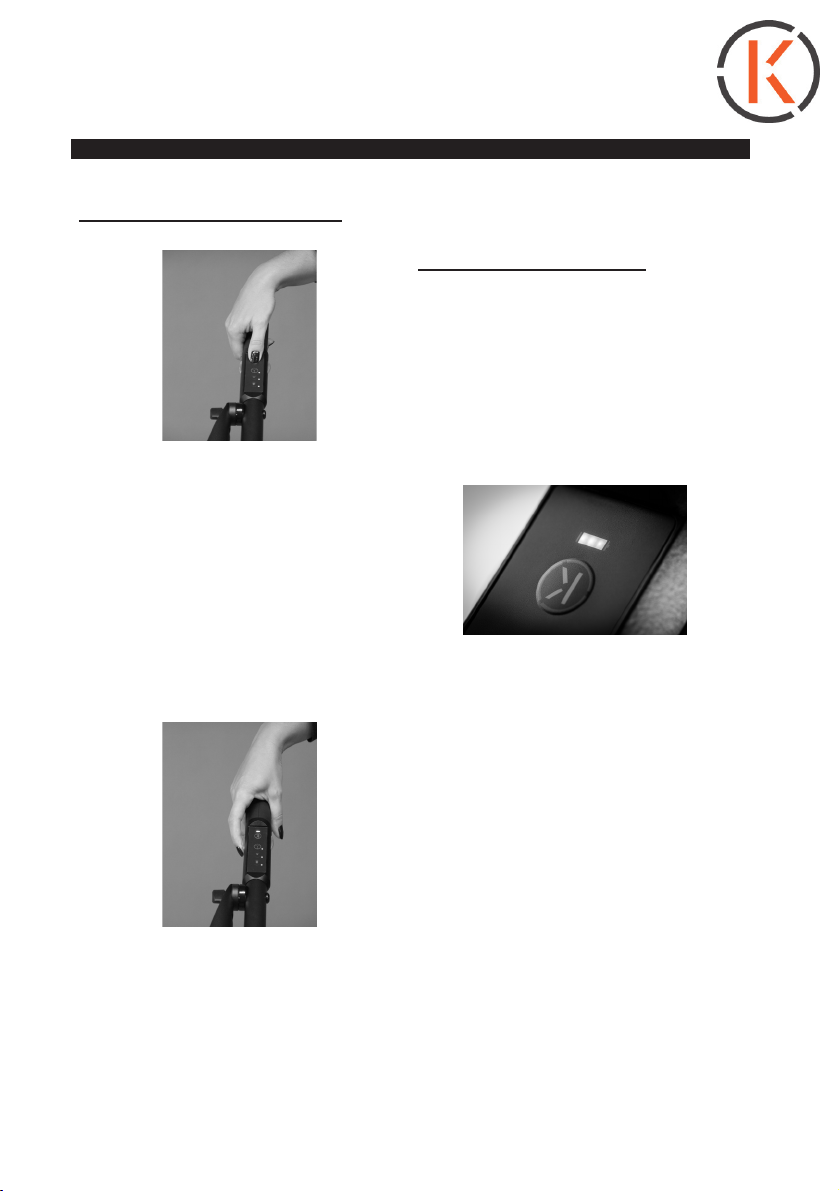

1. Switching the trolley on
Switch on by briefly pressing the
start / stop button "K". The charge
status indicator lights up.
3 x green = full charge, reduced to
2 x green when consumed,
1 x green, orange, red = empty
The trolley is ready to start when
the LED‘s above the „K“ light con-
stantly.
2. The trolley is started by turning
the speed control wheel. This will in-
crease or slow down the speed. The
speed controller (continuous wheel)
can be operated from the left as well
as from the right.
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
K 5/6 Operating Manual
BA5.indd 9 20.04.2017 11:22:34

3. The trolley has a speed memory: it saves the last speed you drove it
at(bybrieypressingthestart/stopbutton.)
4. The trolley has both a manual and an electronic
freewheel. The electronic freewheel is set by
pressing a key on the conrol unit. Press the button
above the „K“ button to do this. The LED next to the
key lights up white. The drive is thereby switched off.
This driving mode is required to maneuver the trolley
against the running direction. The manual freewheel
is recommended for using the trolley without battery.
This mode is activated as follows:
1. Unlock the drive wheels and pull
them outwards about 1 cm.
2.Re-lockintheoutergrooveprole
of the axle by means of the push
button.
5. The K5/6 has two forward motion keys, with which
you can make it drive 10m .................................................
or approx. 20 m ..............................................................
further by itself. When the selected distance is
reached, the trolley switches off automatically. In
forwardmotionmodethespeedisxedandcanthereforenotbe
adjusted with the regulator. Should a certain lateral inclination be
exceeded within the selected distance, the terrain sensors ensure that
the trolley stops automatically in order to prevent a tipping over. You
canrecognizetheactivationofthetiltprotectionbytheashingofthe
LEDs of the two forward motion buttons.
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
K 5/6 Operating Manual
BA5.indd 10 20.04.2017 11:22:38

K 5/6 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
6.
7.
8.
In addition to the regular cruise control, which maintains the set speed
downhill, the trolley has ground sensors that help to adjust the speed
on uphill and downhill slopes. The trolley automatically detects the
terrain.
The K5/6 brakes automatically as soon as it is switched on. The parking
brake of the K5/6 acts on both drive wheels and allows the trolley to be
parked downhill at any time.
The lane assistant provides additional driving comfort. The trolley
travels even in sloping positions without any additional effort. You do
not need to adjust anything. The trolley recognizes the terrain inde-
pendently.
Battery and charging
Charging
●Beforeusingthetrolleyforthersttime,chargethebatterywiththesup-
pliedoriginalchargerfor24hourswithoutinterruption.
●Todoso,firstconnectthechargertothepowersupplyandthenconnect
the battery and charger.
●ChargingiscompleteassoonastheLEDonthechargerisconstantly
green.
●Assoonasthebatteryisfullycharged,thechargerprovidesamainte- 
nance charge (indicated by the fast green flashing LED of the charger).
●Ideally,rechargethebatterycompletelyaftereachuse.Inthiswayno 
„memory effect“ is created.
●Besuretodisconnectthebatteryfromthechargerwhenthechargeris
not connected to the power supply.
BA5.indd 11 20.04.2017 11:22:38

K 5/6 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
●Thebatterymayonlybechargedinwell-ventilatedandwell-tempered
rooms (not below 5°C or above 35°C). The charger must not be covered
during charging.
Safety and warning instructions
●Checkthechargerforproperoperation.Adefectivechargercandama-
ge the battery!
The LED of the charger lights constantly green when the battery is not
connected. When the battery is connected, the color changes to red, i.e.
the charging begins.
●Thebatteryispackedinahardcoverwhichmustnotbeopenedunder
any circumstances.
●Donotthrow,drop,ormanipulatethebattery(forexample,bydrilling, 
soldering, gluing, etc.)
●Keepthebatteryawayfromopenflamesanddonotexposetoextreme
temperatures permanently (for example in a parked car in summer, in
unheated caddy halls in winter).
●Donotimmersebatteryorpouranykindoffluidontoit.
●Donotreuseortransportdamagedbatteries(whetherhardcoverorcab-
le). Please inform KIFFE Golf Manufaktur GmbH immediately.
● Use the battery only for operating KIFFE golf trolleys.
Please note, that not complying with the safety and warning notices
can damage the battery. This will invalidated the warranty. This can
even lead to increased risk of fire under certain circumstances.
BA5.indd 12 20.04.2017 11:22:38

K 5/6 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
Cleaning and care
Regular maintenance and care will contribute to the preservation of your
trolley. The trolley should ideally be cleanded with compressed air after
every round. Alternatively you can also clean it with a damp cloth. Remo-
ve the battery before cleaning. In any case, avoid water from coming into
the control, battery connection and electronic components. Please do not
use abrasive or sharp cleaning agents or oil and greases for cleaning. All
the components of the trolley are designed in such a way that greases are
superfluous and in fact rather counterproductive.
BA5.indd 13 20.04.2017 11:22:38

K 5/6 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
Warranty conditions
Please contact the dealer you bought the trolley from in a warranty case.
Please note that your dealer will need the trolley together with the battery
and charger and other special accessories to return to the factory. Please
keep the completed guarantee form ready for a case like this.
KIFFE Golf Manufaktur GmbH has a 3-year warranty on all models of the
K-line from 2016 - including on the battery and charger.
Exeptions to the warranty and guarantee are wearing parts (such as
wheels, tires, controls, handles, rubber bands, etc.) or lacquer damage.
Batteries are subject to an irreversible aging process. Therefore, perfor-
mance reduction are not production errors. The KIFFE‘s own BMS also
ensures a longer service life as well as careful handling of the battery.
Please observe the notes on charging, as well as the safety and warning
instructions in this manual.
The warranty-related replacement of the trolley or parts thereof, as well as
repairs carried out , do not extend the warranty period.
The basic prerequisites for carrying out warranty services are:
●Compliancewiththeinstructionsinthismanual
●Properintendeduseofthetrolley(transportingagolfbagonagolfcour-
se)
●Regular,appropriatecare
●ExclusiveuseoftheoriginalbatteryandchargersuppliedbyKIFFE.
BA5.indd 14 20.04.2017 11:22:38

K 5/6 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
The warranty is invalidated:
●ifthetrolleyisnotusedormaintainedproperly
●inthecaseofoverloadduetointeraliatowing,usingabuggyorgolfcart,
or the use of the trolley as a traction device
●withwaterdamage
●withtransportdamage
●withdamagecausedbyafall
●bydefectivecare
●bychangestothesystem(mechanical,electrical,changetoprameters
and/orsoftware)
●byremoval/destructionofthegivenserialnumbers
●byinterventionsorrepairscarriedoutwithouttheexpresswrittenconsent
of the manufacturer
●bydefectsordamageattributabletoforcemajeureoraccidents
●bydefectsanddamageattributeabletonotusingoriginalKIFFEspare-
parts
●ifthebatteryorchargershowstracesofhavingbeenopened,disassem-
bled, drilled, dropped, crushed, exposed to extreme temperatures, mani-
pulated, shorted, dipped in water or other liquids, deep discharge or other
damage
●mechanicaldamagetoplugsorcables
●impropertransportorstorageofthetrolleyand/orbattery
●damagetothebatterycausedbyexternalenvironmentalinfluences(e.g.
power surge through lightning strike)
In case of technical modifications and further developments of a model,
there is no claim
BA5.indd 15 20.04.2017 11:22:38

K 5/6 Operating Manual
KIFFE Golf Manufaktur GmbH - www.kiffe-golf.de - [e-mail]
Declaration of conformity
Manufacturer: KIFFE Golf Manufaktur GmbH
Dauchinger Strasse 6
   78652Deisslingen
Germany
The manufacturer declares that the above-mentioned trolley, in its
concept and design, is in compliance with the essential health and
safetyrequirementsofECDirective2004/108/EC.
Type description: electric golf trolley
Model series: K5/6
Specicationsapplied:
DIN EN 6100 - 6 - 2: 2006.03 plus Amendment 1:2001.06
DINEN55011:2011.04
RoHSDirective2011/65/EU
The trolley is only suitable for the transport of a golf bag on the golf
course.
The manufacturer accepts no liability for any changes made to the
device that have not been explicitly approved by the manufacturer.
BA5.indd 16 20.04.2017 11:22:38
