King Canada KC-3105C User manual

DUST COLLECTOR
INSTRUCTION MANUAL
COPYRIGHT 1999 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
C
MODEL: KC-3105C
KC-3105KWRC SEE PAGE 16

IMPORTANT INFORMATION
2-YEAR
LIMITED WARRANTY
FOR THIS DUST COLLECTOR
KING CANADA TOOLS
OFFERS A 2-YEAR LIMITED WARANTY
FOR NON-COMMERCIAL USE.
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACEMENT PARTS
Replacement parts for this tool are available at our authorized KING CANADA service centers across
Canada. For servicing, contact or return to the retailer whereyou purchased your dust collector along
with your proof of purchase.
LIMITED TOOL WARRANTY
KING CANADA makes every effort to ensure that this product meets high quality and durability
standards. KING CANADA warrants to the original retail consumer a 2-year limited warranty as of
the date the product was purchased at retail and that each product is free from defects in materials.
Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or
accidents, repairs or alterations and lack of maintenance. KING CANADA shall in no event be liable
for death, injuries to persons or property or for incidental, special or consequential damages arising
from the use of our products. To take advantage of this warranty, the product or part must be returned
for examination by the retailer. Shipping and handling charges may apply. If a defect is found, KING
CANADA will either repair or replace the product.
KING CANADA TOOLS INC. LACHINE, QUÉBEC, CANADA H8S 1A7
THANK YOU FOR PURCHASING THIS KING CANADA PRODUCT

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric
shock or injury:
*Read and understand this owners manual and all
the labels on the dust collector before operating.
Use only as described in this manual. To avoid
personal injury or damage to your dust collector,
use only recommended accessories.
Sparks inside the electrical parts can ignite
flammable vapors or dust. To avoid fire or
explosion:
* Do not vacuum or use this dust collector near
flammable or combustible liquids, gases,
gasoline or other fluels, lighter fluid, cleaners,
oil-based paints, natural gas, hydrogen, or
explosive dusts like coal dust, magnesium dust,
grain dust or gun powder.
*Do not vacuum anything that is burning or smoking,
such as cigarettes, matches or hot ashes.
* To avoid health hazards from vapors and dust, do
not vacuum toxic materials.
*Do not use or store near hazardous materials.
* Do not use outdoors or on wet surfaces.
*Put dust collector on a stable, level surface.
*Keep vacuum hose and electric cord out of traffic
areas.
*Do not let the dust collector be used as a toy.
Close attention is necessary when used by or
near children.
*Do not leave the dust collector plugged in.
Unplug from the outlet when it is not in use and
before servicing.
*Use extra care when collecting dust on stairs.
*To avoid injury from accidental starting, unplug
power cord before changing or cleaning the
filter/dust bag or the chip bag.
* Do not use without the filter/dust bag and/or the
chip bag in place.
*Do not unplug by pulling on the cord. To unplug,
grasp the plug, not the cord.
*Turn off controls before turning off.
*Do not use with damaged cord, plug or other
parts. If your dust collector is not working as it
should, has missing parts, has been dropped,
damaged, left outdoors, or dropped into water,
send for servicing.
*Do not pull or carry by the cord, use cordas
handle, close a door on cord, or pull cordaround
sharp edges or corners. Do not run your dust
collector over the cord. Keep cordaway from
heated surfaces.
*Do not handle the electrical plug with wet hands.
*Do not put any objets into the ventilation openings.
Do not vacuum with any ventilation opening
blocked, keep free of dust, lint, hair or anything
that may reduce the air flow.
*Keep hair, loose clothing, fingers and all other
parts of the body away from openings and
moving parts.
*Extension cords in poor condition or that are too
small can pose fire and shock hazards. When
using an extension cord, make sure it is in good
condition. See ‘’Extension cords’’ section for
proper sizes.
*Connect to properly grounded outlet only. See
‘’Grounding’’ section.
WHEN USING YOUR DUST COLLECTOR, FOLLOW THE BASIC SAFETY PRECAUTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
!

CAUTION: If using this dust collector to keep
airborne wood dust in heavy usage within
acceptable limits, you must regularly monitor
airborne dust and maintain the dust collector to
avoid exceeding dust limits. Each application is
unique. Your maintenance shcedule must
therefore be tailored to your specific use.
Safety is a combination of common sense, staying
alert and knowing how your dust collector works.
WARNING: TO AVOID MISTAKES THAT
COULD RESULTIN SERIOUS, PERMANENT
INJURY, DO NOT CONNECT THE POWER
CORD UNTIL THE FOLLOWING STEPS
HAVE BEEN COMPLETED:
1. Assembly, mounting and alignment.
2. Learn the function and proper use of the
‘’ON/OFF’’ switch.
3. Read and understand all instructions and
operating procedures throughout the manual.
BEFORE EACH USE:
1. Inspect your dust collector. If any parts are
missing, bent, or fail in any way,or any
electrical components do not work properly,
turn offthe dust collector, remove the switch
key and remove the power cord from the
power supply. Replace damaged, missing or
failed parts before using the dust collector
again.
2. Plan your work to protect your eyes, hands,
face, ears and body.
3. WEAR SAFETY GOGGLES. ‘’FORESIGHT IS
BETTER THAN NO SIGHT’’.Wear safety
goggles, not glasses, that comply with ANSI
Z87.1. Operating any power tool can result in
foreign objects being thrown into the eyes
which can result in permanent eye damage.
4. When cleaning the dust collector bags, wear a
dust mask.
This dust collector is specifically designed to
capture sawdust and wood chips at the source.
The fine dust is filtered by the upper dust bag
while the heavier particles settle in the lower dust
bag for easy removal. DO NOT USE AS A
VACUUM.
CAUTION: The blower housing contains a high
speed fan blade that can amputate fingers, grab
loose clothing and neckties, or propel dust at high
velocities. DO NOT OPERATE WITHOUT ALL
PARTS IN PLACE.
Do not attempt to clean, remove dust bags or
service while in operation. Disconnect from
power source.
IMPORTANT NOTE: Static shocks are common
in dry areas or when the relative humidity of the
air is low. To reduce the frequency of static shocks
in your home, the best remedy is to add moisture
to the air with a console or installed humidifier.
SAFETY BEFORE USING
YOUR DUST COLLECTOR
!
!
!

GENERAL SAFETY INSTRUCTIONS
FOR POWER TOOLS
1. KNOW YOUR TOOL
Read and understand the owners manual and
labels affixed to the tool. Learn its application
and limitations as well as its specific potential
hazards.

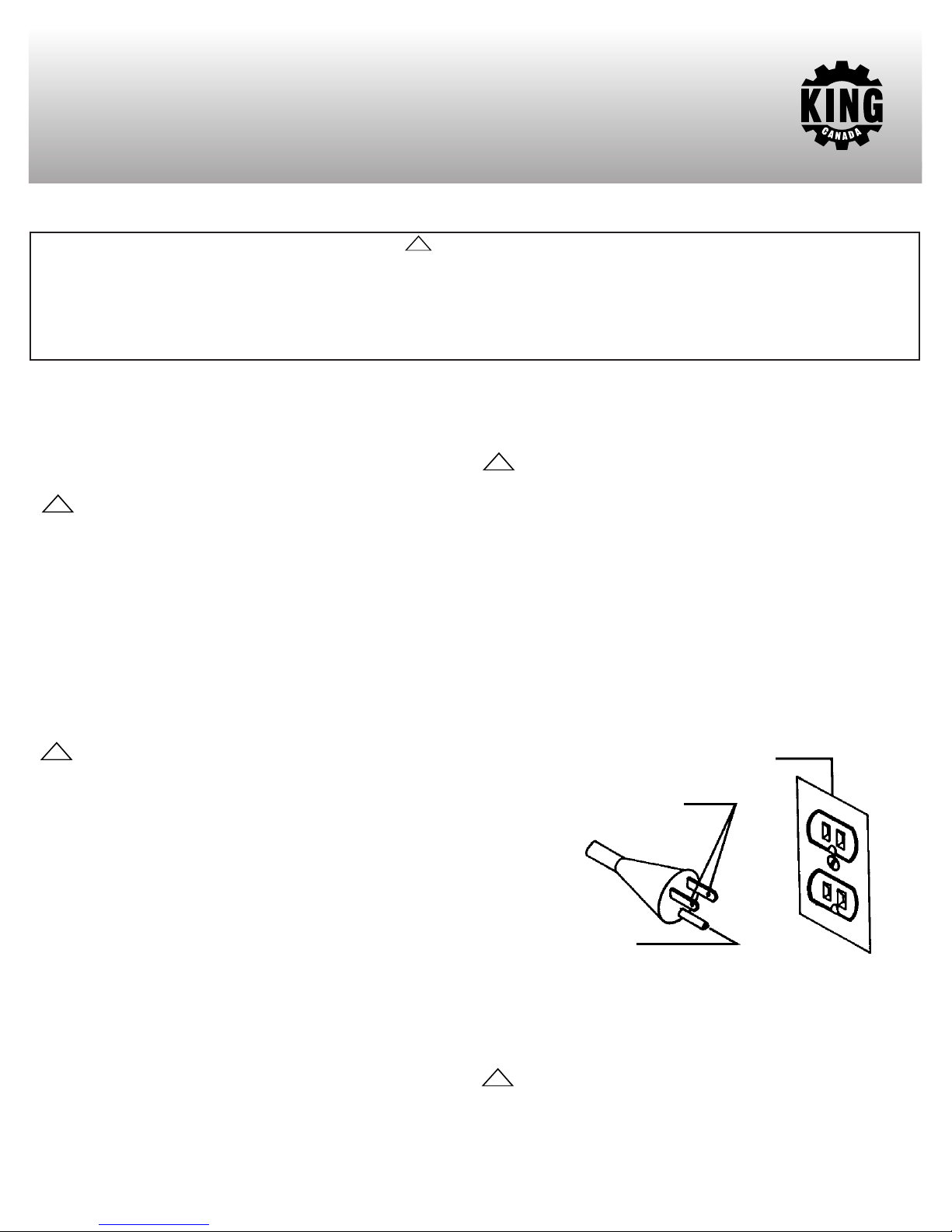

2. GROUND THE TOOL.
This tool is equipped with an approved
3-conductor cord and a 3-prong grounding
type plug to fit the proper grounding type
receptacle. The green conductor in the cord is
the grounding wire. NEVER connect the green
wire to a live terminal.
3. KEEP GUARDS IN PLACE.
Keep in good working order, properly
adjusted and aligned.
4. REMOVE ADJUSTING KEYS AND
WRENCHES.
Form habit of checking to see that keys and
adjusting wrenches are removed from tool
before turning it on.
5. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite accidents.
Make surethe floor is clean and not slippery
due to wax and sawdust build-up.
6. A
VOID DANGEROUS ENVIRONMENT.
Don’t use power tools in damp or wet
locations or expose them to rain. Keep work
area well lit and provide adequate
surrounding work space.
7. KEEP CHILDREN AWAY.
All visitors should be kept a safe distance from
work area.
8. MAKE WORKSHOP CHILD-PROOF.
-with padlocks, master switches or by
removing starter keys.
9. USE PROPER SPEED.
A tool will do a better and safer job when
operated at the proper speed.
10. USE RIGHT TOOL.
Don’t force the tool or the attachment to do a
job for which it was not designed.
11. WEAR PROPER APPAREL.
Do not wear loose clothing, gloves, neckties or
jewelry (rings, watch) because they could get
caught in moving parts. Non-slip footwear is
recommended. Wear protective hair covering
to contain long hair. Roll up long sleeves above
the elbows.
12. ALWAYS WEAR SAFETY GLASSES.
Always wear safety glasses (ANSI Z87.1).
Everyday eyeglasses only have impact
resistant lenses, thet are NOT safety glasses.
Also use a face or dust mask if cutting
operation is dusty.
13. DON’T OVERREACH.
Keep proper footing and balance at all times.
14. MAINTAIN TOOL WITH CARE.
Keep tools sharp and clean for best and safest
performance. Follow instructions for
lubricating and changing accessories.
15. DISCONNECT TOOLS.
Before servicing, when changing accessories or
attachments.
16. AVOID ACCIDENTAL STARTING.
Make sure the swich is in the ‘’OFF’’ position
before plugging in.
17. USE RECOMMENDED ACCESSORIES.
Consult the manual for recommended
accessories. Follow the instructions that
accompany the accessories. The use of
improper accessories may cause hazards.
18. NEVER STAND ON TOOL.
Serious injury could occur if the tool tips over.
Do not store materials such that it is necessary
to stand on the tool to reach them.
19. CHECK DAMAGED PARTS.
Before further use of the tool, a guard or other
parts that are damaged should be carefully
checked to ensure that they will operate
properly and perform their intended function.
Check for alignment of moving parts, breakage
of parts, mounting, and any other conditions
that may affect its operation. A guard or other
parts that are damaged should be properly
repaired or replaced.
20. NEVER LEAVE MACHINE RUNNING
UNATTENDED.
Turn power ‘’OFF’’. Don’t leave any tool
running until it comes to a complete stop.

SPECIFICATIONS
MOTOR
HORSEPOWER........................................................................................................................................1-1/2
VOLTAGE ......................................................................................................................................110V/220V
AMPERAGE ..........................................................................................................................................12/6A
R.P.M............................................................................................................................................................3450
Hz ....................................................................................................................................................................60
PHASE ..............................................................................................................................................................1
POLE ................................................................................................................................................................2
CLASS ..............................................................................................................................................................E
AIR SUCTION CAPACITY ........................................................................................................1200 C.F.M.
FAN DIAMETER ..................................................................................................................................9-1/2’’
HOSE DIAMETER ........................................................................................................................................5’’
INLET HOSE DIAMETER ..........................................................................................................................4’’
BAG QUANTITY & SIZE..........................................................................................................2@ 20’’ X 32’’

YOUR DUST COLLECTOR
1. DUST COLLECTOR BAG
2. DUST FILTER
3. BELT
4. FILTER BAG
5. BASE PLATE
6. INLET COVER
7. CASTER
8. VENTILATION CYLINDER
9. HOSE
UNPACKING
1. Finish removing all the contents of the
shipping carton.
2. Report any damage to your retailer.
3. Do not discardany shipping materials until
after the dust collector has been assembled
and is running properly.
Contents of the shipping carton
1Bag hanger
1Base
1Hanger bracket
1Hose
3Support brackets
1Motor/fan assembly
1Collector bag
1Filter bag
2Hose clamps
2Retainer straps
1Hardware bag
4Casters
1Inlet cover
1Hose adapter
1Instruction manual
4
2
3
9
1
8
6
5
7

ASSEMBLY

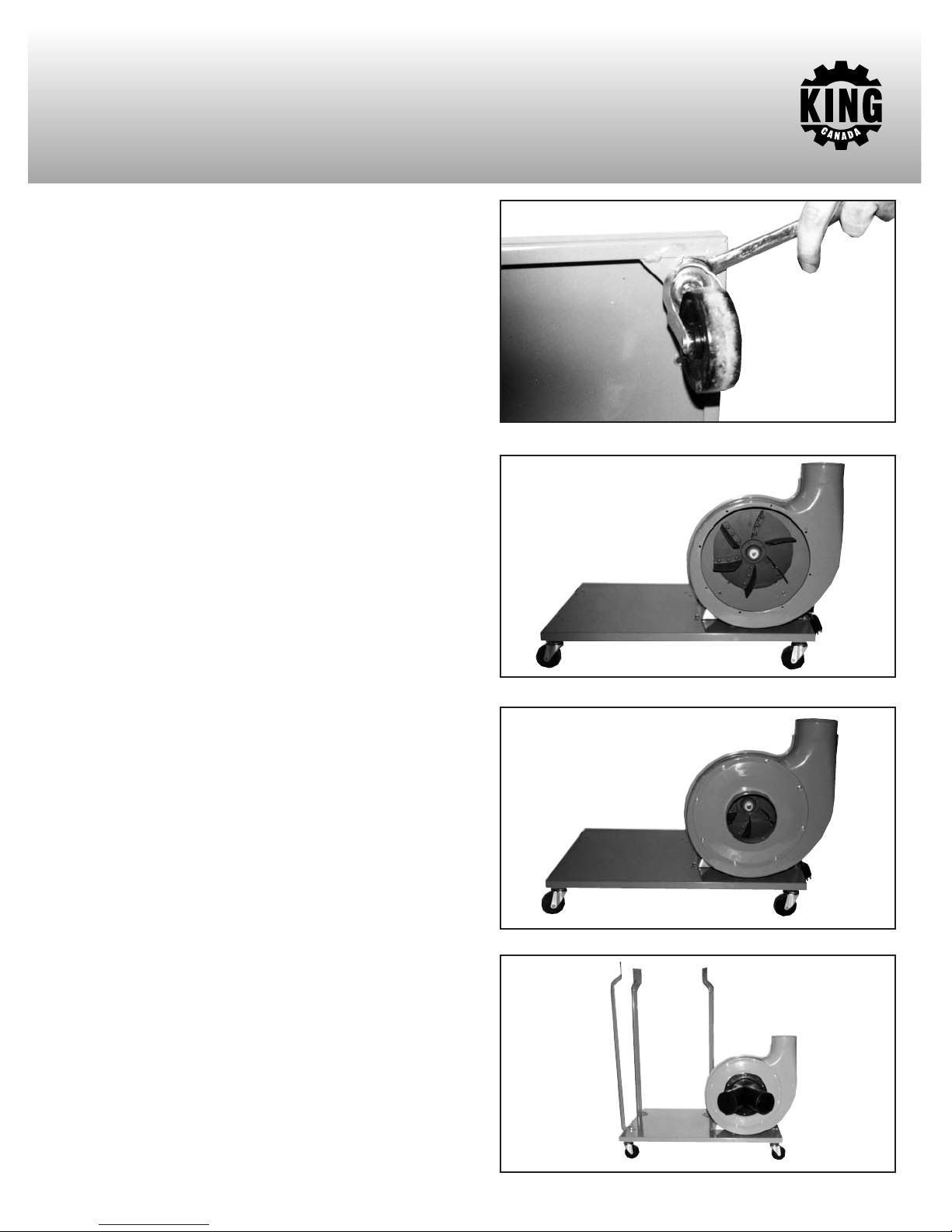

1. Install the four casters to the under side as
illustrated in Fig.1. Do not remove the lock
washers and nuts from caster roller shafts;
these act as spacers. Insert roller shaft into
threaded hole on the underside of the base,
turn until it is snug, then tighten nut with
wrench.
2. Place base with rollers on the ground and
attach the motor and fan assembly to the base
using 4 hex. bolts and 4 flat washers. (Fig.2)
3. Attach inlet cover to fan housing using 8 pan
hd. screws. (Fig.3).
4. Attach the three support brackets (Fig.4) to the
base using 6 hex. bolts and 6 flat washers.
Hand tighten only at this point.
FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 4

5. Install housing (A) to three support brackets
(B) using 6 hex. bolts, 12 flat washers and 6
hex. nuts. Make sure the hose opening faces
the fan housing. Before attaching the third
support bracket, place hanger bracket (C)
between the support bracket and the housing,
as illustrated in Fig.5. Tighten all bracket nuts
and bolts at this time.
6. Attach hose adapter to inlet cover on motor
assembly. Press the black plastic cover into its
hole at the rear of the motor bracket (Fig.6).
7. Slide hose clamps onto each end of the hose.
Attach hose between the fan housing and the
collector housing. Tighten clamps to secure
hose (Fig.7).
8. Insert bag hanger into hanger bracket and then
hook top dust bag to hanger.Insert retainer
strap through keeper straps and fasten to
collector housing. Repeat this operation for
the lower dust bag (Fig.8).
ASSEMBLY
FIGURE 5
C
A
B
FIGURE 6
FIGURE 7
FIGURE 8

ELECTRICAL CONNECTIONS
WARNING
ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO
COMPLY MAY RESULT IN SERIOUS INJURY!
ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE DUST COLLECTOR DISCONNECTED
FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY!
!
THIS DUST COLLECTOR IS RATED 110V/220V AND COMES FROM THE FACTORY PREWIRED AT 110V.
Before hooking up to the power source, make sure that the switch is in the ‘’OFF’’ position.
POWER SUPPLY
WARNING: YOUR DUST COLLECTOR MUST
BE CONNECTED TOA 110V, 15-AMP, BRANCH
CIRCUIT AND USE A 15-AMP TIME DELAY
FUSE OR CIRCUIT BREAKER. FAILURE TO
CONNECT IN THIS WAY CAN RESULT IN
INJURY FROM SHOCK OR FIRE.
Your dust collector must be properly grounded.
Not all outlets are properly grounded. If you are
not sure if your outlet is properly grounded, have
it checked by a qualified electrician.
WARNING: IF NOT PROPERLY GROUNDED,
THIS DUST COLLECTOR CAN CAUSE
ELECTRICAL SHOCK, PARTICULARLY WHEN
USED IN DAMP LOCATIONS. TO AVOID
SHOCK OR FIRE, IF THE POWER CORD IS
WORN OR DAMAGED IN ANY WAY, HAVE IT
REPLACED IMMEDIATELY.
GROUNDING
This dust collector must be grounded. If it should
malfunction or breakdown, grounding provides a
path of least resistance for electric current, to
reduce the risk of electric shock. This dust
collector is equipped with a cordhaving an
equipment-grounding conductor and grounding
plug. The plug must be plugged into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
WARNING: TOMAINTAIN PROPER
GROUNDING OF YOUR DUST COLLECTOR, DO
NOT REMOVE OR ALTER THE GROUNDING
PRONG IN ANY MANNER.
110V OPERATION
As received from the factory, your dust collector is
ready to run for 110V operation. When this dust
collector is wired at 110V, it is intended for use on
acircuit that has an outlet and a plug which looks
like the one illustrated in Fig.A.
WARNING: DO NOT USE A TWO-PRONG
ADAPTOR FOR THEY ARE NOT IN
ACCORDANCE WITH LOCAL CODES AND
ORDINANCES. NEVER USE IN CANADA.
!
!
FIGURE A
!
!
PROPERLY GROUNDED OUTLET
CURRENT CARRYING
PRONGS
GROUNDING
PRONG

ELECTRICAL CONNECTIONS
220V OPERATION
If 220V, single phase operation is desired, the following instructions must be followed:
1. Disconnect the machine from its power source.
2. The dust collector comes with four motor leads that are connected for 110V operation as shown in
Fig. B. Reconnect these four motor leads for 220V operation, as shown in Fig. C.
3. The 110V plug supplied with the dust collector must be replaced with a CSA listed plug suitable for
220V operation. This plug is illustrated in Fig. D. Contact your authorized service center or qualified
electrician to install the plug and to change the connections from 110V to 220V. The dust collector
must comply with all local and national codes after the 220V plug is installed.
4. A dust collector with a 220V plug should only be connected to an outlet having the same
configuration as illustrated by the grounded outlet box in Fig. D. No adaptor is available or should
be used for 220V operation.
MOTOR
MOTOR
MOTOR CORD POWER SUPPLY CORD R
S
SWITCH
GREEN GROUND WIRE
POWER SUPPLY CORD
R
S
SWITCH
GREEN GROUND WIRE
MOTOR CORD
110V
220V
Figure B
Figure C
Figure D
PROPERLY GROUNDED OUTLET
CURRENT CARRYING PRONGS
GROUNDING PRONG

ELECTRICAL CONNECTIONS
EXTENSION CORDS
The use of any extension cord will cause some
loss of power. Use the following table to
determine the minimum wire size (A.W.G-
American Wire Gauge) extension cord. Use only
3-wire extension cords which have 3-prong
grounding type plugs and 3-hole receptacles
which accept the tool’s plug.
For circuits that are further away from the electrical
circuit box, the wire size must be increased
proportionately in order to deliver ample voltage
to the dust collector motor.

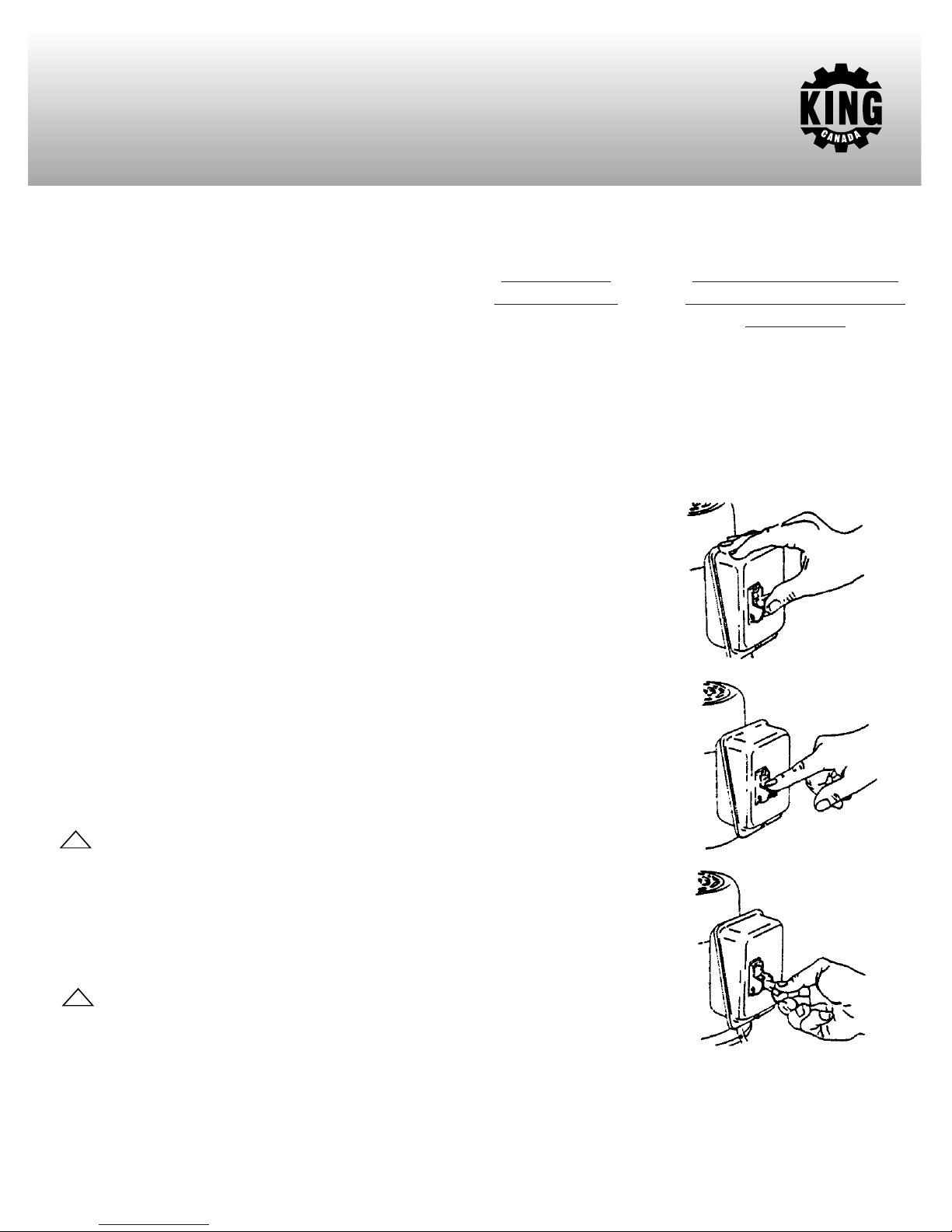

ON/OFF SWITCH
On the rear of the motor housing above the
handle is the swich box. The ON/OFF switch has
the ability to be turned ‘’ON’’ when the Red Key is
properly installed. Switch to the ‘’ON’’ position
by moving the switch upward. To put the switch
in the ‘’OFF’’ position, move the switch
downward. Remove the Key from the switch
whenever the dust collector is turned ‘’OFF’’.
Place the Starter Key in a safe place out of reach of
children.
WARNING: THE DUST COLLECTOR CAN
START ACCIDENTALLY OR BE USED BY
CHILDREN WHEN THE STARTER KEY IS LEFT
IN THE SWITCH. ALWAYS REMOVE THE
STARTER KEY WHEN THE DUST COLLECTOR
IS ‘’OFF’’.
WARNING: THE DUST COLLECTOR WILL
START IMMEDIATELY FOLLOWING A
BLACKOUT ONLY IF THE SWITCH WAS LEFT
’’ON’’. IN SUCH CASES, ALWAYS TURN THE
SWITCH ‘’OFF’’ AND REMOVE THE KEY.
LENGTH OF
CONDUCTOR
0-25 FEET
26-50 FEET
51-100 FEET
WIRE SIZES REQUIRED
(AMERICAN WIRE GAUGE)
110V LINES
NO.16
NO.14
NO.12
!
!
TURNING
SWITCH ‘’ON’’
TURNING
SWITCH ‘’OFF’’
REMOVING
STARTER KEY

MAINTENANCE
MOTOR
Excessive dust in the motor could cause
excessive heat in the motor.
Every effort should be made to prevent foreign
material from entering the motor. When operating
under conditions likely to permit accumulations
of dust, dirt or waste within the motor,avisual
inspection should be made at frequent intervals.
Accumulations of dry dust can usually be blown
out successfully.
Note: Motors used on woodworking tools are
particularly susceptable to the accumulation of
sawdust and wood chips and should be blown
out or ‘’vacuumed’’frequently to prevent the
interference with normal motor ventilation.
To remove dust, blow off motor with a low
pressure air hose.
CAUTION: TO AVOID INJURY OR ADVERSE
REACTION TO DUST, A HIGH PRESSURE
HOSE SHOULD NOT BE USED ESPECIALLY
IN POORLY VENTILATED AREAS.
The operator performing this cleaning function
should wear safety glasses and a filter mask.
Do not use if power cord becomes worn or
frayed.
If any servicing (other than the above cleaning)
becomes necessary, it should be performed by
an authorized service center.
Note: The speed of this motor cannot be regulated
or changed.
Operational hints
During the first use and after cleaning, the filter
bag may allow some dust to escape. This is
normal and will stop after a short period of time.
CAUTION: WEARING A PARTICLE
MASK/RESPIRATOR FOR PROTECTION
AGAINST FINE DUST PARTICLES DURING
CLEANING IS HIGHLY RECOMMENDED.
Clean both the filter and the collection bags
frequently to keep the dust collectors’
performance at its optimum. To clean:
1. Disconnect the machine from the power
source.
2. Loosen the retaining strap, remove the bag
from the housing and empty contents.
3. Turn the bag inside out and shake vigorously.
4. Turn the bag inside in and re-attach to the
housing using the retainer strap to secure.
5. Connect the machine to the power source.
Use the proper type of hose to connect the dust
collector to the machine being operated. A dryer
vent hose is not acceptable for this purpose.
!
!

TROUBLESHOOTING
PROBLEM
Motor will not run.
Excessive sawdust
in air.
Excessive impeller
noise.
Excessive noise.
Motor fails to de-
velop full power.
NOTE: LOW
VOLTAGE
(Power output of
motor decreases rap-
idly with decrease in
voltage at the motor
terminals.
Motor starts slowly
or fails to come up
to speed.
Motor overheats
PROBABLE CAUSE
1. Defective cord, plug,
switch and/or motor.
2. Blown fuse.
1. Loose connectors.
2. Filter/dust bag
and/or chip collector
bag releasing sawdust.
1. Picked up large wood
chips and debris.
2. Loose impeller.
3. Rubbing impeller.
1. Motor.
1. Circuit overloaded
with lights, appliances
and other motors.
2. Undersized extension
cord or extension cord
is too long.
3. General overloading
of power company
facilities.
1. Low voltage.
2. Windings are burned
out or open.
3. Starting switch will
not operate. Capacitor
is bad.
1. Motor overloaded.
2. Improper cooling, air
circulation is restricted
through motor due to
sawdust accumulation.
REMEDY SUGGESTED
1. Consult service. Any attempt to repair this motor may create a
hazard unless repair is done by a qualified service technician.
Repair service is available at your nearest service center.
2. Check for blown fuses and replace with fuse of proper capacity.
1. Tighten connections.
2.a. Sawdust trapped between clamp bag and housing.
b. Lower bag is hung up on sawdust shoot extension.
Reposition chip bag properly.
1. Do not pick up metal or ferrous materials. Stop the machine
and the material will fall to the bottom of the inlet tube.
2. Unplug dust collector prior to disassembly. Hazardous moving
parts inside. Attach inlet guard before plugging in. Use a piece
of wood to free impeller.
3. Consult service to repair loose or rubbing impeller. A repair to
the housing may create a hazard unless it is done by a qualified
service technician. Servicing is available at your nearest service
center.
1. Have the motor checked by a qualified service technician.
1. Do not use other appliances or motors on the same circuit as
your dust collector.
2. Increase the wire size on extention cord, or reduce the length
of the extension cord.
3. Request a power check from your power company.
1. Request voltage check from your power company.
2. Have motor repaired or replaced by a qualified service
technician.
3. Have capacitor replaced by a qualified service technician.
1. Clean out sawdust to provide normal air circulation through
the motor. See ‘’Maintenance’’ section in this manual.

TROUBLESHOOTING
PROBLEM
Motor stalls
(resulting in blown
fuses or tripped
circuit breakers).
Frequent opening
of fuses or circuit
breakers.
PROBABLE CAUSE
1. Voltage is too low to
permit the motor to
reach operating speed.
2. Fuses or circuit
breakers do not have
sufficient capacity.
1. Motor overheated.
2. Fuses or circuit
breakers do not have
sufficient capacity.
REMEDY SUGGESTED
1. Request voltage check from your power company.
2. Install proper sized fuses or circuit breakers.
1. Install proper sized fuses or circuit breakers.
PARTS DIAGRAM & PARTS LISTS
Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.

KING CANADA INC. DORVAL, QUÉBEC, CANADA H9P 2Y4
www.kingcanada.com
COPYRIGHT © 2007 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
1200 CFM DUST COLLECTOR
WITH REMOTE POWER CONTROL SYSTEM
INSTRUCTIONS FOR KC-3105KWRC
Set up and operation
Remote control type................................................................Infrared
Receiving angle ............................................................................1200
Use ..................................................................................Indoors only
Electrical warning! Refer to the KC-3105C instruction manual for
electrical information.
Turning the KC-3105KWRC On & Off using the Remote Power
Control System
The remote power control can be operated from the system panel (A)
Fig.1 hardwired to the dust collector motor or the remote control (B).
Plug the motor power cord into an appropriate power source and
press the “On” button (A-1). The dust collector will operate until the
“Off” button (A-2) is pressed.
Using the Timer feature
Once the dust collector is running, press the “Timer” button (A-3),
everytime you press the timer button the display number will increase
by one minute and can be set up to 99 minutes. Hold the timer button
to scroll quickly up towards 99 minutes, going past 99, minutes will
restart the minute count at zero (00). The dust collector will operate
for the amount of time set on the timer, once the zero (00) count is
reached, the dust collector will automatically stop. If you press the
“Off” button while the timer is engaged, the dust collector will turn off
and the timer will be reset to zero (00).
2-YEAR LIMITED WARRANTY FOR KING CANADA PRODUCTS
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACEMENT PARTS
Replacement parts for this improved product are available at our authorized King Canada service centers across
Canada. Refer to the KC-3105C service manual for full diagrams and parts list.
LIMITED TOOL WARRANTY
King Canada makes every effort to ensure that this product meets high quality and durability standards. King
Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was
purchased at retail and that each product is free from defects in materials. Warranty does not apply to defects due
directly or indirectly to misuse, abuse, normal wear and tear, negligence or accidents, repairs done by an
unauthorized service center, alterations and lack of maintenance. King Canada shall in no event be liable for
death, injuries to persons or property or for incidental, special or consequential damages arising from the use of
our products.
Totake advantage of this limited warranty, return the product at your expense together with your dated proof of
purshase to an authorized King Canada service center. Contact your retailer or visit our web site at
www.kingcanada.com for an updated listing of our authorized service centers. In cooperation with our authorized
serviced center, King Canada will either repair or replace the product if any part or parts covered under this
warranty which examination proves to be defective in workmanship or material during the warranty period.
Figure 1

ELECTRICAL DIAGRAMS
FOR KC-3105KWRC (110V AND 220V)
Important note: For 220V operation. A 220V plug is not supplied with this dust collector and must be purchased at your local hardware
store. The 220V plug must be a CSA listed plug suitable for 220V operation. This plug is illustrated in Fig.2 below. Contact your authorized
service center or qualified electrician to install the plug.
Figure 2
PROPERLY GROUNDED OUTLET
CURRENT CARRYING PRONGS
GROUNDING PRONG
PARTS DIAGRAM & PARTS LISTS
Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
