KING-ON P2 User manual

No: DO-P2-01 Version No:A/0,software version:KNMed_P2_18_08_v3.1.01
PORTABLE OXYGEN CONCENTRATOR
# P2

CONTENTS
Ⅰ.USE INTENTION ,CONTRAINDICATIONS AND GENERAL PRECAUTION.............. 2
Use Intention........................................................................................................................ 2
Contraindications................................................................................................................. 3
General Precaution............................................................................................................. 3
General Precaution---Continued....................................................................................... 4
General Precaution---Continued....................................................................................... 5
General Precaution---Continued....................................................................................... 6
Ⅱ.DESCRIPTION OF THE KINGON P2 OXYGEN CONCENTRATOR............................ 7
Important Parts of the Kingon P2......................................................................................7
User Interface Instruction and Symbols used on Kingon P2........................................ 8

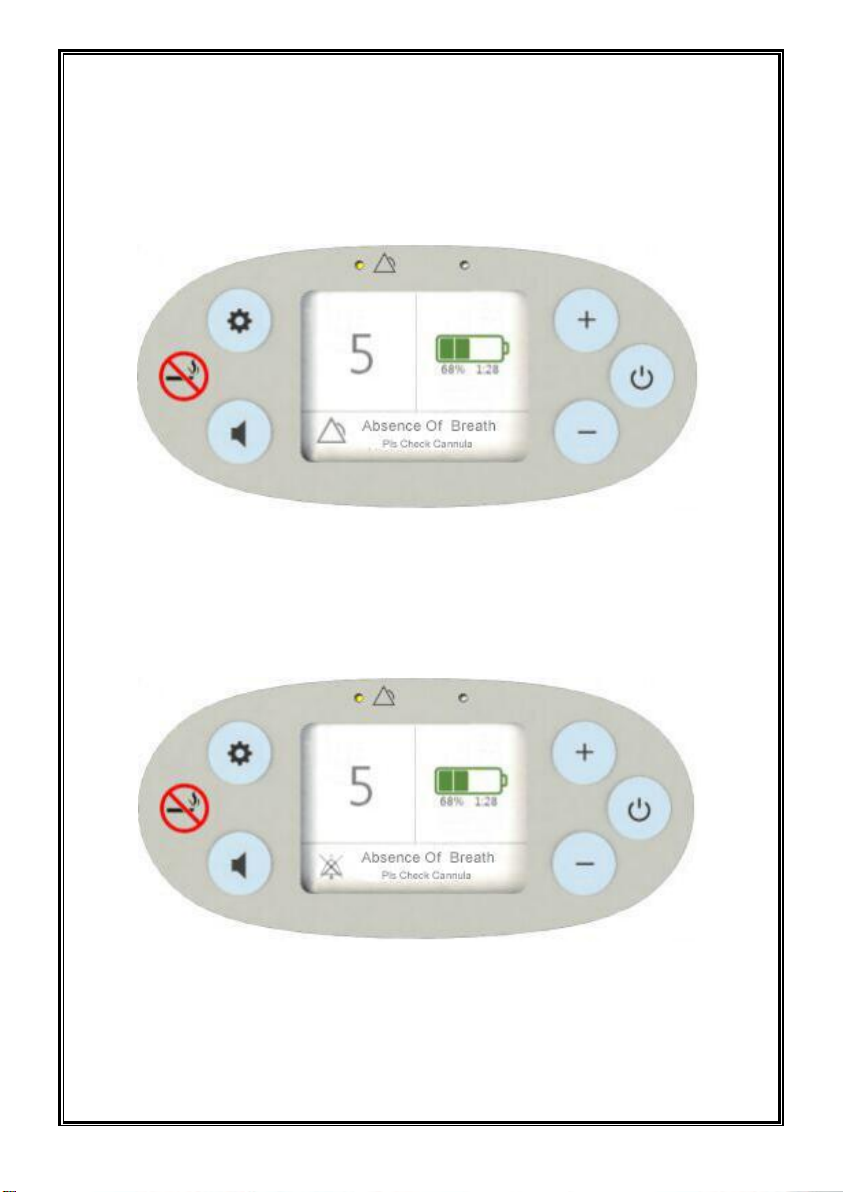

Alerts................................................................................................................................... 12

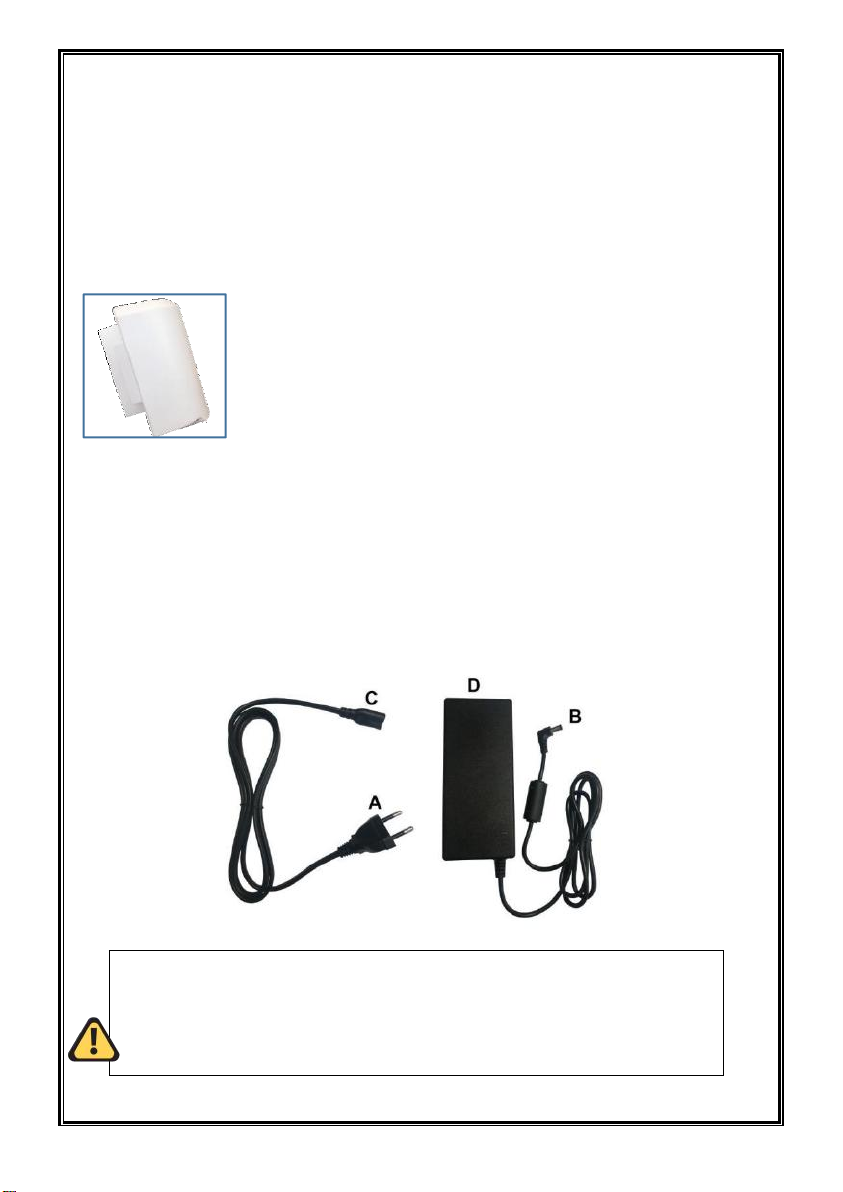

Power Supply..................................................................................................................... 14
Accessories........................................................................................................................ 15
Accessories List.................................................................................................................16
Ⅲ.OPERATING INSTRUCTIONS.......................................................................................... 17

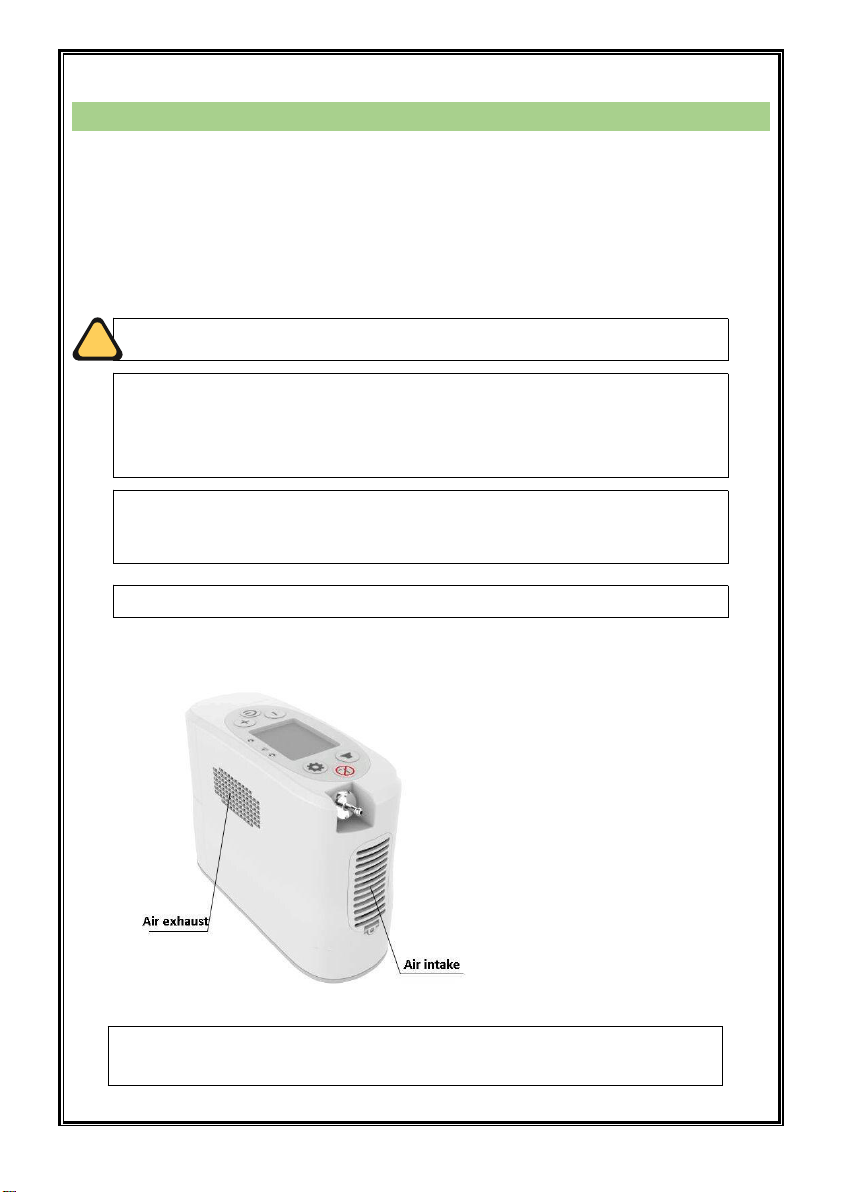

General Operation.............................................................................................................17
Ⅳ.TROUBLESHOOTING.........................................................................................................22
Ⅴ.MAINTENANCE AND CLEANING OF KINGON P2....................................................... 23
Cleaning the Case.............................................................................................................23
Cannula Replacement...................................................................................................... 23
Filter Cleaningand Replacement.................................................................................... 23
Battery Care and Maintenance....................................................................................... 24
Disposal of Equipment and Accessories....................................................................... 26
Maintenance Items Lists.................................................................................................. 26
Ⅵ.SYSTEM SPECIFICATIONS.............................................................................................. 27
Concentrator Specification...............................................................................................27
Classifications.................................................................................................................... 28
Standards Compliance..................................................................................................... 29
EMC Information................................................................................................................30
EMC Information-Continued............................................................................................ 31
Ⅶ.WARRANTY.......................................................................................................................... 32

1

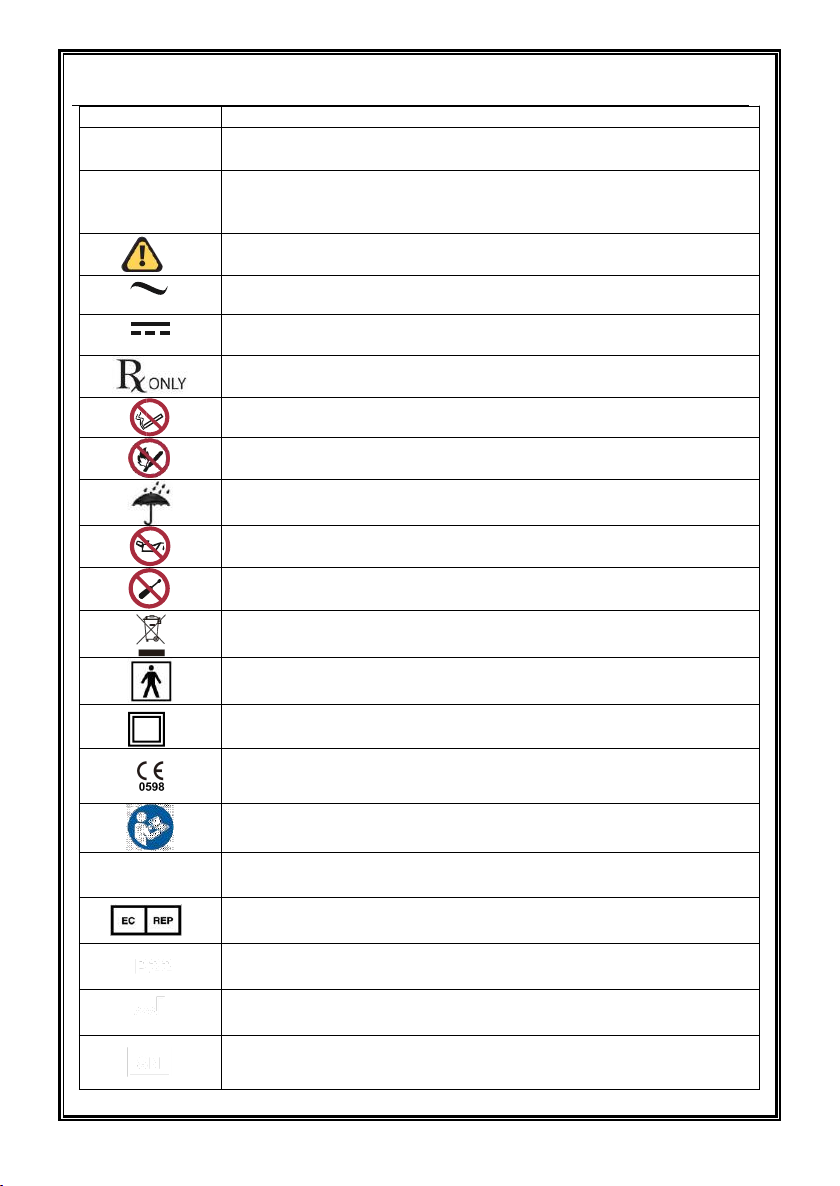

Symbol
Meaning
WARNING
A warning indicates that the personal safety of the patient may be
involved. Disregarding a warning could result in significant injury.
CAUTION
A caution indicates that a precaution or service procedure must
be followed. Disregarding a caution could lead to a minor injury or
damage to equipment.
See User Manual for Instructions.
AC Power
DC Power
U.S. Federal Regulation Restricts this Device to Sale by Order of
Physician. May also be applicable in other Countries
No Smoking
Keep away from open flames
Keep Dry
Use No Oil or Grease
Do Not Disassemble (contact your equipment provider for
servicing by authorized personnel)
Do Not Dispose of In Unsorted Municipal Waste
Type BF Applied Part
Class II (Double Insulated)
Complies With Applicable EU Directives ; Including Medical
Device Directive
See Instructions for Use
Manufacturer
Authorised representative in the European Community
Protection against vertically falling water drops
Date of manufacture
Serial Number

Use Intention, Contraindications and General Precaution
2
Ⅰ.USE INTENTION ,CONTRAINDICATIONS AND GENERAL
PRECAUTION
Use Intention
Intended use:The Kingon P2 Oxygen Concentrator is used on a prescriptive basis by
patients requiring supplemental oxygen .It supplies a high concentration of oxygen to
the patients .
It supplies a high concentration of oxygen and is used with a nasal cannula to channel
oxygen from the concentrator to the patient. The Kingon P2 is small, portable and may
be used in home, institution and various mobile environments.
WARNING
This device is not intended to be life-sustaining or
life-supporting. This device is not intended for newborn and
infant use.
WARNING
A backup oxygen source is recommended for power outages
or mechanical problems. Please provide your device with a
backup system type recommended by the business
consultant.
CAUTION
This device restricted to sale by or on the order of a
physician in many countries. May also be applicable in your
country.
CAUTION
It is the responsibility of the patient to make back-up
arrangements for alternative oxygen supply when traveling;
Kingon assumes no liability for persons not to adhere to
manufacturer recommendations.
CAUTION
The expected life is depending on the environment of usage
and the maintenance. The bad condition will short the life
time of the concentrator.
Service Item
Expected Life
Kingon P2 Oxygen System
5 Years
Molecular Sieve Beds
1 Years
Batteries
500 full charge/discharge cycles
WARNING
The operator should read and understand this entire manual
before using the device.

Use Intention, Contraindications and General Precaution
3
Contraindications
CAUTION
This device is not intended to be life sustaining or life suppo
rting.
CAUTION
Patients who use this device may require additional monitori
ng or attention, and these patients cannot hear or see an al
ert or communicate discomfort. If the patient has any sympt
oms, consult a physician immediately.
CAUTION
In certain circumstances, oxygen therapy can be hazardous.
Please seek medical advice before using this device.
CAUTION
The Kingon P2 is not designed or specified to be used in
conjunction with a humidifier, nebulizer or connected with
any other equipment. Do not modify the Kingon P2
Concentrator. Any modifications performed on the
equipment may impair performance or damage equipment
and will void your warranty.
General Precaution
WARNING
Oxygen supports combustion. Oxygen should not be used
while smoking or smoking in the same room ,or in the
presence of an open flame.
WARNING
Do not submerse the Kingon P2 or any of the accessories in
liquid.
Do not expose to water or precipitation.
Do not operate in exposed rain.
This could lead to electrical shock and/or damage.
CAUTION
Do not use oil or grease on the concentrator or its
components as these substances, when combined with
oxygen, can greatly increase the potential for a fire hazard
and personal injury.
CAUTION
Never leave the Kingon P2 in an environment which can
reach high temperatures or high humidity, such as an
unoccupied car in high temperature environments or
bathroom with high humidity. This could damage the device.
WARNING
Geriatric or any other patient unable to communicate
discomfort, or hear or see the alarms while using this device,
may require additional monitoring

Use Intention, Contraindications and General Precaution
4
General Precaution---Continued
WARNING
If you feel discomfort or are experiencing a medical
emergency while undergoing oxygen therapy, seek medical
assistance immediately to avoid harm
WARNING
The oxygen delivery settings of the oxygen concentrator
should be periodically reassessed for the effectiveness of
the therapy
WARNING
Set the device at the prescribed level and do not increase or
decrease your flow rate from the prescribed level until you
frst consult with your physician or healthcare professional
WARNING
Only use this device as prescribed.
The use of oxygen therapy can be hazardous in some
circumstances, so consult your health care practitioner
before using Kingon P2
WARNING
To ensure that you receive the correct therapeutic amount of
oxygen delivery according to your medical condition, the
Kingon P2 must be used:
● Only after one or more settings have been individually
determined or prescribed for you at your specific activity
levels
● only use the parts and accessories that are provided by
oxygen concentrator manufacturer Kingon .
WARNING
The settings of the Kingon P2 might not correspond with
continuous flow oxygen
WARNING
The settings of other models or brands of oxygen therapy
equipment do not correspond with the settings of the Kingon
P2
WARNING
There is a risk of fire associated with oxygen
equipment and therapy. Do not use near sparks or open
flames

Use Intention, Contraindications and General Precaution
5
General Precaution---Continued
WARNING
Use only water-based lotions or salves that are oxygen
compatible during setup or use during oxygen therapy To
avoid the risk of fre and burns, never use petroleum or
oil-based lotions or salves
WARNING
Smoking during oxygen therapy is dangerous
and is likely to result in serious injury or death of the patient
and others from fire
WARNING
To ensure receiving the therapeutic amount of oxygen
delivery according to your medical condition Kingon P2 must
—be used only after one or more settings have been
individually determined or prescribed for you at your
specific activity levels.
—be used with the specific combination of parts and
accessories that are in line with the specification of the
oxygen conserver manufacturer and that were used while
your settings were determined.
WARNING
Do not lubricate replaceable fittings,connections, tubing,
or other accessories of the oxygen conserver to avoid the
risk of fire and burns
WARNING
Use only spare parts recommended by the manufacturer
to ensure proper function and to avoid the risk of fire and
burns
WARNING
Wind or strong draughts can adversely affect accurate
delivery of oxygen therapy.
EXAMPLE 1 Using this equipment beside an open window
or in front of a fan can affect the accuracy of delivery of
oxygen.
EXAMPLE 2 Using this equipment in the back seat of an
open convertible car can affect the accuracy of delivery of
oxygen.

Use Intention, Contraindications and General Precaution
6
General Precaution---Continued
Note: Additional warnings, cautions, and notes are located throughout the
manual.
WARNING
If you notice any of the following, STOP use immediately and
contact your equipment provider :
● unexplained changes in the performance of this device
● unusual or harsh sounds
● dropped or mishandled device or the power supply
● water spilled into the enclosure
● broken enclosure
WARNING
Oxygen is a combustion-supporting gas, a fire will start
easier and spread quickly.
Do not leave the nasal cannula on bed coverings or chair
cushions if the oxygen concentrator is turned on, but not in
use; Turn the oxygen concentrator offwhen not in use
WARNING
To ensure proper function and to avoid the risk of fire and
burns:
● Use only with Kingon P2 AC power supply
● Use only with Kingon P2 batteries
● Use only approved Kingon P2 accessories
WARNING
Remove the battery from the device if Kingon P2 will not be
used for a long period of time
WARNING
Device operation exceed the voltage, breath rate,
temperature, humidity and/or altitude values specified
may decrease oxygen concentration levels
WARNING
Do not modify this system or equipment in any way .
Modifications could result in hazards to the user
WARNING
Change in altitude may affect to actual oxygen supplied to
you .Do consult your physician before travelling to a place
with altitude changes.

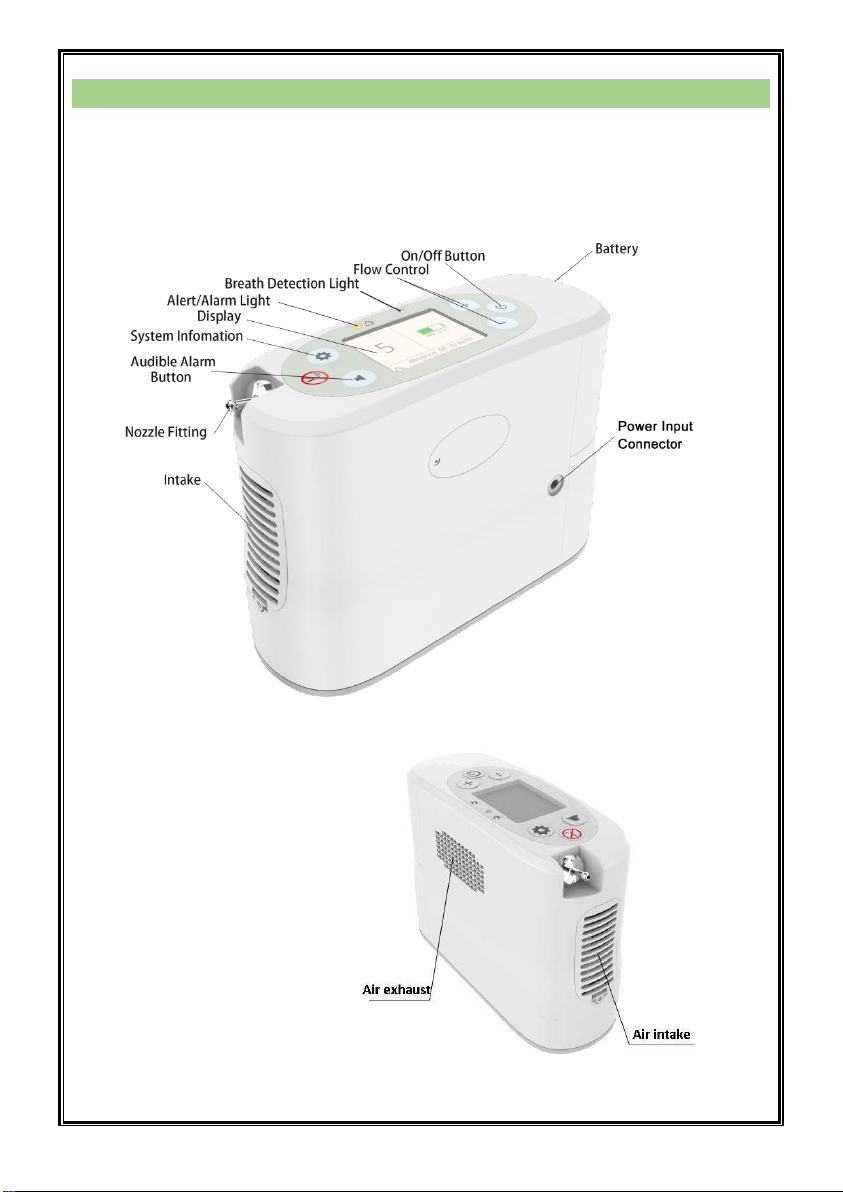

Description of the Kingon P2 Oxygen Concentrator
7
Ⅱ.DESCRIPTION OF THE KINGON P2 OXYGEN CONCENTRATOR
Important Parts of the Kingon P2

Description of the Kingon P2 Oxygen Concentrator
8
User Interface Instruction and Symbols used on Kingon P2
User control:
Symbol
Item
Description
ON / OFF
Button
Press once to turn “ON”;
Press and hold for one second to turn “OFF”
Audio Alarm
Button
Pressing the button will toggle the Kingon P2’s
audible alert on and off.
The display’s mode indication area will show 2
different icons on mute & audible mode:
on audible mode-----
On mute mode-------
and turn on yellow light, and display message when
the alert is enable.
Press this button to mute or unmute alarms .
Flow Setting
Control Buttons
Select the setting by pressing the – or +
buttons ,swift from 1 to 5 different flow setting
Device
Information
Press this button to display the information of device.
The information includes battery temperature,battery
status,molecular temperature,molecular runtime,
device model,device temperature,device runtime ,
firmware version, hardware version.

Description of the Kingon P2 Oxygen Concentrator
9
Home Screen
Home screen will show the icon as:
The icons mean:
Icon
Description
Flow Setting(from 1 to 5)
Battery charge level:
●Battery percentage
●Battery remaining time to use
Device runtime (H:Min)
( single time )
Alert mute
Alert audible
Additionally, screen will also display the following icons:

Description of the Kingon P2 Oxygen Concentrator
10
ICON
DESCRIPTION
Powered by AC /DC only
1. Powered by battery only ,without AC & DC charge
2. Battery level and remaining time to use
3. Device ON
1. battery installed and with AC or DC charge
2. Battery level percentage and estimated time to fully charge
the battery
3. Device ON
1. battery installed and with AC or DC charge
2. Battery level percentage and estimated time to fully charge
the battery
3. Device OFF
Alarm Silence
the device has detected an active alarm under mute mode
the device has detected an active alarm under unmute mode
Runtime of concentrator since started for single time
(2H 35minutes)
More than one alert are rolling and will display.

Description of the Kingon P2 Oxygen Concentrator
11
Audible Mode:
the device has detected an active alarm under unmute mode
Mute Mode:
Alarm Silence
the device has detected an active alarm under mute mode

Description of the Kingon P2 Oxygen Concentrator
12
Alerts
Message Display
Explanation and Action
Battery Exhausted
Pls contact provider
Battery health condition is less than 50%
Replace Sieve Bed
Pls contact provider
1. molecular sieve is out of date ,remind users to contact
equipment provider to change the sieve bed
2. Chip error of the sieve bed ,remind users to contact
equipment provider for maintenance
Low Input Voltage
Pls Check Adapter
Adapter Input voltage is lower than 17V until the voltage rise to
up 18V
Absence Of Breath
Pls Check Cannula
Concentrator does not detect a breath over 15 seconds
Check if the cannula is connected firmly and not
kinked,correctly weared and breathe using your nose.
Low Oxygen：< 87%
Pls Contact Provider
Oxygen purity is lower than 87% for more than 5 minutes
successively.
Pls contact equipment provider for maintenance
Low Battery
Pls Charge Now
Battery level is ≥ 5% and ≤ 20%
pls connect the adapter to charge.
Low Oxygen：< 50%
Pls Contact Provider
Oxygen purity is lower than 50% for more than 5 minutes
successively
Concnetrator will shut down after 30 seconds.
Breath Sensor Fail
Pls Contact Provider
Breath sensor does not work ,Concnetrator will shut down
after 30 seconds.Pls contact equipment provider for
maintenance
Oxygen Sensor Fail
Pls Contact Provider
Oxygen sensor does not work,Concentrator will shut down
after 30 seconds.Pls contact equipment provider for
maintenance
Gas Delivery Fail
Pls Contact Provider
Oxygen has been released but not delivered
successfully .Concentrator will shut down after 30 seconds.Pls
contact equipment provider for maintenance
Gas Obstruction
Pls Contact Provider
Output gas tube on the back-end of the tank is blocked
Or the cannula is kinked
Concentrator will shut down after 30 seconds.Pls contact
equipment provider for maintenance

Description of the Kingon P2 Oxygen Concentrator
13
Alerts-Continued
Tank Pressure Fail
Pls Contact Provider
Abnormity of the tank pressure ,Concentrator will shut
down after 30 seconds.Pls contact equipment provider
for maintenance
SieveBed Fail
Pls Contact Provider
Sieve bed does not work or become invalid,
Concentrator will shut down after 10 seconds.
Pls contact equipment provider for maintenance
Compressor Fail
Pls Contact Provider
Compressor does not work,
Concentrator will shut down after 10 seconds.
Pls contact equipment provider for maintenance
Valve Check Fail
Pls Contact Provider
Valve failed ,
Concentrator will shut down after 10 seconds.
Pls contact equipment provider for maintenance
Cooling Fan Fail
Pls Contact Provider
Abnormity of the cooling fan,
Concentrator will shut down after 10 seconds.
Pls contact equipment provider for maintenance
Battery Depleted
Replace battery or connect to
adapter
Battery level is <5% when no adapter connected.
Replace a new battery or connect to adapter for charging
System too Cold
Pls Shut down,Move to
warmer place
System temperature is too low
Concentrator will shut down after 10 seconds
Pls move to a warmer place
Battery too Cold
Pls Shut down,Move to
warmer place
Battery temperature is too low
Concentrator will shut down after 10 seconds
Pls move to a warmer place
System too Hot
Shut down,Move to cooler
place
System temperature is too high
Concentrator will shut down after 10 seconds
Pls move to a cooler place
Battery too Hot
Pls Shut down ,Only Use
adapter
Battery temperature is too high
Concentrator will shut down after 10 seconds
Pls move to a cooler place
Gas Supply Fail
Pls Contact Provider
Oxygen was delivered with a lower purity and capacity
compared with the normal situation
Concentrator will shut down after 10 seconds
Sys Startup Fail
Pls Contact Provider
Oxygen purity <87% within 120 seconds after system
start up.
Concentrator will shut down after 10 seconds
Power Supply Fail
Pls Contact Provider
Input Voltage of Power supply can’t ensure the normal
working of concentrator.
Concentrator will shut down after 10 seconds

Description of the Kingon P2 Oxygen Concentrator
14
Power Supply
Standard Lithium Ion Battery # BA-P200
The Kingon P2 will be powered by standard lithium ion battery. When full charged, the
battery can serve for up to 3.5 hours of operation. Recharge the battery by AC or DC
power when installed in the P2. Recharging time is about 5 hours.
AC Power Supply # EM11012E
The concentrator AC supply (EM11012E) is used to power the Kingon P2 Oxygen
Concentrator from an AC power source. when used with AC power sources, the power
supply automatically adapts to input voltages from 100V to 240V(50-60HZ) permitting
use with most power sources throughout the world.
Connect A plug to nearest AC power outlet→connect C plug to D port →connect B plug
to Kingon P2
WARNING
Do not use power supplies or power cable other than the
specified above.
Do not use power supplies /adapters or accessories other
than those specified above.
The use of non-specified accessories may create a safety
hazard and/or impair equipment performance.

Description of the Kingon P2 Oxygen Concentrator
15
Accessories
Nasal Cannula
The Kingon P2 Oxygen Concentrator must use a single lumen nasal cannula to provide
oxygen to the patient.
WARNING
One single lumen nasal cannula should not be used by two
or more persons.
DO NOT use cannula length exceeding 25ft (7,6m)
Carry bag # CB-P200
Kingon P2 carry bag allows you to go out for daily activities with the Kingon P2
concentrator. The bag is convenient to the patient.
CAUTION
Increasing the cannula length may reduce the perceived
noise during oxygen bolus delivery.
CAUTION
When using a long cannula, the flow setting may be
increased.
CAUTION
When using a long cannula, the flow setting may be
increased.
CAUTION
Disposable usage for the cannula.
CAUTION
Choose the CE marked nasal cannula ( e.g. Runmai
NOC-DAW0721)

Description of the Kingon P2 Oxygen Concentrator
16
Accessories List
Item
Qty
NO#
Nasal Cannula
1 pc
NOC-DAW0721
Carry Bag
1 pc
CB-P200
AC power supply
1 pc
EM11012E
Intake Filter
5 pc
FI-P201
Battery
1 pc
BA-P200

Operating Instructions
17
Ⅲ.OPERATING INSTRUCTIONS
General Operation
1. Find a well ventilated location to place the Kingon P2, make sure it’s
turned off.
Be Sure to keep the Intake and exhaust with clear access. Try to locate the Kingon
P2 in a suitable place where any auditory alarms may be heard.
WARNING
Do not use Kingon P2 in the presence of flammable
anesthetics, detergents or other chemical vapors.
CAUTION
Do not block the air intake or air exhaust when operating the
equipment.
Blocked air circulation or proximity to the heat source can
cause internal heat build-up, shut down, or damage to the
concentrator.
CAUTION
The Kingon P2 Concentrator is designed for continuous
use. It is useful to operate the product frequently for optimal
sieve bed life.
CAUTION
Kingon P2 is shipped from factory with battery removed.
2. Ensure the particle filter is in place.
CAUTION
Do not operate the Kingon P2 without intake filter. Inhalation
of system particles can damage the device.
!
