Kingfisher FPPBC25-6 User manual

Petrol brush
cutter (25 cm3)
Original Instructions – FPPBC25-6_V20922
WARNING: Read the instructions before using the machine!
FPPBC25-6
EAN: 3663602939993
BX220IM

2
FPPBC25-6
Let’s
get started...
These instructions are for your safety. Please read through
them thoroughly before use and retain them for future
reference.
Getting Started... 02
Safety information 03
Your machine 11
Before you start 15
Quick start 22
In more detail... 25
Machine functions 25
Operation 27
Care and maintenance 33
Troubleshooting 40
Recycling and disposal 42
Guarantee 43
Customer care and technical helpline 44
Availability of spare parts 45
47EC declaration of conformity
UK declaration of conformity 46

3
FPPBC25-6
Getting Started . . .
Safety warnings
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
1. This machine is not intended for use by children and persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.
2. Children should be supervised to ensure that they do not play with the machine.
WARNING! Your safety and the safety of others is very important. Of course,
it is not practical or possible to warn you about all the hazards associated with
operating or maintaining this machine. At all times you must use your own
good judgment.
Training
Read the instructions carefully. Be familiar with the controls and the proper use of the
machine.
Preparation
1. Never allow children or people unfamiliar with these instructions or children to use
the machine. Local regulations can restrict the age of the operator.
2. Never operate the machine while people, especially children, or pets are nearby.
3. Keep in mind that the operator or user is responsible for accidents or hazards
occurring to other people or their property.
4. Wear ear protection and safety glasses at all times while operating the machine.
5. Always wear substantial footwear and long trousers while operating the machine.
Do not operate the machine when barefoot or wearing open sandals.
6. Thoroughly inspect the area where the machine is to be used and remove all stones,
sticks, wires, bones and other foreign objects.
7. WARNING - Petrol is highly ammable.
• store fuel in containers specically designed for this purpose,
• refuel outdoors only and do not smoke while refuelling,
• add fuel before starting the engine. Never remove the cap of the fuel tank or add
petrol while the engine is running or when the engine is hot,
• if petrol is spilled, do not attempt to start the engine but move the machine away
from the area of spillage and avoid creating any source of ignition until petrol
vapours have dissipated.
8. Replace all fuel tanks and bottle caps securely.
9. Do not attempt to tackle any job that you are not adequately trained for.
Safety information

4
FPPBC25-6
Getting Started . . .
10. Keep bystanders and animals at least 15 metres out of the work area.
11. Do not operate the machine if it has faulty safety equipment or damaged parts.
12. Do not under any circumstances modify the machine. Modications can result in
serious personal injury or death.
13. All machines servicing and maintenance, other than the items listed in this manual,
should be performed by an authorised service centre.
14. First time user should have practical instruction in the use of the machine and
protective equipment from an experienced operator.
15. National regulation can restrict the use of the machine.
16. If the cutting mechanism strikes any foreign object or the machine starts making
any unusual noise or vibration, shut off the power source and allow the machine
to stop. Disconnect the spark plug connector and take the following steps:
• Inspect for damage;
• Check for, and tighten, any loose parts;
• Have any damaged parts replaced or repaired with parts having equivalent
specications
Clothing and personal protective equipment (PPE)
1. Secure long hair so that they are above the shoulder level.
2. Do not wear loose tting clothing or jewellery as those could be drawn into the
engine, catch the cutting attachment or undergrowth.
3. Use the following safety clothing and personal protective equipment (PPE) when
operating the machine:
• Helmet with visor and neck guard (compliant to EN 397)
• Wear ear protection (compliant to EN 352-1)
• Wear eye protection (compliant to EN 166)
• Protective gloves (compliant to EN ISO 21420 Class 0)
• Slip-resistant steel toe cap boots (compliant to EN ISO 20345 Class 2)
• First Aid Kit in case of injury
• Dry powder re extinguisher readily available
Operation
1. Keep all parts of the body away from the machine when the machine is operating.
Before starting the engine, make sure the machine is not contacting anything and
is free from obstructions. A moment of inattention while operating the machine may
cause entanglement of your clothing or body with the machine.
2. Always ensure that all handles and guards are tted properly before operating the
machine. Never attempt to use an incomplete machine or one tted with unauthorized
parts.
3. Do not operate the machine with one hand! Serious injury to the operator or bystanders
may result from one handed operation.
Safety information

5
FPPBC25-6
Getting Started . . .
4. Keep handles dry, clean and free from oil and grease. Greasy, oily handles are
slippery and may cause loss of control.
5. Do not operate the machine if you are tired or ill, under the inuence of drugs, alcohol
or medication.
6. When the machine is switched off, make sure the cutting attachment has stopped
before setting down the machine.
7. Do not operate the engine in a conned space where dangerous carbon monoxide
fumes can collect.
8. Operate the machine only in daylight or in good articial light.
9. Avoid operating the machine in wet grass or take additional precautions to avoid
slipping.
10. Do not operate the cutting device when crossing surfaces other than grass, and
when transporting the machine to and from the working area.
11. Take care against injury from a cutter tted for trimming the cutting line length. After
extending the cutter line always return the machine to its normal operating position
before switching on.
12. Make sure that the ventilation openings are kept clear of debris.
13. Make sure that the air intake of the combustion engine is clear. Keep the air intake
free of dust, dirt particles, gases and fumes.
14. If the cutting attachment does not stop when the engine idles, stop using the machine
and contact with the customer services.
15. Never use the machine without the air lter installed.
16. Check for signs of wear or damage before each use, after any impact or if the machine
has been dropped. Repair the machine if necessary.
17. Stop the engine, disconnect the spark plug connector:
• before clearing blockages;
• before cleaning or working on the machine;
• after striking a foreign object. Inspect the machine for damage and make repairs
before restarting and operating the machine;
• if the machine starts to vibrate abnormally (check immediately);
• whenever you leave the machine;
• before refuelling.
Maintenance
1. Keep all nuts, bolts and screws tight to be sure the machine is in a safe working
condition.
2. Disconnect the spark plug connector before performing maintenance, except for
carburetor adjustments.
3. Keep the engine and petrol storage area free of grass, thatch, moss, leaves or
excessive grease to reduce the re hazard.
4. Examine the machine regularly and replace worn or damaged parts for safety.
5. Do not operate the machine with a damaged or excessively worn cutting device.
6. Replace fuel lines and fuel lters every 2 years.
Safety information

6
FPPBC25-6
Getting Started . . .
Fuel handling
1. Always switch the machine off, disconnect the spark plug connector and let the
machine cool down before refuelling it.
2. Fuel and fuel vapour are highly ammable. Take care when handling fuel.
3. Do not smoke while operating the machine, handling fuel or near fuel.
4. Always use suitable aids such as funnels and ller necks. Do not spill any fuel on
the machine or its exhaust system. There is a risk of ignition. Remove spilled fuel
carefully from all parts of the machine. Any residue which may be present must have
completely volatilised, before the machine is put into operation!
5. Never refuel indoors.
6. Never use the machine in environments where there is a risk of explosion. Exhaust
gases and fuel fumes are noxious. Fuel fumes can ignite.
7. Avoid skin contact with petrol.
8. Do not eat or drink, while you are refuelling the machine. If you have swallowed
petrol or oil, or if petrol or oil has got into your eyes, then seek the advice of a doctor
immediately.
9. Tighten the fuel tank cap thoroughly after relling the fuel tank.
10. Fuel vapour pressure may build up inside the fuel tank depending on the fuel used,
weather conditions and the tank venting system. To reduce the risk of burns and
other personal injuries, remove the fuel tank cap carefully to allow any pressure
build up to release slowly.
11. Ensure the spark plug connector is secure. Loose connector may cause electrical
arcing that could ignite combustible fumes and cause a re or explosion.
12. Use caution when handling fuel. To avoid any accidental res, move the machine at
least 3 metres from the fuelling point before starting the engine.
13. Do not operate the machine if it is leaking fuel.
14. Do not remove the fuel tank cap while the engine is running.
15. Do not store cans of fuel or rell the fuel tank in any place where there is a boiler,
stove, wood re, electrical sparks, welding sparks, or other sources of heat or re
which might ignite the fuel.
16. If any fuel spillage occurs during refuelling, use a dry rag to wipe up spills and allow
remaining fuel to evaporate before starting the engine on again.
17. If you have spilt fuel on yourself or on your clothes, change your clothes and wash
any part of your body that has come in contact with fuel before turning the engine
on again.
18. If fuel has ignited, put out the re with a dry powder re extinguisher.
19. Never breathe in any fuel fumes, when you are refuelling the machine.
20. Keep fuel fresh (less than 30 days) or add fuel stabiliser.
Transport and storage
1. Stop the engine before transporting the machine.
2. Ret the transport cover on the cutting blade during transportation or storage.
Safety information

7
FPPBC25-6
Getting Started . . .
3. Allow the engine to cool before storing in any enclosure.
4. Never store the machine with petrol in the tank inside a building where fumes can
reach an open ame or spark.
5. Store the machine and fuel so that there is no risk of leakages or fumes coming
into contact with sparks or naked ames from electrical equipment, electric motors,
relays/switches, boilers etc.
6. Empty machine of fuel after every use. Run the product dry of fuel in idle before
storage.
7. Dispose of waste oil and fuel at a local petrol station, local authority centre or where
facilities exist.
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit the time of operation, use
low-vibration and low-noise operating modes as well as wear personal protective
equipment.
Take the following points into account to minimise the vibration and noise exposure risks:
1. Only use the machine as intended by its design and these instructions.
2. Ensure that the machine is in good condition and well maintained.
3. Use correct attachments for the machine and ensure they in good condition.
4. Keep a tight grip on the handles/gripping surfaces.
5. Maintain this machine in accordance with these instructions and keep it well lubricated
(where appropriate).
6. Plan your work schedule to spread any high vibration tool use across a longer period
of time.
Emergency
Familiarise yourself with the use of this machine by means of this instruction
manual. Memorise the safety directions and follow them to the letter. This will
help to prevent risks and hazards.
1. Always be alert when using this machine, so that you can recognise and handle
risks early. Fast intervention can prevent serious injury and damage to property.
2. Stop the engine and disconnect the spark plug connector if there are
malfunctions. Have the machine checked by a qualied professional and repaired,
if necessary, before you operate it again.
3. In case of re stop the engine and disconnect the spark plug connector. Take
re-extinguishing measures immediately if the machine switch is no longer accessible.
WARNING! Never use water to extinguish the machine on re. Burning fuel
must be extinguished with special extinguishing agents! We recommend that you
keep a suitable re extinguisher within reach in your work area! We recommend
to have dry powder re extinguisher always available.
Safety information

8
FPPBC25-6
Getting Started . . .
Residual risks
Even if you are operating this machine in accordance with all the safety requirements,
potential risks of injury and damage remain. The following dangers can arise in
connection with the structure and design of this machine:
1. Health defects resulting from vibration emission if the machine is used over long
periods of time or not adequately managed and properly maintained.
2. Injuries and damage to property due to broken application tools or the sudden impact
of hidden objects during use.
3.
4. Burns, if touching hot surfaces.
WARNING!
medical implants! To reduce the risk of serious or fatal injury, we recommend
persons with medical implants to consult their doctor and the medical implant
manufacturer before operating this machine!
Symbols
the following symbols and abbreviations. Familiarise yourself with them to reduce hazards
like personal injuries and damage to property.
kW Kilowatt l Litre
cm3Cubic centimetre ml Millilitre
min-1 Per minute °C Degree Celsius
m Metre dB(A) Decibel (A-rated)
mm Millimetre m/s2Metres per second squared
cm Centimetre kg/h Kilogram per hour
kg Kilogram g/kWh Gram per kilowatt per hour
Safety information
yyWxx
Manufacturing date code; year of manufacturing (20yy) and week of
manufacturing (Wxx)

9
FPPBC25-6
Getting Started . . .
Description of signal words:
DANGER! The signal word that indicates a hazard with a high level of risk
which, if not avoided, will result in death or serious injury.
WARNING! The signal word that indicates a hazard with a medium level of
risk which, if not avoided, could result in death or serious injury.
CAUTION! The signal word that indicates a hazard with a low level of risk
which, if not avoided, could result in minor or moderate injury.
NOTE! Indicates a practical tip, advice or practice not related to personal
injury.
Caution/Warning.
Read the instruction
manual.
Note/Remark.
Wear slip-resistant steel toe cap
boots (compliant to EN ISO 20345
Class 2)
Protective gloves (compliant to EN ISO 21420 Class 0)
Wear ear protection (compliant to EN 352-1)
Wear eye protection (compliant to EN 166)
Do not expose the machine to rain or wet conditions.
Open ames in the work area, around the machine and in the vicinity
of ammable materials are prohibited!
Do not smoke in the work area, around the machine and in the vicinity
of ammable materials!
Risk of re/ammable materials.
Hot surface, do not touch! High temperatures on the machine’s surfaces
and structural parts that could cause burns, if they are touched. The
machine can also stay hot for a longer period of time after the operation!
Stop the engine and disconnect the spark plug connector before assembly,
cleaning, adjustments, maintenance, storage and transportation.
Safety information

10
FPPBC25-6
Getting Started . . .
Safety information
Petrol engines produce toxic carbon monoxide exhaust fumes. Breathing
carbon monoxide can cause nausea, fainting or even death. Do not
operate the engine indoors!
Stop the engine before refuelling. Never refuel the machine while the
engine is running.
Only refuel unleaded petrol and oil mixture in ratio 40:1. Do not use
any other mixture ratio.
40:1
360°
15 m
7300-7500
40:1
15 m
7300-7500
Keep bystanders out of working area during operation. A distance of at
least 15 metres around the operator must be observed.
40:1
15 m
7300-7500
Objects thrown by the machine could hit the operator or other bystanders.
ecnatsidefasataniamerstepdnaelpoeprehtotahterusnesyawlA
from the machine when it is in operation.
blade is capable of amputating an arm or leg. Keep bystanders and
animals at least 15 metres from the machine.
x6
Do not touch the cutting attachment until it stops completely.
360°
15 m
Press the primer 6 times before starting the cold engine.
40:1
15 m
7300-7500
40:1
360°
15 m
7300-7500
Maximum rotational frequency of the shaft for the cutting attachment
in min-1.
Choke – CLOSE position.
Choke – OPEN position.
Guaranteed sound power level value in dB.

11
FPPBC25-6
Getting Started . . .
FPPBC25-6
Designation of the tool
(FP_Brand Name; PBC_Petrol Brush Cutter; 25_Engine size in cc)
The machine complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
General
> Dimensions: approx. 176 x 36 x 25 cm
> Weight (without fuel, cutting attachment,
guard and harness): approx. 6.4 kg
> Fuel tank capacity: 460 cm3(ml)
> Petrol type: #97, unleaded
> Engine oil type: 2-stroke engine oil, FC
> Fuel-oil ratio: 40:1
> Cutting attachment:
Cutting blade:
Trimmer head:
4 teeth,
Max. cutting width Ø430 mm
Ø230 x 1.8 mm
bumping type, Ø2 mm nylon line
Engine
> Engine model: SL33
> Engine displacement: 25 cm3
> Maximum engine power
(in accordance with ISO 8893): 0.8 kW
> Maximum speed of the spindle
(rotational frequency): 8500 min-1
> Maximum operating engine speed
(rotational frequency): 10500 min-1
> Idle speed: 3000 min-1
> Fuel consumption (in accordance with
ISO 8893) at max. engine performance: 0.38 kg/h
>
with to ISO 8893) at max. engine
performance: 447 g/kWh
> Spark plug type: TORCH L8RTC
> Spark plug gap: 0.6 – 0.7 mm
Safety information / Your machine
The machine complies with the conformity requirements of the applicable
UK regulations.

12
FPPBC25-6
Getting Started . . .
Your machine
Sound levels
Equivalent sound pressure level at operator position determined in accordance
with ISO 22868
> Brush cutter LpA av:94.2 dB(A)
> Grass trimmer LpA av:94.3 dB(A)
> KpA uncertainty: 3 dB(A)
Sound power level determined in accordance with ISO 22868 and
Directive 2000/14/EC
> Measured max. LWA:109.3 dB(A)
> KwA uncertainty: 1.91 dB(A)
> Guaranteed sound power level: 111 dB(A)
Equivalent vibration total value determined in accordance with ISO 22867
> Brush cutter (front handle): 5.92 m/s2
> Brush cutter (rear handle): 5.61 m/s2
> Grass trimmer (front handle): 7.19 m/s2
> Grass trimmer (rear handle): 6.10 m/s2
> K uncertainty : 1.5 m/s2
The sound values have been determined according to noise test code given in
ISO 10884, using the basic standards ISO 22868.
Wear hearing protection, especially when sound pressure is over 80 dB(A).
The declared vibration value has been measured in accordance with a standard test
method and may be used for comparing one machine with another. The declared
vibration value may also be used to evaluate the exposure for the user caused by
vibration in advance.
WARNING! Depending on the actual use of the machine the vibration values
can differ from the declared total. Adopt proper measures to protect yourself
against vibration exposures. Take the whole work process including times
the machine is running under no load or switched off into consideration!
Proper measures include among others regular maintenance and care of the
machine and accessories, keeping hands warm, periodical breaks and proper
planning of work processes!

13
FPPBC25-6
Getting Started . . .
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Cutting blade
Trimmer head
22
22
24
23
23
28
25 26
27
29
30
31
32
Your machine

14
FPPBC25-6
Getting Started . . .
Your machine
1. Power unit
2. Recoil starter handle
3. Spark plug connector
4. Choke
5. Air lter case
6. Primer
7. Fuel tank cap
8. Fuel tank
9. Ventilation openings
10. Harness with quick-release mechanism
11. Upper drive shaft tube
12. Front handle
13. Barrier bar
14. Shaft clamp
15. Locking nut
16. Lock pin
17. Bottom drive shaft tube
18. Gear head
19. Throttle trigger
20. Stop switch
21. Throttle trigger lockout
22. Cutting-attachment guard
23. Backing ange
24. Cutting blade (with transport cover)
25. Locking ange
26. Securing nut
27. Trimming guard
28. String trimmer head
29. Rear handle
30. Spindle
31. Cutting line
32. Cutting line cutter

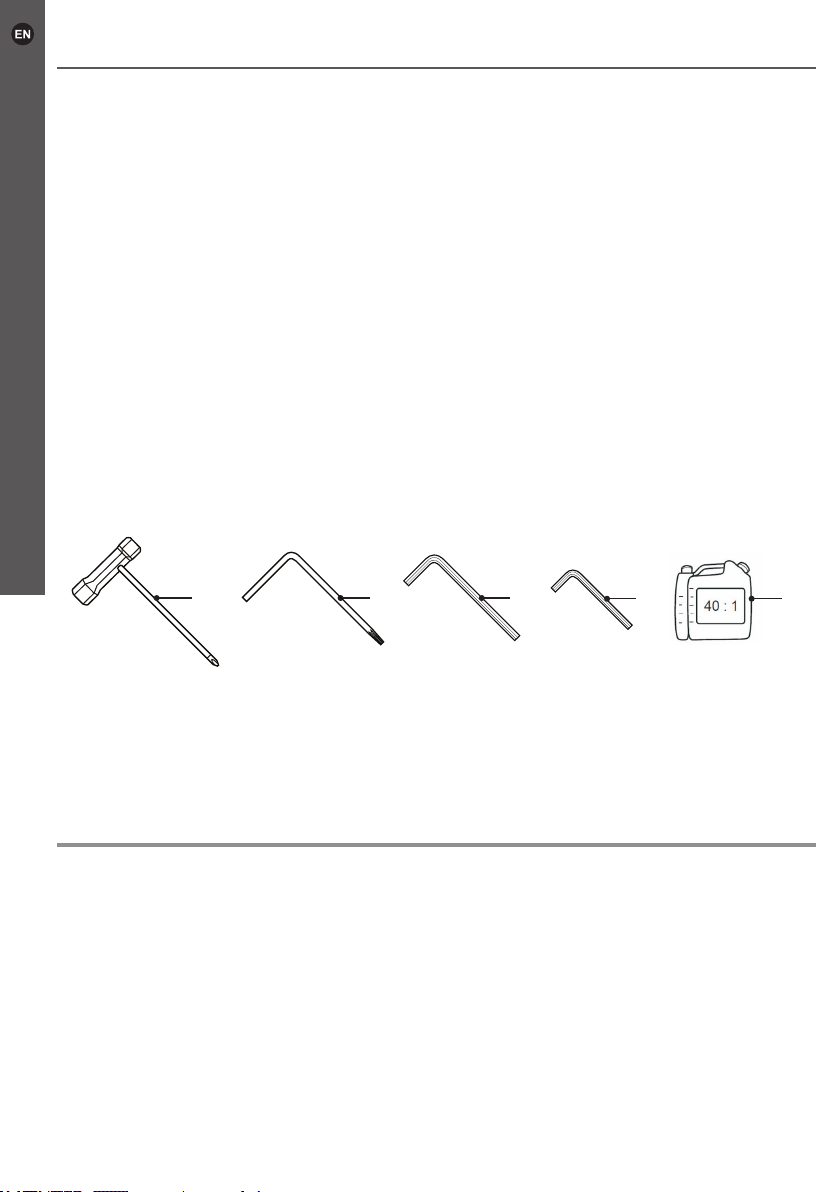

Accessories
33 34 35 36 37
33. Multi-tool I (Cross-head screwdriver/
socket wrench)
34. Multi-tool II (Torx screwdriver/round rod)
35. Hex key 5 mm
36. Hex key 4 mm
37. Fuel mixing bottle
Unpacking
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and protective shipping materials, if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you nd
that parts are missing or show damage do not use the machine and contact your
dealer. Using an incomplete or damaged machine represents a hazard to operators
and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation.
This also includes suitable personal protective equipment.

15
FPPBC25-6
Getting Started . . .
Your machine / Before you start
WARNING! The machine and the packaging are not children’s toys! Children
must not play with plastic bags, sheets and small parts! There is a danger of
choking and suffocation!
You will need
(items not supplied)
> Suitable personal protective equipment
> Sharpening set
> Fuel funnel with lter
> Suitable 2-stroke engine oil, FC
> Suitable fuel (unleaded petrol)
> Container to collect fuel
> First aid kit
> Dry powder re extinguisher readily
available
(items supplied)
> Multi-tool I (33)
> Multi-tool II (34)
> Hex key 5 mm (35)
> Hey key 4 mm (36)
> Fuel mixing bottle (37)
Assembly
WARNING! The machine must be fully assembled before operation!
Do not use a machine that is only partly assembled or assembled with damaged
parts!
Follow the assembly instructions step-by-step and use the pictures provided
as a visual guide to assemble the machine easily!
Disconnect the spark plug connector before assembly! Reconnect it after
assembly (see "Maintenance").
NOTE: Take care of small parts that are removed during assembly or when
making adjustments. Keep them secure to avoid loss.
NOTE: To prevent the parts from coming loose during the operation, some
parts are with reverse threads: turn clockwise to loosen, and turn anti-clockwise
to tighten. Read carefully the instructions in this user manual for the correct
tightening/loosening direction.

16
FPPBC25-6
Getting Started . . .
Before you start
Assembling the front handle and barrier bar
1. Loosen the pre-assembled bolts on the front handle (12) using the hex key (36).
Separate the front handle (12) from the barrier bar (13).
2. Attach the front handle (12) and the barrier bar (13) to the upper drive shaft tube (11)
with the screw engaging into one of the 3 holes (Fig. 1).
3. Secure them with the two bolts using the hex key (36).
1
EN
11
13
12
Bolts
36
1
Assembling the trimmer head
The trimmer head (28) is used together with both the cutting-attachment guard (22) and
the trimming guard (27). Use the trimmer head for cutting smaller types of weed, lawn
grass or similar soft vegetation.
1. Put the trimming guard (27) onto the cutting-attachment guard (22) and tighten the
three screws securely using the hex key (35) (Fig. 2).
2
27
22
35

17
FPPBC25-6
Getting Started . . .
Before you start
2. Loosen the three pre-assembled screws on the gear head (18), using the
multi-tool II (34) (Fig. 3).
3. With one hand holding the backing ange (23) and the locking ange (25), turn the
securing nut (26) clockwise to loosen it.
4. Remove the securing nut (26), the locking ange (25) and the backing ange (23)
from the gear head (18).
5. Attach the cutting-attachment guard (22) with the trimming guard (27) to the gear
head (18). Secure the guard with the removed three screws (Fig. 4).
6. Put the backing ange (23) onto the spindle (30) (Fig. 5).
7. Rotate the backing ange (23) until one of its grooves is aligned with one of those
on the spindle (30).
8. Insert the hex key (36) into one of the grooves to lock the rotation of the spindle.
9. Screw the trimmer head (28) onto the spindle anti-clockwise securely.
10. Make sure the trimmer head (28) is rmly tightened and remove the hex key (36).
1
EN
5
28
23
30
36
18
23
25
34
26
3
22
27
18
4

18
FPPBC25-6
Getting Started . . .
Assembling the cutting blade
The cutting blade (24) is used together with the cutting-attachment guard (22). Use the
cutting blade for cutting heavier weeds, brush and similar vegetation with a thickness
of up to 20 mm.
CAUTION! Risk of cuts! Cutting blade (24) is very sharp. Wear protective
gloves when handling the cutting blade (24).
1. Loosen the three pre-assembled screws on
the gear head (18), using the multi-tool II (34)
(Fig. 6).
2. With one hand holding the backing ange (23)
and the locking ange (25), turn the securing
nut (26) clockwise to loosen it.
3. Remove the securing nut (26), the locking
ange (25) and the backing ange (23) from
the gear head (18).
4. Attach the cutting-attachment guard (22) to
the gear head (18). Secure the guard with the
removed three screws (Fig. 7).
7
22
18
5. Put the backing ange (23) onto the
spindle (30) (Fig. 8).
6. Rotate the backing ange (23) until one of its grooves is aligned with one of those
on the gear head (18).
7. Insert the hex key (36) into one of the grooves to lock the rotation of the spindle.
8. Remove the cutting blade (24) from the transport cover and place it onto the spindle.
The side with markings should be facing towards the gear head (18).
9. Place the locking ange (25) and then the securing nut (26) onto the spindle. The pins
on the locking ange (25) should align with the groves on the backing ange (23).
10. Using the multi-tool I (33) tighten the securing nut (26) anti-clockwise to secure the
parts in place.
18
23
25
34
26
6
Before you start

19
FPPBC25-6
Getting Started . . .
Before you start
11. Make sure the cutting blade (24) is rmly tightened and remove the hex key (36).
1
EN
36
30
23
25
26
24
8
33
Assembling the bottom drive shaft tube
1. Press the lock pin (16) and insert
the bottom drive shaft tube (17)
into the upper drive shaft tube (11)
(Fig. 9).
2. Move the bottom drive shaft
tube (17) until the lock pin (16)
pop out from the pin hole on the
upper drive shaft tube (11).
3. Tighten the locking nut (15)
securely.
1
EN
11
Pin holePin hole
16
17
9
1
2
1515

20
FPPBC25-6
Getting Started . . .
Filling up fuel and oil
WARNING! This machine is not supplied with petrol-oil mixture in the engine!
Before operating this machine it is essential to ll it with petrol-oil mixture!
This machine is equipped with a 2-stroke engine. The fuel and oil tank are combined
and it is essential to ll a fuel-oil mixture before operating this machine. Observe the
technical specications for suitable fuel and engine oil.
WARNING! Fuel and oil are highly inammable! Fumes will explode if lit!
Ensure that there are no naked ames around the machine! Do not smoke
while lling fuel and oil!
NOTE: To avoid spillage and to lter out debris, use a funnel with lter to ll
the fuel mixing bottle (37) and the fuel tank (8).
1. Place the machine on a stable, level surface with the fuel tank cap (7) facing upwards.
We recommend laying a non-ammable sheet under the machine.
2. Pour a regular-grade unleaded petrol and a quality engine oil for air cooled 2-stroke
engines in the supplied fuel mixing bottle (37) respectively via the 2 openings. Use
the scale markings on different sides for the desired ratio for petrol:oil. For example,
ll petrol to scale marking “10” rst, and then ll 2-stroke oil to scale marking “10”.
This indicates a correct ratio of 40:1 when using the scale 40:1.
3. Tilt and shake the bottle thoroughly to mix the fuel.
NOTE: Use an anti-oxidant added quality oil expressly labelled for air-cooled
2 stroke engine use (JASO FC GRADE OIL or ISO EGC GRADE). Do not use
BIA or TWC (2 stroke water-cooling type) mixed oil. The recommended mixing
ratio for petrol:oil is 40:1.
CAUTION! Risk of machine damage. Never mix fuel and oil directly in the
tank of the machine.
Before you start
