Kingfisher FPHT26-3 User manual

FPHT26-3
EAN: 3663602940289
Petrol hedge trimmer
OPERATOR’S MANUAL
26cm³
WARNING: read thoroughly the instruction booklet before using the machine.

T
T
ta ted
SAFE ARNIN S
ORODUCT
EFO E OU S A
Ie
OPE A I NSTRUCTIONSI
AI E A CE AND CA E
O LES OOTIN
EC CLI AND DISPOSAL
A A EE
CE DC ARATION OF CON OR IT
IC START
e in
O
E
V71120 / BX220IM

EN
02
SAFETY WARNINGS
FPHT26-3
SAFETY WARNINGS
> This product is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction
concerning use of the product by a person responsible for
their safety.
> Children should be supervised to ensure that they do not
play with the product.
PETROL POWERED HEDGE TRIMMER
SAFETY WARNINGS
IMPORTANT
Read carefully before use
Keep for future reference
Training
>
attempting to operate the product.
Preparation
> This product can cause serious injuries. Read the
instructions carefully for the correct handling, preparation,
maintenance, starting and stopping of the product.
Become familiar with all controls and the proper use of the
product.
> Never allow children to use the product.
> Beware of overhead power lines.
> Avoid operating while people, especially children, are
nearby.
> Dress properly! Do not wear loose clothing or jewellery,
which can be caught in moving parts. Use of sturdy gloves,
non-skid footwear and safety glasses is recommended.
> Use extra care when handling fuels. They are flammable
and the vapours are explosive. The following points should
be observed.
•Use only an approved container.
•Never remove the fuel cap or add fuel with the power
source running. Allow engine and exhaust components to
cool down before refuelling.
•Do not smoke.
Become familiar with the manual before instruction
Getting started…

03
EN
Getting started...
•Never refuel indoors.
•Never store the product or fuel container inside where
there is an open flame, such as near a water heater.
•If fuel is spilled, do not attempt to start the power source,
but move the product away from the spillage before
starting.
•Always replace and securely tighten the fuel cap after
refuelling.
•If the fuel tank is drained, this should be done outdoors.
> If the cutting mechanism strikes any foreign object or the
product starts making any unusual noise or vibration, shut
off the power source and allow the product to stop.
Disconnect the spark plug wire from the spark plug and
take the following steps:
•inspect for damage;
•check for, and tighten, any loose parts;
•have any damaged parts replaced or repaired with parts
having equivalent specifications.
> Wear hearing protection!
> Wear eye protection!
> In an emergency switch the product off by immediately
releasing the throttle trigger and setting the ignition switch
to its off position “STOP”.
Operation
> Stop the engine before cleaning or when clearing a
blockage, checking, carrying out maintenance or working
on the product, adjusting the working position of the
cutting blade, leaving the product unattended.
> Ensure that the product is correctly located in a designated
working position before starting the engine.
> While operating the product, always ensure that the
operating position is safe and secure.
> Do not operate the product with a damaged or excessively
worn cutting blade.
> To reduce fire hazards, keep the engine and silencer free
of debris, leaves and excessive lubricant.
> Always ensure that all handles and guards are fitted when
using the product. Never attempt to use an incomplete
product or one fitted with an unauthorised modification.
> Always use two hands to operate a product fitted with two
handles.
FPHT26-3 SAFETY WARNINGS

04
>
possible hazards of which you may not be aware due to the
noise of the product.
> Never carelessly touch the product, you can burn yourself.
While the product is in operation or shortly thereafter, its
parts such as the exhaust pipe, engine, and other surfaces
are extremely hot! Pay attention to the markings on the
product.
> Make sure that the air intake of the combustion engine is
clear. Keep the air intake free of dust, dirt particles, gases
and fumes.
> Make sure that air circulation is adequate and good. The
product must be easily accessible from all sides.
Maintenance and storage
> When the product is stopped for servicing, inspection or
storage, shut off the power source, disconnect the spark
plug wire from the spark plug and make sure all moving
parts have come to a stop. Allow the product to cool before
making any inspections, adjustments, etc.
> Store the product where the fuel vapour will not reach an
open flame or spark. Always allow the product to cool
down before storing.
> When transporting or storing the product, always fit the
cutting blade transport guard.
Additional safety warnings
> Keep all parts of the body away from the cutting blade. Do
not remove cut material or hold material to be cut when
blades are moving. Make sure the switch is off when
clearing jammed material. A moment of inattention while
operating the product may result in serious personal injury.
> Carry the product by the handle with the cutting blade
stopped. When transporting or storing the product always
fit the cutting blade cover. Proper handling of the product
will reduce possible personal injury from the cutting blade.
> Hold the product by insulated gripping surfaces only,
because the cutting blade may contact hidden wiring.
Cutting blades contacting a "live" wire may make exposed
metal parts of the product "live" and could give the
operator an electric shock.
> Keep hands and feet away from the cutting blade at all
times and especially when switching on the engine.
Always be aware of your surroundings and stay alert for
FPHT26-3 SAFETY WARNINGS EN
Getting started…

05
FPHT26-3 SAFETY WARNINGS
> Do not try to grasp or remove trimmings when the product
is running. Only remove trimmings when the product is
switched off and disconnected from the power supply.
> Check the work area for foreign objects before operation,
e.g. wire fences. Take care that the cutting blade does not
come into contact with wire or other metal objects.
> Never hold the product by the guard.
> Always be sure of a safe and secure operating position,
whilst using the product. Always be sure of your footing
when using steps and when using your product. Never use
the product standing on steps or a ladder. Do not work over
shoulder height.
> Always ensure the safety guard supplied is fitted before
using the product. Never attempt to use an incomplete
product or one fitted with an unauthorised modification.
> Check cutting blade regularly for damage, and if damaged
repair immediately.
> Do not overload the product.
> Check immediately if the product starts to vibrate
abnormally. Excessive vibration can cause injury.
> Stop the engine and switch the product off when the cutting
blade is blocked. Unplug the spark plug connector and
remove the blockage. Inspect the cutting blade for damage
before using the product again.
> Follow the maintenance and repair instructions for this
product. Never carry out any modifications of the product.
Never change the pre-set rotary speed or the engine and
product settings. Information about maintenance and
repair is provided in this instruction manual.
Fuel handling
> Always switch the product off, disconnect the spark plug
connector and let the product cool down, before refuelling
it. Fuel and fuel vapour are highly flammable. Take care
when handling fuel. Never smoke when you are refuelling
the product. Do not refuel the product, if there is an open
fire in the vicinity!
> Always use suitable aids such as funnels and filler necks.
Do not spill any fuel on the product or its exhaust system.
There is a risk of ignition. Remove spilled fuel carefully
from all parts of the product. Any residue which may be
present must have completely volatilised, before the
product is put into operation!
EN
Getting started...

06
FPHT26-3 SAFETY WARNINGS
> Never use the product in environments where there is a risk
of explosion. Exhaust gases and fuel fumes are noxious.
Fuel fumes can ignite.
> Never breathe in any fuel fumes, when you are refuelling
the product. Never fill the tank in enclosed spaces, such as
basements or sheds. There is a risk of poisoning and
explosion!
> Avoid skin contact with petrol.
> Do not eat or drink, while you are refuelling the product. If
you have swallowed petrol or oil, or if petrol or oil has got
into your eyes, then seek the advice of a doctor
immediately.
> Close the tank lid immediately after filling the tank. Make
sure that it is properly closed.
> Never use the product without an air filter.
> Fuel vapour pressure may build up inside the fuel tank
depending on the fuel used, weather conditions and the
tank venting system. To reduce the risk of burns and other
personal injuries, remove the filler cap carefully to allow
any pressure build up to release slowly.
> Be aware of fire risks, explosion and inhalation risks.
> Do not smoke while operating the product, handling fuel or
near fuel.
> Ensure the spark plug lead is secured, a loose lead may
cause electrical arcing that could ignite combustible fumes
and cause a fire or explosion.
> Check regularly for leaks from the fuel cap and fuel lines.
> Use caution when handling fuel. To avoid any accidental
fires, move the product at least 3 metres (10') from the
fuelling point before starting the engine.
> Tighten the fuel cap thoroughly after refilling the fuel tank.
> Do not operate the product if it is leaking fuel. Do not
remove the fuel tank cap while the engine is running.
> Do not store cans of fuel or refill the fuel tank in any place
where there is a boiler, stove, wood fire, electrical sparks,
welding sparks, or other sources of heat or fire which might
ignite the fuel.
> If you have spilt fuel on yourself or on your clothes, change
your clothes and wash any part of your body that has come
in contact with fuel before turning the engine on again.
> If fuel is ignited, put out the fire with a dry powder fire
extinguisher.
EN
Getting started…

07
FPHT26-3 SAFETY WARNINGS
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit
the time of operation, use low-vibration and low-noise
operating modes as well as wear personal protective
equipment.
Take the following points into account to minimize the
vibration and noise exposure risks:
> Only use the product as intended by its design and these
instructions.
> Ensure that the product is in good condition and well
maintained.
> Use correct application tools for the product and ensure
they in good condition.
> Keep tight grip on the handles/grip surface.
> Maintain this product in accordance with these instructions
and keep it well lubricated (where appropriate).
> Plan your work schedule to spread any high vibration tool
use across a number of days.
Emergency
Familiarise yourself with the use of this product by
means of this instruction manual. Memorise the safety
directions and follow them to the letter. This will help to
prevent risks and hazards.
> Always be alert when using this product, so that you
can recognise and handle risks early. Fast intervention
can prevent serious injury and damage to property.
> Stop the engine and unplug the spark plug connector if
there are malfunctions. Have the product checked by a
qualified professional and repaired, if necessary, before
you operate it again.
> In case of fire stop the engine and unplug the spark
plug connector. Take fire-extinguishing measures
immediately if the product switch is no longer accessible.
WARNING!
Never use water to extinguish a product on fire.
Burning fuel must be extinguished with special
extinguishing agents. We recommend that you keep
a suitable fire extinguisher within reach in your work
area!
EN
Getting started...

Residual risks
Even if you are operating this product in accordance with
all the safety requirements, potential risks of injury and
damage remain. The following dangers can arise in
connection with the structure and design of this product:
> Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
> Injuries and damage to property due to broken accessories
or the sudden impact of hidden objects during use.
> Danger of injury and property damage caused by flying
objects.
WARNING!
This product produces an electromagnetic field
during operation! This field may under some
circumstances interfere with active or passive
medical implants! To reduce the risk of serious or
fatal injury, we recommend persons with medical
implants to consult their doctor and the medical
implant manufacturer before operating this product!
08
FPHT26-3 SAFETY WARNINGS EN
Getting started…

09
FPHT26-3 SAFETY WARNINGS

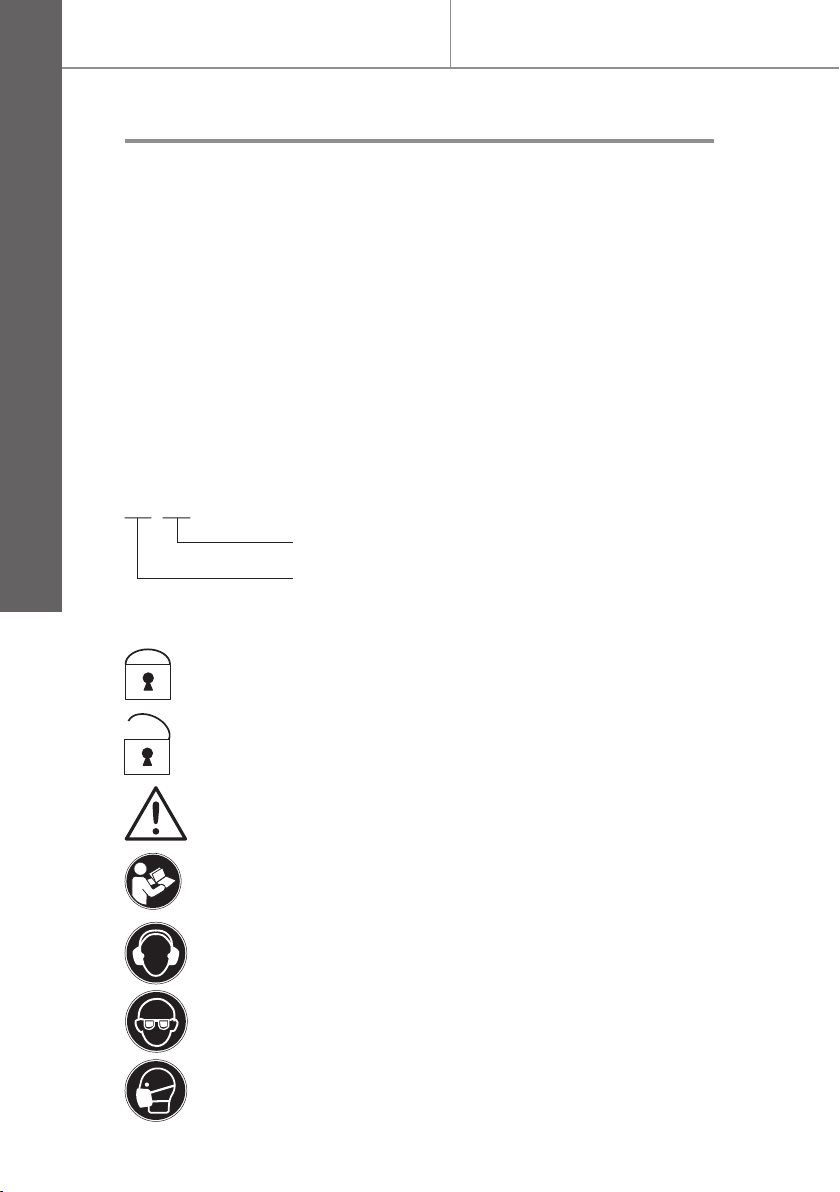

SYMBOLS
On the product, the rating label and within these instructions
you will find among others the following symbols and
abbreviations. Familiarise yourself with them to reduce hazards
like personal injuries and damage to property.
kW Kilowatt 3
cm Cubic centimetre
-1
min per minute
mm Millimetre kg Kilogram
dB(A) Decibel (A-rated)
2
m/s Metres per second squared
mm.yyyy Manufacturing date code, year of manufacturing (yyyy)
and month of manufacturing (mm)
l
Lock / to tighten or secure
Caution / Warning.
Unlock / to loosen
Read the instruction manual.
Wear hearing protection.
/min per minute
Litre
Wear eye protection.
Wear respiratory protection.
FP HT 26-3 Designation of the tool
Hedge trimmer
OPP Brand
EN
Getting started...
Petrol hedge trimmer

10
FPHT26-3 SAFETY WARNINGS
Wear protective gloves.
Wear protective, slip-resistant footwear.
Wear safety helmet!
Wear tight-fitted protective clothes.
Do not expose the product to rain or wet conditions.
Wear face protection!
Open flames in the work area, around the product
and in the vicinity of flammable materials are
prohibited!
Do not smoke in the work area, around the product
and in the vicinity of flammable materials!
Risk of fire / flammable materials
Hot surface, do not touch! High temperatures on the
product's surfaces and structural parts that could
cause burns, if they are touched. The product can
also stay hot for a longer period of time after operation!
This product produces noxious exhaust fumes.
If the product is used improperly, these fumes can
lead to poisoning, a loss of consciousness or death!
EN
Getting started…

11
FPHT26-3 SAFETY WARNINGS
xxx

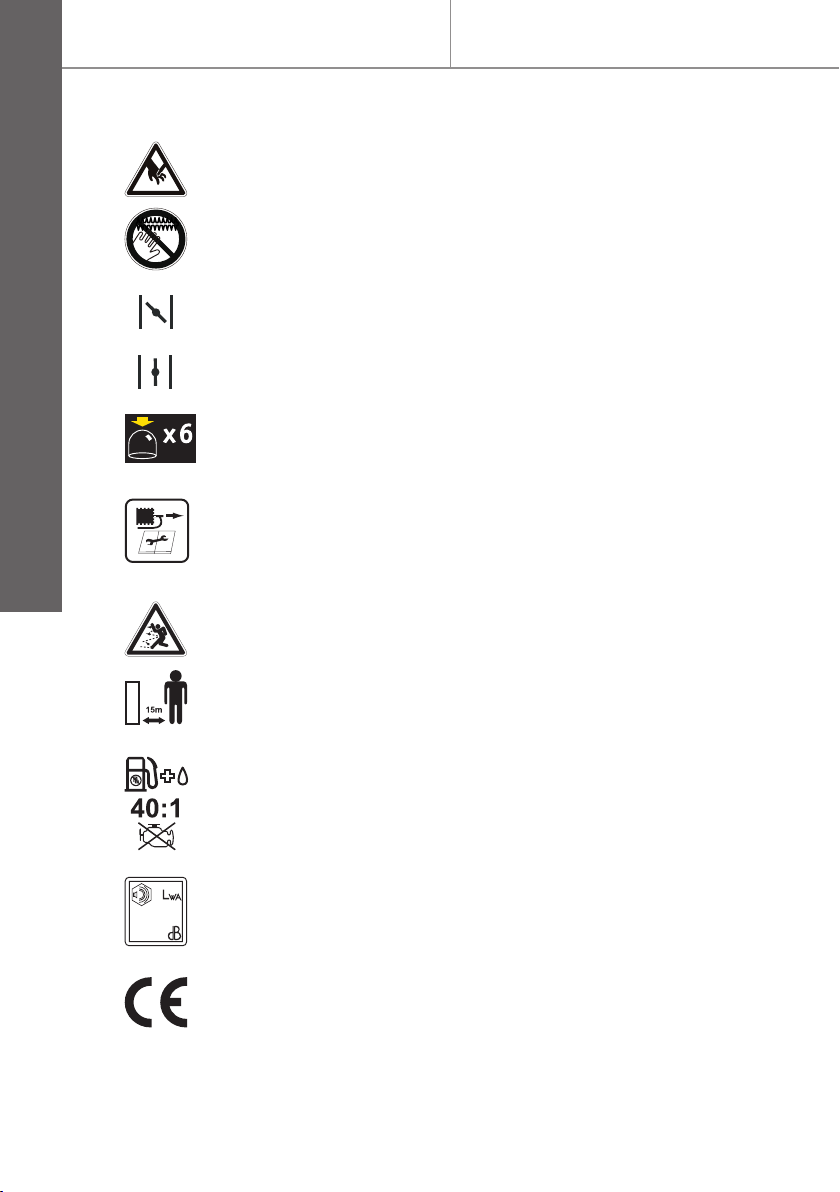

Sharp blades - Cutting of fingers or hand
Keep fingers away from moving cutting device!
Choke lever
Start (Closed Position)
Run (Open position)
Press primer 6 times.
Switch the product off and disconnect the spark plug
connector before assembly, cleaning, adjustments,
maintenance, storage and transportation.
Objects thrown by the product could hit the user or
other bystanders. Always ensure that other people
and pets remain at a safe distance from the product
when it is in operation. In general, children must not
come near the area where the product is.
Only use petrol/oil mixture with a ratio of 40:1.
Do not use any other mixture ratio. Always switch the
product off and let it cool down, before refuelling it.
Guaranteed sound power level value in dB.
The product complies with the applicable European
directives and an evaluation method of conformity
for these directives was done.
EN
Getting started...

12
FPHT26-3 YOUR PRODUCT

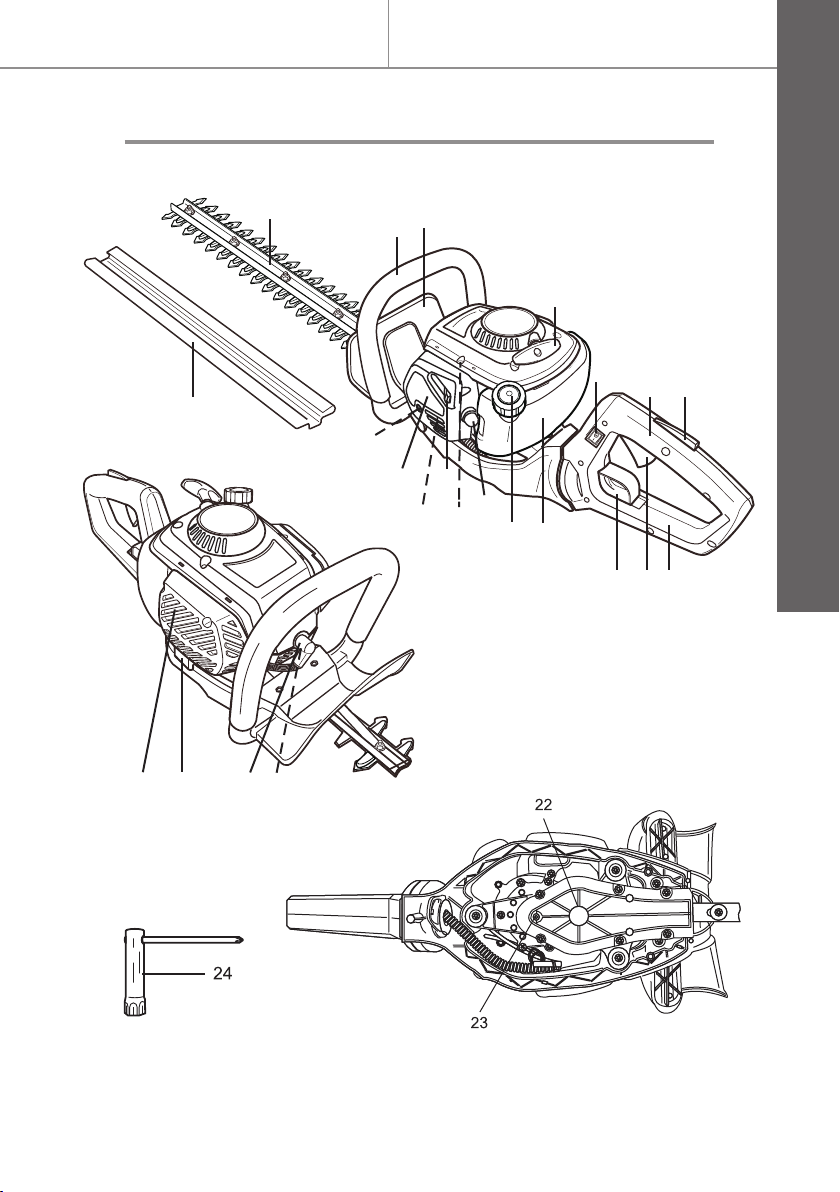

YOUR PRODUCT
EN
Getting started…
2021 1819
14b14a
15
14 16
13
12 11
9 8 7
65
4
2
1
17
3
10

13
FPHT26-3 YOUR PRODUCT
1. Cutting device 15.Fixing screw
2. Front handle 16.Choke lever
3. Front safeguard 17.Blade cover
4. Recoil starter handle 18.Spark plug
5. Rear handle 19.Spark plug connector
6. Throttle interlock 20.Exhaust outlet
7. Rear safeguard 21.Air vents
8. Throttle trigger 22.Gear box
9. Unlock lever (handle 23.Lubricator
adjustment) 24.Multi tool (spark plug
10.Ignition switch STOP/I wrench with crosshead
11.Fuel tank screwdriver)
12.Fuel tank cap
13.Primer
14.Air filter cover
a. Air filter
b. Idle speed adjustment
screw
EN
Getting started...
SCOPE OF SUPPLY
1 x Hedge Trimmer
1 x Blade cover (17)
1 x Multi tool (24)
1 x Instruction manual (Original instructions)
Please check the completeness of the delivery and ensure
that all parts are free from any transport-related damage or
any damage in general. Please contact the supplier from
whom you purchased the product should there be any parts
missing or damaged.

14
FPHT26-3 YOUR PRODUCT
TECHNICAL SPECIFICATIONS
EN
Getting started…
GENERAL
SOUND VALUES
> Engine type
> Engine displacement
> Engine speed at maximum
power
> Max. engine speed
> Engine idle speed
> Clutch engagement speed
> Max. engine power
> Fuel tank volume
> Petrol type
> Engine oil type
> Mixture ratio petrol : oil
> Spark plug
> Max. cutting length
> Max. cutting capacity
> Handle adjustment
> Weight
> Dimensions
> Measured sound pressure
level LpA
> Uncertainty K
> Measured sound power
level LWA
> Uncertainty K
> Guaranteed sound power
level L (according to
WA
2000/14/EC amended by
2005/88/EC)
VIBRATION LEVEL
> Vibration level of front
handle ah
> Vibration level of rear
handle ah
> Uncertainty K
: SL34G
: 26 cm³
-1
: 8000 min
-1
: 10000 min
-1
: 3000 min
-1
: 4000 min
: 0,75 kW
: 460 ml (cm³)
: #95, unleaded petrol
: 2-stroke motor oil
: 40 : 1
: L8RTC (Torch)
RCJ6Y(CHAMPION)
: 550 mm
: 20 mm
: 3 Positions (90° / 0° / -90°)
: approx. 5,3 kg
: approx. 1160 x 250 x 260 mm
: 95,8 dB(A)
: 3 dB(A)
: 105.6 dB(A)
: 2 dB(A)
: 108 dB(A)
: 7,152 m/s²
: 3,378 m/s²
: 1,5 m/s²

15
FPHT26-3 YOUR PRODUCT
The sound values have been determined according to noise
test code given in EN ISO 10517, using the basic standards
EN ISO 11201 and EN ISO 3744
Wear hearing protection! The sound intensity level for the
operator may exceed 80 dB(A) and ear protection measures
are necessary!
The declared vibration value has been measured in
accordance with a standard test method (according to EN
ISO 10517) and may be used for comparing one product with
another. The declared vibration value may also be used in a
preliminary assessment of exposure.
This tool may cause hand-arm vibration syndrome if its
use is not adequately managed.
WARNING!
Depending on the actual use of the product the
vibration values can differ from the declared total!
Adopt proper measures to protect yourself against
vibration exposures! Take the whole work process
including times the product is running under no load
or switched off into consideration!
Proper measures include among others regular
maintenance and care of the product and cutting
attachments, keeping hands warm, periodical
breaks and proper planning of work processes!
EN
Getting started...

16
FPHT26-3 BEFORE YOU START
SET UP
This petrol hedge trimmer FPHT26-3 is designated with an
engine displacement of 26 cm³. The product is intended for
trimming hedges, bushes and shrubs. Observe the technical
data for the maximum cutting capacity. Do not cut branches
exceeding the stated maximum capacity.
For safety reasons it is essential to read the entire instruction
manual before first operation and to observe all the
instructions therein.
This product is intended for private domestic use only, not for
any commercial trade use. It must not be used for any
purposes other than those described.
WARNING!
Before using the product, familiarise yourself with
the operating features read the entire instruction
manual paying particular attention to the safety rules
and operating procedures.
UNPACKING
>
> Remove all packing materials and shipping devices if
applicable.
> Make sure the delivery contents are complete and free of
any damage. If you find that parts are missing or show
damage do not use the product but contact your dealer.
Using an incomplete or damaged product represents a
hazard to people and property.
> Ensure that you have all the accessories and tools needed
for assembly and operation. This also includes suitable
personal protective equipment.
Unpack all parts and lay them on a flat, stable surface.
INTENDED USE
ACCESSORIES (NOT SUPPLIED)
• Lubricant for blade
• Air filter oil
• Soft cloth
• Proper fuel pump
• Fuel mixing container
• Suitable personal protective equipment
• Fuel
• Engine oil
• Funnel
• Grease
• Lubricating gun
EN
Getting started…

17
FPHT26-3
BLADE COVER
>
before operation (Fig. 1).
Remove the blade cover (17) from the cutting device (1)
Fig. 1
NOTE: Always attach the blade cover (17) when the
product is not in use, for storage and transportation.
To attach the blade cover, align and push the blade
cover onto the cutting device (1).
HANDLE ADJUSTMENT
Adjust the handle to fit the application.
> Pull the unlock lever (9) backward and hold it in position
(Fig. 2).
> Adjust the handle (5) to required position and release the
unlock lever (9). Keep turning the handle until it snaps
securely into place (Fig. 3-6).
BEFORE YOU START
EN
Getting started...

18
FPHT26-3
initial position (0°) right position (90°)
WARNING!
Only adjust the handle position when the engine is
switched off! Always ensure that the handle locks in
one of the end positions, never use it in any
intermediate position!
BEFORE YOU START
left position (-90°)
locking position
EN
Getting started…

19
BEFORE YOU START
FPHT26-3
FUEL AND ENGINE OIL
NOTE: This product is not supplied with fuel-oil
mixture in the engine! Before operating this product
it is essential to fill it with fuel-oil mixture!
This product is equipped with a 2-stroke engine, the fuel and
oil tank are combined and it is essential to fill a fuel-oil
mixture before operating this product. Observe the technical
specifications for suitable fuel and engine oil.
WARNING!
Fuel and oil are highly inflammable! Fumes will
explode if lit! Ensure that there are no naked flames
around the product! Do not smoke while filling fuel
and oil!
>
recommend laying a non-flammable sheet under the
product.
> Mix a regular-grade unleaded petrol and a quality engine
oil for air cooled 2-stroke engines in a suitable container
(Fig. 7). Fill half the quantity of the petrol to be used into
the container. Then add the entire quantity of oil and shake
the prepared fuel mixture. Add the remaining quantity of
petrol. Shake the fuel mixture thoroughly before filling the
fuel tank.
> Use an anti-oxidant added quality oil expressly labelled for
air-cooled 2 stroke engine use (JASO FC GRADE OIL or
ISO EGC GRADE).
Place the product on a stable, level surface. We
Fig. 7
EN
Getting started...
Petrol Oil
[ml] [ml]
100 2,5
200 5,0
300 7,5
400 10,0
500 12,5
