Kings Adventure 160W Monocrystalline User manual

160W Monocrystalline
Folding Solar Panel
USER MANUAL
PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY
BEFORE USE.
PORTABIE FOLDING SOLAR PANEL
USER MANUAL
I �1
( 
      

� I

 



  


2
Adventure Kings 160W Monocrystalline Solar Panel
WARNINGS & SAFETY INFORMATION
• Keep the solar panel and controller away from liquids at all times.
• Keep the solar panel and controller clean and always check connectors
for debris before connecting.
• This product is not intended to be used by children. In addition to this, adults with reduced physical
or mental capabilities, or those who are under the inuence of drugs or alcohol should not use the
product.
• Only use the solar panel to charge 12v, rechargeable batteries.
• Lead acid batteries produce harmful explosive gases. The battery should be mounted in a
well-ventilated area, away from possible ignition sources.
• Take care when manoeuvring & setting-up the Solar Panel as to not damage the unit.
• Never connect the Solar Panel directly (without a controller) to a battery or other load.
• Tampering or modifying the solar panel, controller or wiring will void warranty.
• When transporting the solar panel, rmly secure the panel so that it will not move
around or collide with other objects.
• Do not use the solar panel, controller or wiring if it is damaged or compromised in any way.
INCLUDED IN THE KIT
160W Monocrystalline
Folding Solar Panel with
Adjustable Legs
Solar Regulator/ Controller
(Manages voltage delivered
to the battery, ensuring your
battery is safe)
5m Extension Lead with Plugs
Battery Clips
Heavy Duty Protective Carry Bag

3
Adventure Kings 160W Monocrystalline Solar Panel
Specications
Operation Instructions
The 160W Folding Solar Panel will perform at its peak when the solar panel monocrystalline cells
and angled directly towards the sun.
Solar Panel Type Monocrystalline
Wattage 160W - (162W @ 14.03V)
Voltage 13.4 - 14.03V
Open Circuit Voltage 22.4V
Peak Current Output 8.75A
Regulator Type PWM (Pulse-Width Modulator)
Dimensions 775 x 670 x 65mm
Extension Lead 5 meters
Solar Regulator IP Rating IP68
• Highly efcient monocrystalline modules in the solar panel guarantee efcient charging.
• When the 160W folding solar panel is folding up, it's space-saving and portable; when the folding solar kit
is open, it has a double sunlight charging area, providing a good consistent charge.
•The regulator is designed to protect the battery from overcharging undervoltage, as well as short circuiting.
• Specially designed support legs enable the 160W folding solar panel to stand on rough surfaces, and on a
desired angle for direct sun exposure.

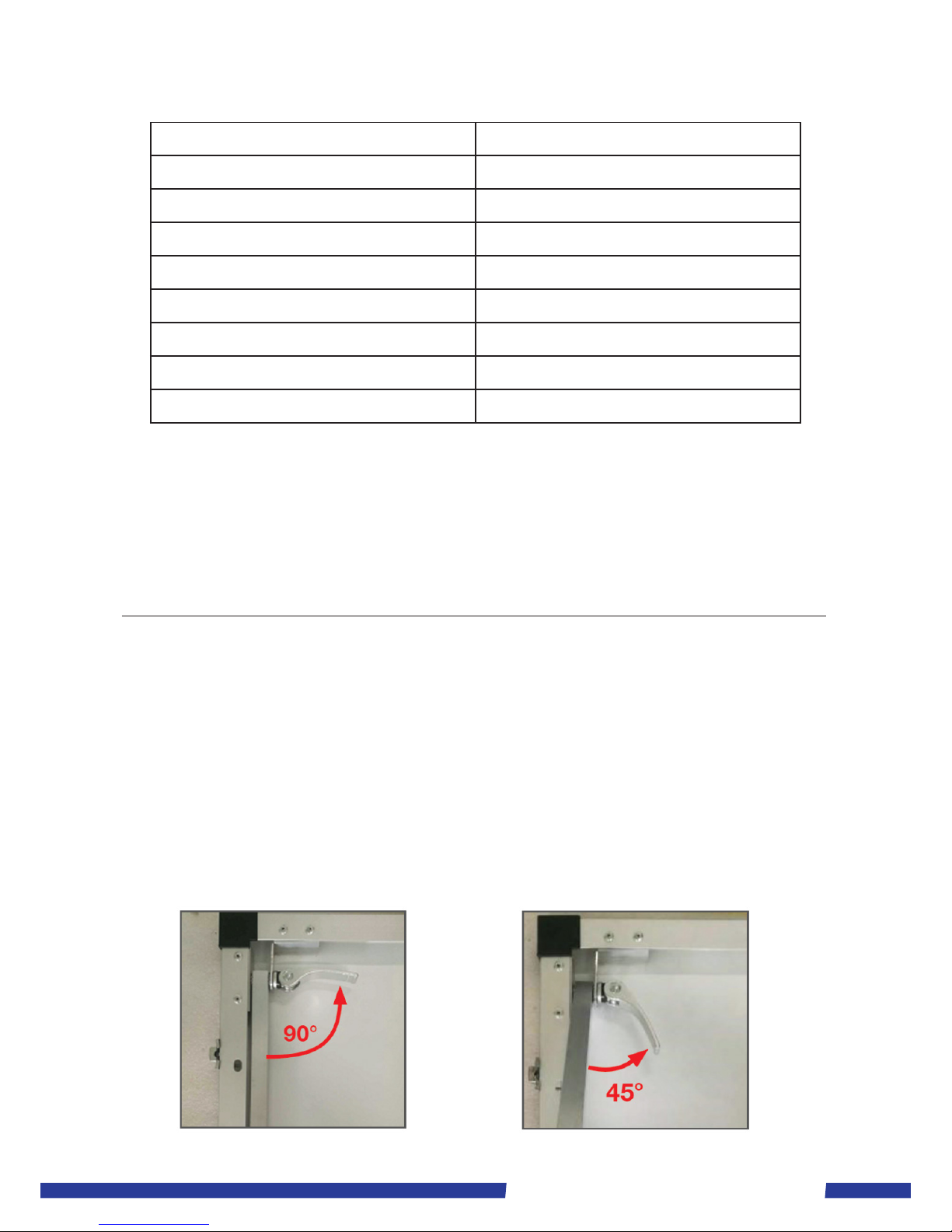

ADJUSTING YOUR SOLAR PANEL LEGS
• When the locking handle is at 90° (a right angle), the support legs are loose and the angle of the solar
panel can be adjusted.
• When the locking handle is in the down 45° position, the support legs are locked and cannot move or
shake at all.

4
Adventure Kings 160W Monocrystalline Solar Panel
CONNECTING YOUR SOLAR PANEL
• Now that the panel is setup facing directly towards the sun.
Connect the positive and negative clips to your battery.
• Always connect the battery clips to the battery rst, before
connecting to the solar panel. The solar controller will then
illuminate.
DISCONNECTING & STORING YOUR SOLAR PANEL
• Disconnect the solar panel off the battery before removing the
battery clips off the battery.
• Roll the wire neatly into the space behind the solar panel,
Make sure not to twist or kink the wiring in an unnatural way.
• Place the battery wire seperately in the front pocket of the
carry bag.
Note: Never store your solar panel with the battery wire
connected to the panel.
TIP
• For optimal performance through-out the day, set the panel to approximately 30° from the ground.
The range between 10° and 40° will gain the best power absorption across the course of the day.

5
Adventure Kings 160W Monocrystalline Solar Panel

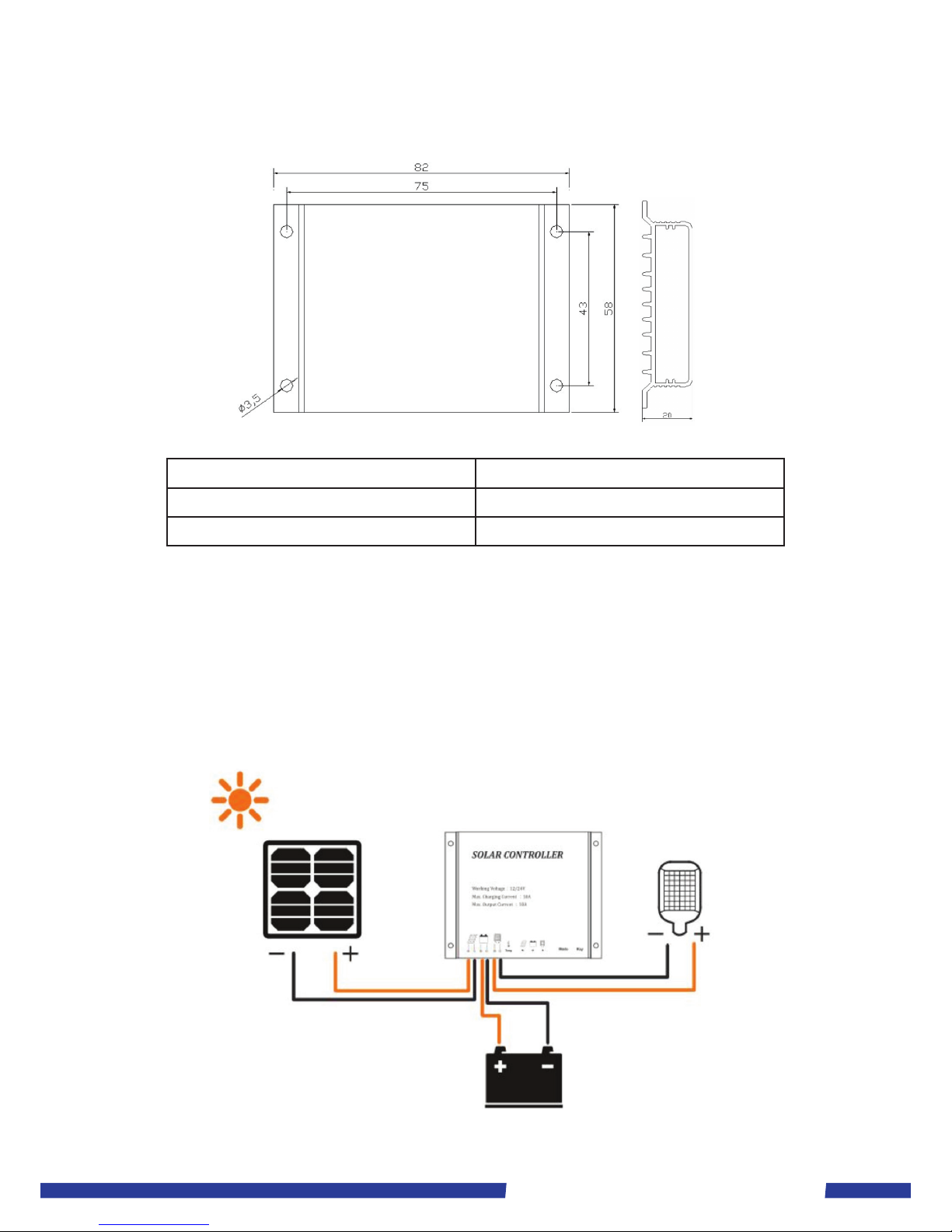

Pulse Width Modulator (PWM) Solar Panel Controller
External Dimensions (mm): 82 x 58 x 20
Bolt Spacing (mm): 43 x 75
Mounting Hole Diameters (mm): 3.5
CONNECTING TO A LOAD
• Connect the solar panels (+) positive and (-) negative terminals to a Load's corresponding terminals. If the
Load is receiving electricity, the Load Indicator Light will turn on.
Note: Make sure the load does not exceed the PWM Controller's rated output.

6
Adventure Kings 160W Monocrystalline Solar Panel
Usage Recommendations
• As the controller generates heat during operation, install in an environment with good ventilation and
ample clearance.
• The controller measures the ambient temperature and adjusts battery charging accordingly, for this
reason, place the controller and battery close to each other.
• Always use cables that are rated to or higher than the current output of the controller, overloading wires
can result in res and damage to equipment.
• The controller has a common positive pole inside. If grounding is required, ground the positive pole.
State Indicators
=
=
LED Light Indicated Item State Meaning
Light ON Solar Panel Generating
Power
Light OFF Solar Panel is not Gen-
erating Power
Slowly Flashing Charging in Process
Rapid Flashing Overvoltage
LIght On Battery Connected
Light OFF Battery is not Con-
nected
Slowly Flashing Low Battery Voltage
Rapid Flashing Battery Over Dis-
charged
Light ON Load Drawing Power
Light OFF No Load/Load is Not
Drawing Power
Slowly Flashing Overload Protection
Rapid Flashing Short Circuit Protec-
tion
Load
Battery
Solar Panel

7
Adventure Kings 160W Monocrystalline Solar Panel
Parameter Details
1 Battery Type Sealed GEL Flooded Ternary-Material
Lithium
Lithium Iron
Phosphate**
2 System Current 10A
3 No-Load Loss 10mA
4 Solar Energy Input Voltage <55V
5 System Voltage 12V Auto 3 & 4 Strings:
12V System
3 & 4 Strings:
12V System
6 Overvoltage Protection 17V 4.2* N + 2.0 V 3.65 V * N + 2.0V
7Equalising Charging Voltage 14.6V - 14.8V -
8 Boost Charging Voltage 14.4V 14.2V 14.6V -
9 Floating Charge Voltage 13.8V -
10 Overcharge Voltage - 4.2V * N 3.65V * N
11 Overcharge Recovery - 3.9V * N 3.4V * N
12 Boost Charging Recovery 13.2V -
13 Over-Discharge Recovery
Voltage
12.5V 3.3V * N 3.0V * N
14 Undervoltage 12.0V 3.2V * N 2.8V * N
15 Over-Discharge Voltage 11.0V 3.0V * N 2.5V * N
16 Temerature Compensation -4.0mv/°C/2V -
17 Equalising Charging Duration 1hr - 1hr -
18 Boost Charging Duration 4hr -
19 Light Controlled Voltage Light Controlled on at 5V,
Light Controlled off at 6V
20 Light Control Interval 1min
21 Overload and Short-Circuit
Protection
1.25x rated current: 30s;
1.5x rated current: 5s overload protection;
>3x rated current: short-circuit protection
22 Operating Temperature -35°C to +65°C
23 Ingress Protection Rating IP 68
24 Weight 140g
* PARAMETERS ARE TAKEN FROM AN AMBIENT TEMPERATURE OF 12°C, 12V SYSTEM VOLTAGE
**SINGLE-PIECE LITHIUM BATTERY PARAMETERS

8
Adventure Kings 160W Monocrystalline Solar Panel
Symptoms Causes and Solutions
Indicator LED does not light up when Solar
Panel is in direct sunlight
Check to make sure all connections are strong
and reliable
Solar Panel Indicator LED ashing rapidly Overvoltage - Check battery voltage
Solar Panel Indicator LED is off, battery voltage
is sufcient, but there is no output
The load will be switched on automatically
after 10 minutes
The Battery Indicator LED is off The battery is failing to supply power. Check
whether battery has a proper connection and
sufcient charge
Battery Indicator LED ashing rapidly and no
battery output
The battery is over-discharged, the battery will
need to be adequately recharged
The Load Indicator LED is ashing slowly and
is not receiving power
The load power exceeds the rated power.
reduce load and hold key to recover
The Load Indicator LED is ashing rapidly and
the load is not being powered
Short Circuit Protection. Hold key to recover
The Load Indicator LED is on but, the load is
not powered
Check to make sure all connections are strong
and reliable
Other Issues Check to make sure all connections are strong
and reliable. Ensure battery and/or load is 12V
Troubleshooting

9
Adventure Kings 160W Monocrystalline Solar Panel
WARRANTY PERIOD:
Full 12 month warranty from date of purchase against all manufacturing defects.
WHAT DOES THE WARRANTY COVER?
Under normal usage conditions, this warranty covers:
a. Any defect in design or manufacture which results in the product failing to perform substantially as
described in authorised advertising or literature.
b. We will either repair or replace the product at our discretion providing that the fault is found to have
been caused by a design or manufacturing defect and not misuse or tampering.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure. The benefits provided
to you as the consumer by this warranty are in addition to other rights and remedies available to you
under the law.
THE WARRANTY DOES NOT COVER:
a. Any damage resulting from improper use
b. Faulty installation or modication made during installation
c. The cost of removing and reinstalling the product
d. Travel and /or other expenses due to customer’s remote location
e. Transport charges and damage in transit. It is your responsibility to deliver and pick up your product,
including any costs associated with the postage of your repair or replacement product. If you do
freight your product we recommend that you insure against loss or damage.
f. Any loss directly or indirectly associated with the product failing to operate.
g. Damage caused by mould, insects, animals, misuse, incorrect operation, adverse weather, accidents and
fair wear and tear.
