Kings Adventure AKSR-PN160W 02 User manual

160W Folding Solar Panel
USER MANUAL
PLEASE READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE USING THIS PRODUCT.
AKSR-PN160W_02
V1.2

2
160W Monocrystalline
Folding Solar Panel with
Adjustable Legs
Solar Regulator/ Controller
(Manages voltage delivered
to the battery, ensuring your
battery is safe)
4.5m Extension Lead with
Plugs and Battery Clips
Heavy Duty Protective Carry Bag
WARNINGS & SAFETY INFORMATION
INCLUDED IN THE KIT
• Keep the solar panel and controller away from liquids at all times.
• Keep the solar panel and controller clean and always check connectors for debris before
connecting.
• This product is not intended to be used by children. In addition to this, adults with reduced physical
or mental capabilities, or those who are under the inuence of drugs or alcohol should not use the
product.
• Only use the solar panel to charge 12v, rechargeable batteries.
• Lead acid batteries produce harmful explosive gases. The battery should be mounted in a well-
ventilated area, away from possible ignition sources.
• Take care when manoeuvring & setting-up the Solar Panel as to not damage the unit.
• Never connect the Solar Panel directly (without a controller) to a battery or other load.
• Tampering or modifying the solar panel, controller or wiring will void warranty.
• When transporting the solar panel, rmly secure the panel so that it will not move around or collide
with other objects.
• Do not use the solar panel, controller or wiring if it is damaged or compromised in any way.

3
SOLAR BLANKET SPECIFICATIONS
Solar Panel Monocrystalline
Rated Max Power (PM) 160W
Open-Circuit Voltage (VOC) 22.6V
Short Circuit Current 9.16A
Max Voltage 18.4V
Peak Current Output 8.7A
Regulator Type PWM (Pulse-Width Modulator)
Dimensions 730 x 670 x 58mm
Extension Lead 4.5 meters
Net Weight 12.0 kg (approx.)
OPERATION INSTRUCTIONS
The 160W Folding Solar Panel will perform at its peak when the monocrystalline cells are angled
directly towards the sun.
• Highly efcient monocrystalline modules in the solar panel guarantee efcient charging.
• When the 160W folding solar panel is folded, it's space-saving and portable; when the
folding solar kit is open, it has a large solar cell area, providing a good consistent charge.
• The regulator is designed to protect the battery from overcharging, as well as short
circuiting.
• Specially designed support legs enable the 160W folding solar panel to stand on rough
surfaces, and on a desired angle for direct sun exposure.

4

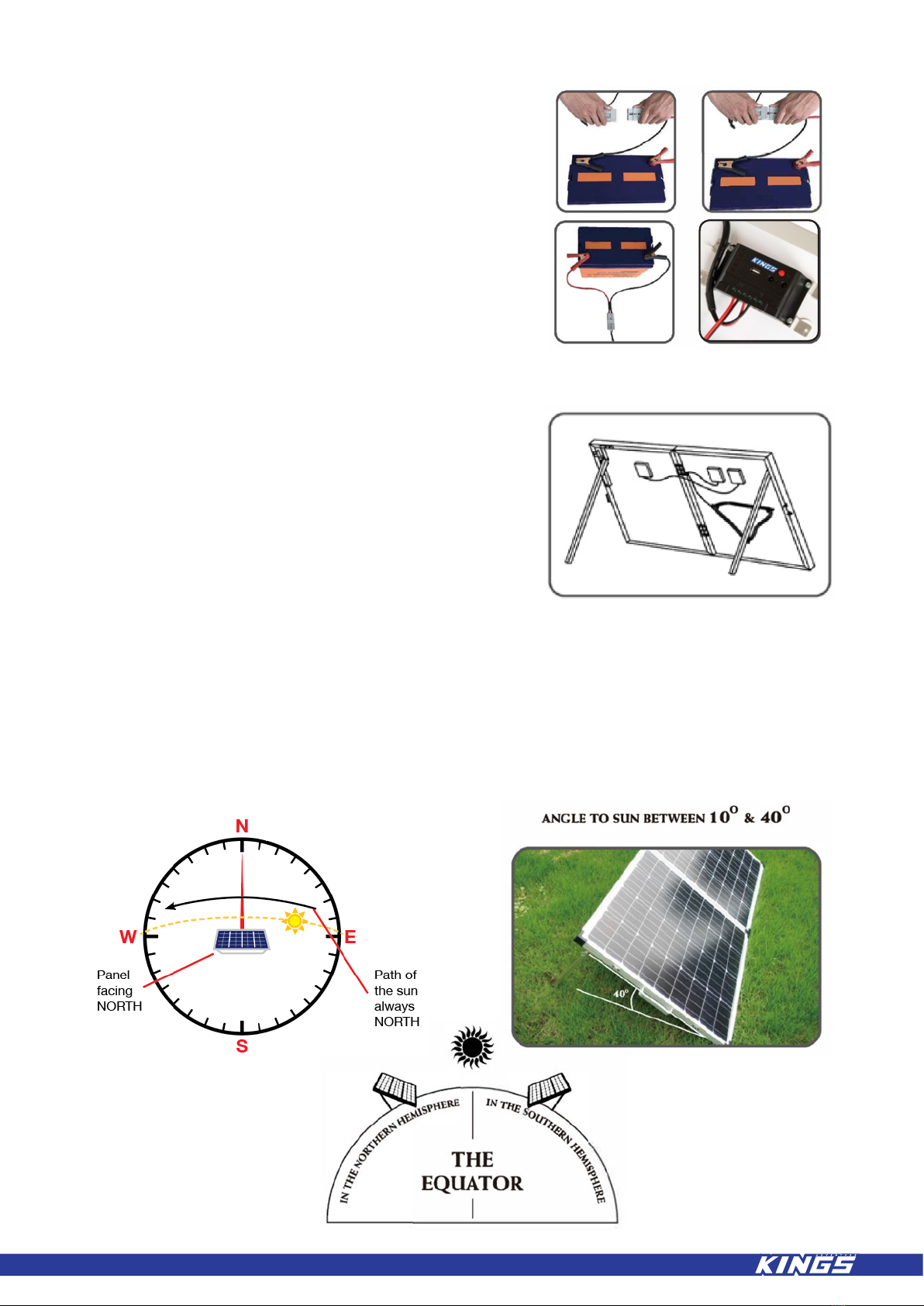

CONNECTING YOUR SOLAR PANEL
• With the panel setup facing directly towards the
sun, connect the positive and negative clips to your
battery.
• Always connect the battery clips to the battery rst,
before connecting to the solar panel. The solar
controller will then illuminate.
DISCONNECTING & STORING YOUR
SOLAR PANEL
• Disconnect the solar panel from the alligator clips
before removing the battery clips off the battery.
• Roll the wire neatly into the space behind the solar
panel, make sure not to twist or kink the wiring in
an unnatural way.
Note: Never store your solar panel with the battery
wire connected to the panel.
TIP
• For optimal performance through-out the day, set the panel to approximately 30° from the
ground. The range between 10° and 40° will gain the best power absorption across the
course of the day.

5
PULSE WIDTH MODULAR (PMW)
SOLAR PANEL CONTROLLER
• As the controller generates heat during operation, install in an environment with good ventilation and
ample clearance.
• The controller measures the ambient temperature and adjusts battery charging accordingly, for this
reason, place the controller and battery close to each other.
• Always use cables that are rated to or higher than the current output of the controller, overloading
wires can result in res and damage to equipment.
• The controller has a common positive pole inside. If grounding is required, ground the positive pole.
USAGE RECOMMENDATIONS
CONNECTING TO A LOAD
• Connect the solar panels (+) positive and (-) negative terminals to a Load’s corresponding
terminals. If the Load is receiving electricity, the Load Indicator Light will turn on.
• The power button will control the 2 x 12V DC sockets only.
Note: Make sure the load does not exceed the PWM Controller’s rated output.
External Dimensions (mm): 120 x 64
Bolt Spacing (mm): 112 x 50
Mounting Hole Diameters (mm): 3.5

6

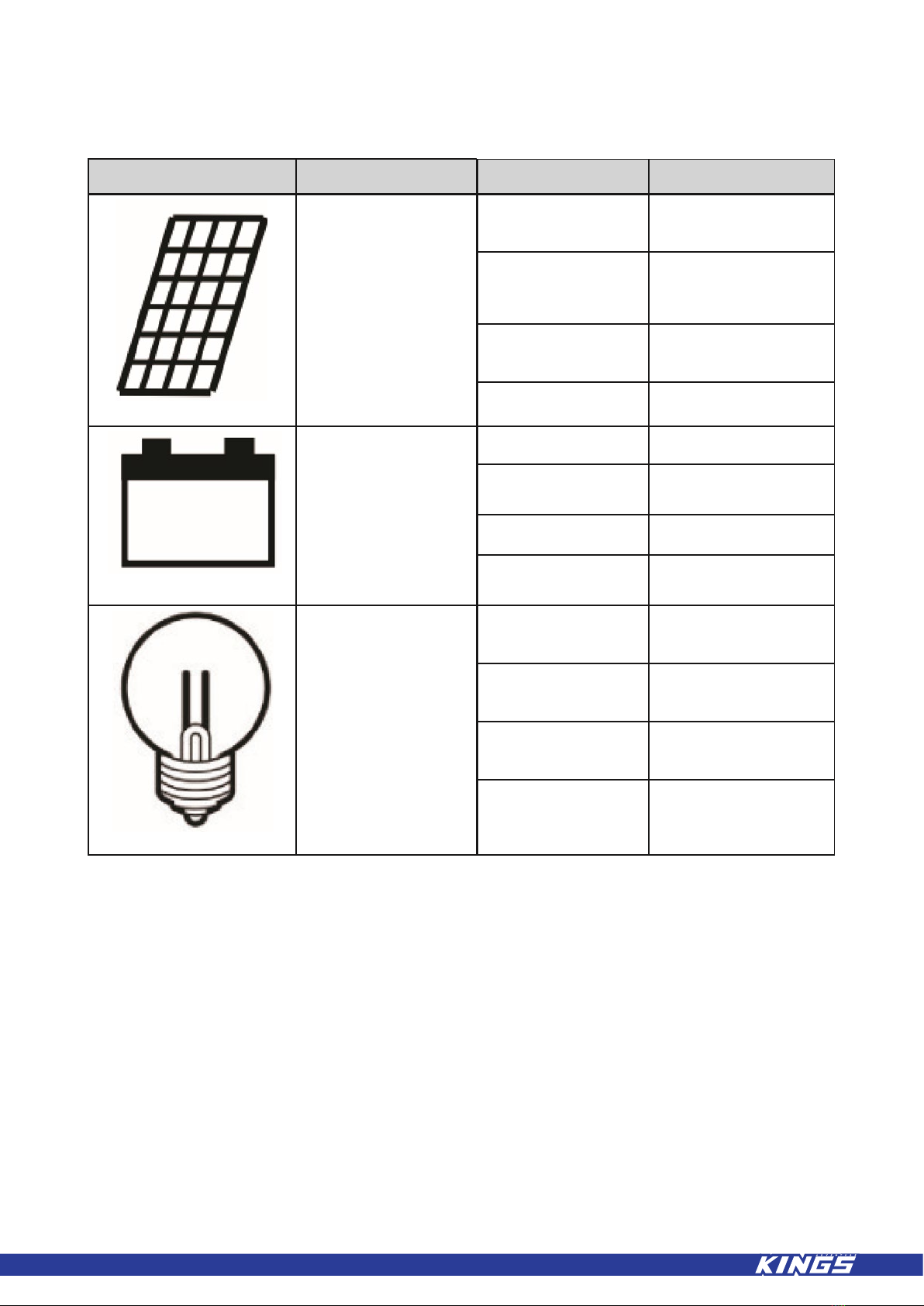

STATE INDICATORS
LED LIGHT INDICATED ITEM STATE MEANING
Solar Panel
Light ON Solar Panel Generating
Power
Light OFF Solar Panel is not
Generating Power
Slowly Flashing Charging in Process
Rapid Flashing Over-voltage
Battery
LIght On Battery Connected
Light OFF Battery is not
Connected
Slowly Flashing Low Battery Voltage
Rapid Flashing Battery Over
Discharged
Load
Light ON Load Drawing Power
Light OFF No Load/Load is Not =
Drawing Power
Slowly Flashing Overload Protection
Rapid Flashing Short Circuit
Protection

7
PARAMETER DETAILS
1 Battery Type Sealed GEL Flooded Ternary-Material
Lithium
Lithium Iron
Phosphate**
2 System Current 10A
3 No-Load Loss 10mA
4 Solar Energy Input Voltage <55V
5 System Voltage 12V Auto 3 & 4 Strings:
12V System
3 & 4 Strings:
12V System
6 Over-voltage Protection 17V 4.2* N + 2.0 V 3.65 V * N +
2.0V
7Equalising Charging Voltage 14.6V - 14.8V -
8 Boost Charging Voltage 14.4V 14.2V 14.6V -
9 Floating Charge Voltage 13.8V -
10 Overcharge Voltage - 4.2V * N 3.65V * N
11 Overcharge Recovery - 3.9V * N 3.4V * N
12 Boost Charging Recovery 13.2V -
13 Over-Discharge Recovery
Voltage 12.5V 3.3V * N 3.0V * N
14 Undervoltage 12.0V 3.2V * N 2.8V * N
15 Over-Discharge Voltage 11.0V 3.0V * N 2.5V * N
16 Temperature Compensation -4.0mv/°C/2V -
17 Equalising Charging Duration 1hr - 1hr -
18 Boost Charging Duration 4hr -
19 Light Controlled Voltage Light Controlled on at 5V, Light Controlled off at 6V
20 Light Control Interval 1min
21 Overload and Short-Circuit
Protection
1.25x rated current: 30s;
1.5x rated current: 5s overload protection;
>3x rated current: short-circuit protection
22 Operating Temperature -35°C to +65°C
23 Weight 140g
* PARAMETERS ARE TAKEN FROM AN AMBIENT TEMPERATURE OF 12°C, 12V SYSTEM VOLTAGE
**SINGLE-PIECE LITHIUM BATTERY PARAMETERS

8
SYMPTOMS CAUSES AND SOLUTIONS
Indicator LED does not light up when Solar
Panel is in direct sunlight.
Check to make sure all connections are strong
and reliable.
Solar Panel Indicator LED ashing rapidly. Over-voltage - Check battery voltage.
Solar Panel Indicator LED is off, battery voltage
is sufcient, but there is no output.
The load will be switched on automatically after
10 minutes.
The Battery Indicator LED is off.
The battery is failing to supply power. Check
whether battery has a proper connection and
sufcient charge.
Battery Indicator LED ashing rapidly and no
battery output.
The battery is over-discharged, the battery will
need to be adequately recharged.
The Load Indicator LED is ashing slowly and is
not receiving power.
The load power exceeds the rated power.
Reduce load and hold key to recover.
The Load Indicator LED is ashing rapidly and
the load is not being powered. Short Circuit Protection. Hold key to recover.
The Load Indicator LED is on but, the load is
not powered.
Check to make sure all connections are strong
and reliable.
Other Issues. Check to make sure all connections are strong
and reliable. Ensure battery and/or load is 12V.
TROUBLESHOOTING

9
WARRANTY PERIOD:
Full 12 month warranty from date of purchase against all manufacturing defects.
WHAT DOES THE WARRANTY COVER?
Under normal usage conditions, this warranty covers:
a. Any defect in design or manufacture which results in the product failing to perform substantially as described
in authorised advertising or literature.
b. We will either repair or replace the product at our discretion providing that the fault is found to have been
caused by a design or manufacturing defect and not misuse or tampering.
Our goods come with guarantees that cannot be excludedunder the Australian ConsumerLaw. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a majorfailure. The benetsprovided to you as the
consumer by this warranty are in addition to other rights and remedies available to you under the law.
THE WARRANTY DOES NOT COVER:
a. Any damage resulting from improper use
b.
c. The cost of removing and reinstalling the product
d. Travel and /or other expenses due to customer’s remote location
e. Transport charges and damage in transit. It is your responsibility to deliver and pick up your product,
including any costs associated with the postage of your repair or replacement product. If you do freight your
product we recommend that you insure against loss or damage.
f. Any loss directly or indirectly associated with the product failing to operate.
g. Damage caused by mould, insects, animals, misuse, incorrect operation, adverse weather, accidents
and fair wear and tear
TO MAKE A CLAIM, PLEASE ENSURE YOU RETAIN YOUR SALES RECEIPT OF PURCHASE
1800 88 39 64
12 MONTH LIMITED
WARRANTY
OUTDOOR SUPACENTRE PTY LTD
2 Stanley St Silverwater NSW, 2128
PHONE: [phone]
www.4wdsupacentre.com.au
