Kings Adventure AKSR-PN160W-03 User manual

160W Folding Solar Panel
USER MANUAL
PLEASE READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE USING THIS PRODUCT.
AKSR-PN160W_03
PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USING THIS PRODUCT.
V1.1

2
WARNINGS & SAFETY INFORMATION

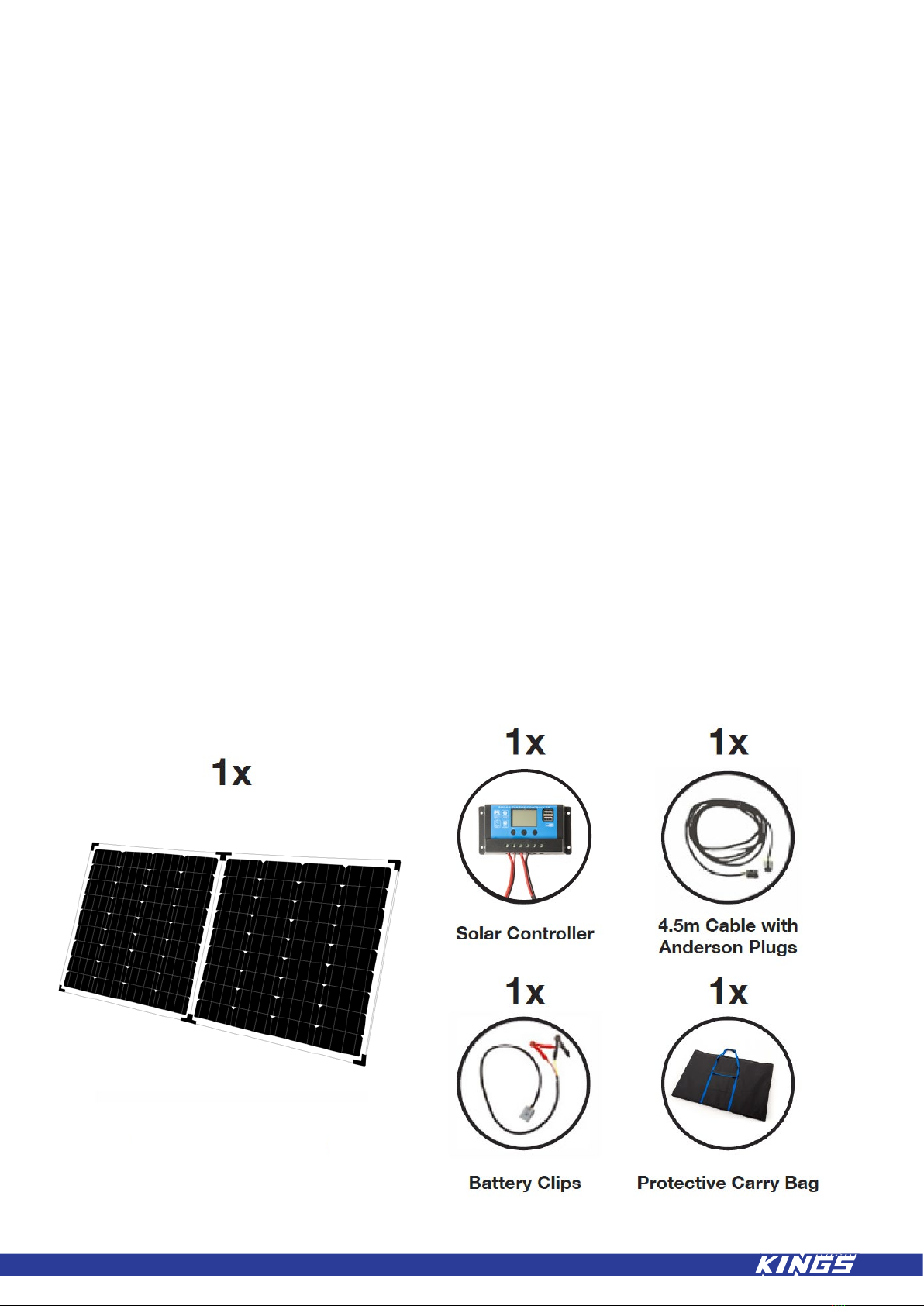

INCLUDED IN THE KIT
• Keep the solar panel and controller away from liquids at all times.
• Keep the solar panel and controller clean and always check connectors for debris before
connecting.
• This product is not intended to be used by children. In addition to this, adults with reduced
physical or mental capabilities, or those who are under the inuence of drugs or alcohol
should not use the product.
• Only use the solar panel to charge 12v, rechargeable batteries.
• Lead acid batteries produce harmful explosive gases. The battery should be mounted in
well-ventilated area, away from possible ignition sources.
• Take care when manoeuvring & setting-up the Solar Panel as to not damage the unit.
• Never connect the Solar Panel directly (without a controller) to a battery or other load.
• Tampering or modifying the solar panel, controller or wiring will void warranty.
• When transporting the solar panel, rmly secure the panel so that it will not move around or
collide with other objects.
• Do not use the solar panel, controller or wiring if it is damaged or compromised in any way.
Folding Solar Panel
with Support Legs

3
SOLAR BLANKET SPECIFICATIONS
Rated Maximum Power (PM): 160W
Tolerance: ± 3%
Voltage at Pmax (Vmp): 17.6V
Current at Pmax (Imp): 9.1A
Open - Circuit Voltage (Voc): 21.0V
Short - Circuit Current (Isc): 9.96A
Normal Operating Cell Temp (NOCT): 47 ± 2°C
Maximum System Voltage: 1000VDC
Maximum Series Fuse Rating: 15A
Operating Temperature: -40°C to +85°C
Application Class: Class A
Connections: Anderson
Dimensions: (Open) 1340 x 670 x 30mm
Dimensions: (Closed) 670 x 670 x 65mm
Weight: 12.5KG

4
INSTRUCTIONS
160W Folding Solar Panel will perform at its peak when it faces directly towards the sun.
FOLD OUT SUPPORT LEGS
• Pull the support legs away from the Solar Panel. The support
legs will then sit in the desired angle to get the most power
from the sun.
CONNECTING YOUR SOLAR PANEL
• Now that the panel is setup facing directly towards the sun.
Connect the positive and negative clips to your battery.
• Always connect the battery clips to the battery rst, before
connecting to the solar panel. The solar controller will then
illuminate
DISCONNECTING & STORING YOUR SOLAR
PANEL
• Disconnect the solar panel off the battery before removing
the battery clips off the battery.
• Roll the wire neatly into the space behind the solar panel,
make sure not to twist or kink the wiring in an unnatural way.
• Place the battery wire separately in the front pocket of the
carry bag.
• Note: Never store your solar panel with the battery wire
connected to the panel.
TIP
For optimal performance through-out the day, set the panel to approximately 30° from the ground.
The range between 10° and 40° will gain the best power absorption across the course of the day.

5
Voltage
Hour
Load
Output
Battery
Charge
ON: Equalisation/bulk
Flicking: Float
Solar Panel
Digital Display

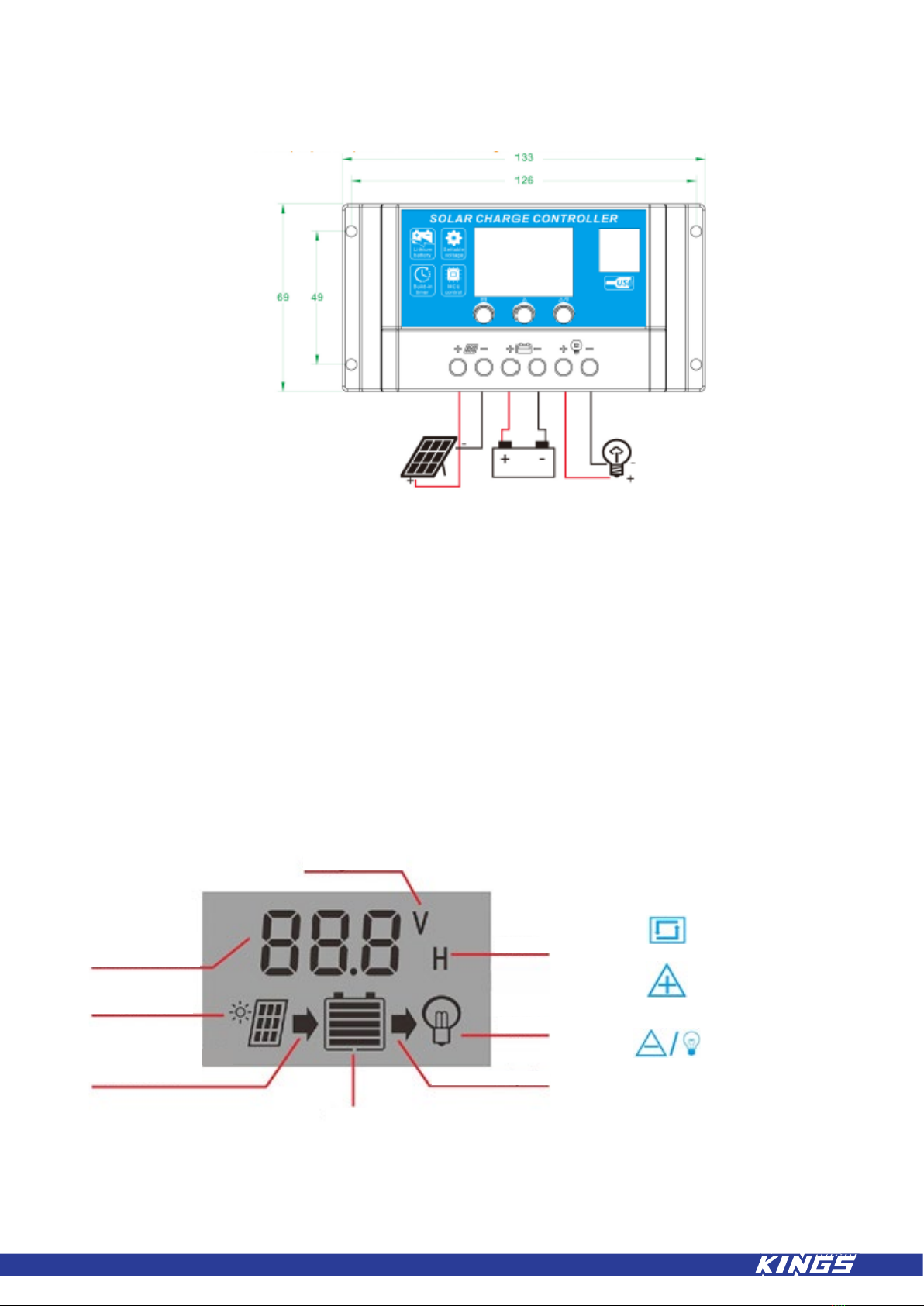

OPERATING THE PWM CONTROLLER
PWM CONTROLS
Please note: not following these instructions may cause damage to the PWM controller. Ensure
that you attach the positive (+) and negative (-) wires to the appropriate terminals.
1. Connect the battery to the PWM controller
2. Connect solar to the PWM controller
3. Optional: Connect the load you want to provide power to (excluding batteries)
4. Reverse the order to uninstall
The controller will now be receiving power and its settings can be altered.
Menu: short press: cycle through the different menu options; long press: conrm selection or
return to the main display
Up: increase value
Down: decrease value
MENU
UP
DOWN;
ON/OFF

6
MENU SCREENS AND THEIR FUNCTIONS
1. Press the menu button to cycle through the six different settings screens. Each screen is
explained below.
2. Holding the menu button for 6 to 7 seconds will allow you to change the settings on a
screen. Use the up or down buttons to change the values.
3. Hold the menu button again to conrm your settings.
MAIN DISPLAY
Displays details about voltage and connections to the
PWM controller. (Not pressing any button for 10 seconds
will return you to this screen.)
FLOAT OR CV VOLTAGE
Accept power from the solar panel until the battery’s
voltage reaches the set value.
Default: 13.7V
DISCHARGE RECONNECT
Connect to the load when the battery’s voltage reaches
the set value.
Default: 12.6V
DISCHARGE STOP
Sever the connection to the load when the battery’s
voltage reaches the set value.
Default: 10.7V
WORK MODE
Control when the battery supplies power to the load.
24H – constantly provide battery power to the load.
1-23H – provide battery power to the load for the set
number of hours after the solar panel has stopped
receiving sunlight.
0H – provide power only when the solar panel is not
receiving sunlight.
BATTERY TYPE
Shows type of battery attached to the PWM controller.
b01 – Lead Acid/ AGM Sealed (default)
b02 - Gel
b03 - Dry Cell

7
OPERATION INSTRUCTIONS
The Solar Panel will perform at its peak when the solar panel monocrystalline cells are angled
directly towards the sun.
Connect battery clips
onto the battery.
Connect extension
lead with the battery.
Then connect the
controller onto the
battery.
NOTE: The extension
lead is between the
controller and battery.
Connect solar blanket
to the controller.
DISCONNECTING
Disconnect the solar
blanket and controller.
Disconnect the
controller and battery.
Disconnect extension
lead and battery.
Disconnect battery
clips with the battery.
STEP 2 STEP 3 STEP 4
STEP 2 STEP 3 STEP 4

8
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Charging symbol not
displaying even when the
solar panel is in the sun
Panel has been improperly
connected to the PMW
controller.
Reconnect the solar panel,
ensuring that the positive
and negative terminals are
appropriately connected
Load icon is off
Battery is low Charge the battery
Incorrect menu setting is
selected
Select a menu setting where
the load is displayed
Load icon ashes slowly Overload Reduce the load’s power
draw
Load icon ashes quickly Short circuit protection System should reconnect
automatically
The PWM controller will not
turn on
Battery is insufciently
charged Charge the battery
Battery has been connected
improperly
Check, and if necessary alter,
the battery’s connection to
the PMW controller
Max Solar Input <50V
Float Charge 13.7V - Default, Adjustable
Discharge Stop 10.7V - Default, Adjustable
Discharge Reconnect 12.6V - Default, Adjustable
USB Output 5V / 2A
Dimensions 133 x 70 x 34 mm
Weight 154g
SPECIFICATIONS

9
WARRANTY PERIOD:
Full 12 month warranty from date of purchase against all manufacturing defects.
WHAT DOES THE WARRANTY COVER?
Under normal usage conditions, this warranty covers:
a. Any defect in design or manufacture which results in the product failing to perform substantially as described
in authorised advertising or literature.
b. We will either repair or replace the product at our discretion providing that the fault is found to have been
caused by a design or manufacturing defect and not misuse or tampering.
Our goods come with guarantees that cannot be excludedunder the Australian ConsumerLaw. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a majorfailure. The benetsprovided to you as the
consumer by this warranty are in addition to other rights and remedies available to you under the law.
THE WARRANTY DOES NOT COVER:
a. Any damage resulting from improper use
b.
c. The cost of removing and reinstalling the product
d. Travel and /or other expenses due to customer’s remote location
e. Transport charges and damage in transit. It is your responsibility to deliver and pick up your product,
including any costs associated with the postage of your repair or replacement product. If you do freight your
product we recommend that you insure against loss or damage.
f. Any loss directly or indirectly associated with the product failing to operate.
g. Damage caused by mould, insects, animals, misuse, incorrect operation, adverse weather, accidents
and fair wear and tear
TO MAKE A CLAIM, PLEASE ENSURE YOU RETAIN YOUR SALES RECEIPT OF PURCHASE
