Kingsom KS-200DH User manual

Table of Contents
Precautions …………………………………………………………………1
Names of Parts…………………… ………………………………………2
Select up & Operating station……………………………………………3
Parameters……………………………………………………………………7
Temperature rising and heat recovery curve…………………………13
Sleeping………………………………………………………………………13
Select The Correct Tip For A Soldering Station……………………14
Tip care and use……………………………………………………………14
Maintenance………………………… ……………………………………15
Calibrating the iron temperature………………………………………17
Error Message………………………………………………………………18
Trouble shooting Guide……………………………………………………18
Checking for breakage of the
heating element and cord assembly……………………………………21
Specifications………………………………………………………………24
Parts List Station/Iron Holder/Iron……………………………………25
Tips…………………………………………………………………………28

Precautions
In this instruction manual,“Warning”、“Caution”and “Note”are defined
as follows.
!WARNING
!WARNING: Misuse may potentially cause death of, or
serious injury to the user.
!CAUTION: Misuse may potentially cause injury to the user
or physical damage to the objects involved.
For your own safety, be sure to comply with
these precautions.
NOTE: A NOTE indicates a procedure or point that is
important to the process being described.
!CAUTION
When the power is on ,the tip temperature is very hi-
gh. Since mishandling may lead to burns or fire, be
sure to comply with the following precautions.
․Please avoid an abuse of the equipment, use the appliance only in
the described way!
․Do not touch the metallic parts near the tip.
․Do not use the product near flammable items.
․Advise other people in the work area that the unit can reach a
very high temperature and should be considered potentially dang-
erous.
․Turn the power off while taking breaks and when finished using t-
he unit.
․Before replacing parts or storing the unit, turn the power off and
allow the unit to cool to room temperature.

To prevent damage to the unit and ensure a safe
working environment, be sure to comply with the
following precautions.
․Appliance shall only be used with rated voltage and frequency.
(Refer to the trademark back of equipment.)
․Don’t use or stop the use if the appliance is damaged, especially the
supply cord.
․This machine is equipped with a 3-wires grounding plug and must
be plugged into a 3-terminal grounded socket. Do not modify plug
or use an ungrounded power socket. If an extension cord is neces-
sary, use only a 3-wire extension cord that provides grounding.
․Do not use the unit for applications other than soldering.
․Do not rap the soldering iron against the work bench to shake off
residual solder, or otherwise subject the iron to severe shocks.
․Do not modify the unit.
․Use only genuine replacement parts.
․Do not wet the unit or use and disconnect the unit when your hands
are wet and without to force the supply cord.
․The soldering process will produce smoke, so make sure the area
is well ventilated.
․While using the unit, don’t do anything which may cause bodily
harm or physical damage.
․Children don’t recognize the risks of electrical appliances.
Therefore use or keep the appliance only under supervision of
adults and out of the reach from children.
Names of Parts

Setting up & Operating the soldering station
!
CAUTION: The sponge is compressed. It will swell when
moistened with water. Before using the unit,
dampen the sponge with the water and squeeze
it dry. Failure to do so may result in damage to
the Soldering tip.
A. Iron Holder
1. Small Cleaning Sponge
Dampen the small cleaning
sponge with water and then
squeeze it dry.
Place it in one of the open-
ings of the iron holder base.
2. Add water to the approximate
level as shown. The small
sponge will absorb water to
keep the large sponge above
it wet at all times.
* The large sponge may be used
alone (without small sponge &
water).
3. Dampen the large cleaning
sponge and place it on the
iron holder base.

!
CAUTION: Be sure to turn off the power switch before
connecting or disconnecting the soldering iron.
Failure to do so may result in damage to the
soldering station.
B. Connections
1. Connect the cord assembly
to receptacle.
2. Place the soldering iron in
the iron holder.
3. Plug the power cord into a
power supply .Be sure to
ground the unit.
4. Turn the power switch on.
The temperature is preset at
300 ℃ or 350 ℃ at the
factory.
The heater lamp flickers
when the temperature has
stabilized.
5. Press the * button to display
the preset temperature. It
will be displayed for two
seconds.
c. Setting the Temperature
Set Temperature Normally.
!
CAUTION: Make sure the temperature of the station can be
adjusted (password is OK or the password is
initial).While setting the temperature normally,the
heating element is off.
If the “*” button is pressed for less than one second, the present
temperature setting will be shown for two seconds and then the
display will return to showing the tip temperature.

Example: 400℃ to 350℃
1.
2.
3.
4.
1. Push the “*” button and the
Hold it down for at least one
second. The left-most digit
(the 100 ’ s digit ) in the
display will flash. This
indicates that the station is
in temperature setting mode
and that the 100’s digit can
be adjusted.
2. Select the desired value for
100’s digit.
Using the “▲”or“▼”button
will change displayed value
as follows.
… 2 3 4…
Press the “*” button when the
desired value is displayed.
This will cause the middle
digit (the 10 ’ s digit) in the
display to begin flashing.
3. Select the desired value for
the 10’s digit.
Using the “▲”or“▼”button
will change displayed value
as shown below.
12t3t4t5t6t7t8t9t0
Press the “*” button.
The right (the 1’s digit) will
then begin flashing to indicate
that the 1’s digit can be set.
4. Select the desired value for
the 1’s digit.
Using the “▲”or“▼”button
will change displayed value
as shown above for the 10’s

place selection. Press the “*”
button.
Here, pressing the “*” button…
a) enter the temperature setting
into the internal memory.
b) displays the temperature
setting, and
c) starts heater control.
Note: If you turn off the power
switch during the temp-
erature setting, setting
value will not be stored
in the memory.
If a temperature value outside
of this range is selected, the
display will return to flashing
the 100’s place. If this happens,
reenter a correct temperature
value.
Set temperature on-line
In the work, if it is necessary to set temperature quickly and the heat
elements can not be cut off, the way may be selected.
Temperature rising:
Don’t press “*” knob, and press“▲”knob directly. If so, the setting
temperature will raise 1℃ and the display window will display the
set temperature. When loosen the “▲”knob, the display window will
delay the set temperature about 2 seconds. If within 2 seconds of
time, press the “▲”knob again, the setting temperature will raise
1℃ again. If press the “▲”knob and not loose at least 1 second, the
setting temperature will rise rapidly. Till the needed temperature
reaches, then loose the “▲”knob.
Temperature dropping:
Don’t press “*” knob, and press“▼”knob directly. If so, the setting

temperature will drop 1℃ and the display window will display the set
temperature. When loose the“▼”knob, the display window will delay
the set temperature about 2 seconds. If 2 seconds later, press the
“▼”knob again, the setting temperature will drop 1℃ again. If
press the“▼”knob and not loose at least 1 second, the setting
temperature will drop rapidly. Till the needed temperature reaches,
then loose the“▼”knob.
Parameters
The station has the following parameters. Parameters setting can
be adjusted:

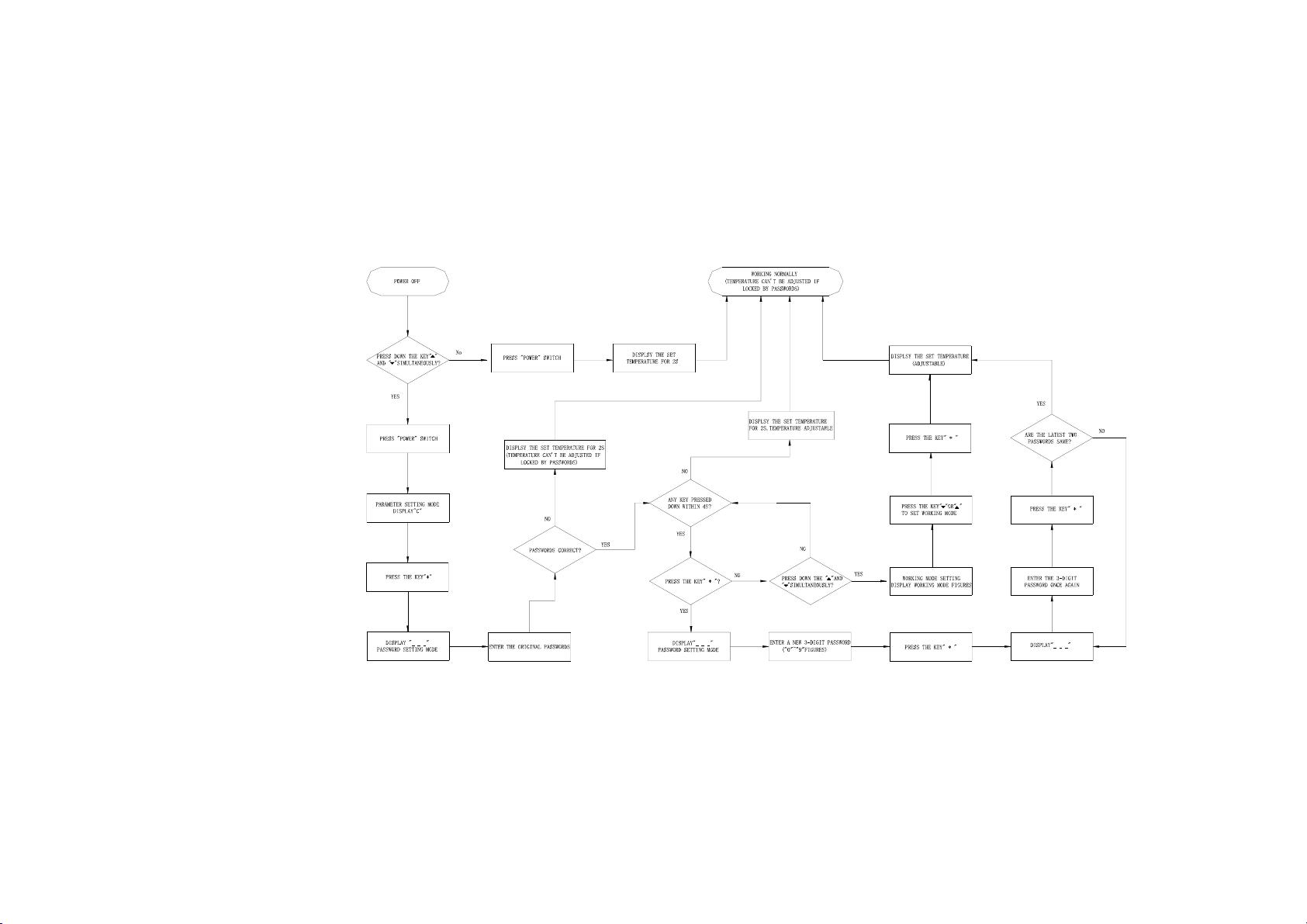

Setting the password.
The initial password in station’s memory is “000”. The setting
temperature is admitted in this state. If need to restrict the setting
temperature, the password must be changed.
Enter into setting the
password
Input Previously
Password
1.Turn off the power switch.
Press and hold the “▲”and“▼
buttons simultaneously, then
turn on the power switch.
2.Continue holding down the
“▲”and“▼”button until the
display shows .
3.When the display shows
,the station is in par-
ameter-input mode.
4. Press the “*” button, the
display shows , and
the left-most digit (the 100’s
digit) in the display will flash.
This indicates the station is in
password setting mode and
the 100’s digit can be adjusted.

The input password is
Error.
The password of input
is correct.
Input New Password
Using the “▲”or“▼”button
will change displayed value. Set
the password value in the
same way described in “set
temperature normally”.
After selecting the password of
three digit , press”*” button.
5. If the display window shows
the present setting temperat-
ure, two seconds later, the
station is in normal work state.
This indicates the password
of input is error, and the tem-
perature setting can’t be done.
6. If the display window shows
, this indicates the
password of input is correct.
After displaying about 4
seconds, the station comes
into normal work state, and
the setting temperature will
be admitted.
7. When display window is
showing , press ”*”
button, and shows , It
indicates the station comes
into inputting new password
state. Pressing“▲”or“▼”
button will change displayed
value. See “set temperature
normally”.

Repeat the new password.
Working Mode Setting.
8. When three digits are selected,
press”*” button, the display
window shows again.
Now must input the new
password. Repeat the same
steps.
9. If the password is the same as
last time, the changed passw-
ord is OK. The new password
is stored into the internal
memory.
10. If the password is not the
same as last time, and the
display window shows
, the station will ne-
ed to rewrite new password.
(see the last 8-9 step). The
changing of password is
finished until the lately two
passwords are identical.
*Note: The word of password is
0 to 9, ten words. If not ,the
changed password is unsucces-
sful.
If the display window shows
, press and hold the “▲”
and“▼”buttons simultaneously,
then the display shows
This indicates the unit
comes into working mode
setting state, and pressing “▲”
or“▼”button will change
X

displayed value as shown below:
0 1 2 3 4 5 6 7
7. 6. 5. 4. 3. 2. 1. 0.
After selecting the working
mode, press”*” down. The
working mode is stored into the
internal memory.
Please refer to the “Working
Mode Table” for the meaning of
the digit displayed.
Note: “X” represents the origin-
Al working mode digit.
Warning: The heater and solder-
ing tips will be seriously
oxidized or damaged when
working with a high temperature.
So please choose the working
mode carefully and try to
operate with a lower
temperature if possible.

WORKING MODES TABLE
WORKING
MODE
HANDLE
MODE
TEMPERATUE
RANGE
AVAILABLE
FOR HIGH
FREQUENCY
MAIN UNIT
AUTO SLEEPING
AND
SWITCHING OFF
0 High frequency
soldering iron
200℃-420℃ 60W Station Yes
1 High frequency
soldering iron
200℃-420℃ 90W Station Yes
2
High frequency
special very large
type of soldering tip
200℃-420℃ 60，90W
Station
Yes
3
High frequency
tweezers stripper iron
50℃-600℃ 90W Station Yes
4 High frequency
soldering iron
50℃-420℃ 60W Station Yes
5 High frequency
soldering iron
50℃-420℃ 90W Station Yes
6 High frequency
soldering iron
200℃-480℃ 60W Station Yes
7 High frequency
soldering iron
200℃-480℃ 90W Station Yes
0. High frequency
soldering iron
200℃-420℃ 60W Station No
1. High frequency
soldering iron
200℃-420℃ 90W Station No
2. High frequency
tweezers or using
special very large
type of soldering tip
200℃-420℃ 60，90W
Station
No
3. High frequency
tweezers stripper
50℃-600℃ 90W Station No
4. High frequency
soldering iron
50℃-420℃ 60W Station No
5. High frequency
soldering iron
50℃-420℃ 90W Station No
6. High frequency
soldering iron
200℃-480℃ 60W Station No
7. High frequency
soldering iron
200℃-480℃ 90W Station No

Temperature rising and heat recovery curve
TIP:2.4D
60W Soldering Station
TEST CONDITIONS
PCB: Copper Plate
Soldering Point: 1.6Ｘø5mm
Period: Solder every 3 Seconds
ILLUSTRATION
A: Room temperature
B: Time of temperature rising
C: Temperature drop
D: Working time
E: Heat recovery time
Sleeping
If sleeping and working mode are selected, and the soldering iron is
not used for 20 minutes, the power to the heating element will be
decreased, and the display shows . This state is sleeping
mode. When the station is in sleeping mode, the tip temperature will
decrease to 200℃ (if the set temperature is more than or equal to
200℃) or 50℃ (if the set temperature is less than 200℃) and remain
the temperature until resuming the station.
To resume soldering, there are several ways as follows:
1. Cycle the power switch OFF, then ON.
2. Hit any button.
3. Take up the iron-handpiece.
If the soldering station is not resumed more than 40 minutes after it
comes to sleep, the power supply will be shut off automatically, and
the display window will not show anything.

To Select The Correct Tip For A Solder Application
1. Pick a tip that maximizes contact area between the tip and solder
Joint. Maximizing contact area gives the most efficient heat tran-
sfer, allowing operators to produce high quality solder joints
quickly.
2. Pick a tip that allows good access to the solder joint. Shorter tip
lengths allow more precise control. Longer or angled may be
needed for soldering densely populated boards.
Tip Care and Use
․Tip Temperature
․Cleaning
High soldering temperatures
can degrade the tip.
Use the lowest possible solder-
ing temperature.
The excellent thermal recovery
characteristics ensure efficient
and effective soldering event at
low temperatures.
This also protects the soldered
items from thermal damage.
Clean the tip regularly with a c-
leaning sponge,as oxides and c-
arbides from the solder and flux
can form impurities on the tip.
These impurities can result in
defective joints or reduce the t-
ip's heat conductivity.
When using the soldering iron

․When not in use
․After use
continuously, be sure to loosen
the tip and remove all oxides at
least once a week.
This helps prevent seizure and
reduction of the tip
temperature.
Never leave the soldering iron
Sitting at high temperature for
long periods of time, as the t-
ip's solder plating will become
covered with oxide, which can
greatly reduce the tip's heat
conductivity.
Wipe the tip and coat the tip
with fresh solder.
This helps to prevent tip
oxidation.
Maintenance
Inspect and Clean the
Tip
!
Caution: Never file the tip
to remove oxide
1. Set the temperature to 250℃
2.When the temperature stabi-
lizes, clean the tip with the c-
leaning sponge and check the
condition of the tip.
3. If there is black oxide on the
solder-plated portion of the
tip, apply new solder ( cont-
aining flux ) and wipe the tip
on the cleaning sponge.Repeat
until the oxide is completely
remove. Coat with new solder.

Why A” Detinned” Tip
Fails To Work
A detinned tip is one not wetted
With solder. This exposes the
Plating to oxidation and degrades
the heat transfer efficiency of the
tip . Detinning is caused by :
To Restore A Detinned
Tip
The solder protects the tip
from oxidation and prolongs
the life of the tip.
4. If the tip is deformed or hea-
vily eroded, replace it with a
new one.
a. Failure to keep the tip cover-
ed with fresh solder during
idling periods.
b. High tip temperatures
c. Lack of sufficient flux in so-
ldering operations.
d. Wiping the tip on dirty or dry
sponges and rags.( Always u-
se a clean, wet, industrial gr-
ade, sulfur-free sponge.)
e. Impurities in the solder, iron
plating ,or on the surfaces
to be soldered.
1. Remove the tip from the
solder handle and allow the
tip to cool down.
2. Remove scale and oxides fr-
om the tinned area of the tip
with 80-grit abrasive polyu-
rethane foam stock or a 100
-grit emery cloth.
3. Wrap rosin core solder (0.031
diameter or larger) around the
newly exposed iron surface,
insert the tip into the handle,
and turn on the system.

Extending Tip Life
NOTE: Detinned tips are preve-
ntable with proper daily
care!
1. Tin the tip before and after
each use. This protects the
tip from oxidizing, and prol-
ongs the tip's life.
2. Do the job at the lowest te-
mperature. Lower tempera-
tures decrease tip oxidation
and are easier on the comp-
onents being joined.
3. Use fine point tips only when
necessary. The plating on
fine precision tips is less du-
rable than the plating on blu-
nter tips.
4. Do not use the tip as a prying
tool. Bending the tip can
cause the plating to crack,
shortening tip life.
5. Use the minimum activation
flux necessary to do the job.
Higher activation flux is
more corrosive to the tip
Plating.
6. Extend tip life by switching
the system off when not in
use.
7. Don’t apply pressure to the
tip. More pressure does not
equal more heat. To improve
heat transfer, use solder to
form a thermal bridge

between the tip and the solder
joint.
Calibrating the Iron Temperature
The Soldering Iron should be recalibrated after changing the iron or replacing the
heating element or tip.
Method of recalibrating temperature: Use the thermometer to calibrate.
1. Set the unit’s temperature to a certain value.
2. When the temperature stabilizes, measure the tip’s temperature with
thermometer and write down the reading.
3. Press “ ＊” button not loose and press the “▲”and “ ▼” buttons
simultaneously, the soldering station enters into calibration mode.
4. At the moment, the 100’s digit of LED display temperature is flashing. Press
the “▲” and “▼” buttons to select the value and press the “＊” button to
select the digit. Press “＊” button after inputting the reading. Here, the
calibration operation has been finished.
5. When inputting calibration temperature, if the value of calibration
temperature is error and the station have protection function after input the
calibration temperature and press * button, the 100’s digit of display
temperature will flash.
6. If the temperature still has deflection, you can repeat calibration in
accordance with above steps.
zWe recommend to use the 191/192 thermometer for measuring the tip
temperature.
zIf the unit is locked by password, it will not be able to calibrate and you
must input the right password.
