Kinivo ZX100 User manual

Kinivo ZX100 - Pocket Speaker
User Manual
© 2012 Kinivo LLC. All rights reserved.
Kinivo is a trademark of Kinivo LLC. Bluetooth word mark and the Bluetooth
logo are registered trademarks of Bluetooth SIG. All other trade names are
registered trademarks of respective manufacturers. This manual may not be
copied in any media or form without the written consent of Kinivo LLC.
Kinivo Product Support
Online : http://support.kinivo.com
Email : [e-mail]

Table of Contents
Kinivo ZX100 Pocket Speaker ................................................. 3
Important Safety Instructions................................................. 3
Speaker Overview.................................................................... 4
Package Contents..................................................................... 4
Features .................................................................................... 4
Operation.................................................................................. 5
1. Turn Unit On/O................................................................................ 5
2. Adjust Volume ................................................................................... 5
3. Playing Music...................................................................................... 6
4. Expanding and Closing the Resonator...................................... 7
5. Auxiliary Input-Output Port .......................................................... 8
6. Charging ZX100 Speaker................................................................ 8
7. Chaining Multiple Speakers .......................................................... 9
8. LED Indication.................................................................................... 9
9. Button Functions.............................................................................10
Troubleshooting & FAQs........................................................ 10
Technical Specications......................................................... 11
Warranty ................................................................................. 12
Online Support / Contact Us.................................................. 13

Kinivo ZX100 - Pocket Speaker 3
Kinivo ZX100 Pocket Speaker
Read all safety and operation instructions before using the speaker.
Important Safety Instructions
1. Do not expose the speaker to liquid, moisture or areas of high
humidity.
2. Do not use abrasive cleaners to clean the speaker’s case as they
may damage the unit. Always unplug and power o the unit before
cleaning.
3. Do not expose the speaker to extremely high or low temperatures.
4. Keep the unit away from direct sunlight.
5. Do not attempt to open or modify the speaker in any way.
6. Store the speaker in a cool dry place.
7. The ZX100 speaker contains a lithium ion battery. Lithium ion
batteries are ammable and can cause re if misused or defective.
8. Always dispose of the packaging and unit in accordance with the
local regulations and in a responsible manner.
Warning
This device contains a lithium ion battery. Lithium ion batteries
are ammable and can cause re if misused or defective. Please
read the safety instructions carefully before using

Kinivo ZX100 - Pocket Speaker
4
Speaker Overview
Package Contents
ZX100 Pocket Speaker
User Manual
Micro-USB Charging Cable with longer audio cable.
Carrying Pouch
Features
Expansive Resonator Construction Design to give the best low
frequency output
Resonator Expanded Closed Resonator

Kinivo ZX100 - Pocket Speaker 5
Compatibility: all iPods, iPhones, MP3 players, CD players, laptops
with 3.5-mm audio socket
Full-bodied 360-degree sound
Ultra-portable compact size with long-lasting internal chargeable
battery
Daisy chain multiple speakers for maximum sound
Operation
1. Turn Unit On/O
Push and hold the colored wavy strip
under the power symbol for 4 to 5
seconds to turn the speaker on or o. The
blue LED will be lit when the speaker is
powered on.
2. Adjust Volume
Push and hold the colored wavy strip under the VOL+ or VOL– symbols
to increase or decrease volume.
Push and hold the buttons to change the volume rapidly.
By default, the speaker powers on at 50% volume.
Press here to
power on/o

Kinivo ZX100 - Pocket Speaker
6
3. Playing Music

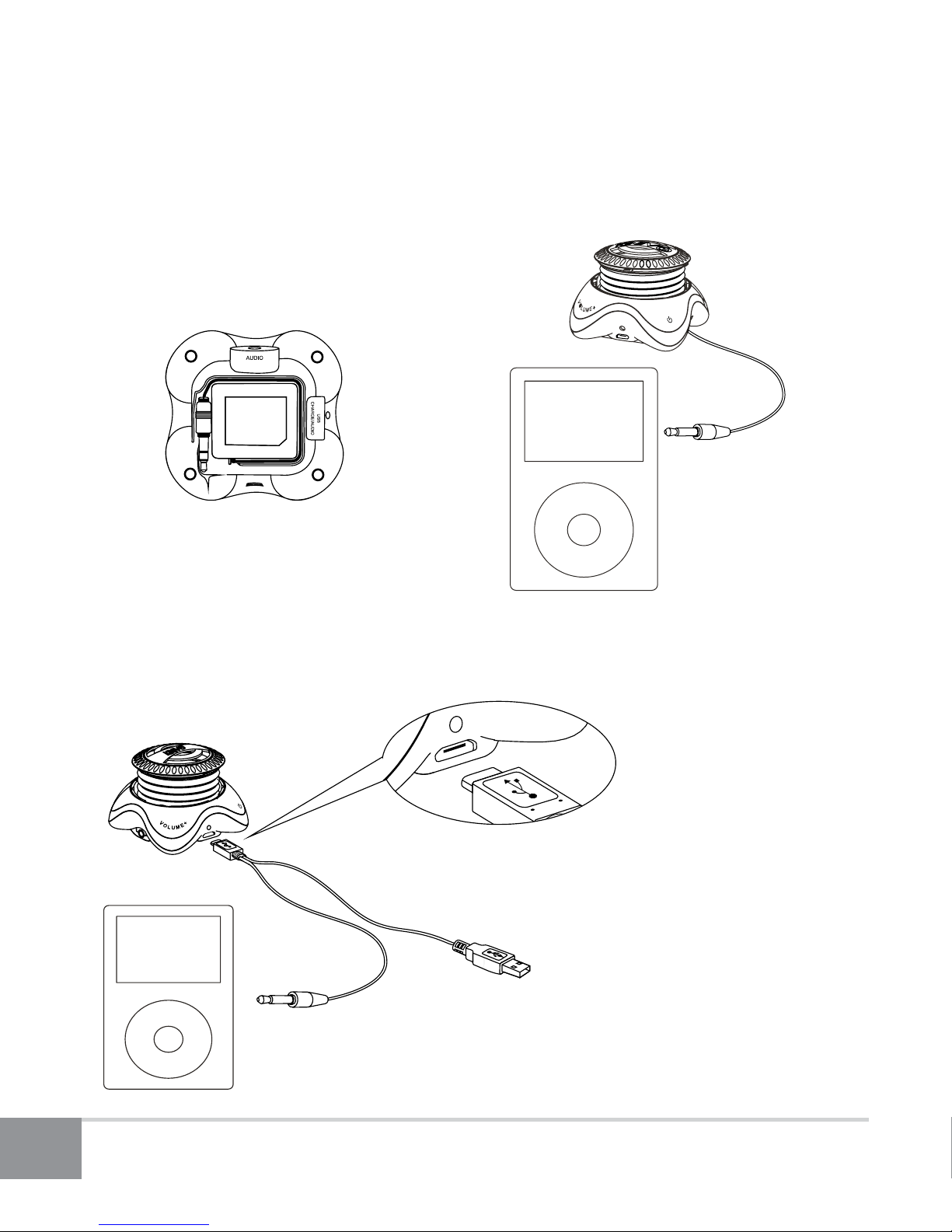

The ZX100 speaker has a built-in 3.5mm audio cable at the base of the
unit for connecting to audio devices.
If a longer connection is needed, the charging cable has an additional
3.5mm audio connection.
Plug the Micro USB end
of the charging cable into
the speaker
Plug the 3.5 mm end of
the charging cable into the
smartphone or tablet

Kinivo ZX100 - Pocket Speaker 7
4. Expanding and Closing the Resonator
To Open
1. Hold speaker rmly by the base with
the resonator on the top.
2. Turn the resonator counter-clockwise.
3. The resonator will automatically
expand.
4. Hold speaker rmly by the base and
press the resonator towards the
speaker base.
5. Turn the resonator clockwise to close.
To Close

Kinivo ZX100 - Pocket Speaker
8
5. Auxiliary Input-Output Port
The ZX100 has a 3.5mm port for both audio input and output. The port
can be used to connect a 3.5mm to an input device or it can connect to
another speaker. (See Chaining Multiple Speakers).
3.5 mm audio
input/output port
6. Charging ZX100 Speaker
To charge the ZX100 speaker, connect the micro USB cable to the ZX100
and plug the speaker into a USB power source. USB power sources
include computers, laptops, USB hubs, USB AC adapters, and USB car
chargers.
USB charge/audio
input/power light

Kinivo ZX100 - Pocket Speaker 9
When the ZX100 is charging, the red light will be lit. When the battery is
fully charged, the light will turn blue. The charging process can take 2 to
3 hours to charge the battery completely.
7. Chaining Multiple Speakers
The ZX100 is capable of being daisy chained to multiple ZX100 or other
speakers. Simply connect the additional speaker’s 3.5mm audio cable
into the 3.5mm port on the ZX100.
8. LED Indication
Status LED Indicator
Powered o O
Powered on Steady blue
Battery charging Steady red

Kinivo ZX100 - Pocket Speaker
10
9. Button Functions
Troubleshooting & FAQs
1. Lost or damaged charging cable
If you have lost or damaged the included USB cable, you can use any
standard micro-USB cable or micro-USB charger to charge the ZX100
speaker.
2. Speaker not powering on
Please check the following:
Is the speaker fully charged?
Function Operation
Toggle unit on/o Push and hold the colored wavy strip under
the power symbol for 4 to 5 seconds
Increase volume Push and hold the colored wavy strip under
the VOL+ symbol
Decrease volume Push and hold the colored wavy strip under
the VOL– symbol
