Kino Flo Celeb 250 User manual

Operation Manual
Part No. 3100105 Rev B 09-15-2017
Celeb 250/450/450Q LED DMX

2
Celeb LED DMX Systems
Included w/ all Celeb Models
CEL-250CU Celeb 250 LED DMX Center, Univ
CEL-450CU Celeb 450 LED DMX Center, Univ
CEL-250YU Celeb 250 LED DMX Yoke, Univ
CEL-450YU Celeb 450 LED DMX Yoke, Univ
CEL-450QU Celeb 450Q LED DMX Yoke, Univ
CEL-250PU Celeb 250 LED DMX Pole-Op, Univ
CEL-450PU Celeb 450 LED DMX Pole-Op, Univ
CEL-450QPU Celeb 450Q LED DMX Pole-Op Univ
LVR-CE290-P Celeb 250 Louver/HP, 90°
LVR-CE490-P Celeb 450 Louver/HP, 90°
LVR-CE490-QP Celeb 450Q Louver/HP, 90°
Center Mount
Yoke Mount
Pole-Op

Celeb 250 LED DMX Kits
KIT-C250U
Celeb 250 LED DMX Center Mount Kit, Univ
Kit Contents:
1 Celeb 250 LED DMX Center Mount
1 Flight Case
Weight: 31 lb (14kg)
Dimensions: 29 x 10.5 x 17” (74 x 27 x 43cm)
KIT-C250YU
Celeb 250 LED DMX Yoke Mount Kit, Univ
Kit Contents:
1 Celeb 250 LED DMX Yoke Mount
1 Jr. Pin
1 Ship Case
Weight: 40 lb (18kg)
Dimensions: 32.5 x 8.5 x 24” (83 x 22 x 61cm)
3
Celeb 250 LED
DMX Center Kit
Celeb 250 LED
DMX Yoke Kit

Celeb 450 LED DMX Kits
Celeb 450Q LED DMX Kit
KIT-C450U
Celeb 450 LED DMX Center Mount Kit, Univ
Kit Contents:
1 Celeb 450 LED DMX Center Mount
1 Flight Case
Weight: 52.5 lb (24kg)
Dimensions: 53.5 x 11 x 16.5” (136 x 28 x 42cm)
KIT-C450QU
Celeb 450Q LED DMX Yoke Mount Kit, Univ
Kit Contents:
1 Celeb 450Q LED DMX Yoke Mount
1 Jr. Pin
1 Ship Case
Weight: 52 lb (24kg)
Dimensions: 34.5 x 8.5 x 33” (88 x 22 x 84cm)
KIT-C450YU
Celeb 450 LED DMX Yoke Mount Kit, Univ
Kit Contents:
1 Celeb 450 LED DMX Yoke Mount
1 Jr. Pin
1 Ship Case
Weight: 57 lb (26kg)
Dimensions: 54.5 x 9.5 x 25” (138.5 x 24 x 63.5cm)
4
Celeb 450 LED
DMX Center Kit
Celeb 450 LED
DMX Yoke Kit
Celeb 450Q LED
DMX Yoke Kit

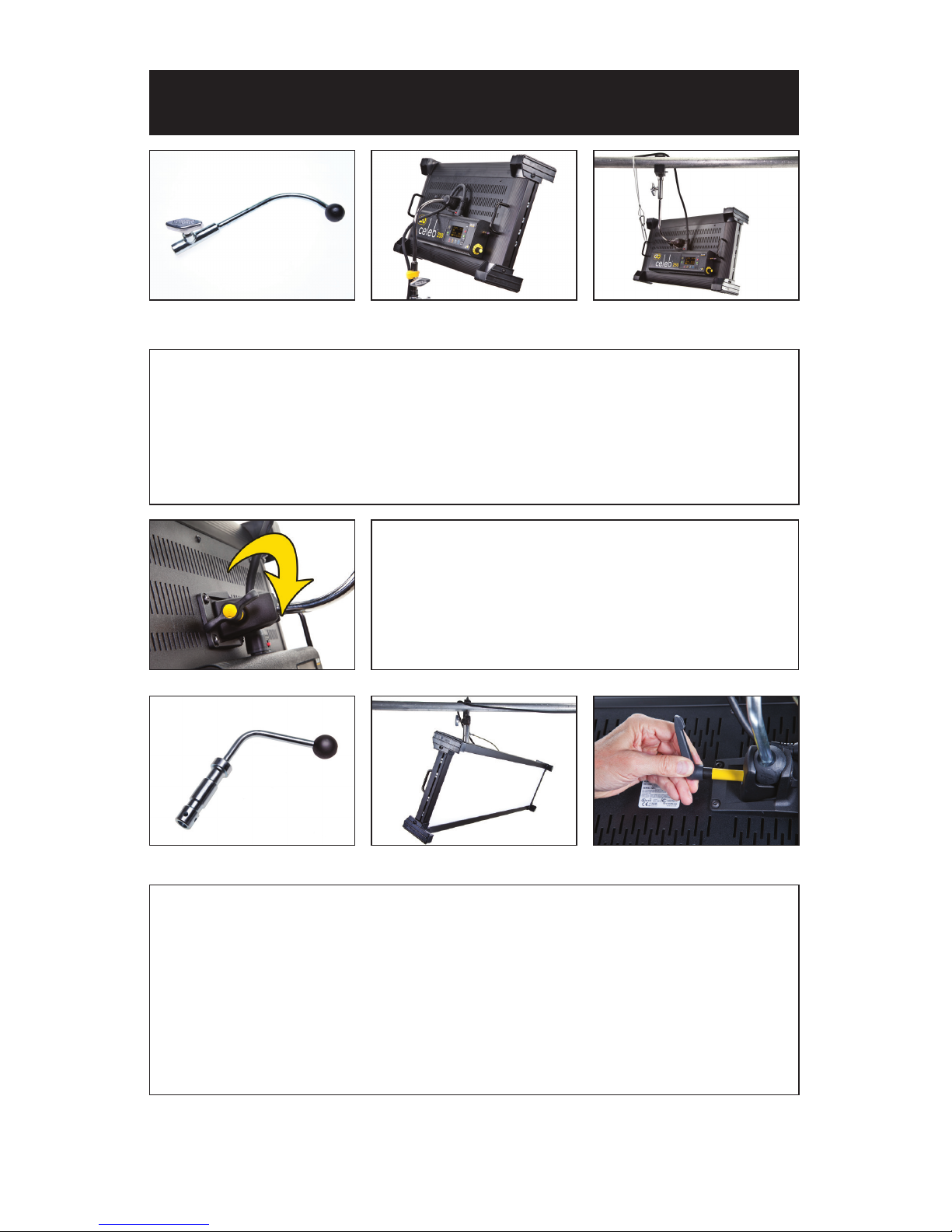

Center Mount
The Celeb 250 Center Mount fixture includes a Lollipop w/ Baby Receiver (16mm)
(MTP-LBC) which allows the xture to be mounted directly onto a baby stand or hung
from a grid with a baby pipe clamp.
Note: The handles on the back of the xture provide an attachment point for a safety
chain.
The Celeb 450 Center Mount xture includes a Lollipop w/ Junior Pin (28mm)
(MTP-LM) which allows the xture to be mounted directly onto a junior stand or hung
from a grid with a junior pipe clamp.
A 180° turn loosens the orientation of the mount. A right turn tightens the mount.
The tension on the lock lever may be adjusted by pulling the handle away from the
mount. This disengages the handle from the screw mechanism and allows the lever
to be reoriented. You can also use a screwdriver to adjust the tension. Pull back on
handle and adjust screw.
MTP-LBC
MTP-LM Mounted to pipe grid
Mounted on a baby stand Mounted to pipe grid
Turn the knob to loosen or tighten the orientation of the
mount.
5

Yoke Mount
MTP-I40 MTP-I80
Baby Offset Arm
The Kino Offset w/ Baby Receiver (MTP-B41F) allows the Celeb 250 Center Mount to
mount on the center of a stand or it can also be under slung from a baby stand to use
as an up light. It cannot be used with the Celeb 450 due to weight capacity.
MTP-B41F Kino Offset w/
Baby Receiver (16mm)
The yoke has a ½” hole to accept industry standard mounting hardware.
The Celeb 250 Yoke Mount xture can hang from a grid by a baby pipe hanger using
a Baby Receiver Assembly for Yoke (MTP-I40), sold separately or a junior pipe hanger
using a Junior Pin Assembly for Yoke (MTP-I80), also sold separately. The Celeb 450
Yoke Mount and Celeb 450Q Yoke Mount can also hang by a junior pipe hanger with
the MTP-I80.
Warning: Use only M5 X 10mm screws (supplied) to assemble yoke.
Note that threads on the xture are self-locking and may seem tight.
Replacement screws: Part No. 2020127
Recommended torque setting:
USA: 18 lb-in
Metric: 2 Nm
6

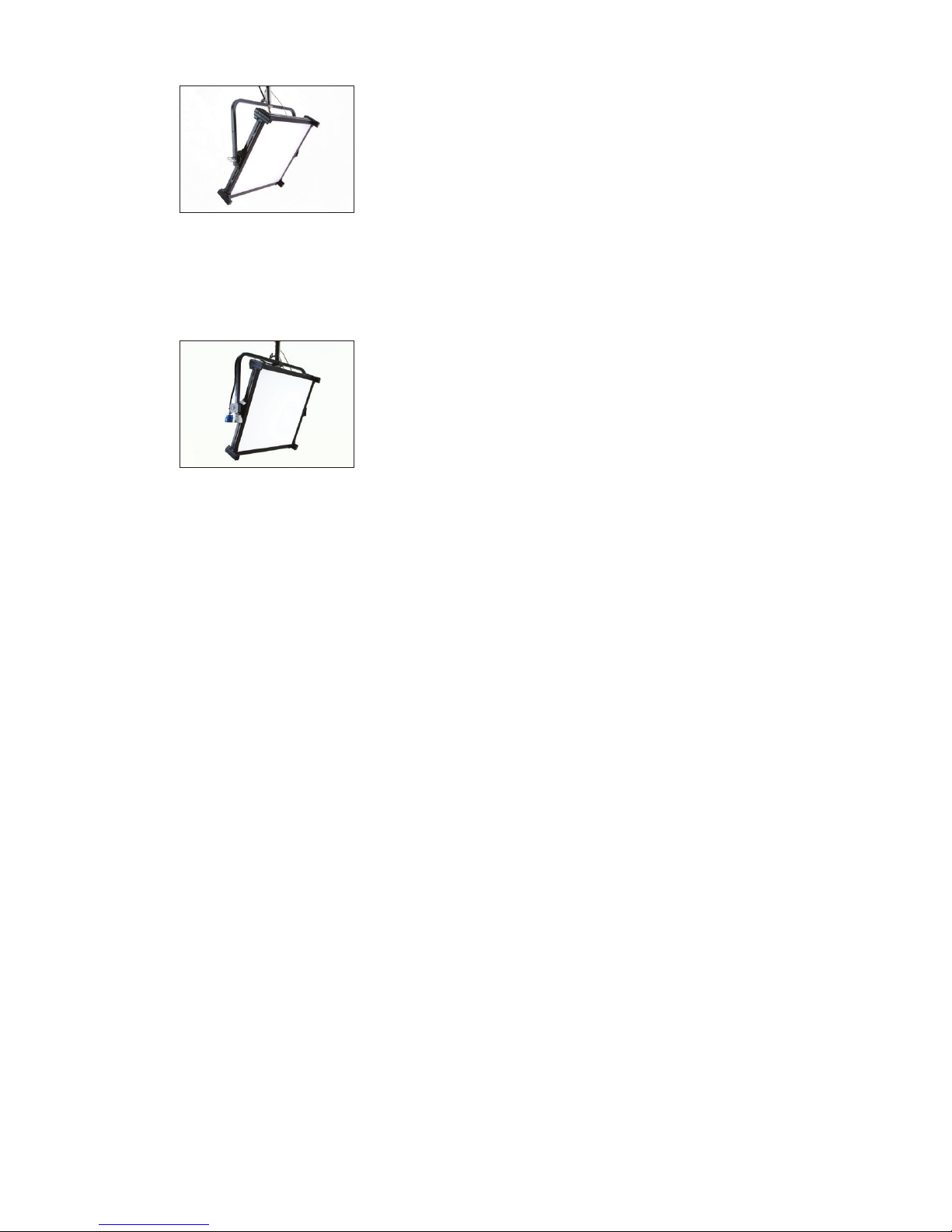

Pole-Op
Operating Pole-Op
Mount Options
The Pole-Op xtures include a yoke with an attached junior
pin. They can be hung from a grid with a Junior pipe hanger.
The Blue cup alters the Pan (left or right).
The White cup alters the Tilt (up or down).
Rope Hang
Accessory holders are also designed to enable 4-point
rope hangs for specialty rigging applications.
The Celeb Support w/ Pin
(MTP-CE) can be used with the
Celeb 250 as additional mount
points, for example, car rigs, etc.
MTP-CE
Junior pin attached to Pole-Op Yoke
Warning! Do not pull yoke to adjust
tilt. Turn the white knob counter
clockwise to angle the yoke 90°.
(ParaBeam shown for illustration
purposes only.)
7

Inserting Louver
The Celeb includes spring loaded accessory holders to hold the Honeycomb Louver.
Place the long edge of the Honeycomb Louver into the lower channel.
Press down on the left and right corners of the Louver and slip the upper edge into the
upper channel of the xture. To remove, reverse the procedure.
Note: Do not press down along the top center portion of the Louver. Doing so may
deform the Louver over repeated usage.
8

SnapBag & SnapGrid
The SnapBag accessory is a lightweight fabric tailor-made for the Celeb LED.
It slips over the xture and is attached with straps. The reective material
intensies the soft light. The removable Magic cloth or Grid cloth attaches to
the inside with Velcro.
The SnapGrid accessory is constructed of pre-stretched reproof fabric with
a built-in stainless steel frame. It unfolds and snaps into place. This model
requires the use with the corresponding SnapBag; it is not designed to be
used by itself.
9

Inserting Barndoors
Position the barndoors
alongside the extruded
edge of the xture. Align the
thumbscrews with the adjust-
able receptacle holes in the
xture and insert into place.
Lock the barndoors by turning
the silver thumbscrew.
To remove, reverse the
procedure.
For replacement screws,
use M5 Metric size screws.
Note: To adjust the place-
ment of the receptacle holes,
use a pointed tool (such as
a pen) to slide the holes
within the extruded edge.
BRD-CE2
10

Fixture Power
DC Input
The Celeb 250 can also be operated on 24VDC (input range 18-36VDC) through a
3-Pin XLR. A low voltage warning will display “LPWR” when the battery is running low.
The pin polarity is:
Pin #1 – Ground
Pin #2 + 18-36VDC
Pin #3 not used
Note: DC input not available on Celeb 450 or 450Q.
AC Input
The Celeb is powered AC and includes an IEC connection. A locking power cord is
included with the xture. To remove the plug, move the red tab to release. The xture
has a built-in power supply with universal input from 100-240VAC.
Note: The Celeb 250 is shown for example purposes only. The IEC power cords for
the Celeb 450 and 450Q are in a different location.
Ambient Operating Temperature
The Celeb is designed to operate at temperatures from 14°F to 104°F
(-10°C to 40°C).
11

Control Panel - White Mode
ABCD E F G H
A) On /Off: On = Green light displayed. Off = Red light displayed. The display and
all menu settings can be operated while the power button is in the Off position,
as long as power is applied to the xture. The On /Off button only controls the
light source.
B) Menu: Provides access to menu options such as General settings, Reset, DMX and
DMX Wireless settings. Tip: While on control screen, press and hold for 3 seconds to
switch through menus (White, Gels & Hue, RGB).
C) Kelvin & G/M (Green/Magenta) Preset Buttons: Factory defaults left to right are:
2700K, 3200K, 5000K and 6500K. G/M default value is 000. User can also use
these preset buttons to store custom Kelvin and G/M settings.
D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
E) Lock: Press the Lock button to disable all buttons and control knob.
Press for 3 seconds to restore presets to default factory settings.
F) Mode: Press to navigate from Dim to Kelvin and G/M settings. When in sub-menus,
pressing Mode always returns you to main display. When DMX is applied, use Mode
to access DMX channel on main display. Tip: Long press will bring you back one step.
G) Data Port: Mini B USB for software updates.
H) Dimmer Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address.
Press the knob to toggle between ne and coarse adjustments or when selecting
options within menus.
DMX Note: Each Celeb LED has an “AUTO TERMINATE” feature. The last xture that
does not have an XLR cable attached to the DMX “Out” port will automatically
terminate.
12

13

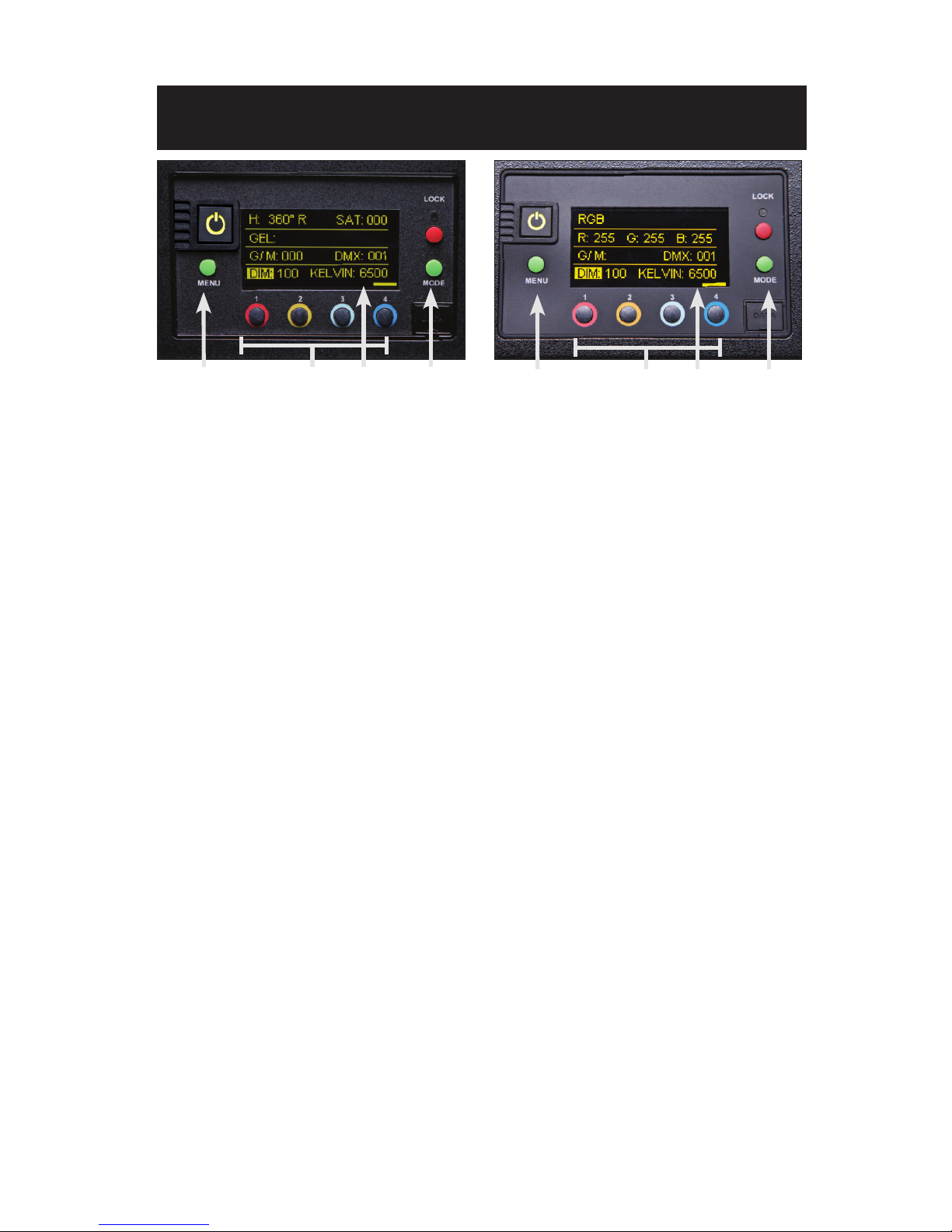

Control Panel - Color & RGB Mode
AA BB CC DD
A) Menu: Provides access to menu options such as General settings (Color Mode),
Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and
hold for 3 seconds to switch through menus (White, Gels & Hue, RGB).
B) Kelvin, G/M (Green/Magenta) Gel, Hue & Saturation Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default
value is 000. User can also use these preset buttons to store custom Kelvin
between 2500K and 9900K and custom G/M, Gel, Hue and Saturation settings.
C) Display: Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and DMX
channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000,
DMX = 001.
D) Mode: Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation
settings. When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Tip: Long press will bring you back one step.
A) Menu: Provides access to menu options such as General settings (RGB Mode),
Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and
hold for 3 seconds to switch through menus (White, Gels & Hue, RGB).
B) Kelvin, G/M (Green/Magenta) RGB (Red, Green, Blue) Preset Buttons: Factory
defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default value is 000.
User can also use these preset buttons to store custom Kelvin between 2500K and
9900K and custom G/M, and RGB settings.
C) Display: Provides access to Dim, Kelvin, G/M, RGB and DMX channel. Factory reset
will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
.
D) Mode: Press to navigate from Dim to Kelvin, G/M, RGB settings. When in
sub-menus, pressing Mode always returns you to main display. When DMX is
applied, use Mode to access DMX channel on main display.
Tip: Long press will bring you back one step.
Color Mode
RGB Mode

LVR-CE290-P Celeb 250 Louver/HP 90°
LVR-CE260-P Celeb 250 Louver/HP 60°
LVR-CE490-P Celeb 450 Louver/HP 90°
LVR-CE460-P Celeb 450 Louver/HP 60°
LVR-CE490-QP Celeb 450Q Louver/HP 90°
LVR-CE460-Q Celeb 450Q Louver-Honeycomb 60°
MTP-B41F Kino Offset w/ Baby Receiver (16mm)
(For Celeb 250)
Lollipops are interchangeable. (For Celeb 250)
MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm)
MTP-LBC Kino 41 Lollipop w/ Baby Receiver Curve
(16mm)
MTP-LBS Kino 41 Lollipop w/ Baby Receiver Short
(16mm)

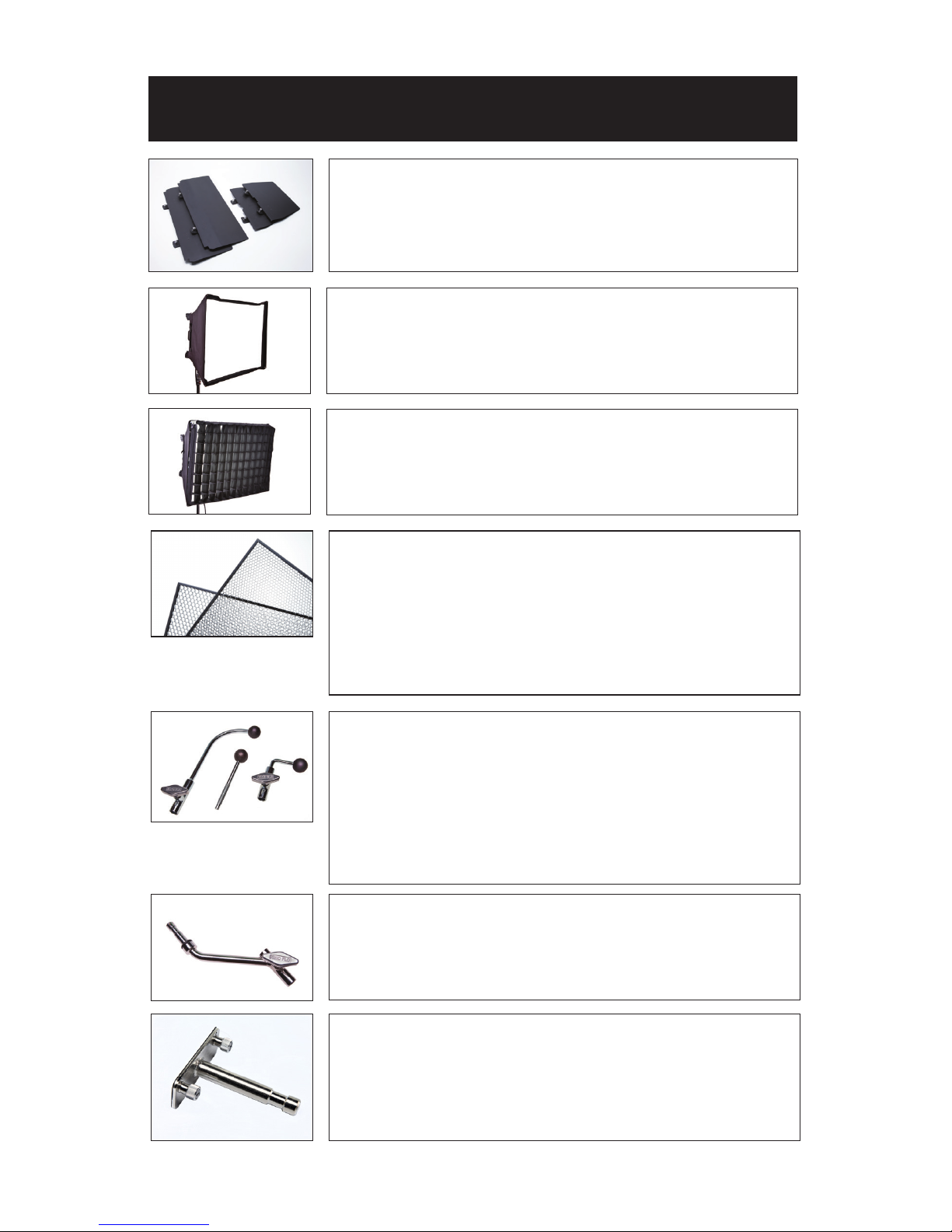

Accessories
BRD-CE2 Celeb 250 Barndoors (Set of 4)
BRD-CE4 Celeb 450 Barndoors (Set of 4)
BRD-CE4-Q Celeb 450Q Barndoors (Set of 4)
MTP-CE Celeb Support w/ Pin (For Celeb 250)
14
DFS-CE200-S Celeb 250 SnapBag w 2 x Diffusion
DFS-CE400-S Celeb 450 SnapBag w 2 x Diffusion
DFS-CE400Q-S Celeb 450Q SnapBag w 2 x Diffusion
LVR-FS240-S Celeb 250 SnapGrid, 40°
LVR-CE440-S Celeb 450 SnapGrid, 40°
LVR-CE440Q-S Celeb 450Q SnapGrid, 40°

MTP-I40 Baby Receiver Assembly for Yoke (16mm)
KAS-CE2 Celeb 250 Flight Case
KAS-CE2-C Celeb 250 Travel Case
KAS-CE4 Celeb 450 Flight Case
KAS-CE4-C Celeb 450 Travel Case
KAS-CE2-Y Celeb 250 Yoke Ship Case
KAS-CE4-Y Celeb 450 Yoke Ship Case
KAS-CE4-Q Celeb 450Q Yoke Ship Case
STD-M30 Medium Duty Stand/Black, 30”
STD-M36 Medium Duty Stand/Black, 36”
7010032 Celeb 250 Yoke Assembly
7010045 Celeb 450 Yoke Assembly
7010048 Celeb 450Q Yoke Assembly
7010038 Celeb 250 Pole-Op Assembly
7010046 Celeb 450 Pole-Op Assembly
7010049 Celeb 450Q Pole-Op Assembly
MTP-I80 Junior Pin Assembly for Yoke (28mm)
15

16
CEL-250CU Celeb 250 LED DMX Center Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 145W
Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 15 lb (6.8kg)
Dimensions: 24 x 5 x 14”
(61 x 12.7 x 35.5cm)
CEL-250YU Celeb 250 LED DMX Yoke Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 145W
Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 16 lb (7.3kg)
Dimensions: 28.5 x 5 x 16.5”
(72.3 x 12.7 x 42cm)
Fixture Specications
CEL-250PU Celeb 250 LED DMX Pole-Op, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 145W
Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 17 lb (7.7kg)
Dimensions: 29 x 6 x 16.5”
(74 x 15.2 x 42cm)
Celeb 250 LED
DMX Center
Celeb 250 LED
DMX Yoke
Celeb 250 LED
DMX Pole-Op

CEL-450CU Celeb 450 LED DMX Center Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 255W
Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 45 x 5 x 14”
(114.5 x 13 x 36cm)
CEL-450YU Celeb 450 LED DMX Yoke Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 255W
Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 50 x 5 x 16.5”
(127 x 13 x 42cm)
CEL-450PU Celeb 450 LED DMX Pole-Op, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 255W
Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 29 x 6 x 16.5”
(128.5 x 13 x 42cm)
17
Celeb 450 LED
DMX Center
Celeb 450 LED
DMX Yoke
Celeb 450 LED
DMX Pole-Op

CEL-450QU Celeb 450Q LED DMX Yoke Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 270W
Amperage VAC: 2.7A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 24 lb (11kg)
Dimensions: 30 x 5 x 26”
(72 x 13 x 66cm)
CEL-450QPU Celeb 450Q LED DMX Pole-Op, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 270W
Amperage VAC: 2.7A at 120VAC, 1.1A at 230VAC
Kelvin Range: 2700K~6500K (White Mode)
2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 26 lb (12kg)
Dimensions: 30 x 5 x 30.5”
(76 x 13 x 77.5cm)
18
Celeb 450Q LED
DMX Yoke
Celeb 450Q LED
DMX Pole-Op

19

For latest Warranty information and Certications,
see Kino Flo website at www.kinoo.com.
Environmental: Disposal of Old Electrical & Electronic Equipment.
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. This product is made
of recyclable materials and should be disposed of in accordance with
governmental regulations.
Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA
Tel: [phone] website: www.kinoo.com
FCC Part 15 Verication:
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition
that this device does not cause harmful interference.
FCC Part 15 Declaration of Conformity:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
KINO FLO, INC
Celeb 250 LED, Celeb 450 LED, Celeb 450Q LED
ID: XRSCRMXTIMO101
IC: 8879A-CRMXT101
20
