Operation Manual
Diva-Lite 41, 31, 21 LED
Part No. 3100112 Rev B 10-01-2020
(True Match Firmware 4.0)
®
(Camera)

2
Diva-Lite LED DMX Systems
Included w/ all Diva-Lite Models
Included w/ all Diva-Lite Center Mount Only
Included w/ all Diva-Lite Yoke Mount Only
DIV-L21XCU Diva-Lite 21 LED DMX Center, Univ
DIV-L31XCU Diva-Lite 31 LED DMX Center, Univ
DIV-L41XCU Diva-Lite 41 LED DMX Center, Univ
DIV-L21XYU Diva-Lite 21 LED DMX Yoke, Univ
DIV-L31XYU Diva-Lite 31 LED DMX Yoke, Univ
DIV-L41XYU Diva-Lite 41 LED DMX Yoke, Univ
LVR-SL290-P Diva-Lite 21 Louver/HP, 90°
LVR-SL390-P Diva-Lite 31 Louver/HP, 90°
LVR-SL490-P Diva-Lite 41 Louver/HP, 90°
MTP-LBC Kino 41 Lollipop w/ Baby Receiver Curve
(16mm)
7010055 Diva-Lite 21 Yoke Assembly
7010057 Diva-Lite 31 Yoke Assembly
7010059 Diva-Lite 41 Yoke Assembly
Yoke Mount
Center Mount

Diva-Lite 31 LED DMX Kits
KIT-DL31XU
Diva-Lite 31 LED DMX Kit w/ Travel Case, Univ
Kit Contents:
1 Diva-Lite 31 LED DMX Center
1 Travel Case
Dimensions: Weight:
45.5 x 9 x 16.5” 33.5 lb
(116 x 23 x 42cm) (15kg)
Diva-Lite 31 LED DMX Kit
w/ Travel Case
3
KIT-DL21XU
Diva-Lite 21 LED DMX Kit w/ Travel Case, Univ
Kit Contents:
1 Diva-Lite 21 LED DMX Center
1 Travel Case
Dimensions: Weight:
28.5 x 8.5 x 16” 22.5 lb
(72.5 x 22 x 41cm) (10kg)
Diva-Lite 21 LED DMX Kit
w/ Travel Case
Diva-Lite 21 LED DMX Kits

Power
DC Input
The Diva-Lite LED can also be operated on 24VDC (input range 18-36VDC)
through a 3-Pin XLR. The pin polarity is:
Pin # 1 – Ground
Pin # 2 + 18-36VDC
Pin # 3 not used
AC Input
The Diva-Lite LED is powered AC
and includes an IEC connection. It
also includes a 12ft power cord with
a locking IEC connector.
It includes a built-in power supply
with universal input from
100-240VAC.
Ambient Operating Temperature
The Diva-Lite LED is designed to
operate at temperatures from
14°F to 104°F (-10°C to 40°C).
Note:
A low voltage warning will display
if input DC voltage is under 18VDC.
Photo example: LOW VDC: 16
4

Lollipops are interchangeable.
MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm)
MTP-LBC Kino 41 Lollipop w/ Baby Rcvr Curve (16mm)
MTP-LBS Kino 41 Lollipop w/ Baby Rcvr Short (16mm)
Mounting Procedures
Mounted on a baby
stand.
Turn the knob to loosen or tighten the
mount.
Mounted to pipe grid.
Note: When hanging in a
studio, loop a safety cord
through the metal ring
provided on the back of
the ixture.
5

Applying Louver
The Louver is fastened to the ixture with 4 Velcro straps.
Baby Offset Arm
MTP-B41F
Kino Offset w/
Baby Receiver (16mm)
The Baby Offset Arm (MTP-B41F) allows ixtures to mount on the center of a
stand or it can also be under slung from a baby stand to use as an up light.
6

SnapBag & SnapGrid
7
The SnapBag accessory is a lightweight fabric tailor-made for the
Diva-Lite LED. It slips over the ixture and is attached with straps.
The relective material intensiies the soft light. The removable grid
cloth attaches to the inside with Velcro.
DFS-FS41-S Diva-Lite 41 SnapBag w/ 2 x Diffusion
DFS-FS31-S Diva-Lite 31 SnapBag w/ 2 x Diffusion
DFS-FS21-S Diva-Lite 21 SnapBag w/ 2 x Diffusion
The SnapGrid accessory is constructed of pre-stretched ireproof fabric
with a built-in stainless steel frame. It unfolds and snaps into place.
This model requires the use with the corresponding SnapBag; it is not
designed to be used by itself.
LVR-FS440-S Diva-Lite 41 SnapGrid 40°
LVR-FS340-S Diva-Lite 31 SnapGrid 40°
LVR-FS240-S Diva-Lite 21 SnapGrid 40°

8
Control Panel - White Mode
ABCD E F G H
A) On /Off: On = Green light displayed. Off = Red light displayed. The display and
all menu settings can be operated while the power button is in the Off position,
as long as power is applied to the controller. The On /Off button only controls
the light source.
B) Menu: Provides access to menu options such as General settings, Reset,
DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
C) Preset Buttons: Factory defaults left to right are: 2700K, 3200K, 5000K and
6500K. G/M default value is 000. User can also use these preset buttons to
store custom Kelvin and G/M settings.
D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
E) Lock: Press the Lock button to disable all buttons and Control knob.
Press for 3 seconds to restore displayed presets to default factory settings.
F) Mode: Press to navigate from Dim to Kelvin and G/M settings.
When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Shortcut: Long press will bring you back one step.
G) Data Port: Mini B USB for irmware updates.
H) Control Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address.
Press the Control knob to toggle between Fine and Coarse increments or
when selecting options within menus.
DMX Note: Each LED Fixture has an “AUTO TERMINATE” feature. The last
ixture that does not have an XLR cable attached to the DMX “Out” port will
automatically terminate.

9
Control Panel - Gels/Hue Mode
A DCB
A) Menu:
Provides access to menu options such as General settings (Gels/Hue Mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
G/M default value is 000. User can also use these preset buttons to store
custom Kelvin between 2500K and 9900K and custom G/M, Gel, Hue and
Saturation settings.
C) Display:
Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and
DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K,
G/M = 000, DMX = 001.
D) Mode:
Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation settings.
When on the Gel function, pushing the Control knob in/out will apply the gel or
remove the gel. When in sub-menus, pressing Mode always returns you to
main display. When DMX is applied, use Mode to access DMX channel on
main display. Shortcut Tip: Long press will bring you back one step.
Gels/Hue Mode

A DCB
Control Panel - RGB Mode
A) Menu:
Provides access to menu options such as General settings (RGB Mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
G/M default value is 000. User can also use these preset buttons to
store custom Kelvin between 2500K and 9900K and custom G/M, and
RGB settings.
C) Display:
Provides access to Dim, Kelvin, G/M, RGB and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
D) Mode:
Press to navigate from Dim to Kelvin, G/M, RGB settings.
When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Shortcut: Long press will bring you back one step.
RGB Mode
10

11
CIE xy Mode
Control Panel - CIE xy
A) Menu:
Provides access to menu options such as General settings (CIE xy mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold or 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
User can also use these preset buttons to store custom xy settings.
C) Display:
Provides access to Dim, CIE xy coordinates and DMX Channel.
Factory reset will show: Dim = 10%, x = 0.460 , y = 0.411, G/M = 000,
DMX = 001.
D) Mode:
Press to navigate from Dim to xy settings. When in sub-menus,
pressing Mode always returns you to main display. When DMX is applied,
use Mode to access DMX channel on main display. Shortcut: Long press
will bring you back one step.
DA C
B

12
FX (Effects) Mode
Control Panel - FX (Effects)
FX mode provides access to effects including Candle, Fire, TV, Police, Lightning,
Paparazzi, Pulse and Scroll. Candle mode used as an example:
A) FX Option:
Choose the desired FX Mode by rotating the control knob. When on the
desired effect, there will be several pre-programmed effects as well as
control parameters that can be altered.
B) Preset Buttons:
In FX Mode, Kelvin custom settings and any control functions displayed such
as Rate and Amplitude (Ampl) can be saved as a preset. Chosen values can
be assigned to any preset button by holding down the desired button for
3 seconds. The Kelvin display will lash once the setting is registered.
To restore presets to default factory settings, choose Reset under General
settings and Clear Presets. This method will reset all buttons in all Modes.
Shortcut: If only want to clear presets for Candle Mode, hold Lock button
for 3 seconds while Candle mode is displayed.
C) Mode:
Press to navigate from Dim to Kelvin and FX settings.
Shortcut: Long press will bring you back one step.
A C
B

13
The Camera LUT (Look-up Tables) feature harmonizes the Kino Flo light
sources to the camera. Depending on the camera and the Kelvin setting,
some differences are very subtle, while others can be more dramatic.
The corrections are applied as a CIE xy correction at each CCT (Kelvin) setting.
The default setting is targeting the CIE xyz response (human eye).
Press the green menu button to the left of the display screen and scroll down to
Camera LUT, then press the control knob. Menu with camera selection will be
displayed. Turn the control knob and press to select camera setting:
C1 Arri Alexa
C2 Sony Venice
C3 Panavision DXL
C4 Panasonic Varicam
The camera code (C1 for Arri Alexa), for example, will appear on the main menu
between DIM and CCT to designate that a camera setting is active.
Note: When the controller is reset, the camera settings will go to Kino Flo
Default mode.
Camera LUT

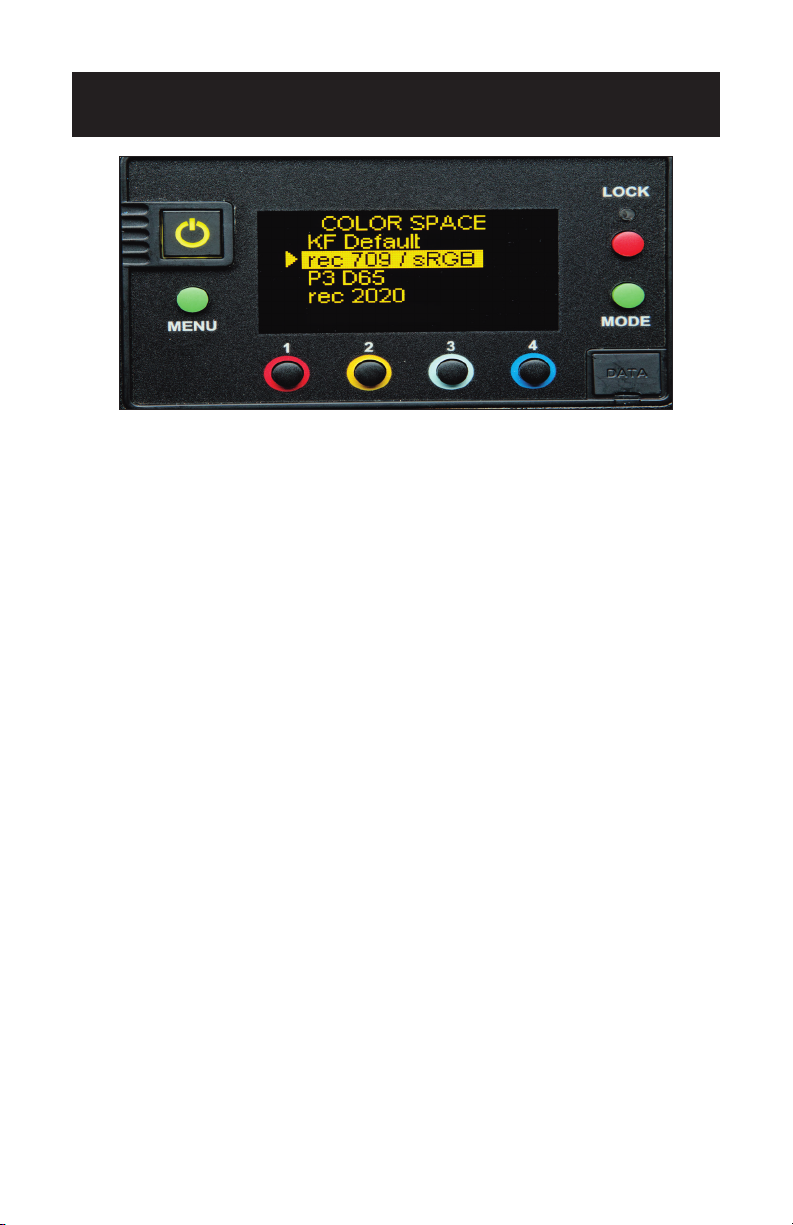

Color Space
Color Space deines the RGB color space used and only affects color – not Kelvin.
It is used in RGB mode and Hue Angle and Saturation. There are a few instances
in the FX (Effects) mode that are also affected when color is used. The RGB
color space deines the value of Red, Green, and Blue primaries (in CIE xy) and
the white point is ixed at 6500 Kelvin.
Press the green menu button to the left of the display screen and scroll down
to Color Space, then press the control knob. Menu with color selection will be
displayed. Turn the control knob and press to select Color Space options:
rec 709 / sRGB
P3 D65
rec 2020
The color space rec 709 / sRGB is commonly used on computer monitors, SDTV
and HDTV television. There are slight gamma variations between rec 709 / sRGB,
but not enough to separate into 2 color spaces.
The color space P3 D65 is a common color space for digital movie projection.
The color space rec 2020 is used in ultra high deinition television (UHDTV).
The color space is used when the controller is set to the RGB mode and when set to
the Hue Angle/ Saturation mode.
In RGB mode – the color space designation will be displayed at the top of the menu.
When changing the Red, Blue or Green values, the Kelvin will be locked in at 6500 for
all color spaces. When the Kelvin is locked in, CCT will be displayed as CCT*.
When using Green/Magenta the CCT value is unlocked and color space selection
has no impact.
In Hue Angle/Saturation mode – the color space designation will be displayed on
the Gel line and GEL will be displayed as GEL* and CCT will be displayed as CCT*.
The Color space will be displayed only when Hue Angle and Saturation are being
used. When using Green/Magenta or Gel, the CCT will be unlocked and color space
selection has no impact.
14

Accessories
LVR-SL490-P Diva-Lite 41 Louver/HP 90°
LVR-SL460-P Diva-Lite 41 Louver/HP 60°
LVR-SL390-P Diva-Lite 31 Louver/HP 90°
LVR-SL360-P Diva-Lite 31 Louver/HP 60°
LVR-SL290-P Diva-Lite 21 Louver/HP 90°
LVR-SL260-P Diva-Lite 21 Louver/HP 60°
DFS-FS41-S Diva-Lite 41 SnapBag
w/ 2 x Diffusion
DFS-FS31-S Diva-Lite 31 SnapBag
w/ 2 x Diffusion
DFS-FS21-S Diva-Lite 21 SnapBag
w/ 2 x Diffusion
SYS-BK12 Block/KF21 Single Battery System,
140Whr, 28.8V (2 x Battery)
LVR-FS440-S Diva-Lite 41 SnapGrid 40°
LVR-FS340-S Diva-Lite 31 SnapGrid 40°
LVR-FS240-S Diva-Lite 21 SnapGrid 40°
Lollipops are interchangeable.
MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm)
MTP-LBC Kino 41 Lollipop w/ Baby Rcvr Curve (16mm)
MTP-LBS Kino 41 Lollipop w/ Baby Rcvr Short (16mm)
Cases
KAS-DL31-C Diva-Lite 31 Travel Case
KAS-DL21-C Diva-Lite 21 Travel Case
15

16
Fixture Speciications
DIV-L21XCU Diva-Lite 21 LED DMX Center Mount
AC Input Voltage: 100~240VAC 50/60Hz, 150W
Amperage VAC: 1.25A at 120VAC,0.65A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 12 lb (5.5kg)
Dimensions: 23.5 x 4.5 x 11.5”
(60 x 11.5 x 29cm)
DIV-L21XYU Diva-Lite 21 LED DMX Yoke Mount
AC Input Voltage: 100~240VAC 50/60Hz, 150W
Amperage VAC: 1.25A at 120VAC,0.65A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 13 lb (6kg)
Dimensions: 28.5 x 4.5 x 14.5”
(72.5 x 11.5 x 37cm)
Diva-Lite 21 LED
Center Mount
Diva-Lite 21 LED
Yoke Mount

17
DIV-L31XCU Diva-Lite 31 LED DMX Center Mount
AC Input Voltage: 100~240VAC 50/60Hz, 150W
Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 14 lb (6.5kg)
Dimensions: 37.5 x 4.5 x 9.5”
(95 x 11.5 x 24cm)
DIV-L41XCU Diva-Lite 41 LED DMX Center Mount
AC Input Voltage: 100~240VAC 50/60Hz, 150W
Amperage VAC: 1.25A at 120VAC,0.65A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 15 lb (7kg)
Dimensions: 49.5 x 4.5 x 7.5”
(126 x 11.5 x 19cm)
DIV-L31XYU Diva-Lite 31 LED DMX Yoke Mount
AC Input Voltage: 100~240VAC 50/60Hz, 150W
Amperage VAC: 1.25A at 120VAC, 0.65A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 14.5 lb (6.5kg)
Dimensions: 42 x 4.5 x 12”
(107 x 11.5 x 30.5cm)
DIV-L41XYU Diva-Lite 41 LED DMX Yoke Mount
AC Input Voltage: 100~240VAC 50/60Hz, 150W
Amperage VAC: 1.25A at 120VAC,0.65A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 15.5 lb (7kg)
Dimensions: 56 x 4.5 x 10”
(142 x 11.5 x 25.5cm)
Diva-Lite 31 LED
Center Mount
Diva-Lite 41 LED
Center Mount
Diva-Lite 31 LED
Yoke Mount
Diva-Lite 41 LED
Yoke Mount

18
FCC Part 15 Veriication:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
FCC Part 15 Declaration of Conformity:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
KINO FLO, INC
Diva-Lite 21, Diva-Lite 31, Diva-Lite 41
ID: XRSCRMXTIMO101
IC: 8879A-CRMXT101
For latest Warranty information and Certiications,
see Kino Flo website at www.kinolo.com.
Environmental: Disposal of Old Electrical & Electronic Equipment.
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. This product is made
of recyclable materials and should be disposed of in accordance with
governmental regulations.
Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA
Tel: [phone] website: www.kinolo.com
The light source of this luminaire is not replaceable; when the light source reaches
its end of life the whole luminaire shall be replaced. The luminaire is intended for
professional use only.
