Kino Flo FreeStyle 31 LED User manual

Quick Start Guide
FreeStyle 31/21 LED
Select 30/20 LED
Part No. 3100100 Rev A 08-30-2017

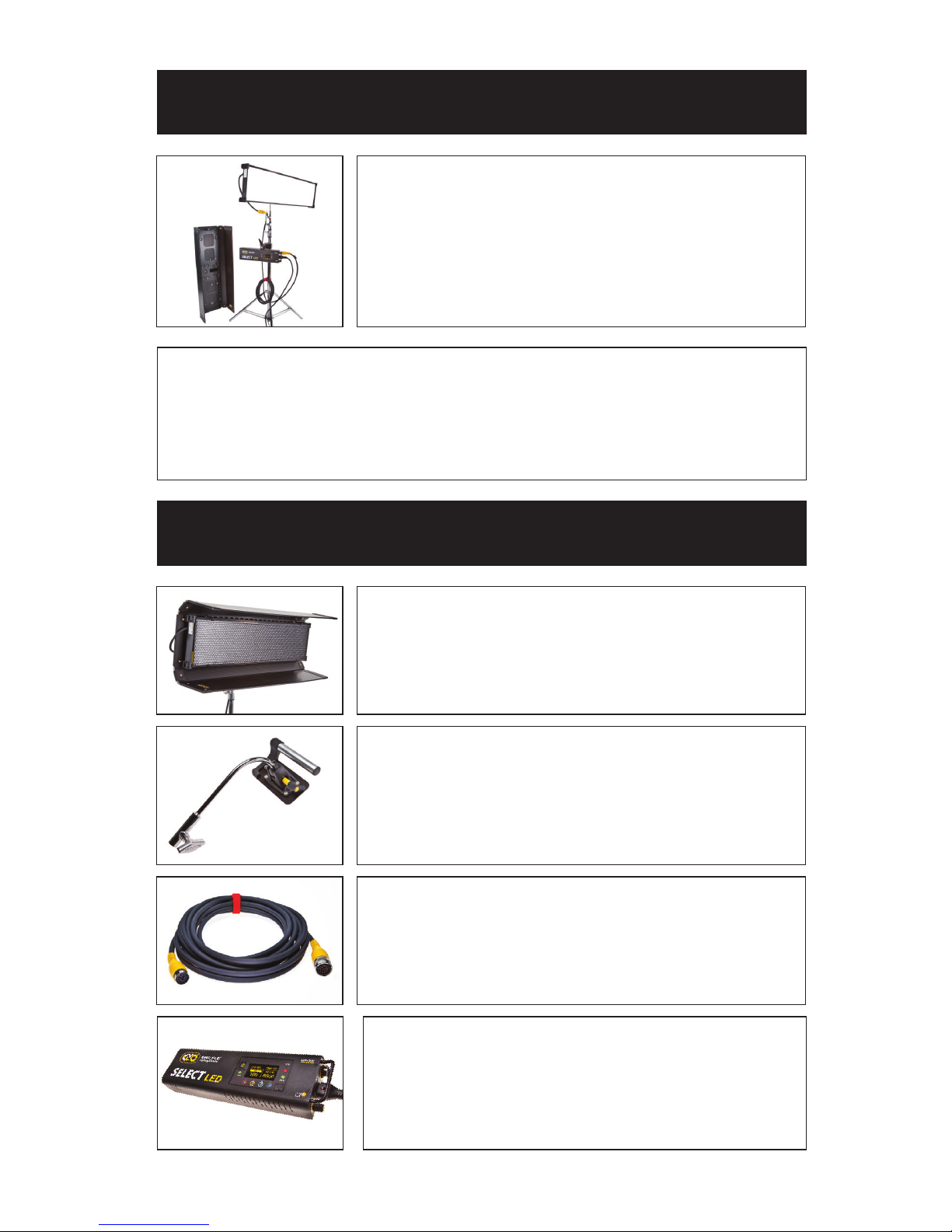

FreeStyle LED System Components
FreeStyle 31 & 21 LED Systems
LED-150X-120U
Select 150 LED DMX Controller, Univ 120U
LED-150X-230U
Select 150 LED DMX Controller, Univ 230U
CFX-F31 FreeStyle 31 LED Fixture
CFX-F21 FreeStyle 21 LED Fixture
SYS-F31-120U FreeStyle 31 LED DMX System, Univ 120U
SYS-F31-230U FreeStyle 31 LED DMX System, Univ 230U
SYS-F21-120U FreeStyle 21 LED DMX System, Univ 120U
SYS-F21-230U FreeStyle 21 LED DMX System, Univ 230U
For available Kits & contents, see www.kinoo.com
MTP-BG41 KinoGrip 41K Mount w/
Baby Receiver (16mm)
X12-25 Select 150 Extension, 25ft
2
Each FreeStyle LED System consists of:
1 FreeStyle LED Fixture
1 Mounting Plate
1 Extension Cable
1 LED Controller

3
Select LED System Components
Select 30 & 20 LED Systems
LED-150X-120U
Select 150 LED DMX Controller, Univ 120U
LED-150X-230U
Select 150 LED DMX Controller, Univ 230U
CFX-SL30 Select 30 LED Fixture
CFX-SL20 Select 20 LED Fixture
SYS-S30-120U Select 30 LED DMX System, Univ 120U
SYS-S30-230U Select 30 LED DMX System, Univ 230U
SYS-S20-120U Select 20 LED DMX System, Univ 120U
SYS-S20-230U Select 20 LED DMX System, Univ 230U
For available Kits & contents, see www.kinoo.com
MTP-BW41 Kino 41K Mount Wing w/
Baby Receiver (16mm)
X12-25 Select 150 Extension, 25ft
Each Select LED System consists of:
1 LED Fixture
1 Mounting Plate
1 Extension Cable
1 LED Controller

4
Power
DC Input
The Select 150 LED DMX can also be operated on 24VDC (input range 18-36VDC)
through a 3-Pin XLR. The pin polarity is:
Pin # 1 – Ground
Pin # 2 + 18-36VDC
Pin # 3 not used
AC Input
The Select 150 LED DMX Controller is
powered AC and includes an IEC
connection. It also includes a 12ft
power cord with a locking IEC connector.
The Select 150 LED DMX Controller has
a built-in power supply with universal
input from 100-240VAC.
Ambient Operating Temperature
The Select 150 LED DMX is designed
to operate at temperatures from 14°F to
104°F (-10°C to 40°C).
Note:
A low voltage warning will display
if input DC voltage is under 18VDC.
Photo example: LOW VDC: 17

FreeStyle Fixture Assembly
The FreeStyle LED Fixture is comprised of a
removable Fixture Shell, LED panel and Louver.
The Louver is held in place with Velcro fasteners.
To remove the LED panel from the xture
housing, press the locking pin and turn
thumbscrew to release LED panel.
Lift LED panel from metal tray.
Slide LED panel from xed pins.
To replace, reverse the procedure.
5

6
Removable Mount
Align the center pin of the mounting plate to the
center hole on the mating plate.
Rotate plate clockwise until the four shoulder rivets
drop into the receptacle. A locking pin will snap into
place when the plate is properly seated.
The yellow wire loop provides an attachment point
for a safety chain.
To remove the plate, pull up on the locking pin and
reverse the mounting procedure.
The FreeStyle removable LED panel also has a
mating plate to accept the twist-on mount plate.

Control Panel - White Mode
ABCDEFGH
A) On /Off: On = Green light displayed. Off = Red light displayed. The display and
all menu settings can be operated while the power button is in the Off position,
as long as power is applied to the controller. The On /Off button only controls the
light source.
B) Menu: Provides access to menu options such as General settings, Reset, DMX and
DMX Wireless settings. Tip: While on control screen, press and hold for 3 seconds to
switch through menus (White, Gels & Hue, RGB).
C) Kelvin & G/M (Green/Magenta) Preset Buttons: Factory defaults left to right are:
2700K, 3200K, 5000K and 6500K. G/M default value is 000. User can also use
these preset buttons to store custom Kelvin and G/M settings.
D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
E) Lock: Press the Lock button to disable all buttons and control knob.
Press for 3 seconds to restore presets to default factory settings.
F) Mode: Press to navigate from Dim to Kelvin and G/M settings. When in sub-menus,
pressing Mode always returns you to main display. When DMX is applied, use Mode
to access DMX channel on main display. Tip: Long press will bring you back one step.
G) Data Port: Mini B USB for software updates.
H) Dimmer Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address.
Press the knob to toggle between ne and coarse adjustments or when selecting
options within menus.
DMX Note: Each FreeStyle/Select LED has an “AUTO TERMINATE” feature.
The last xture that does not have an XLR cable attached to the DMX “Out” port
will automatically terminate.
For full operation manual, see www.kinoo.com
7

8

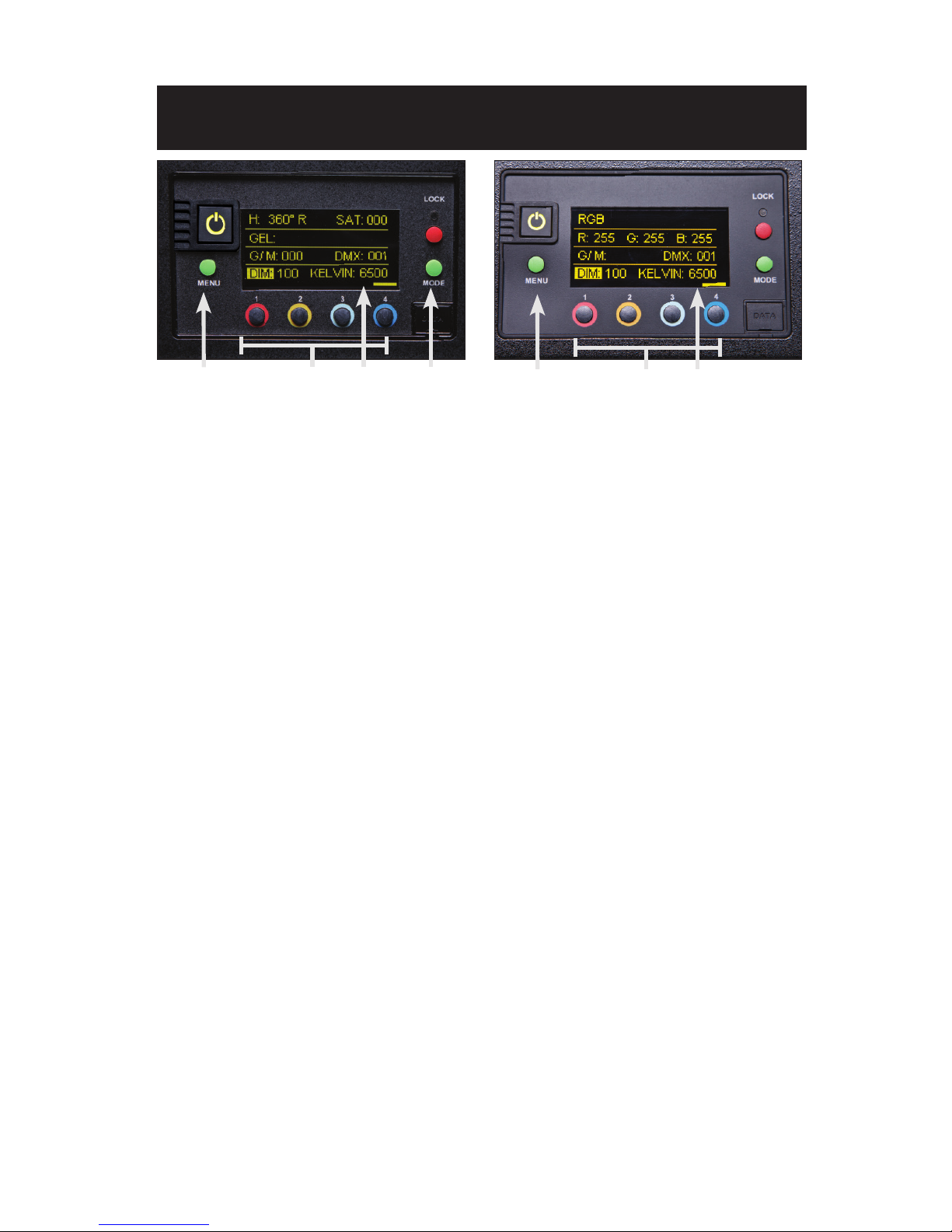

Control Panel - Color & RGB Mode
AA BB CC D
A) Menu: Provides access to menu options such as General settings (Color Mode),
Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and
hold for 3 seconds to switch through menus (White, Gels & Hue, RGB).
B) Kelvin, G/M (Green/Magenta) Gel, Hue & Saturation Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default
value is 000. User can also use these preset buttons to store custom Kelvin
between 2500K and 9900K and custom G/M, Gel, Hue and Saturation settings.
C) Display: Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and DMX
channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000,
DMX = 001.
D) Mode: Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation
settings. When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Tip: Long press will bring you back one step.
A) Menu: Provides access to menu options such as General settings (RGB Mode),
Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and
hold for 3 seconds to switch through menus (White, Gels & Hue, RGB).
B) Kelvin, G/M (Green/Magenta) RGB (Red, Green, Blue) Preset Buttons: Factory
defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default value is 000.
User can also use these preset buttons to store custom Kelvin between 2500K and
9900K and custom G/M, and RGB settings.
C) Display: Provides access to Dim, Kelvin, G/M, RGB and DMX channel. Factory reset
will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
.
D) Mode: Press to navigate from Dim to Kelvin, G/M, RGB settings. When in
sub-menus, pressing Mode always returns you to main display. When DMX is
applied, use Mode to access DMX channel on main display.
Tip: Long press will bring you back one step.
For full operation manual, see www.kinoo.com
Color Mode
RGB Mode

9
CFX-F31 FreeStyle 31 LED Fixture
Weight: 15 lb (7kg)
Dimensions: 40.5 x 3.5 x 11” w/ 6.5” barndoors
(103 x 9 x 28cm w/ 16.5cm barndoors)
CFX-F21 FreeStyle 21 LED Fixture
Weight: 11.5 lb (5kg)
Dimensions: 26.5 x 3.5 x 13” w/ 6” barndoors
(67 x 9 x 33cm w/ 15cm barndoors)
FreeStyle LED Fixture Specications
FreeStyle 31 LED
FreeStyle 21 LED
CFX-SL30 Select 30 LED Fixture
Weight: 12 lb (5kg)
Dimensions: 40.5 x 3.5 x 11” w/ 6.5” barndoors
(103 x 9 x 28cm w/ 16.5cm barndoors)
CFX-SL20 Select 20 LED Fixture
Weight: 10 lb (4.5kg)
Dimensions: 26.5 x 3.5 x 13” w/ 6” barndoors
(67 x 9 x 33cm w/ 15cm barndoors)
Select LED Fixture Specications
Select 30 LED
Select 20 LED

10

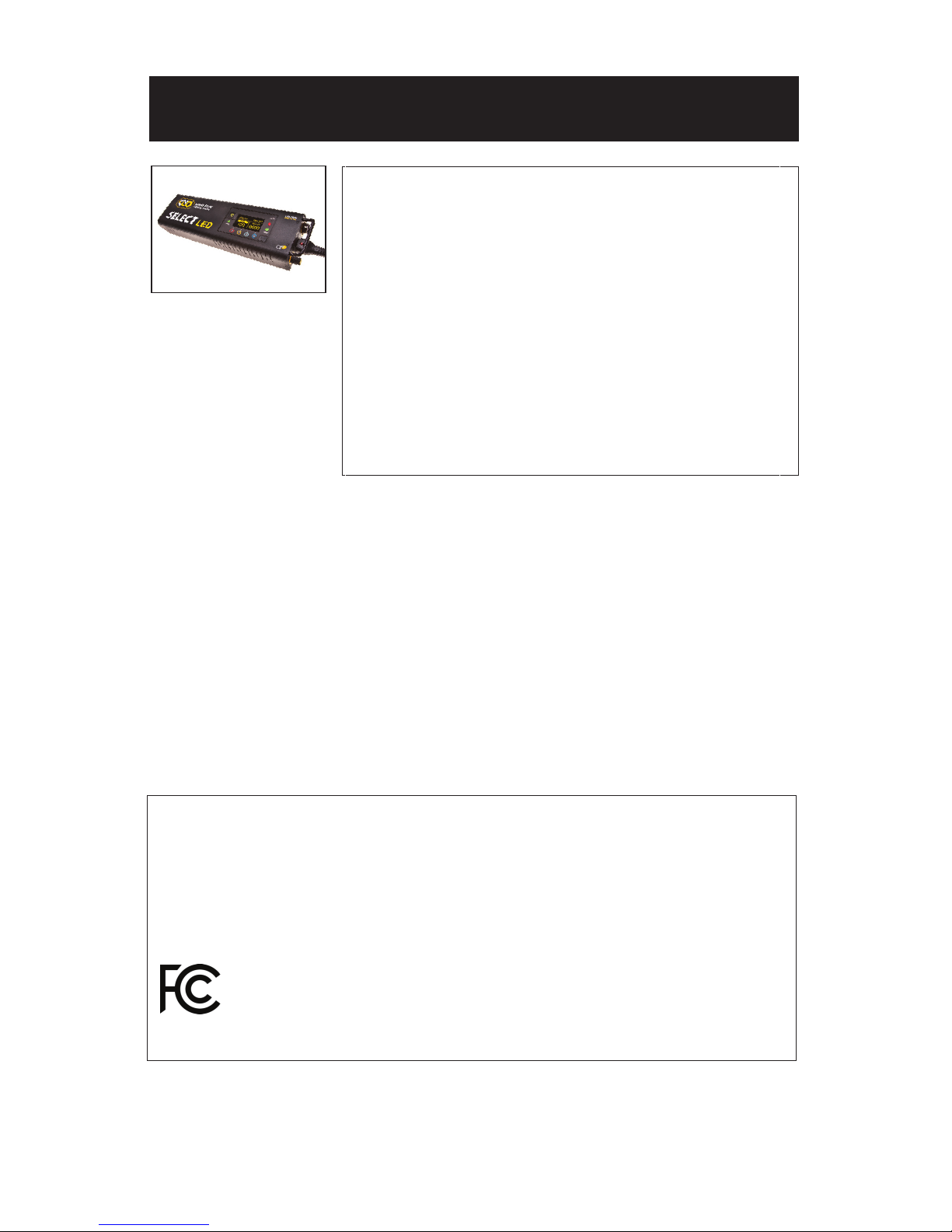

LED-150X Select 150 LED DMX Controller
AC Input Voltage: 100~240VAC 50/60Hz, 150W
Amperage VAC: 1.25A at 120VAC,0.65A at 230VAC
DC Input Voltage: 18~36VDC, 150W
Amperage VDC: 6.25A at 24VDC
Kelvin Range: 2700K~6500K (White Mode)
Kelvin Range: 2500K~9900K (Color Mode)
Dimming Range: 100%~1%
Weight: 4.5 lb (2kg)
Dimensions: 14.5 x 4 x 3”
(37 x 10 x 8cm)
Use with FreeStyle 31/21, Select 30/20 Fixtures.
For full operation manual, see www.kinoo.com
LED Controller Specications
Select 150 LED
DMX Controller
FCC Part 15 Verication:
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition
that this device does not cause harmful interference.
FCC Part 15 Declaration of Conformity:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
KINO FLO, INC
Select 30, Select 20, FreeStyle 31, FreeStyle 21
ID: XRSCRMXTIMO101
IC: 8879A-CRMXT101

11

12
For latest Warranty information and Certications,
see Kino Flo website at www.kinoo.com.
Environmental: Disposal of Old Electrical & Electronic Equipment.
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. This product is made
of recyclable materials and should be disposed of in accordance with
governmental regulations.
Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA
Tel: [phone] website: www.kinoo.com
