Kirstein Pronomic XL-12M1 User manual

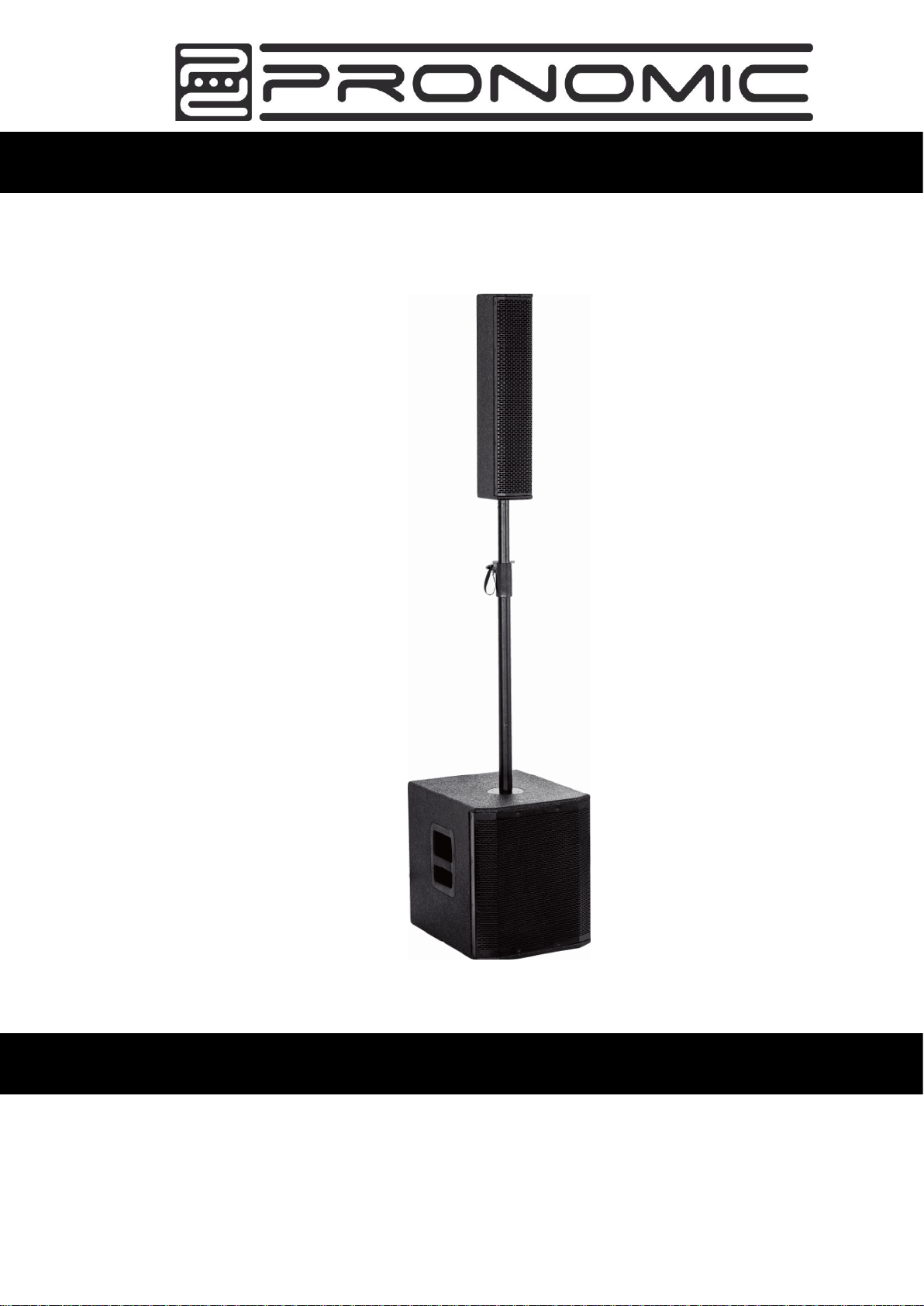

Active PA-System Pronomic XL-12M1
Operating Manual
ArtNr.: 00055469
Revision: *-08-2019

Pronomic XL-12M1
2020-01-28 Pronomic XL-12M1 / ArtNr.: 00055469 1
© 2019
This manual is protected by copyright. Any copying or reprint, even in excerpts, is
only allowed with written consent of Musikhaus Kirstein GmbH. The same applies to
reproduction or copying of images, even in altered form.
Contents
Technical Data ....................................................................................................... 3
Product Description (rear panel) .......................................................................... 4
Power Supply......................................................................................................... 5
SAFETY .................................................................................................................. 5
Connections........................................................................................................... 6
Intended use .......................................................................................................... 7
Important safety instructions................................................................................. 7
Installation and Operation .................................................................................... 7
CLEANING & MAINTENANCE ............................................................................... 7
SIMPLIFIED EU DECLARATION OF CONFORMITY ............................................. 8
WEEE Declaration (Waste of Electrical and Electronic Equipment) ................. 8

Pronomic XL-12M1
2 Pronomic XL-12M1 / ArtNr.: 00055469 2020-01-28
Thank you for purchasing this product. To ensure you will be completely satisfied with this
product, read and understand this manual carefully before use. Keep the manual in a safe
place. The Operating Manual must be passed on to all subsequent users.
Follow the Operating Manual!
The signal word WARNING identifies hazards, which can result
without precautions in serious injury.
The signal word NOTE indicates general precautions, which should
be observed in handling the product.
Images used in this manual may differ slightly from the actual
product, as long as it has no adverse effect on the properties and
safety of the product.
All personal formulations in these instructions are to be considered
gender neutral.
These operating instructions apply to persons who have been supervised or
instructed in the operation of the unit by a person responsible for their safety and
who have proven to be able to handle the unit.
Children should be supervised to ensure that they do not playwith
the unit. Do not leave the children unattended.
All information contained in this Operating Manual is accurate to the best of our
knowledge and belief. Neither the author nor the publisher, however, can be held liable for
damages or losses that arise in connection with the use of this Operating Manual.
Other product, brand or company designations specified in this document are
possibly the trademarks of their respective owners. Compliance with all applicable
copyright laws is the responsibility of the user of this document.

Pronomic XL-12M1
2020-01-28 Pronomic XL-12M1 / ArtNr.: 00055469 3
Technical Data
Type
Pronomic XL-12M1
Article
00055469
USB/SD/Bluetooth Player
yes / yes / yes
Accessories
Amplifier, MP3 Player, Control Panel
Power (RMS/Peak) [W]
500 W / 1000 W
Net Power
220 (230V) /AC 50/60Hz
LS / Woofer
1*12“,2“VC/80oz
HT / Tweeter
1*1"Neodymium driver, 4* 4” driver
Sensitivity [1W/m]
97dB +/- 2dB
Max. SPL
122dB
Frequency range
40Hz-19KHz
Weight
22.5kg/20kg (subwoofer)
6.6kg/7.2kg (Satellite Speaker)
Dimensions (W x H x D)
52 x 42 x 50 (subwoofer)
24.5 x 16.5 x 63 (Satellite Speaker)
Material
housing plywood
Line input/output
yes
L/R
yes
Microphone input
yes
Max. Transmission power (Bluetooth)
1mW / 0dBm
Frequency Range in MHz (Bluetooth)
2401.418 –2480.498

Pronomic XL-12M1
4 Pronomic XL-12M1 / ArtNr.: 00055469 2020-01-28

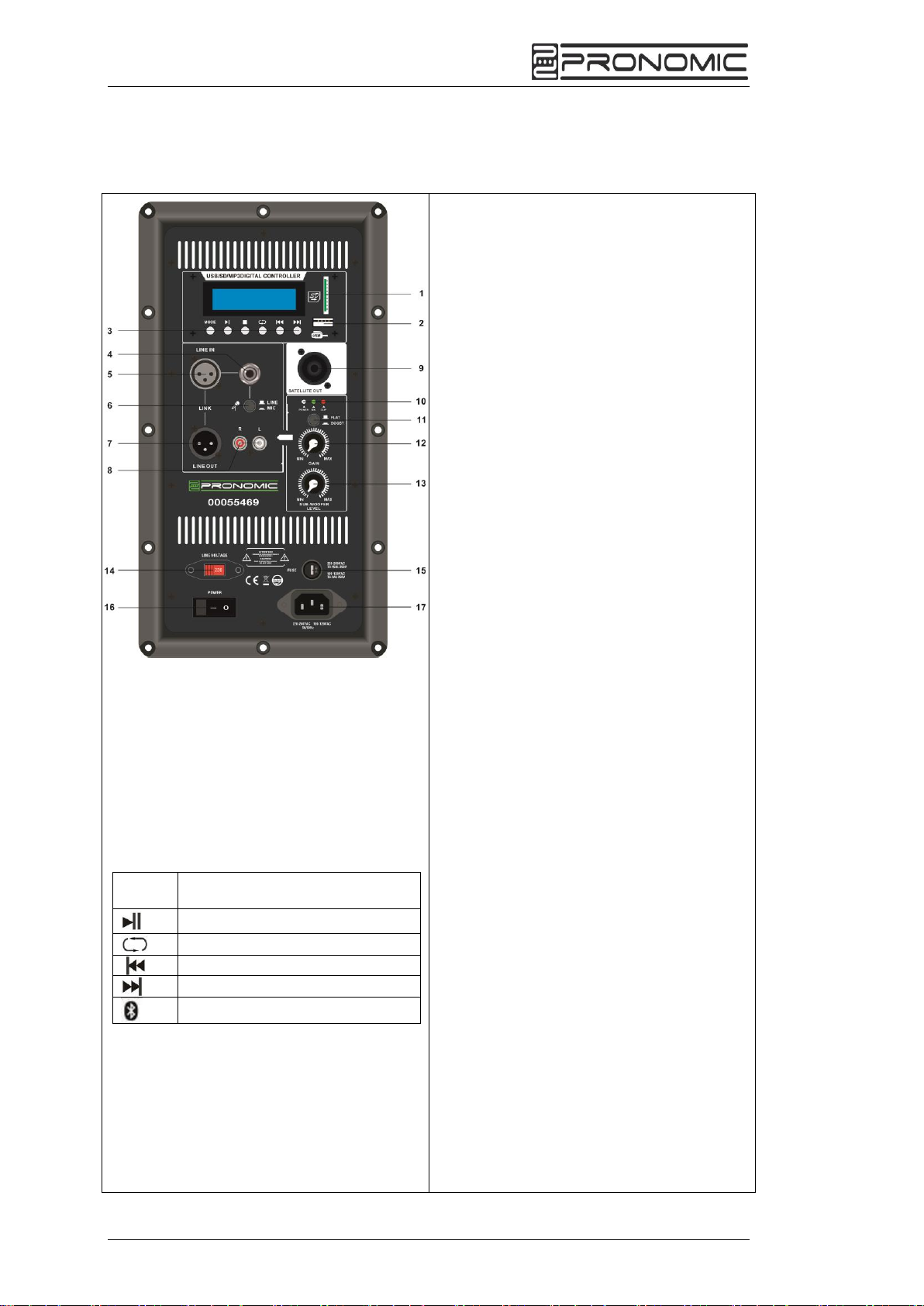

Product Description (rear panel)
1. SD card slot: Use it to insert a SD card
with MP3 files
2. USB slot: Use it to insert a USB flash
driver with MP3 files
3. „Mode key“ and “Pause key“ “Play key“:
“Mode key” press to change from
USB/SD, Bluetooth and press “Play” to
play a song or “Pause” while playing a
song or stop the current song.
Bluetooth Pairing Name: XL-12M1
4. Balanced Jack 6.3mm (1/4”) input: Can
connected with microphone
5. Balanced XLR input: Can connected
with microphone.
MODE
Exchange between USB / SD /
Bluetooth
Play/Pause
Repeat
Last
Next
Bluetooth
6. Input sensitivityswitch; Line: normalmode
Mic: The input sensitivity is set to MIC
level, suitable for the direct connection of a
dynamic microphone. Do NOT use this
setting when connected to a mixer output!
7. Balanced parallel XLR output: This
output is linked in parallel with the audio
input and is useful to connect another
amplifier.
8. RCA Line input.
9. Satellite Out: IMPORTANT: Before
turning the amplifier on, link the
subwoofer amplifier output to the
satellite speaker input!
10. Power LED: When lit, the power is on.
Signal LED: When lit, the signal
presence at the audio input. CLIP LED:
When lit, the input signal level is
excessive and should be reduced
11. Flat / Boost Switch, Flat (normal mode):
No equalization is applied (flat
frequency response).
Boost (pushed switch): ‘loudness’
equalization, only recommended for
background music at low volume levels.
12. Top Satellite speaker volume control:
Turn it either clockwise to increase the
volume or counter clockwise to
decrease. Turn on lowest level before
you switch on.
13. Subwoofer volume control: Turn it
either clockwise to increase the bass or
counter clockwise to decrease. Set the
volume control to minimum and adjust
the Bass after you switched on the
device.
14. Fuse information
15. Fuse: 220-240VAC~T3.15AL250V
16. Power Switch: Push to turn ON / off the
amplifier. Before switching the amplifier
on, check all connections and turn fully
counter clockwise the volume control
17. Power cord input: Before connecting
the power cord, check if the mains
corresponds to the voltage indicated on
the rating plate on the unit. Connect the
power cord only to a mains socket
outlet with a protective earthing
connection.

Pronomic XL-12M1
2020-01-28 Pronomic XL-12M1 / ArtNr.: 00055469 5
Power Supply
Check that the mains voltage corresponds to 100V(120) / 220(240)V 50/60Hz.
By using other voltages than specified the equipment can be irreparably damaged.
The equipment must be directly connected to the mains.
SAFETY
Before fitting or removing the unit, ensure that the power cord
is disconnected from the mains.
Make sure that the unit is positioned so that no one can trip
over the power cord.
Power supply / power cord (devices with power cords/power supplies):
Use only the voltage specified as correct for the device. The required voltage
is printed on the type plate of the device.
Check the power cable from time to time regarding dirt, damage or other
influence.
Use only the included power cord / power supply or adaptor.
Do not place the power chord near heat sources such as heaters or
radiators, and do not excessively bend or otherwise damage the cord, place
heavy objects on it, or place it in a position where anyone could walk on, trip
over, or roll anything over it.
When removing the electric plug from the device or an outlet, always hold the
plug itself and not the cord. Pulling by the cord can damage it.
Remove the electric plug from the outlet when the device is not to be used
for extended periods of time, or during storms.
To avoid generating unwanted noise, make sure there is adequate distance
(50 cm or more) between the AC power adaptor and the device. Do not
cover or wrap the AC power adaptor with a cloth or blanket.

Pronomic XL-12M1
6 Pronomic XL-12M1 / ArtNr.: 00055469 2020-01-28
Batteries / safety instructions (Remote control)):
Use only high quality batteries –do not mix batteries with rechargeable
accumulators.
Do not try to recharge non-rechargeable batteries.
Keep attention to the polarity when changing the batteries (polarity is signed
on the device).
Do not cause an electrical short at the batteries, do not open the batteries
Changing of batteries must not be done by children, do not let children play
with batteries.
Remove batteries from the device when the Device is not in use for a longer
period.
Batteries are special waste, do not dispose them with the domestic waste.
Do not open:
Do not open the device or attempt to disassemble the internal parts or modify
them in any way. The device contains no user-servicable parts. If it should
appear to be malfunctioning, discontinue use immediately and have it
inspected by qualified service personnel.
Water warning:
Do not expose the device to rain, use it near water or in damp or wet
conditions on it containing liquids which might spill into any openings.
Never insert or remove an electric plug with wet hands.
If you notice any abnormality:
If the power cord or plug becomes frayed or damaged, or if there is a sudden
loss of sound during use of the device, or if any unusual smells or smoke
should appear to be caused by it, immediately turn off the power switch,
disconnect the electric plug from the outlet, and have the device inspected
by qualified service personnel.
Connections
Before using the unit at the first time, ensure that your mains voltage corresponds to
voltage indicated on the unit.

Pronomic XL-12M1
2020-01-28 Pronomic XL-12M1 / ArtNr.: 00055469 7
Intended use
Important safety instructions
Connect the power cord to the power supply.
Only use the mains voltage specified for the device (see technical data).
Connect the signal sources with the appropriate audio cable (jack, XLR) to
the input and output jacks on the back of the unit.
Switch on the device when you have made all connections.
Connect only one cable with optional XLR, 6.35 mm jack or chinch.
Check all connections before switching on the device.
Before switching the device on, you must set the master volume control to
"0". Turn on the audio source and the device. Slowly increase the overall
volume at the desired level.
Installation and Operation
Disconnect the device from the power supply before
installation.
Place the speaker on a solid flat surface (ground, etc.). Make sure, that the speaker
doesn’t fall over.
CLEANING & MAINTENANCE
Never immerse the device in liquids.
Check the power plug at regular intervals and remove any dust or dirt that may have
accumulated.

Pronomic XL-12M1
8 Pronomic XL-12M1 / ArtNr.: 00055469 2020-01-28
SIMPLIFIED EU DECLARATION OF CONFORMITY
Herewith Musikhaus Kirstein GmbH declares that the device/radio unit [Pronomic
XL-12M1] is in compliance with the EU directive 2014/53/EU. You can download the
full EC declaration of conformity for this item under download link:
http://www.kirstein.de/docs/Konformitaetserklaerung/CE_Konformitaetserklaerung_0
0055469.pdf
WEEE Declaration
(Waste of Electrical and Electronic Equipment)
Your product has been designed and manufactured using quality materials and
components that are recyclable and reusable. The symbol means that your product
must be disposed separately from household waste at the end of its service life.
Dispose of this equipment at your local collection point or recycling center.
Please help to protect the environment in which we all live.
All specifications and appearances are subject to change without notice. All
information was correct at time of printing. Musikhaus Kirstein GmbH does not
guarantee for the accuracy or completeness of any description, photograph or
statement contained in this manual. Printed colors and specifications may vary
slightly from product. Products from Musikhaus Kirstein GmbH are only sold through
authorized dealer. Distributors and dealers are not agents of Musikhaus Kirstein
GmbH and have no authority to bind Musikhaus Kirstein GmbH legally in any way.
Musikhaus Kirstein GmbH
Bernbeurener Str. 11
86956 Schongau –Germany
Telefon/Phone: [phone]
Telefax/Fax: [phone]-19
